USER MANUAL SUP-305 Vevor

Affordable. Reliable. Home Improvement.

PADDLE BOARD

SERIES:SUP-X

( TIPS : X IS 305/320/335/350/305S/320S )

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

PADDLE BOARD

SERIES:SUP-X

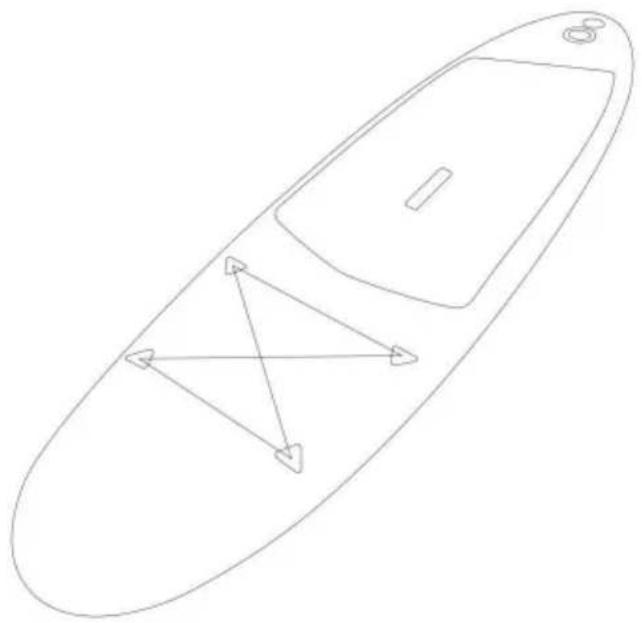

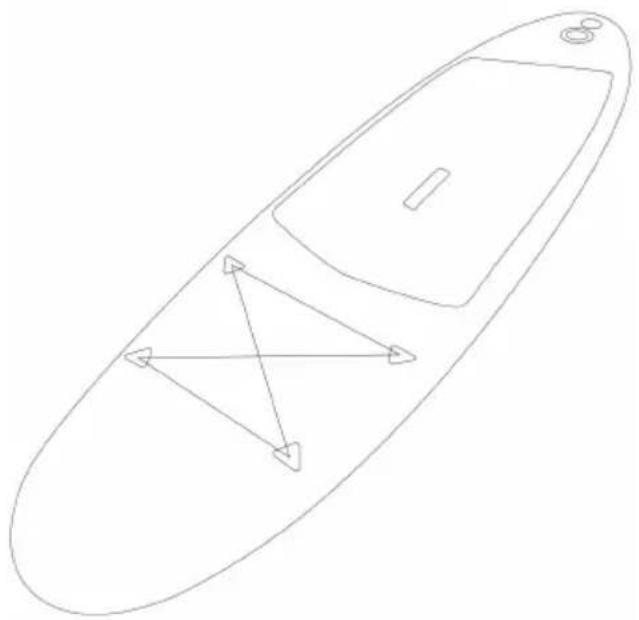

Line drawing of a boat hull with internal compartments and star-shaped structural elements (no text or symbols)

SUP-305/SUP-320/SUP-335/SUP-350

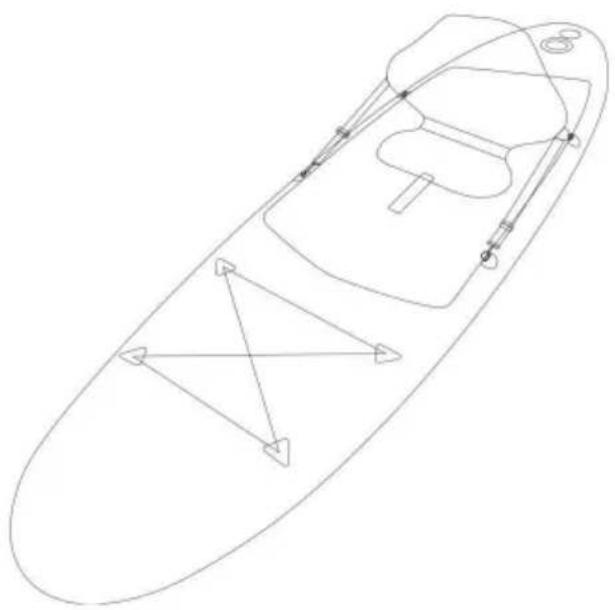

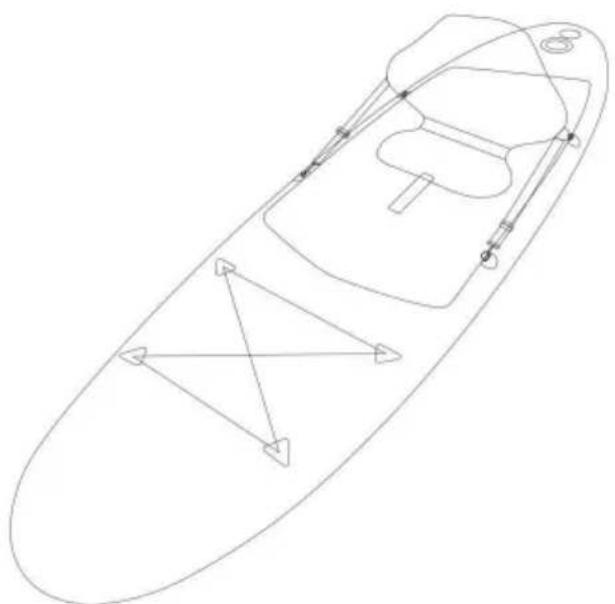

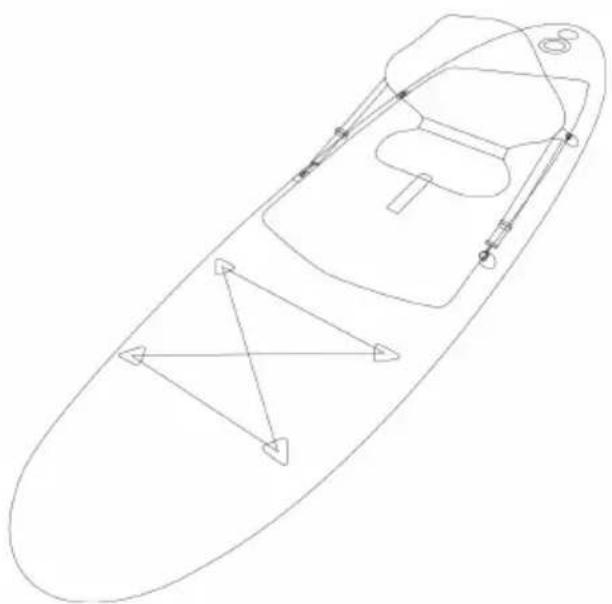

Line drawing of a boat with structural components and star-shaped markings (no text or symbols)

SUP-305S /SUP-320S

This is the original instruction, please read all manual instructions carefully by operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or so updates on our product.

Warning-To reduce the risk of injury, users must read instructions manual carefully.

PRODUCT PARAMETERS

Model	SUP-305	SUP-320	SUP-335	SUP-350	SUP-305S	SUP-320S
Seat	×	×	×	×	√	√
Size	10'×33"	10.6'×33"	11'×33"	11.6'×35"	10'×33"	10.6'×33"
Load	330lbs	350lbs	370 lbs	360lbs	330lbs	350lbs

ACCESSORY LIST

NO	PICTURE	NAME	QTY	NO	PICTURE	NAME	QTY
A		Backpack	1	F		Hand Pump	1
B		Inflatable SUP	1	G		Fin	1
C		Aluminium Paddle	1	H		Repair Kit	1
D		Leash	1	I		Seat (only for SUP-305S &SUP-320S)	1
E		Velcro Straps	1	J		Repair Piece	2

Disregarding any of the safety precautions and instructions contained in owner's manual on the product may result in injury, including the possib of death.

- Always wear your safety leash.

When it comes to paddle board safety, the most important tool is the leash. matter you are a beginner or an elite paddle boarder, the leash may be the difference between life and death. A leash is a tool that connects you to yo Your board is your personal flotation device that can soon help you float in after falling. Using a leash means you are not only protecting your own life lives of those around you.

- Always wear a coast guard approved personal flotation device.

The second most important tool for paddle board safety is the life jacket. An point of stand-up paddle board you should be aware is that when a paddle used in areas "beyond the narrow limits of a swimming, surfing, or bathing a will be considered as a vessel. In these areas, you are required by law to United States Coast Guard approved flotation device every time you paddle o Here you will use a life jacket that provides maximum buoyancy.

- Monitor the weather before paddle boarding.

It seems to be effortless to use a Stand-up paddle board but please note that skillful sport and demands awareness of dangers that may incur due to the changing forces of nature.

- Before paddling the board, for safety concern, never drink alcohol or anything else that may impair your coordination, judgment and paddle boarding ability.

- Never allow minors to use this board without any adult supervision.

- Never paddle the board after sunset, before dawn or at any time in plighting, avoid paddling in offshore wind or windy conditions.

- Do not exceed your paddling abilities. Be aware of your limitations. Paddle within your capacities, do not overload.

- Check local laws and regulations regarding proper and safe use of this product.

OPERATION

Inflating Your Board

1. Unfold the paddle board on a clean and smooth

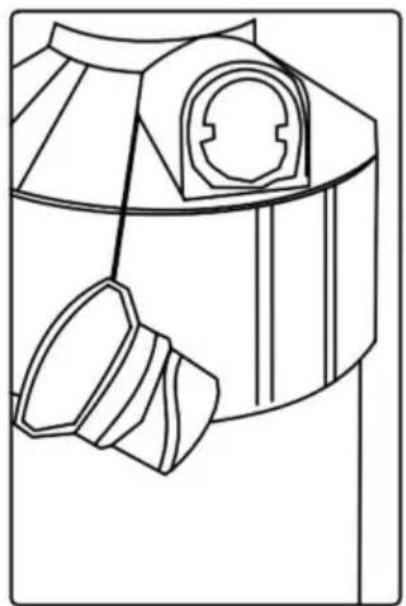

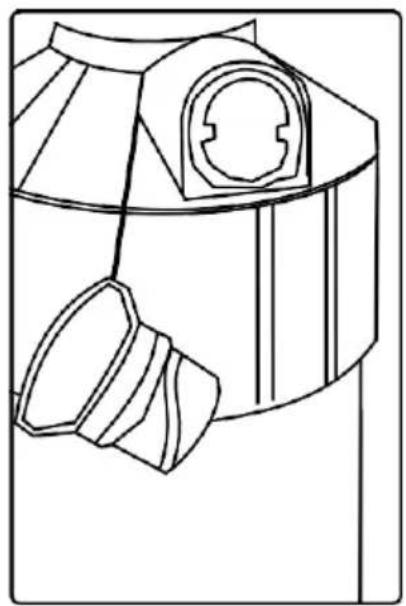

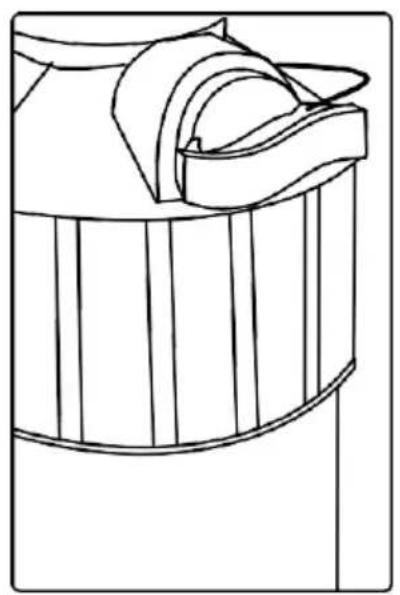

2. Remove the valve cover and press down spring. counter clockwise to open it.
3. Connect the air tube to the pump and tighten it clockwise.

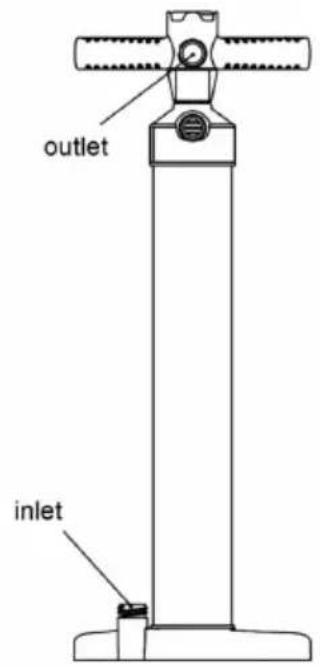

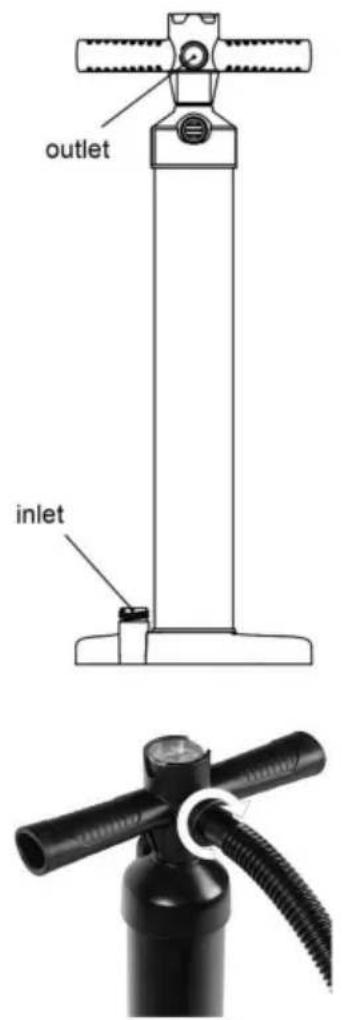

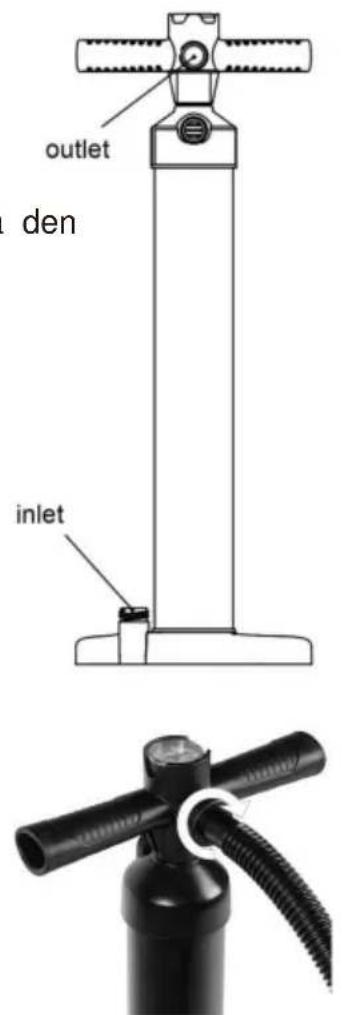

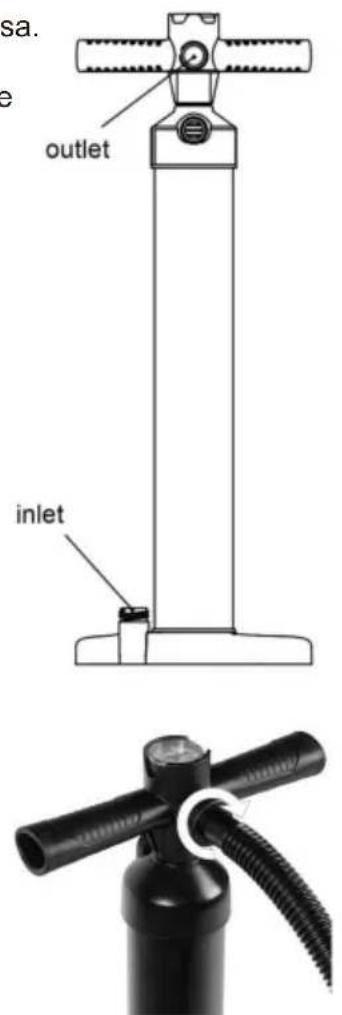

Dual Action High Capacity Single Action High Pressure

Line drawing of a garment sleeve with pleated collar and side trim (no text or symbols)

Line drawing of a mechanical component with a cylindrical housing and a hanging part (no text or symbols)

outlet inlet

Close-up of a black cylindrical device with coiled tubing and two protruding tubes (no text or symbols visible)

a. Dual action first. Switch to single action when you feel hard to inflate
b. The gauge needle will move when the pressure reaches 5 psi.
c. It takes about 10 minutes of pumping.
d. Single action high capacity:1.8L, Standard pressure: 20psi.
e. Double action high capacity: 1.8L+1.5L, Standard pressure: 7psi.

1. Inflate the board until reaching the required 12-15 PSI.

2. Lock the valve cover over the valve stem.

Note: There is no worry about over-inflating or damaging the board when the hand pump. It takes 3 PSI of pressure in the board before the ga pump will register. While your board may look and feel rigid, continue to the gauge reaches the recommended pressure of 12-15 PSI. The pump will significant amount of resistance the closer you get to the recommended

Installing Center Detachable Fin

1. Insert the fin's front end into the open in the front of the fin box.
2. Push the fin down until it is flush with th of the fin box. Apply pressure if needed.
3. Make sure the fin tab is in the middle p before placing the back of the fin in.
4. Push fin lock down tab to secure the fin place.

Installing Leash

Please note that you should always attach your SUP coil leash to your boar also recommended to remove your leash after use to prevent unintentional snagging. Warping a leash around the board and fins may result in damage leash.

	1 Thread string loop through the handle at the tail of the board.
	2 Thread cuff through string loop and pull up tight onto the board.
	3 Open up velcro cuff and insert through string loop.
	4 Fold over and close the first tv velcro straps.
	5 Fold over the final velcro tab a press firmly to secure it in place.

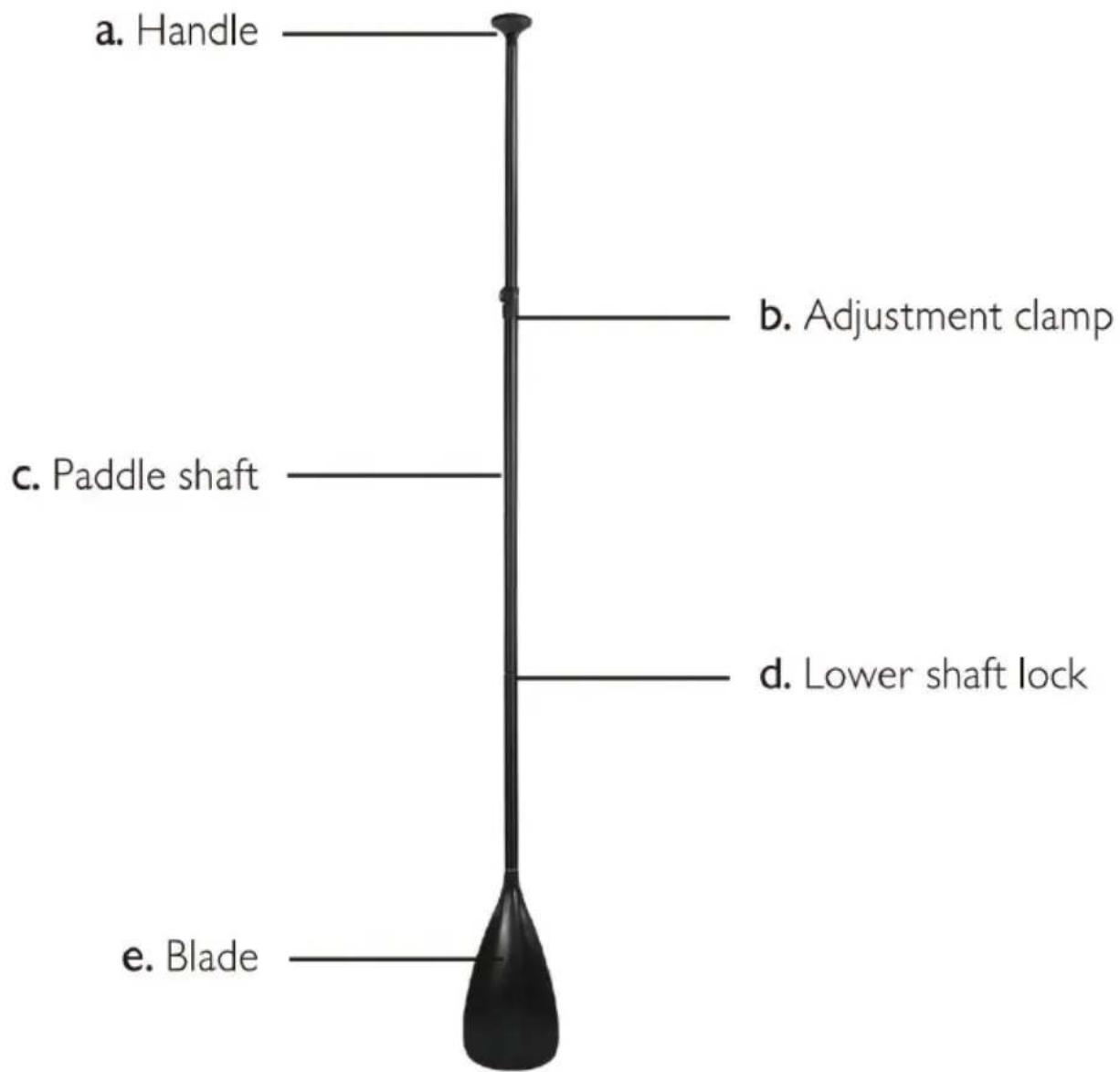

Adjusting Aluminum Paddle (3-pieces)

a. Handle b. Adjustment clamp c. Paddle shaft d. Lower shaft lock e. Blade

1	2
Open adjustment clamp to lengthen shorten your paddle.	Close adjustment clamp to secure your paddle length in the place yo want.

Note: If the inner shaft twists or slides, the adjustment clamp may not be ti enough. Rotate the clamp clockwise to tighten; counterclockwise to loosen.

1) Do not extend upper shaft beyond the maximum paddle length mark.
2) Extending beyond the maximum extension limit can result in permanent damage to the adjustment clip while padding.
3) We recommend rinsing your paddle with fresh water after each use and removing upper shaft for drying.

4) Do not leave exposed to direct sunlight for prolonged periods. The sun can damage the paddle.

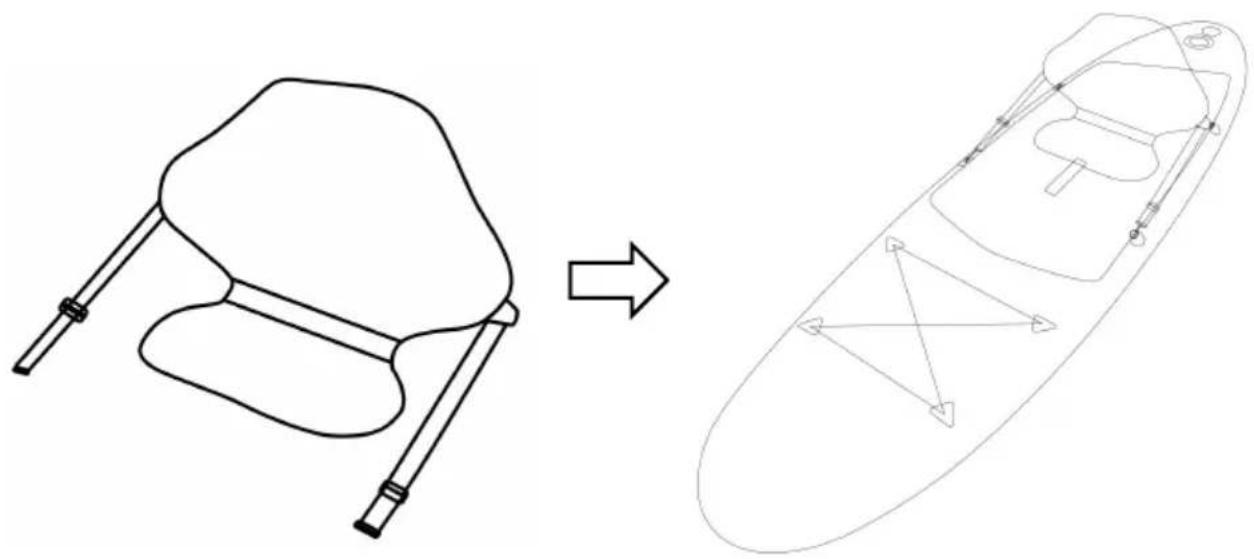

Installing seat

It is easy to install a kayak seat on the paddle board; seat hooks hang dirt the D rings.

Diagram showing a vehicle body with structural components before and after assembly (no text or symbols)

STORAGE AND MAINTAIN

Board is made of PVC that can offer superior UV protection. However, to er longer lifetime, please avoid storing the board where it may be exposed to v or in direct sunlight.

Please check the following list of storage tips:

1) Make sure to fully deflate the board, remove the center fin and your lease
2) Clean and check the boards after each use. Rinse your board thoroughly, making sure to remove any residues of sand and salt water build up. Use a soap to remove any dirt, and avoid all heavy chemical based products. Make the board is completely dry before storing it away.
3) When folding up your board for storage, make sure to roll from the nose leaving the inflation valve open while doing this. Once the board is fully rolled be sure to close and lock the inflation valve and secure the board strap arc your rolled up board.
4) When storing your board, keep it in a clean and dry place that will not affected by the elements or major temperature changes. Please don't store your board outdoors.

Limit exposure of direct sunlight to the Deck-side.

1) While the benefits of a non-slip traction pad are obvious, they also increase risk of overheating.
2) While in use, water flowing over the deck helps to regulate surface temperature
3) But when the deck traction pad is dry, the effects of heat absorption are amplified when exposed to direct sunlight.
4) If you must expose your board to direct sunlight during transport or temperature storage, it is safest to keep the bottom facing up.

Avoid heat damage always.

1) When not in use, never leave your board exposed to direct sunlight for e periods.
2) Always keep your board in a shaded area when not in use.
3) When not in use, never leave your deck pad exposed and facing the sur

OVERHEATING YOUR PADDLE BOARD IS NOT COVERED BY MANUFACTURING WARRANTY!

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
