USER MANUAL SSZGB-02 Vevor

Affordable. Reliable. Home Improvement.

SHADE CLOTHS

MODEL: SSZGB-02\SSZGB-03\SSZGB-04 SSZGB-05\SSZGB-06\SSZGB-07

Technical Support and E-Warranty Certificate

www.vevor.com/support

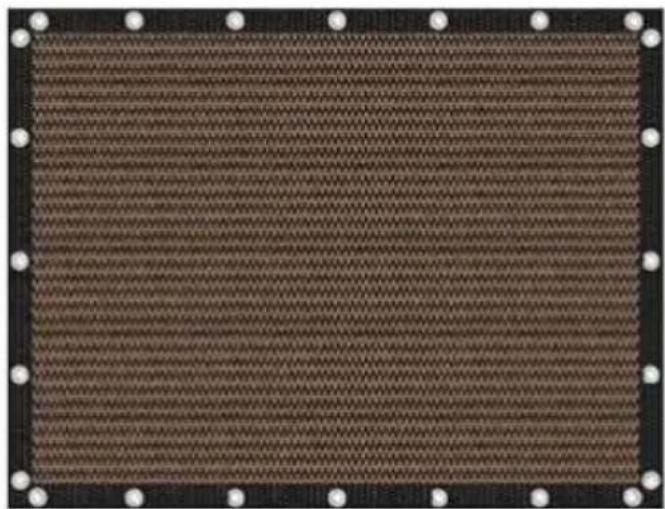

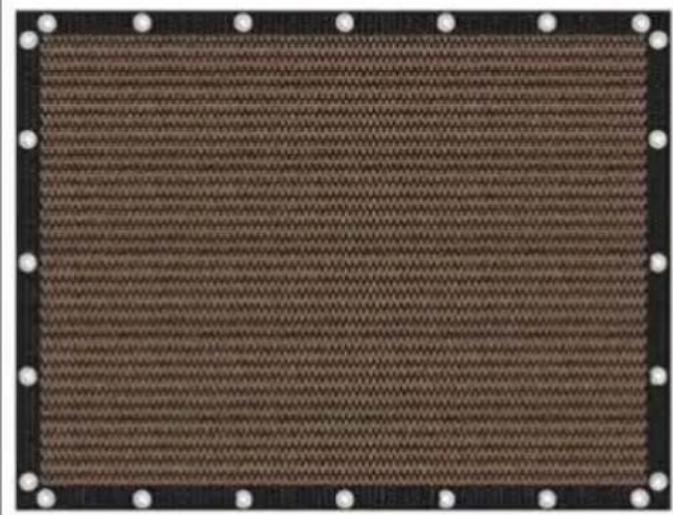

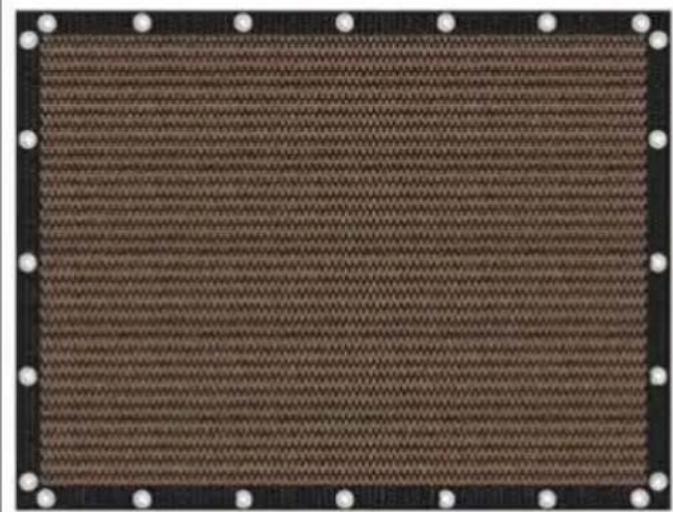

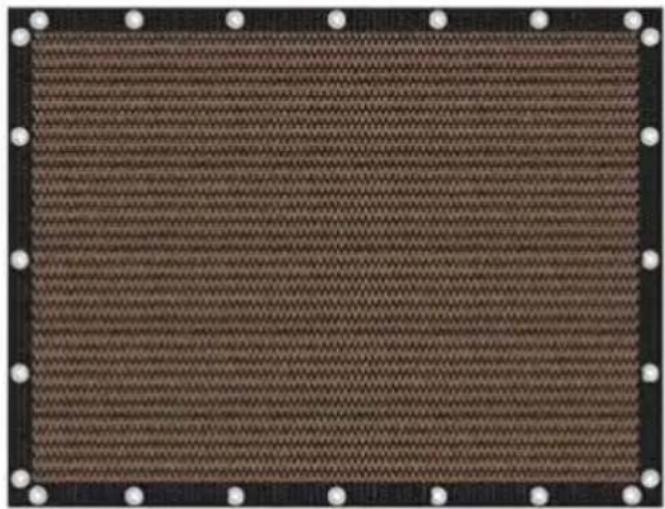

SSZGB-02\ SSZGB-05

Close-up of a woven fabric with uniform texture and small white dots at corners (no text or symbols)

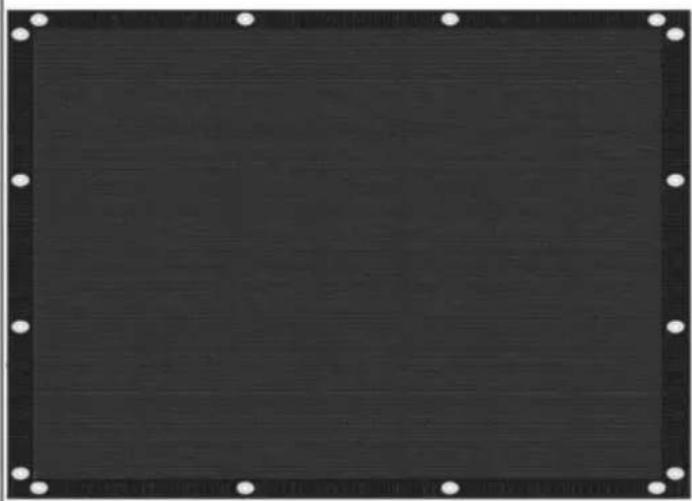

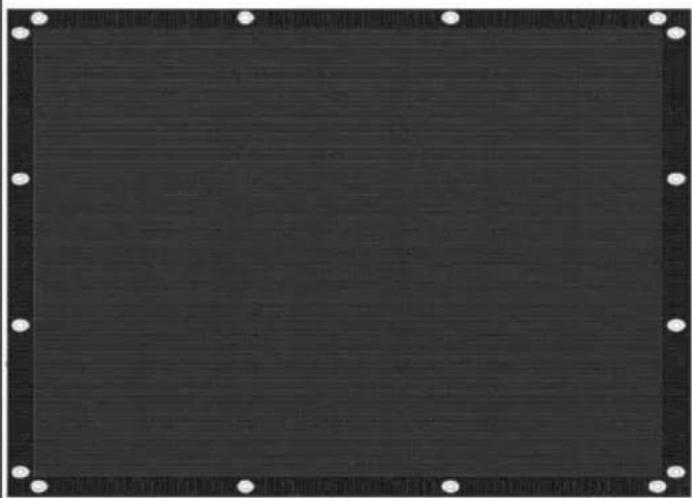

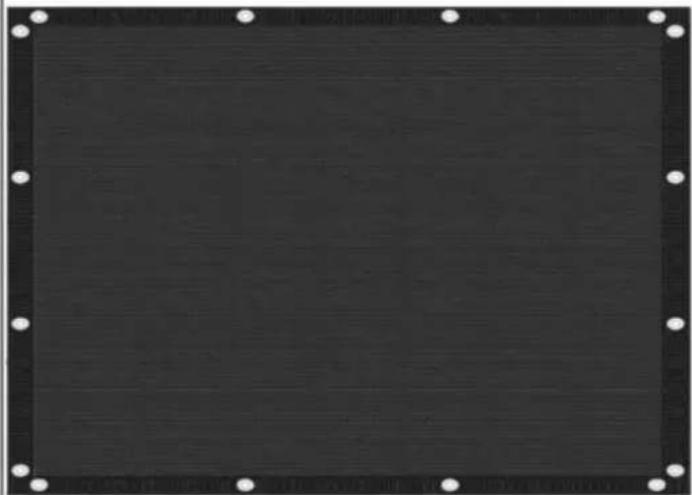

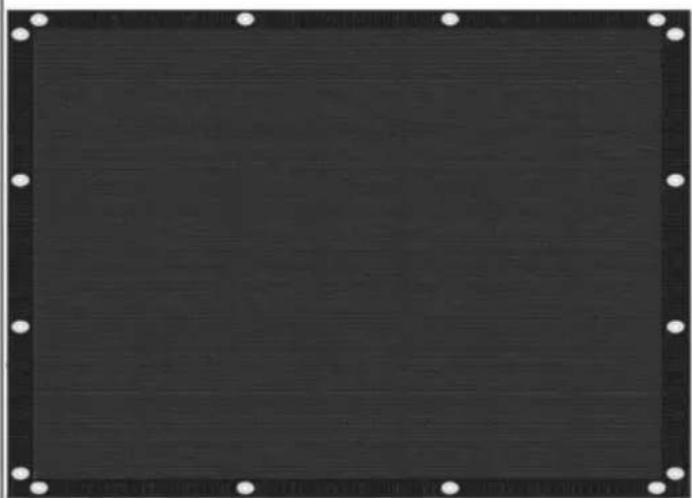

SSZGB-03\ SSZGB-04\ SSZGB-06

Dark rectangular panel with white circular markers at corners, no visible text or symbols

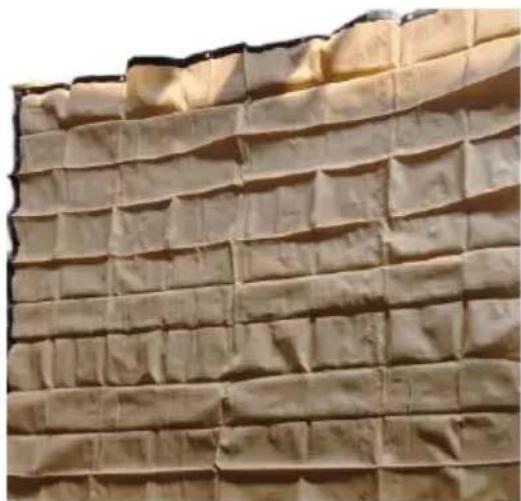

SSZGB-07

Close-up of a woven fabric wall with layered texture and beige bands (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so may result in serious injury.

PRECAUTIONS:

! Be sure to read the following safety tips before use:

1. Installation safety:

- Avoid installation in bad weather such as strong wind, rain and snow; - Use special fixing tools (e.g. nylon ties, U-shaped nails) to prevent the netting from falling off and causing accidents.

1. Fire warning:

- HDPE material is flammable, keep away from fire and high temperature heat sources (such as welding sparks, open flame); - Prohibit fireworks near the netting.

1. load restrictions:

- Do not hang heavy objects or climb, so as not to tear the netting; - When the snow is too thick, it needs to be cleaned in time to prevent overloading and breaking.

1. Children's safety:

- The edge of the netting needs to be fixed firmly to avoid children pulling and entangling, resulting in danger.

SAVE THIS MANUAL

ACCESSORY LIST

Close-up of black rope tied with a cluster of round beads (no text or symbols visible)

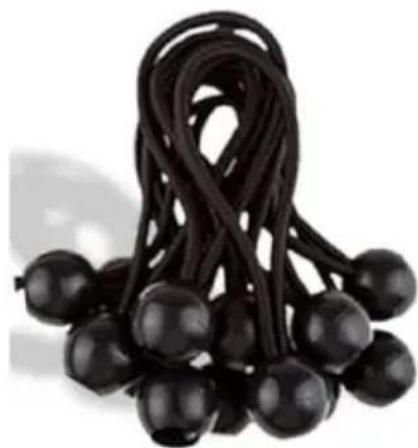

Bungee Balls *5pcs

Bangled bundle of black plastic clips tied with a string (no text or symbols visible)

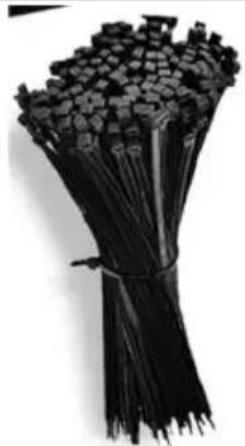

Zip-ties *30pcs

Close-up of a coiled, translucent plastic or wire-like material with no visible text or symbols

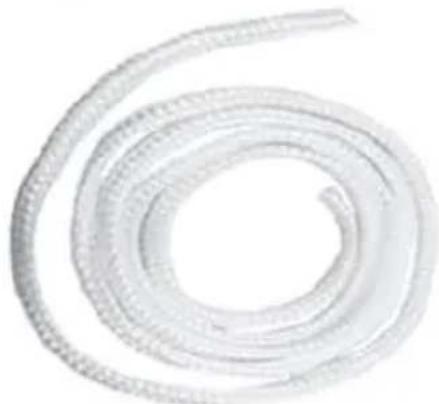

Nylon Rope *4pcs

VEVOR

Affordable. Reliable. Home Improvement.

SHADE CLOTHS

MODEL: 5520B-455520B-8015520B-04 5520B-455520B-0615520B-07

Technical Support and E-Warranty Certificates www.ewal.net/support

Instruction Manual *1pcs

PRODUCT OVERVIEW

HDPE shade netting is woven with high-density polyethylene (HDPE) material, featuring strong weather resistance, UV resistance, high shading rate, lightweight and durable, etc. It is widely used in:

• Agricultural cultivation: greenhouse shading, greenhouse cooling;
• Construction site: dustproof enclosure, temporary sunshade;
• Outdoor sunshade: courtyard, balcony sun protection;
• Horticultural protection: plant frost prevention, wind and sand prevention.

PRODUCT PARAMETER

Model	SSZGB-02	SSZGB-03
Colour	Brown & Black	Black
Shape	Rectangle
Main Material	High Density Polyethylene (HDPE)
Shading Ratio	90%
Product Size	8*12ft
Model	SSZGB-04
Colour	Black
Shape	Rectangle
Main Material	High Density Polyethylene (HDPE)
Shading Ratio	90%
Product Size	10*10ft
Model	SSZGB-05	SSZGB-06
Colour	Brown & Black	Black
Shape	Rectangle
Main Material	High Density Polyethylene (HDPE)
Shading Ratio	90%
Product Size	10*12ft
Model	SSZGB-07
Colour	Beige Brown & Black
Shape	Rectangle
Main Material	High Density Polyethylene (HDPE)
Shading Ratio	90%
Product Size	12*20ft

HOW TO USE

Step1: According to the actual use of the scene to select the corresponding size of the product model and quantity.

--Measure the size according to the actual scene requirements, when selecting the mesh size is recommended to leave a margin of 5-10cm, easy to follow.

Step2: Fixing the mesh

--Elevation fixing: use nylon ties to tie the netting to the bracket or frame;

--Top hanging: telescopic adjustment by nylon rope or elastic ball.

Step3: Check firmness

--Pull lightly on the mesh after installation to make sure there is no loosening or tilting.

MAINTENANCE METHOD

1. Daily cleaning:

-- Remove surface dust and debris with a soft-bristle brush or low-pressure water gun;

-- Stubborn stains can be wiped with neutral detergent, prohibit the use of strong acid/alkaline cleaners.

2. Long-term storage:

-- Fold neatly after disassembly and store in a cool and dry place;

-- Avoid co-storage with sharp objects to prevent scratches.

3. Periodic Inspection:

-- Check the fixed parts quarterly for corrosion and looseness and replace them in time;

-- Discovered local damage can be repaired with patch stitching of the same material or hot melt adhesive.

COMMON PROBLEMS AND COUNTERMEASURES

Problem Phenomena	Possible Causes	Solution Countermeasures
Fading and brittleness of mesh	Long-term UV aging	Replace with new mesh, choose UV-enhanced models
Edge tearing	Poor fixing or strong wind	Reinforce the edges, use edge banding
Sagging or loose mesh	No allowance for expansion or contraction during installation	Re-tension and secure, add more support points
Difficult to remove surface stains	Contaminated with oil or chemicals	Use special cleaner for localized treatment
Odor	New mesh factory residual odor	Ventilation and drying 2-3 days after the dissipation

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

TOILES D'OMBRAGE

MODÈLE : SSZGB-02\SSZGB-03\SSZGB-04 SSZGB-05\SSZGB-06\SSZGB-07

Affordable. Reliable. Home Improvement.

TOILES D'OMBRAGE

Close-up of a woven fabric or mesh panel with evenly spaced circular indentations, no text or symbols visible.

SSZGB-03\ SSZGB-04\ SSZGB-06SSZG

Dark rectangular panel with white circular markers at corners (no text or symbols)

SSZGB-07

Close-up of a textured beige wall with layered ruffled patterns (no text or symbols visible)

surcharge et rupture.

Close-up of black string tied with a bundle of round beads (no text or symbols visible)

Black-and-white photo of bundled plastic cable with multiple connectors (no text or symbols visible)

Close-up of a transparent, coiled wire or film strip with no visible text or symbols

Affordable. Reliable. Home Improvement.

SHADE CLOTHS

MODEL: SSZGB-02/SSZGB-03/SSZGB-04 SSZGB-05/SSZGB-06/SSZGB-07

Technical Support and E-Warranty Certificate www.www.com/support

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. A/S YH Consulting

Route, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

Schattentücher

MODELL: SSZGB-02\SSZGB-03\SSZGB-04 SSZGB-05\SSZGB-06\ SSZGB-07

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

Schattentücher

Close-up of a woven fabric or mesh panel with evenly spaced circular indentations, no visible text or symbols.

SSZGB-03\ SSZGB-04\ SSZGB-06SSZGB-02\

Dark rectangular panel with white circular markers at corners (no text or symbols)

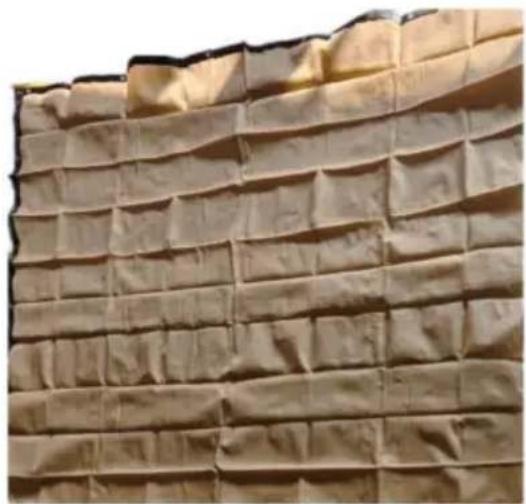

SSZGB-07
