SXC-8 - Choppers Vevor - Free user manual and instructions

Product Type	Professional Electric Meat Grinder
Brand	Vevor
Model	SXC-8
Rated Voltage	110/220 V (50/60 Hz)
Power	350 W
Meat Productivity	3 lb/min (approx. 1.36 kg/min)
Net Weight	9 kg
Dimensions	292 x 180 x 355 mm
Housing Material	Stainless Steel
Intended Use	Meat and soft vegetables (no bones, frozen, or dry bread)
Electrical Safety	Three-prong grounded plug; FCC Part 15 compliant
Cleaning	Removable parts washable in warm soapy water; motor block not submersible
Blade Maintenance	Oil with edible oil after washing to prevent rust
Replacement Parts	Use only original parts
Included Accessories	Tray, pusher, T-seal, auger, knife, perforated plate, screw plug
Warranty	Electronic warranty certificate via www.vevor.com/support
Environmental Compliance	European Directive 2012/19/EU (WEEE)
Usage	Indoor only

Frequently Asked Questions - SXC-8 Vevor

How to clean the grinder after use?

Unplug the appliance. Wash the removable parts (tray, pusher, auger, knife, plate, plug) in warm soapy water. Never immerse the motor block. Dry all parts before reassembling.

Can I grind frozen meat?

No, never use frozen meat. The meat must be fresh and chilled (not frozen) to avoid damaging the motor and blades.

What to do in case of jamming (blockage)?

Immediately turn off the machine and unplug it. Clean out the stuck material. Ensure the meat is free of bones, tendons, or cartilage before restarting.

How to prepare meat before grinding?

Cut the meat into strips or cubes of 10 cm long and 2 cm thick. Remove bones, tendons, cartilage, and shells. The meat must be fresh and chilled.

Can I use non-original parts?

No, use only original replacement parts recommended by the manufacturer to avoid hazards and preserve the warranty.

How to maintain the blades and perforated plate?

After washing, dry thoroughly and apply a few drops of edible oil to prevent rust.

Is the appliance suitable for domestic use?

This grinder is designed for professional use. It can be used at home, but with caution and strictly following safety instructions.

What to do if the motor stops automatically?

This indicates a blockage or overload. Turn off and unplug the appliance. Clear the jam and check that the meat contains no bones or hard tendons.

Do I need to ground the appliance?

Yes, the appliance must be connected to a three-prong grounded wall outlet to protect against electric shocks. Do not modify the plug.

How to store the appliance after use?

Clean and dry all parts. Reassemble the appliance and store it in a dry place. Wipe all parts carefully before storing to prevent rust.

USER MANUAL SXC-8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC MEAT GRINDER

MODEL: SXC-8/SXC-12/SXC-22

We continue to be committed to provide you tools with competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only in estimate of savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of it by us. You are kindly reminded to verify carefully when you are placing an order that you are actually saving half in comparison with the top major brands.

MODEL: SXC-8/SXC-12/SXC-22

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us.

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before use. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't notify you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instruction carefully.
	CORRECT DISPOSALThis product is subject to the provision of european Direct 2012/19/EU. The symbol showing a wheelie bin crossed thro indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories with this symbol. Products marked as such may not be discan normal domestic waste, but must be taken to acollection poi recycling electrical and electronic devices.
	Indoor Use Only

RESIDUAL RISKS

Even if all relevant safety regulations and the manufacturer's instructions are complied with, if the product is not used as intended, risks may arise due to the design determined by its intended use.

Never bend over the machine with open clothing (e.g., tie) or long hair. Never reach into the filler opening with your fingers or any unsuitable objects (e.g., fork, knife, etc.). Never touch running parts of the appliance. Residual risks are manifested by the possible occurrence of allergies in connection with the foods to be processed.

If safety instructions, the intended use, and all instructions described in the operating instructions are observed, risks can be minimized.

INTENDED USE

The operational safety of the appliance is only guaranteed if it is used as intended in accordance with the information in the operating instructions. Any use of the appliance other than the intended use is considered improper use.

This mincer is an appliance for professional use. Ideally suited for chopping meat and vegetables. It is not suitable for processing frozen food, bones, and dry bread.

The housing is made of stainless steel for maximum hygiene. All appliance parts that come into direct contact with food can be easily removed, dismantled, and cleaned in a few steps.

We reserve the right to make technical changes to the product in the context of improving the operating characteristics and further development. If you need spare parts,

Only use original spare parts!

Safety instructions

WARNINGS

When using electrical appliances, basic safety precautions should always be followed including the following:

Observe the safety instructions and warnings on the device and follow the instructions! Follow the instructions in this operating manual.

- Use the device in accordance with these instructions. Take into account the working conditions and the activity to be carried out. Using the appliance for applications other than those for which it is intended can lead to dangerous situations.

- As the first operator, have a qualified person instruct you. Children and young people under the age of 18 must not use the device. If a young person over the age of 16 is being trained by a specialist under supervision, he/she is exempt from the ban. Only give the device to persons who are familiar with its handling. Include the operating instructions in the delivery. The operating personnel are responsible to third parties. Keep other people and pets away when using the appliance. Distractions can cause you to lose control of the device.

- Never modify the appliance and its operating and safety equipment or render the operating and safety equipment unusable. Modifications to the appliance and changes to the operating and safety equipment endanger your safety and can cause damage to the appliance.

- Be attentive and carry out all work calmly and carefully. Never work when you are tired or under the influence of alcohol, drugs, medication, or other substances that can impair your senses. Pay particular attention to your condition at the end of working hours. A moment of carelessness when using the appliance can lead to serious injury.

- Keep your work area clean. Clear the workplace of obstacles. Ensure that the workplace is adequately lit. Untidy and poorly lit workplaces increase the risk of injury.

- Before each use, check the appliance for visible external defects.

- Never leave the appliance unattended during operation.

- If the appliance shows signs of malfunction or a defect, disconnect it from the power supply immediately.

- Never wear jewelry such as rings, ties, chains, or watches when handling the appliance. Tie up long hair or wear a protective cap.

- Wear suitable protective clothing and gloves as well as non-slip footwear.

- If a fire occurs, disconnect from the power supply.

- Never extinguish with water! Risk of electric shock!

- Secure the appliance against falling off tables or worktops.

- Do not use any accessories or spare parts that have not been recommended by the manufacturer. These could pose a danger to the user or cause damage to the appliance and lead to personal injury.

- This appliance is NOT intended for use by children or by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. This appliance is not to be used by children!

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- This appliance must be grounded while in use to protect the operator from electrical shock. This grinder uses a grounded, three-prong plug that should be connected directly to a grounded 120V (US)/230V (EC), three-prong grounded wall outlet receptacle. Grounded plugs are used on metal-encased electric appliances in order to provide protection from electric shock. DO NOT change or alter the plug in any way. NEVER break off a ground prong from a 3-conductor plug. Doing so voids the warranty and may result in electric shock.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

- Increase the distance between the product and receiver.

- Connect the product to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

PULL OUT THE MAINS PLUG:

• Before servicing the appliance - When the device is not in use • Before cleaning the appliance • Before each transport

DEVICE DESCRIPTION

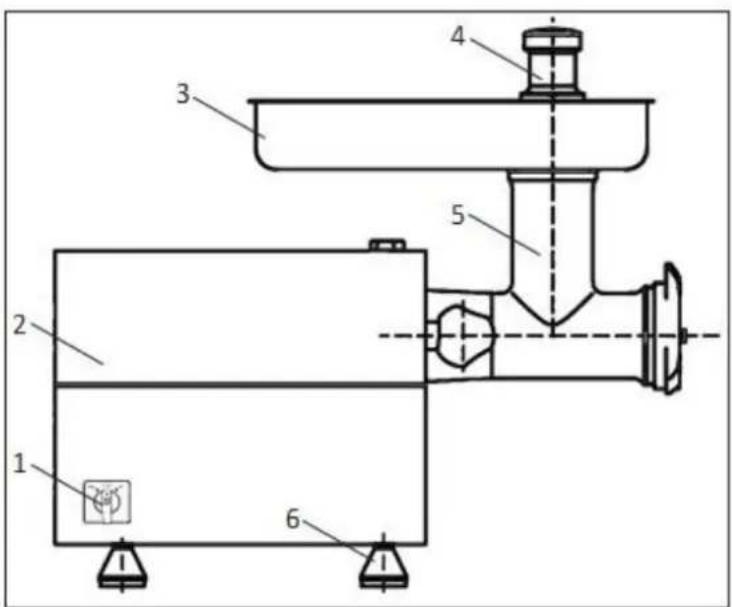

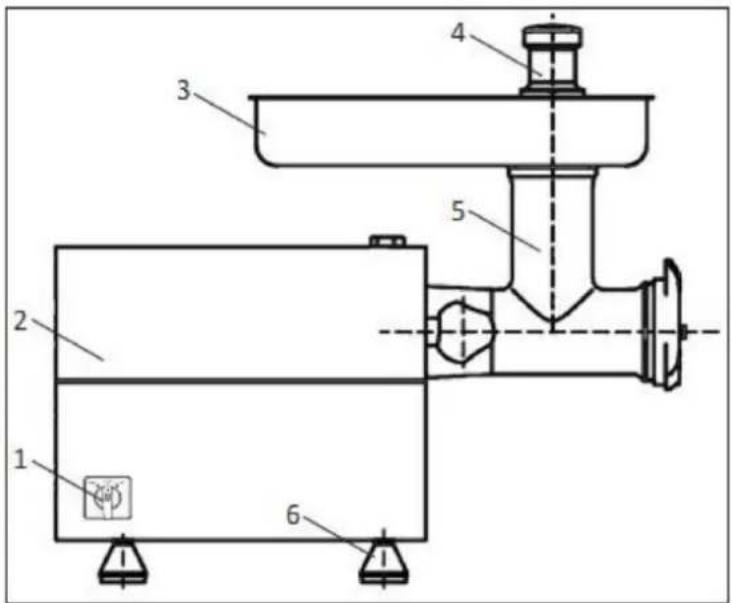

Figure 1 shows the device with the T-piece already fitted.

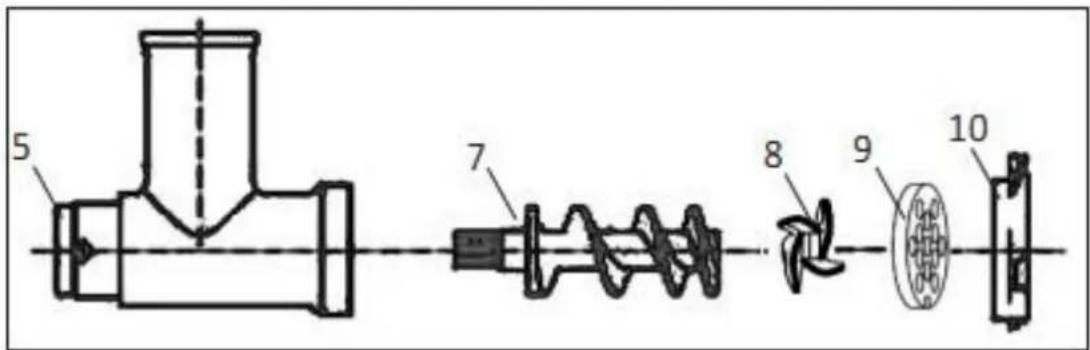

Figure 2: Exploded view of the T-piece.

Switch	Machine Cover	Tray	Meat Pusher	T-joint
Rubber Foot Pad	Auger with Axis	Knife	Hole Plate	Screw Cap

TECHNICAL PARAMETERS

Type	SXC-8	SXC-12	SXC-22
Rated Voltage	110/220V	110/220V	110/220V
Rated Frequency	60/50HZ	60/50HZ	60/50HZ
Rated Power	350W	550W	650W
Meat Productivity	3 lb/min	4.5 lb/min	8 lb/min
Net Weight	9kg	15.2kg	18.55kg
Dimension	292x180x355mm	375x240x420mm	430x240x440mm

Please refer to the nameplate of the machine for specific voltages.

OPERATING PROCEDURE

Please Note: If you are using your machine for the first time, clean the interior part at the inside of your machine with a clean damp sponge before switching it on. Make sure the voltage and frequency indicated on the rating plate are the same as your local support. Before plugging in, ensure the switch is off. Please follow these procedures for the best operating results and long machine life.

MINCE TIPS

1. Remove bones, pieces of gristle and sinews as much as possible and cut the meat 10cm long, 2cm thick strips. NEVER USE FROZEN MEAT!
2. Turn switch on and make sure the unit running before adding meat always.
3. Put the meat onto the tray and then push the meat into the grinding throat with the pusher.

IMPORTANT TIPS

1. Cut meat into strips or cubes slightly smaller than the opening on the feeding tube.
2. Make sure the meat is free of bones, tough tendons, nutshells etc. before grinding.
3. Raw meat or fish should be thoroughly chilled (not frozen) before grinding to reduce the loss of juices in the process.
4. Freshly ground meat should be refrigerated and cooked within 24 hours.

JAMMING

When the circuit breaker automatically stops the motor, or when the motor continues to function but no meat comes out of cutting plate due to jamming of bone or other material. Please switch off the grinder and follow the below steps.

Step 1. Turn the machine off and unplug from the electrical socket. Step 2. Clean the jammed material.

CLEANING AND MAINTENANCE

1. Make sure that the motor has stopped completely. Disconnect the plug from the power outlet.

NEVER clean any electrical unit by immersing it in water.

1. Apart from the motor unit, all removable parts may be cleaned in hot, soapy water.

Never use any corrosive or abrasive to clean the products.

1. Wipe dry all machine parts thoroughly before storing it.
2. After washing cutting blades and disc, wipe dry and coat with a few drops of edible oil to prevent rusting.
3. Only mince meat without skin/bones to prevent product malfunction.
4. During extended grinding, fats from meats can build up inside the grinder tube, slow down grinding efficiency and straining the motor. If this occurs, you should stop the grinder, wash parts in hot water, and reassemble. When possible, alternate bread with meat. This helps to keep the feed screw clean.

Warning: Motor unit is not waterproof. Never immerse the motor unit in water or other liquids. Unplug

immediately if the motor comes into liquid contact and contact the technicians for inspection and maintenance.
