USER MANUAL NNJ-F50 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC MILK SEPARATOR

MODEL:NNJ-F50 NNJ-Y50

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC MILK

SEPARATOR

MODEL: NNJ-F50 NNJ-Y50

Red and silver stainless steel kitchen grater with a handle, no visible text or symbols

Red and silver stainless steel kitchen grater with a handle, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This symbol, placed before a safety comment, indicates of precaution, warning, or danger. Ignoring this warning lead to an accident. To reduce the risk of injury, fire, electrocution, please always follow the recommendations shown below.
	CORRECT DISPOSAL:This product is subject to the provision of European D 2012/ 19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be followed, including the following.

1. READ ALL INSTRUCTIONS.

2. Unplug from outlet when not in use, before putting on or taking c and before cleaning.

3. Please check that the specified supply voltage in the product is consistent with the supply voltage(AC only).
4. This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved.
5. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

1. To protect against electrical hazards, do not put the Drink Mixer in or other liquids
2. Avoid contact with moving parts.
3. Do not operate the Electric Milk Separator or any other electrical equipment with a damaged cord or adapter, or after the unit malfunction or is dropped or damaged in any manner. Return it to the nearest authorized service facility for examination, repair, or adjustment.
4. Do not use outdoors. FOR HOUSEHOLD USE ONLY
5. Do not let the adapter cord hang over the edge of the table or or touch hot surfaces.
6. Put this instruction manual in a safe place. Do not discard.
7. If the adapter is damaged, it must be replaced by the manufacturer service agent or similarly qualified persons in order to avoid a hazard
8. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.
9. WARNING! It is strictly prohibited to put the main body of the machine and the power cord into any liquid. The machine must be fully cool cleaning.
10. Do not place the product directly on the fire or near the source otherwise the product will be damaged or even result in danger. Once of the product is on fire, do not directly use water to extinguish the a wet cloth to cover the fire site.
11. When the adapter plug is plugged into the socket, it must be pl the end, otherwise it will cause the components overheating and burn due to poor contact.
12. Do not leave the product to work with no one watching. If the i is overheating, please stop working immediately and unplug the power

SAVE THESE INSTRUCTIONS

FCC INFORMATION

CAUTION: Changes or modifications are not expressly approved by the party responsible for compliance could void the user's authority to open the equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to protect reasonably against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
  · Consult the dealer or an experienced radio/TV technician for assista

INSTRUCTIONS

I.Product installation

The Installation steps are as follows:

1) All parts that touch with milk are made of food-grade 304 stainless (Picture below)

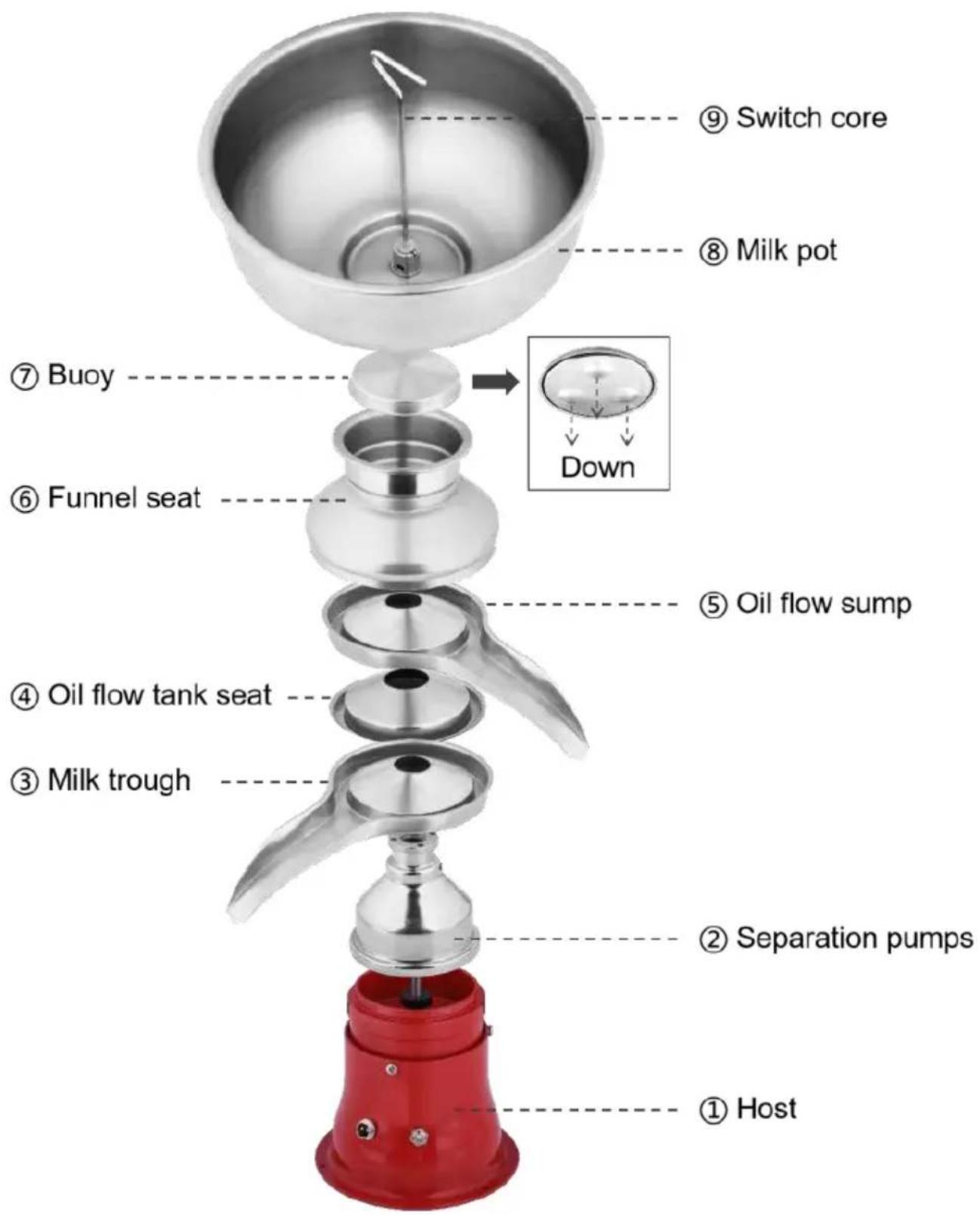

① Host ② Separation pumps ③ Milk trough ④ Oil flow tank seat ⑤ Oil flow sump ⑥ Funnel seat ⑦ Buoy ⑧ Milk pot ⑨ Switch core Down

2) Align the hole at the bottom of the “Separation pumps” with the el separator. The "Snap" sound when the “Separation pumps” is tighten indicates that it has been fully installed.
3) Press tightly and tie the “Milk trough” and the “Oil flow sump” to t “Separation pumps” below. The cream mouth can be twisted at will.Ens the “Oil flow tank seat” is placed between the Milk trough and the C sump.
4) Install the "Funnel seat". This allows the milk from "Milk pot" to fill the "Separation pumps" for separation initially.

Next, position the “Buoy” to allow the milk to gradually flow in batch “Funnel seat”, preventing any overflow or leakage from too much milk

5) Place the "Milk pot".

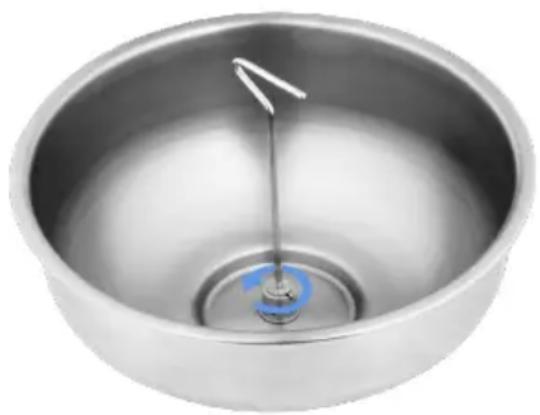

6)Finally, insert the “Switch core”. When rotated counterclockwise, the flows into the separation pump for processing. Rotate it clockwise to the milk flow, pausing the separation process.

Metal bowl containing a small blue component with a white handle, no visible text or symbols

II. Operation Steps

The operation steps are as follows:

1) Place the product on a flat surface to ensure effective milk separati
2) Pour about one third of the 60^ C water into the milk pot container
3) Put the power on and switch on the separator to make the motor
4) After the separator works for 1 minute, slowly turn the milk contain

switch(Metal Rod)anticlockwise to turn on so that finish separating the 60^ water.

5) Pour the fresh milk heated to 35^ C-45^ C into the milk pot container make the container of the milk pot more than half full until all the r separated.

5) In the separation process, the milk container switch (Metal Rod) need be set to a proper position so that the mouth separating the cream milk outlet hole does not spill milk. After working for 5 minutes, adjust milk container switch (Metal Rod) properly to make it work efficiently.

III.The Milk Fat Concentration Adjusting

In the separation process, the milk fat concentration can be adjusted according to the following steps:

1) Close the "Switch core" and continue to separate the milk in the m container.

2)Turn the power switch off of the separator and stop the separation.

3) After the separator stops rotating (Note : it can not be stopped manually). remove all parts in turn.

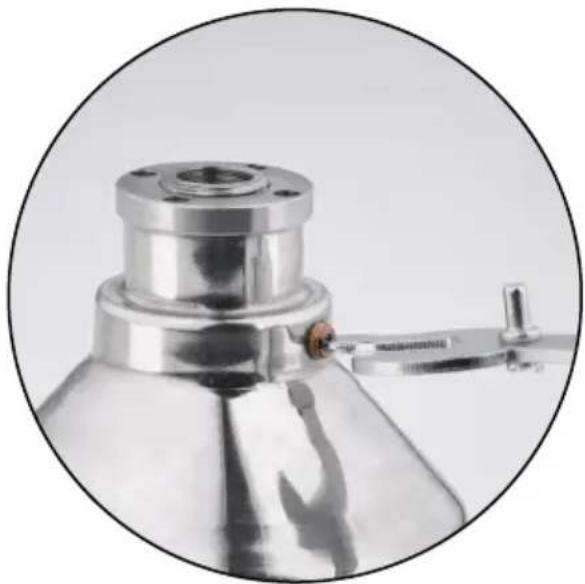

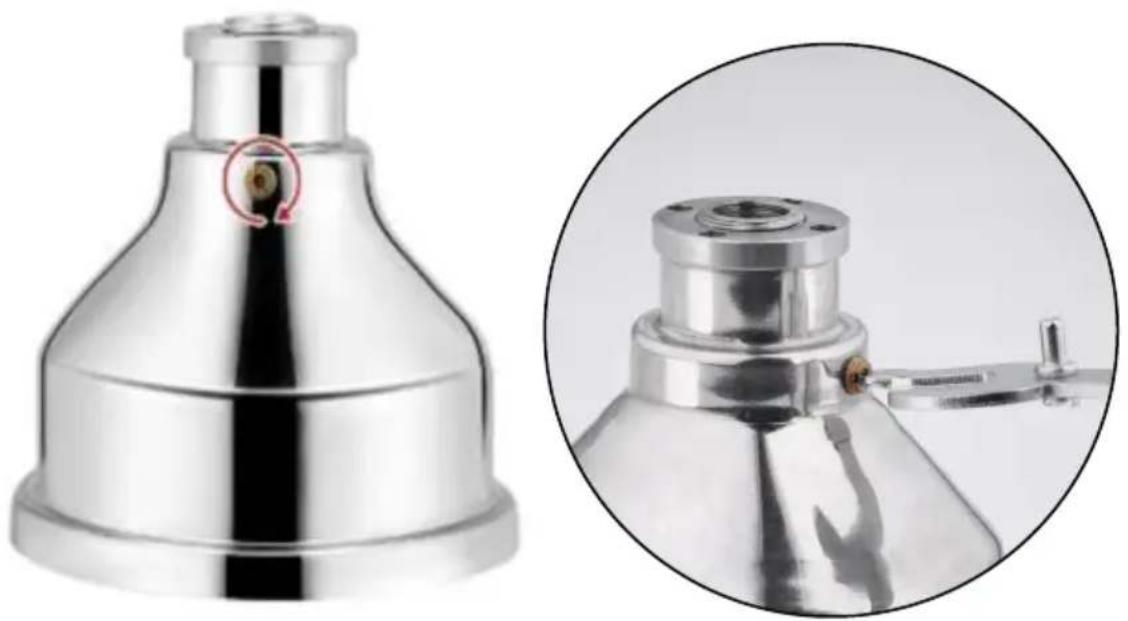

4) As shown in the picture, tighten the screw to the right to make the butterfat thinner and the screw to the left to make it thicker. After and the screw they should be screwed as little as possible to avoid loose later use.

Close-up of a metallic conical device with a circular inset showing its close-up view (no text or symbols visible)

IV.Cleaning Steps

The milk pot containermust only

1) be removed in order and washed with hot water and cold water or respectively. Then dry with a towel.

2)The separator works continuously for 1 hour(after separation of 50L milk),and the separator bowl must be removed and washed once.

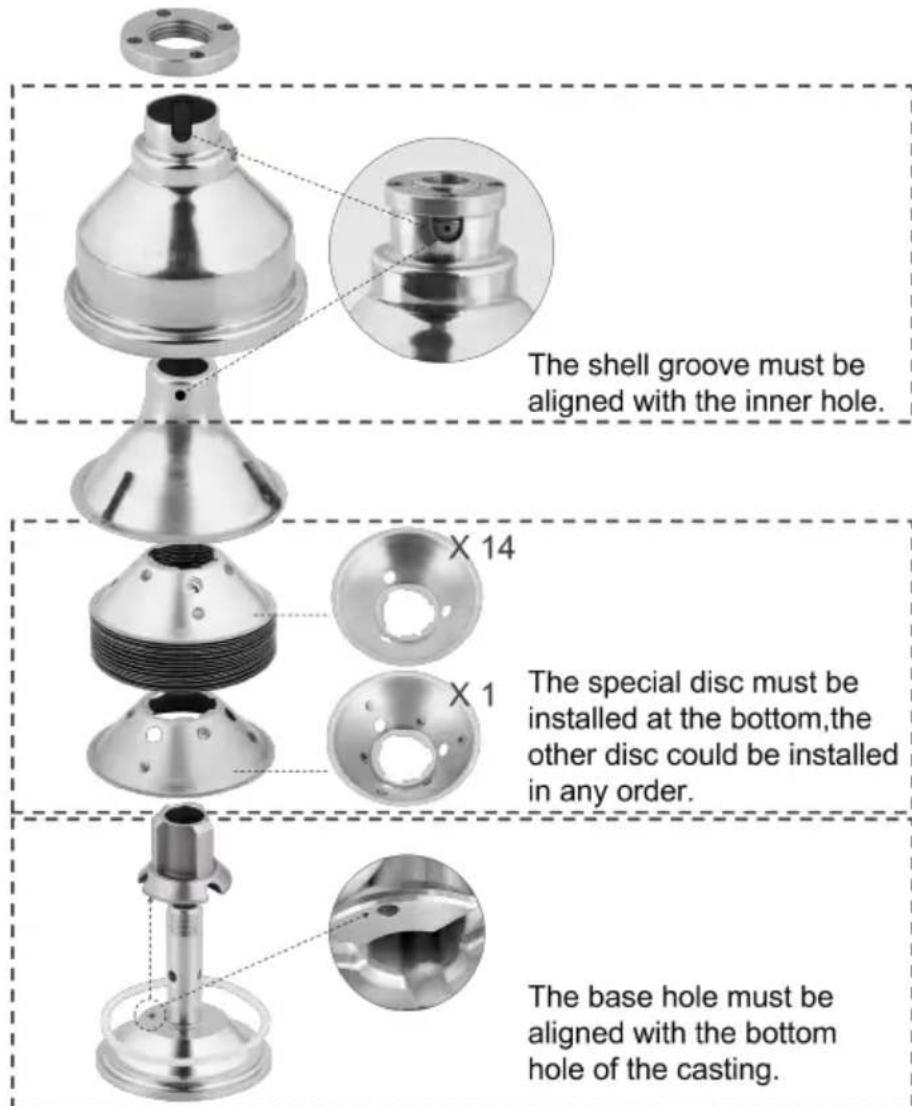

3) For the separation bowl cleaning, loosen the nut and remove all pa Clean them with hot water several times, dry them, and then install the original order. Attention shall be paid to:

The shell groove must be aligned with the inner hole. X 14 X 1 The special disc must be installed at the bottom,the other disc could be installed in any order. The base hole must be aligned with the bottom hole of the casting.

a.The sealing ring is placed in the groove of the separating bowl Ba b.The holes on the separating piece and the separating bowl base sh

aligned. The small hole on the separating piece should correspond to 1 fixed pin position on the separating bowl base.

c. The disc with bump must be installed at the bottom, the other disc be installed in any order.

d. When installing the separating piece, the one with small convex point the separating piece surface shall be placed at the bottom. Other separating pieces can be installed at will.

e. The nut must be tightened.

Special note:

1This part must be kept well to avoid the deformation caused careless drops in the process of use and cleaning,which will a product noise and separation effect2In order to prolong the service life of the product, please w dry cloth after each use and cleaning to keep it clean and dr

V.Common Faults and ELIminating Methods

Fault Conditions	Causes	Eliminating Methods
Poor Separation Performance	1.Milk temperature is too low or too high.2.Milk is too sour.3.Milk is not clean.4.The nut is not tightened the separating piece is not clamped.	1.Adjust the milk to 35°C-45°C.2.It cannot be separated.3.Filter milk.4.Tighten the nut.
No Butterfat	1.The height of the separa bowl is not correct.2.The butterfat outlet hole separating cover is blocked3.The small hole on the separating piece does not correspond to the fixed pin position on the base of the separating bowl.4.The butterfat outlet hole the separating cover shall be exposed from the middl of the gap of the separate bowl cover.5.The cream is too thick.	1.Adjust the height the separating bowl.2.Dredge the fat outlet hole.3.Reinstall the separating bowl and align the pin.4.Refit the separating bowl.5.Adjust the screw and turn it to the
The butterfat is too thin or the fat hole gives milk	1.The butterfat is too thin.2.The height of the separa bowl is not correct.	1.Adjust the screw and turn it to the2.Adjust the height the separating bowl.
The separator overflows or the hole leaks a lo of milk	1.At the beginning of the work,the metal rod was too open.2.The nut is not tightened.3.The seal ring is improper installed or damaged.4.The height of separating bowl is too low.	1.Turn down the metal rod and gradually increase it after normal operation.2.Tighten fully.3.Reinstall or replace.4.Adjust the height the separating bowl.

Note

①If the power supply is inadvertently disconnected, the metal rod shall be closed quickly, the milk pot container shall be removed, and then the stored in the head return tank of the main engine shall be poured on the overflow hole gently, and all milk on the main engine shall be before operation.

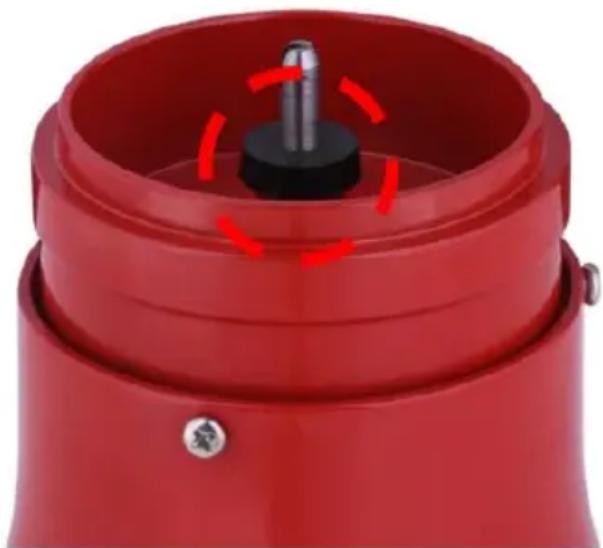

②It is necessary to check whether the waterproof cover on the motor is in good condition, and replace it in time when it is lost or damage a distance of 2um between the waterproof sleeve and the lower cont surface, and correct in time when the distance is incorrect.

Red cylindrical device with a black central component and red dashed arrows indicating rotation or adjustment (no text or symbols)

③It should be frequently checked that the milk overflow hole in the grooves of the head of the main engine should not be blocked by impurities. It can prevent the milk from entering the motor from the mo shaft hole, causing damage. The nut on the separating bowl assembly must be tightened, and the cross pin in the separating bowl base must stuck in the gap of the main shaft of the motor, otherwise it will cause serious accidents when the separating bowl rotates.

④After the separation, let the motor work another 1 minute to prevent remaining milk from entering the main engine and damaging the

motor. After use the whole machine must be dried, fixed and placed in a clean and dry place to prevent corrosion.

Made In China
