Product Type	Foldable Tiltable Bracket
Brand	Vevor
Model	SF-SS-SKU1
Color	Silver White
Main Material	Aluminum Alloy
Maximum Load Capacity	120 kg (265 lbs)
Adjustable Tilt Angle	0° to 90°
Recommended Use	Solar Panels
Foldable	Yes
Height (assembled, approximate)	Approximately 1684 mm
Width (assembled, approximate)	Approximately 1040 mm
Depth (assembled, approximate)	Approximately 1000 mm
Warranty	Electronic warranty, see Vevor website
Assembly Required	Yes, follow instructions
Safety	Do not exceed load, wear gloves and goggles
Maintenance	Clean with a damp cloth, avoid corrosive products
Manufacturer	Shanghaimuxinmuyeyouxiangongsi
Importer (USA)	Sanven Technology Ltd.
Technical Support	www.vevor.com/support

Frequently Asked Questions - SF-SS-SKU1 Vevor

How to adjust the tilt angle of the bracket?

The angle can be adjusted from 0° to 90° by loosening the adjustment knobs, tilting the bracket to the desired angle, then tightening the knobs. Make sure all knobs are tightened before applying load.

What is the maximum load capacity?

The maximum load capacity is 120 kg (265 lbs). Never exceed this limit to avoid risk of failure.

What tools are needed for assembly?

Required tools (not included) are: 6mm Allen key, adjustable wrench, power tool/socket wrench, chain, tape measure, and highlighter pen.

Can I use this bracket for equipment other than solar panels?

This bracket is designed primarily for solar panels. Its use with other equipment is not recommended unless otherwise specified by the manufacturer.

How to maintain the bracket?

Clean the bracket with a damp cloth. Avoid using corrosive or abrasive products. Regularly check bolt tightness and general condition.

Where can I find the warranty?

The electronic warranty is available on the www.vevor.com/support website. Keep your proof of purchase.

How to install the bracket on a concrete surface?

Measure and mark lines, place concrete pillars (or wooden beams) at the intended location. Use expansion bolts (or self-tapping nails) to fix the bracket onto the pillars.

What safety measures should be followed?

Wear safety glasses and work gloves during assembly. Do not assemble if you are tired or under the influence. Make sure the area is clean and well-lit. Keep children away.

Is the bracket foldable for transport?

Yes, this bracket is foldable for easy transport and storage. Follow the folding instructions in the manual.

What to do if a part is missing?

Contact technical support via www.vevor.com/support to get missing parts. Refer to the parts list in the manual for reference.

USER MANUAL SF-SS-SKU1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Foldable Tilt Legs

Model:SF-SS-SKU1; SF-SS-SKU2; SF-SS-SKU3;

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Foldable Tilt Legs

Model: SF-SS-SKU1; SF-SS-SKU2; SF-SS-SKU3

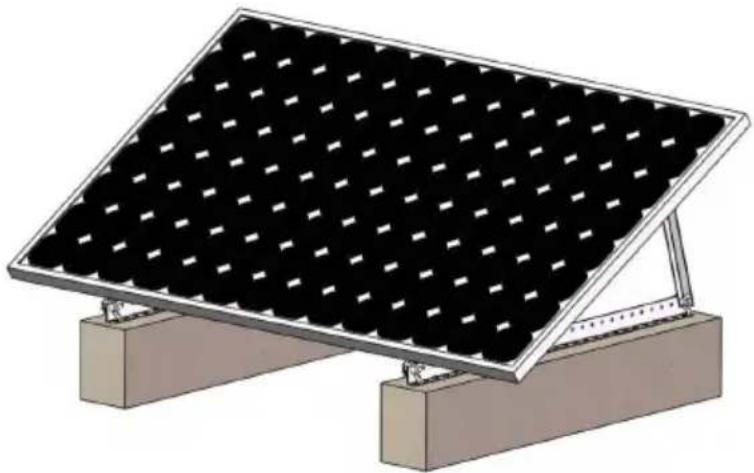

Illustration of a solar panel mounted on a support structure (no text or symbols visible)

Note: The product picture is for reference, the actual details shall pre

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product fully aware of all warnings and precautions.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Safety goggles and work gloves should be worn during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drug medication.
4. Weight capacity and other product capabilities apply to a properly and completely assembled product only.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. This product is not a toy. Do not allow children to play with or approach
8. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

Disclaimer & conditions of Use

Users of this Product must use this product at their own risk, and in no event the Seller, distributor or manufacturer be liable for indirect, incidental, derivative loss or damage or injury arising directly or indirectly from the use of this Product. For optimal safety and performance, all products must be properly installed and properly used. We do not accept responsibility for any improper use, alteration and installation.

Tools Needed (not included)

6mm hex key	Power tool	Socket wrench	String
Tape measure	Adjustable wrench	Marker pen

Product introduction

Model	SF-SS-SKU1	SF-SS-SKU1	SF-SS-SKU1
Color	Silvery white	Silvery white	Silvery white
Material	Aluminium alloy	Aluminium alloy	Aluminium alloy
Product Size	Diagram 1	Diagram 2	Diagram 3
Maximum Bearing Capacity	265 lbs(120kg)	265 lbs(120kg)	265 lbs(120kg)

NOTE: Please select the appropriate solar panel according to the product size.

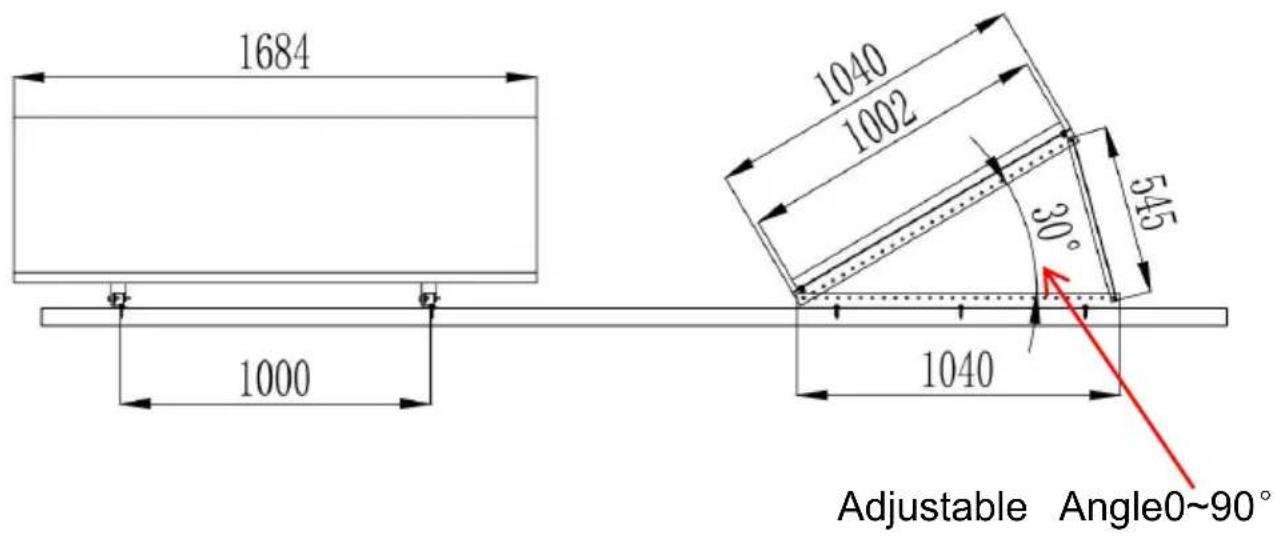

The following is the product size and assembly effect pictur (for reference only)

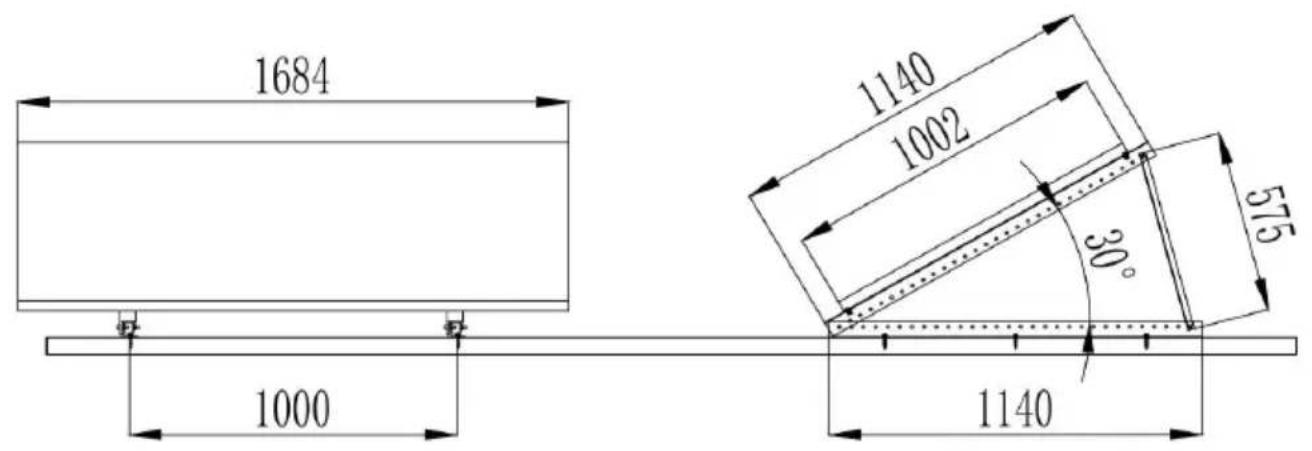

Diagram-1

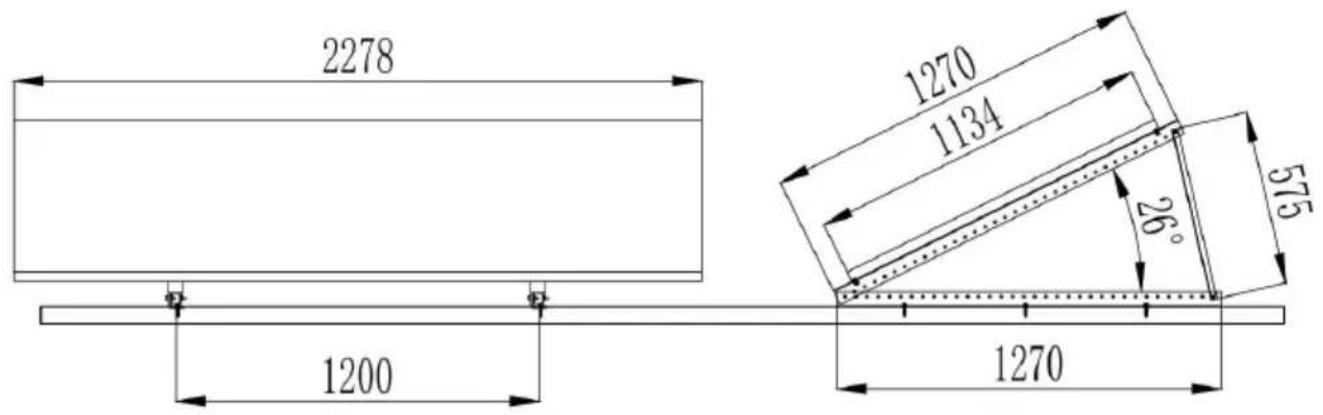

Diagram-2

Diagram-3

Part List

Technical line drawing of a metal bracket with multiple holes (no text or symbols)

A

Mechanical component diagram showing a gear and shaft assembly (no text or symbols)

C

D

Simple line drawing of a diagonal rod with label B (no text or symbols on the object itself)

B

E

Note: The number of parts above each model is subject to actual conditions

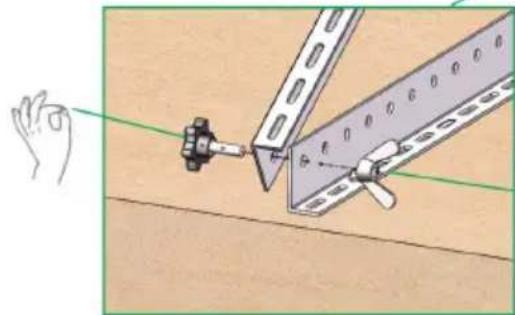

Assembly

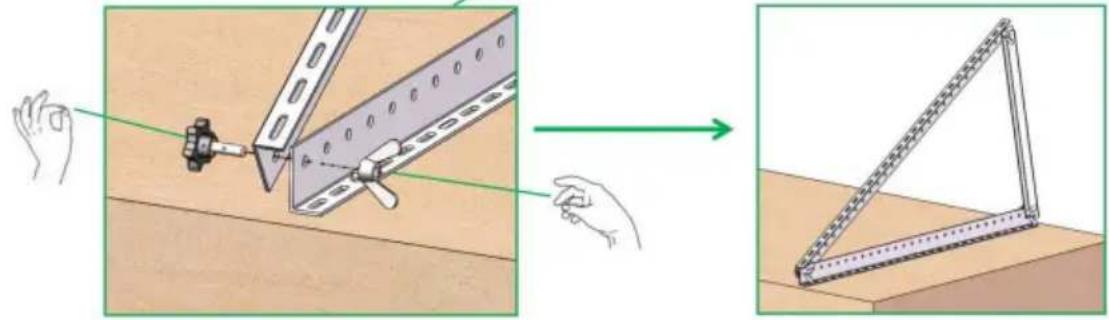

STEP:1

Illustration of a hand using a tool to measure a mechanical part, with no visible text or symbols.

Diagram of a triangular ruler mounted on a wooden surface (no text or symbols)

STEP:2

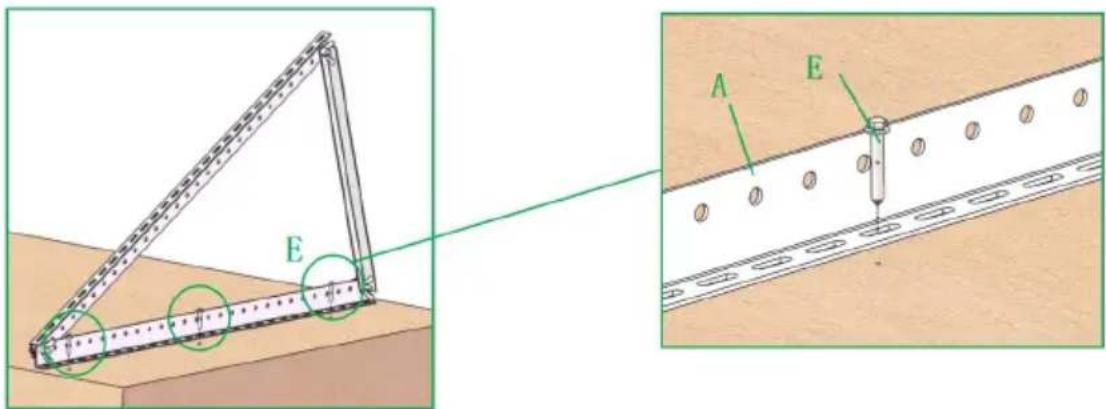

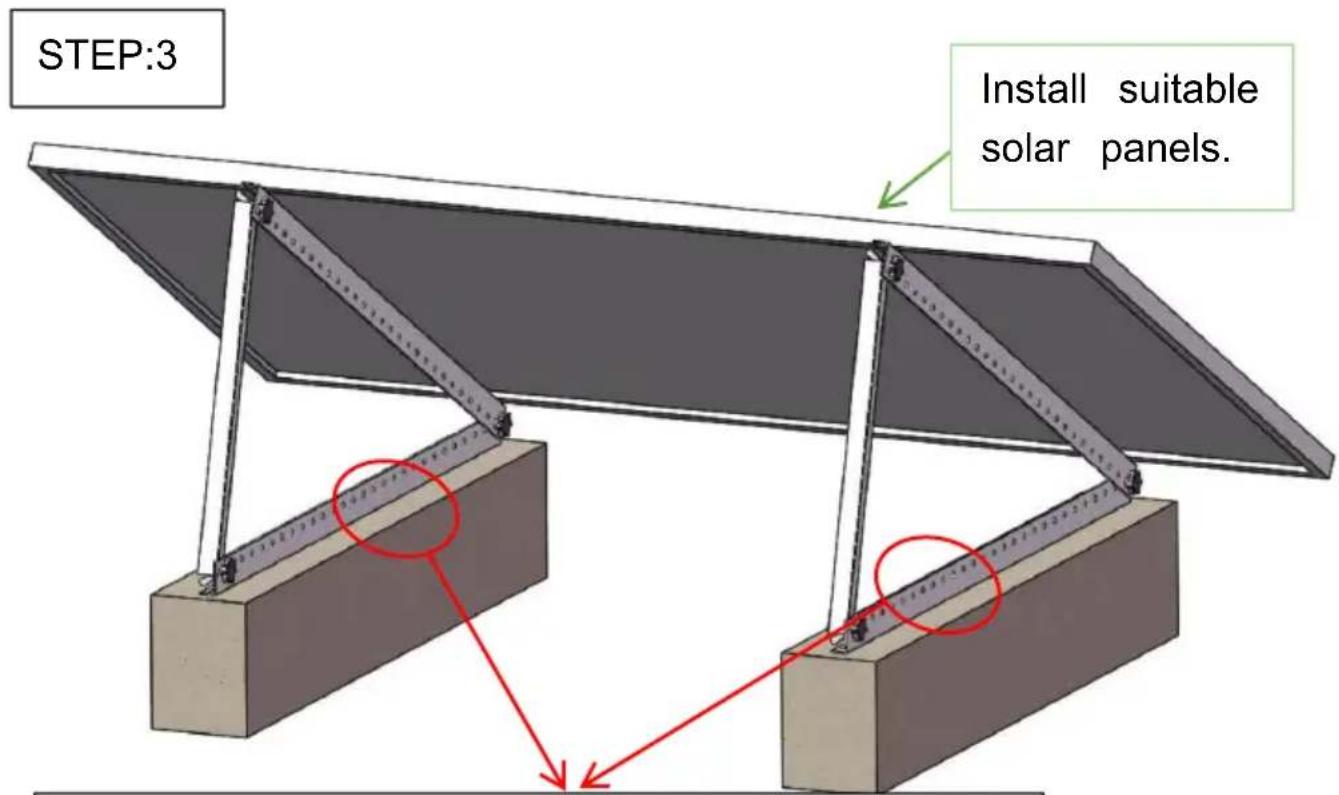

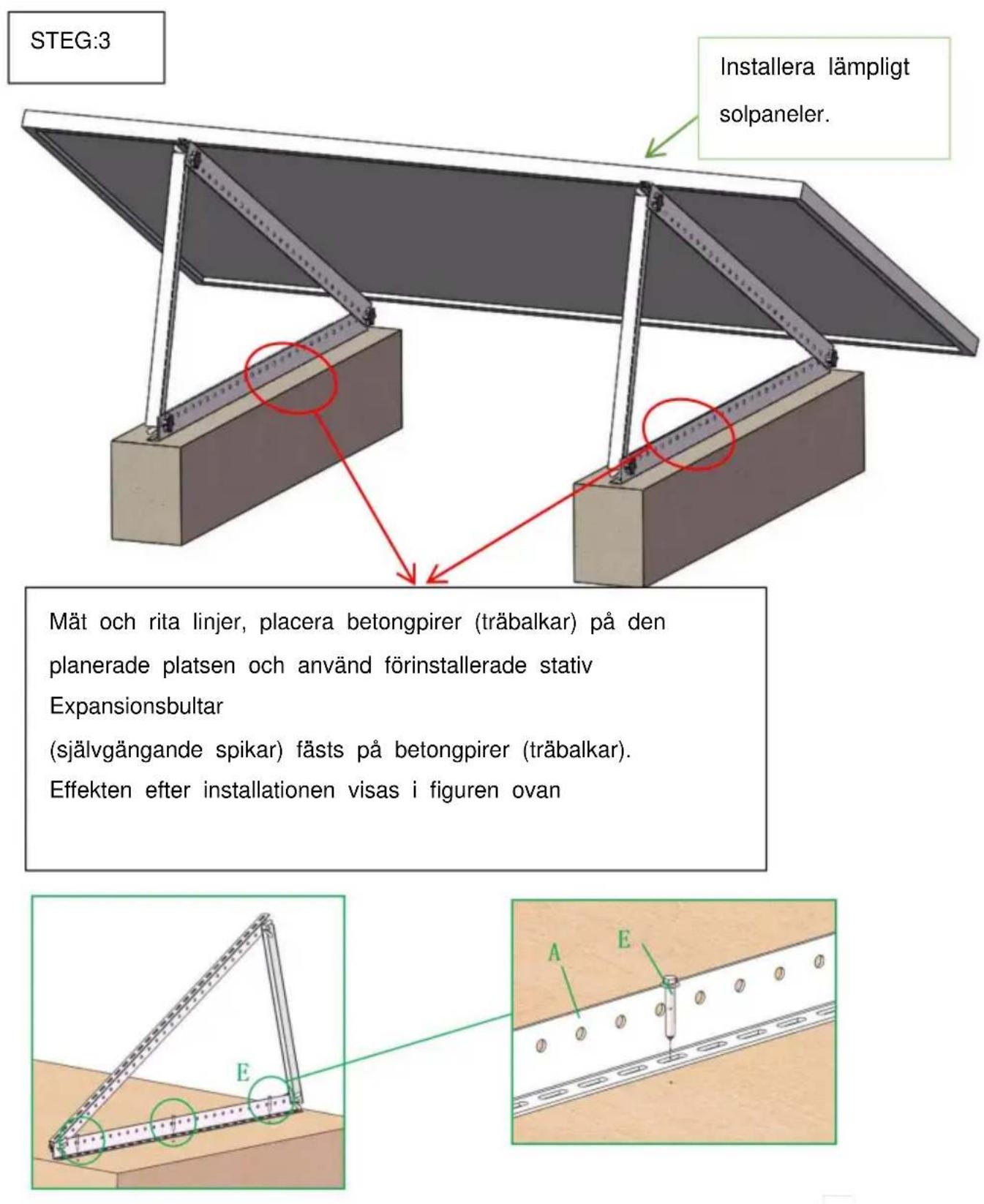

Measure and draw lines, place concrete piers (wooden beams) in the planned location, and pre-installed tripods

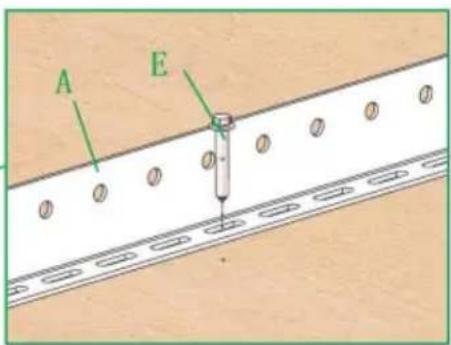

Expansion bolts (self-tapping nails) are fixed on concrete piers (wooden beams). The effect after installation is shown in the figure above

Note: Before installation, understand the longitude, latitude and region of the installation location, and adjust the required Angle and installation direction

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a solar panel mounted on a support structure (no text or symbols visible)

Technical line drawing of a metal plate with four circular holes (no text or symbols)

UN

Mechanical component diagram showing a gear and shaft assembly (no text or symbols)

C

D

Simple line drawing of a diagonal rod with label B below (no text or symbols on the object itself)

ET

ÉTAPE:2

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Illustration of a solar panel mounted on a support structure (no text or symbols visible)

Technical line drawing of a metal plate with four circular holes (no text or symbols)

A

Mechanical component diagram showing a gear and shaft assembly (no text or symbols)

C

D

Simple line drawing of a diagonal rod with label B below (no text or symbols on the object itself)

UND

Technical illustration of a mechanical assembly with tool and bracket (no text or symbols)

Diagram of a triangular ruler mounted on a wooden surface (no text or symbols)

SCHRITT:2

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a solar panel mounted on a support structure (no text or symbols visible)

Technical line drawing of a metal plate with four circular holes (no text or symbols)

UN

Mechanical component diagram showing a gear and shaft assembly (no text or symbols)

C

D

Simple line drawing of a diagonal rod with label B below (no text or symbols on the object itself)

B

E

PASSO:2

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

Illustration of a solar panel mounted on a support structure (no text or symbols visible)

Technical line drawing of a metal plate with four circular holes (no text or symbols)

A

Mechanical component diagram showing a gear and shaft assembly (no text or symbols)

do

D

Simple line drawing of a diagonal rod with label B below (no text or symbols on the object itself)

B

Y

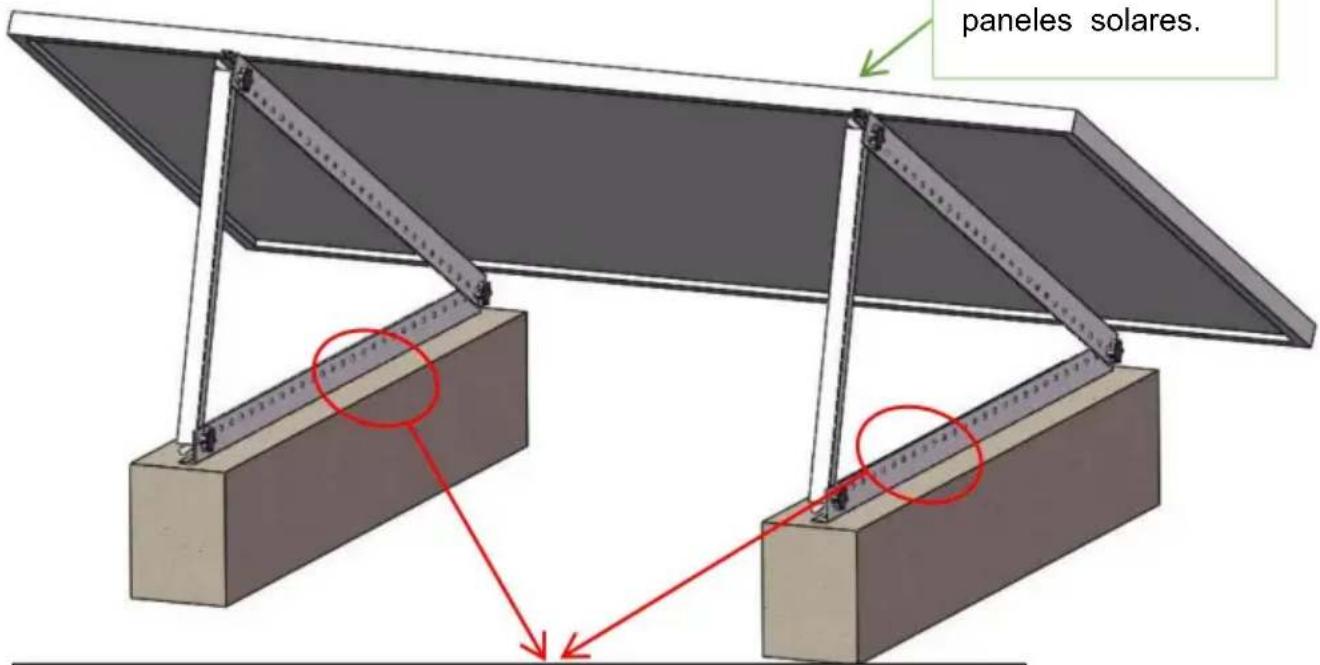

PASO 2

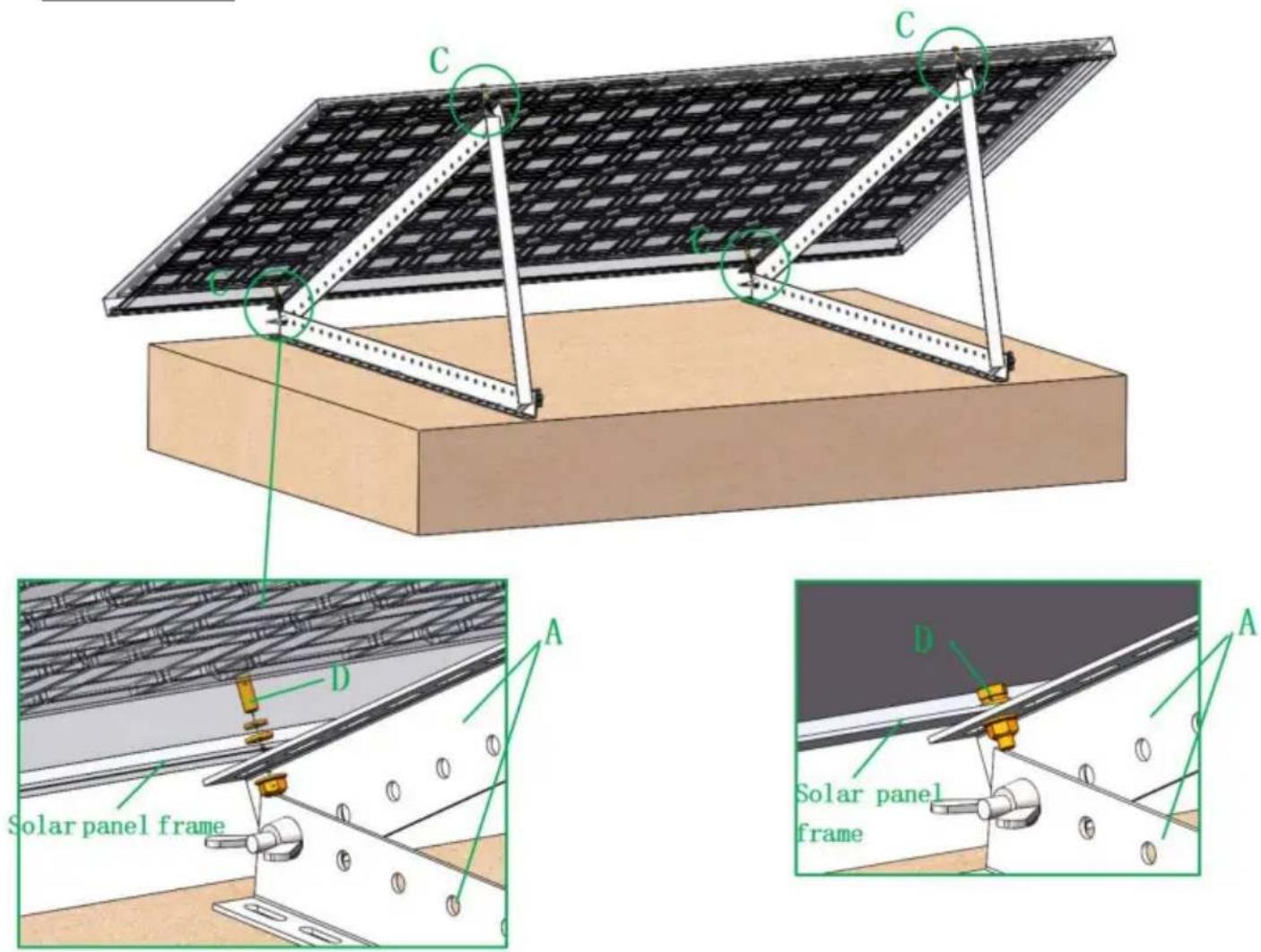

PASO 3

Instalar adecuado paneles solares.

Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Illustration of a solar panel mounted on a support structure (no text or symbols visible)

Technical line drawing of a metal plate with four circular holes (no text or symbols)

A

Mechanical component diagram showing a gear and shaft assembly (no text or symbols)

C

D

Simple geometric diagram showing a diagonal line with label B (no text or symbols on the line itself)

B

I

Technical illustration of a mechanical assembly with tool and bracket (no text or symbols)

Diagram of a triangular ruler mounted on a wooden surface (no text or symbols)

KROK:2

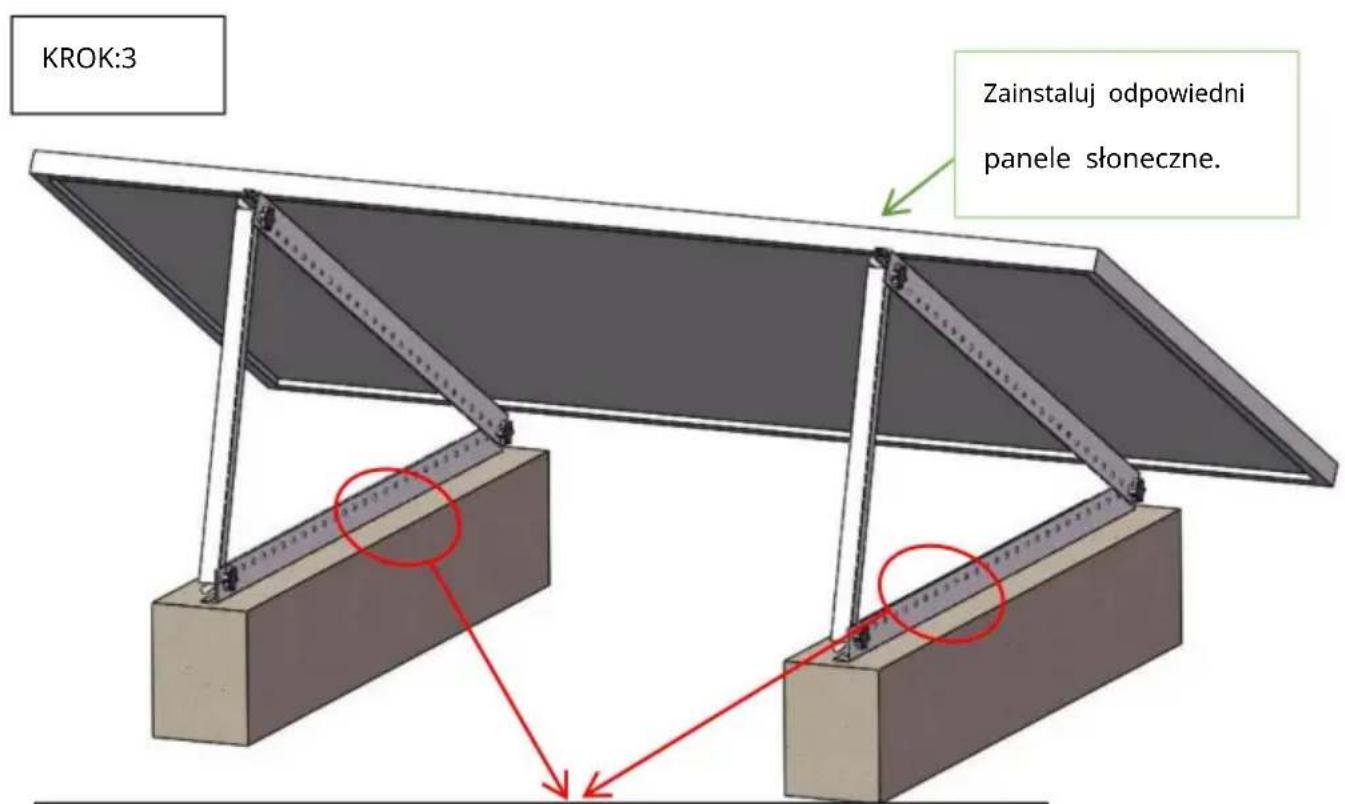

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a solar panel mounted on a support structure (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical line drawing of a metal plate with four circular holes (no text or symbols)

A

Mechanical component diagram showing a gear and shaft assembly (no text or symbols)

C

D

Simple geometric diagram showing a diagonal line with label B below (no text or symbols on the line itself)

B

EN

Technical illustration of a mechanical assembly with tool and bracket (no text or symbols)

Diagram of a triangular ruler mounted on a wooden surface (no text or symbols)

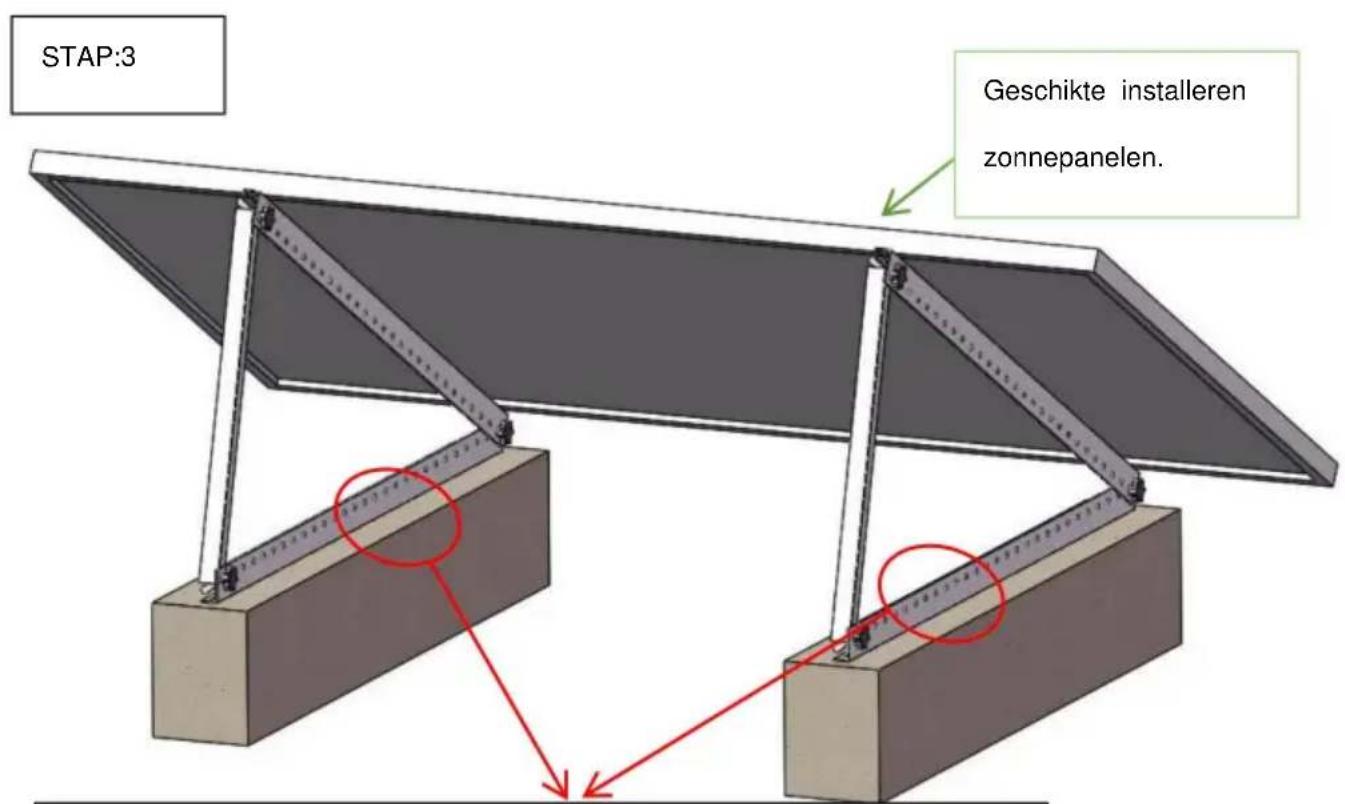

STAP:2
