RC-8238 - Popcorn machine Vevor - Free user manual and instructions

Product Type	Professional Popcorn Machine
Brand	Vevor
Model	RC-8238
Power Supply Voltage	110-120 V (North America) or 220-240 V (Europe/Australia)
Frequency	50/60 Hz depending on region
Power	1615 W
Plug Type	American, European or Australian depending on version
Kettle Material	Stainless Steel
Kettle Capacity	Approximately 90 g of corn per batch
Main Functions	Heating, agitator, warming plate, ambient lighting
Switches	3 switches: lighting/warming, agitator, main heating
Dimensions (approx.)	40 × 30 × 50 cm (height with kettle)
Weight (approx.)	5 kg
Certifications	ETL (North America), CE, UKCA
Maintenance and Cleaning	Clean with a damp cloth; detachable kettle, do not immerse; hot water cleaning recommended
Safety	Manual shut-off (no automatic shut-off); do not use without supervision; keep out of reach of children
Included Accessories	Measuring spoons for corn and oil, serving spoon
Intended Use	Indoor only, domestic or light commercial use
Warranty	Electronic warranty via www.vevor.com/support

Frequently Asked Questions - RC-8238 Vevor

What oil should I use in the Vevor RC-8238 popcorn machine?

Use coconut oil, rapeseed oil, or clarified butter. Do not exceed 15 g of oil per batch. The recommended ratio is 3 parts corn to 1 part oil.

Why is my popcorn burning?

Check the amount of oil: too little oil can burn the kernels. Also make sure the kettle is preheated (3-4 minutes) before adding the corn.

How to clean the kettle?

Let the machine cool down, then remove the kettle. Clean the inside and outside with a damp cloth. For a deep clean, boil water in the kettle (1-2 cups) with the agitator running, then empty it. Never immerse the kettle in water and do not put it in the dishwasher.

The machine does not heat up, what should I do?

Check that the plug is properly connected and the circuit breaker has not tripped. Ensure the heating switch is in the ON position. If the problem persists, the kettle may be defective and needs to be replaced.

What electrical voltage is required?

The RC-8238 model is available in 110-120 V versions for North America and 220-240 V versions for Europe and Australia. Check the rating label near the power cord.

Can I use sugar or honey in the machine?

Yes, you can add liquid sugar or honey to taste, but mix them with the kernels before pouring into the kettle. Be careful, sugar can caramelize and stick to the kettle.

The agitator does not rotate, what should I check?

Make sure the agitator switch is ON. If nothing happens, the plastic gear box inside the top of the machine may be broken. Contact customer service.

How long does it take to make a batch of popcorn?

After turning on the heating and agitator, the first popcorn starts to pop after about 2 minutes. Full popping usually takes 3 to 5 minutes depending on the quantity.

Is the popcorn getting stuck in the machine?

Check that the plastic gear box is not broken. Also make sure you do not exceed the kettle capacity (approximately 90 g of corn). Excess corn can block the agitator.

Where can I get spare parts or technical support?

Visit the website www.vevor.com/support for technical assistance and the electronic warranty certificate.

USER MANUAL RC-8238 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

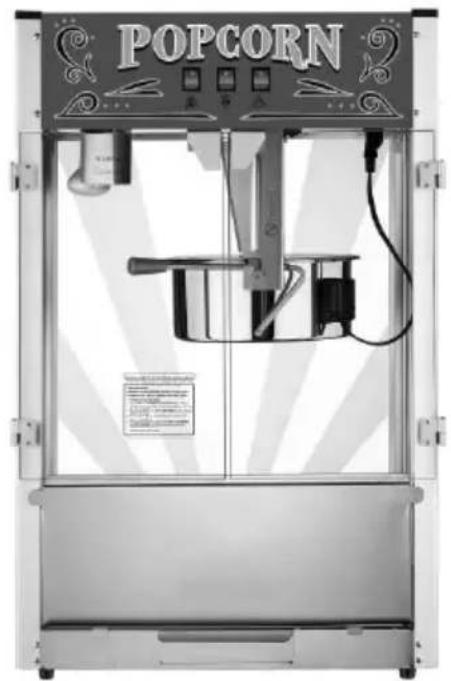

POPCORN MACHINE

MODEL: RC-8238

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: RC-8238

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Indoor use only.
	Pay attention to high temperatures to prevent burns.
	CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices
ETL	Compliance is a North America security certification.
	Compliance is a EC & UK security certification.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions

reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please consult a doctor.

Please read ALL the instructions before using your machine.

1. Make sure the voltage in your outlet is the same as the voltage indicated by the appliance's rating label.
2. Do not let children, minors, and pets get close to or touch the machine.
3. Do not touch the hot surface directly with your hands. Always use the hat knob for operation.
4. To prevent electrical shock, do not immerse the cord or plug into water or any other liquid.
5. Do not immerse the appliance in water or any other liquid.
6. Unplug the machine from the outlet when not in use and before cleaning. Also unplug the appliance before installing or removing parts and before cleaning.
7. Cool down the HOT parts before operation and cleaning.
8. Do not operate the device with a damaged cord or plug, if it malfunctions, or if it has mechanical damage. Send it to your nearest authorized service center for examination and repair (ONLY technicians should open up the unit).
9. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.
10. If the machine is not to be used for a long period of time, unplug it, cover it, and store it in a dry and safe place.
11. Do not leave the power cord hanging over the edge of a table or counter, or come into contact with any hot surfaces.
12. Do not place the unit on or near hot air, electric burners, or heaters.
13. Always switch off the power to the socket before plugging in or unplugging. Hold the plug instead of pulling on the cord.
14. Do not apply this unit to any other purposes than the indicated usage.
15. KEEP IT OUT OF CHILDREN'S REACH. Never leave it unattended while in use.
16. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
17. Always check that this machine is plugged into a grounded outlet with the appropriate electrical supply. Ensure that the wall outlet being used is properly grounded. If not, you must install a grounded outlet. Have the work performed by a certified electrician who is properly qualified to meet local safety and electrical codes.
18. Ensure that the power outlet, plug and cord being used are in good working condition. Damaged components should be repaired by a certified electrician who is qualified to meet local safety and electrical codes. Even if your power cord is functioning properly, keep it away from water and avoid letting it run over cords or heating devices.
19. Avoid using it in the presence of flammable liquids, gases, dust or other explosive situations.
20. Do not move the machine before cooling and during heating.
21. Do not operate the machine in an appliance garage or under a wall cabinet. Always unplug the unit from the electrical outlet when storing in an appliance garage. Otherwise, it would cause a risk of fire, especially if the machine touches the garage wall or the door touches it as it closes.
22. Type Y attachment: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
23. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
24. Inspect before every use.
25. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
26. Never leave it unattended while in use. Never leave a child unattended.
27. Pet urine and feces can damage the product, please keep away.
28. Do not pop the kernel with a dry pot (without oil).
29. Do not immerse the popping pot set into water.
30. Since the pot surface is hot during popping or use, do not touch it directly with your hands.
31. To avoid overheating, always add oil before putting the kernels in.

1. Extreme care must be taken when unloading popcorn.
2. This popper will not shut off automatically. To avoid overheating, add corn oil before operating.
3. Extreme caution must be used when unloading popcorn. Always turn the popper over a counter-top so that residual hot oil or water running out will not cause burns.

WARNING: This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

PRODUCT PARAMETERS

MODEL	Region	Voltage	Power	Plug Type
RC-8238	North America	AC110-120V 60Hz	1615W	American PLUG
	Europe	AC220-240V 50Hz	1615W	European PLUG
	Australia	AC220-240V 50Hz	1615W	Australia PLUG

Attention:

1. The voltage used for this device must be the same as the power supply.
2. Users need to install it near the power switch and fuse.
3. If the machine is not powered, remove the plug from the electrical outlet and check whether the fuse is blown.
4. It is recommended that products use separate lines and sockets to avoid breaker or time delay fuse overload.

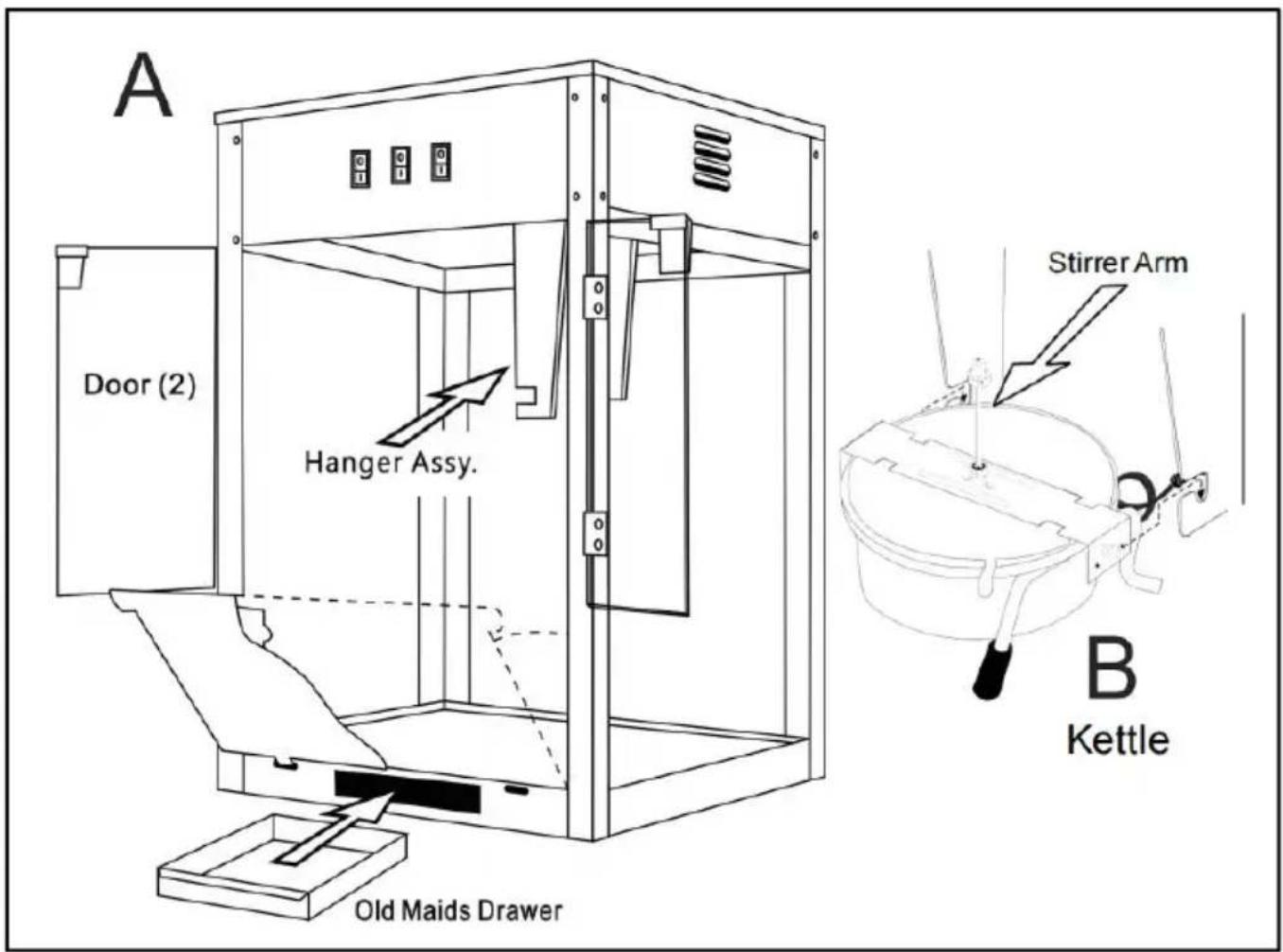

PRODUCT COMPONENTS

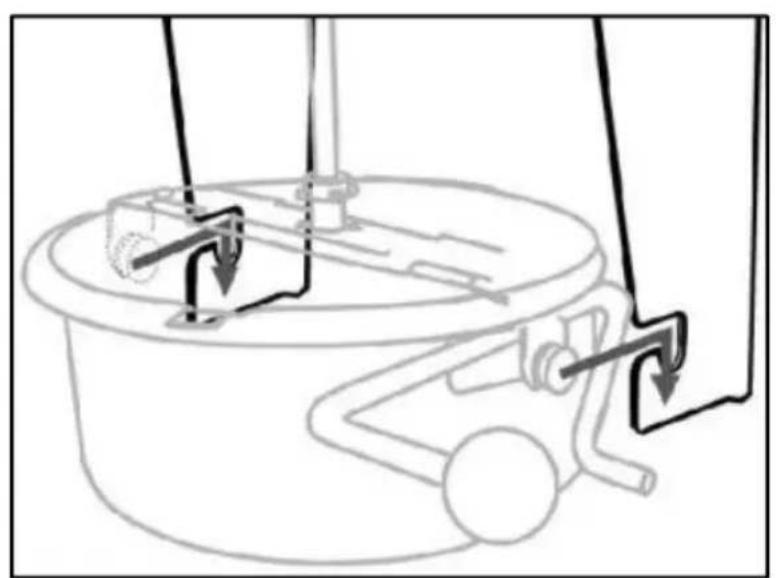

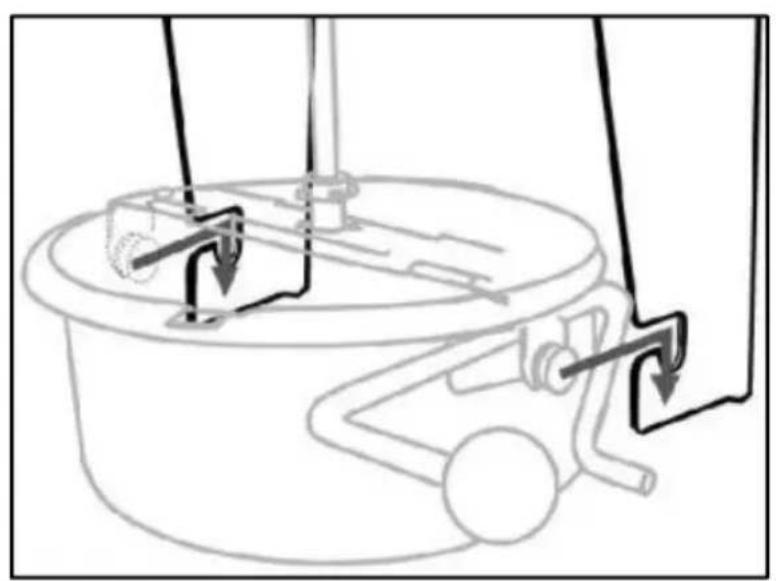

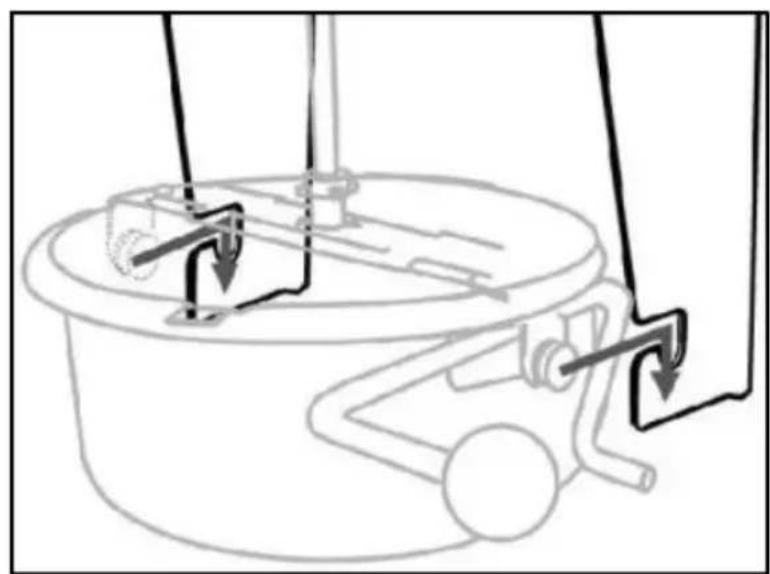

Attention: Assemble the kettle on the supporters which are built into the machine and then connect the socket.

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional material and packaging materials, and check that the product is clean and free of dust. If necessary, wipe them over with a damp cloth. Spread over with an absorbent kitchen towel and wipe off any excess oil. When your appliance is heated for the first time, it may emit slight smoke or odor, which is normal for many appliances, and will not affect the safety of your appliance. Place the machine on a clean, dry, level surface near a plug base outlet.

1. Make sure the popcorn maker is unplugged before you do any of the following.
2. Before operation, please check carefully if its voltage is suitable to your c (Please check if the voltage is matching with rating label specified next to the power cord).
3. Clean the internal surface of the kettle and the external surface of the m 4 .The main unit has 3 function switches as follows:

Spot Light and Warmer ( I )

Stirrer (II)

Stainless Steel Kettle Heater ( III )

1. Hook up the kettle onto the hanger of the main unit.
2. Plug in the power cord to the popcorn maker.
3. Switch on the light and heater ( I & III ), and then fill in suitable amount or oil (Shown as Fig.1). You can fill the amount of oil (Max.15g) subject to y preference.
4. The kettle should be pre-heated for 3 to 4 minutes with oil (until steam out from it). Please prepare kernels with sugar. You can measure the amount kernels with the measuring scoop provided and amount of sugar subject to own preference. Liquid sugar and honey are prohibited.
5. Open the lid and then pour in pre-mixed kernel and sugar (Shown as Fig Caution:The lid might be hot and it is recommended to use an oven mitten.
6. Switch on the Stirrer (II) to let it start stirring (Shown as Fig.3).
7. Close the door carefully.
8. Popcorn starts popping out through the lid after about 2 minutes (Shown Fig.4).
9. Switch off the stirrer and heater (II & III) when popping is completed (no more popping sound from the kettle). Rotate the roller bar of the kettle and pour out remaining popcorn from the kettle.
10. Keep the heater switch (III) off if the unit is not continuously running. Keep the spotlight and warmer on to keep

the popcorn warm, dry, and tasty.

1. Serve your popcorn with the popcorn scoop provided.
2. Remove the plug from the power supply if the unit is not being used for a long time.
3. Repeat steps 7 to 10 for continuous popping.

Fig.1

Fig.2

Fig.3

Fig.4

TIPS: Users can adjust the content of ingredients according to personal taste.

USING YOUR POPCORN MACHINE

We recommend following the measurement equivalents list below. And measure the amount of kernels and oil with the scoops provided.

Attention: Users can adjust the content of ingredients according to their personal taste.

TIPS: General rule for quantities of oil and popcorn grain 3:1

KETTLE	KERNELS	OIL
2.5oz	1/3 cup	3/4 Tp (12ml)
4oz	1/2 cup	1-1/2 Tp (20ml)
6oz	3/4 cup	2 Tp (30ml)
8oz	1 cup	2-1/2 Tp (40ml)
10oz	1-1/4 cup	3 Tp (50ml)
12oz	1-1/2 cup	4 Tp (60ml)
16oz	2 cup	5 Tp (80ml)
20oz	2-1/2 cup	6-1/2 Tp (100ml)

1 person = (+/-) 1 oz

a.

b.

C.

a. Oil Spoon

b. Kernel Scoop

c. Popcorn Scoop

TROUBLESHOOTING

Kettle Not Heating	-Kettle need to be replace
Popcorn is burning	-Check the oil quantity (refer to operating instruction section)
Popcorn doesn't come off	-Check the temperature of the kettle
	-Check the HEAT SWITCH POSITION (ON)
No light on the switches	-Check if the plug is fully inserted into to wall
	-Check your circuit breaker tripped
Popcorn remains trapped	-Check if the plastic gear housing is broken
	(inside the top of the machine) -Check if the kernels quantity is not exceed the capacity
Stirrer jumps	-Check if the plastic gear housing is broken (inside the top of the machine)
Stirrer doesn't work	-Check if the Stir button is turned at the ON -Check if the Stir button is glowing

CLEANING AND MAINTENANCE

1. Wipe the doors, glass and metal surface with a clean damp cloth. DO NOT use any acidic, citrus based cleaners or abrasive cleaners on the acrylic doors as they might cause scratching or dullness.
2. Frequently empty the catch tray of unpopped popcorn kernels and clean it with soap and water. Dry it thoroughly afterwards.
3. Frequent cleaning of the popcorn kettle is strongly recommended. This will prevent burning of excess oils on the bottom of the kettle.
4. Let the unit cool down before cleaning.
5. Clean the kettle surface inside and out with a wet cloth. To thoroughly clean the popcorn kettle, turn off the unit and add 1-1/2 to 2 cups of hot water into the kettle (no detergent is necessary), then place a towel at the bottom of the main unit and place a large bowl or container on the towel (the container must be large enough to easily pour water from the popcorn kettle). Turn on the Stirrer & Heater (2) and boil the water for 1 to 2 minutes. After that, turn off the stirrer heater and carefully pour the water from the popcorn kettle into the bowl or container. Repeat the same procedure 2 to 3 times for the best cleaning effect.

CAUTION:

1. Kettle and water will be HOT!
2. Never immerse the kettle into water or place it in the dishwasher.
