USER MANUAL NP16T Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

POPCORN MACHINE

MODEL: NP08001SE / NP16T

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

POPCORN MACHINE

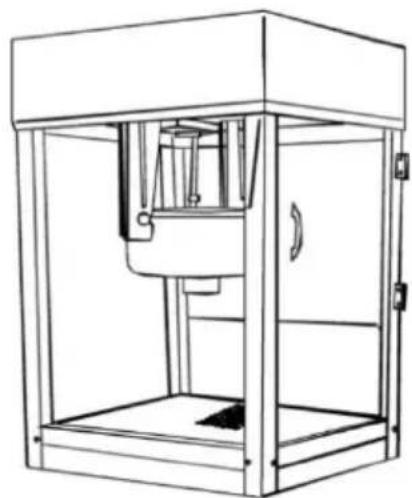

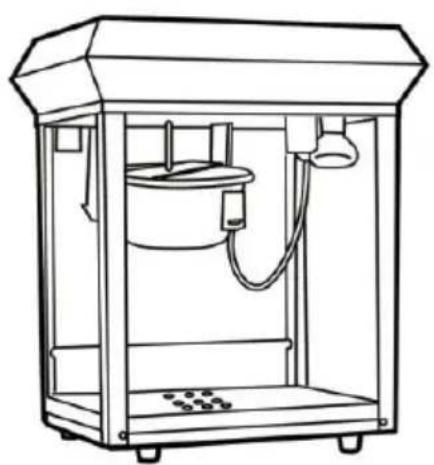

MODEL: NP08001SE MODEL: NP16T

Line drawing of a mechanical device with a central bowl and side supports (no text or symbols)

Line drawing of a 3D printer or machine with no visible text, numbers, or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Indoor use only.
	Pay attention to high temperatures to prevent burns.
	CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices
	Compliance is a North America security certification.
	Compliance is a EC & UK security certification.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions

reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since believe that the uses will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please co-a doctor.

Please read ALL the instructions before using your machine.

1. Make sure the voltage in your outlet is the same as the voltage indicated by appliance's rating label.
2. Do not let children and minors and pet get close to or touch the machin
3. Do not touch the hot surface directly with your hands. Always use the hat knob for operation.
4. To prevent electrical shock, do not immerse the cord or plug into water of liquids.
5. Do not immerse the appliance in water or any other liquid.
6. Unplug the machine from the outlet when not in use and before cleaning. the appliance before installing or removing parts and before cleaning.
7. Cool down the HOT parts before operation and cleaning.
8. Do not operate the device with damaged cord or plug, malfunction or with mechanical damage. Send it to your nearest authorized service centre for examination and repair (ONLY technicians should open up the unit).
9. Using any accessories or attachments that are not provided or recommend by the manufacturer may cause injury.
10. If the machine is not to be used for a long period of time, unplug it, cover it and store it in a dry and safe place.
11. Do not leave the power cord hanging over the edge of table or counter come into contact with any hot surfaces.
12. Do not place the unit on or near hot air, electric burners or heaters.
13. Always switch off the power to the socket before plugging in or unpluggi Hold the plug instead of pulling on the cord.
14. Do not apply this unit to any other purposes than the indicated usage.
15. KEEP IT OUT OF CHILDREN'S REACH. Never leave it unattended while use.

16. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.

17. Always check that this machine is plugged into a grounded outlet with the appropriate electrical supply. Ensure that the wall outlet being used is properly grounded. If not, you must install a grounded outlet. Have the work performed by a certified electrician who is properly qualified to meet local safety and el codes.

18. Ensure that the power outlet, plug and cord being used are in good work condition. Damaged components should be repaired by a certified electrician with is qualified to meet local safety and electrical codes. Even if your power con functioning properly, keep it away from water and avoid letting it run over car or heating devices.

19. Avoid using it in the presence of flammable liquids, gases, dust or other explosive situations.

20. Do not move the machine before cooling and during heating

21. Do not operate the machine in an appliance garage or under a wall call. Always unplug the unit from the electrical outlet when storing in an appliance garage. Otherwise, it would cause a risk of fire, especially if the machine took the garage wall or the door touches it as it closes.

22. Type Y attachment: If the supply cord is damaged, it must be replaced manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

23. Children shall not play with the appliance. Cleanir user maintenance shall not be made by children with supervision.

24. Inspect before every use.

25. DO NOT CLEAN IT WITH ANY ABRASIVE MATE

26. Never leave it unattended while in use. Never le child unattended.

27. Pet urine and feces can damage the product, pl keep away.

28. Do not pop the kernel with a dry pot (without oil

29. Do not immerse the popping pot set into water.

30. Since the pot surface is hot during popping or just use, do not touch it directly with your hands.

31. To avoid overheating, always add oil before putting the kernels in.

Diagram showing a cross-shaped object in a basin with a faucet and water droplet, indicating a mechanical or laboratory setup.

Diagram showing a water bath with a cross mark indicating an incorrect condition, likely for a filtration or disinfection procedure.

1. Extreme care must be taken when unloading popcorn.
2. This popper will not shut off automatically To avoid overheating, add corn a oil before operating.
3. Extreme caution must be used when unloading popcorn. Always turn the t over a counter-topso that residual hot oil or water running out will not cause

WARNING: This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

PRODUCT PARAMETERS

MODEL	Region	Voltage	Power	Plug Type
NP08001SE	North America	AC120V60Hz	850W	American PLUG
	Europe	AC220-240V 50Hz	850W	European PLUG
	Australia	AC220-240V 50Hz	850W	Australia PLUG
NP16T	North America	AC120V60Hz	1440W	American PLUG
	Europe	AC220-240V 50Hz	1440W	European PLUG
	Australia	AC220-240V 50Hz	1440W	Australia PLUG

Attention:

1. The voltage used for this device must be the same as the power supply

2. Users need to install it near the power switch and fuse.

3. If the machine is not powered, remove the plug from the electrical o and check whether the fuse is blown.

4. It is recommended that products use separate lines and sockets to avoid breaker or time delay fuse overload.

PRODUCT COMPONENTS

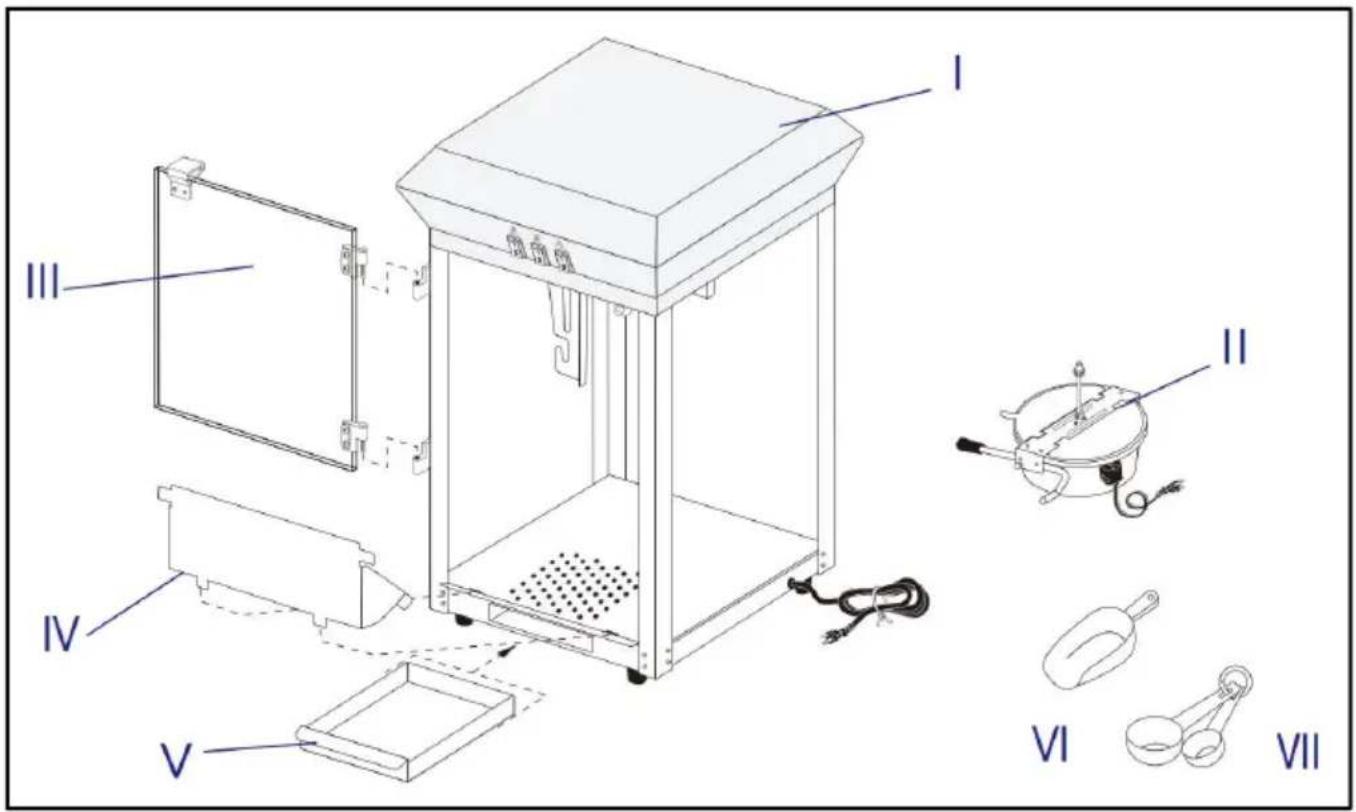

Technical diagram of a cooking appliance with labeled parts including a pan, stove, and pot

I. Main unit II. Kettle III. Glass door IV. Block plate

V. Crumb Tray VI. Popcorn scoop VII. Kernel scoop + Oil spoon

Diagram of a washing machine with pump and valve mechanism (no text or labels)

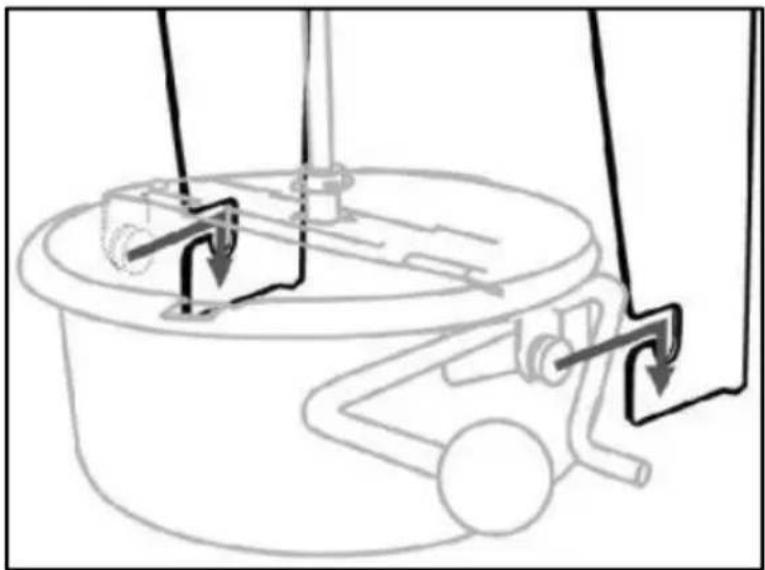

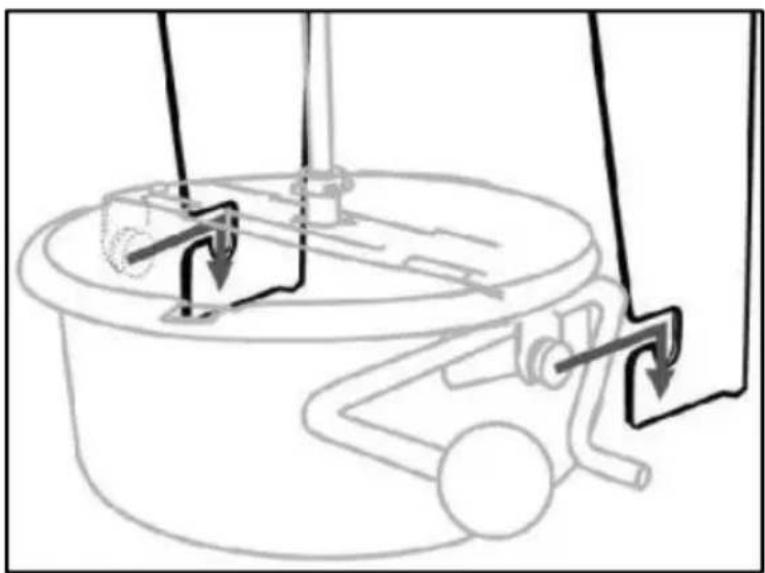

Attention: Assemble the kettle on the supporters which are built into the ma and then connect the socket.

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional material packaging materials, and check that the product are clean and free of dust. necessary, wipe them over with a damp cloth. Spread over with an absorbed kitchen towel and wipe off any excess oil. When your appliance is heated first time, it may emit slight smoke or odor, which is normal for many appliances, and will not affect the safety of your appliance. Place the ma on a clean, dry, level surface near a plug base outlet.

1. Make sure the popcorn maker is unplugged before you do any of the fol
2. Before operation, please check carefully if its voltage is suitable to your c (Please check if the voltage is matching with rating label specified next to the power cord).
3. Clean the internal surface of the kettle and the external surface of the m
   4 .The main unit has 3 function switches as follows:

Spot Light and Warmer ( I )

Stirrer (II)

Simple line drawing of a cooking pot with steam rising from the lid (no text or symbols)

Stainless Steel Kettle Heater ( III )

1. Hook up the kettle onto the hanger of the main unit.

2. Plug in the power cord to the popcorn maker.

3. Switch on the light and heater ( I & III ), and then fill in suitable amount or oil (Shown as Fig.1). You can fill the amount of oil (Max.15g) subject to y preference.

4. The kettle should be pre-heated for 3 to 4 minutes with oil (until steam cc from it). Please prepare kernels with sugar. You can measure the amount of kernels with the measuring scoop provided and amount of sugar subject to y own preference. Liquid sugar and honey are prohibited.

5. Open the lid and then pour in pre-mixed kernel and sugar (Shown as Fig Caution: The lid might be hot and it is recommended to use an oven mitten.

6. Switch on the Stirrer (II) to let it start stirring (Shown as Fig.3).

7. Close the door carefully.

8. Popcorn starts popping out through the lid after about 2 minutes (Shown Fig.4).

9. Switch off the stirrer &heater ( II & III )when popping completed (no mo popping sound from kettle). Rotate the roller bar of the kettle and pour out remaining popcorn from kettle.

10. Keep heater switch ( III ) off if the unit is not continuously running.Keep spot light and warmer on to keep

the popcorn warm,dry and tasty.

1. Serve your popcorn with popcorn scoop provided.

2. Remove plug from power supply if the unit is not being used for a long

3. Repeat steps 7 to 10 for continuous popping.

Simple line drawing of a kitchen sink with a spoon and pipe (no text or symbols)

Fig.1

Simple line drawing of a bathtub with a dome-shaped top and legs, no text or symbols present

Fig.2

Simple line drawing of a mechanical device with a rotating knob and handle (no text or symbols)

Fig.3

Simple line drawing of a bathtub with steam rising from the side (no text or symbols)

Fig.4

USING YOUR POPCORN MACHINE

We recommend to follow the measurement equivalents list below. And measur

the amount of kernels and oil with scoops provided.

TIPS: General rule for quantities of oil and popcorn grain 3:1

KETTLE	KERNELS	OIL
2.5oz	1/3 cup	3/4 Tp (12ml)
4oz	1/2 cup	1-1/2 Tp (20ml)
6oz	3/4 cup	2 Tp (30ml)
8oz	1 cup	2-1/2 Tp (40ml)
10oz	1-1/4 cup	3 Tp (50ml)
12oz	1-1/2 cup	4 Tp (60ml)
16oz	2 cup	5 Tp (80ml)
20oz	2-1/2 cup	6-1/2 Tp (100ml)

1 person = (+/-) 1 oz

Three metallic kitchen utensils: a small bowl, a smooth spoon, and a conical tool (no text or symbols visible)

a.
b.

Metallic conical object with a long handle, resembling a stylized food item or tool (no text or symbols visible)

C.

a. Oil Spoon

b. Kernel Scoop

c. Popcorn Scoop

TROUBLESHOOTING

Kettle Not Heating	-Kettle need to be replace
Popcorn is buring	-Check the oil quantity (refer to operating instruction section 13)
Popcorn doesn't come off	-Check the temperature of the kettle
	-Check the HEAT SWITCH POSITION (ON)
No light on the switches	-Check if the plug is fully inserted into to wall
	-Check your circuit breaker tripped
Popcorn remains trapped	-Check if the plastic gear housing is broken
	(inside the top of the machine) -Check if the kernels quantity is not exede the capacity
Stirrer jumps	-Check if the plastic gear housing is broken (inside the top of the machine)
Stirrer doesn't work	-Check if the Stir button is turned at the ON -Check if the Stir button is glowing

CLEANING AND MAINTENANCE

1. Wipe the doors, glass and metal surface with a clean damp cloth. DO NO any acidic, citrus based cleaners or abrasive cleaners on the acrylic doors as might cause scratching or dullness.
2. Frequently empty the catch tray of unpopped popcorn kernels and clean it soap and water. Dry it thoroughly afterwards.
3. Frequent cleaning of the popcorn kettle is strongly recommended. This will prevent burning of excess oils on the bottom of the kettle.
4. Let the unit cool down before cleaning.
5. Clean the kettle surface inside and out with wet cloth. To thoroughly clean popcorn kettle, turn off the unit and add 1-1/2 to 2 cups of hot water into the kettle (no detergent is necessary), then place a towel at the bottom of the main and place a large bowl or container on the towel (the container must be lare enough to easily pour water from the popcorn kettle). Turn on the Stirrer & Heater (2) and boil the water for 1 to 2 minutes. After that, turn off the stirr heater and carefully pour the water from the popcorn kettle to the bowl or container. Repeat same procedure 2 to 3 times for the best cleaning effect.

CAUTION:

1. Kettle and water will be HOT!
2. Never immerse the kettle into water or place it in the dishwasher.
