USER MANUAL LY007-3 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

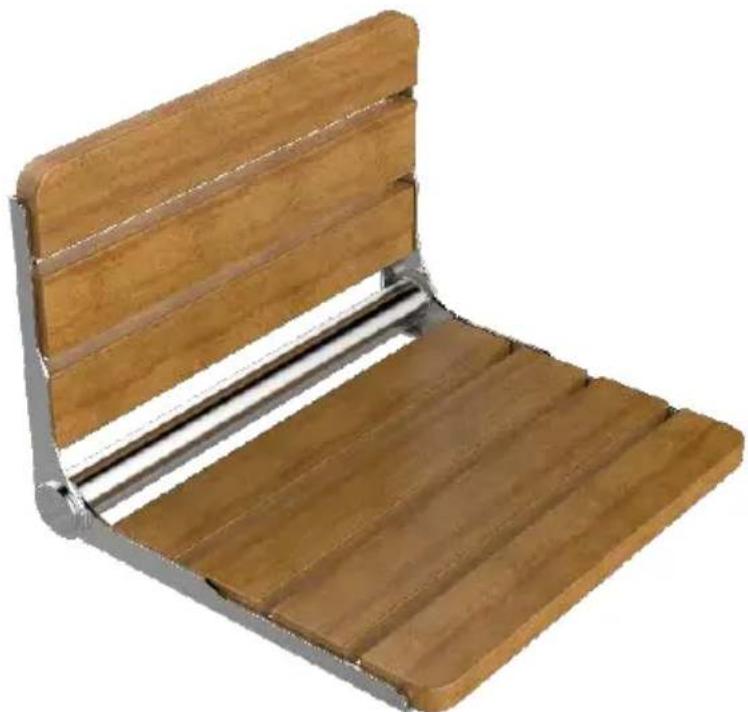

Fold Down Shower Seat

MODEL: LY007-3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: LY007-3

Wooden chair with metal frame and wooden seat, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Cautions

1: Please confirm whether the wall is a load-bearing pond before drilling;
2: Before drilling, please confirm whether there is a water pipe at the hole |
3: Check whether the product accessories are complete before installation;
4: Make sure the drill bit is 8.5mm in size.
5: Make sure the hole depth is 6.5cm
6: The recommended height between the seat and ground is about 40-48cm.

Part List
NO.	Name	Pictures	QTY.
1	Main Body		1
2	Nylon Bolt Cap		6+2
3	ScrewST8*70mm		6+2
4	Mounting HoleGuiding Sticker		1
5	Drill BitΦ8.5*150		1
Tip: “+” is extra spare parts.

Tip: “+” is extra spare parts.

Model	LY007-3
Specification (inch)	20.5*16
Max. Load (lbs/kg)	500/226

INSTALLATION

STEP1:

Measure the distance and attach the locator card to the wall.

Simple line drawing of a rectangular object on a slope with a ruler placed beside it, no text or symbols present.

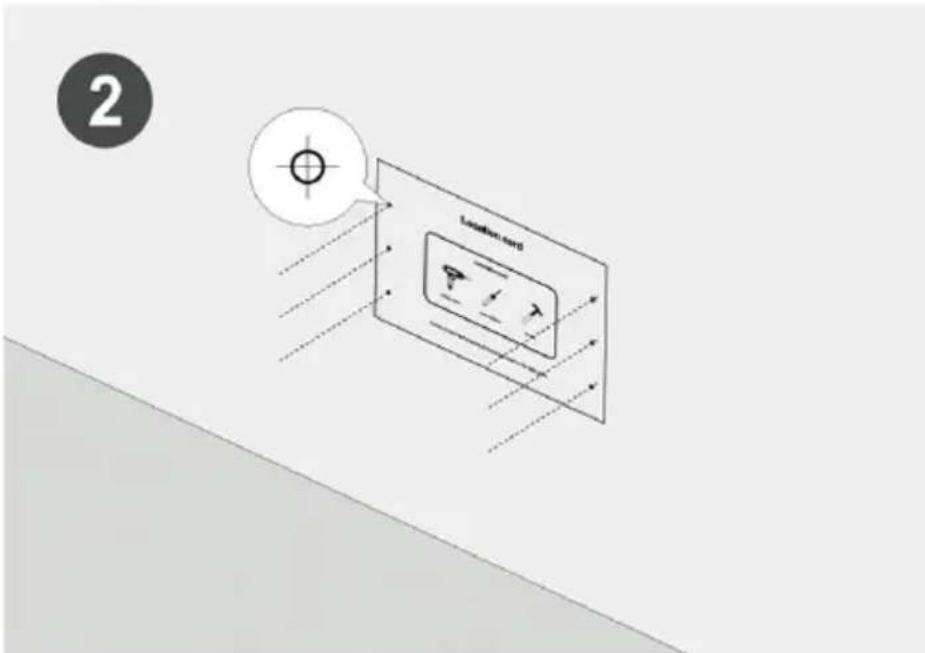

STEP2:

Drill holes in the marked points of the locator card. (Drill bit is 8.5mm, punching depth is 65mm)

2 Location card

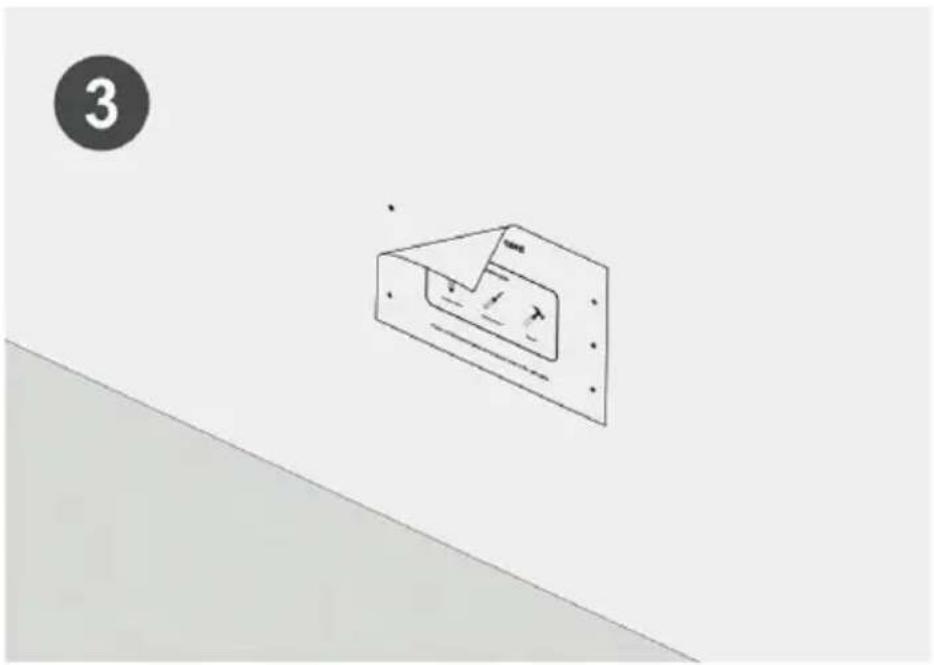

STEP3:

Tear off the locator card.

3

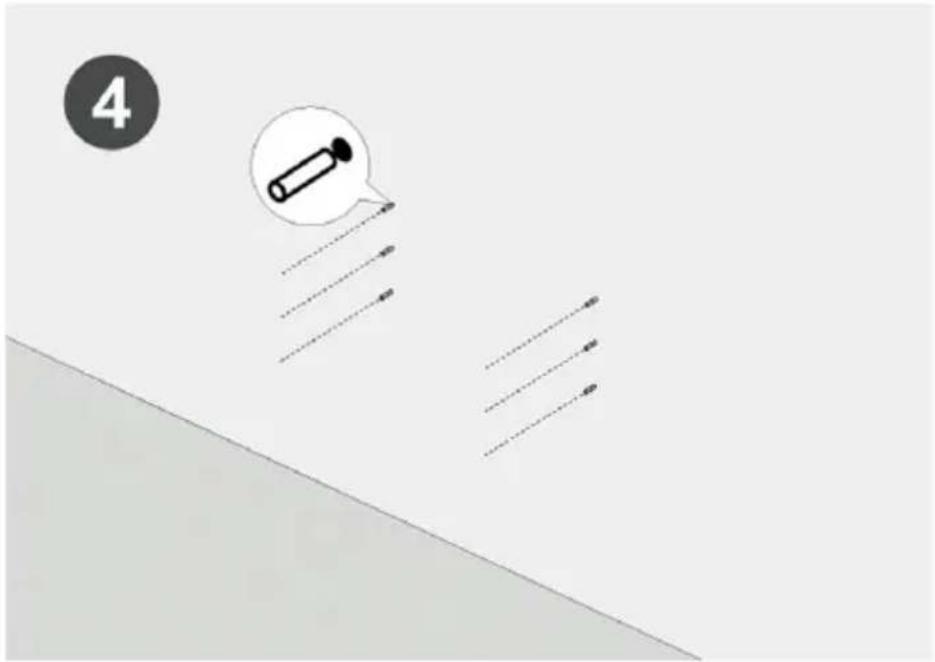

STEP4:

Insert the expansion bolt so that it is flush with the wall.

4

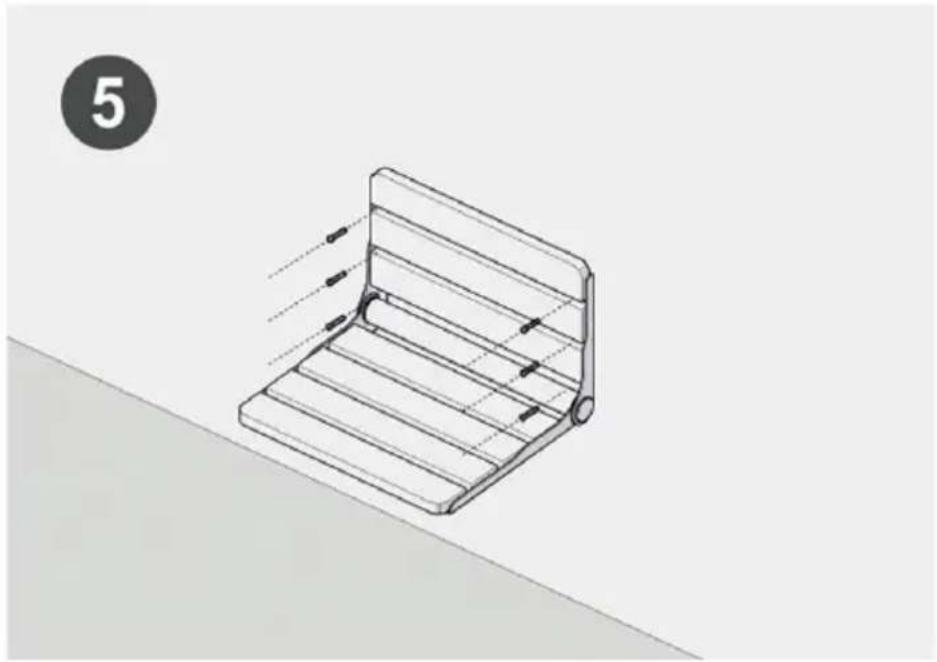

STEP5:

Align the holes and tighten the screws.

Isometric line drawing of a folding chair or bench with no text or symbols

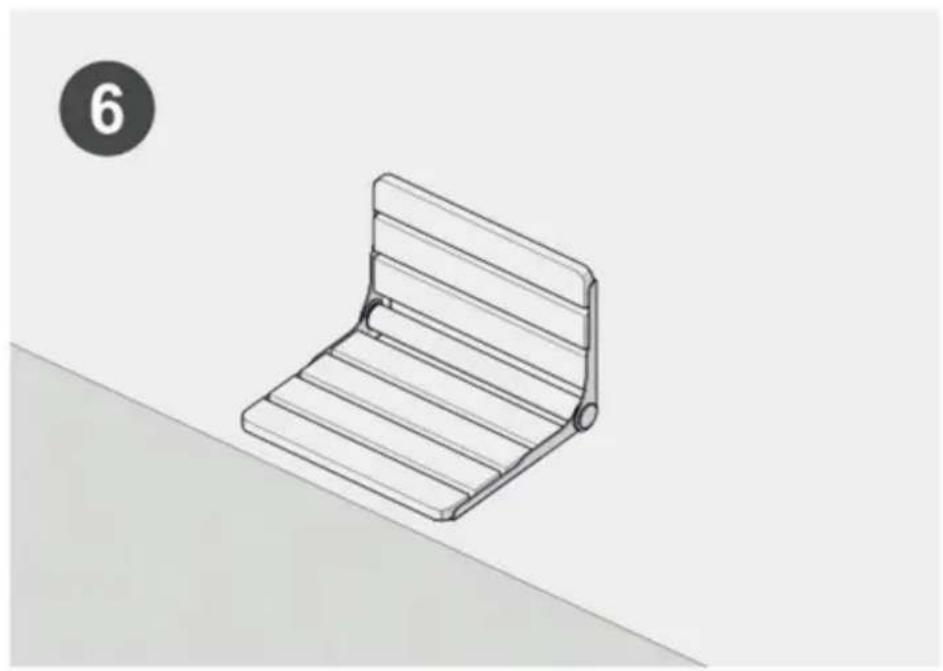

STEP6:

Finish.

Line drawing of a simple chair or bench with horizontal ribs and a circular badge labeled '6' (no text or symbols on the chair itself)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
