USER MANUAL LY007 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Fold Down Shower Seat

MODEL: LY007

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: LY001

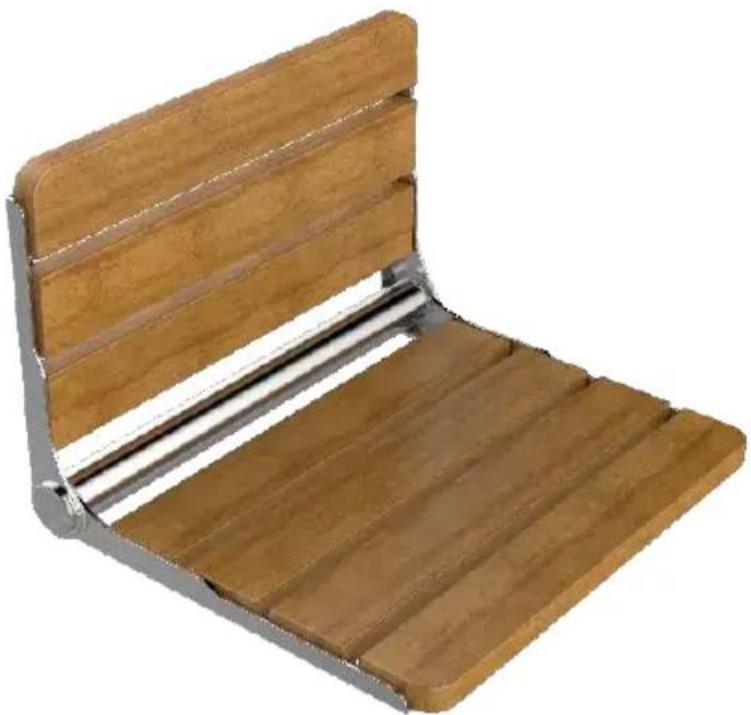

Wooden chair with metal frame and horizontal slats, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Cautions

1: Please confirm whether the wall is a load-bearing pond before drilling;
2: Before drilling, please confirm whether there is a water pipe at the hole |
3: Check whether the product accessories are complete before installation;
4: Make sure the drill bit is 8.5 mm in size.
5: Make sure the hole depth is 6.5 cm
6: The recommended height between the seat and ground is about 40-48 cm

Part List
NO.	Name	Pictures	QTY.
1	Main Body		1
2	Nylon Bolt Cap		6+2
3	Screw ST8*70mm		6+2
4	Mounting Hole Guiding Sticker		1
5	Drill Bit Φ8.5*150		1
Tip: “+” is extra spare parts.

Tip: “+” is extra spare parts.

Model	LY007
Specification (inch)	16*13.5
Max. Load (lbs/kg)	440/200

INSTALLATION

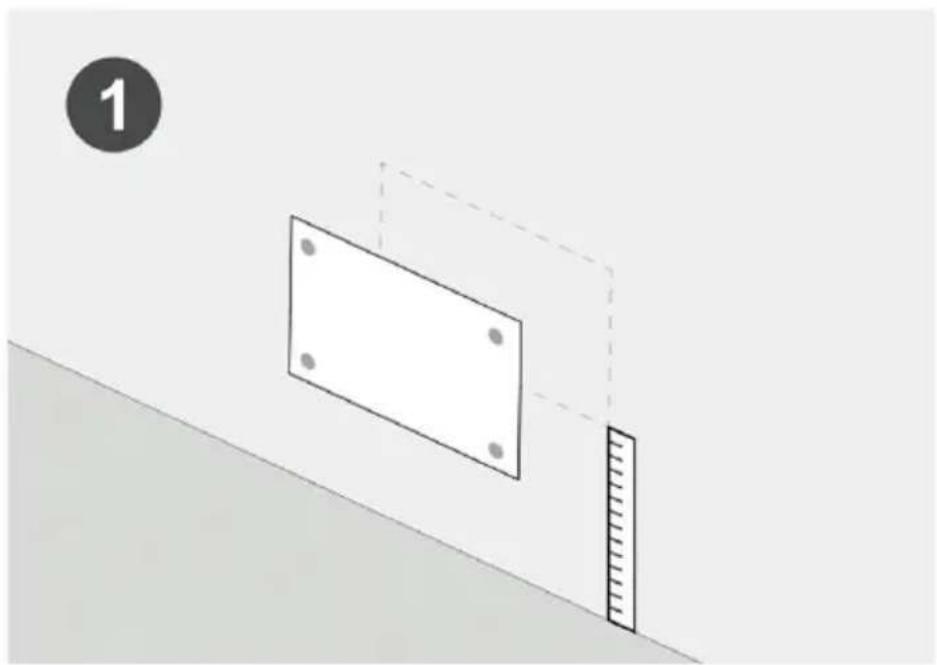

STEP1:

Measure the distance and attach the locator card to the wall.

Simple line drawing of a rectangular object on a slope with a ruler placed beside it, no text or symbols present.

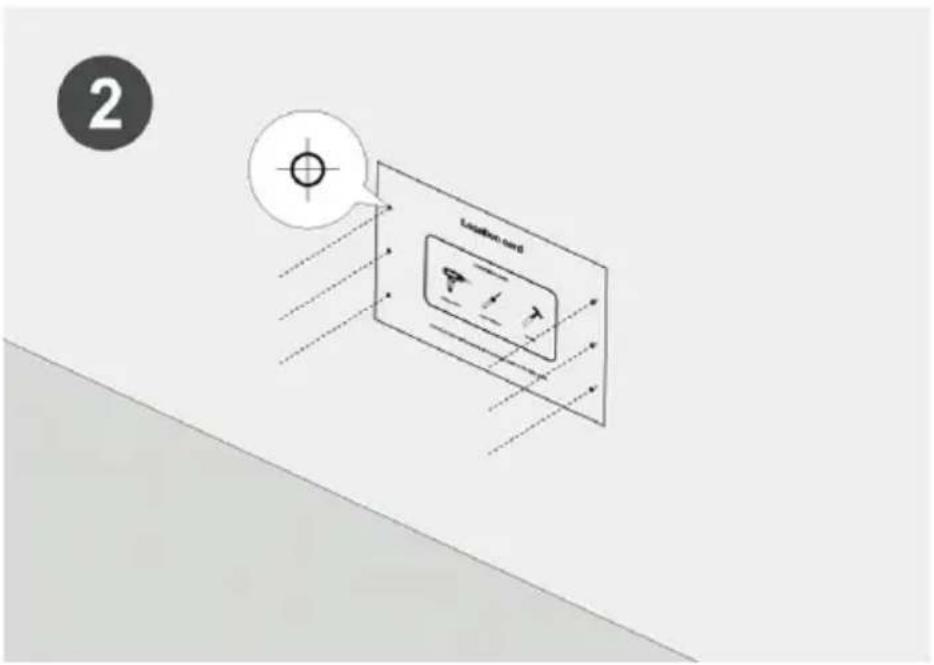

STEP2:

Drill holes in the marked points of the locator card. (Drill bit is 8.5mm, punching depth is 65mm)

2 Location card

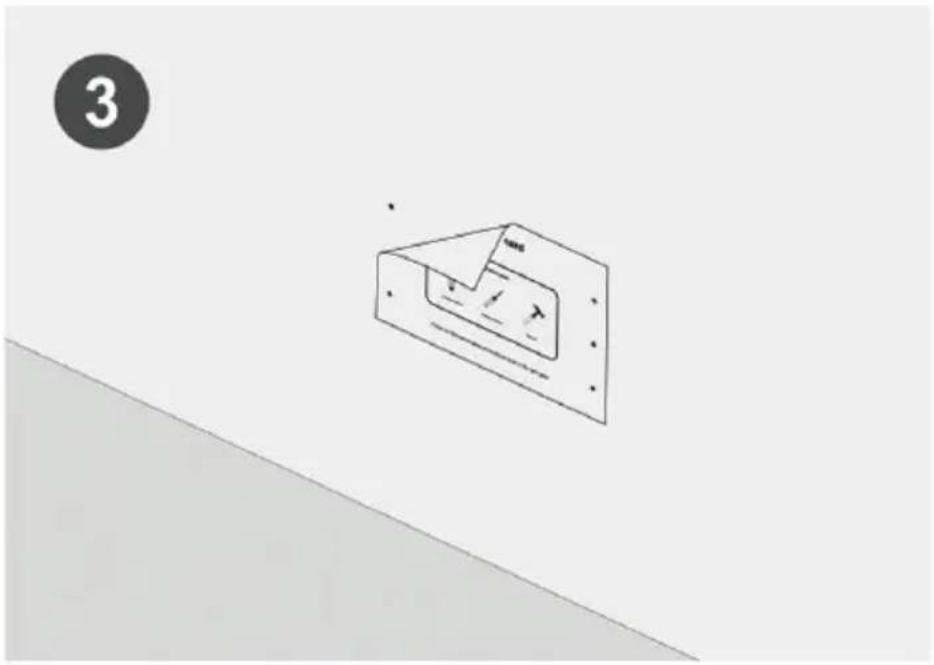

STEP3:

Tear off the locator card.

Simple line drawing of a 3D object with a base and top, placed on a diagonal surface (no text or symbols)

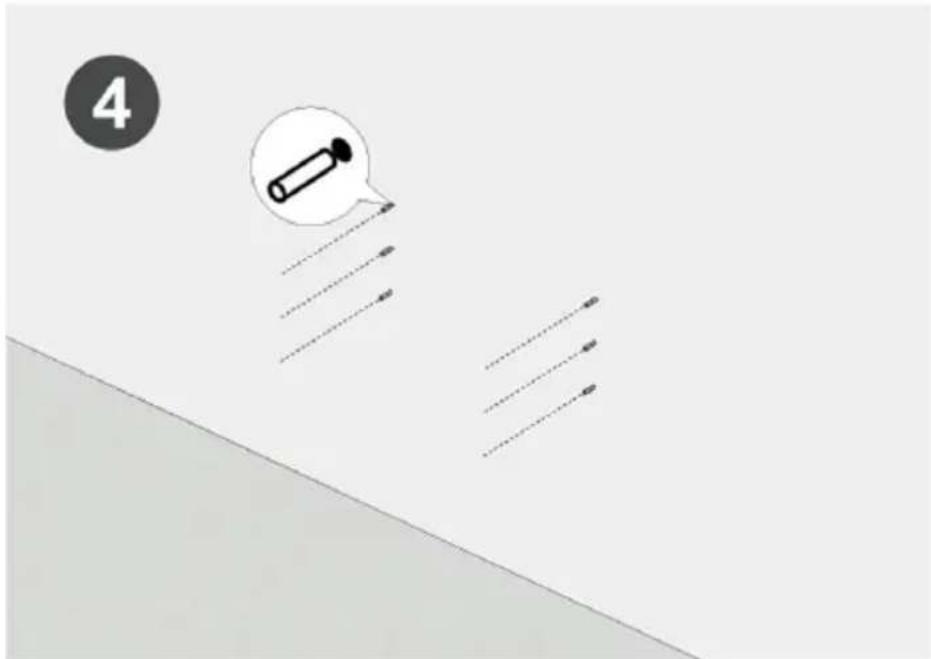

STEP4:

Insert the expansion bolt so that it is flush with the wall.

4

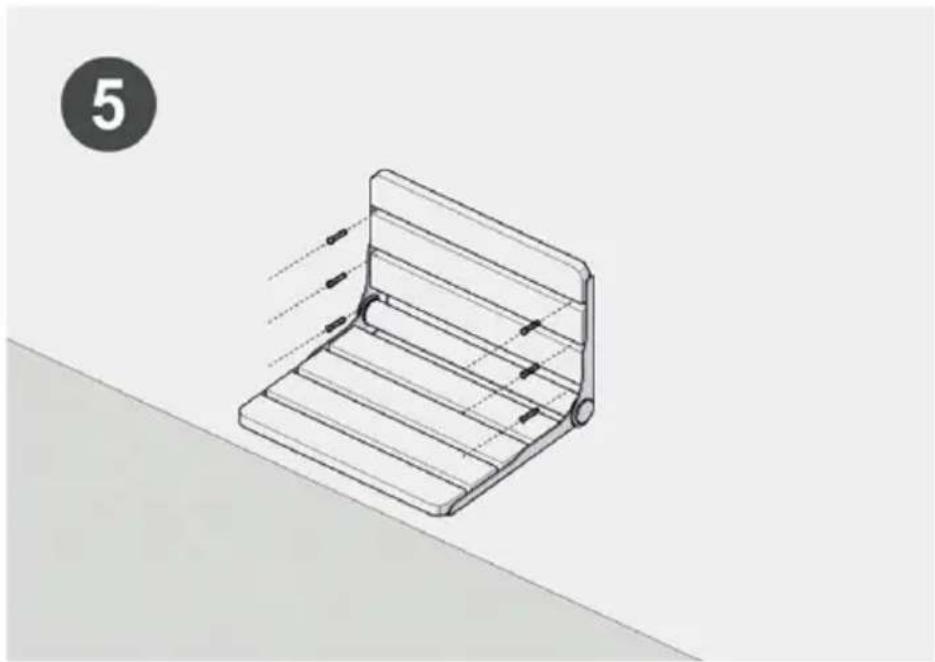

STEP5:

Align the holes and tighten the screws.

Isometric line drawing of a folding chair or bench with no text or symbols

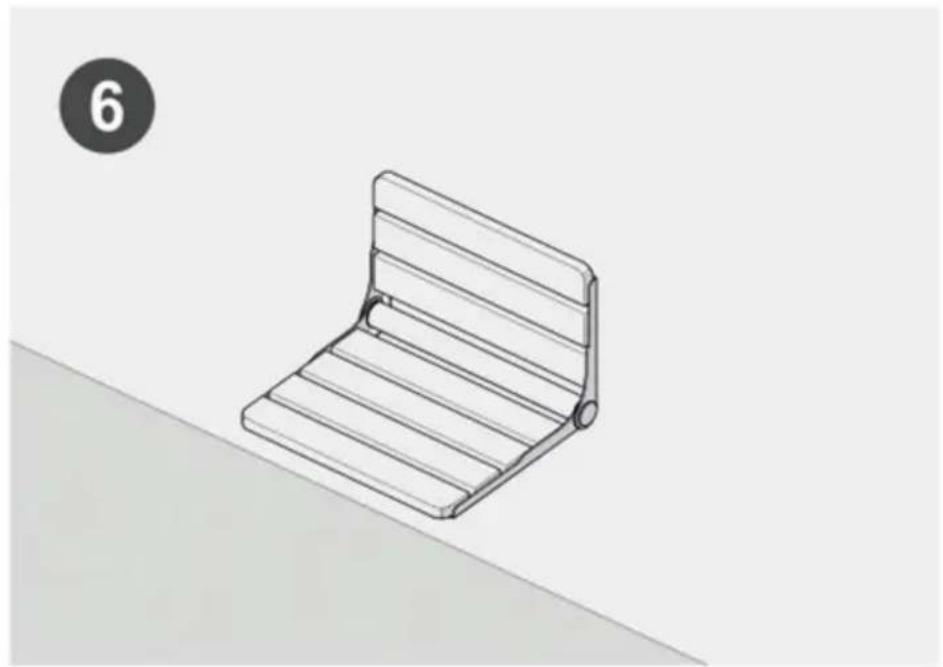

STEP6:

Finish.

Line drawing of a simple chair or bench with horizontal ribs and a curved seat, placed on a flat surface (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Wooden chair with metal frame and horizontal slats, no visible text or symbols

BESOIN D'AIDE? CONTACTEZ-NOUS!

Simple line drawing of a rectangular block on an inclined plane with a ruler, no text or symbols present

ÉTAPE 2 :

Simple line drawing of a 3D object with a rectangular base and diagonal line, no text or symbols present.

ÉTAPE 4 :

Isometric line drawing of a folding chair or bench with no text or symbols

ÉTAPE 6 :

Terminer.

3D line drawing of a wooden bench or chair with a flat base and diagonal support, placed on a flat surface (no text or symbols)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Wooden chair with metal frame and wooden seat, no visible text or symbols

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Simple diagram showing a rectangular plate and ruler placed on a sloped surface, with a numbered circle in the top-left corner (no text or symbols on the diagram itself)

SCHRITT

Simple line drawing of a 3D object with a rectangular base and diagonal line, no text or symbols present.

SCHRITT

Isometric line drawing of a folding chair or bench with no text or symbols

SCHRITT 6:

Fertig stellen.

3D line drawing of a simple bench or chair with horizontal ribs and a flat base, no text or symbols present

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Büro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Wooden chair with metal frame and wooden seat, no visible text or symbols

HO BISOGNO DI AIUTO? CONTATTACI!

Simple line drawing of a rectangular object on an inclined plane with a ruler, no text or symbols present

FASE 2:

Simple line drawing of a 3D object with a rectangular base and diagonal line, no text or symbols present.

PASSO 4:

Isometric line drawing of a folding chair or bench with no text or symbols

PASSO

6: Fine.

3D line drawing of a wooden bench or chair with a flat base and diagonal support, placed on a plain surface (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

Wooden chair with metal frame and horizontal slats, no visible text or symbols

Simple diagram showing a rectangular plate on an inclined plane with a ruler placed beside it, no text or symbols present.

PASO 2:

Simple line drawing of a 3D object with a rectangular base and diagonal line, no text or symbols present.

PASO 4:

Isometric line drawing of a folding chair or bench with no text or symbols

PASO 6:

Finalizar.

3D line drawing of a wooden bench or chair with a flat base and diagonal support, placed on a plain surface (no text or symbols)

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA CALLE ASTWOOD

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Wooden chair with metal frame and wooden seat, no visible text or symbols

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Simple diagram showing a rectangular plate and a ruler placed on a sloped surface, with a numbered circle in the top-left corner (no text or symbols on the diagram itself)

KROK 2:

2 Laser card

KROK 3:

Simple line drawing of a 3D object with a rectangular base and diagonal line, no text or symbols present.

KROK 4:

Isometric line drawing of a folding chair or bench with no text or symbols

KROK 6:

Zakończ.

3D line drawing of a wooden bench or chair with a flat base and diagonal support, placed on a plain surface (no text or symbols)

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Import do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Neerklapbare douchestoel

MODEL: LY007

Wooden chair with metal frame and horizontal slats, no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

Simple diagram showing a rectangular plate and ruler placed on a sloped surface, with a numbered circle in the top-left corner (no text or symbols on the diagram itself)

STAP2:

2 Laser card

STAP3:

Simple line drawing of a 3D object with a rectangular base and diagonal line, no text or symbols present.

STAP4:

Isometric line drawing of a folding chair or bench with no text or symbols

STAP6:

Voltooi.

3D line drawing of a wooden bench or chair with a flat base and diagonal support, placed on a plain surface (no text or symbols)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Wooden chair with metal frame and horizontal slats, no visible text or symbols

BEHÖVS HJÄLP? KONTAKTA OSS!

Simple diagram showing a rectangular plate on an inclined plane with a ruler placed beside it, no text or symbols present.

STEG 2:

2 Laser card

STEG 3:

Simple line drawing of a 3D object with a rectangular base and diagonal line, no text or symbols present.

STEG 4:

Isometric line drawing of a folding chair or bench with no text or symbols

STEG 6:

Avsluta.

3D line drawing of a wooden bench or chair with a flat base and diagonal support, placed on a plain surface (no text or symbols)

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
