USER MANUAL FBL650322 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

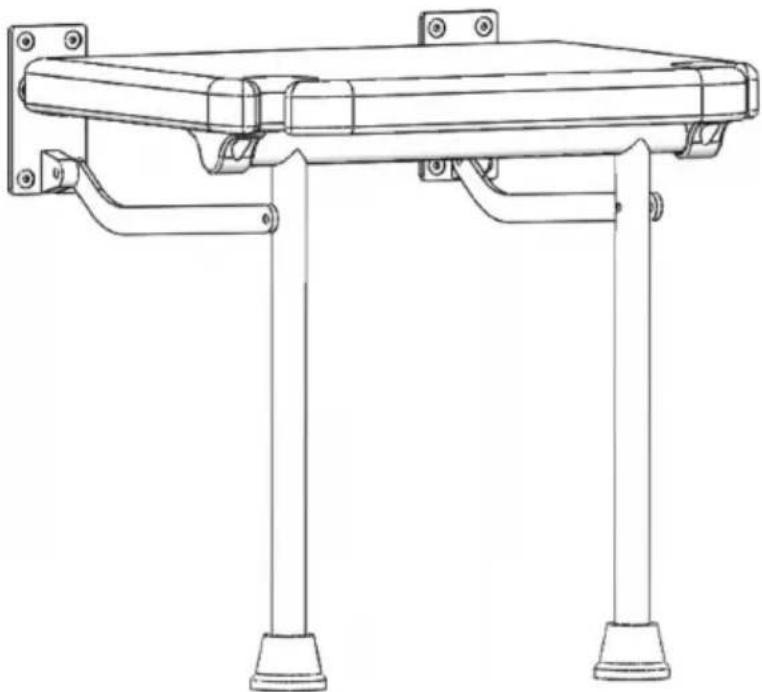

Fold Down Shower Seat

MODEL: FBL650322

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: FBL650322

Technical line drawing of a mechanical support base with two vertical legs and mounting feet (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Cautions

1: Please confirm whether the wall is a load-bearing pond before drilling;
2: Before drilling, please confirm whether there is a water pipe at the hole |
3: Check whether the product accessories are complete before installation;
4: Make sure the drill bit is 8mm in size.
5: Make sure the hole depth is 50mm.

Part List
NO.	Name	Pictures	QTY.
1	Main Body		1
2	Expansion Screw 8*50mm		8+2
3	Hex Key		1
4	Mounting Hole Guiding Sticker		1
Tip: “+” is extra spare parts.

Model	FBL650322
Specification (inch)	16*16
Max. Load (lbs/kg)	500/226.8

INSTALLATION

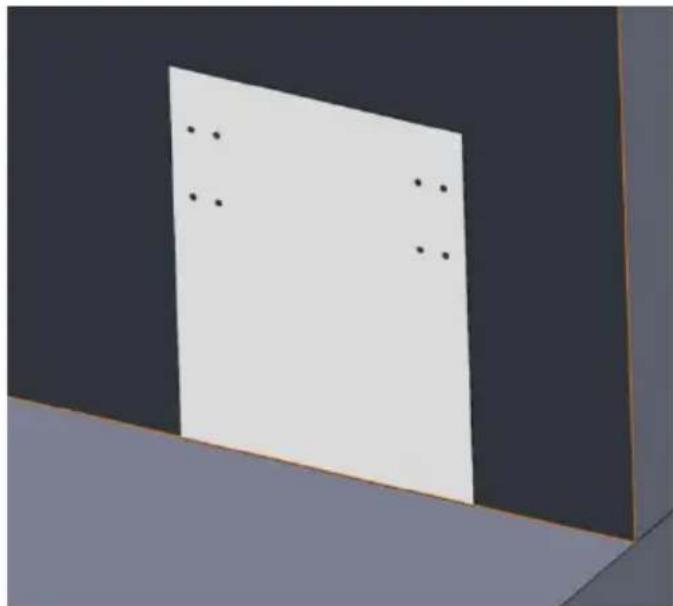

STEP1:

Place the installation card in the position to be installed, close ground to the wall, and drill 50mm deep into the eight holes of card using the M8 drill bit (not provided).

3D-rendered white rectangular panel with four small black dots on a dark background (no text or symbols)

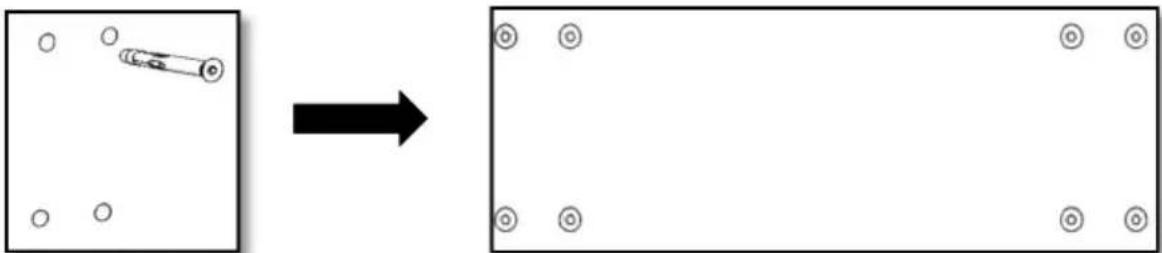

STEP2:

Insert the 8pcs expansion screws into the drilled holes.

Diagram showing a transformation from a rectangular block to a rectangular panel with circular holes, no text or symbols present.

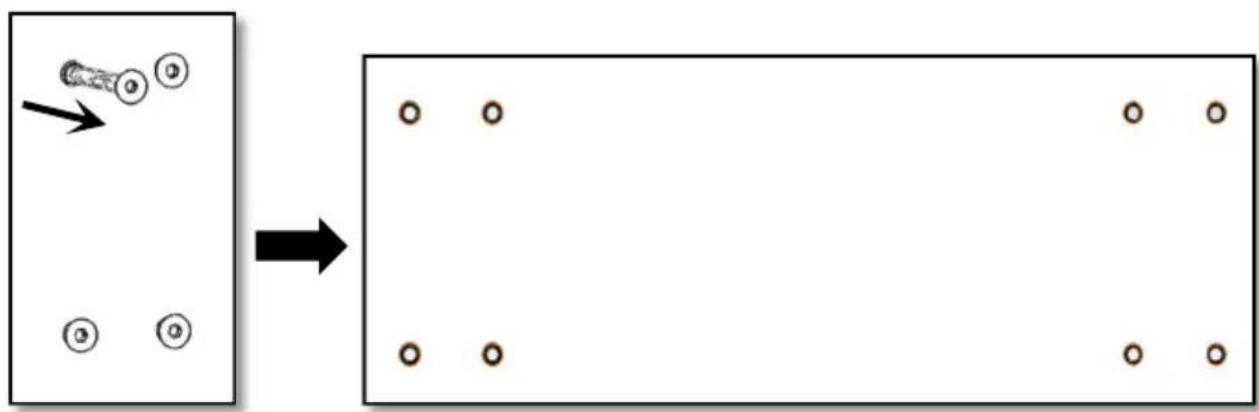

STEP3:

Unscrew the small screws inside the expansion screws. (Note that the screw is screwed, and the screw sleeve is not screwed out.)


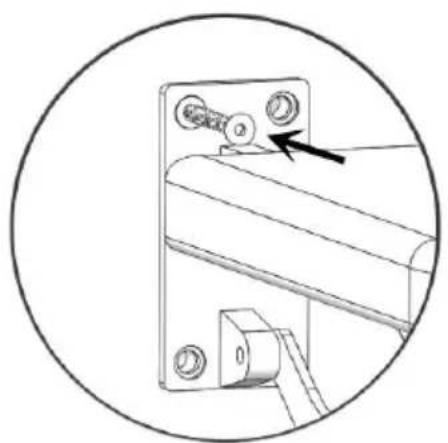

STEP4:

Align the holes in the base of the shower stool with the expand screw holes on the wall, and lock the small screws one by on Hex Key.

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow (no text or symbols)

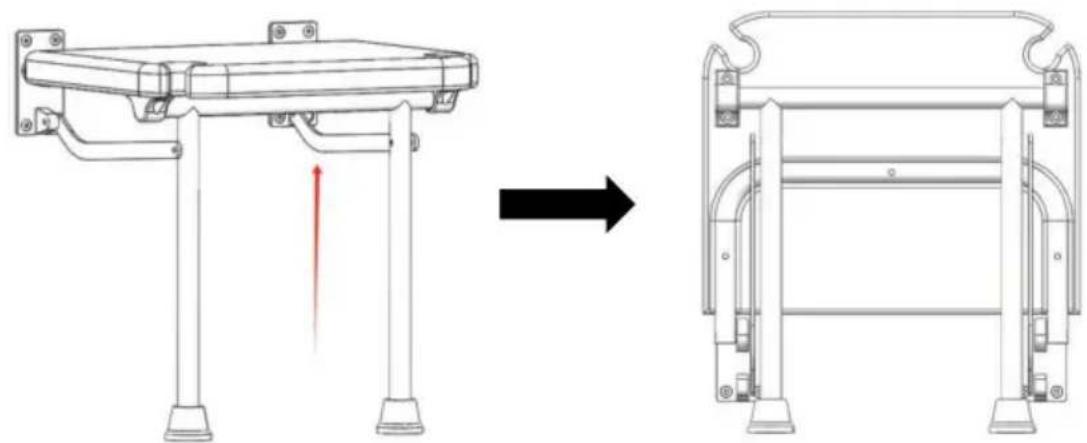

Folding Method

Technical line drawing showing a structural component before and after assembly, with no visible text or symbols.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical support base with two vertical legs and mounting feet (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

3D-rendered white panel with four small black dots on a dark background, no text or symbols visible

ÉTAPE 2:

Diagram showing a transformation from a rectangular block with circular holes to a blank rectangular area with circular symbols (no text or labels)

ÉTAPE 3:

ÉTAPE 4:

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow (no text or symbols)

Méthode de pliage

Technical line drawing showing a structural component before and after assembly, with no visible text or symbols.

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Technical line drawing of a mechanical support base with two vertical legs and mounting feet (no text or symbols)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

3D-rendered white panel with four small black dots on a dark background, no text or symbols visible

SCHRITT 2:

Diagram showing a transformation from a rectangular block to a rectangular panel with circular holes, no text or symbols present.

SCHRITT 3:

Diagram showing a device with labeled components before and after transformation, indicating a process or setup.

SCHRITT 4:

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow (no text or symbols)

Faltmethode

Technical line drawing showing a structural component before and after assembly, with no visible text or symbols.

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Büro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical support base with two vertical legs and mounting feet (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

3D-rendered white panel with four small black dots on a dark background, no text or symbols visible

PASSO 2:

Diagram showing a transformation from a rectangular block to a rectangular panel with circular holes, no text or symbols present.

PASSO 3:

Diagram showing a device with labeled components before and after transformation, indicating a process or setup.

PASSO 4:

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow (no text or symbols)

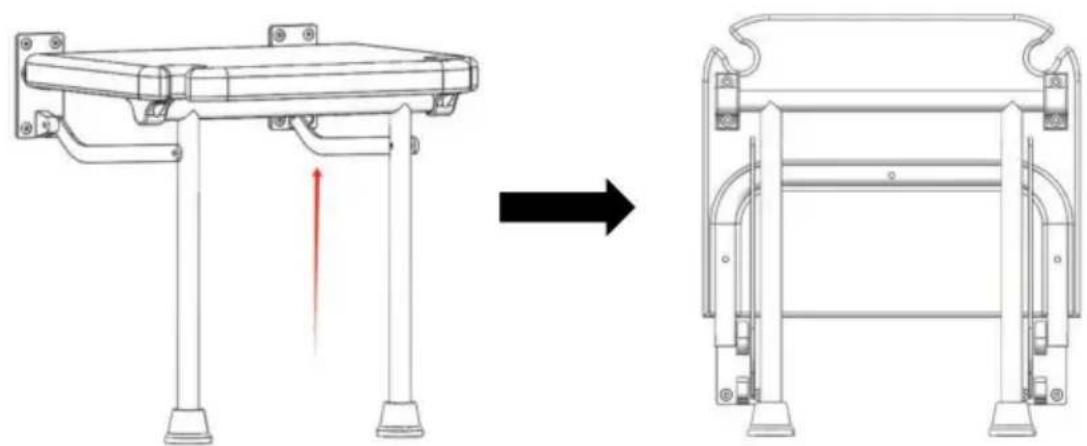

Metodo di piegatura
