RBSDGZD-006 - Lighting Vevor - Free user manual and instructions

Brand	Vevor
Model	RBSDGZD-006
Product Type	Work light with tripod
Light Source	LED (estimated)
Number of Heads	3
Main Material	Metal and plastic
Power Supply	Mains 120-240V AC
Electrical Protection	GFCI recommended for outdoor or damp use
Adjustable Height	Yes, by tightening/loosening on the mast
Adjustable Angle	Yes, via the I-frame
Stability	Tripod
Intended Use	Indoor and outdoor (with GFCI)
Compliance	FCC Part 15, European Directive 2012/19/EU (WEEE)
Cleaning	Non-abrasive cleaner
Storage	Dry and secure place
Parts Included	3 lamp holders, 1 work light holder, 1 connecting rod, 1 tripod, 4 screws 6×25, 1 screw 6×35, 1 hex key, manual
Manufacturer	Shanghai Muxin Muye Co., Ltd.
Importer (Australia)	SIHAO PTY LTD
Importer (United States)	Sanven Technology Ltd.

Frequently Asked Questions - RBSDGZD-006 Vevor

How to assemble the Vevor RBSDGZD-006 lamp?

To assemble, open the tripod and tighten the knob. Attach the connecting rod to the tripod. Place the I-frame on the connecting rod and tighten with the bolts. Install the lamp heads on the frame. Adjust the height by loosening then tightening the knobs on the mast.

What safety precautions should be followed?

Do not look directly at the light to avoid eye injury. Keep the lamp away from flammable materials. Use GFCI protection outdoors or in damp environments. Do not pull the cord to avoid tipping.

How to clean the work light?

Clean regularly with a non-abrasive cleaner. If water gets on the device, dry the tripod and head thoroughly. Store in a dry and secure place.

Can I use an extension cord with this lamp?

Yes, but you must use a grounded extension cord (3-prong). Make sure it is not in an area where water could accumulate.

Which models are compatible with this manual?

This manual applies to models RBSDGZD-005, RBSDGZD-006, RBSDGZD-007, and RBSDGZD-008.

How to adjust the lamp height?

Height is adjusted by loosening the knobs (C and D) on the mast, sliding the tube, then tightening firmly.

What to do if the lamp does not turn on?

Check the electrical connections and ensure the outlet works. If an extension cord is used, test it on another device. If the problem persists, contact customer service.

Can I use this lamp outdoors?

Yes, but only if you use ground fault circuit interrupter (GFCI) protection and the environment is not exposed to water accumulation.

How to recycle this device at end of life?

In accordance with European Directive 2012/19/EU, do not dispose of the device with household waste. Drop it off at a collection point for recycling of waste electrical and electronic equipment.

What accessories are included with the RBSDGZD-006 model?

The kit includes: 3 lamp holders, 1 work light holder, 1 connecting rod, 1 tripod, 4 screws 6×25, 1 screw 6×35, 1 hex key, and instruction manual.

USER MANUAL RBSDGZD-006 Vevor

Affordable. Reliable. Home Improvement.

Work Light With Tripod

MODEL:RBSDGZD-005,

RBSDGZD-006,

RBSDGZD-007,

RBSDGZD-008

MODEL:RBSDGZD-005,RBSDGZD-006,RBSDGZD-007,RBSDGZD-008

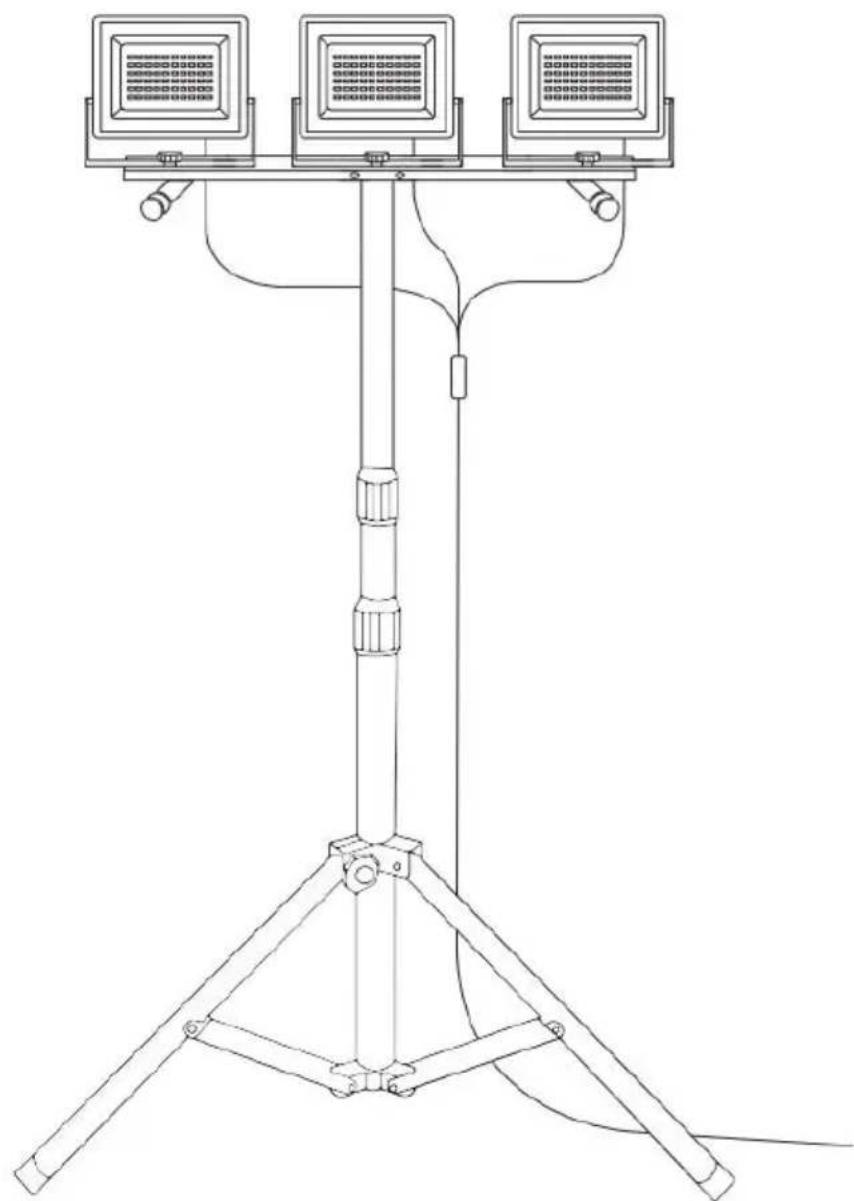

Line drawing of a three-tier outdoor lamp with three mounted screens and cables (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

PLEASE READ THESE INSTRUCTIONS CAREFULLY AND SAVE THEM, AS YOU MAY NEED THEM AT A LATER DATE.

WARNING: Failure to use with specific U.L. safety standards for the intended working environment (location/application), may cause serious personal injury, death and/or property damage. This product must be assembled by a person qualified and familiar with the operation and the intended use of this fixture.

SAFETY INFORMATION

1) If an extension cord is used with this unit, it must be the ground 3-prong.
2) Ground Fault Interrupt(GFCD) protection must be provided on crust outlet(s) to be used for outdoor or wet location use with this work li

3) Avoid touching the lighted area to protect you from any heat expos
4) Do not look directly into light to avoid injury to the eyes.
5) Always keep the work light away from any flammable material or surfaces. Never use it around volatile liquid.
6) Do not use an extension cord near any place where water may accumulate.
7) Keep work light away from pools and spas.
8) When plugging in unit to cord plugs (EX1 provided), keep enough on the cord so it cannot be pulled, which may knock over the work
9) Make sure to put tripod in a flat, secure place to avoid it from falling over.

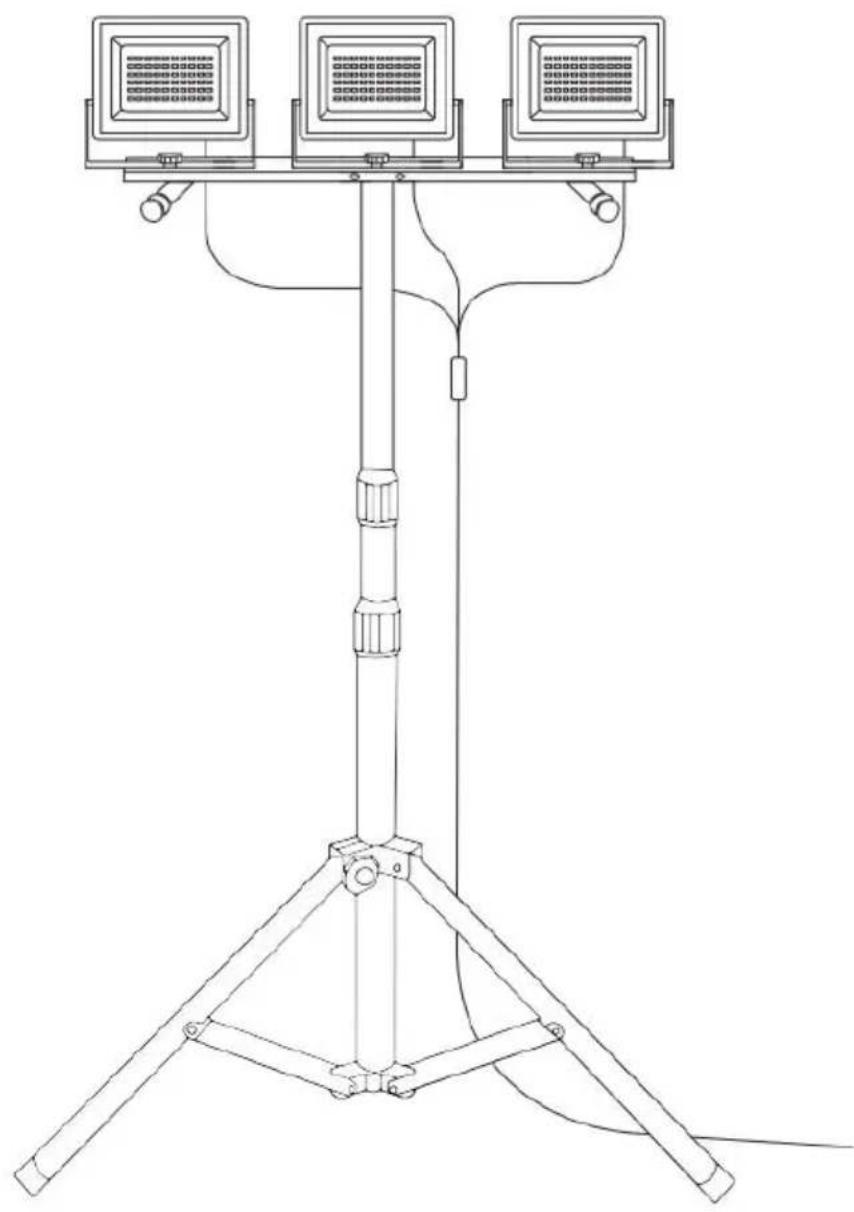

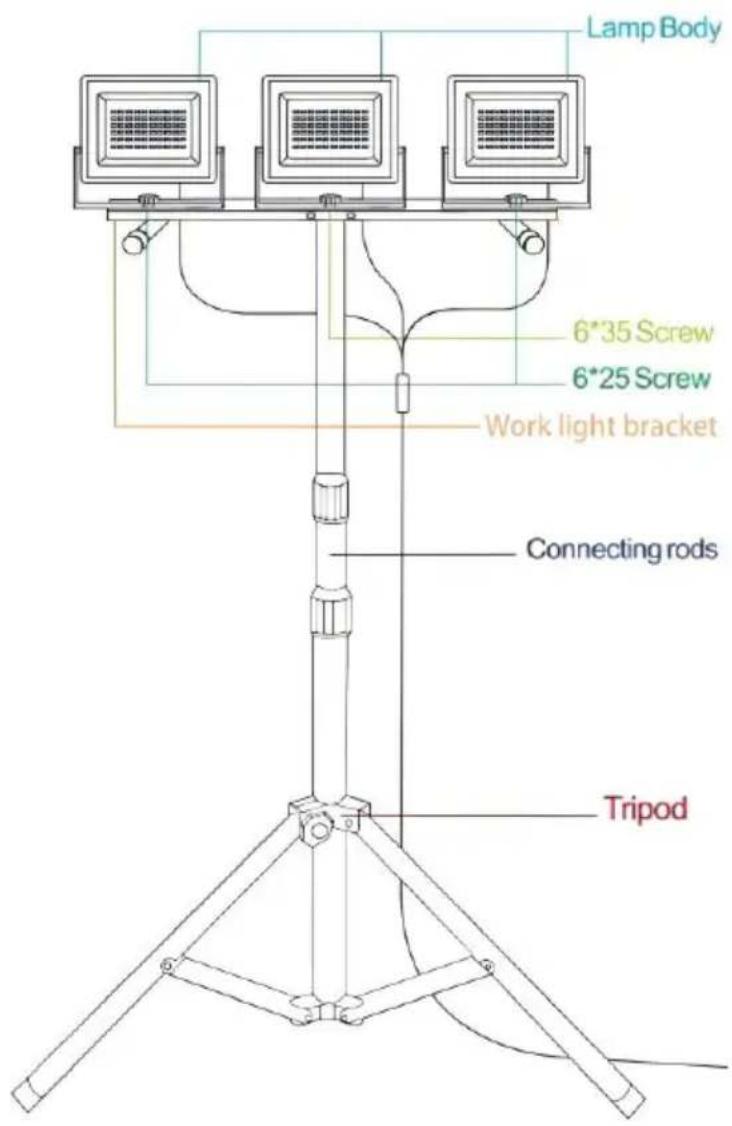

1) Lamp holder: 3 pieces
2) Work light bracket: 1 p
3) Connecting rod: 1 piece
4) Tripod: 1 piece
5) 6*25 screws: 4 pieces
6) 6*35 screws: 1 piece
7) Hex key wrench: 1 piece
8) Instruction manual: 1 cc

PART INCLUDED

IMPORTANT NOTE: The safeguards and Instructions appearing in this page, are not meant to cover all possible conditions and situations that may occur. It may be understood that common sense, caution, and care factors that cannot be built into any product. The person(s) install operating is responsible for the work light, must execute these common sense factors.

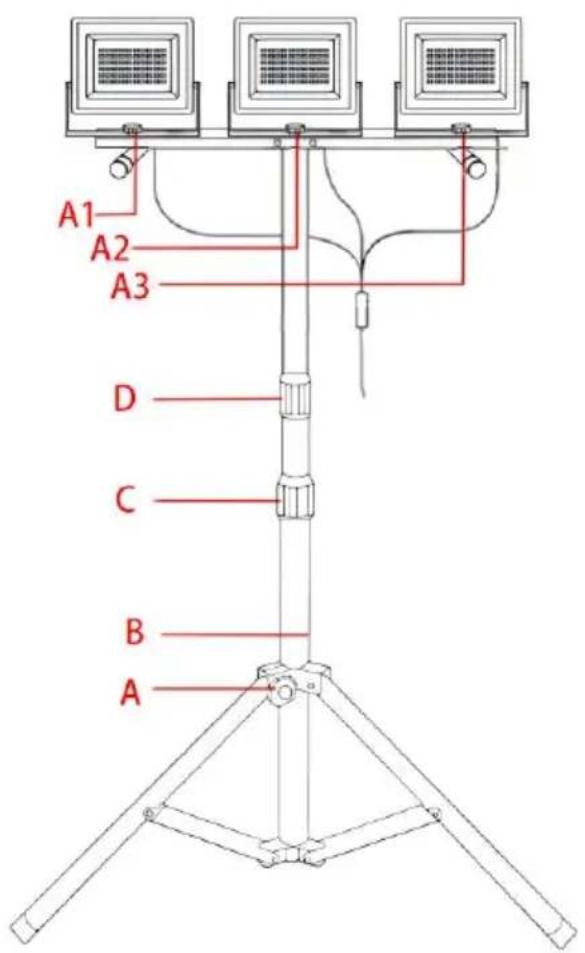

ASSEMBLY

①.Open the tripod and tighten the (A).

②.Fix the connecting rod (B) onto tripod using a knob and tighten it completely.

③. Place the cross connection of th l-frame on the concave part of the connecting rod and tighten it with

④. Install the lamp head above the installed I-frame (A1, A2, A3).

⑤.The height of (C) and (D) on the post can be adjusted by tightening on the left and loosening them on right.

CLEANING&CARE

Make sure unit is not pulled or dropped. Regularly clean the unit with nonabrasive cleaner.

Dry tripod & hand head unit if any water gets on the unit.

Store in a dry and secure location.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
