Product Type	Manual Hydraulic Pipe Bender
Brand	Vevor
Model	MR8080
Maximum Capacity (Load)	12 tons
Maximum Pipe Diameter	51 mm (2 inches)
Allowable Wall Thickness (Mild Steel)	2 to 3 mm
Allowable Wall Thickness (Aluminum)	2 to 4 mm
Hydraulic Oil Type	High-quality hydraulic jack oil
Power Source	Manual (hand pump)
Intended Use	Bending of water pipes, rigid conduits, and galvanized pipes
Included Accessories	12T bending die, bottle jack, frame, rollers, handle
Main Material	Rugged steel
Safety	Wear safety glasses and gloves; use on a flat, stable surface
Maintenance	Bleed air before use; drain oil every 3 years
Support and Warranty	www.vevor.com/support

Frequently Asked Questions - MR8080 Vevor

How to bleed air from the hydraulic system before first use?

Fully lift the jack using the handle, open the release valve by turning it counterclockwise, then press down the jack until it is fully retracted to expel air. Close the valve and repeat if necessary.

What is the maximum capacity of the MR8080 bender?

The maximum capacity is 12 tons.

What pipe diameters can be bent with this model?

The maximum diameter is 51 mm (2 inches). Recommended wall thicknesses are 2 to 3 mm for mild steel and 2 to 4 mm for aluminum.

How to choose the appropriate bending die?

Each die is stamped with the tube size. Select the one that matches your pipe diameter and place it on the head of the bottle jack.

What safety precautions should be observed?

Always wear safety glasses and gloves. Ensure the work area is clean, well-lit, and the tool is on a flat, stable surface. Keep children away.

How to adjust the rollers for accurate bending?

Remove the R-pins and roller bars, place the pipe on the die to locate the fixing holes, then install the rollers so that the top of the pipe rests against the bottom of the rollers.

What to do if the bottle jack does not work properly?

Check the hydraulic oil level and bleed the air from the system as described in the manual. If the problem persists, contact a qualified technician.

How often should the hydraulic oil be changed?

It is recommended to change the hydraulic oil every 3 years. To do this, remove the filler plug, tilt the unit to drain the old oil, then refill with new oil.

Can thin-walled pipes be bent without deforming?

To prevent kinking, fill the pipe with sand and plug the ends before bending.

Where to find spare parts and technical support?

Visit www.vevor.com/support to see the spare parts list and get assistance.

USER MANUAL MR8080 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BENDER

MODEL: MR8080, MR8081

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. You are kindly reminded to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: MR8080, MR8081

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PRODUCT PROFILE

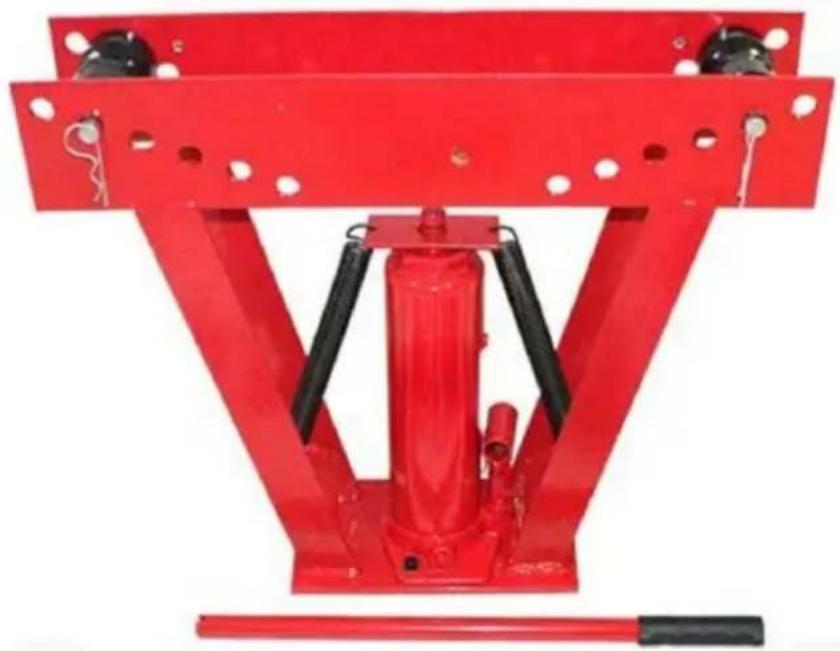

This pipe bender is designed to bend water pipe, rigid conduit, heavy-gauge galvanized pipe used in commercial applications, and other similar types of pipe.

IMPORTANT SAFEGUARDS

Read the instruction manual.

Warning - Be sure to wear eye protectors when using this product.

Warning - Be sure to wear gloves when using this product.

1. Know your tool. Read this manual carefully. Learn the tool's applications and limitations, as well as specific potential hazards peculiar to it.
2. Do not expose tool to moisture. Don't use this tool in damp or wet locations. Keep out of rain.
3. Keep work area clean and well lit. Cluttered or dark work areas invite accidents.
4. Keep children away. All children should be kept away from the work area.
5. Do not operate this tool if under the influence of alcohol or drugs or if feeling tired. Read warning labels on prescriptions to determine if your judgment or reflexes are impaired while taking drugs. If there is any doubt, do not attempt to operate.
6. Use safety equipment. Eye protection should be worn at all times when operating this tool. Use ANSI approved safety glasses. Everyday eyeglasses are not safety glasses. Dust mask, non-skid safety shoes, hard hat and hearing protection should be used in appropriate conditions.
7. Wear proper apparel and contain loose hair. Loose clothing, gloves, neckties, rings, bracelets, or other jewelry may present a potential hazard when operating this tool. Keep all apparel clear of the tool.
8. Don't overreach. Keep proper footing and balance at all times when operating this tool.
9. Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it was designed.

Do the job better and safer at the rate for which it was designed.

1. Keep away from flammables. Do not attempt to operate this tool near flammable materials or combustibles. Failure to comply may cause serious injury or death.
2. Keep hands clear of moving parts.
3. Store idle tools out of the reach of children and untrained persons. Tools can be dangerous in the hands of untrained users.
4. Never exceed the rated load for the jack (see specifications).
5. Always inspect the jack before use. Make sure that all parts are in good condition and operating smoothly, the wheels are sound and that no cracks or distortion is apparent. If in doubt, do not use.
6. Make sure the jack is on an even and solid base, and that there is no likelihood of it slipping when in use.

BREAKDOWN AND PARTS

PART NO		DESCRIPTION	QTY	PART NO	DESCRIPTION	QTY

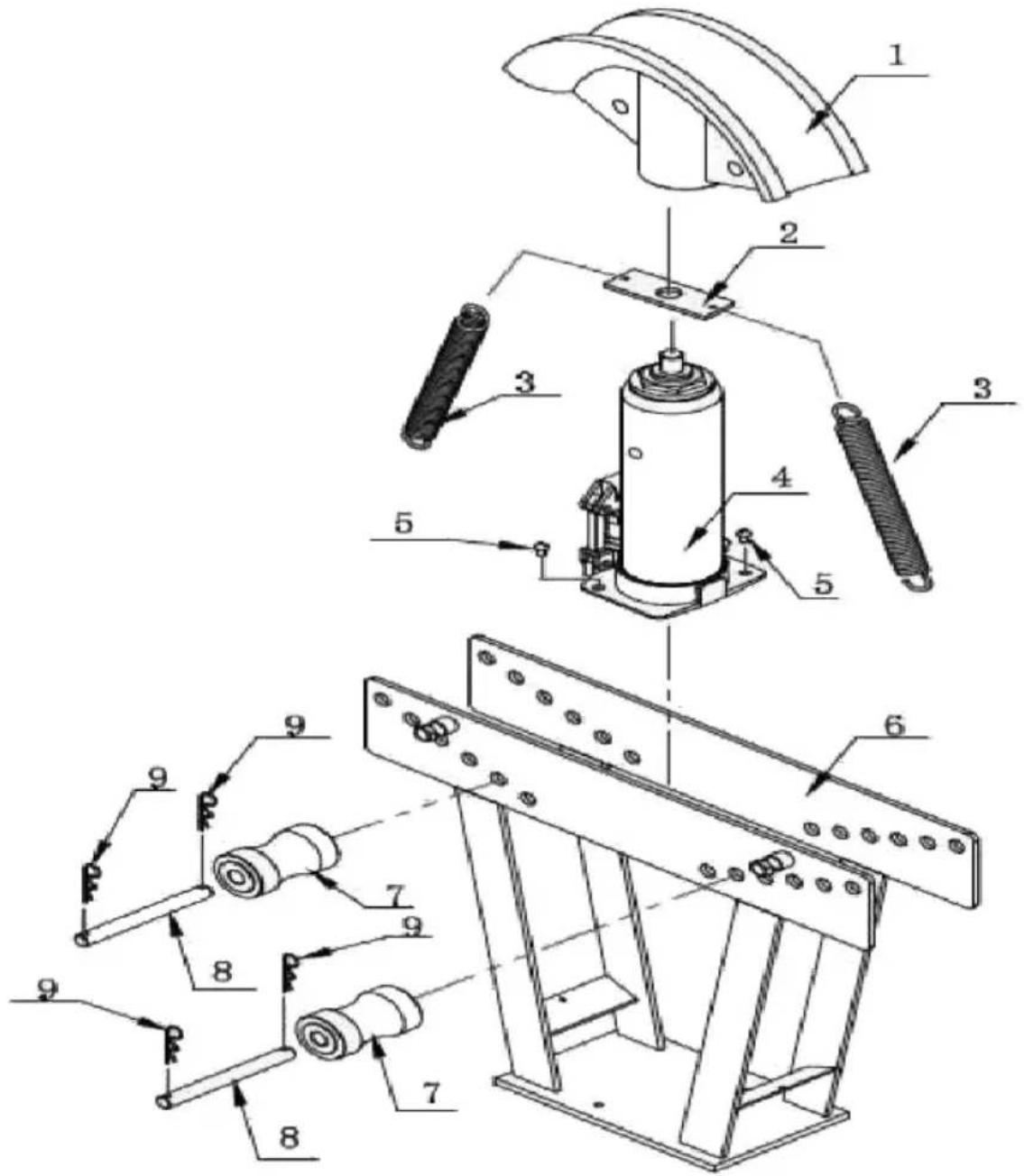

1	12T	Bending Die	6	5	Bolt 8*16	2
	16T	Bending Die	8	6	Frame	1
2		Tension spring bloc	1	7	Roller	2
3		Spring	2	8	Roller pin	2
4		Bottle jack	1	9	R pin	4

PART NO	DESCRIPTION	QTY	PART NO	DESCRIPTION	QTY

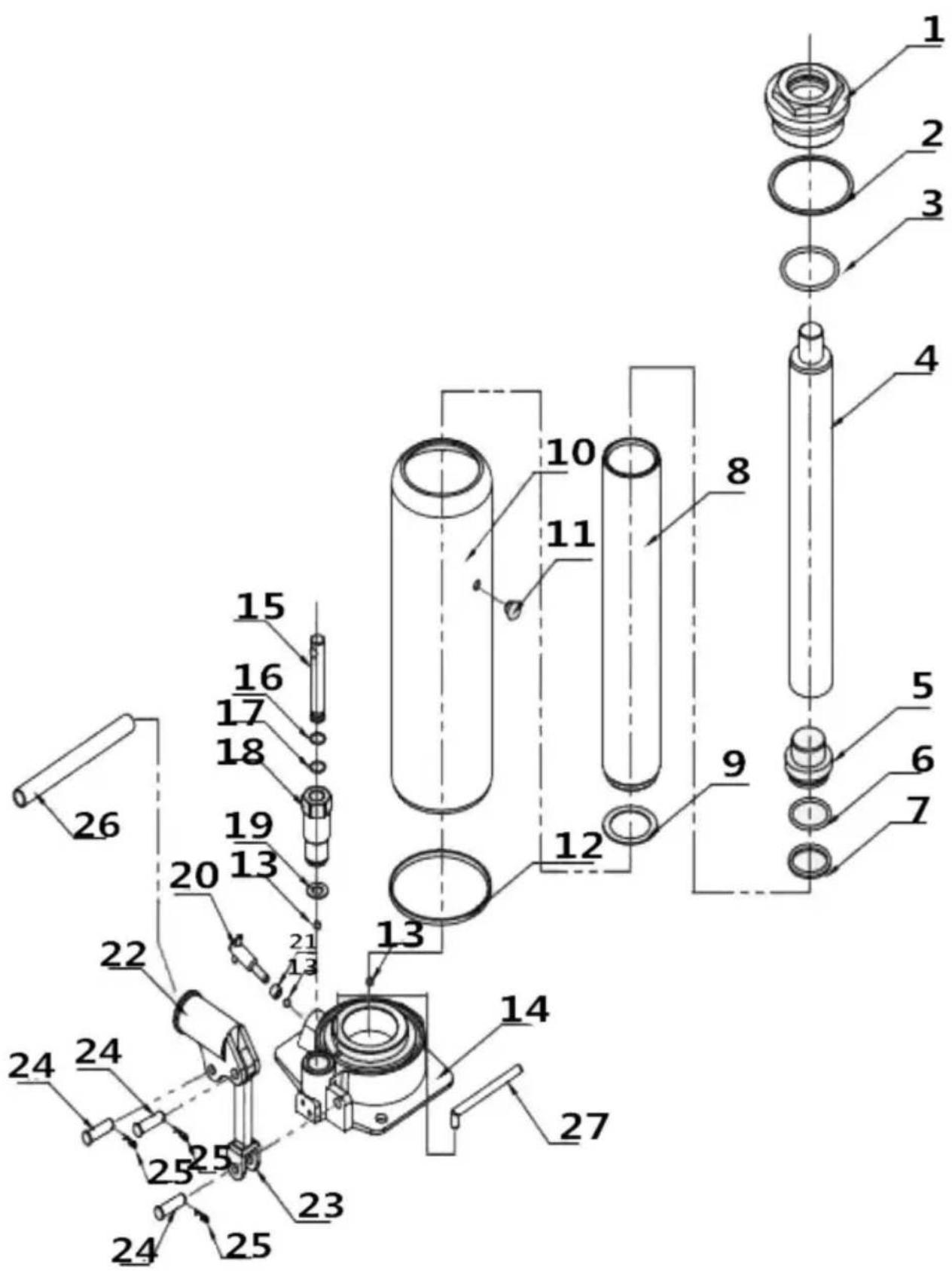

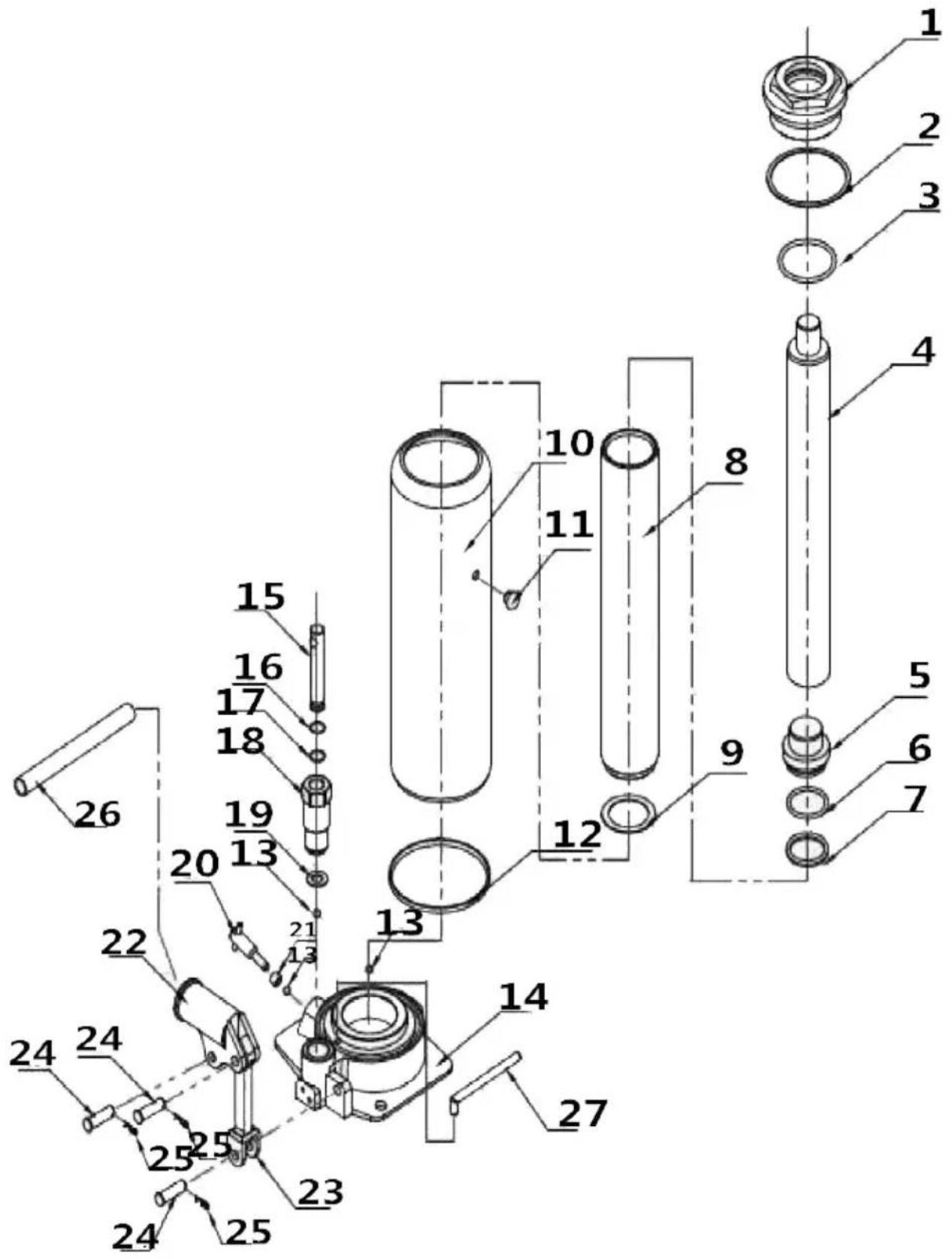

1	Cap	1	15	Pump core	1
2	Rectangular ring	1	16	O-ring	1
3	O-Ring	1	17	Slotted washer	1
4	Piston Rod	1	18	Pump body	1
5	Piston	1	19	Pump washer	1
6	O-Ring	1	20	Release valve leve	1
7	Bowl washer	1	21	Rectangular ring	1
8	Cylinder	1	22	Handle socket	1
9	Cylinder washer	1	23	Connecting rod	1
10	Coat	1	24	Pin	3
11	Oil plug	1	25	Steel wire pin	3
12	Trapezoidal ring	1	26	Handle	1
13	Cylinder ball	3	27	Oil suction pipe	1
14	Base	1

ACCESSORY

Model	Die Sizes:	Other
MR8080	13mm (1/2"), 20mm (3/4"), 25mm (1")32mm(1-1/4"), 40mm(1-1/2"), 51mm(2")	HandleX1
MR8081	13mm(1/2"), 20mm(3/4"), 25mm(1"),32mm(1-1/4"), 40mm(1-1/2"), 51mm(2"),63mm(2-1/2"), 75mm(3")	HandleX1Bolt (M4*25) X2

SPECIFICATIONS

Model	MR8080	MR8081
Maximum Load:	12tonne	16tonne
Maximum Pipe Diameter	51mm (2")	75mm (3")
Pipe Wall Thickness	Low carbon steel: 2-3mm; Aluminum: 2-4mm

ASSEMBLY

1. Attach the Bottle Jack to the Frame using two Hex Bolt (M10*25); (Notes: MR8080 can skip this step)
2. Place the Bending Die on the head of the Jack. SYSTEM AIR PURGE: Before operating your Pipe Bender, be sure there is no air trapped in the hydraulic system.
3. Fully lift up the ram of the jack using the handle.
4. Open the Release Valve on the jack by turning it counterclockwise.
5. Push down on the Ram until it goes all the way back into the jack. This should push all air out of the system.
6. Continue pushing down on the top of the ram while closing the Release Valve.
7. Repeat if necessary.

OPERATION

Read the entire Important Safety Information section at the beginning of this manual including all text under subheadings therein before set up or use of product.

Inspect tool before use, looking for damaged, loose, and missing parts. If any problems are found, do not use tool until repaired.

Bleeding the Bottle Jack:

IMPORTANT! Before first use, check for proper hydraulic oil level in the Jack. Then thoroughly test the Jack for proper operation prior to its actual use. If the Jack does not work properly, bleed excess air from its hydraulic system as follows:

1. Open the Release Valve.
2. Remove the Oil Filler Plug and fill the Jack with hydraulic fluid to full level.
3. Apply pressure to the Saddle, and pump the Handle quickly several times.
4. Check the Oil Fill Hole and, if necessary, top off the Oil Fill Hole with oil.
5. Replace the Oil Fill Plug and close the Release Valve.
6. Test the Jack several times for proper operation before putting into use. If after bleeding, the Jack still does not appear to be working properly, do not use until it has been repaired by a qualified service technician.

Tool Set Up:

Note: The Pipe Bender is designed to bend water pipe and heavy galvanized pipe.

When bending conduit or thin walled pipe, you may experience problems with kinks or creases.

To help limit the problem, fill the pipe with sand and cap both ends before bending.

1. Always use this Pipe Bender with the Jack in its upright position. Make sure that there is room on all sides of the Pipe Bender for the length you intend to bend.
2. Place the unit on a solid, flat, level surface capable of supporting the weight of the Pipe Bender, pipes, and all other tools and accessories. The Pipe Bender must always be clamped or bolted down to the workbench when used with a workbench.
3. Select the Bending Die that matches the size of pipe you wish to bend. Each Die is stamped with the pipe size. Place the selected bending die onto the Bottle Jack.
4. The Rollers need to be adjusted so that the top of the pipe to be bent rests against the bottom of the Rollers. Pipe can be bent from a slight curve up to a 90-degree angle, depending on the position of the Rollers and the level of the Bottle Jack Saddle before operation. To adjust the Rollers: a. Remove the R-Pins from the two Roller Bars and slide the Roller Bars out of the Rollers, and remove the Rollers from the Frame.

b. Place the pipe to be bent on the Die and note the holes in the Frame where you need to place the Rollers so the top of the pipe will rest against the bottom of the Rollers. c. Remove the pipe.

d. Hold one of the Rollers over the chosen hole and slide a Roller Bar through the hole in the front of the Frame, the Roller, and the hole in the back of the Frame. e. Lock in place with an R-Pin.

f. Repeat steps d. and e. with the remaining Roller, Roller Bar, and R-Pin.

General Operating Instructions:

1. Slide the pipe you wish to bend through the Pipe Bender, between the Rollers. Note: You may wish to first practice using the Pipe Bender on scrap material.
2. Using the slotted end of the Handle, tighten (clockwise) the Release Valve on the Bottle Jack.
3. Insert the Handle into the Pump Sleeve and pump it up and down to raise the Bottle Jack and bend the pipe.
4. When the pipe has been bent to the desired angle, remove the Handle from the Bottle Jack and use it to loosen (turn counter-clockwise) the Valve Release. Setup up to one full turn. This will release the pipe from the Pipe Bender and allow you to carefully remove it.

MAINTENANCE

1. Before each use, inspect the general condition of the Pipe Bender. Check for broken, cracked, or bent parts, loose or missing parts, and any condition that could affect the proper operation of the product. If a problem occurs, have the product repaired by a qualified technician.

corrected before further use. Do not use damaged equipment.

1. Before each use, thoroughly test the Bottle Jack for proper operation prior to actual use. If the Bottle Jack appears not to be working properly, follow the Bleer instructions.
2. Change the hydraulic oil at least once every three years. To change the hydraulic oil:

a. With the Jack fully lowered, remove the Oil Filler Plug.

b. Tip the Pipe Bender to allow the old hydraulic oil to drain out of the Hc completely, and dispose of the old hydraulic oil in accordance with local regulations.

c. Completely fill the Housing with a high quality hydraulic jack oil (not including until the oil just begins to run out of the Oil Fill Hole. d. Then, reinstall the Plug.

1. Clean with a clean cloth using a detergent or mild solvent and wipe dry. Store the Pipe Bender in a safe, dry location, in an upright position, out of reach of children and other non-authorized people.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
