USER MANUAL LY40L03 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

SOLAR HEATED SHOWER

MODEL:LY40L03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:LY40L03

Technical line drawing of a vertical cylindrical device with a showerhead and water drop (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Keep small parts, plastic bags and other packaging out the reach of children.

Pay attention especially when unpacking your item. The danger of sur Check the delivery for completeness. Later complaints cannot be acce Check all elements and parts for damage. Despite careful control, pro be damaged in transit. In this case, do not assemble your product. I can endanger your health.

Never modify the product! Changes will cause the warra and the product may be unsafe or even dangerous.

Unpack all the parts and elements of the set and place the component of the carton or other clean surfaces. This protects your new product. Please also pay attention not to scratch the floor while working with sure that this product is fully assembled before use, as shown in the cleaning use a sponge and warm soapy water. Do not use solvent I or detergents - for example bleach. Those can damage the product.

Safety Instructions

Water from the shower is not suitable for drinking.

When not in use, the shower should be emptied and the on to prevent the formation of germs.

- Make sure that no electrical appliances and/or power connections are with the shower or within reach of the shower's water jet.

- Avoid unintentional start-up.

- Do not use any additives such as cleaning agents or other liquids.

The shower water is not suitable for drinking. When not in shower should be emptied and the faucet kept quiet to pro growth of bacteria. Wipe the shower clean after use.

- Make sure that no electrical devices and / or power connections are with shower or in the area of the shower sprinkler system.

- This is not an entertainment device. Do not climb, hang from the stand on the base. Use only as expected.

- Do not use the solar shower with a pedestal in strong winds. Wind shower to become unstable and tip over, harming you, children, or pi

- Do not use additives such as detergents or other liquids.

- Keep small parts, hardware accessories and plastic bags out of the children.

- Reservation! In strong sunlight, the water temperature of the sun sh reach 60 °C or 140 °F.

Capacity	40 L
Max. Water Pressure	5 bar (72.5psi)
Shape	Octagon
Colour	Black

Intended Use

The solar shower is designed exclusively for outdoor showering. It is exclusively for private use and not suitable for commercial use. The is not a children's toy. Use the solar shower only as described in these instructions. Any other use is considered improper and can lead to price damage or even personal injury.

The manufacturer or dealer accepts no liability for damage caused by incorrect use.

Before Putting Into Service

1. Take the parts of the solar shower out of the packaging.
2. Check whether the delivery is complete.
3. The solar shower is equipped with a base and four ready-made d arrangements for screw installation on firm ground. Make sure the scr The filled solar shower is heavy and a fall could have dangerous co 4. Please install the solar shower in the place where it has the most sunshine.

Important warning when drilling:

Before drilling, make sure that there are no gas, water, or power lin site. Assembly only by competent persons. It is essential to pay atten nature of the soil, as the attached fastening material is not suitable soil. Inquire about the screws and dowels that are suitable for the re flooring. The manufacturer assumes no liability for an improper wall-do connection and any resulting damage.

Cleaning and Maintenance

If the shower does not work properly after a while, the shower or in openings could be blocked. Regular maintenance and cleaning are the necessary to ensure that the shower functions properly. It is quite no sediment layer to form on the shower as the water evaporates. Envir influences also lead to dirt deposits. The shower should therefore be regular intervals. On the one hand, this increases the service life and hand, also the effectiveness. Rubbing the housing or fittings with a d to remove deposits and dirt from the shower. Use only clear water a cleaning agents. Rinse the openings and the shower head with clean remove dirt

Maintain the device with care.

Check whether moving parts of the device work properly and do not whether parts are broken or damaged so that the function of the de Have damaged parts repaired before using the device. Many accidents caused by poorly maintained equipment.

Assembly

Before you assembly, please make sure you have all parts, read all

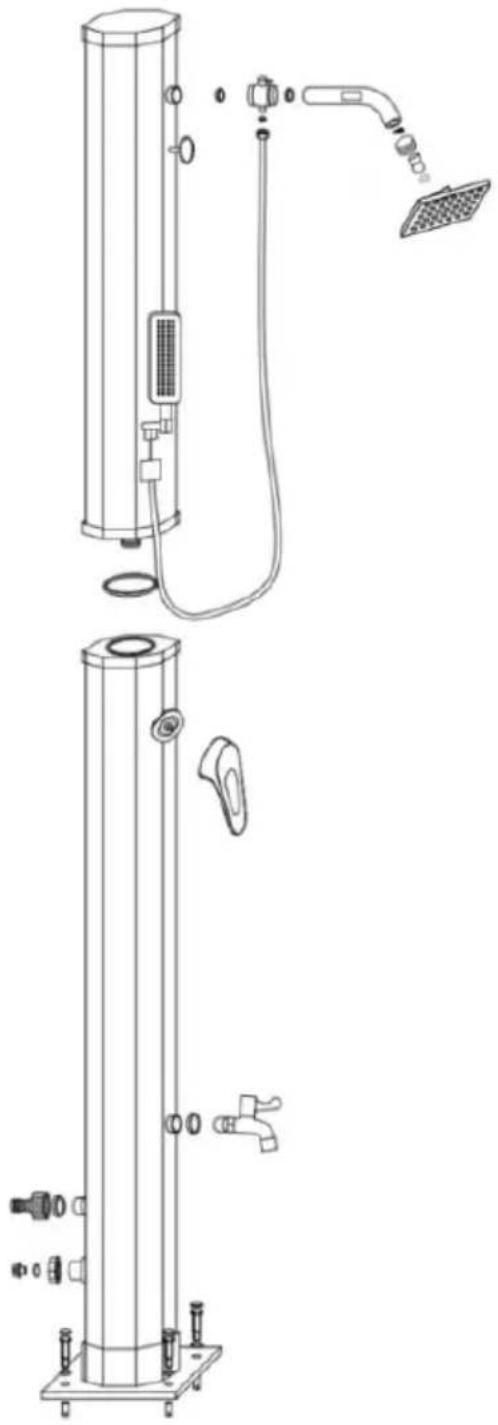

Technical line drawing of a showerhead and vertical cylindrical device with attached fixtures (no text or symbols)

Item	Reference Image	QTY.	Item	Reference Image	QTY.
A	[2TW4]	1	J		1
B		1	K		1
C		1	L		4
D		1	M		2
E		1	N		1
F		1	O		1
G	[CCAB]	1	P		1
H		1	Q		1
I		1

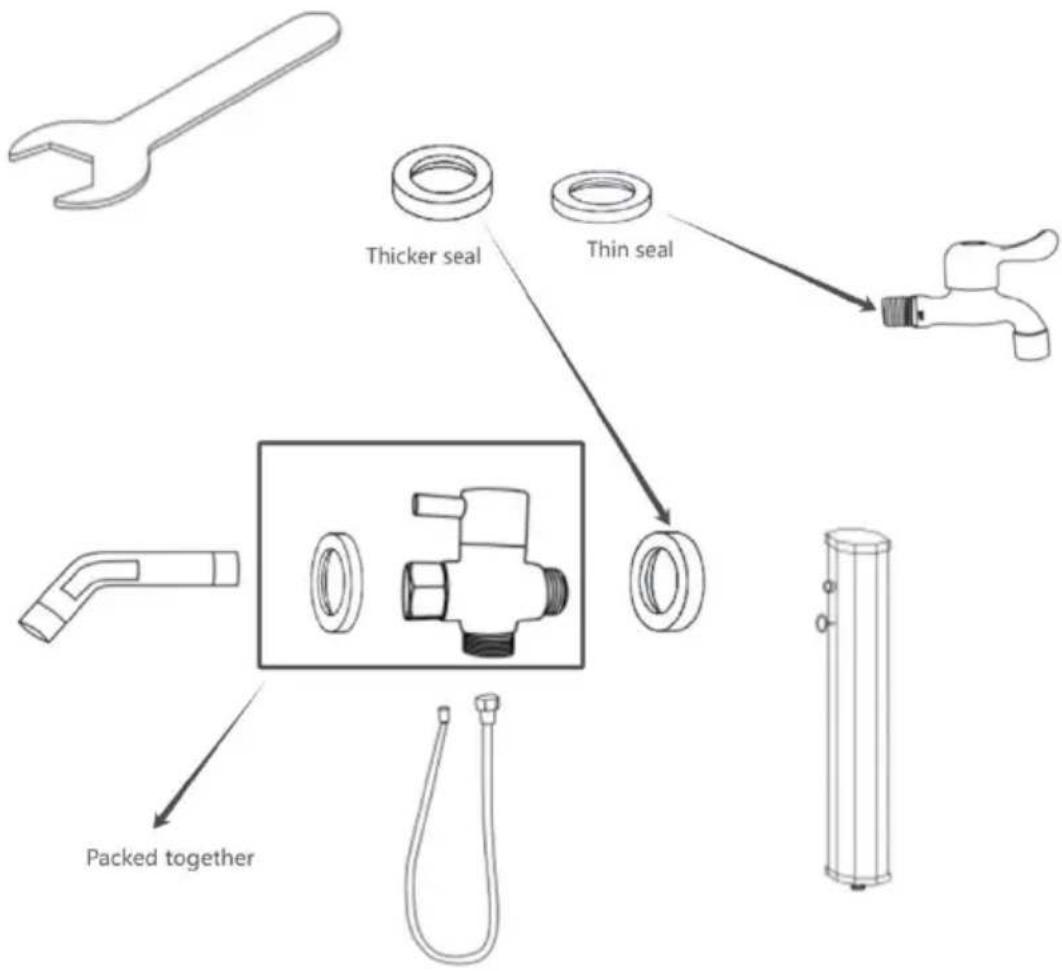

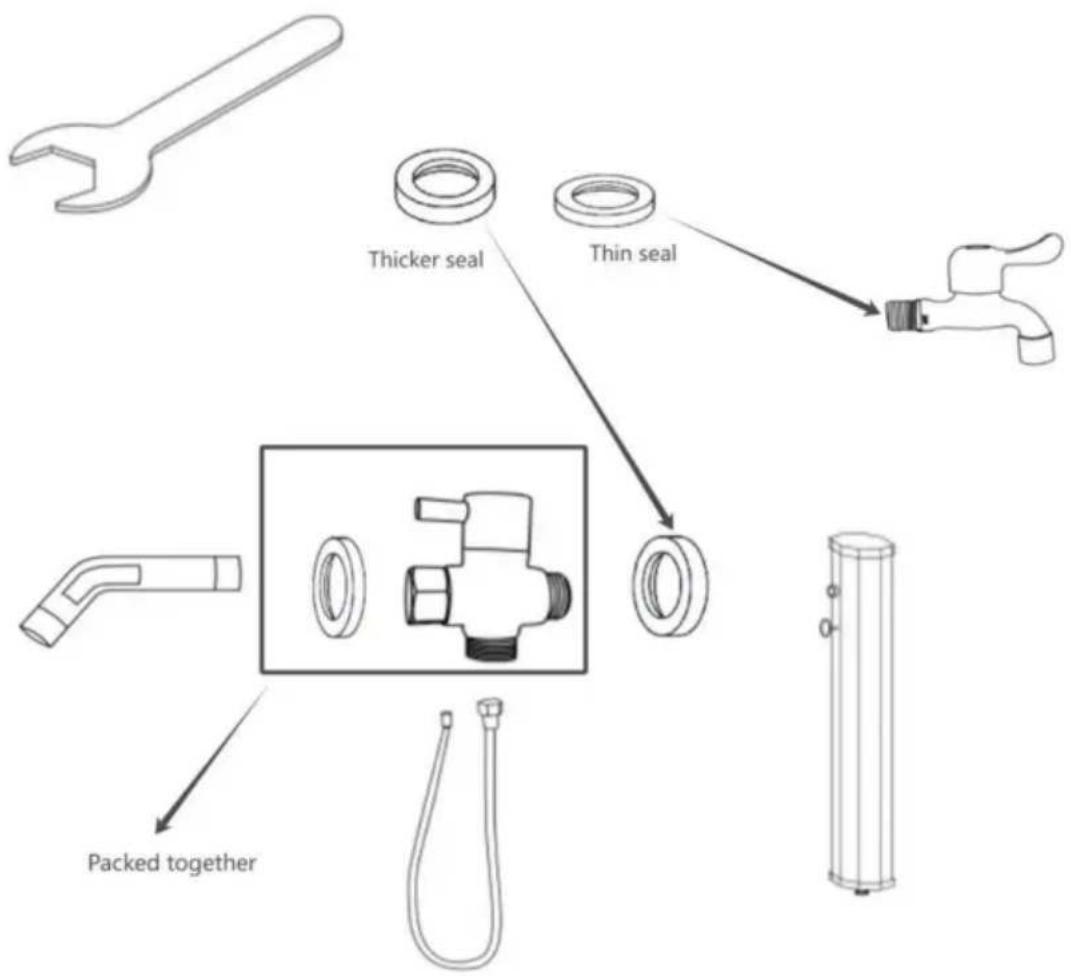

Thicker seal Thin seal Packed together

1. There are two rubber seals packed together with the spanner, one thicker, another is thin. The thin one for faucet for foot washing
2. There is a rubber seal packed together with part C in the little b please do not miss it.

3. All the joints should be covered by teflon tape at least 3 layers the leaking.

4. Screw both parts together with the connecting clamp. Pay attention connection on the inside. These have to be put together exactly to a leaks.

5. Now check the shower for stability! Possibly. It may be necessary the screws or place washers in between.
6. We recommend adding Teflon sealing tape to the assembly of the tape to achieve maximum tightness. Wrap 2 rounds (approx. 0.5 cm) of the tape tightly around the rear part of the thread and then screw the tape into the shower body. Be careful not to damage the thread it on. Too much force will damage the thread and unwanted water lo occur. If the shower head is not yet completely sealed, unscrew it a the thread again with Teflon tape.

If there are leaks in the head or foot piece please remove the resp wrap another 3-4 layers of Teflon tape around them and screw tight. The faucet is installed according to the same principle as the shower rounds (approx. 0.5 cm) of Teflon tape around the thread of the tap the hexagon nut to the tap and screw the tap (as shown in the fol including the corresponding gaskets straight into the lower opening on. Ensure that the control valve points upwards and the tap opening po downwards. Then tighten the hex nut using a wrench.

DO NOT OVERTIGHTEN!

Please use some Teflon tape to ensure that the shower head and tl are screwed on watertight. Wrap a few layers (4-5 windings) of Teflo the thread and then screw it into the shower.


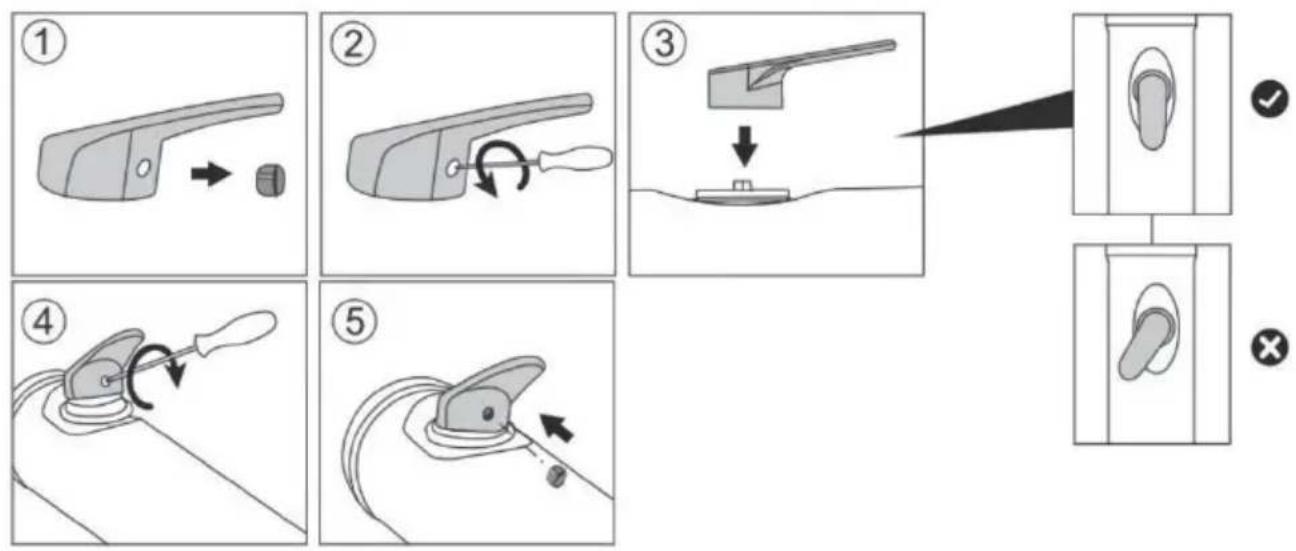

Note for the installation of the single-lever mixer:

1. Unscrew the grub screw slightly so that the handle can be fitted.
2. Put the handle on.
3. Tighten the grub screw.
4. Do not use too much force! Then put on the red cap.
5. Remove the cap.
6. Unscrew the grub screw slightly so that the handle can be fitted.
7. Put the handle on.
8. Tighten the grub screw.

Do not use too much force! Replace the cap! Replace the

Storage and Maintenance

Make sure that there is no more water in the shower when you stop shower away from frost as it can damage the shower and its mechanism first sign of frost or as soon as it is foreseeable that frost may occur at the shower must at least be drained. If not done, the shower might. However, we recommend that you dismantle the shower during the water store it in a weather-protected place. Also, make sure you cover the they may be filled with dirt during the winter. To drain the water, fire water hose. Then open the warm water with the single-lever mixer (a wanted to shower. This prevents the build-up of negative pressure) at the shut-off valve at the foot of the shower.

Warning: Damage caused by mud, salt water or frost is not covered warranty. Close the tap when you are not using the shower. Ideally, flow out of the shower if a defect occurs.

In case of dripping water, please check the proper connection between head and the foot of the shower. In particular, check the temperature the temperature regulator is not closed, water will of course enter the exit the shower head. A slight leak at this point will also lead to a

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a vertical cylindrical device with a showerhead and water drop pipe (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical line drawing of a showerhead and vertical cylindrical device with attached pipes and fittings (no text or symbols)

Thicker seal Thin seal Packed together

www.vevor.com/support

Technical line drawing of a vertical cylindrical device with a showerhead and water drop (no text or symbols)

Technical line drawing of a showerhead and vertical cylindrical device with attached pipes and fittings (no text or symbols)

Thicker seal Thin seal Packed together

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

DOCCIA RISCALDATA SOLARE

MODELLO:LY40L03

Technical line drawing of a vertical cylindrical device with a showerhead and water drop (no text or symbols)

Technical line drawing of a showerhead and vertical cylindrical device with attached pipes and fittings (no text or symbols)

Thicker seal Thin seal Packed together

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a vertical cylindrical device with a showerhead and water drop (no text or symbols)

Technical line drawing of a showerhead and vertical cylindrical device with attached pipes and fittings (no text or symbols)

Thicker seal Thin seal Packed together

Technical line drawing of a vertical cylindrical device with a showerhead and water drop (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Technical line drawing of a showerhead and vertical cylindrical device with attached pipes and fittings (no text or symbols)

Thicker seal Thin seal Packed together

Technical line drawing of a vertical cylindrical device with a showerhead and water drop pipe (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical line drawing of a showerhead and vertical cylindrical device with attached pipes and fittings (no text or symbols)

Thicker seal Thin seal Packed together

www.vevor.com/support

SOLUPPVÄRMD DUSCH

MODELL: LY40L03

Technical line drawing of a vertical cylindrical device with a showerhead and water drop (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Technical line drawing of a showerhead and vertical cylindrical device with attached pipes and fittings (no text or symbols)

Punkt	Referensbild QTY. Punkt			Referensbild QTY.
A		1	J		1
B		1 K			1
C		1	L		4
D		1	M		2
OCH		1	N		1
F		1 O			1
G	[86AB]	1	P		1
H	[4AYB]	1 Q			1
		1

Thicker seal Thin seal Packed together

www.vevor.com/support
