Product Type	MDF slat acoustic wall panels
Model	LYB8210C1206
Brand	Vevor
Dimensions	1200 x 600 x 21 mm (per panel)
Quantity per Lot	4 panels
Material	MDF (Medium Density Fiberboard) with black coating
Color	Black oak
Approximate Weight per Panel	Approximately 1.5 kg
Main Function	Acoustic absorption and wall or ceiling decoration
Installation Method	Gluing or screwing (screws included); for ceiling, reinforced screwing recommended
Accessories Included	34 screws, installation manual
Required Tools	Circular saw, electric screwdriver, level, tape measure, pencil, glue gun
Safety Precautions	Installation by an adult; regularly check the fixing; do not use glue only on ceiling
Maintenance	Clean with a soft dry cloth; avoid excessive moisture
Recommended Use	Indoor, walls and ceilings
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - LYB8210C1206 Vevor

What tools are needed to install Vevor acoustic panels?

To install the panels, you will need a circular saw, an electric screwdriver, a spirit level, a tape measure, a pencil, and a glue gun. For screw fixing, a suitable screwdriver is required.

How to fix the panels to the wall by gluing?

Apply construction adhesive evenly to the back of the panel, then press it against a clean, dry wall. Hold pressure for a few seconds. For better hold, use screws at curved points.

How many screws are provided and how many to use?

The set contains 34 screws. For standard wall installation, use 8 screws per panel. For ceiling installation, use 12 to 20 screws depending on the model.

Can these panels be installed on the ceiling?

Yes, but it is imperative to screw them and not glue them. Use the recommended number of screws (12 for the 1200x600 model, 20 for the 2400x200) to ensure safety.

What is the color of model LYB8210C1206?

The color is black oak, as indicated in the parameter list.

Are the panels delivered with a warranty?

Yes, Vevor offers an electronic warranty certificate. You can download it at www.vevor.com/support.

How to maintain the acoustic panels?

Clean them regularly with a soft dry cloth. Avoid harsh chemicals and excessive moisture that could damage the MDF.

Are the panels easy to cut?

Yes, they can be cut with a circular saw or a utility knife. Measure and mark before cutting. Wear protective equipment.

What is the recommended height for installation?

There is no fixed height, but for better acoustic absorption, install the panels at ear height or according to your acoustic needs.

Can I install the panels on an uneven wall?

Yes, but it is advisable to use screws at curvature points to keep the panel in place. Make sure the wall is clean and dry.

USER MANUAL LYB8210C1206 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

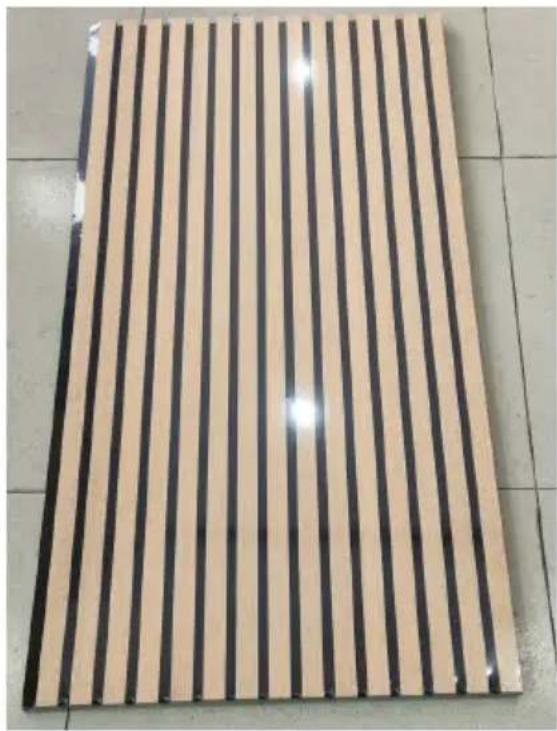

ACOUSTIC MDF SLAT WALL PANELS

MODEL: LYW8292C1206 / LYW8292C2402 / LYB8210C1206 / LYB8210C2402 / LYY8438S2402 / LYY8438S1206 / LYS30942402

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ACOUSTIC MDF SLAT WALL PANELS

Model: LYW8292C1206 / LYW8292C2402 / LYB8210C1206 / LYB8210C2402 / LYY8438S2402 / LYY8438S1206 / LYS30942402

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Acoustic MDF slat wall panels.

The installation should be done by an adult, and children should not be without supervision.

1. Please ensure that the Acoustic MDF slat wall panels are firmly installed; otherwise, they may fall off and cause harm to people.
2. Check the stability and safety of the product fixation regularly. If the product is loose, it should be strengthened immediately.
3. For safety purposes, prohibit the use of glue alone to mount panels on the ceiling. Due to uneven glue or poor quality, the panel may warp and fall off.

PARAMETER LIST

Model	Size	QTY	Color
LYW8292C1206	1200*600*21mm	4	walnut
LYW8292C2402	2400*200*21mm	4	walnut
LYB8210C1206	1200*600*21mm	4	black oak
LYB8210C2402	2400*200*21mm	4	black oak
LYY8438S2402	2400*200*21mm	4	Light oak
LYY8438S1206	1200*600*21mm	4	Light oak
LYS30942402	2400*200*21mm	4	Silver wood

Note: This product is equipped with 34 screws.

If there is any difference between the color of this product and the instruction manual, please refer to the physical object.

INSTRUCTIONS

Safety and Care Advice

- Check you have all the components and tools listed on the following pages.

• Remove all fittings from the plastic bags and separate them into groups.
• Keep children and animals away from the work area; small parts can choke if swallowed. • Make sure you have enough space to lay out the parts before starting.
• Assembly will be easier with 2 people.

Install the required tools.

Circular Saw	Electric Screwdriver	Wooden racks	Pencil
Band Tape	Stapler	Keel	Sound Absorption Wool
Knife	Structural Adhesive	Structural Adhesive Gun
	• To reduce the likelihood of damaging your pro please ensure that your power drill is set on a torque setting.

THE STANDARD INSTALLATION METHOD

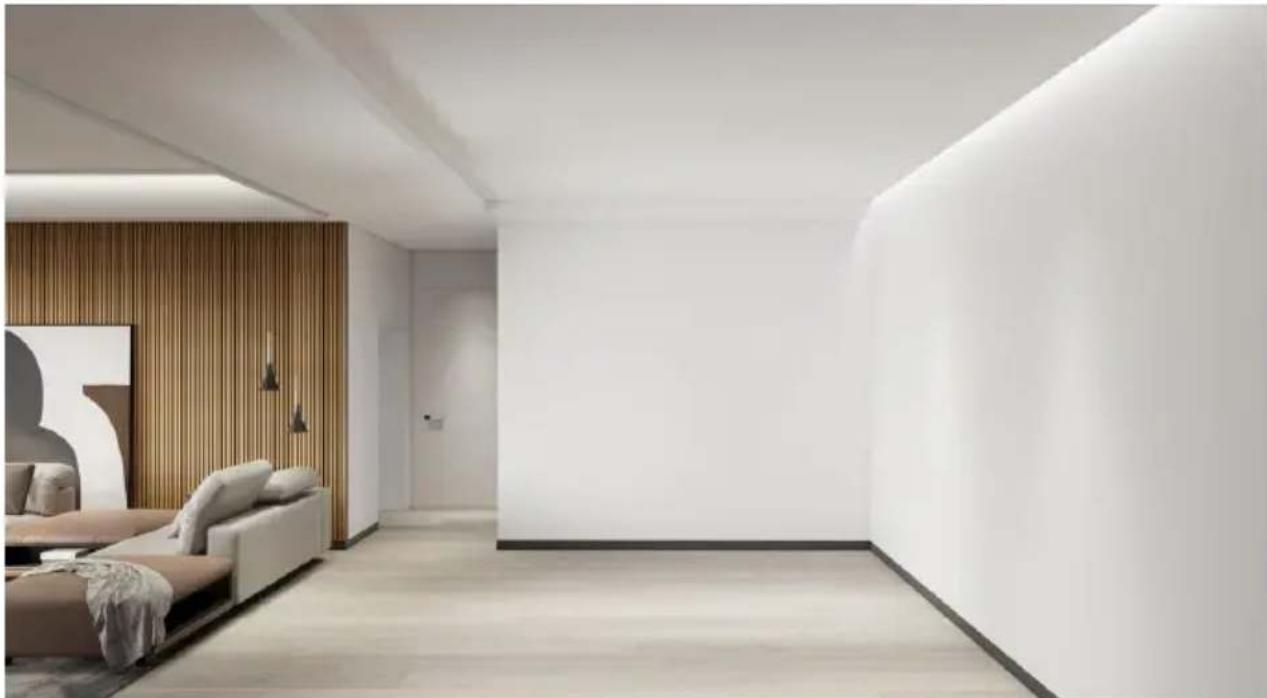

Step 1: Preparing the wall or ceiling

• Make sure the surfaces are clean and dry, without nails or screws.

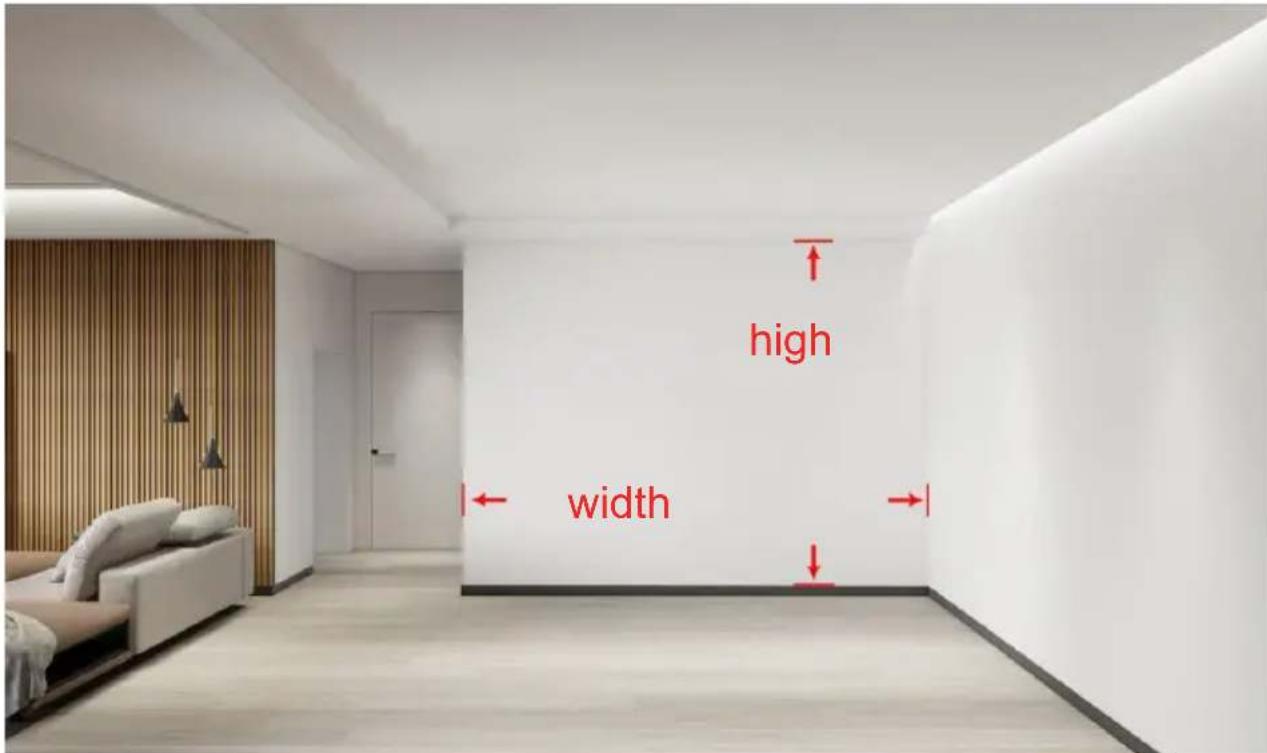

Step 2:

Measuring the height and width.

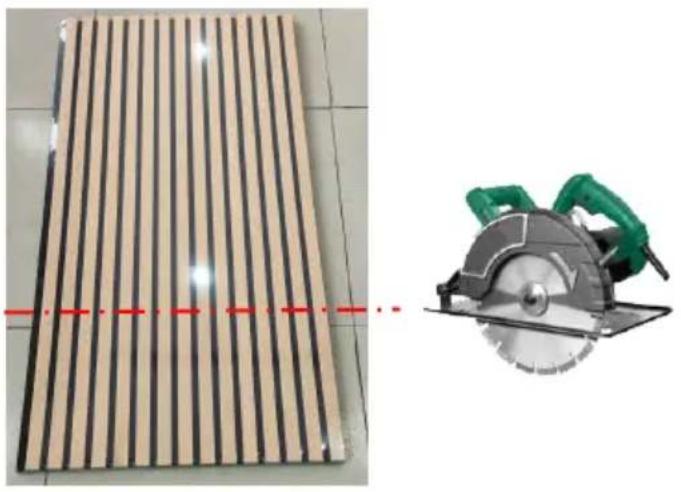

Step 3: Cutting the panels.

- Cut products with circular saws and knives to your required size.

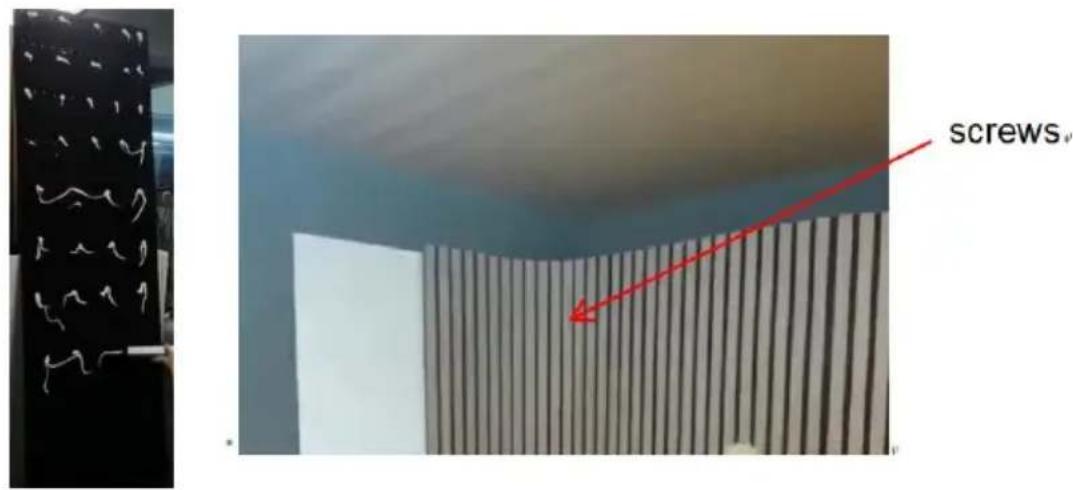

Step 4: Mounting the panel.

A: Simple installation on the wall: you can use glue; first apply the glue to the back of the product, then paste it on the wall. If pasted on a curve, use screws in the curved position to attach the product to the wall.

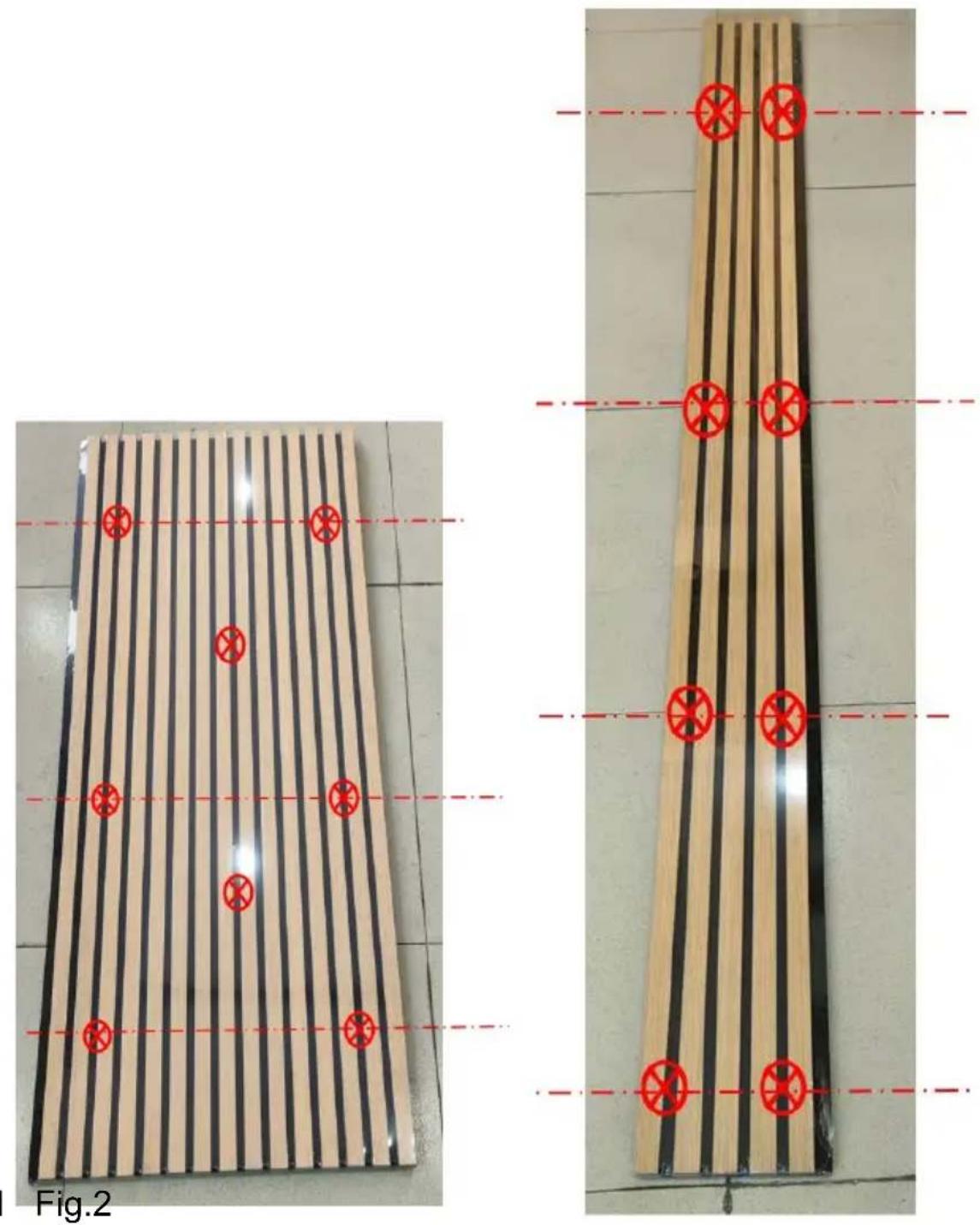

B. Use 8 screws to install on the wall; the screws should be fixed through the black part, which is more beautiful.

Model LYW8292C2402, LYB8210C2402, LYY8438S2402, LYS30942402

And 8 screws are required. (Fig. 1);

Model LYW8292C1206, LYB8210C1206, LYY8438S1206. And 8 screws are required. (Fig. 2.)

Fig.1 Fig.2

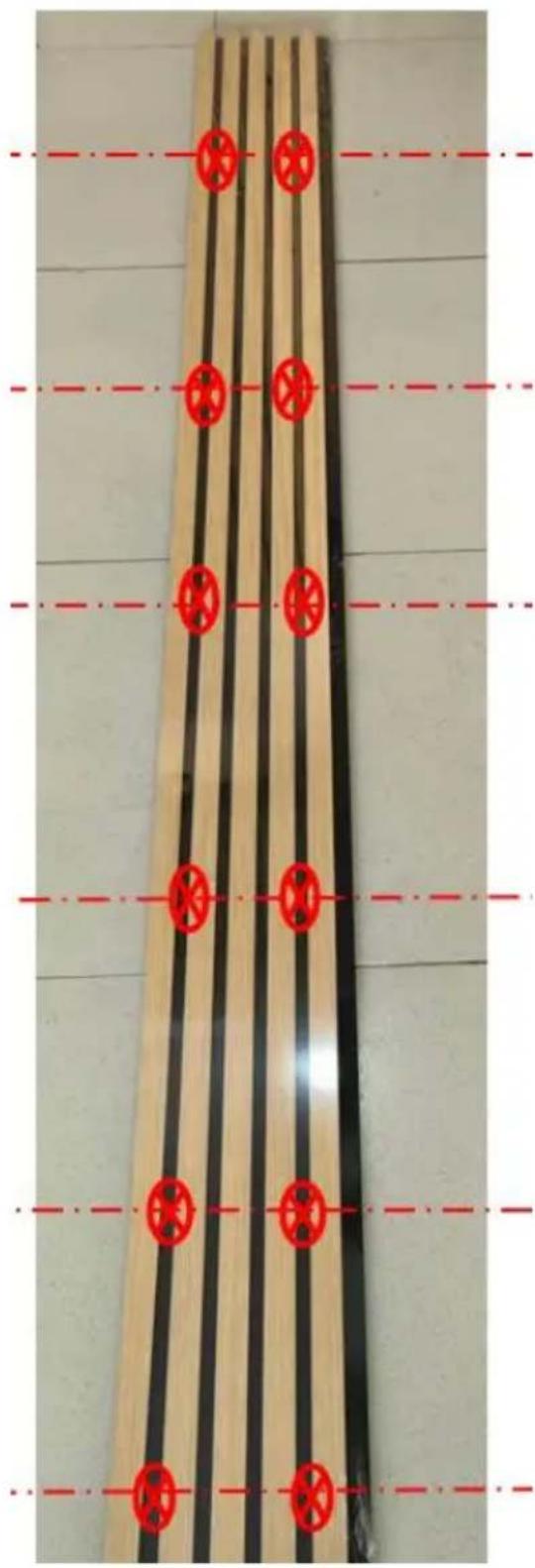

Note: If you need to install the product on the ceiling, you need to use screws to reinforce the installation.

Model LYW8292C2402, LYB8210C2402, LYY8438S2402, LYS30942402. And 20 screws are required. (Fig. 3);

Model LYW8292C1206, LYB8210C1206, LYY8438S1206. And 12 screws are required. (Fig. 4.)

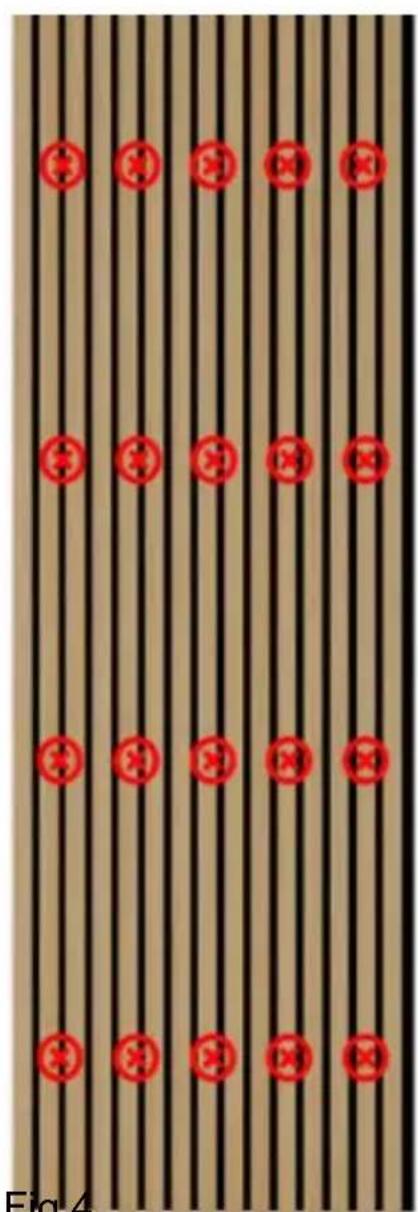

Fig.3 Fig.4

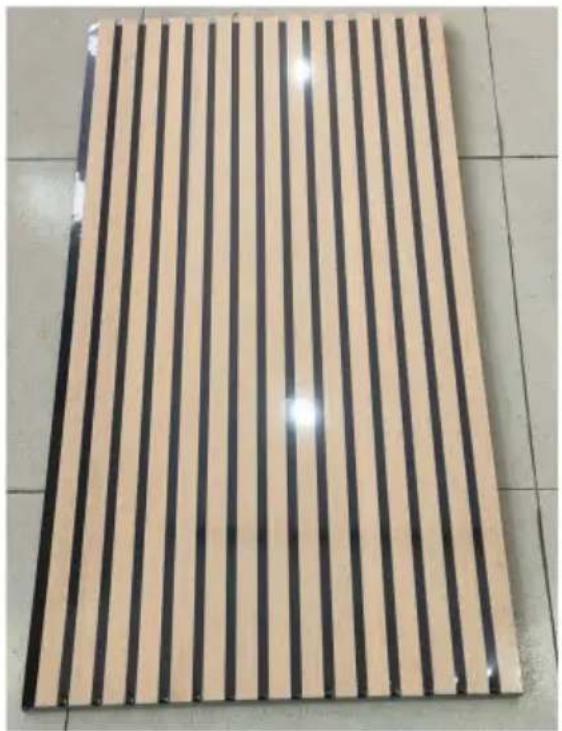

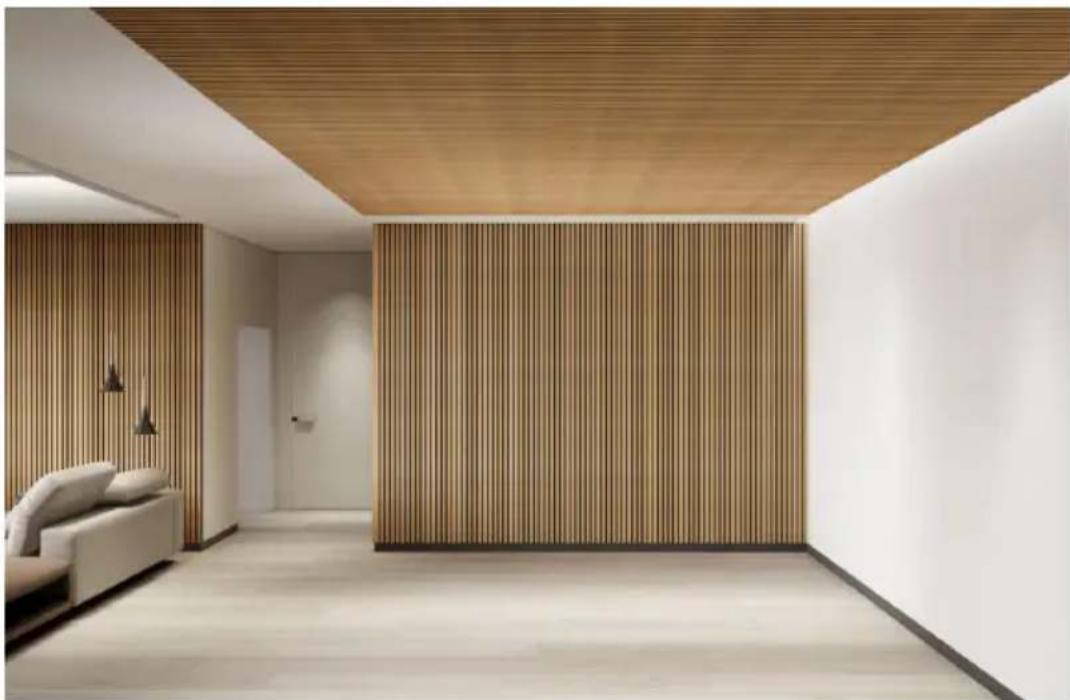

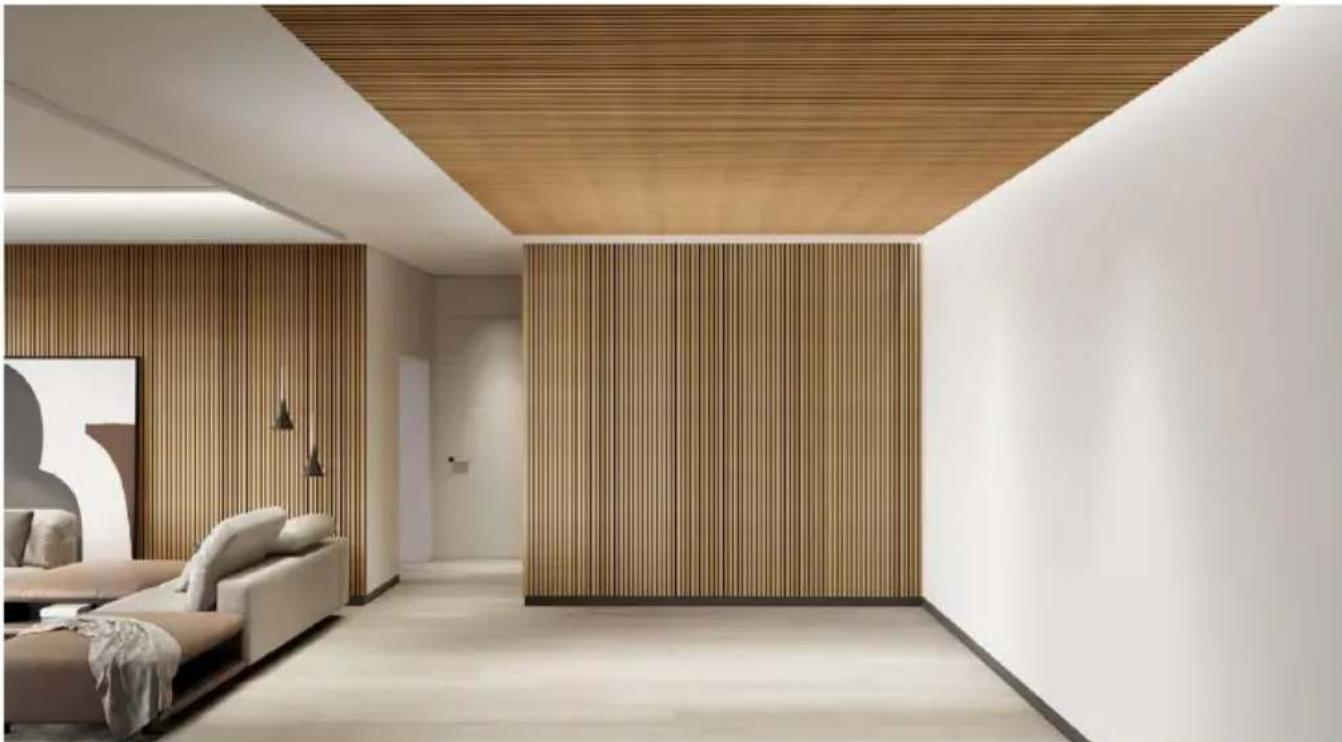

Step 5: The end result of the installation

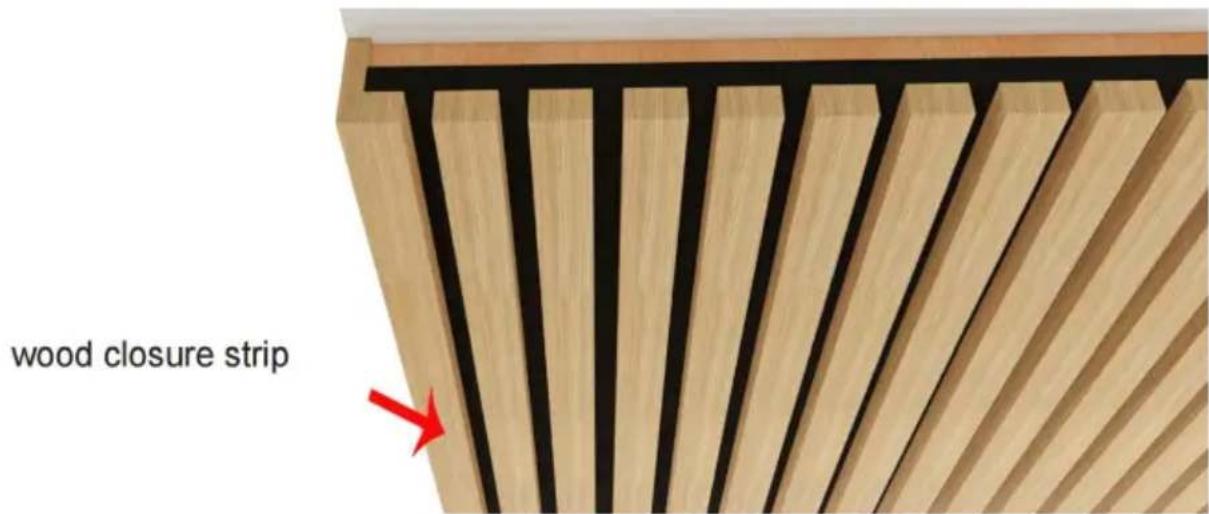

Note: If necessary, install a wooden seal at the end of the panel for aesthetics; however, the wooden seal must be purchased separately.

THE INSTALLATION METHOD FOR HIGHEST SOUND ABSORPTION

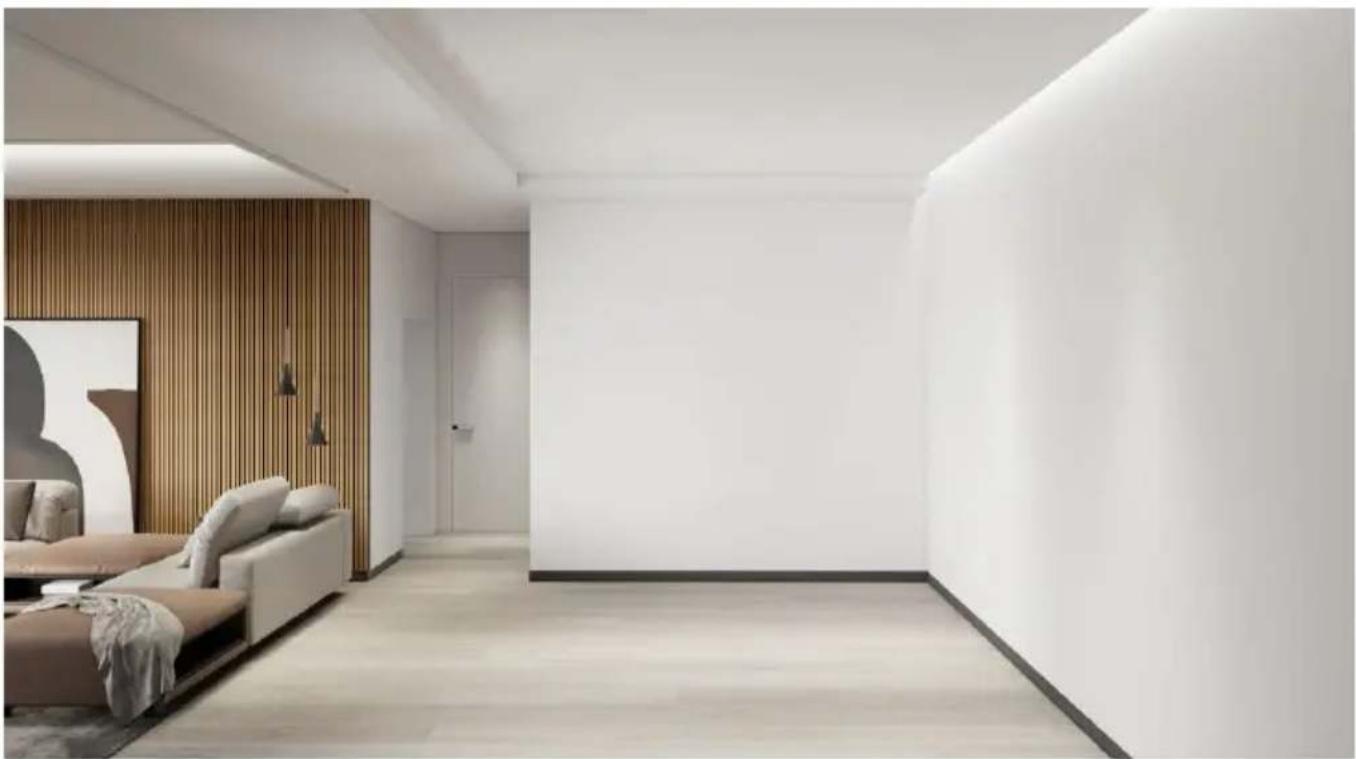

Step 1: The preparation of wall or ceiling

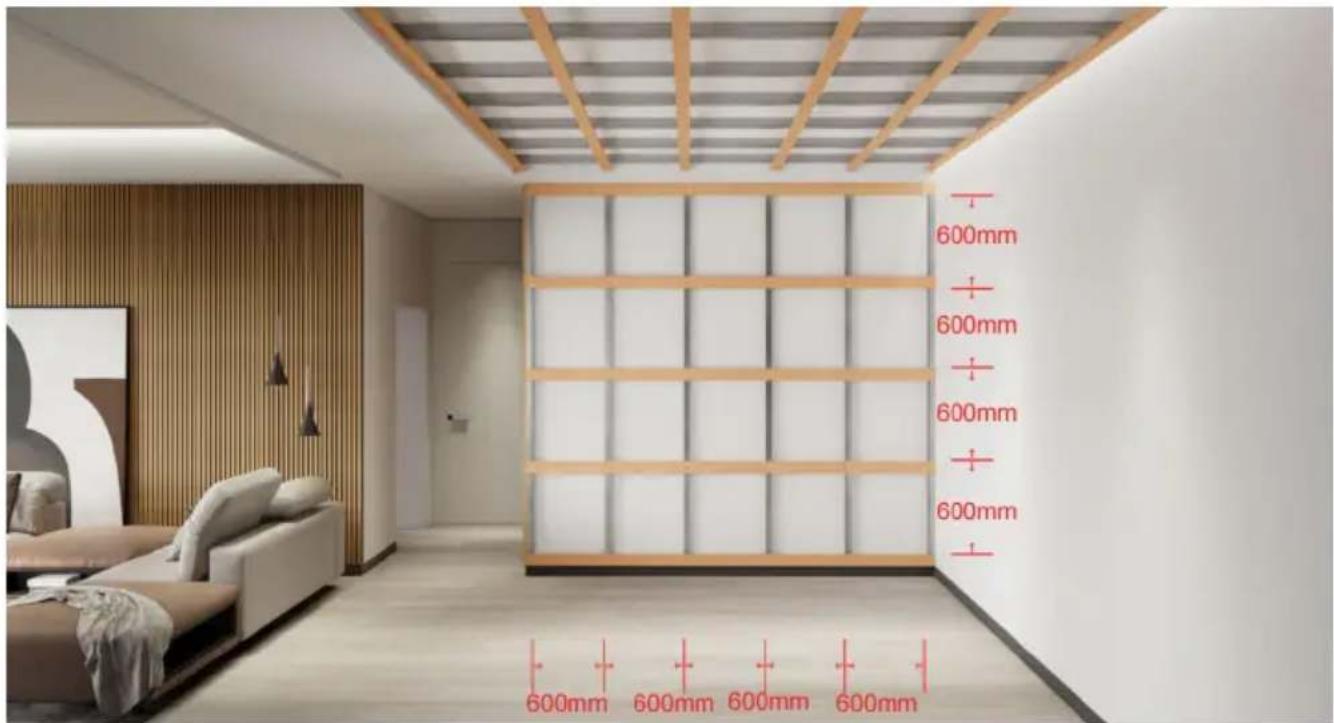

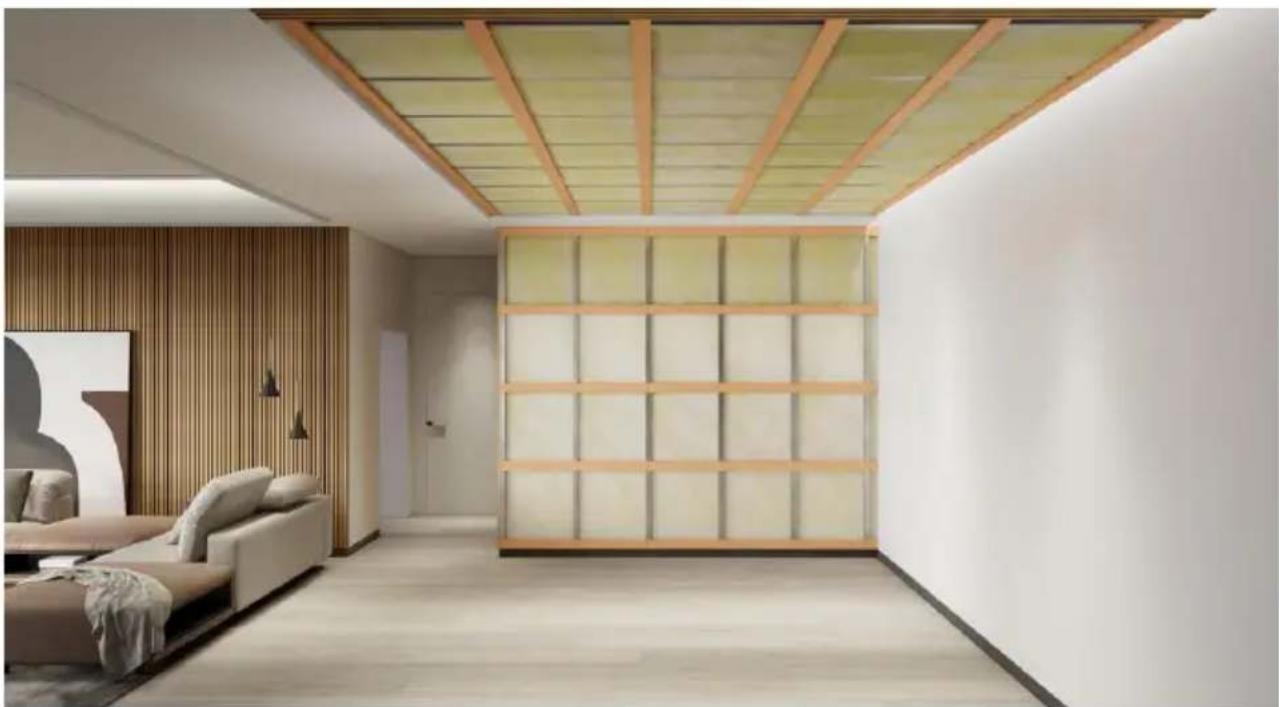

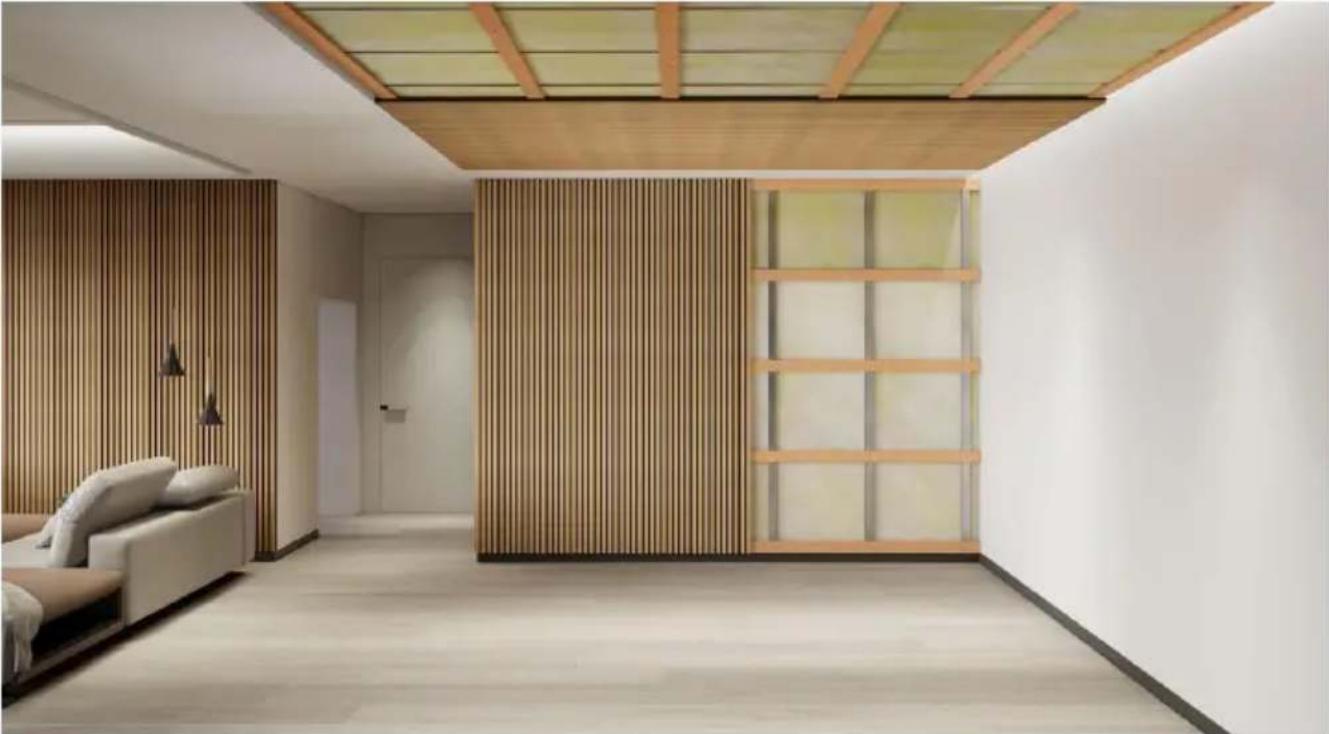

Step 2: Installing sound absorbing device;

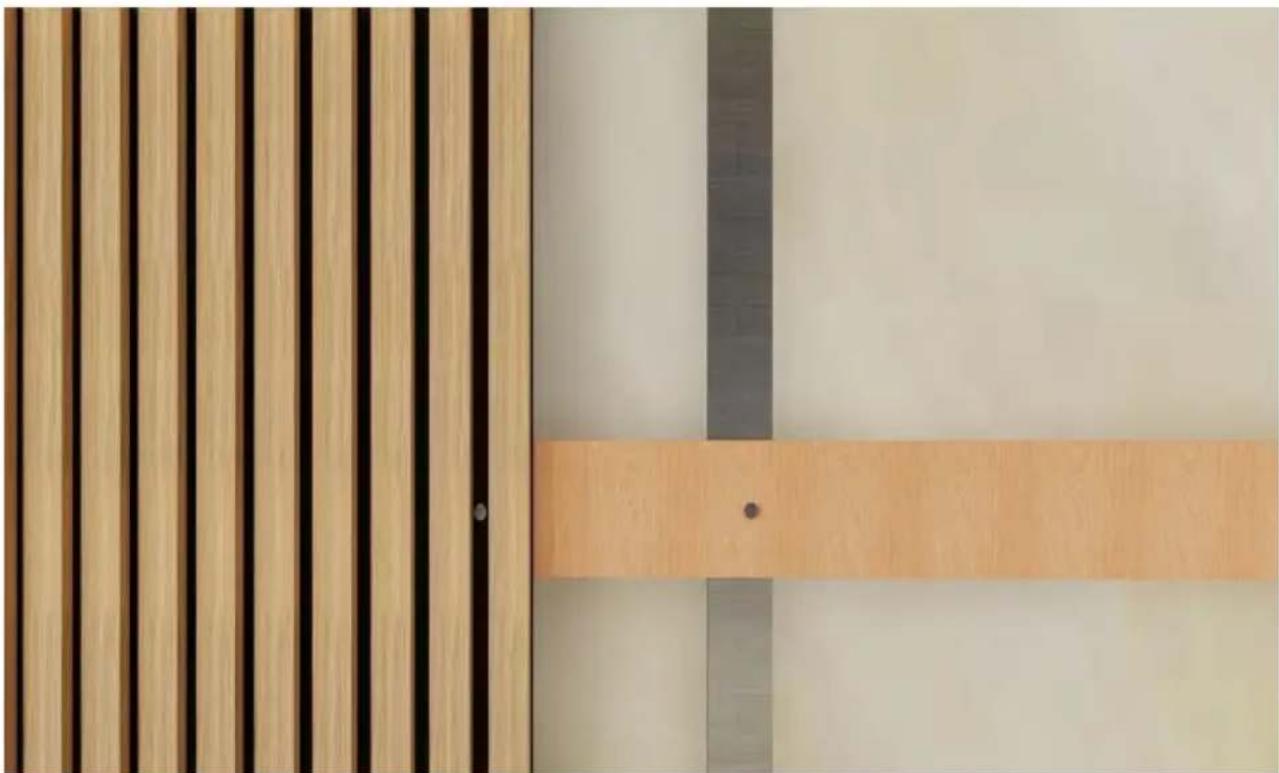

A: We recommend installing the keel initially, then the sound absorption wool, and then the wooden racks and panels. With this combination, you will get the highest sound absorption.

B: Inserting the sound absorption wool between the keel and wooden r

Step 3:

Mounting the panel

• Using the electric screwdriver to screw through the black felt into the wooden racks.

Note: Please refer to the above simple screw installation method - When assembling in continuation to each other, please note that the side of the one panel is seamless with the slat side of the following

Step 4: The wall and ceiling are fully installed now.
