Vevor JF166-HFK-21381 - Acoustic panels
📄 64 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice Vevor JF166-HFK-21381 - page 1
1 / 64
Pick your language and provide your email: we'll send you a specifically translated version.
Product TypeWPC Acoustic Slat Wall Panels
BrandVevor
ModelJF166-HFK-21381
Dimensions (per panel)2450 mm × 166 mm × 9 mm
Quantity per pack8 panels
ColorDeep Pomelo Wood
MaterialWPC (Wood-Plastic Composite)
UsageIndoor
Installation methodNail-free glue and screws with connection brackets
Included accessories1 decorative sheet, 32 connection brackets, 32 screws, 2 tubes of nail-free glue
Required toolsCircular saw, electric screwdriver, tape measure, pencil, knife
SafetyInstall by an adult; regularly check stability; do not install on curved walls
MaintenanceClean with a soft dry cloth; avoid excessive moisture
Estimated weight per panelApproximately 2.5 kg
WarrantyElectronic warranty certificate available at vevor.com/support
Technical supportwww.vevor.com/support

Frequently Asked Questions - JF166-HFK-21381 Vevor

How to install Vevor acoustic panels?
Make sure the wall is clean and dry. Apply nail-free glue to the back of the panel, then attach it to the wall. Use the connection brackets and screws to assemble multiple panels. Two-person installation is recommended.
What type of glue to use?
Use the nail-free glue provided in the kit. It is specially adapted for fixing WPC panels on flat walls.
Can I cut the panels?
Yes, you can cut the panels to the desired size using a circular saw or knife. Be sure to measure accurately before cutting.
What is the exact color of model JF166-HFK-21381?
The color is deep pomelo wood. Please note that there may be a slight difference from the image; refer to the physical product.
How many panels per pack?
Each pack contains 8 panels of dimensions 2450 mm × 166 mm × 9 mm.
Are the panels moisture resistant?
WPC material is moisture resistant, but it is recommended not to expose it to excessive moisture. Clean with a dry cloth.
How to clean the panels?
Clean with a soft dry cloth. Avoid abrasive products or large amounts of water to preserve the finish.
Can I install the panels on a curved wall?
No, the panels are designed for flat walls. Installing them on a curved wall could damage the product and cause injury.
What tools are needed for installation?
You will need a circular saw, an electric screwdriver, a tape measure, a pencil, and a knife. Make sure your drill is set to low torque.
Where to find technical support?
For any questions or technical assistance, go to www.vevor.com/support. You will also find the electronic warranty certificate there.

User questions about JF166-HFK-21381 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Acoustic panels in PDF format for free! Find your manual JF166-HFK-21381 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. JF166-HFK-21381 by Vevor.

USER MANUAL JF166-HFK-21381 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ACOUSTIC WPC SLAT WALL PANELS

MODEL:JF166-HFK-11411/JF166-HFK-09111

/JF166-HFK-30220/JF166-HFK-21381

/JF166-HFK-30110/JF166-HFK-6007

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ACOUSTIC WPC SLAT WALL PANELS

MODEL:JF166-HFK-11411/JF166-HFK-09111/JF166-HFK-30220/JF166-HFK-21381/JF166-HFK-30110/JF166-HFK-6007

Aerial view of a road with parallel tracks and scattered construction materials on the ground. No visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

  1. Please read and understand this manual carefully before using the Acoustic WPC slat wall panels.

The installation should be done by an adult, and children should not be without supervision.

  1. Please ensure that the Acoustic WPC slat wall panels are firmly installed; otherwise, they may fall off and cause harm to people.
  2. Check the stability and safety of the product fixation regularly. If the product is loose, it should be strengthened immediately.
  3. Do not install wall panels on curved walls. Wall panels may be damaged and cause harm to people.

PARAMETER LIST

ModelSizeQTYColor
JF166-HFK-114112450*166*9mm8White wax wood colo
JF166-HFK-091112450*166*9mm8Black walnut color
JF166-HFK-302202450*166*9mm8Grey oak color
JF166-HFK-213812450*166*9mm8Deep pomelo wood co
JF166-HFK-301102450*166*9mm8Dumb light white
JF166-HFK-60072450*166*9mm8Mute black

If there is any difference between the color of this product and the instruction manual, please refer to the physical object.

INSTRUCTIONS

Safety and Care Advice

  • Check you have all the components and tools listed on the following pages.
  • Remove all fittings from the plastic bags and separate them into groups.
  • Keep children and animals away from the work area; small parts can choke if swallowed. • Make sure you have enough space to layout the parts before starting.
  • Parts of the assembly will be easier with 2 people.
  • Please handle it carefully during installation. The wall board is brittle and may break upon impact.

Required tools for installation

Vevor JF166-HFK-21381 - Safety and Care Advice - 1Circular SawVevor JF166-HFK-21381 - Safety and Care Advice - 2Electric ScrewdriverVevor JF166-HFK-21381 - Safety and Care Advice - 3PencilVevor JF166-HFK-21381 - Safety and Care Advice - 4band tapeVevor JF166-HFK-21381 - Safety and Care Advice - 5Knife
Vevor JF166-HFK-21381 - Safety and Care Advice - 6• To reduce the likelihood of damaging your proplease ensure that your power drill is set on a torque setting.

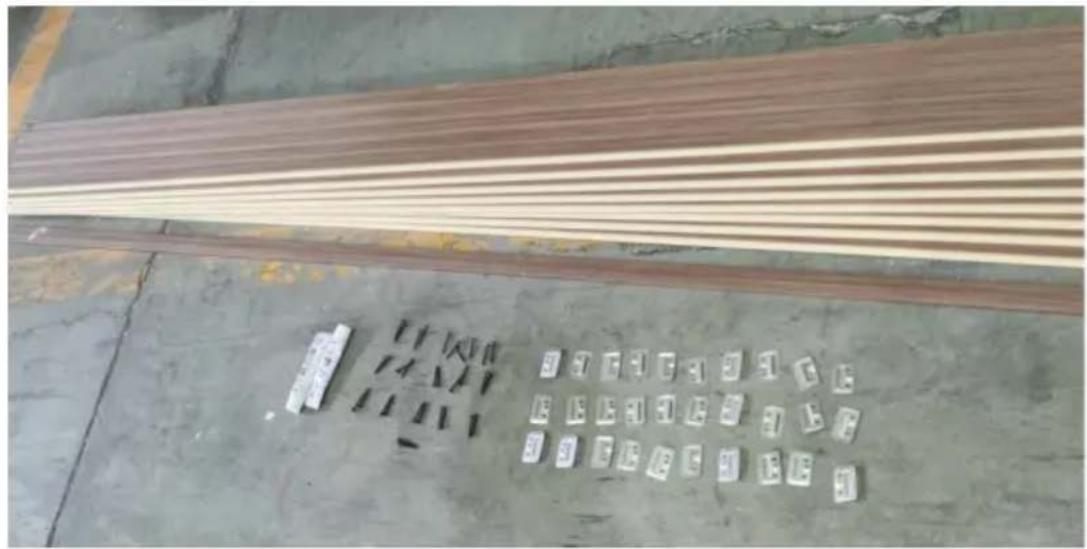

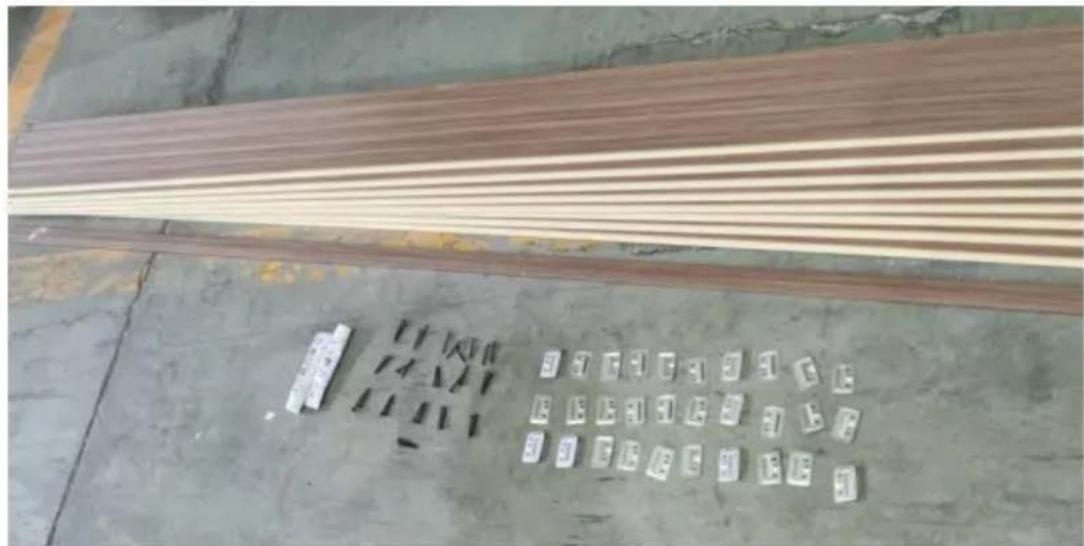

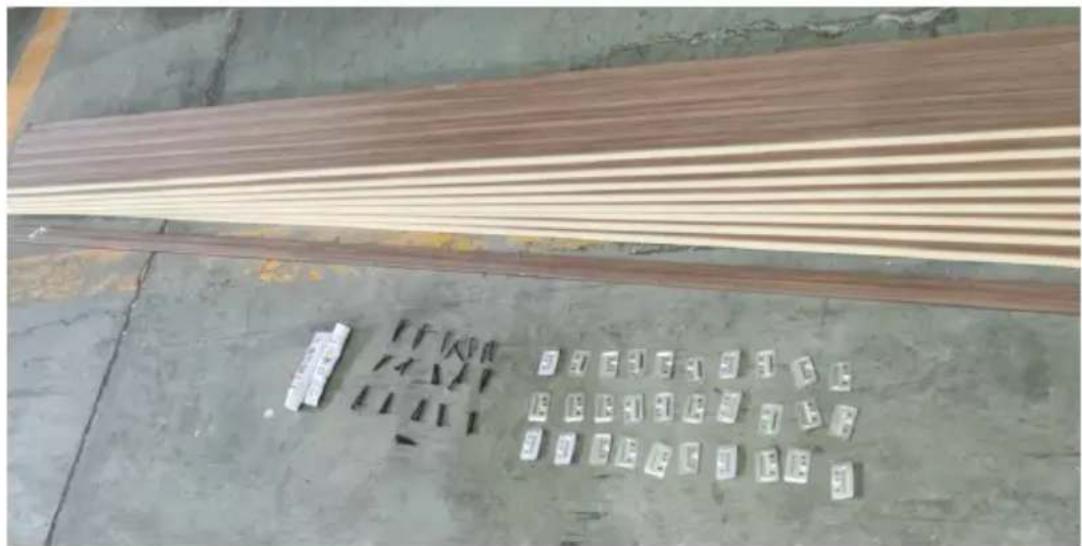

List of kit parts

Vevor JF166-HFK-21381 - Safety and Care Advice - 7A:SLAT WALL PANELS x 8pcsVevor JF166-HFK-21381 - Safety and Care Advice - 8B:decorative sheet x 1pcVevor JF166-HFK-21381 - Safety and Care Advice - 9C:connection strap x 32pcs
Vevor JF166-HFK-21381 - Safety and Care Advice - 10D:screws x 32pcsVevor JF166-HFK-21381 - Safety and Care Advice - 11E:Nail free glue x 2pc

THE STANDARD INSTALLATION METHOD

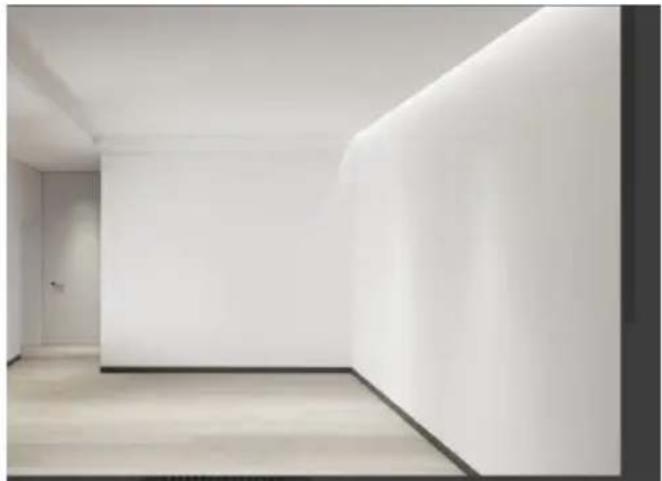

Step 1: Preparing the wall.

• Make sure the surfaces are clean and dry, without nails or screws. Measure the wall size with a measuring tape, and record the size of the required Acoustic WPC slat wall panels.

Interior view of a minimalist room with white walls and dark corner accents. No visible text or symbols.

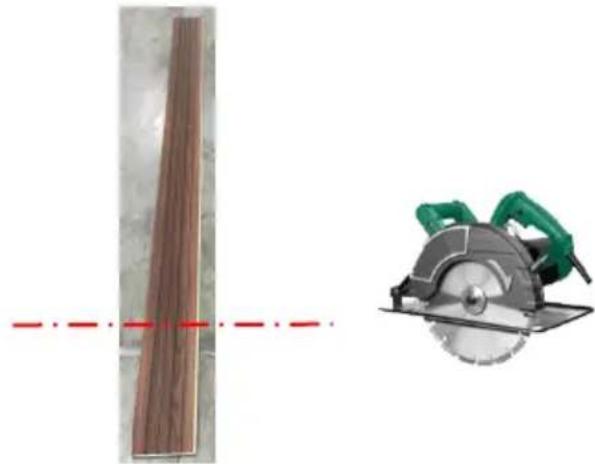

Step 2: Cutting the panels

- Cut products with circular saws and knives to your required size.

Two-panel image: left shows a wooden strip next to a vertical line; right shows a green power saw cutting a circular cutter. No text or symbols.

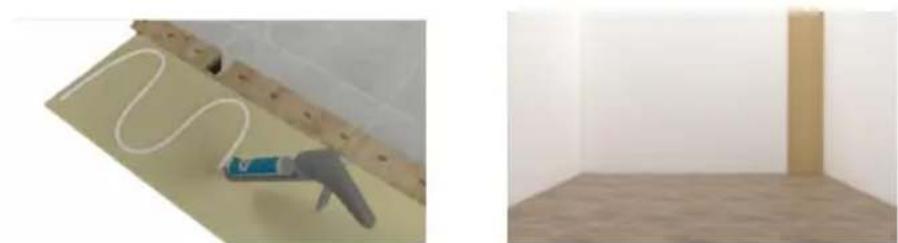

Step 3: Mounting the panel

Apply nail glue on the back of the wall panel; attach the panel to the wall.

Two interior photos: one showing a wooden plank with a curved line, the other showing a plain wall with a wooden post. No text or symbols.

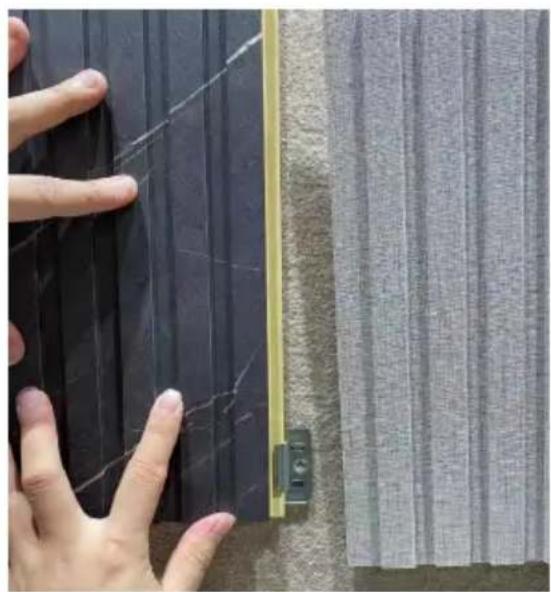

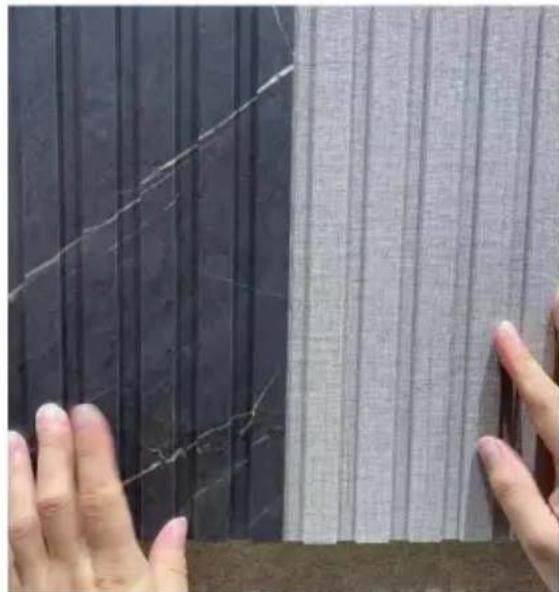

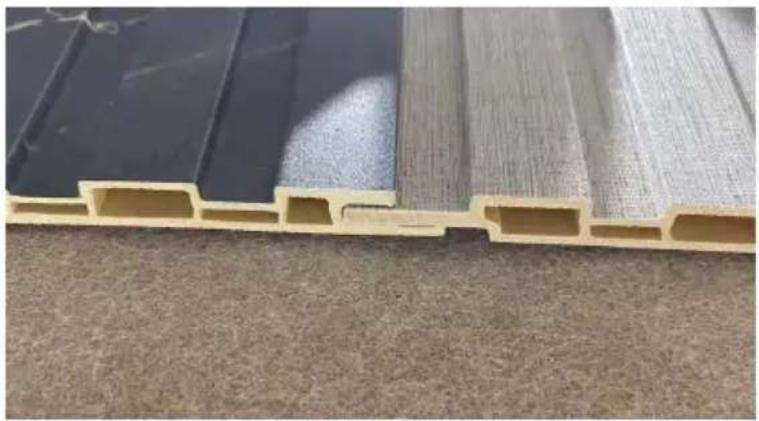

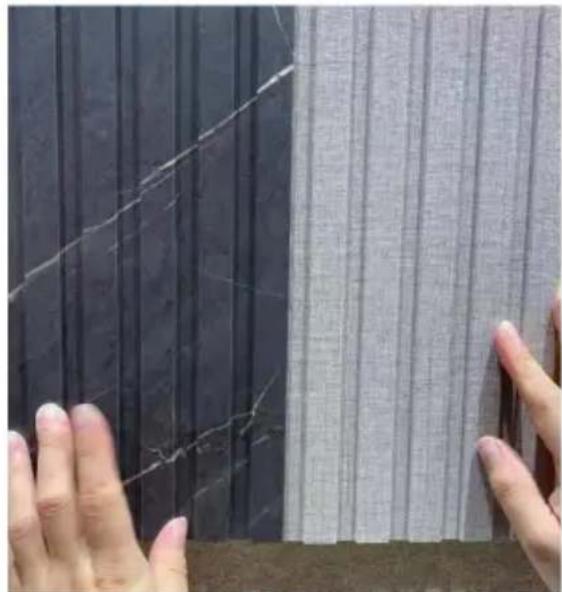

Step 4: Splicing Acoustic WPC slat wall panels;

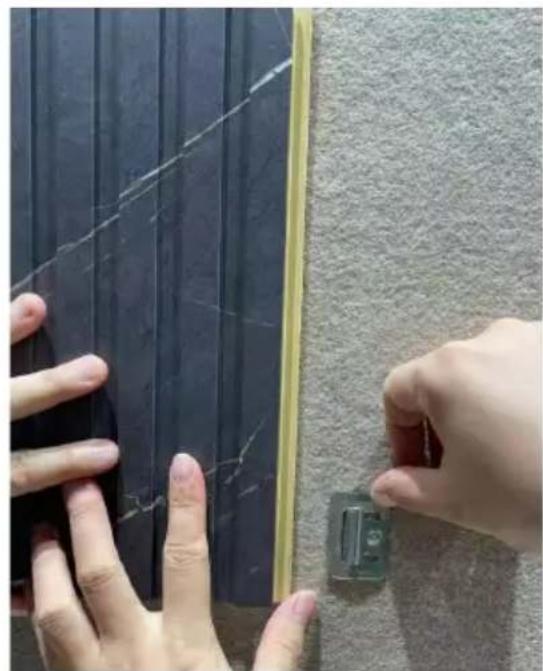

Card hardware connectors into the wall board and secure them with screws. Each wall board is recommended to install 4 connecting panels, with two connecting panels 600mm apart.

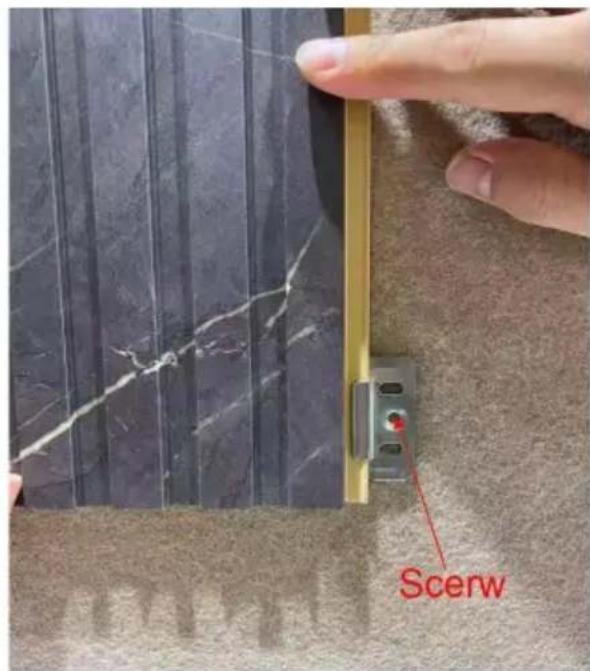

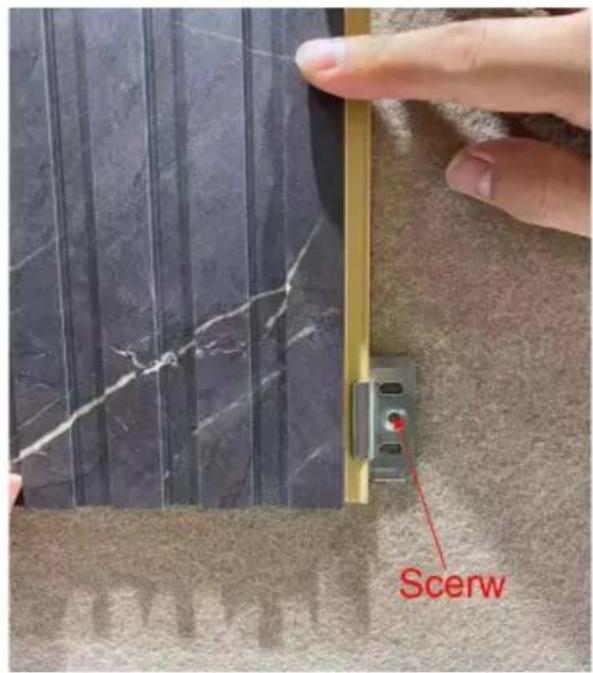

Install a screw in the middle round hole of the connecting plate.

Close-up of hands installing or adjusting a dark panel on a textured wall, with a small lock nearby. No visible text or symbols.

Screw.

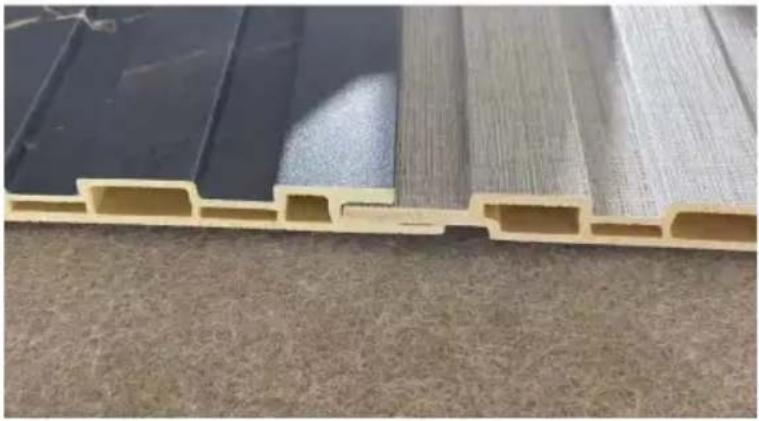

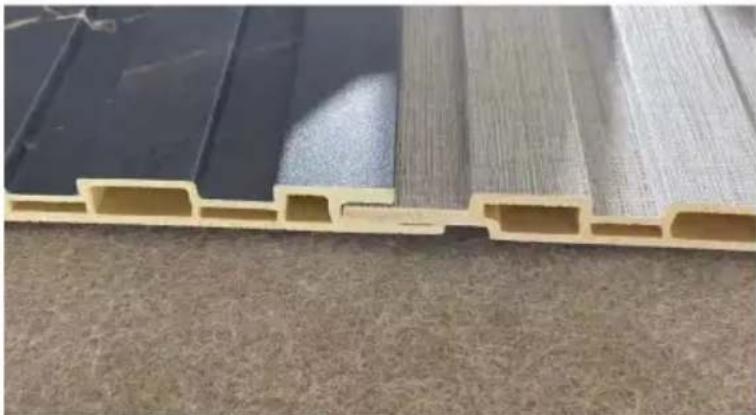

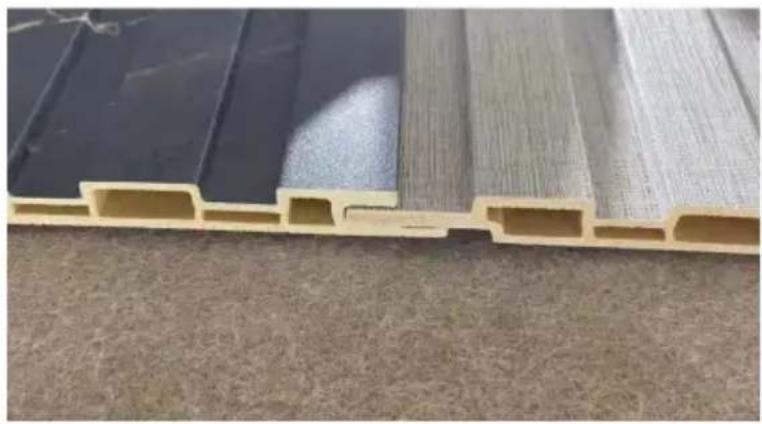

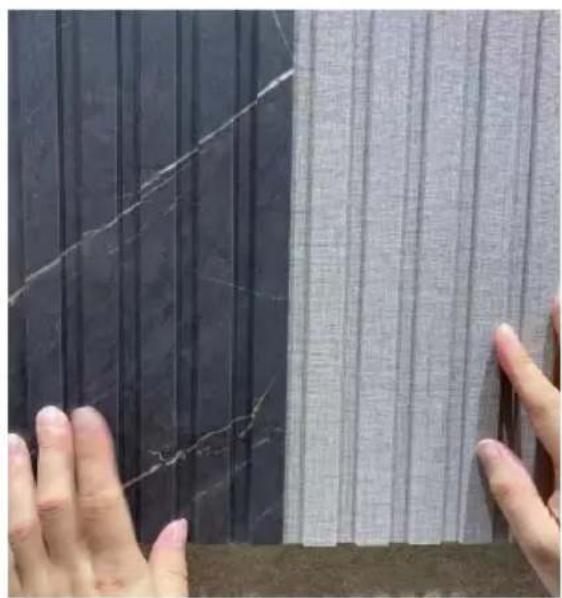

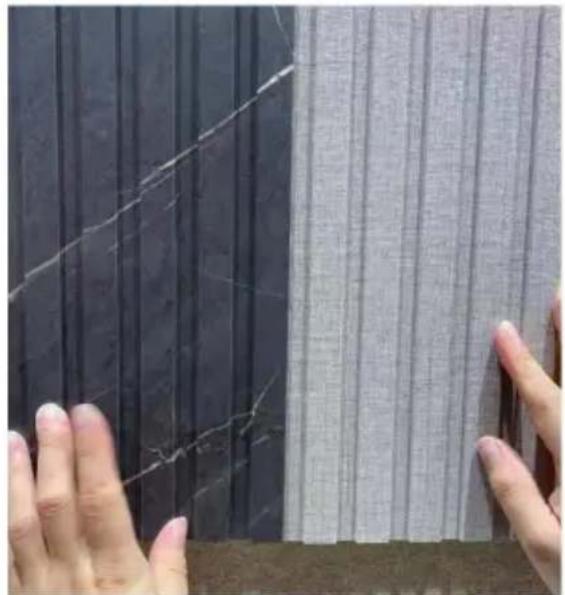

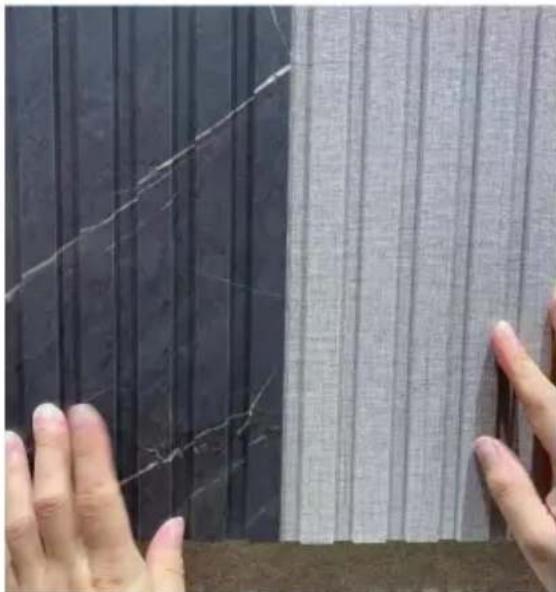

Apply nail glue on the back of the wall panel and put it into the board slot on the wall.

Close-up of hands touching a dark metal panel next to a textured gray curtain wall and a yellow vertical lock. No visible text or symbols.

Close-up of hands holding a dark panel with visible cracks, next to a gray textured panel. No text or symbols.

Close-up of a wooden panel with visible grain and cutouts, placed on a textured surface. No text or symbols.

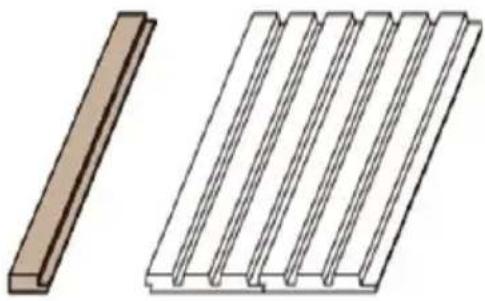

Step 5: Apply nail-free glue on the back of the decorative piece, then card it into the Acoustic WPC slat wall panels card slot.

Two technical illustrations: a wooden plank and a multi-layered grid structure. No text or symbols.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
