KD-C3012 - Machine Tool Vevor - Free user manual and instructions

Product Type	Rock Polishing Machine (Tumbler)
Brand	Vevor
Model	KD-C3012
Maximum Capacity	4 lb (approx. 1.8 kg) of stones
Adjustable Speed	1 to 9 levels
Adjustable Timer	1 to 9 days
Digital Display	Speed and countdown time
Overload Protection	Yes, stops and shows E1
Jam Protection	Yes, stops and shows E2 if barrel missing or jammed
Auto Shut-off	After 10 minutes of inactivity
Power Failure Memory	Resumes cycle after restoration
Light Indicator	Solid white (standby), flashing white (running), solid orange (fault)
Power Supply	Mains (standard electrical outlet)
Weight	Approx. 5 kg
Dimensions	Approx. 30 x 20 x 30 cm
Barrel Material	Stainless Steel
Included Accessories	Motor, barrel, abrasives (320#, 600#, 800#), polishing powder, ceramic abrasive, strainer, jewelry attachments, manual
Safety	Safety goggles recommended, dust mask
Maintenance	Clean barrel and stones after each cycle, do not pour residues down drains
Spare Parts and Repairability	Contact Vevor support via www.vevor.com/support
Warranty	Electronic warranty certificate at www.vevor.com/support
Manufacturer	Fujian Putian Huajie Electronic Technology Co., LTD.
EU Representative	Mainzer Landstr.69, 60329 Frankfurt am Main

Frequently Asked Questions - KD-C3012 Vevor

How to start the machine?

Place the barrel filled with stones and water onto the base, plug in the machine, then press the Start/Stop button. Select speed (1-9) and time (1-9 days) using the knobs. The machine starts the cycle.

What to do if the machine shows E1?

The code E1 indicates an overload. Turn off the machine, remove excess weight from the barrel (do not exceed 4 lb), then turn on again. The machine will resume with previous settings.

What to do if the machine shows E2?

The code E2 appears if the barrel is missing or jammed for more than one minute. Properly place the barrel or clear the obstruction, then press the Start button to continue.

How to open the barrel lid?

Unscrew the black knob of the lid, remove the outer stainless steel lid (use a flat object if necessary), then remove the inner lid by pressing the barrel to push it outward.

How much water should be added?

Fill the barrel about two-thirds full with water until the water just covers the top of the stones. Do not overfill to avoid poor polishing.

How long does the polishing take?

A complete cycle includes four steps (coarse grit 320#, medium grit 600#, fine grit 800#, polishing powder). Each step lasts 1 to 9 days depending on the hardness of the stones and the speed selected.

Can I use any stones?

Yes, but harder stones require longer cycles. Avoid very soft or cracked stones. Start with stones of similar hardness for a uniform result.

How to clean the barrel between cycles?

Empty the contents into the strainer, rinse the stones and barrel with clean water outdoors to avoid clogging drains. Make sure no abrasive residue remains.

Can the machine run continuously unsupervised?

Yes, it is designed for continuous operation. It automatically stops after the set time. In case of power outage, the memory resumes the cycle. Monitor the first cycles to check for leaks.

Where can I find spare parts or support?

Visit www.vevor.com/support for technical support, electronic warranty certificate, and spare parts.

USER MANUAL KD-C3012 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ROCK TUMBLER

MODEL: KD-C3011, KD-C3012, KD-C3013

We continue to be committed to provide you with tools at competitive prices.

"Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ROCK TUMBLER

MODEL: KD-C3011, KD-C3012, KD-C3013

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate at www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, the user must read the in manual carefully.
	Warning- Be sure to wear eye protectors when using this produ
	This symbol, placed before a safety comment, indicates a kind precaution, warning, or danger. Ignoring this warning may lead t accident. To reduce the risk of injury, fire, or electrocution, plea follow the recommendation shown below.
	DISPOSAL INFORMATIONThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories with this symbol. Products marked as such may not be discard normal domestic waste, but must be taken to a collection point recycling electrical and electronic devices

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference

that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

GENERAL SAFETY RULES

WARNING:

Do not attempt to operate the machine until you have read thoroughly and understood completely all instructions, rules, etc. contained in this manual. Failure to comply may result in accidents involving fire, electric shock, or serious personal injury. Keep this owner's manual and review frequently for continuous safe operation.

1. Know your machine. For your own safety, read the owner's manual carefully. Learn its application and limitations, as well as specific potential hazards pertinent to this machine.
2. Keep guards in place and in working order. If a guard must be removed

for maintenance or cleaning, make sure it is properly replaced before using the machine again.

1. Keep your work area clean. Cluttered areas and workbenches increase the chance of an accident.
2. Do not use in dangerous environments. Do not use power tools in damp locations, or expose them to rain. Keep work areas well illuminated.
3. Do not force the machine. It will do the job better and be safer at the speed for which it is designed.
4. Use the right tools. Do not force the machine or attachments to do a job which they are not designed. Contact the manufacturer or distributor if there is a question about the machine's suitability for a particular task.
5. Always use safety glasses. Normal spectacles only have impact resistant lenses. They are not safety glasses.
6. Do not over-reach. Keep proper footing and balance at all times.
7. Always wear a face or dust mask if operation creates a lot of dust and/or always operate the tool in a well ventilated area and provide for proper dust removal. Use a suitable dust extractor.
8. Prohibit the addition of corrosive substances such as alcohol.

Before the First Use

Before you begin using your Advanced Rock Tumbler, please make sure that the necessary parts are included. If you are missing anything, please email us.

The Kit Includes:

1. Rock polishing motor 1pcs

1. One bag of about 180g (total 2 bags)

1. Polishing barrel 1pcs

1. Ceramic abrasive 400g (can be cycle used)

1. Emery grit 3 packs

1. Brightening powder 1 pack

1. Jewelry fasteners 1pcs

1. Mesh strainer 1pcs

9. Power plug 1pcs

1. English manual 1pcs

Tumbling Cycles Guide

Please add proper amount of water for every stage and follow the table below for the best polish effect.

Generally speaking, a rough polish needs a faster speed and fine polish needs slower speed.

One complete cycle	Stage	Emery grit /weight	Ceramic abrasive/weight	Speed	Time(day)
	1	320#/60g	5mm/400g	1-9 speeds adjustable according to the stone hardness and weight	1-9 days adjustable according to the stone hardness and weight
	2	600#/60g	5mm/400g
	3	800#/60g	5mm/400g
	4	Brightening powder/60g	5mm/400g
Note: All the contents don’t exceed 4Lb, if over 4Lb, the machine will speed 1-2. Need to raise the speed.

Overload function: overload will stop working and show E1. It needs to power off and remove the overload and stuck place, then power on again. The machine will work normally with previous working time and speed.

If you don't put the bucket in or something gets stuck for 1 minute, it will show an error. After you put the bucket in or clear the stuck, press the start button to continue working.

Harder stones take longer to polish.

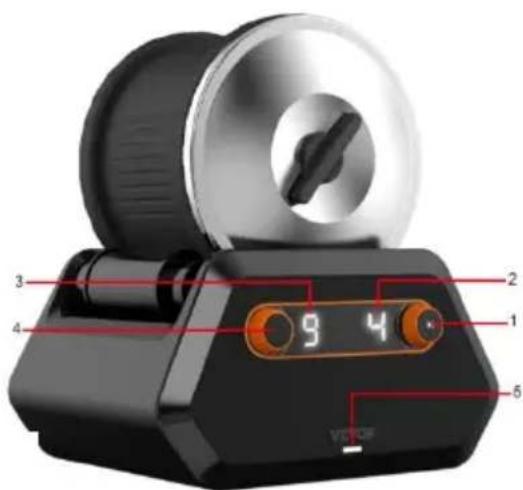

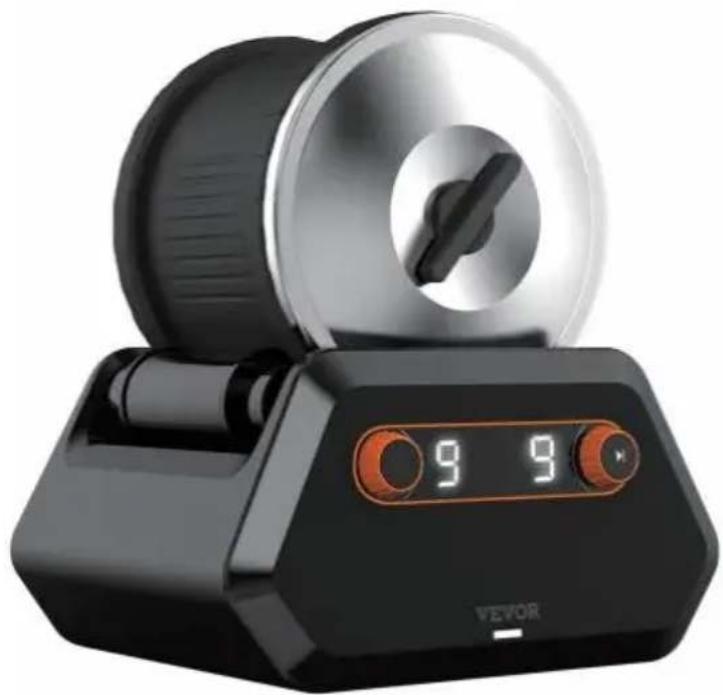

Control Panel Function

Panel function

1. Turn on/start/pause (with automatic shutdown function), can rotate with 1st-9th speed selection, long press; seconds start button to power off the machine.
2. Display speed gear (1-9)
3. Display time stalls (1-9 days)
4. Rotate to select 1-9 day time function
5. Light display function

(1) When the machine is powered on, in standby or suspended, the white light is on.

(2) The white light flashes slowly when the machine is running normally.

(3) In case of abnormal state such as overload, stop working, the orange indicator is steady on.

Panel function

1. Turn on/start/pause (with automatic shutdown function), can rotate with 1st-9th speed selection, long press 3 seconds start button to power off the machine.
2. Display speed gear (1-9)
3. Display time stalls (1-9 days)
4. Rotate to select 1-9 day time function
5. Light display function

(1) When the machine is powered on, in standby or suspended state, the white light is on.

(2) The white light flashes slowly when the machine is running normally.

(3) In case of abnormal state such as overload or stop working, the orange indicator is steady on.

Work-time function

1. Machine without working function: 10 minutes without working, automatically shutdown.
2. Power outage memory function: For example, set the machine to start working for 3 days, and a power outage occurs after 1.8 days of operation. When the machine is powered on again, it will resume operation automatically and continue to run for the remaining 1.2 days to finish. (After setting the time again, clear the previous working time and work according to the new setting.)
3. Manually pause the memory function: For example, manually set the pause for 3 days, then manually pause the machine after running for 1.8 days; when restarting the machine, it will automatically operate for the remaining 1.2 days to finish. (After setting the time again, clear the previous working time and work according to the new setting time.)
4. Time countdown function: The digital days number is displayed in the countdown form. When the machine has finished running according to the set number of days, the days number will display "0".

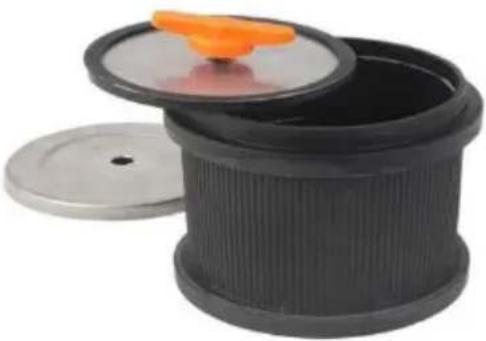

How to open the barrel lid

	1. Unscrew the black knob at the top of barrel and remove it.
	2. Detach the outer stainless steel cover. You may need to use something flat -lik regular screwdriver or cutlery handle - to loose.
	3. Remove the inner lid from the barrel: can try by squeezing the barrel to push the lid or screw the knob onto the lid a that as a handle to pull out the lid eas
Polishing Your Gemstones
	4. Put rocks inside the tumbler barrel.(Fo example, stones about 300-400 grams, 40 grams of round abrasive and adding two-thirds of the barrel of water)Don't overload it! If the tumbler barrel is full, the rocks won't move around enough become polished. We recommend that yo the barrel 1/2 to 2/3 full.Note: If you overfill the barrel,the stone hang over the edge of the barrel and w polished.

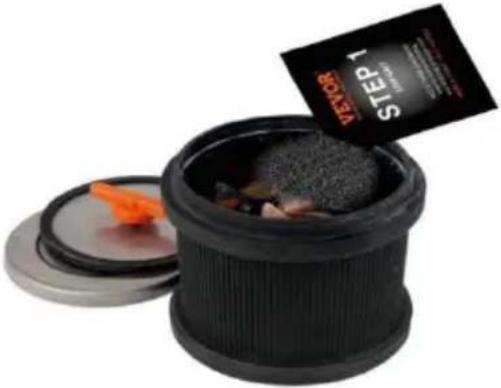

	5. Empty the contents of the grit #1 pa into the barrel.

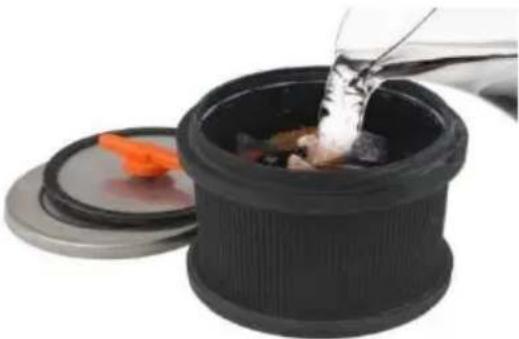

	6. Add water to the barrel until the wate covers the top of the rocks.
	7. Place one side of the lid in the seal angle.
	8. Do not press the entire lid directly in seal.
	9. Push the seal ring on the other edge
	10. After confirming the push seal ring, t seal ring is inside the polishing barrel.11. Put back the stainless steel cover or of the inner lid and reattach the knob a tighten it. Make sure to tighten the best can to ensure the barrel does not leak water.
	12. Place the tumbler barrel onto the tur base, with the lid facing to the right.
	13. Plug in the machine, press the On/C button and select the appropriate number days and speed (refer to the Tumbling Guide on page 4), and let the machine job!
	14. You can always pause the machine without losing the speed and timer setting pressing the Pause/Resume button. Press again to resume.

In the first stage: Add 320# emery grit and ceramic abrasive, with 1-9 adjustable according to the stone hardness. Higher speed will round the rocks more quickly.

In the second stage: Add 600# emery grit and ceramic abrasive, adjustable according to the stone hardness. Higher speed can fine the rock surface.

In the third stage: Add 800# emery grit and ceramic abrasives, with 1 adjustable according to the stone hardness. Slower speed will make the surface smoother.

In the fourth stage: Add brightening powder and ceramic abrasive, with speeds adjustable according to the stone hardness. Slower speed can increase the brightness of rocks.

Cycle Change

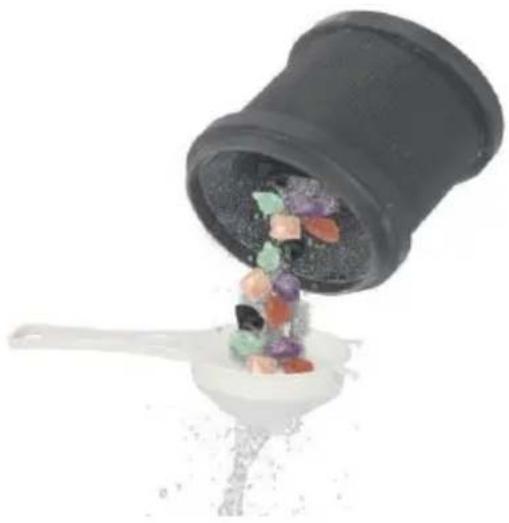

1. When the tumble cycle is done, pour the tumbler barrel into the mesh strainer, rinse the rocks and barrel with water to remove all the grit.

Caution! Never pour used grit down a drain inside your house - it will destroy the plumbing! Make sure to wash your stones and barrel outside instead of in your bathroom or kitchen.

Check before you discard! The purpose of each grit cycle is to gradually smooth the rocks and round out the edges. Whenever you finish a cycle, it's a good idea to wash off just a few of the rocks to see if they are tumbled to your satisfaction before you dump the contents of the barrel. If they aren't polished enough, return them into the barrel and let them run longer. In general, the longer the cycle, the better the results.

Trust yourself. Use your own judgment to determine if the rocks are polished to your satisfaction. Some rocks are harder than others, so they may need more time in any grit cycle than is recommended here.

1. Repeat the above steps with grits #2-4, in order. By doing so, you will bit-polish the rough rocks into smooth gemstones.

Feel free to experiment with the duration of your tumbling. Each rock you use is made of different material and so will respond differently. This is a great way to inspire experimentation!

Next Steps

Use mineral oil for extra shine! If you want your finished stones to be really shiny, coat and polish the stones with mineral oil.

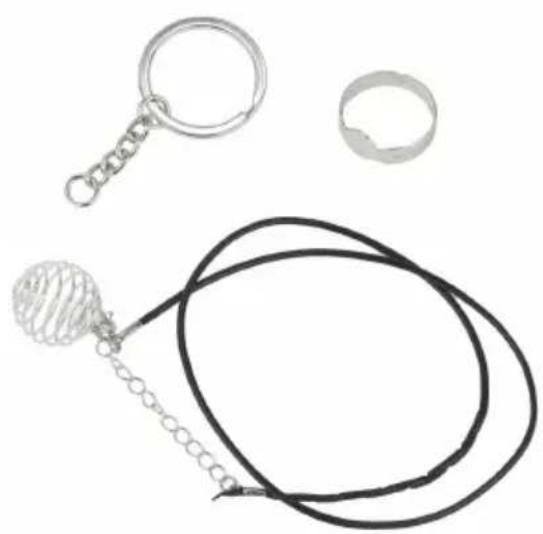

You can use the included jewelry hardware to make a necklace, ring, keychain, and a pair of clip-on earrings or pins with your polished stones.

To make a keychain or necklace, simply insert the stone into the keychain/necklace cages, without using glue, by forcing it into the cage.

To make a ring or earrings, you'll need to glue the stone by using a hot gel an all-purpose adhesive sealant. Please have an adult help you if you are using glue!

Imitating Nature

The original rock tumbler is all natural - it's water! If you've ever picked up on the beach or near a river, you know what this means. Those rocks have smoothed and rounded by water over long periods of time to make them look feel the way they do.

Here's how it works: Over tens, hundreds, and even thousands of years, rock tossed around in the waves and currents of rivers and seas, banging against other. The sand and sediment act as abrasives and further smooth the rocks When the rocks are wet, the sheen gives stones a highly polished look.

Since the beginning of civilization, humanity has tried to find ways to polish faster than nature. In ancient Egypt, slaves would take roughly-cut rocks and them back and forth in troughs filled with sand and water - a process that

months - to achieve polished stones.

In India, stones cUt into preliminary shapes were put in goatskin bags with v and roughly-ground rocks. Then, workers would roll the bag on the ground for weeks at a time.

Perhaps the first rock tumbler "machine" was invented in ancient India, where teeter- totter board rolled jars filled with pre-cut beads, water, and abrasives to create polished beads.

The problem with all of these methods is that they took extremely long amo time to achieve results and only a few rocks could be polished at once.

More Successful Methods

Modern rock tumbling began in the 1950s in Los Angeles. A rock dealer near Edward Swoboda started selling hand polished regular shaped rocks - called baroque stones - in simple settings, which become very popular. To keep up demand, he partnered with a friend, Warren Jones, to build a tumbling mach that was able to polish a larger quantity of stones in a short amount of tim with little labor.

Spurred by Swoboda's success, other inventors started producing their own versions of tumbler machines that, over time, became quieter, more durable, a able to polish larger numbers of rocks, even large enough to support wholesale efforts. By the early 1960s, a rock polishing craze had taken over the U.S. rock tumbler machines could be found in homes across the country.

What Can You DO With Polished Stones?

You've spent the past month polishing stones. Now what? Besides simply enjoying looking at them, there is a lot you can do:

Jewelry: The most common use of polished rocks is to make jewelry. You can use the jewelry fasteners included in this kit, or you can do it yourself! Wrap a wire around a single stone to create a pendant that can go on a chain, or string ribbon to create a necklace. Or, you can go to a craft store and buy materials to create key chains, earrings, pins, rings and more.

Home decor: You also can use the polished rocks to create beautiful decorations for your home. For instance, you can glue the rocks to picture frames, magnets or tree ornaments. You can use larger stones to accent flower pots or vases. You can fill a jar with rocks and create a candle holder. Use your imagination!

Manufacturer: Fujian Putian Huajie Electronic Technology Co.,LTD.

Address: NO.30 Shugang Road, Shangtang Village, Dongqiao Town,

Xiuyu District, Putian City, Fujian Province China

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road

Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

1. Stone polishing motor 1 pc

1. One bag of approx. 180 g (total 2

2. Polishing barrel 1 pc

Address: NO.30 Shugang Road, Shangtang Village, Dongqiao Town, Xiuyu

District, Putian City, Fujian Province, China

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Address: NO.30 Shugang Road, Shangtang Village, Dongqiao Town, Xiuyu District, Putian City, Fujian Province, China

CE REPRESENTATIVE: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REPRESENTATIVE: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road Staines-upon-Thames, Surrey, TW18 4AX

Imported into AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: KD-C3011, KD-C3012, KD-C3013

MODEL: KD-C3011, KD-C3012, KD-C3013

NEED HELP? CONTACT US!

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

C/O YH Consulting Limited Office 147, Centurion House, London Road Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Address: NO.30 Shugang Road, Shangtang Village, Dongqiao Town, Xiuyu District, Putian City, Fujian Province China

C/O YH Consulting Limited Office 147, Centurion House, London Road Staines-upon-Thames, Surrey, TW18 4AX

Imported in AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

1. Rotary polishing machine 1 pc

1. Abrasive grit 3 packs

1. Polishing barrel 1 pc

1. Jewelry findings 1 pc

1. Power plug 1 pc

8. Mesh sieve 1 pc

Tumbling cycles guide

Address: NO.30 Shugang Road, Shangtang Village, Dongqiao Town, Xiuyu District, Putian City, Fujian Province, China

EU-REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REPRESENTATIVE: YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support
