Brand	Vevor
Model	K2E01005
Product Type	Pet Grooming Bathtub
Intended Use	Bathing pets (dogs, cats)
Maximum Load Capacity	130 kg
Main Material	Durable plastic, stainless steel (faucet)
Dimensions (approx.)	150 x 60 x 90 cm (L x W x H)
Water Supply	Hot and cold water connection (G1/2 hoses)
Faucet Type	Mixer with shower head and soap dispenser
Drainage System	Strainer with transparent cover and seal
Included Accessories	Shower head, soap dispenser, comb, gloves (plastic and nylon), lick pad, scrub pad, squeegee, sling
Adjustable Feet	Yes (4 feet with locking nuts)
Access Door	Yes, with side panels
Maintenance	Clean after each use with a soft cloth and non-toxic cleaner; clean drain regularly
Safety	Do not use for humans; keep electrical appliances at a distance; do not leave unattended
Operating Temperature	Do not expose to temperatures below 0°C

Frequently Asked Questions - K2E01005 Vevor

How to install the Vevor K2E01005 bathtub?

Follow the assembly steps in the manual: first install the adjustable feet (screw them in at least 12 mm deep), then assemble the lower support and the tub, attach the side and rear panels, install the strainer and faucet. Use a spirit level to ensure it is level. Wear gloves and safety goggles.

What is the maximum load capacity of this bathtub?

The maximum load capacity is 130 kg (286 lbs). Never exceed this limit to avoid damaging the tub and to ensure your pet's safety.

How to clean the bathtub after use?

After each use, drain standing water, clean the tub with a soft cloth or sponge soaked in a mild non-toxic cleaner. Rinse thoroughly and wipe dry. Clean the drain regularly to prevent clogs by unscrewing the transparent cover.

Can I use this bathtub for humans or children?

No, this bathtub is intended solely for bathing pets. Never use it for humans, especially children, and do not allow children to play with it.

What accessories are included with model K2E01005?

The set includes: a tub with door, a mixer faucet, a shower head, a soap dispenser, a strainer, adjustable feet, a comb, plastic and nylon gloves, a lick pad, a scrub pad, a squeegee, a sling, and mounting screws.

How to adjust the feet to ensure stability?

Screw each adjustable foot at least 12 mm deep into the lower support. Use a spirit level to ensure the tub is level. If necessary, adjust the feet individually and tighten the locking nuts.

What to do in case of a leak at the drain?

Check that the seal (ring) is properly placed, without folds or displacement. Ensure the transparent cover of the strainer is tightly screwed. If the seal is damaged, replace it. Contact customer service if necessary.

Is this bathtub suitable for cats?

Yes, it is suitable for cats and medium-sized dogs. Always monitor your pet's behavior: if it becomes agitated, take precautions to avoid injury. Consult a veterinarian if your pet has skin sensitivities.

How to connect hot and cold water?

Connect the hot and cold water hoses to the corresponding inlets on the faucet, marked 'H' (hot) and 'C' (cold). Depending on your fittings, you may need the included G1/2 to NPT9/16 adapter. Ensure connections are watertight before use.

Where to find spare parts for model K2E01005?

Spare parts can be ordered from Vevor customer service or through authorized dealers. Refer to the manual for part numbers. Use only original parts to ensure safety and compatibility.

USER MANUAL K2E01005 Vevor

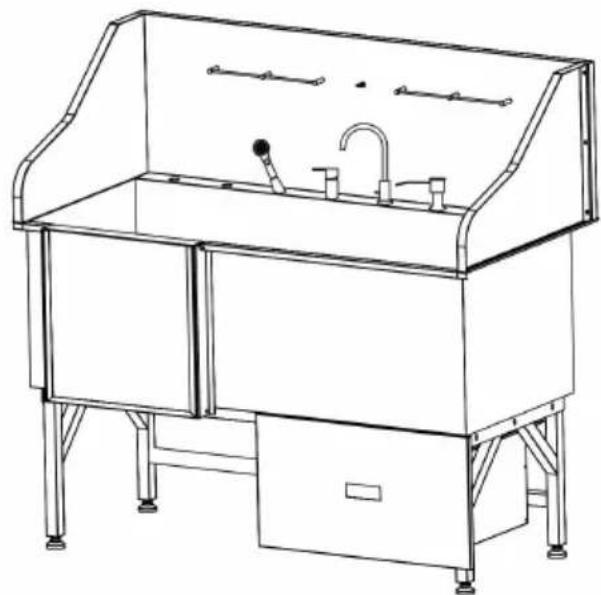

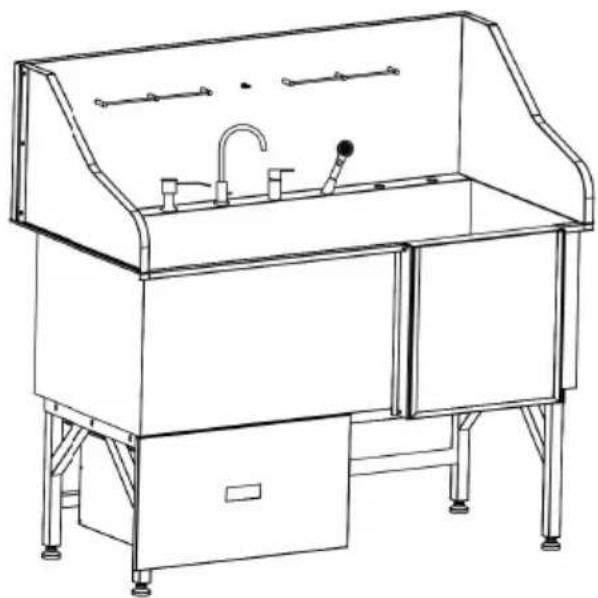

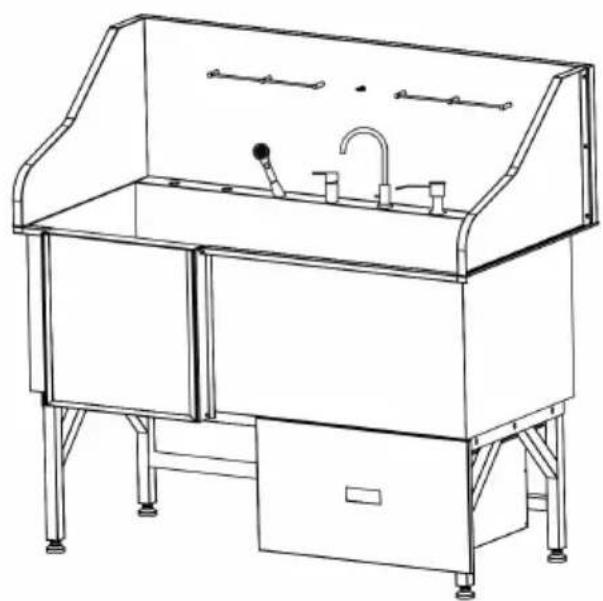

DOG GROOMING TUB

MODEL: K2E01005 / K2E01006

MODEL: K2E01005 / K2E01006

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. Do not allow children to play.
• Keep away from sharp points, blades and other items.
• Please wipe the cylinder dry with a cloth after use to extend the

life.

- Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
6. Product capabilities apply to properly and completely assembled products only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children's reach.

SAVE THESE INSTRUCTIONS

Warning! Products are only used for pet bathing.

PREPARATIONS BEFORE INSTALLATION

1. Recommended Tools: Phillips screwdriver, M4 wrench, Spirit level.
2. Necessary safety equipment: Gloves, goggles.

Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the best possible results.

Parts List:

1 pc	1 pc	1 pc	1 pc
1: Bottom bracke	2: Tub2-1: Sealing Strip	3: Left side panel	4: Right side panel
1 pc	2 pcs	1 set	1 set
5: Back panel	6: Plastic Floo Grate	7: Faucet	8: Shower base
1 set	1 set	1 set	1 pc
9: Shower	10: Faucet switch	11: Soap Dispenser	12: Sealing tape
		[BD43]
1 set	4 pcs	6 pcs (M8)	6 pcs (M8)
13: Strainer13-1: Drain Pipe13-2: Transparent Cove	14: Adjustable foot	15: Washer	16: Washer
6 pcs (M8*50mm)	6 pcs (M8)	4 pcs(M8*20mm)	16 pcs(M6*16mm)
17: Screw	18: Flange nu	19: Screw	20: Screw
			[24/30]
7 pcs (M8)	1 pc	2 pcs	4 pcs
21: Self-locking nuts	22: Ring	23: Steel rod	24: Hanging column
2 pcs	1 set	2 pcs	1 pair
25: Through hole hanging column	26: Plastic FlocGrate Rack26-1: Down Base26-2: Up Base26-3: Anti-slip Mat	27: Sling	28: Plastic Gloves
1 pc	1 pc	1 pair	1 pc
29: Comb	30: Licking tray	31: Nylon Gloves	32: Wiper
1 pc	2 pcs
33: Scouring pad	34: Adapter (G1/2 to NPT9/16)

Installation steps

* Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.

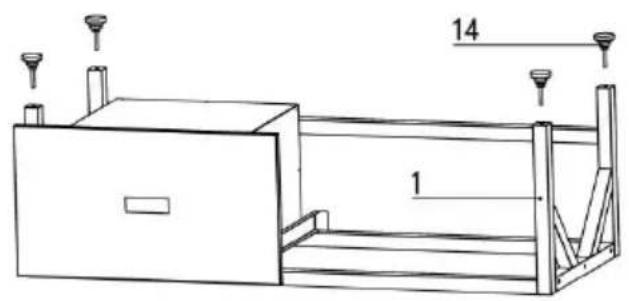

① Install the adjustable feet of the H rack.

Caution: Ensure that the depth of the adjustable feet is less than 12mm and try to make the four adjustable feet screw in the same depth. Please tighten the spare nut during installation and adjust it later.

Left Door Bracket, Right Door Bracket

② Flip the bottom bracket, adjust the height of the feet so that the height of the water outlet side is 1-2 degrees lower than the other (use a spirit level to show).

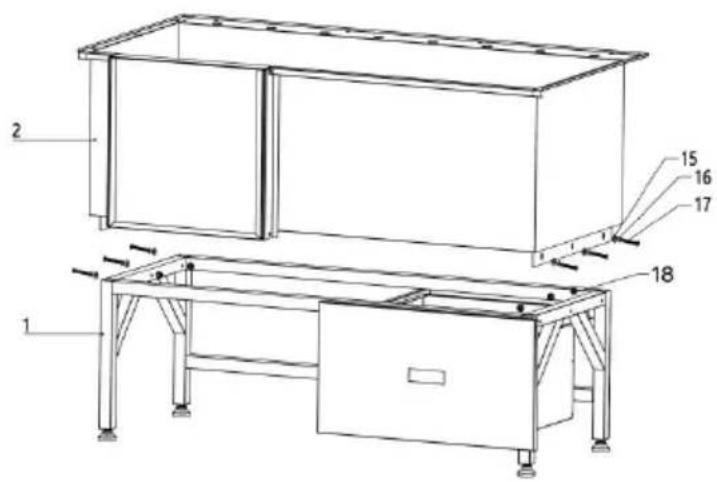

③ Use screws to fix the bottom bracket and tub.

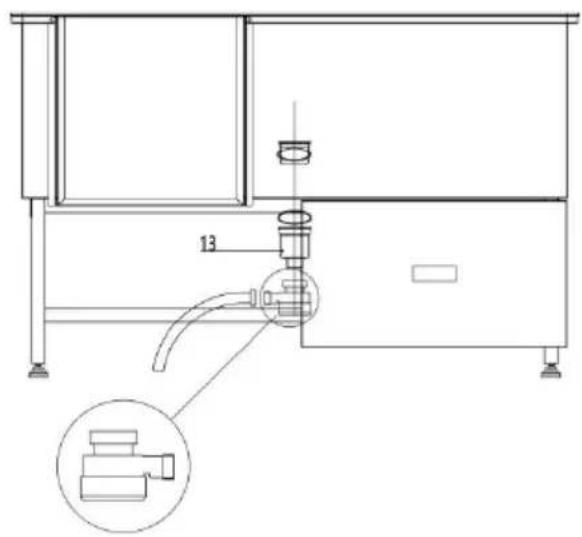

④ Install the strainer, ensure that the sealing ring is free from dislocation and wrinkles.

Caution: When installing, please pay attention to whether the sealing ring is placed correctly, avoid water leakage due to incorrect installation. And check whether the transparent cover of the drain is tightened.

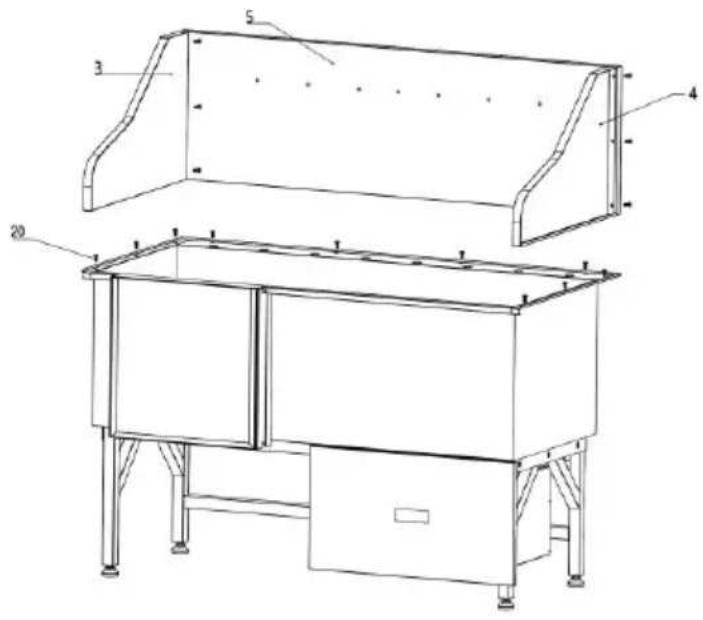

	5 Use screw to fix the le right sideboard, then use screw to fix the back pane last to use screw to fix sideboard and back board.

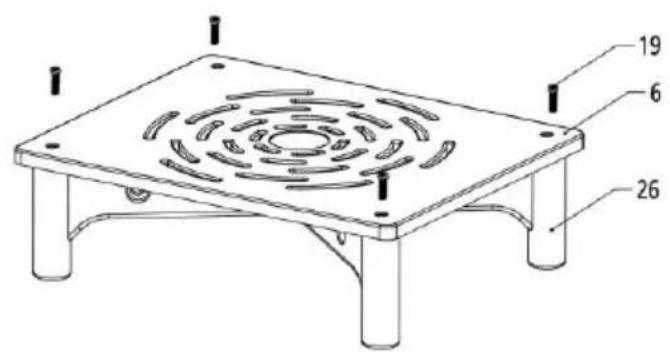

	6 Install the bottom rack to the water filter plate.

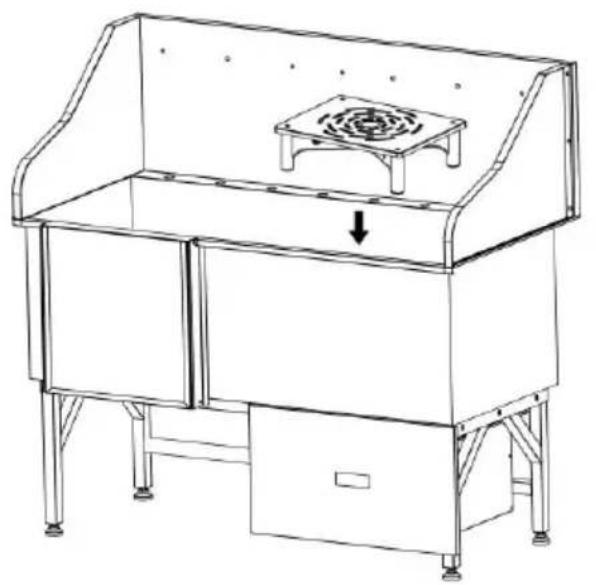

	7 Put the water filter plat the tub.

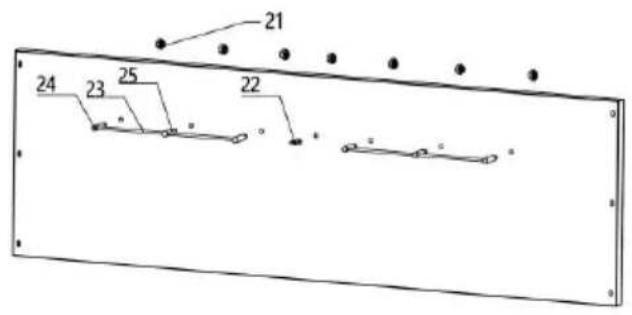

⑧ Install the hanging rod.

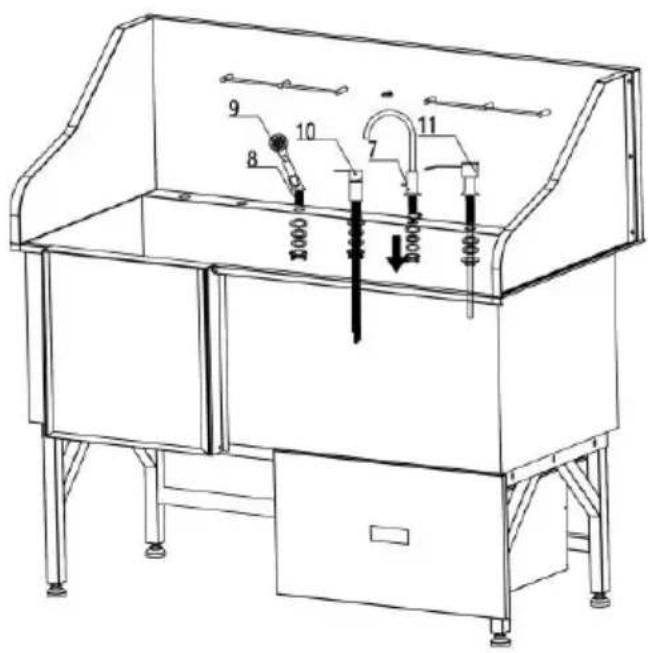

⑨ Install the Faucet, Shower base, Faucet switch and Soap Dispenser.

* Please refer to the faucet installation instructions to install the faucet.

Caution: Please determine whether to install adapter according to the actual water pipe specifications.

34

Left Door

Right Door

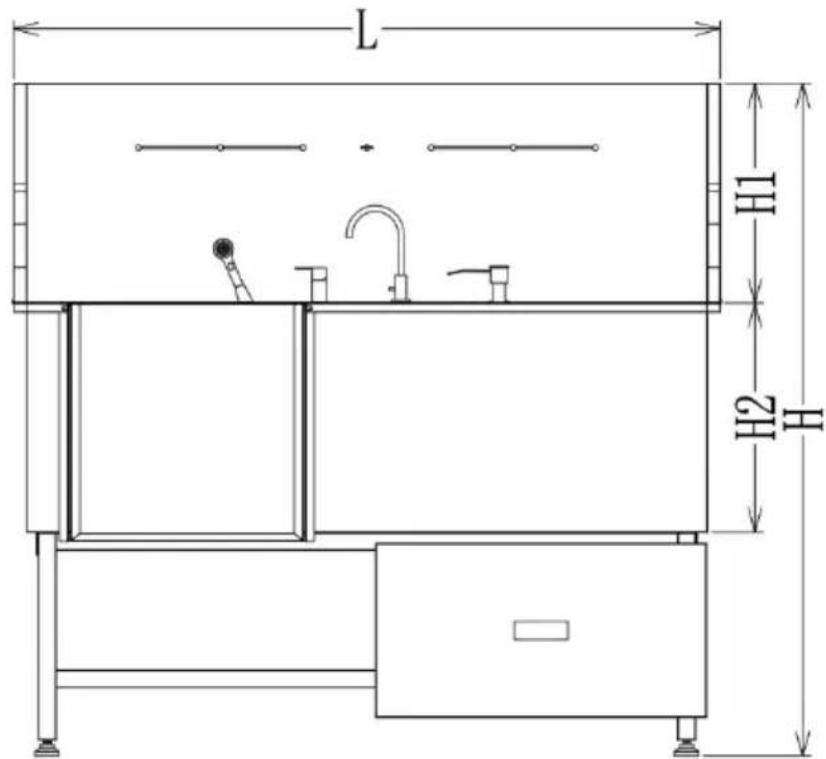

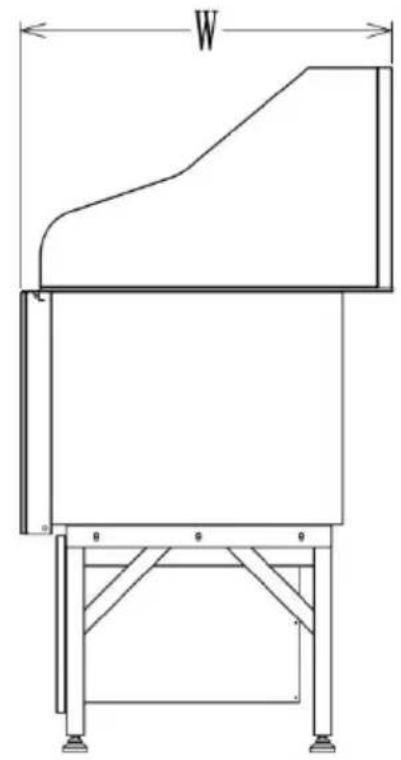

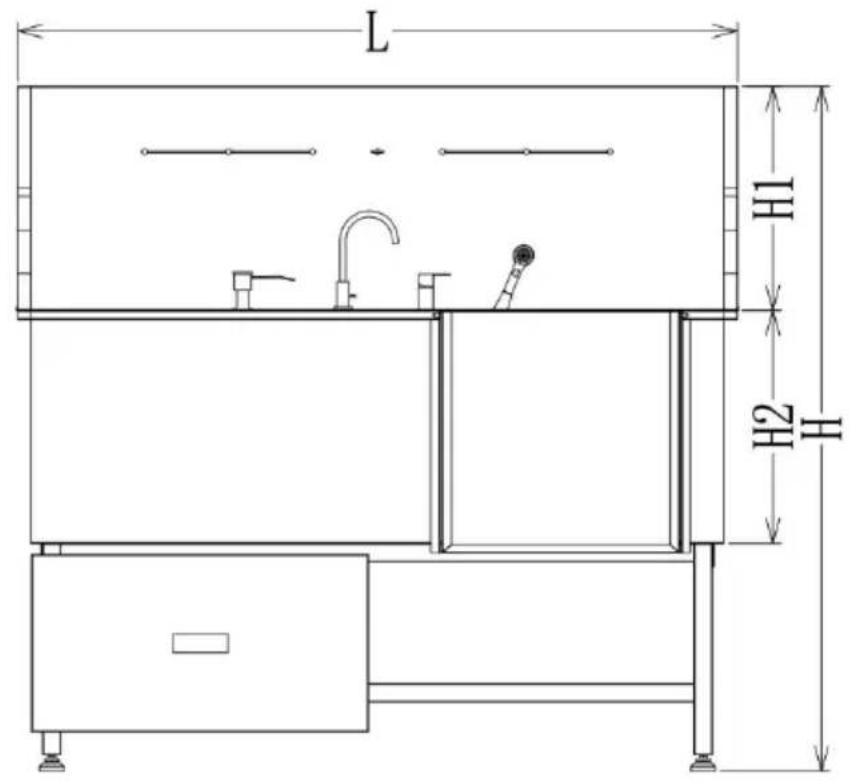

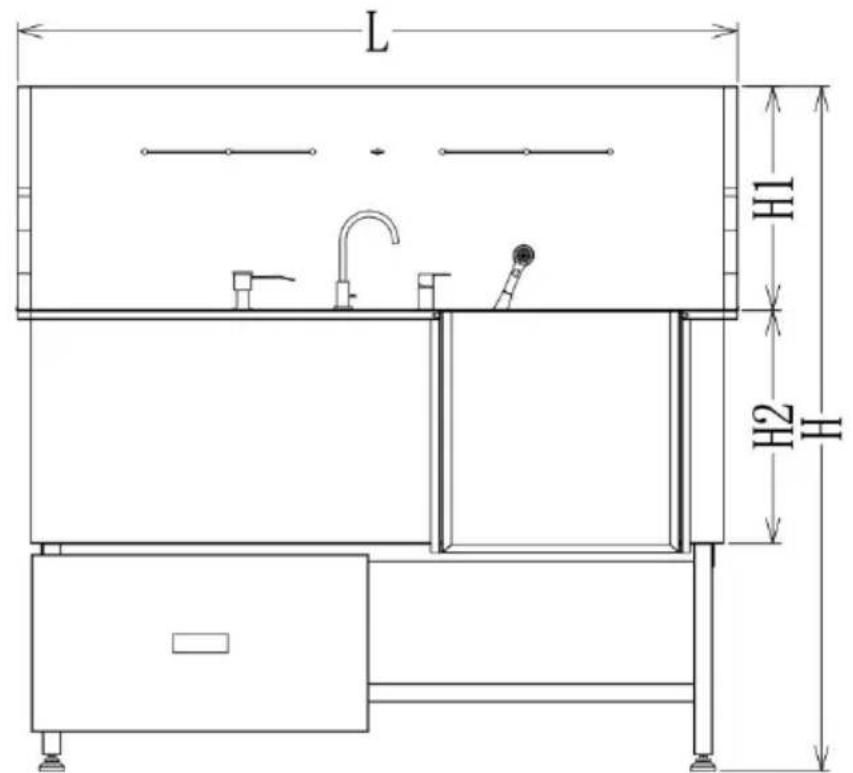

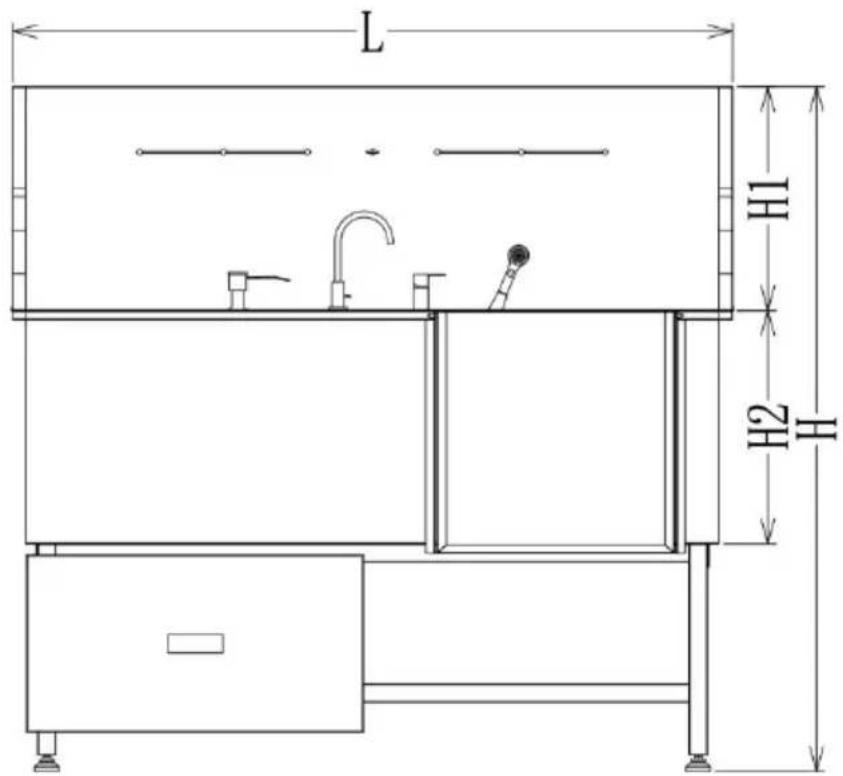

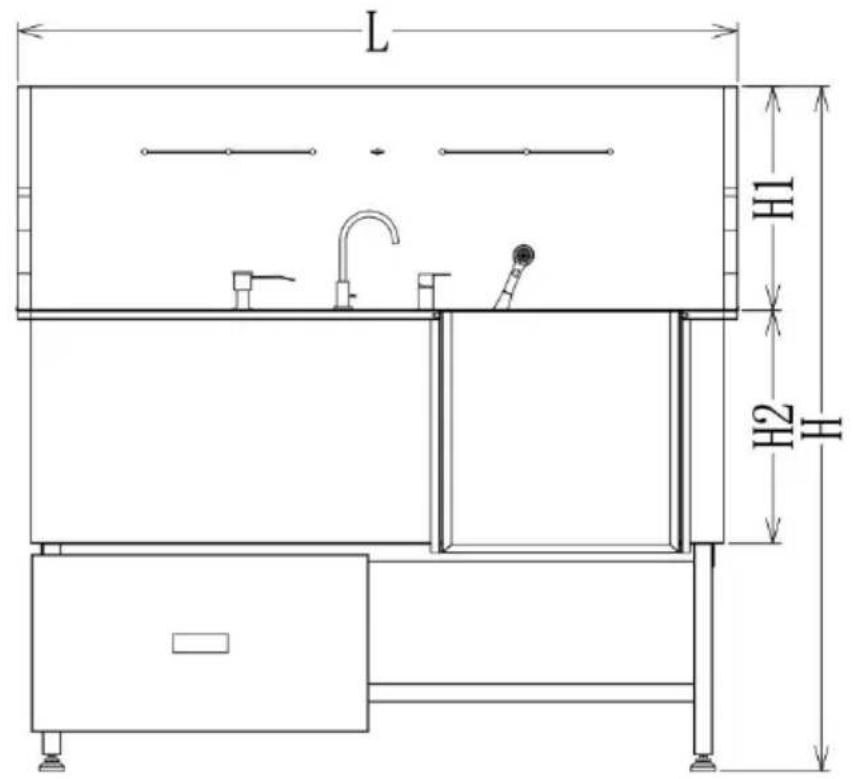

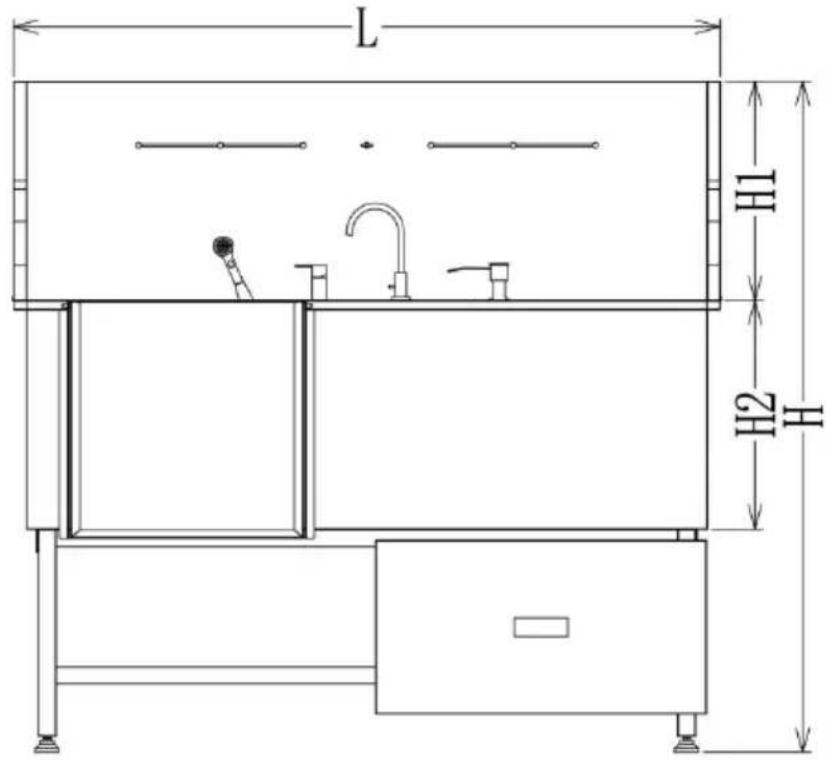

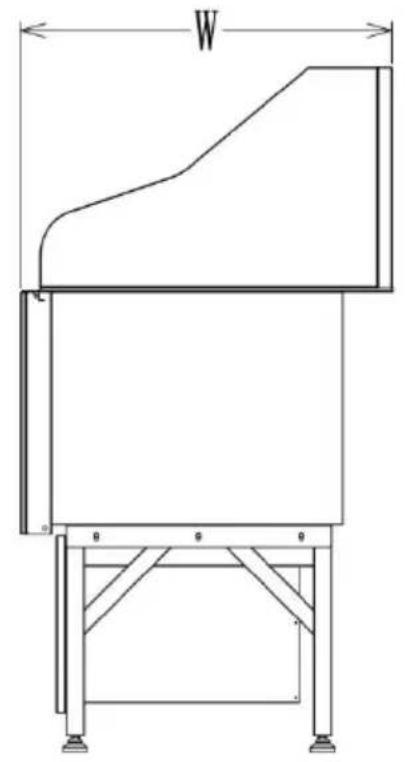

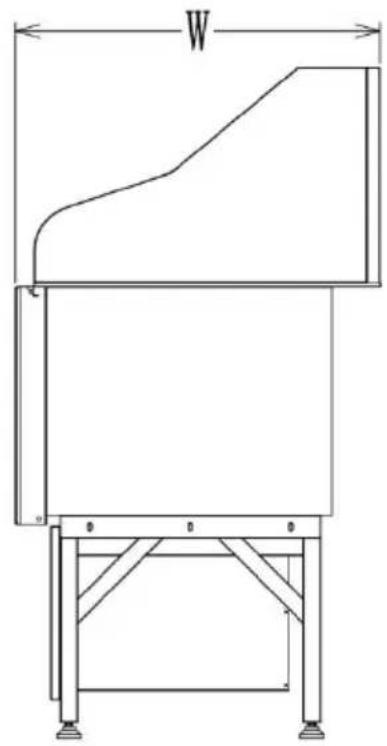

Model#	L(mm)	H(mm)	H1(mm)	H2(mm)	W(mm)	N.W. (kg)
K2E01005	1552	1468	480	500	800	79.7
K2E01006	1552	1468	480	500	800	79.7

Model#	Volume (CBM)	Loading Capacity (lbs)	Recommended pet (in)
K2E01005	1.11	440	L x W x H: 59 x 2
K2E01006	1.11	440	L x W x H: 59 x 2

OPERATION

1. Make sure the water pipe connection is complete and the water supply is normal. (Connect the hot and cold water pipes according to the hot and cold water signs on the faucet switch).

"C": Cold water; "H": Hot water

1. Pull out the stairs and open the door, let the pet walk into the bath itself, or hold the pet and place it inside the tub yourself, then close the door.
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal out.
4. Clean the tub with a cloth.

MAINTENANCE

1. In between uses, the tub should be cleaned with a soft cloth or sponge using a mild cleaning agent.
2. Pay attention to regularly clean the hair from the drain to avoid clogging.
3. Please clean the transparent cover of the drain regularly. After

disassembly like a nut, it can be easily cleaned, and be careful not to lose the seal ring when installing it back.

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

COMMON MALFUNCTIONS

If the faucet leaks, check whether the waterproof rubber plug is installed. If it is damaged, it needs to be replaced in time.

Safety Information

Warning

General Safety Instructions

- Improper installation and/or operation may result in property damage or injury to yourself or your pet. Follow the instructions carefully and contact customer service or a local contractor if any point is confusing, too difficult for you to do on your own, or requires special modification for your situation. Keep these instructions for future reference. Provide them to anyone who will use this device and provide them with this device if it is ever sold to a third party.

- ONLY use this bathtub for its intended purpose, bathing medium-size pets such as cats and dogs.

- DO NOT use it with pets that exceed this product's weight capacity, whose predisposition becomes violent upon contact with water, or who have physiological features that preclude safe regular bathing (e.g., chinchillas, rats).

- DO NOT use it with pets that exceed this product's weight capacity, whose predisposition becomes violent upon contact with water, or whose physiological features preclude safe regular bathing (e.g., chinchilla rat).

- NEVER use this bathtub for humans, especially children, or allow play on or with it.

- DO NOT run or allow others to run in the area around this bathtub, and do not allow children or pets to stay under the tub. Restrict access to the necessary.

- Ensure all components and fasteners are intact and securely tightened before use. Do not operate this bathtub if any part is damaged or shows signs of malfunction. Repair or replace problematic components before further use. NEVER replace any parts with non-identical ones.

- Consult a veterinarian before use if your pet may have an illness or condition such as skin allergies that might be worsened by bathing. Only use in compliance with the veterinarian's recommendations (e.g., using specially medicated shampoos).

- Be mindful of your pet's mood while using this bathtub. If unwillingness is unavoidable, take precautions to prevent the pet from harming you, themselves, or others during bathing.

Provide a reward afterward.

- NEVER load this bathtub with more than 286 pounds (130 kg).

Particularly for larger animals, be careful to prevent them from jumping or moving in such a way that causes violent impacts, as this might exceed capacity.

- DO NOT leave this bathtub unattended during use.

Electrical Safety Instructions

- Ensure all electrical outlets and exposed electrical connections around are at least 10 feet (3 m) away from this bathtub or fully protected against possible splashing during bathing. DO NOT use any chargers or extension cords closer than this distance without similar protection.

- Electrical devices such as electrical transformers, televisions, lights, and

telephones should be at least 6'7" (2 m) away from this bathtub at all times. In particular, never bring a charging cell phone near the bathtub and never allow any electrical device to be placed or used in such a way that it could fall into the water under any circumstance.

- For extra safety, install this bathtub at least 6'7" (2 m) away from conductive metal surfaces to reduce the risk of electric shock from splashing water. Any metal surface closer than this should be permanently bonded to a dedicated terminal box with a solid copper conductor at least 3.3 mm thick.

Water Safety Instructions

- ONLY install this bathtub on firm, level, and nonslip surfaces that can support its weight while filled with your pet and water. The surfaces must be impervious to damage from moisture and the surrounding area must be able to handle the expected humidity created by the water.

- An adequate drainage system should be provided to safely deal with overflow and to permit easy emptying of this bathtub.

- Make sure your water supply for this bathtub is turned off during installation.

- NEVER allow the water level to rise above the level of your pet's body during use.

- DO NOT set up or leave this bathtub in temperatures below 32°F (0°C). Do not turn on the shower if there is any possibility that water in its line is frozen.

- DO NOT add chemicals other than standard mild soaps and pet shampoos to the bathing water. After use, only apply nontoxic cleaning agents to the bathtub's internal surface and rinse it away completely. For sterilization, only use pet-safe and nontoxic disinfectants.

- DO NOT allow dirty and stagnant water to remain in this bathtub for a long period. Drain, clean, and dry the tub completely after each use.

Heat Safety Instructions

- Adequate ventilation should be provided to safely deal with the expected

heat and humidity.

- The water temperature should be close to your pet's body temperature. Water that is either too cold or too hot will cause discomfort, may injure your pet's skin, and may even cause injury or illness. Before use, learn about the appropriate water temperatures for bathing your pet. For best results, set your water heater's maximum temperature accordingly if possible. If adding preheated water, make sure it is within the temperature range appropriate for your pet before allowing your pet to enter.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DOG BATHING BATHTUB

MODEL: K2E01005 / K2E01006

MODEL: K2E01005 / K2E01006

DIMENSIONS AND PARAMETERS

Left door

Right door

Modèle#	L(mm)	Hmm)	H 1 ( mm)	H 2 (mm)	L (mm)	Poids net (kg)
K2E01005	1552	1468	480	500	800	79,7
K2E01006	1552	1468	480	500	800	79,7

CARE INSTRUCTIONS

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

PET BATH TUB

MODEL: K 2 E010 05 / K 2 E010 06

MODEL: K 2 E010 05 / K 2 E010 06

DIMENSIONS AND PARAMETERS

Left door

Right door

Modell#	L (mm)	Hmm)	H 1 ( mm)	H 2 (mm)	B (mm)	Nettogewicht (kg)
K2E01005	1552	1468	480	500	800	79,7
K2E01006	1552	1468	480	500	800	79,7

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Dog Grooming Bathtub

MODEL: K 2 E010 05 / K 2 E010 06

MODEL: K 2 E010 05 / K 2 E010 06

DIMENSIONS AND PARAMETERS

Left door

Right door

Modello#	L(mm)	Hmm)	Altezza 1 (mm)	Altezza 2(mm)	L(mm)	Peso netto (kg)
K2E01005	1552	1468	480	500	800	79.7
K2E01006	1552	1468	480	500	800	79.7

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DOG BATHING TUB

MODEL: K2E01005 / K2E01006

MODEL: K2E01005 / K2E01006

DIMENSIONS AND PARAMETERS

Left door

Right door

Modelo#	Longitud (mm)	Mmm)	Alto 1 ( mm)	Alto 2 (mm)	Ancho (mm)	NO (kg)
K2E01005	1552	1468	480	500	800	79.7
K2E01006	1552	1468	480	500	800	79.7

Modelo#	Volumen (CBM)	Capacidad de carga (libras por segundo)	Mascota recomendada (en)
K2E01005	1.11	440	Largo x Ancho x Alt 59 x 27 x 45
K2E01006	1.11	440	Largo x Ancho x Alt 59 x 27 x 45

OPERATION

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DOG GROOMING WANTED

MODEL: K 2 E010 05 / K 2 E010 06

MODEL: K 2 E010 05 / K 2 E010 06

DIMENSIONS AND PARAMETERS

Left door

Right door

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr. 69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

HEDGE TRIMMER

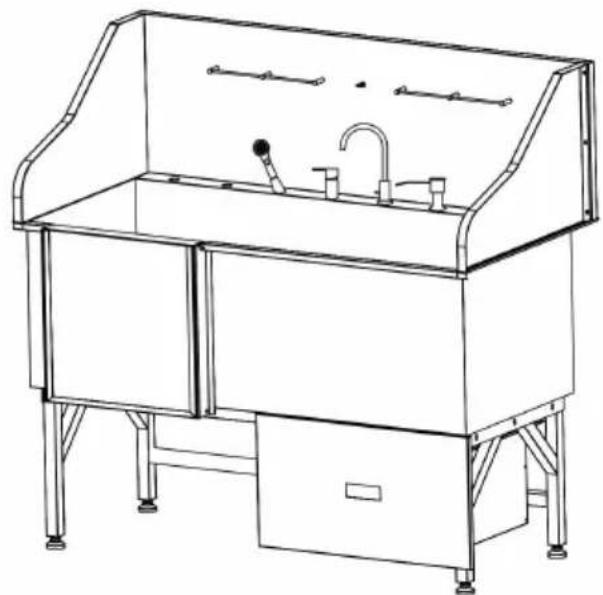

MODEL: K 2 E010 05 / K 2 E010 06

MODEL: K 2 E010 05 / K 2 E010 06

DIMENSIONS AND PARAMETERS

Left door

Right door

Model#	Lengte (mm)	Hoogte (mm)	Hoogte 1 ( mm)	Hoogte 2(mm)	Breedte (mm)	NW (kg)
K2E01005	1552	1468	480	500	800	79,7
K2E01006	1552	1468	480	500	800	79,7

Model#	Volume (CBM)	Laadvermogen (lbs)	Aanbevolen huisdier (in)
K2E01005	1.11	440	L x B x H: 59 x 2
K2E01006	1.11	440	L x B x H: 59 x 2

OPERATION

"C": Cold water; "H": Hot water

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

HUNDTRIMNINGSBADKAR

MODELL : K2 E010 05 / K2 E010 06

MODELL : K2 E010 05 / K2 E010 06

DIMENSIONS AND PARAMETERS

Left door

Right door

Modell#	L(mm)	H(mm)	H1 (mm)	H2 (mm)	B (mm)	NV (kg)
K2E01005	1552	1468	480	500	800	79,7
K2E01006	1552	1468	480	500	800	79,7

Modell#	Volym (CBM)	Lastkapacitet ( lb /s)	Rekommenderat husdjur (i)
K2E01005	1.11	440	L x B x H: 59 x 2
K2E01006	1.11	440	L x B x H: 59 x 2

OPERATION

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
