Product Type	Rock Tumbler (Stone Polisher)
Brand	Vevor
Model	KD-C1012
Power Supply	220-240 V, 50/60 Hz
Adjustable Speed	1 to 9 levels
Timer	1 to 9 days, adjustable
Polishing Barrel	1 piece, max capacity 2.5 lb (approx. 1.13 kg)
Barrel Material	Stainless Steel (inner plastic lid)
Included Kit	Emery grit 320#, 600#, 800#, polishing powder, ceramic abrasive 200 g, sieve, jewelry fasteners
Main Functions	4-step polishing, timer, pause, memory, auto stop, overload protection (E1) and jam protection (E2)
Display	Digital display of days and speed
Energy Consumption	Low (not specified), auto shut-off after 10 min of inactivity
Maintenance and Cleaning	Clean the barrel with water after each cycle; do not pour residues into drains
Safety	Wear safety goggles; do not use in damp environment; keep away from children
Spare Parts and Repairability	Technical support and warranty at www.vevor.com/support
Certifications	FCC (Class B) compliant and WEEE directive 2012/19/EC
Country of Origin	China (Vevor brand)
Approximate Dimensions	25 × 25 × 30 cm (estimate)
Approximate Weight	2.5 kg (estimate)

Frequently Asked Questions - KD-C1012 Vevor

What is the barrel capacity of the Vevor KD-C1012?

The barrel can hold up to 2.5 lb (approx. 1.13 kg) of stones. It is recommended to fill it halfway or two-thirds full for effective polishing.

How long does a complete polishing cycle take?

A complete cycle consists of 4 steps, each lasting 1 to 9 days depending on the hardness of the stones. The timer is adjustable from 1 to 9 days per step.

What should I do if the machine displays E1?

Code E1 indicates an overload. Turn off the machine, remove the overload or blockage, then turn it back on. The machine will resume with the previous settings.

What does code E2 on the screen mean?

E2 appears if the barrel is not in place or if something blocks rotation for 1 minute. After replacing the barrel or removing the blockage, press the start button to continue.

How to open the barrel lid?

Unscrew the black knob on top, remove the outer stainless steel lid (use a flathead screwdriver if needed), then remove the inner lid by pressing the barrel or by screwing the knob to use it as a handle.

How much water should be added to the barrel?

Add water until it just covers the top of the rocks. The barrel should not be too full: fill it halfway or two-thirds full.

Can you interrupt a cycle without losing the settings?

Yes, press the Pause/Resume button. The machine retains the speed and remaining time. Press again to resume.

How to clean the barrel after a cycle?

Empty the contents into the provided sieve and rinse the stones and barrel outside with water. Never pour residues into interior drains.

What accessories are included in the kit?

The kit includes: a motor, a barrel, a bag of approximately 180 g of ceramic abrasive (200 g), 3 packs of emery grit (320#, 600#, 800#), 1 pack of polishing powder, jewelry fasteners, a mesh sieve, and a power cord.

Where to find technical support and warranty?

Technical support and the electronic warranty certificate are available at www.vevor.com/support. Refer to the manual for more information.

USER MANUAL KD-C1012 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

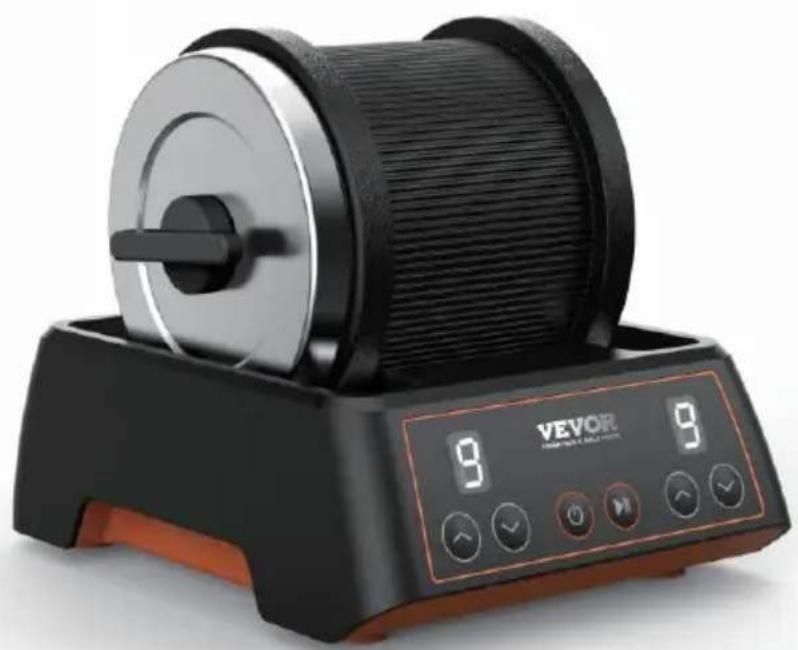

ROCK TUMBLER

MODEL: KD-C1011, KD-C1012, KD-C1013

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ROCK TUMBLER

MODEL: KD-C1011, KD-C1012, KD-C1013

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, the user must read the instructions manual carefully.
	Warning- Be sure to wear eye protectors when using this proc
	This symbol, placed before a safety comment, indicates a kind precaution, warning, or danger. Ignoring this warning may lead accident. To reduce the risk of injury, fire, or electrocution, ple always follow the recommendation shown below.
	DISPOSAL INFORMATIONThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

GENERAL SAFETY RULES

WARNING:

Do not attempt to operate the machine until you have read thoroughly and understood completely all instructions, rules, etc. contained in this manual. Failure to comply may result in accidents involving fire, electric shock, or serious personal injury. Keep this owner's manual and review frequently for continuous safe operation.

1. Know your machine. For your own safety, read the owner's manual carefully. Learn its application and limitations, as well as specific potential hazards pertaining to this machine.
2. Keep guards in place and in working order. If a guard must be removed for maintenance or cleaning, make sure it is properly replaced before using the machine again.
3. Keep your work area clean. Cluttered areas and workbenches increase the chance of an accident.
4. Do not use in dangerous environments. Do not use power tools in damp locations, or expose them to rain. Keep work areas well illuminated.
5. Do not force the machine. It will do the job better and be safer at the speed for which it is designed.
6. Use the right tools. Do not force the machine or attachments to do a job for which they are not designed. Contact the manufacturer or distributor if there is any question about the machine's suitability for a particular task.
7. Always use safety glasses. Normal spectacles only have impact resistant lenses. They are not safety glasses.
8. Do not over-reach. Keep proper footing and balance at all times.
9. Always wear a face or dust mask if operation creates a lot of dust and/or always operate the tool in a well ventilated area and provide for proper dust removal. Use a suitable dust extractor.
10. Prohibit the addition of corrosive substances such as alcohol.

Before the First Use

Before you begin using your Advanced Rock Tumbler, please make sure that the necessary parts are included. If you are missing anything, please email us.

The Kit Includes:

1. Rock polishing motor 1pcs

1. One bag of about 180g

1. Emery grit 3 packs

1. Jewelry fasteners 1 pc

9. Power plug 1 pc

1. Polishing barrel 1 pc

1. Ceramic abrasive 200g (can be reused)

6. Brightening powder 1 pack

8. Mesh strainer 1 pc

Please add proper amount of water for every stage and follow the table below for the best polish effect.

Generally speaking, a rough polish needs a faster speed and fine polish needs slower speed.

One complete cycle	Stage	Emery grit /weight	Ceramic abrasive/weight	Speed	Time(day)
	1	320#/30g	5mm/200g	1-9 speeds adjustable according to the stone hardness and weight	1-9 days adjustable according to the stone hardness and weight
	2	600#/30g	5mm/200g
	3	800#/30g	5mm/200g
	4	Brightening powder/30g	5mm/200g
Note: All the contents don’t exceed 2.5Lb, if over 2.5Lb, the machine rotate at speed 1-2. Need to raise the speed.

Overload function: overload will stop working and show E1. It needs to power off and remove the overload and stuck place, then power on again. The machine will work normally with previous working time and speed.

If you don't put the bucket in or something gets stuck for 1 minute, it will show an error. After you put the bucket in or clear the stuck, press the start button to continue working.

Harder stones take longer to polish.

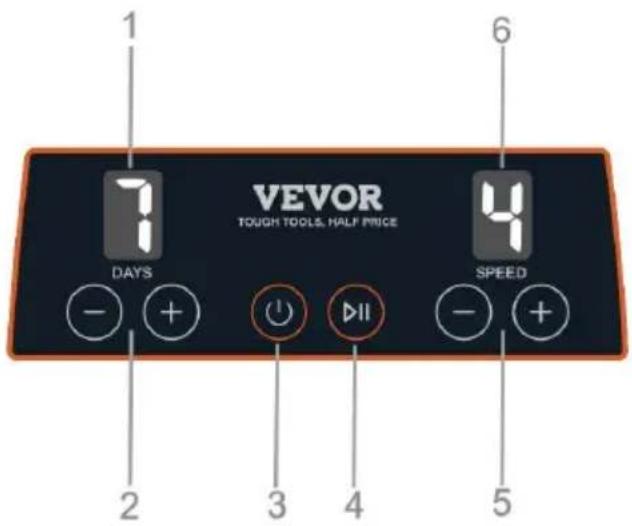

Control Panel Function

1. The time display ranges from 1 to 99 minutes.
2. Add or Subtract time button
3. Switch buttons
4. Start / Pause button
5. Speed plus or minus button
6. Speed display 1st-9th gear select

Work-time function

1. Machine without working function: 10 minutes without working, automatically shutdown
2. Automatic power off function: Set the machine starting working time with 3 days, a power off occurs after 1.8 days of operation. When the machine is powered on again machine will start directly (that is, there is no need to press the start button), and run for the remaining 1.2 days to the end. (After setting the time again, clear the previous working time and work according to the new setting time)
3. Manually pause the memory function: For example, manually set the pause time for then manually pause the machine after running for 1.8 days; When restart the machine automatically operate the remaining 1.2 days to the end. (After setting the time again the previous working time and work according to the new setting time)
4. Time countdown function: The digital days number is displayed in the countdown format. When the machine is finished running according to the set number of days, the days number will display "0".

How to open the barrel lid

	1. Unscrew the black knob at the top of barrel and remove it.

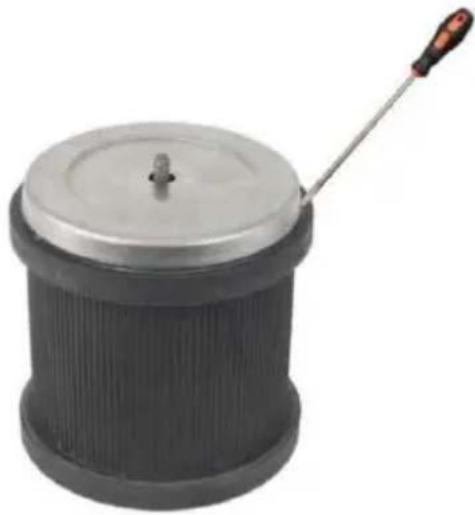

	2. Detach the outer stainless steel cover. may need to use something flat -like a screwdriver or cutlery handle - to pry it

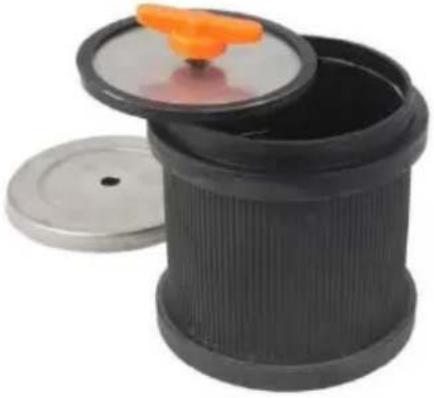

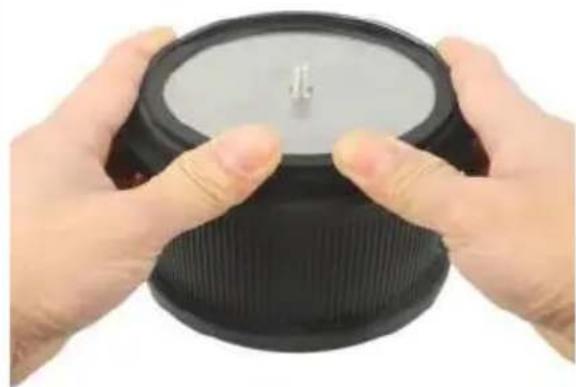

	3. Remove the inner lid from the barrel: can try by squeezing the barrel to push the lid or screw the knob onto the lid a that as a handle to pull out the lid eas
Polishing Your Gemstones

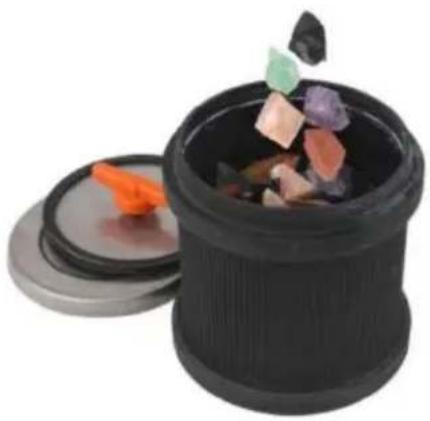

	4. Put rocks inside the tumbler barrel.(Fo example, stones about 300-400 grams, 40 grams of round abrasive and adding two-thirds of the barrel of water)Don't overload it! If the tumbler barrel is full, the rocks won't move around enough become polished. We recommend that you the barrel 1/2 to 2/3 full.Note: If you overfill the barrel,the stone hang over the edge of the barrel and w polished.

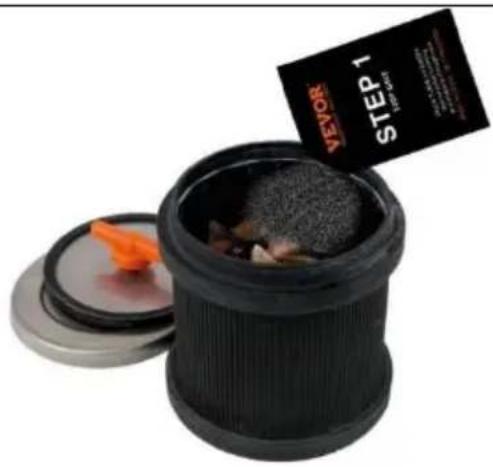

	5. Empty the contents of the grit #1 pa into the barrel.

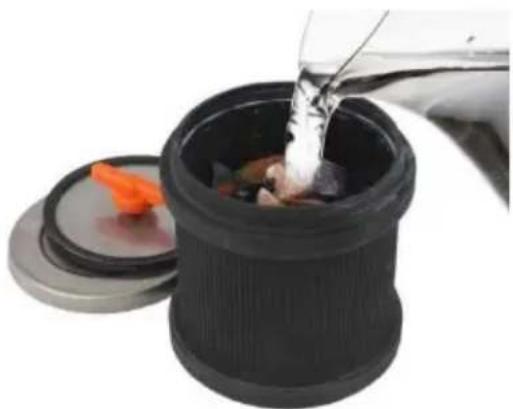

	6. Add water to the barrel until the water covers the top of the rocks.

1. Place one side of the lid in the seal angle.

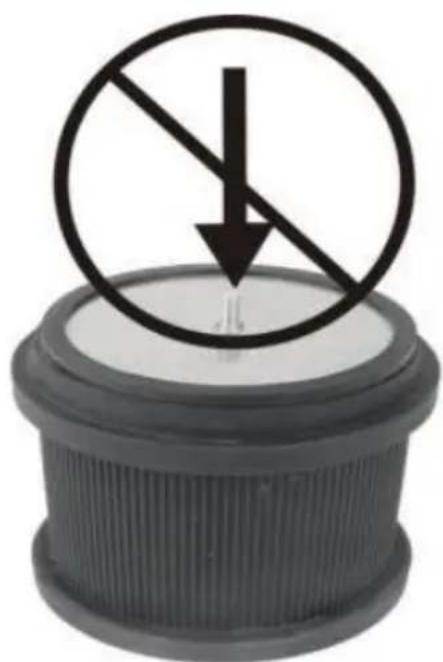

1. Do not press the entire lid directly in seal.

1. Push the seal ring on the other edge

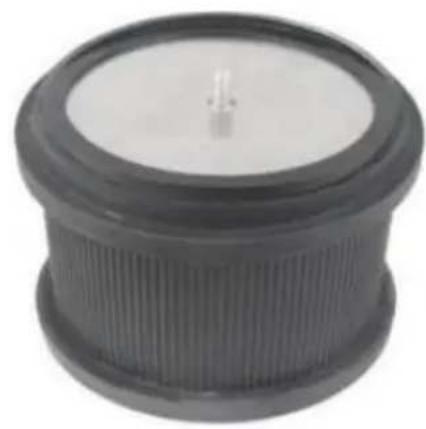

1. After confirming the push seal ring, seal ring is inside the polishing barrel.

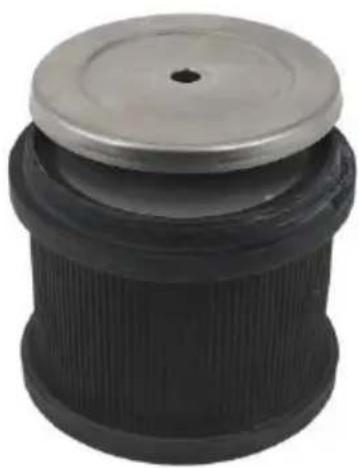

1. Put back the stainless steel cover or of the inner lid and reattach the knob a tighten it. Make sure to tighten the best can to ensure the barrel does not leak water.

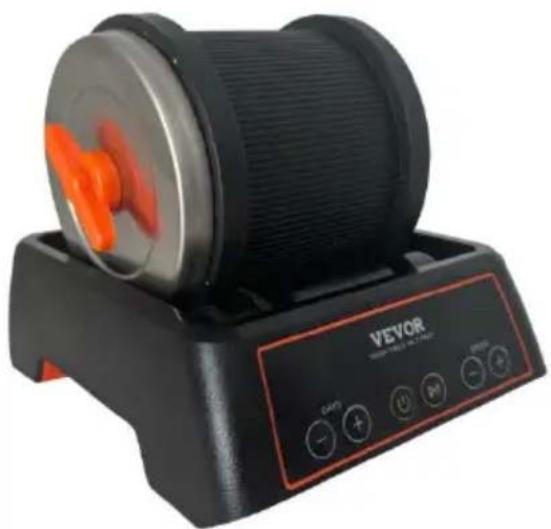

1. Place the tumbler barrel onto the tur base, with the lid facing to the right.

	13. Plug in the machine, press the On/O button and select the appropriate number days and speed (refer to the Tumbling Guide on page 4), and let the machine job!
	14. You can always pause the machine without losing the speed and timer setting pressing the Pause/Resume button. Press again to resume.
In the first stage: Adding 320# emery grit and ceramic abrasive with 1-9 adjustable according to the stone hardness. Higher speed will round the the rock more quickly.In the second stage: Adding 600# emery grit and ceramic abrasive with adjustable according to the stone hardness. Higher speed can fine the ro surface.In the third stage: Adding 800# emery grit and ceramic abrasives with 1 adjustable according to the stone hardness. Slower speed will make the smoother.In the fourth stage: Adding brightening powder and ceramic abrasive with speeds adjustable according to the stone hardness. Slower can increase brightness of rocks.

Cycle Change

1. When the tumble cycle is done, pour the tumbler barrel into the mesh strainer, rinse the rocks and barrel with water to remove all the grit.

Caution! Never pour used grit down a drain inside your house - it will destroy the plumbing! Make sure to wash your stones and barrel outside instead of in your bathroom or kitchen.

Check before you discard! The purpose of each grit cycle is to gradually smooth the rocks and round out the edges. Whenever you finish a cycle, it's a good idea to wash off just a few of the rocks to see if they are tumbled to your satisfaction before you dump the contents of the barrel.

If they aren't polished enough, return them to the barrel and let them run longer. In general, the longer the cycle, the better the results.

Trust yourself. Use your own judgment to determine if the rocks are polished to your satisfaction. Some rocks are harder than others, so they may need more time in any grit cycle than is recommended here.

1. Repeat the above steps with grits #2-4, in order. By doing so, you will bit-polish the rough rocks into smooth gemstones.

Feel free to experiment with the duration of your tumbling. Each rock you use is made of different material and so will respond differently. This is a great way to inspire experimentation!

Next Steps

Use mineral oil for extra shine! If you want your finished stones to be really shiny, coat and polish the stones with mineral oil.

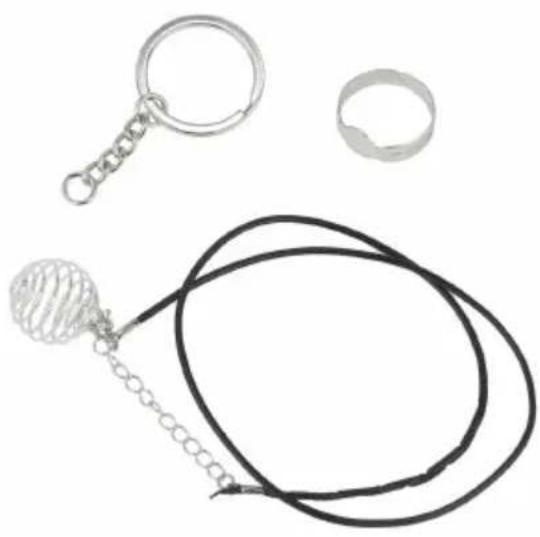

You can use the included jewelry hardware to make a necklace, ring, key chain, and a pair of clip-on earrings or pins with your polished stones.

To make a key chain or necklace, simply insert the stone into the key chain/necklace cages, without using glue, by forcing it into the cage.

To make a ring or earrings, you'll need to glue the stone by using a hot glue gun or an all-purpose adhesive sealant. Please have an adult help you if you are using glue!

Imitating Nature

The original rock tumbler is all natural - it's water! If you've ever picked up rocks on the beach or near a river, you know what this means. Those rocks have been smoothed and rounded by water over long periods of time to make them look and feel the way they do.

Here's how it works: Over tens, hundreds, and even thousands of years, rock tossed around in the waves and currents of rivers and seas, banging against

other. The sand and sediment act as abrasives and further smooth the rocks. When the rocks are wet, the sheen gives stones a highly polished look.

Since the beginning of civilization, humanity has tried to find ways to polish faster than nature. In ancient Egypt, slaves would take roughly-cut rocks and rub them back and forth in troughs filled with sand and water - a process that took months - to achieve polished stones.

In India, stones cut into preliminary shapes were put in goatskin bags with sand and roughly-ground rocks. Then, workers would roll the bag on the ground for weeks at a time.

Perhaps the first rock tumbler "machine" was invented in ancient India, where a teeter-totter board rolled jars filled with pre-cut beads, water, and abrasives to create polished beads.

The problem with all of these methods is that they took extremely long amounts of time to achieve results and only a few rocks could be polished at once.

More Successful Methods

Modern rock tumbling began in the 1950s in Los Angeles. A rock dealer near Edward Swoboda started selling hand polished regular shaped rocks - called baroque stones - in simple settings, which became very popular. To keep up with demand, he partnered with a friend, Warren Jones, to build a tumbling machine that was able to polish a larger quantity of stones in a short amount of time with little labor.

Spurred by Swoboda's success, other inventors started producing their own versions of tumbler machines that, over time, became quieter, more durable,

and able to polish larger numbers of rocks, even large enough to support wholesale efforts. By the early 1960s, a rock polishing craze had taken over the U.S. Rock tumbler machines could be found in homes across the country.

What Can You Do With Polished Stones?

You've spent the past month polishing stones. Now what? Besides simply enjoying looking at them, there is a lot you can do:

Jewelry: The most common use of polished rocks is to make jewelry. You can use the jewelry fasteners included in this kit, or you can do it yourself! Wrap a wire around a single stone to create a pendant that can go on a chain, string ribbon to create a necklace. Or, you can go to a craft store and buy materials to create key chains, earrings, pins, rings and more.

Home decor: You also can use the polished rocks to create beautiful decorations for your home. For instance, you can glue the rocks to picture frames or tree ornaments. You can use larger stones to accent flower pots or vases. You can fill a jar with rocks and create a candle holder. Use your imagination!
