Product Type	Ultrasonic Cleaner
Brand	Vevor
Model	KZ-F10
Tank Capacity	10 liters
Ultrasonic Frequency	40 kHz
Ultrasonic Power	240 W
Heating Power	600 W
Adjustable Temperature	0 – 80 °C
Timer	0 – 30 minutes
Dimensions (L × W × H)	330 × 270 × 275 mm
Net Weight	6.8 kg
Tank Material	Stainless Steel
Display	Digital (temperature and time)
Basket Included	Yes
Drainage	Yes, 1/2" connection
Power Supply	Mains plug with grounding
Overheating Protection	Yes, automatic shutdown if temperature exceeds limit
Dry Operation	Prohibited – requires minimum water level of 7 cm
Daily Maintenance	Clean the tank with a soft sponge and water, avoid water in electrical connections
Disposal	Recycle according to WEEE directive – do not dispose of with household waste

Frequently Asked Questions - KZ-F10 Vevor

What types of objects can I clean with the KZ-F10?

You can clean glasses (without UV film), office supplies (rulers, scissors), jewelry (rings, necklaces), metal or ceramic dishes, dentures, etc. Avoid wooden items, soft stones (pearls, opal, coral), and glued jewelry.

What is the maximum continuous operation time?

Do not run the cleaner continuously for more than one hour to avoid damaging internal components. The device has thermal protection that shuts it off after about 5 minutes of overheating.

Can I use tap water?

It is not recommended to use tap water directly as impurities can damage the switches. Preferably use demineralized or filtered water.

How do I set the temperature and time?

Briefly press the Time button to select the duration (0-30 min) and Temp for temperature (0-80°C). Then press ON/OFF to start.

What should I do if the device does not turn on?

Check that the plug is properly connected and the machine is powered. Ensure there is enough water in the tank (minimum 7 cm). If the problem persists, contact Vevor support.

Can I clean precious stones or diamonds?

Avoid cleaning precious stones like pearls, opals, emeralds, or diamonds set on rings or necklaces, as vibrations may cause them to fall off. Use the cleaner only for solid jewelry without glued stones.

How do I drain the tank after use?

For models of 6 liters and above (including KZ-F10), use the 1/2 inch drain valve located at the bottom. Place a container under the outlet, open the valve, and let the water drain.

What regular maintenance is required?

After each use, empty and rinse the tank with clean water. Clean it with a soft sponge. Dry the device with a dry cloth. Be careful not to let water enter the electrical connectors.

Is it safe to leave the device unattended?

Never leave the device running unattended. Unplug it after use and during filling or draining. Keep the lid closed during the cycle to avoid splashes.

Can I add detergents or solvents to the water?

Do not add solvents, sterilizers, or acids. Only use water or specific ultrasonic cleaning solutions. Harsh chemicals can damage the stainless steel tank.

USER MANUAL KZ-F10 Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

ULTRASONIC CLEANERS USER MANUAL

MODEL NO.: KZ-F2, KZ-F3, KZ-F6, KZ-F10, KZ-F15, KZ-F30

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Ultrasonic Cleaners

MODEL NO.: KZ-F2, KZ-F3, KZ-F6, KZ-F10, KZ-F15, KZ-F30

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

Read all instructions carefully.

Keep it away from children!

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. To avoid electrical shock:

1) DO NOT run the cleaner continuously for more than one hour at a time, as doing so can damage the internal components. 2) DO NOT operate the unit without fluid in the tank. Always ensure fluid is no higher than the max mark, and always ensure there is a minimum depth of 7 cm. 3) DO NOT drop any item into the tank as this may cause damage to the transducer. Always place the items gently into the tank and use the basket whenever possible. 4) The more items that you place in your cleaning bath, the less efficient it will clean. It is not advised to overlap items. Always allow plenty of clear space between the items. 5) Do keep the lid on during use. This will prevent splashes and re-evaporation of the fluid. 6) Never immerse the machine or power cord in water or other liquid. 7) DO NOT touch the power plug with wet hands, especially when inserting or removing the plug. 8) DO NOT touch the unit if the machine has fallen into water duri

ng operation. Remove the power plug from the socket first.

9) DO NOT disassemble the machine, except by professionals.

10) UNPLUG the power source while filling or emptying the tank.

11) DO NOT spray water or liquid over the device and the control panel.

12) DO NOT operate the cleaner without proper grounding.

13) DO NOT place the device on a soft surface, where the vents are blocked.

14) Upon completion of the cleaning cycle, turn the heater knob off and isolate the machine from the power source.

15) Take care when adding or removing items from the cleaning tank; fluid is likely to be hot and displaced fluid can damage the internal components. Any displaced fluid must be dried up immediately.

16) In the event of a malfunction/emergency, disconnect the power supply by

removing the power plug from the electrical outlet.

17) When heating is required, the water level should not be less than full.

18) If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

19) The connector must be removed before the appliance is cleaned, and the appliance inlet must be dried before the appliance is used again.

20) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. When the machine is used several times continuously, in order to prevent damage and failure of the parts caused by overheating, the machine will enter into a system of self-protection. It can be resumed after a cooling period.

minutes.

1. Do not get water directly from the tap - flooding of the device and switches will lead to malfunction.
2. Do not add anti-toxic, sterilizing, or acidic solvents into the cleaning water.

- May cause deterioration of resin and damage to stainless steel.

1. Do not clean pearls and other articles with low surface hardness (Morse hardness less than 8).
2. Can cause damage, discoloration, or loss of luster.
3. Do not wash rings, necklaces with gems and diamonds for a long time.
4. May cause gems/diamonds to fall off.
5. DO NOT use the same socket as TV, radio, and computer.
6. Can affect the picture clarity or cause noise.
7. Prevent the device from falling and violent shaking - this can cause breakage, deformation, and malfunction.

TECHNICAL SPECIFICATIONS

Model	KZ-F10	KZ-F6	KZ-F3	KZ-F2
Product Dimensions (L*W*H) (mm)	330*270*275	325*175*275	265*165*225	175*165*190
Packing Size (L*W*H) (mm)	400*300*325	395*225*325	310*210*280	223*207*260
Net Weight (kg)	6.8	5.2	3.4	2.3
Gross Weight (kg)	7.5	5.8	3.8	2.6
Capacity (L)	10	6	3	2
Ultrasonic Frequency (KHz)	40
Ultrasonic power (W)	240	180	120	60
Heating power (W)	600	500	300	150

Set time (min)	0-30
Set temperature °C()	0-80

Model	KZ-F30 KZ-F15
Product Dimensions (L*W*H) (mm)	530*330*325	355*325*275
Packing Size (L*W*H) (mm)	635*405*380	425*380*325
Net Weight (kg)	8.13 6
Gross Weight (kg)	9.14.55 5
Capacity (L)	30 15
Ultrasonic Frequency (KHz)	40
Ultrasonic power (W)	600	360
Heating power (W)	1250	600
Set time (min)	0-30
Set temperature °C()	0-80

*Products such as specifications, appearance, and design are subject to modification without prior notice.

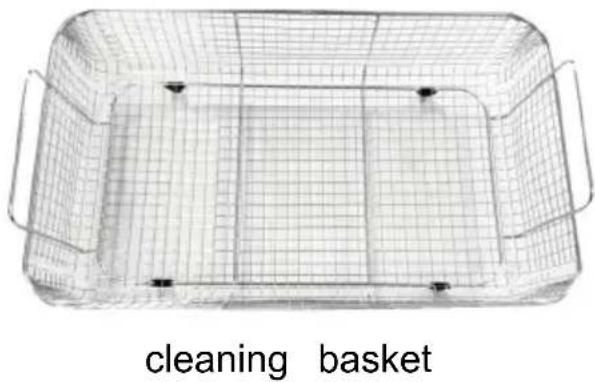

PACKAGE CONTENTS

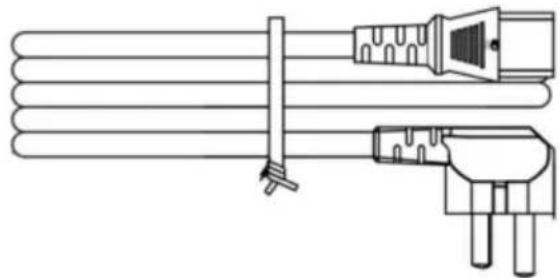

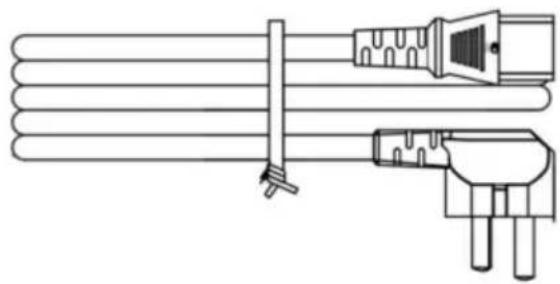

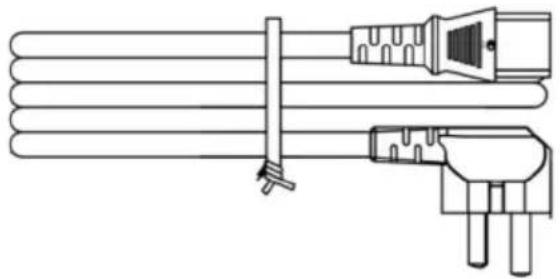

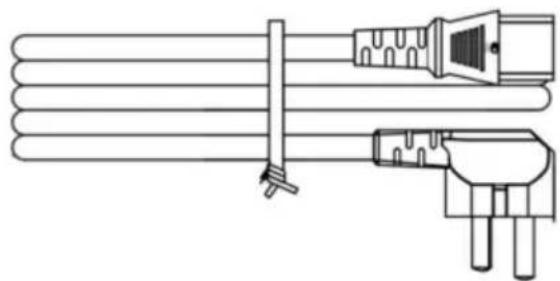

Power cord

(The plug is for reference only, subject to the material object.)

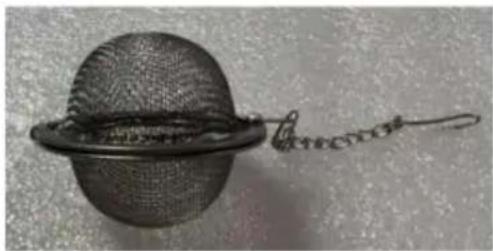

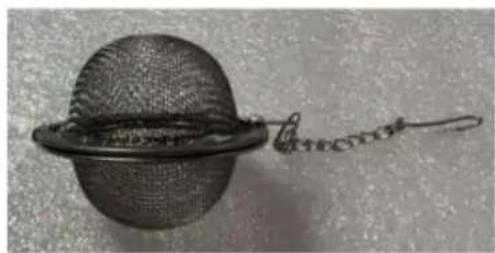

Small cleaning basket

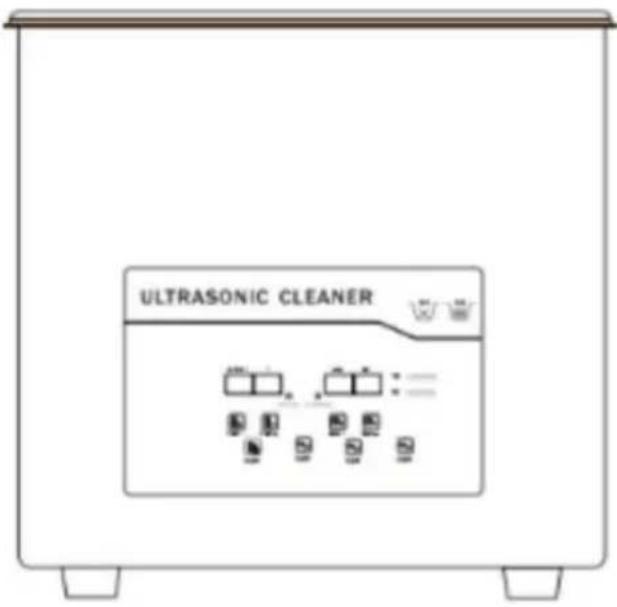

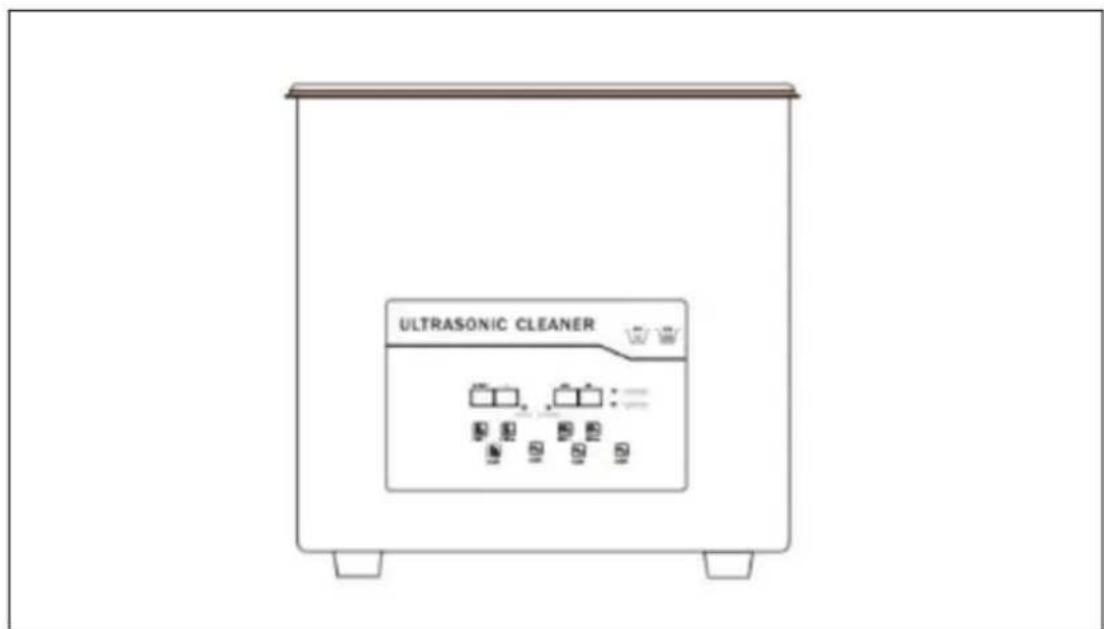

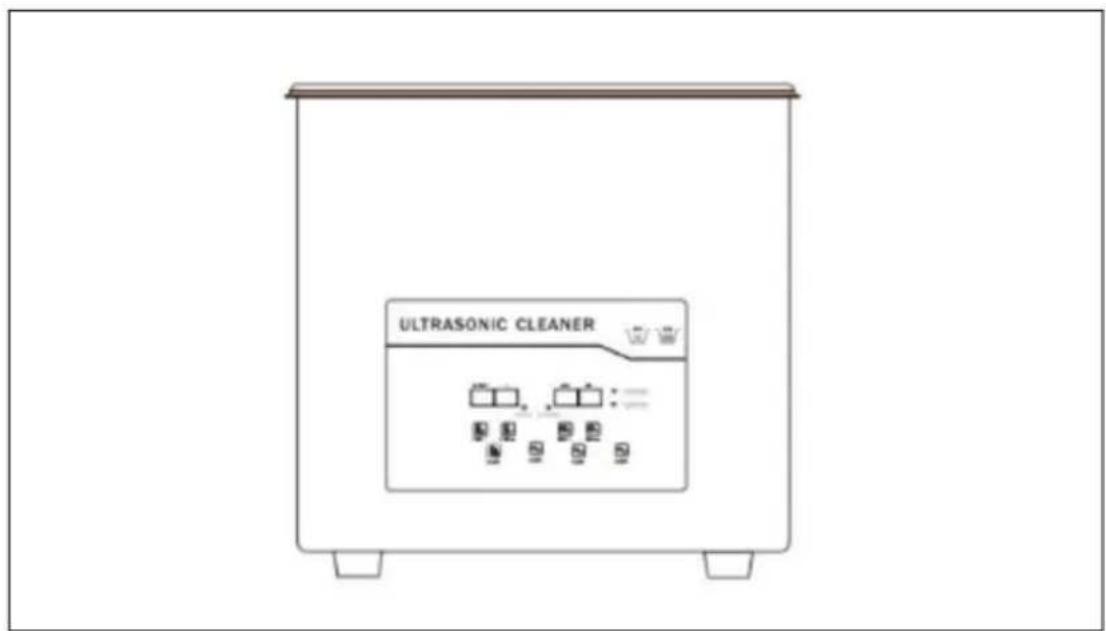

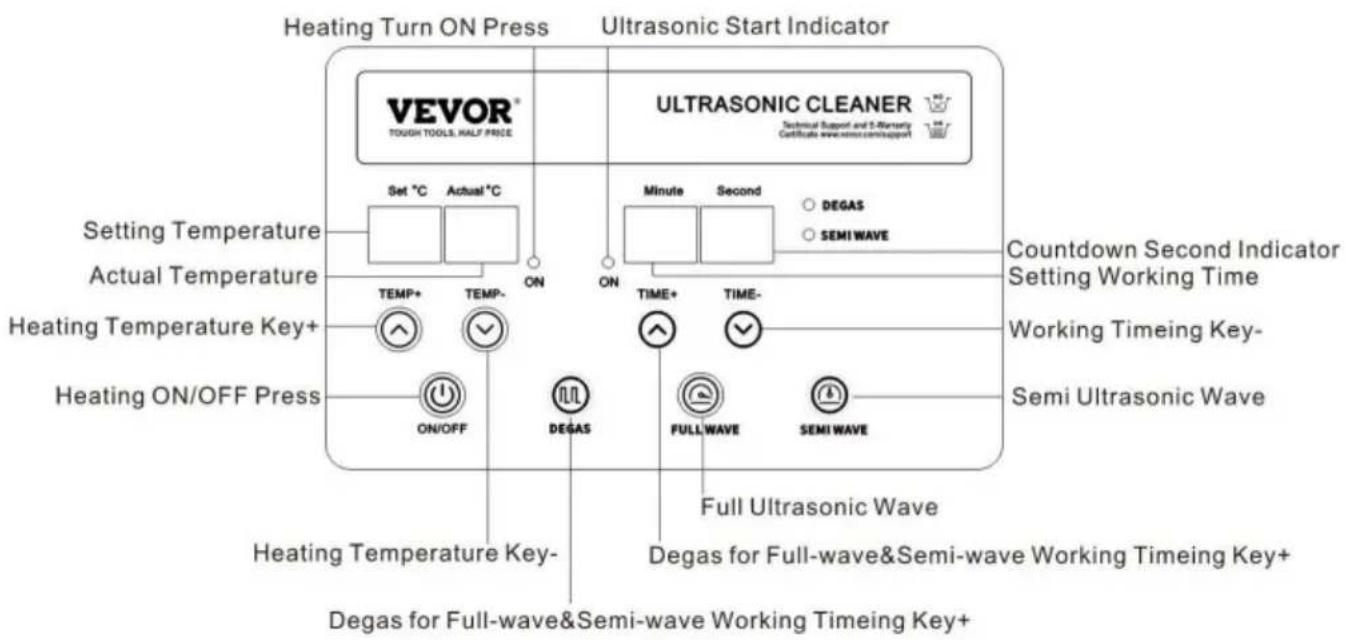

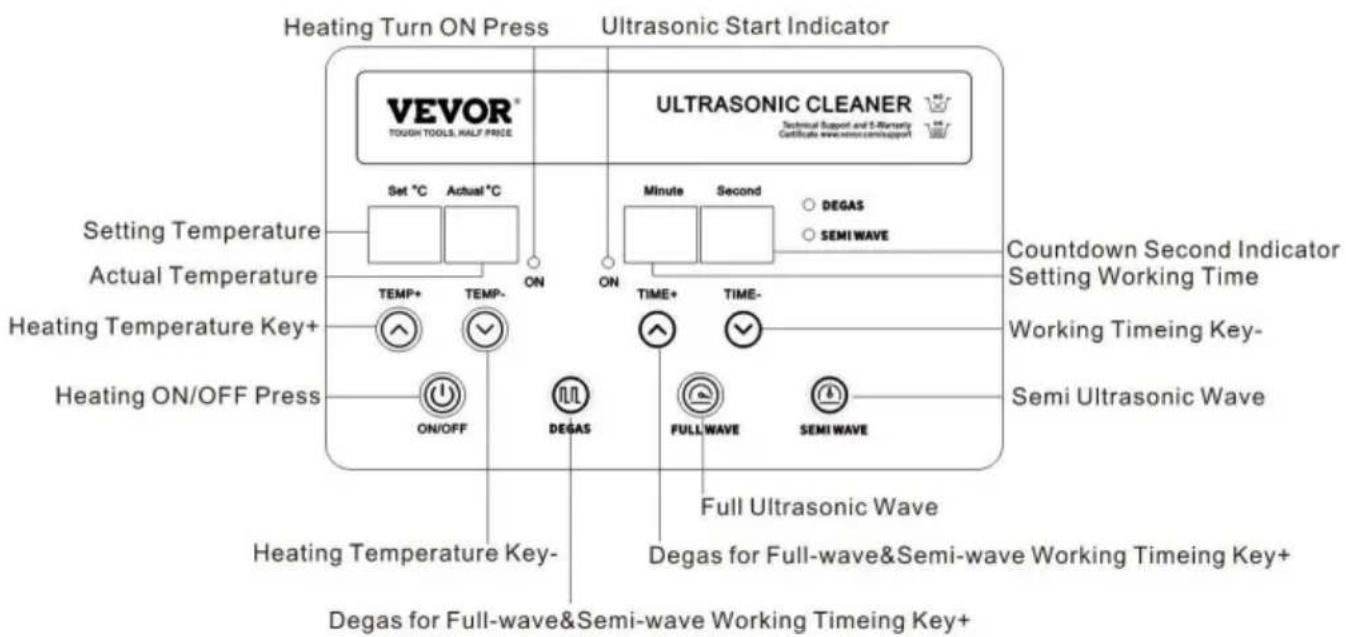

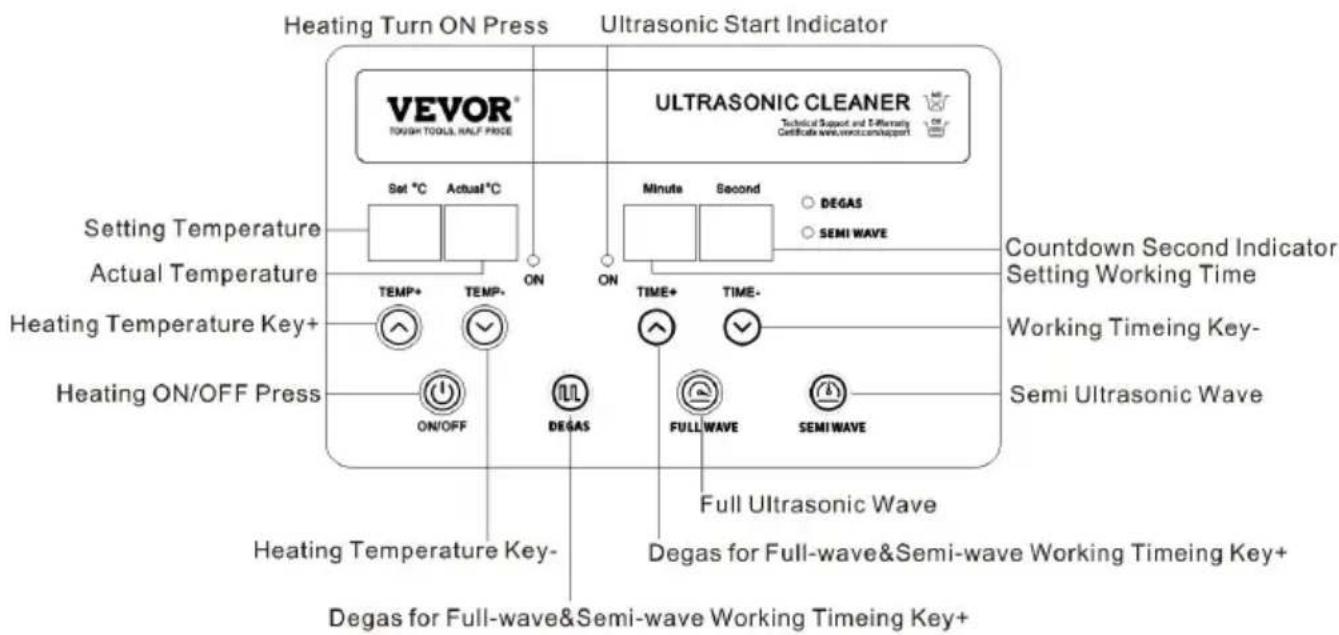

PRODUCT FUNCTIONS

Features:

• Ultrasonic frequency of 40 kHz ● Digital display of temperature and time. Adjustable temperature.

Possible inability to clean fixed sedatives in dentures.

Discoloration and rust of metals and precious metals cannot be removed.

To clean bonding jewels, diamond necklaces and rings may cause them to fall off.

OPERATIONS

1. Open the lid, add clean water, put what you need to clean into the tank, ensure the clean water is no higher than the "Mark. Do not operate the unit without water in the tank.
2. Plug the adapter into the socket of the machine.
3. Plug the adapter power into the power socket.
4. Short press the "Time" button to switch to the desired time, then short press the "ON / OFF" button to start the work.
5. If you want to pause the cleaning, you can short press the OFF button to pause, the countdown on the display is paused. Short press the power button again to continue working.
6. If you want to reselect the time, long press the "ON / OFF" button to return to the standby state, and press the "Time" button to set the time.
7. When the cleaning work is finished, please unplug the power, open the lid, take cleaned items from the tank, pour out dirty water, clean and wipe the tank.

Note: Pour water from the side.

DAILY MAINTENANCE

1. Pour water into the tank using the measuring cup, up to half of the standard line. After washing with a soft sponge, rinse with clean water.
2. Be careful not to let water seep into the power connection at the bottom of the cleaning tank.

1. After cleaning, rinse the items once more with clean water. Do not let water seep into the power connection when cleaning.
2. When stains are difficult to remove, wet a cloth with water and wipe them. Be careful not to let water seep into the switch and power connection.
3. After wiping, dry the device with a dry cloth.

COMPLETION

RECYCLING INFORMATION

Disposal information:This product is subject to the provision of European Directi 2012/19/EC. The symbol showing a wheelie bin crossed thr indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may no discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Road 803, Lane 11, Room 1602A-1609, Baoshan District, Shanghai 200000

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122

Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am

YH CONSULTING LIMITED.

C/OYHConsulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Made In China

NO.	Name	Name	Le non	None
1	top cap	Oberkappe	capuchon supérieur	cappuccio superiore
2	ptee Tape	PTFE-Band	ruban PTFE	nastro PTFE
3	drain hose	Entwässerungsschlauch	Tuyau de vidange	tubo di scarico
4	Vater pipe joint	Vasserrohrverbindung	Joint de tuyau d'eau	giunzione del tubo dell'acqua
5	Stainless steel	Edelstahl	Acier inoxydable	acciaio inox
6	Vashing nesh basket	Waschgitterkorb	Panier à mailles de lavage	cesto a rete per lavaggio
7	foot pad	Fußpolster	Tapis de pied	cuscinetto per i piedi
8	Cylinder block	Zylinderblock	Bloc de cylindre	blocco cilindrico
9	Fover substrate	Leistungssubstrat	Substrat de puissance	sostrato di potenza
10	contro board	Steuerplatine	Carte de connande	scheda di controllo
11	casing	Cehäuse	Boltier	custodia
12	handle	Griff	Poignée	maniglia
13	svitch	Schalter	Interrupteur	interruttore
14	Safety seat	Sicherheitssitz	Siège de sécurité	seduta di sicurrezza
15	fuse	Sicherung	Fusible	fusibile
16	Fover cord	Netzkabel	Câble d'alimentation	cavo di alimentazione
17	base	Basis	Base	base
18	foot pad	Fußpolster	Tapis de pied	cuscinetto per i piedi
19	Screv	Schraube	Vis	vite
