JM-YP32 - Lighting Vevor - Free user manual and instructions

Product type	Rechargeable projector
Model	JM-YP32
Brand	Vevor
Battery capacity	6000 mAh
Brightness	1250 lumens
Color temperature	6000K-6500K (cool white light)
Power	12 W
Lighting duration	4 h (high brightness) / 8 h (low brightness)
Charging time	4.5 h
Charging voltage	DC 5V, 2A
Light source	COB LED
Housing material	ABS + PC
Dimensions (approx.)	Not specified in the manual
Weight (approx.)	Not specified in the manual
Base rotation angle	180°
Pivoting body joint	Yes
Lighting modes	2 brightness levels + SOS
Charging cable type	USB Type-C
Included accessories	Type-C cable, user manual
Operating temperature	-20°C to 50°C
Protection rating	Not specified, but do not submerge
Safety	Do not look directly at the beam, keep out of reach of children

Frequently Asked Questions - JM-YP32 Vevor

How to charge the JM-YP32 lamp?

Turn off the lamp before charging. Use the supplied USB Type-C cable with a 5V 2A adapter (not included). Full charging takes about 4.5 hours. The battery indicator lights up during charging.

What is the battery life?

The battery life is 4 hours in high brightness mode and 8 hours in low brightness mode, with a 6000 mAh battery.

Can I use the lamp outdoors?

Yes, but it is not waterproof. Do not submerge it in water and avoid prolonged exposure to rain. Use it in a dry environment.

How to adjust the brightness?

Press the switch once to turn on. Press again to switch to low brightness mode. A third press activates SOS mode. A fourth press turns off the lamp. You can also hold the switch for 2 seconds to turn off.

What to do if the lamp does not turn on?

Check that the battery is charged. Plug in the charging cable and make sure the indicator lights up. If nothing happens, try another 5V 2A adapter. If the problem persists, contact Vevor support.

Can I leave the lamp charging overnight?

It is recommended not to exceed the indicated charging time (4.5 h). Overcharging could damage the battery. Unplug once charging is complete.

How to activate SOS mode?

Turn on the lamp, then press the switch three times quickly to switch to SOS mode (flashing). Press once more to turn off or hold for 2 seconds to return to previous mode.

Is the lamp compatible with a tripod?

The 180° swiveling base allows placing the lamp on a flat surface or hanging it via the hook. No screw thread is mentioned in the manual.

Is there a warranty?

Yes, Vevor offers an electronic warranty. For any technical questions or claims, go to www.vevor.com/support.

How to clean the lamp?

Unplug the lamp before cleaning. Use a soft, dry cloth. Do not use harsh chemicals. Avoid moisture.

USER MANUAL JM-YP32 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Extendable Underhood Rechargeable Floodlight User Manual

MODEL:JM-YP32

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Extendable Underhood

Rechargeable Floodlight

MODEL:JM-YP32

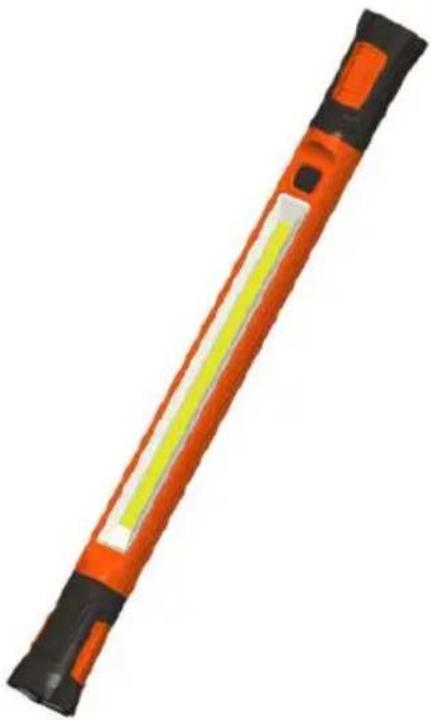

Orange and black handheld device with yellow stripe (no text or symbols visible)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electric electronic devices

WARNING:

To prevent serious injury, FIRE, and EXPLPSION:

1. Do not disassemble the device.
2. The LED light is very bright. Do not look directly into the light beam point the light beam at others!
3. Do not operate in direct sun light or extreme temperature condition
4. Operating temperature, -4^ ( -20^ ) to 122^ ( 50^ )
5. Keep dry. Do not open, drop, short-circuit, incinerate, expose to temperatures high than 140^ F ( 60^ C), or charge/use if damaged.
6. Do not submerge Light.
7. Do not operate it explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
8. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.
9. Keep away from children! Children should be supervised in order to ensure that they do not play with the device!

Charging procedure:

1. Switch lamp off during charging, and connect the charger to the battery pa
2. Before taking lamp into service for the first time, please charge it for 4-5
3. Always only use the included charging cable, and compatible with a 5V 2A adapter or above to charge the work light. (The cable is included in the pad but the adapter isn't)
4. If the battery indicator did not light up, please remove the charger and try
5. To maintain the rechargeable batteries, users should recharge every 3 months not using for a long period.
6. To provide power to the outside world, the lights must be turned off first.

FEATURES

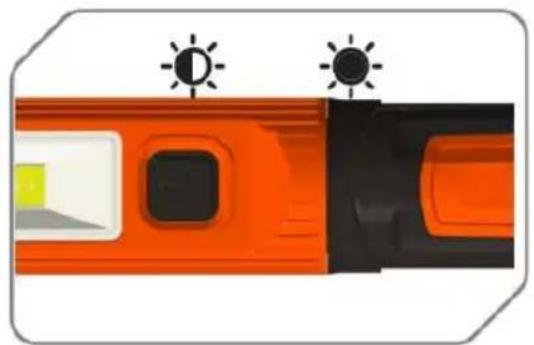

Illustration of a stylized orange car with black buttons and a yellow window, no text or symbols present.

2 Level Brightness, SOS

180°

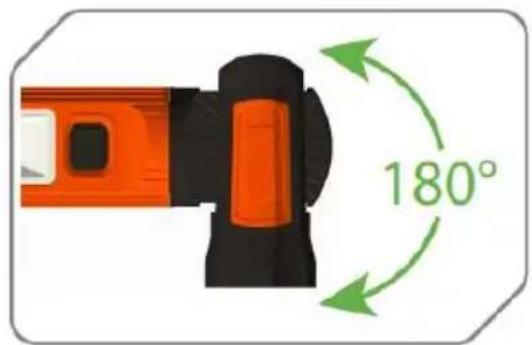

180^ Swivel Base

3D illustration of a flashlight with a black hook attached to its tip (no text or symbols)

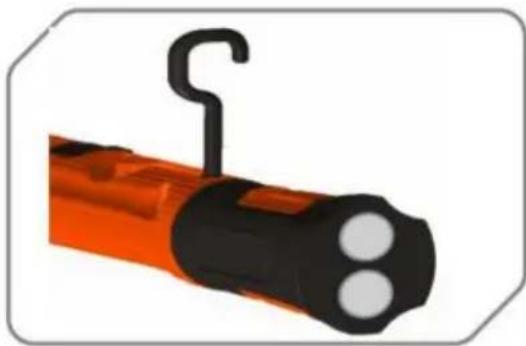

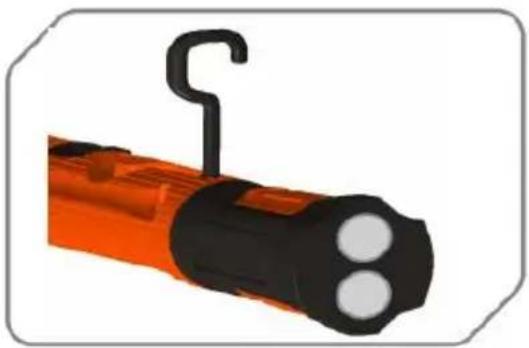

Hook and Magnet

Diagram of a device with orange and black components, showing green circular motion arrows (no text or symbols)

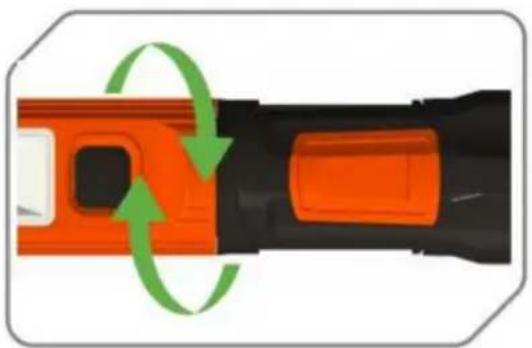

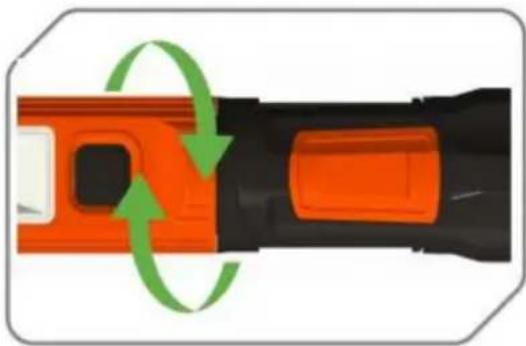

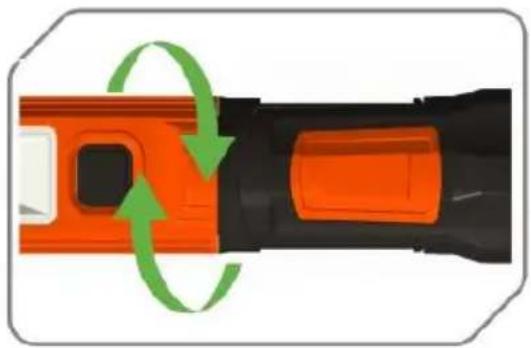

Body Swivel Knot

6500K

CCT

COB

COB LED

Simple line drawing of a U-shaped magnet with magnetic field lines (no text or symbols)

Magnetic

Icon of a battery with a lightning bolt symbol, enclosed in a rounded square frame (no text or numbers)

Rechargeable

PERFORMANCE PARAMETER

Model	JM-YP32
Battery Capacity	6000mAh
Brightness	1250 LM
Color Temperature	6000K-6500k
Power	12W
Lighting Time	4H(High) / 8H(Low)
Material	ABS+PC
USB Cable	Type-C
Charging Time	4.5H
Charging voltage	DC5V 2A

OPERATION

1. Turn on the power switch, and the work light will illuminate.
2. To adjust the brightness, press the switch button again.
3. Press the switch three times to adjust to SOS mode.
4. After use, press the power switch for the fourth time to turn off the light.
5. Press and hold the power switch for 2 seconds in any gear, and will be turned off. When turned on again, it will return to that gear.

ACCESSORIES LIST

1.TYPE-C charging cable *1
2.User Manual *1

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Capot extensible rechargeable

Orange and black handheld device with yellow stripe (no text or symbols visible)

Illustration of a stylized orange and black object with two sun icons above it, no text or symbols present.

Close-up of a mechanical component with orange and black parts, showing a 180° rotation indicator (no text or symbols on the component itself)

Illustration of a flashlight with a hook attached to its tip (no text or symbols)

Crochet et aimant

Diagram of a mechanical component with orange and black parts, showing rotational motion arrows (no text or symbols)

Simple line drawing of a U-shaped magnet with magnetic field lines (no text or symbols)

Magnetic

Battery icon with lightning bolt symbol, enclosed in rounded square frame (no text or numbers)

Rechargeable

PARAMÈTRE DE PERFORMANCE

C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Orange and black handheld device with yellow stripe (no text or symbols visible)

Illustration of a vehicle's front and side views with sun icons above (no text or symbols)

Close-up of a mechanical device with orange and black components, showing a 180° rotation indicator (no text or symbols on the device itself)

180° Schwenkbasis

Illustration of a flashlight with a hook attached to its tip (no text or symbols)

Haken und Magnet

Diagram of a mechanical component with orange and black parts, showing rotational motion arrows (no text or symbols)

Körperwirbelknoten

6500K

CCT

COB

COB LED

Simple line drawing of a U-shaped magnet with magnetic field lines (no text or symbols)

Magnetic

Battery icon with lightning bolt symbol, enclosed in rounded square frame (no text or numbers)

Rechargeable

LEISTUNGSPARAMETER

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

Orange and black handheld device with yellow stripe (no text or symbols visible)

Illustration of a stylized orange and black object with two sun icons above, no text or symbols present.

Close-up of a mechanical component with orange and black parts, showing a 180° rotation indicator (no text or symbols on the component itself)

Base girevole a 180°

Illustration of a flashlight with a hook attached to its tip (no text or symbols)

Gancio e magnete

Diagram of a mechanical component with orange and black parts, showing rotational motion arrows (no text or symbols)

Simple line drawing of a U-shaped magnet with magnetic field lines (no text or symbols)

Magnetic

Battery icon with lightning bolt symbol, enclosed in rounded square frame (no text or numbers)

Rechargeable

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Orange and black handheld device with yellow stripe (no text or symbols visible)

Illustration of a stylized orange and black object with two sun icons above it, no text or symbols present.

Close-up of a mechanical component with orange and black parts, showing a 180° rotation indicator (no text or symbols on the component itself)

Base giratoria de 180°

Illustration of a flashlight with a hook attached to its tip (no text or symbols)

Gancho e imán

Diagram of a mechanical component with orange and black parts, showing rotational motion arrows (no text or symbols)

Simple line drawing of a U-shaped magnet with magnetic field lines (no text or symbols)

Magnetic

Battery icon with lightning bolt symbol, enclosed in rounded square frame (no text or numbers)

Rechargeable

Importado a Australia: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRESENTANTE CE

E-CrossStu GmbH

Orange and black handheld device with yellow stripe (no text or symbols visible)

Illustration of a stylized orange and black object with two sun icons above, no text or symbols present.

Close-up of a mechanical component with orange and black parts, showing a 180° rotation indicator (no text or symbols on the component itself)

Illustration of a flashlight with a hook attached to its tip (no text or symbols)

Hak i magnes

Diagram of a mechanical component with orange and black parts, showing rotational motion arrows (no text or symbols)

Simple line drawing of a U-shaped magnet with magnetic field lines (no text or symbols)

Magnetic

Battery icon with lightning bolt symbol, enclosed in rounded square frame (no text or numbers)

Rechargeable

PARAMETR WYDAJNOŚCI

Importowane do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt nad Menem.

REP WIELKIEJ BRYTANII

YH CONSULTING LIMITED.

C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Orange and black handheld device with yellow stripe (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

Illustration of a stylized orange and black object with two sun icons above, no text or symbols present.

2 niveaus helderheid, SOS

Close-up of a mechanical component with orange and black parts, showing a 180° rotation indicator (no text or symbols on the component itself)

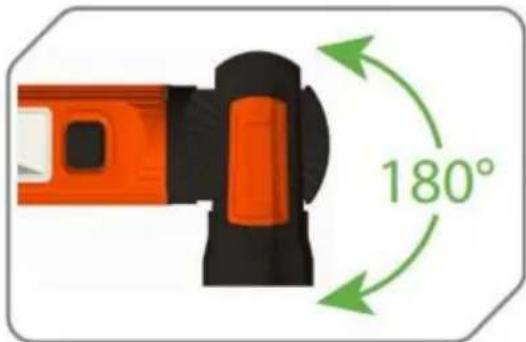

180° draaibare basis
