HCL-15A - Cleaning gun Vevor - Free user manual and instructions

Product Type	Dry Cleaning Gun
Brand	Vevor
Model	HCL-15A
Working Pressure	0.6 - 0.92 MPa
Operating Temperature	5 to 50 °C
Brush Material	PVC
Required Air Compressor	Flow rate > 200 L/min, tank > 70 L, power > 2500 W
Usage	Cleaning with cleaning agents (no glue)
Maintenance	Clean immediately after use: place the nozzle in clean water, close the water valve, press the trigger for 1 to 3 seconds, dry and store away from sunlight
Warning	Avoid any contact of alcohol with the inside of the bottle (risk of corrosion)
Safety	Do not use non-original accessories; do not disassemble yourself; contact after-sales service in case of malfunction
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Co., Ltd., Shanghai, China
Importer (EU)	Sanven Technology Ltd., 9166 Anaheim Place, Suite 250, Rancho Cucamonga, CA 91730, United States
Importer (AU)	SIHAO PTY LTD, 1 Rokeva Street, Eastwood NSW 2122, Australia

Frequently Asked Questions - HCL-15A Vevor

Which air compressor to use with the HCL-15A gun?

The compressor must have a flow rate greater than 200 L/min, a tank of more than 70 L, and a minimum power of 2500 W.

How to clean the gun after use?

Place the nozzle in clean water, close the water valve, press the trigger for 1 to 3 seconds, then remove the nozzle, dry it, and store it away from direct sunlight.

Can I use glue with this gun?

No, this gun is designed only for cleaning agents and cleaning solutions. Do not use glue.

Why should alcohol be avoided in the bottle?

Trapped alcohol can corrode the inner surface of the bottle. It is important to keep the gun free of any traces of alcohol.

What to do in case of malfunction?

If you notice any anomalies or damage, return for maintenance and contact after-sales service. Only use original accessories.

Can I repair it myself?

No, any unauthorized disassembly or repair voids the warranty. Only an authorized professional service can intervene.

What is the working pressure of the gun?

The pressure must be between 0.6 and 0.92 MPa.

Where to find the electronic warranty?

The electronic warranty certificate is available on the website www.vevor.com/support.

What is the operating temperature range?

The gun operates correctly between 5 °C and 50 °C.

How to store the gun after washing?

After cleaning, dry the nozzle and maintain ventilation. Store it in a dry place away from direct sunlight.

USER MANUAL HCL-15A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CLEANING GUN

MODEL: HCL-13 HCL-15A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CLEANING GUN

MODEL: HCL-13 HCL-15A

HCL-15A HCL-13

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

INSTRUCTIONS

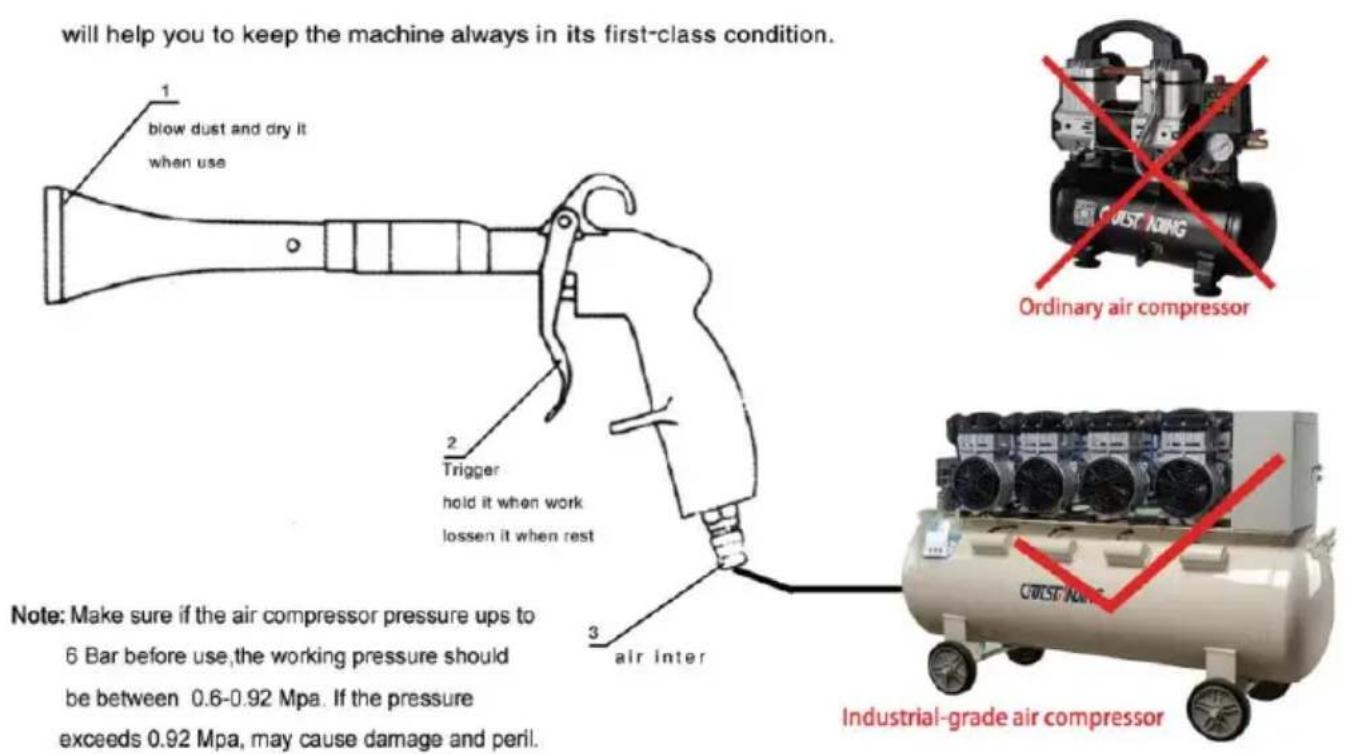

1. Please read this instruction book carefully before you start using the machine. You will find many useful hints which will help you to keep the machine always in its first-class condition.

Tips: When using, wrap the raw material tape around the connector.

Warning!

Keep the gun clean from any retained liquid; otherwise, it will corrode the inside of the bottle.

Note: The air compressor should meet the following parameters: exhaust volume >200 L/min, gas storage tank >70 L, and power >2500 W.

It should be cleaned immediately after use.

EFFICIENT DRY-CLEAN GUN
PRESSURE	0.6-0.92 Mpa
TEMPERATURE	5~50°C
BRUSH	PVC

Attention!

1. Return for maintenance if you notice any abnormalities or damage during use.
2. We will not provide service if you do not use original accessories and professional consumables.
3. We will not provide service if you use it incorrectly, do not follow our technical guidance, or dismantle and reassemble parts of the apparatus at will.

Attention!

Keep the gun clean from any retained liquid; otherwise, it will corrode the inside of the bottle.

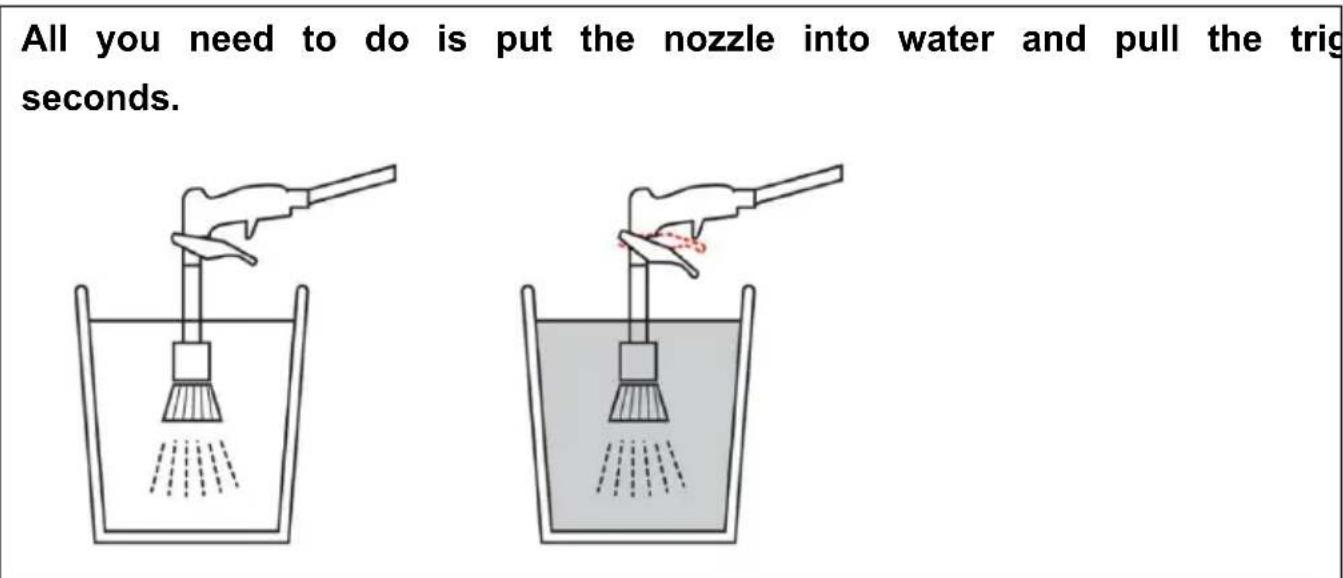

Cleaning: Place the nozzle into clean water, close the liquid valve, pull the trigger, and it will wash automatically. Remove the nozzle, dry it, and maintain it away from direct sunlight.

Note: 1. Only applicable to cleaning agents and cleaning solutions; cannot be used with glue, etc.

Note Tips of notes please check before you use it
warning!	Warning that means if you don't follow this, it may Cause accident Endanger life safety
Attention!	Attention that means you need Specification Operation,or it damage the machine and your body.

Manufacturer: Shanghai Muxin Muye Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
