USER MANUAL HCL-01 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CLEANING GUN

MODEL: HCL-01

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CLEANING GUN

MODEL: HCL-01

Vevor HCL-01 - MODEL: HCL-01 - 1

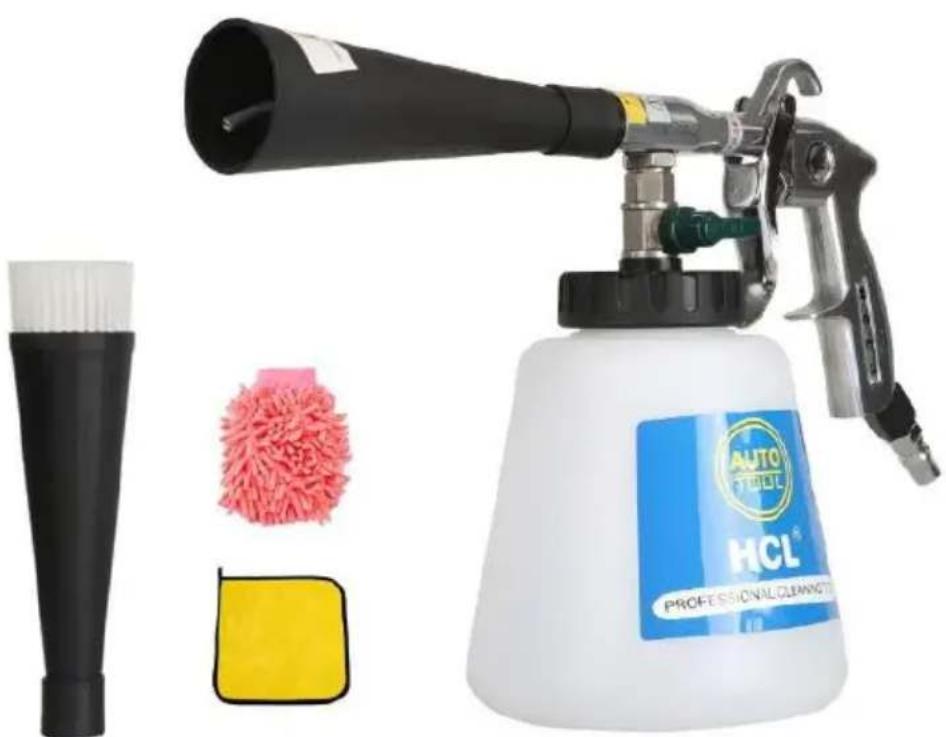

natural_image Product photo of a spray gun with a blue HCL-branded container, two small cleaning tools (black and yellow), and a red brush swab (no text or symbols visible on main objects)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

INSTRUCTIONS

  1. Please read this instruction book carefully before you start using the machine. You will find many useful hints which will help you to keep the machine always its first-class condition.

Vevor HCL-01 - INSTRUCTIONS - 1

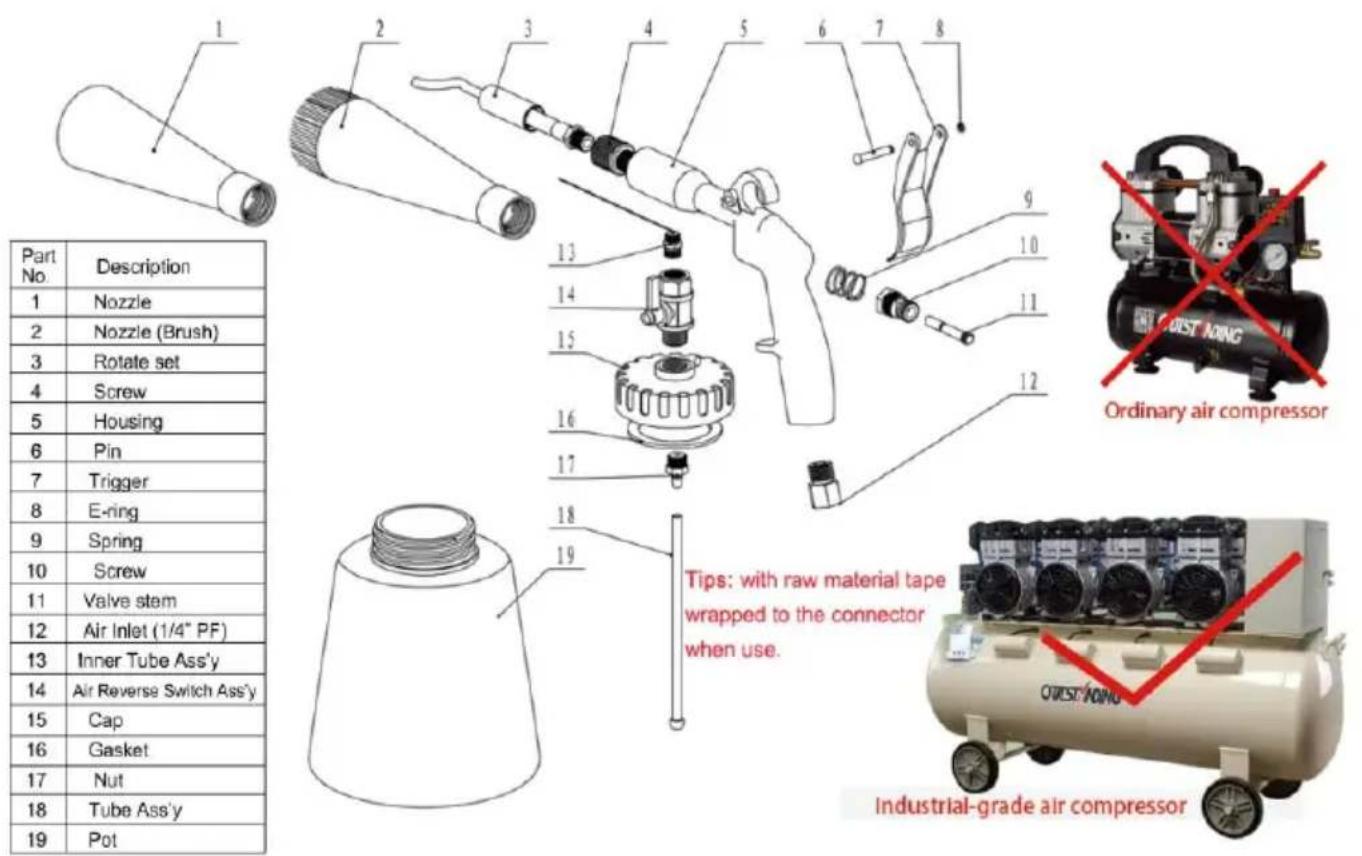

text_image Part No. Description 1 Nozzle 2 Nozzle (Brush) 3 Rotate set 4 Screw 5 Housing 6 Pin 7 Trigger 8 E-ring 9 Spring 10 Screw 11 Valve stem 12 Air Inlet (1/4" PF) 13 Inner Tube Ass'y 14 Air Reverse Switch Ass'y 15 Cap 16 Gasket 17 Nut 18 Tube Ass'y 19 Pot 13 14 15 16 17 18 19 4 5 6 7 8 9 10 11 12 Ordinary air compressor Tips: with raw material tape wrapped to the connector when use. Industrial-grade air compressor

Attention!

  1. Make sure if the air compressor pressure ups to 6 Bar before use working pressure should be between 0.6-0.92 Mpa. If the pressure exceeds Mpa, may cause damage and peril.
  2. The liquid must be neutral, not too thicker, temperature between 5
  3. It should be cleaned immediately after use
TORNADO CLEANING GUN
PRESSURE0.6-0.92 Mpa
PARTICULATES1~10um
LIQUIDneutral
TEMPERATURE5~50°C

Attention!

  1. Return to maintenance if you have any abnormal and damage when use
  2. We won't service if you don't use original accessories and Professional consumables.
  3. We won't service if you use it in a wrong way or do not pass our tech guidance, dismantled and installed the part of the apparatus at will.

Attention!

Keep the gun clean from the liquor which is detained, otherwise, it will corrode inner side of the bottle.

Cleaning: put the nozzle into clean water, close the liquor valve, pull the t and then it will wash automatic, get the nozzle out, dry it, and maintain ve without direct sunlight.

All you need to do is put the nozzle water and pull the trigger for 1-3 secc

Vevor HCL-01 - Attention! - 1

natural_image Simple line drawing of a spray gun dispensing liquid into a beaker with a funnel (no text or symbols)

①

Vevor HCL-01 - Attention! - 2

natural_image Simple line drawing of a spray gun dispensing liquid into a beaker with a funnel (no text or symbols)

②
Method of use

Vevor HCL-01 - Attention! - 3

text_image WORNG

Vevor HCL-01 - Attention! - 4

text_image CORRECT

Vevor HCL-01 - Attention! - 5

text_image Corrosive products Glue

The use of chemicals and glue is prohibited.

Vevor HCL-01 - Attention! - 6

text_image HCL DA WEATHER WAL

Cleaning liquid
The cleaning solution should not be too thick

NoteTips of notes please check before you use it
warning!Warning that means if you don't follow this, it may Cause accident Endanger life safety
Attention!Attention that means you need Specification Operation,or it damage the machine and your body.
