GZYJXKF03 - Paint booth Vevor - Free user manual and instructions

Product type	Inflatable paint booth
Brand	Vevor
Model	GZYJXKF03
Dimensions (L x W x H)	300 x 250 x 250 cm
Material	Oxford 210D fabric
Color	Blue
Input voltage	120 V ~ 60 Hz (USA) / 220-240 V ~ 50 Hz (EU/UK/AUS)
Inflation fan power	550 W
Doors	Front door and rear door with zipper
Windows	Transparent windows for visibility
Filtration	Activated carbon filter cotton and double filter cotton
Package contents	Paint booth, inflation blower, storage bag, 4 sandbags, 4 stakes, 4 ropes, repair kit (patches)
Maintenance	Store in a dry place, avoid sharp objects, repair tears with the included kit
Safety	Do not use in rain or strong wind, keep away from flames, ensure good ventilation, emergency exit via window or cutting the tent
Installation	Requires 4 people for assembly, unfold on flat ground, inflate with blower, secure with stakes and ropes
Repairability	Repair kit included for tears, replaceable filters

Frequently Asked Questions - GZYJXKF03 Vevor

How to inflate the Vevor GZYJXKF03 paint booth?

Unfold the tent on a clean, flat surface. Close both sides with zippers. Connect the tube of the inflation blower to the air column, then turn on the blower. For easier inflation, you can first close the doors and use the ventilation fan (if present) to pre-inflate, then switch to the inflation blower.

What are the dimensions of the GZYJXKF03 booth?

The dimensions are 3 meters long, 2.5 meters wide and 2.5 meters high (approximately 10 x 8.5 x 8.5 feet).

Can this paint booth be used outdoors?

Yes, but avoid using it in rain, strong wind, or hail. In windy weather, secure the tent with the provided stakes and wind ropes to prevent shaking.

How to ensure good ventilation during painting?

The GZYJXKF03 booth is not equipped with a dedicated ventilation fan, but it has activated carbon filters and double filtration. Make sure to ventilate the interior well by opening the zippered exhaust openings if necessary. It is recommended to wear a protective mask.

How to clean and maintain the booth?

After use, let the tent air dry. Store it in a dry environment away from sharp objects. If it is damp, open it in good weather to prevent mold. The internal filters can be removed and replaced.

What to do if the tent is torn?

Use the provided repair kit (repair patches) to mend tears. Follow the instructions: clean the area, apply the patch, and press firmly.

What is the required electrical power?

The inflation blower operates at 120 V ~ 60 Hz (USA model) or 220-240 V ~ 50 Hz (EU/UK/AUS models). Check your model's voltage before use.

How long does it take to inflate the booth?

Inflation usually takes a few minutes depending on the blower power (550 W). Make sure all zippers are tightly closed for optimal inflation.

Can I use the booth without securing it to the ground?

It is strongly recommended to secure the booth with the provided stakes and sandbags to prevent it from moving or deflating, especially outdoors or in light wind.

What to do in case of a power outage during use?

In case of a power outage, the booth may deflate quickly. Use the front doors, safety windows, or rear door to exit. As a last resort, you can cut the tent with a knife to escape.

USER MANUAL GZYJXKF03 Vevor

Affordable. Reliable. Home Improvement.

SPRAY PAINT BOOTH

Affordable. Reliable. Home Improvement.

SPRAY PAINT BOOTH

MODEL: GZYJXKF03, GZYJXKF04, GZYJXKF06, GZYJXKF07, GZYJXKF09

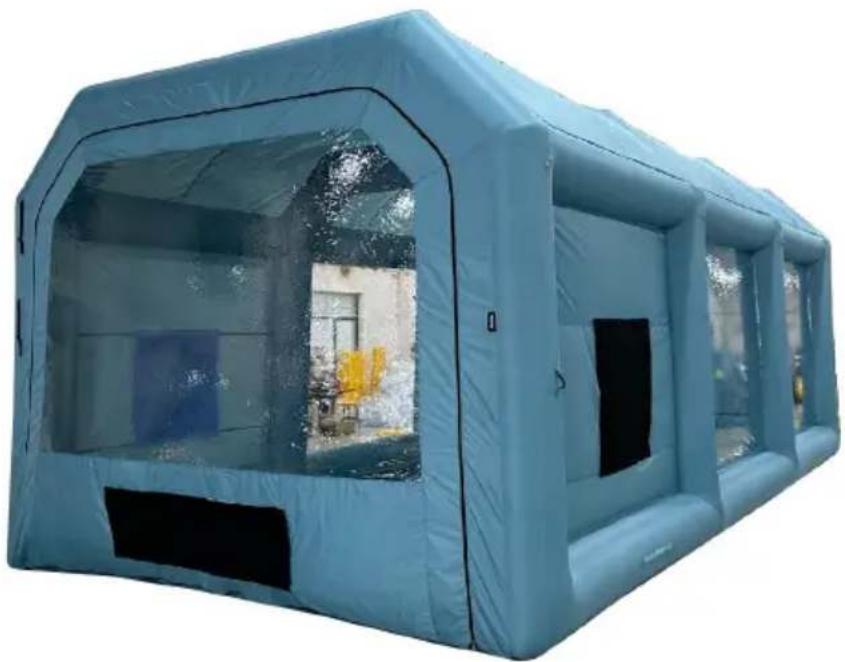

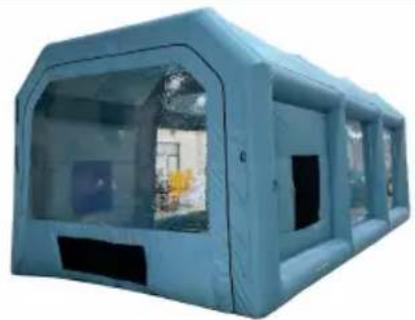

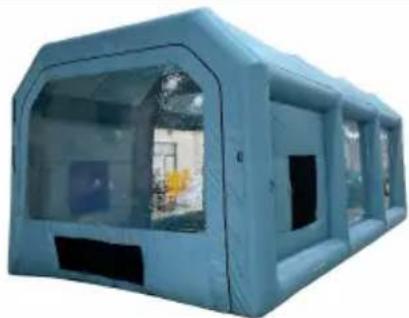

(The picture is for reference only, please refer to the actual object)

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

1. Safe Instructions

WARNING:

1) Avoid using this product in rain, strong wind, hail, and other bad weather.

2) Avoid sharp points, blades, and other items to scratch the product.

3) Keep away from fire sources.

4) The air inside the tent is scarce, so good ventilation must be ensured when painting inside the tent.

5) Due to the large size of this product, installation requires 2 to 4 people to assist.

CAUTION: Carefully read instructions and procedures for safe operations

2. Product Introduction

ModelSPEC.	GZYJXKF03(3X2.5X2.5)	GZYJXKF04(4X3X2.75)	GZYJXKF06(6.4X4.1X3)	GZYJXKF07(7X4X2.75)	GZYJXKF09(9X4.8X3.6)
Size	10*8.5*8.5ft	13*10*9ft	21*13.5*10ft	23*13*9ft	30*16*12ft
Material	210D Oxford-fabric	210D Oxford-fabric	210D Oxford-fabric	210D Oxford-fabric	210D Oxford-fabric
Color	Blue	Blue	Blue	Blue	Blue
Input voltage	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~ 60Hz(USA)220-240V~50Hz(EUR/GB/AUS)
Inflation blower power	550W	750W	1100W	750W	950W
Ventilation blower power	/	/	/	480W(USA)	750W(USA)
	/	/	/	550W(EUR/GB/AUS)	750W(EUR/GB/AUS)

3. Package Content

model Parts	GZYJXKF03 (3X2.5X2.5)	GZYJXKF04 (4X3X2.75)	GZYJXKF06 (6.4X4.1X3)	GZYJXKF07 (7X4X2.75)	GZYJXKF09 (9X4.8X3.6)
Spray paint booth	×1	×1	×1	×1	×1
inflation blower	×1	×1	×1	×1	×1
Ventilation blower	/	/	/	×1	×1
Storage bag	×1	×1	×1	×1	×1
Sand bags	×4	×4	×4	×4	×4
Stakes	×4	×4	×4	×4	×4
Ropes	×4	×4	×4	×4	×4
Pack of repair patches	×1	×1	×1	×1	×1

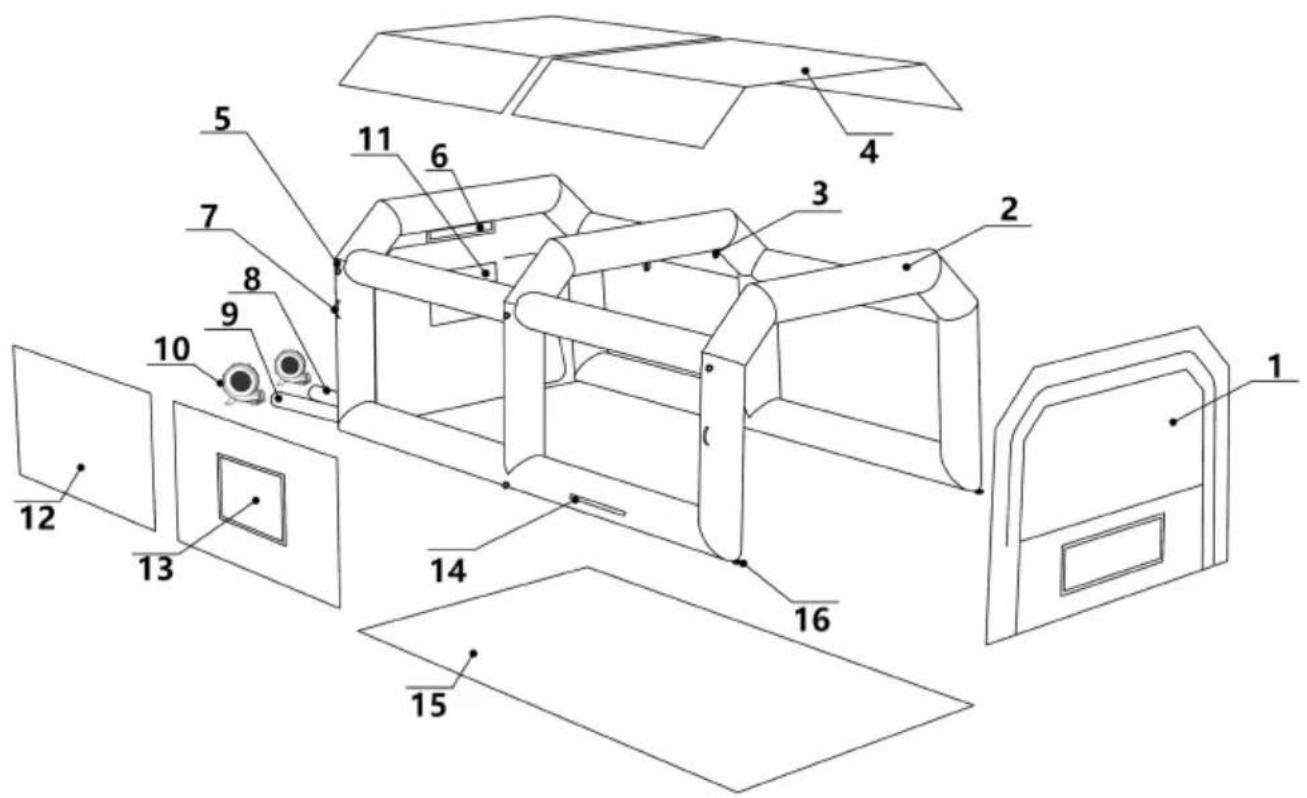

4. Product Diagram

1. 1. Front Door 2. Air Column
2. 3. Light Hook 4. Ceiling
3. 5. Rope Ring 6. Activated Carbon Filter Cotton
4. 7. Handle 8. Ventilating Tube
5. 9. Air Column Filling Tube 10. Air Blower
6. 11. Transparent Window 12. Transparent Window
7. 13. Double Filter Cotton 14. Exhaust Zipper Port
8. 15. Bottom 16. Metal Ring

5. Installation Instruction

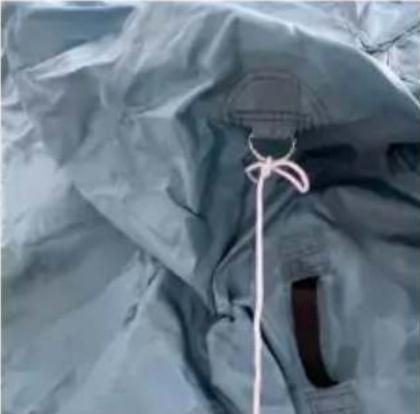

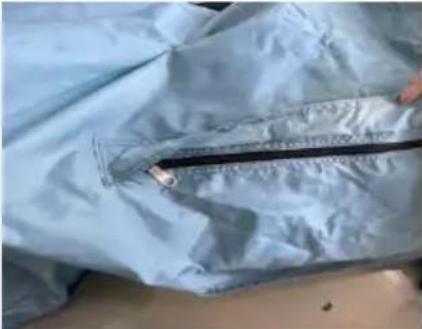

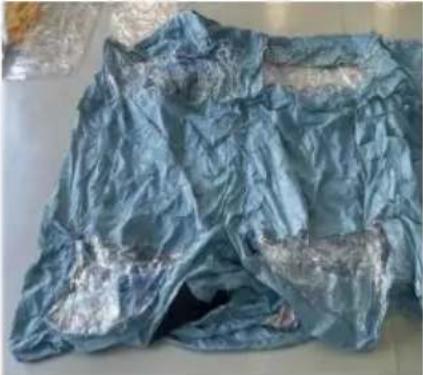

1.Unfold the tent and spread it out on a cl and level ground.	2.Zip up both sides of product.	3. Tie the rope to the ring.

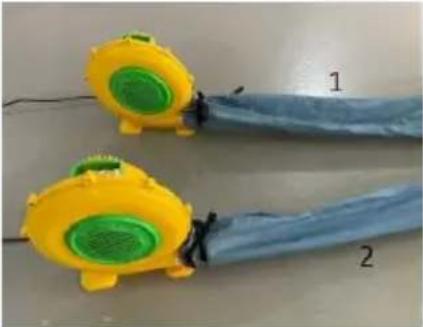

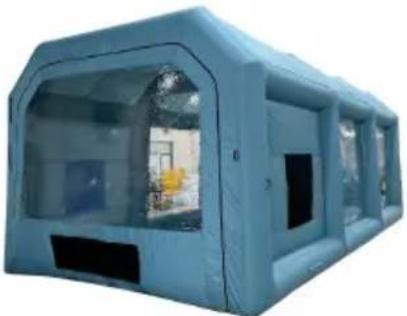

4. Tie the air tube to air blower outlet, as shown in the figure. 1 the ventilation blower; 2 is the inflation blower.	5. When the tent is inflated, please fasten the tent with stakes at the bottom metal rings.	6. When the assembly complete, please tie the windproof rope to the fixed object.

6. Storage Instruction

It is recommended to store the product when it is dry to avoid dampness and mildew.

It is recommended to put them in a storage bag and store them in a dry environment.

Keep away from sharp objects to avoid scratching.

After wet weather, it is recommended to air the tent on sunny days.

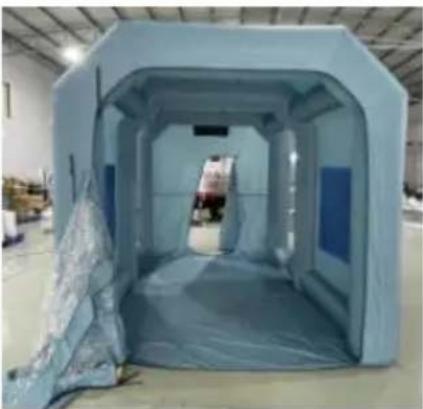

1.Unzip and open the front and back doors.	2. Turn off the air blowers and open both exhaust zipper ports.	3. Drain all air and flatten the tent as shown below.

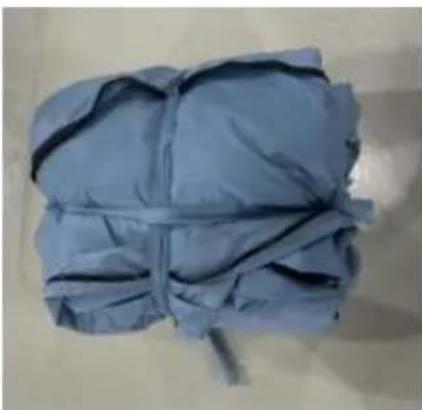

4.Roll up the tent, as shown in the figure	5. Roll up the tent with ropes.	6. Put it into a storage bag and place in dry environment.

7 Direction for Use

1) This product is only a simple tool room for painting and cannot be used in windy and rainy days. 2) The product requires the blower to keep inflating, and do not cut off power supply. 3) In case of power failure, please escape through the front door or safety or back door. 4) In case of emergency, you can cut through the tent with a knife to escape. 5) It is recommended to choose a flat and clean open ground to use this product.

6) If the tent shakes too much in the wind, please use the windproof ropes and stakes to fix the tent. 7) After repeated use, the ventilation of the tent may become poor. At this time, the inner blue filter cotton can be removed or replaced to improve the ventilation. 8) If it is difficult to inflate the tent, zip up the front and back doors, turn on the ventilation blower to inflate the tent, and then turn on the inflation blower to inflate the tent.

8. Maintenance, Repair, and Troubleshooting

1) When the product is finished, it is recommended to dry the tent and put it away. 2) If the product is stored in a humid environment, it is recommended to take it out and open it in sunny weather. 3) If the product is torn, please repair it with the accompanying material and adhesive.

Troubleshooting

problem	cause	solution
Blower does not work	·Voltage mismatch·No power supply·The blower switch is no	·Voltage need to match·Turn the power·Turn on the blower
Lack of tent pressure	·Voltage instability·The air tube is connected a wrong blower·Both exhaust ports are zipped properly	·Supply a stable voltage·Connect the air tube to the inflation blower·Zip both sides of the exha ports
