GZYJXKF07 - Paint booth Vevor - Free user manual and instructions

Product Type	Inflatable Paint Booth
Brand	Vevor
Model	GZYJXKF07
Dimensions (L x W x H)	7 m x 4 m x 2.75 m (23 ft x 13 ft x 9 ft)
Material	Oxford 210D Fabric
Color	Blue
Power Supply	120 V ~ 60 Hz (USA) / 220-240 V ~ 50 Hz (EU/UK/AUS)
Inflation Blower Power	750 W
Ventilation Blower Power	480 W (USA) / 550 W (EU/UK/AUS)
Number of Ventilation Fans	1
Main Functions	Inflation, ventilation, air filtration (activated carbon filter and double cotton filter)
Included Accessories	Storage bag, 4 sandbags, 4 stakes, 4 ropes, repair kit
Transparent Windows	Yes, for monitoring
Ground Fixation	Stakes and windproof ropes
Safety	Do not use in windy, rainy or stormy weather; ensure good ventilation; avoid heat sources
Installation	Requires 4 people, on a flat and clean ground
Maintenance and Cleaning	Dry completely before storage, store in a dry place, repair tears with the included kit
Repairability	Repair kit included for tears
Intended Use	Spray painting of vehicles or other objects

Frequently Asked Questions - GZYJXKF07 Vevor

What are the exact dimensions of the Vevor GZYJXKF07 booth?

The dimensions are 7 m x 4 m x 2.75 m (approximately 23 x 13 x 9 feet).

Can I use this paint booth in windy weather?

No, it is not recommended to use the booth in strong wind, rain, or hail. If the wind is moderate, securely fix the tent with the provided stakes and ropes.

How to install the paint booth?

Unfold the tent on a flat and clean ground, close the zippers on both sides, attach the ropes to the rings, plug in the inflation blower and inflate the tent. Then fix the stakes to the metal rings and tie the windproof ropes. Installation requires 4 people.

What to do in case of a power outage?

In case of outage, the tent will deflate. Immediately use the emergency exits: the front door, the safety window, or the back door. As a last resort, you can cut the tent with a knife to escape.

How to ensure good ventilation during painting?

The booth is equipped with a ventilation fan that must be turned on during use. Make sure the filters (activated carbon and double cotton) are in place and not clogged. Replace the blue filter if ventilation becomes insufficient.

The inflation blower does not work, what to do?

First check that the power supply voltage matches the required one (120V or 220-240V depending on your model). Make sure the blower is turned on and the outlet is powered. If the problem persists, the blower may be defective.

How to store the booth after use?

Open the front and back doors, turn off the blowers, open the exhaust vents to release air, then flatten and roll up the tent. Store it in the provided storage bag in a dry place away from sharp objects.

Can I repair a tear in the tent?

Yes, a repair kit is included in the package. Follow the instructions to apply the patches on tears. If the tear is large, it is recommended to contact customer service.

What is the power of the fans?

The inflation blower has a power of 750 W. The ventilation fan is 480 W for USA models and 550 W for EU/UK/AUS models.

Is the booth suitable for indoor use?

Yes, but make sure the room is well ventilated. The booth itself requires active ventilation via the ventilation fan. Avoid heat sources and sharp objects nearby.

USER MANUAL GZYJXKF07 Vevor

SPRAY PAINT BOOTH

SPRAY PAINT BOOTH

MODEL: GZYJXKF03, GZYJXKF04, GZYJXKF06, GZYJXKF07, GZYJXKF09

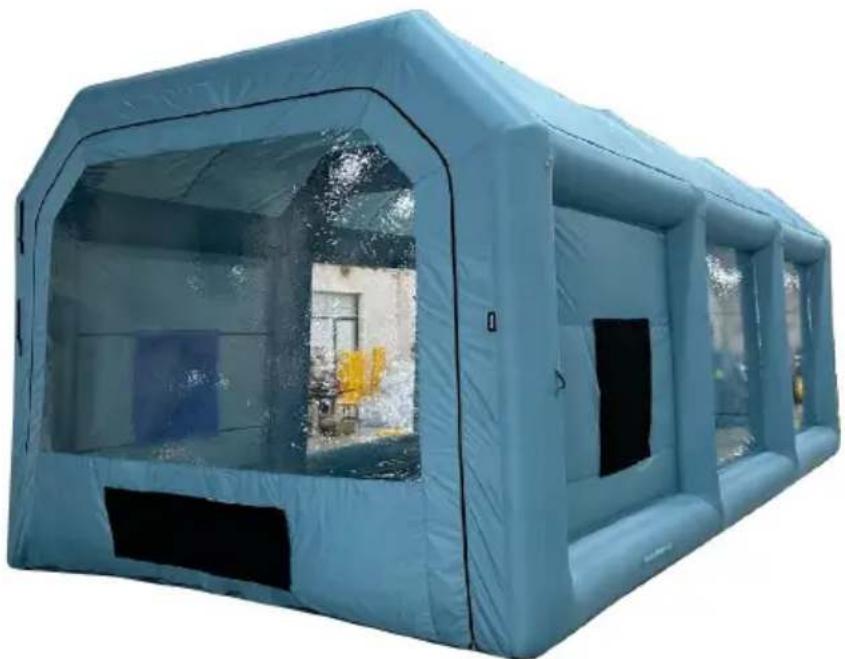

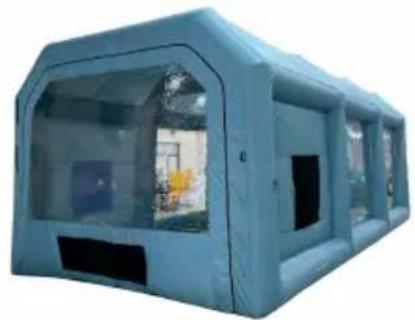

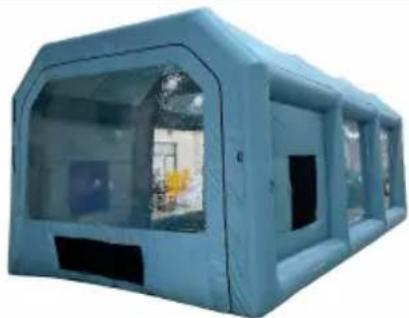

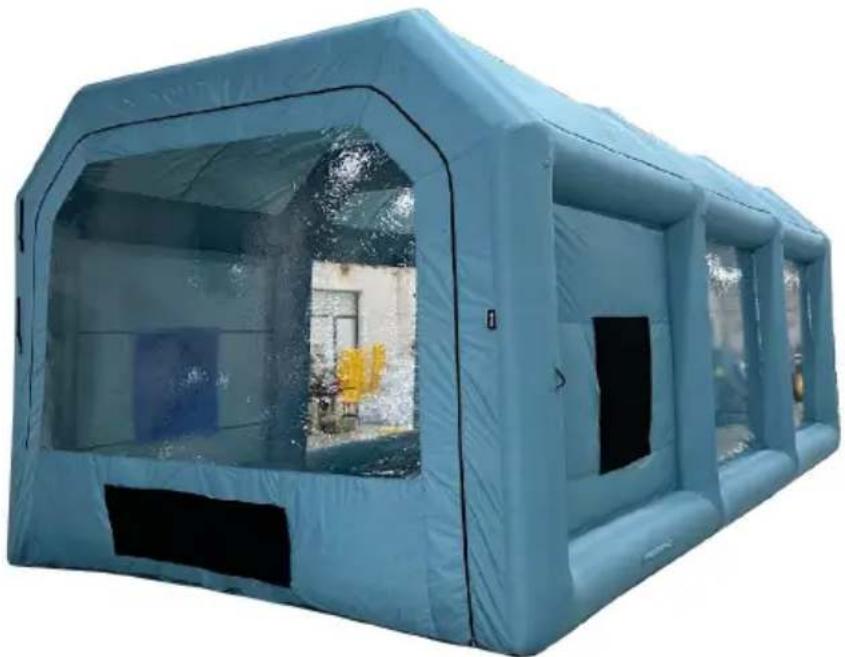

(The picture is for reference only, please refer to the actual object)

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

1. Safe Instructions

WARNING:

1) Avoid using this product in rain, strong wind, hail, and other bad weather.

2) Avoid sharp points, blades, and other items to scratch the product.

3) Keep away from fire sources.

4) The air inside the tent is scarce, so good ventilation must be ensured when painting inside the tent.

5) Due to the large size of this product, installation requires 2 to 4 people to assist.

CAUTION: Carefully read instructions and procedures for safe operations.

2. PRODUCT INTRODUCTION

ModelSPEC.	GZYJXKF03(3X2.5X2.5)	GZYJXKF04(4X3X2.75)	GZYJXKF06(6.4X4.1X3)	GZYJXKF07(7X4X2.75)	GZYJXKF09(9X4.8X3.6)
Size	10*8.5*8.5ft	13*10*9ft	21*13.5*10ft	23*13*9ft	30*16*12ft
Material	210D Oxford-fabric	210D Oxford-fabric	210D Oxford-fabric	210D Oxford-fabric	210D Oxford-fabric
Color	Blue	Blue	Blue	Blue	Blue
Input voltage	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~ 60Hz(USA)220-240V~50Hz(EUR/GB/AUS)
Inflation blower power	550W	750W	1100W	750W	950W
Ventilation blower power	/	/	/	480W(USA)	750W(USA)
	/	/	/	550W(EUR/GB/AUS)	750W(EUR/GB/AUS)

3. PACKAGE CONTENT

model Parts	GZYJXKF03 (3X2.5X2.5)	GZYJXKF04 (4X3X2.75)	GZYJXKF06 (6.4X4.1X3)	GZYJXKF07 (7X4X2.75)	GZYJXKF09 (9X4.8X3.6)
Spray paint booth	×1	×1	×1	×1	×1
inflation blower	×1	×1	×1	×1	×1
Ventilation blower	/	/	/	×1	×1
Storage bag	×1	×1	×1	×1	×1
Sand bags	×4	×4	×4	×4	×4
Stakes	×4	×4	×4	×4	×4
Ropes	×4	×4	×4	×4	×4
Pack of repair patches	×1	×1	×1	×1	×1

4. PRODUCT DIAGRAM

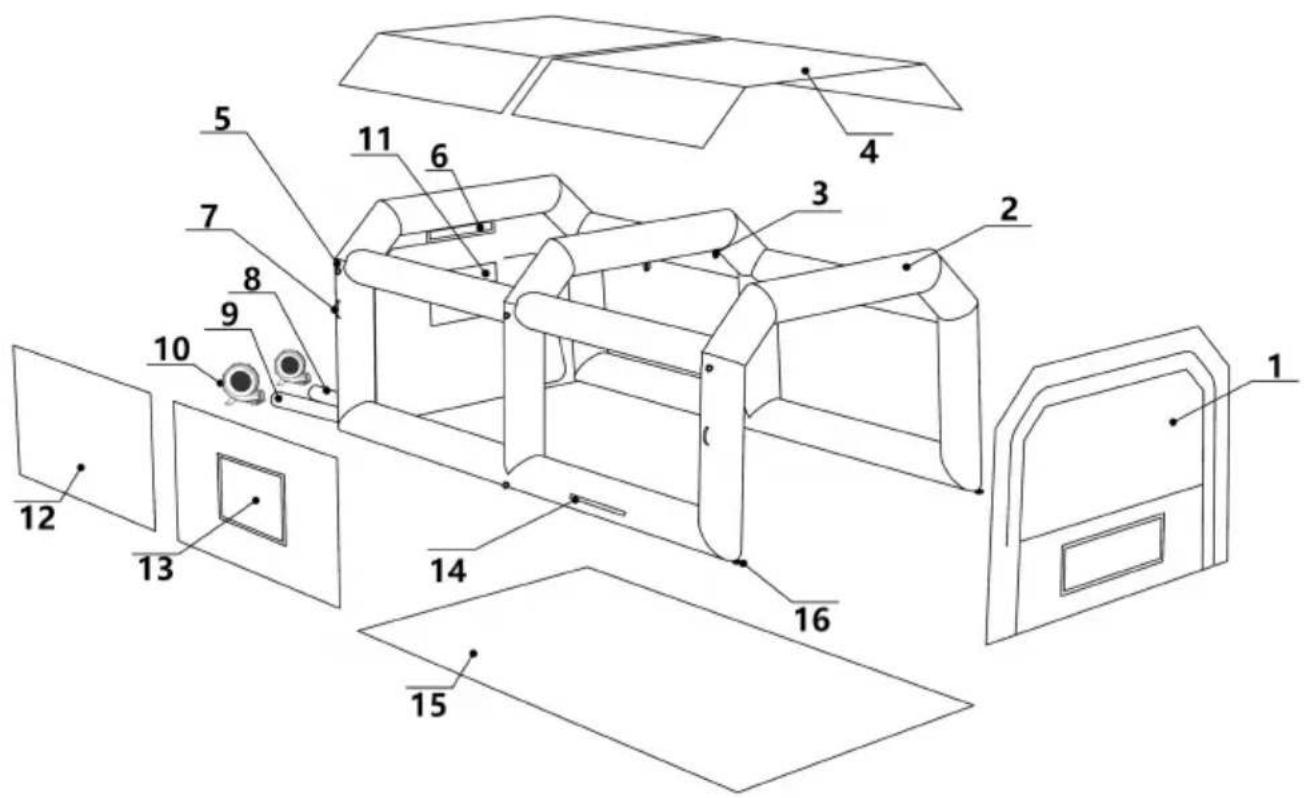

1. 1. Front Door 2. Air Column
2. 3. Light Hook 4. Ceiling
3. 5. Rope Ring 6. Activated Carbon Filter Cotton
4. 7. Handle 8. Ventilating Tube
5. 9. Air Column Filling Tube 10. Air Blower
6. 11. Transparent Window 12. Transparent Window
7. 13. Double Filter Cotton 14. Exhaust Zipper Port
8. 15. Bottom 16. Metal Ring

5. INSTALLATION INSTRUCTION

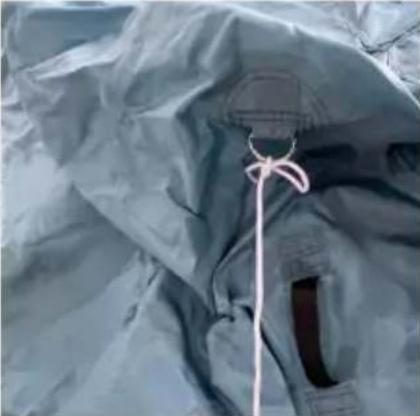

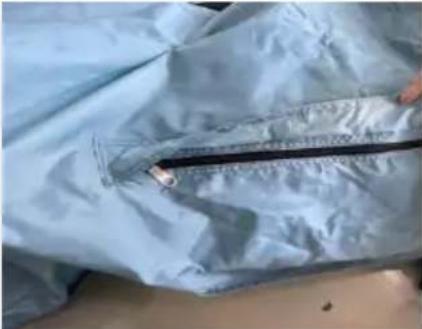

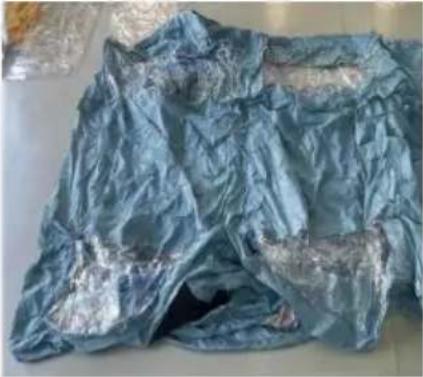

1.Unfold the tent and spread it out on a cl and level ground.	2.Zip up both sides of product.	3. Tie the rope to the ring.

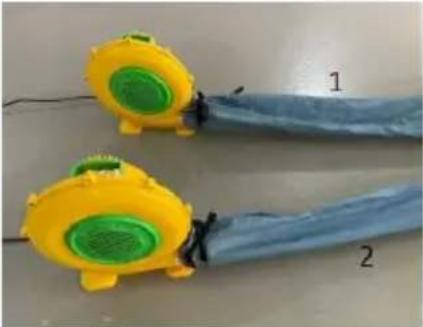

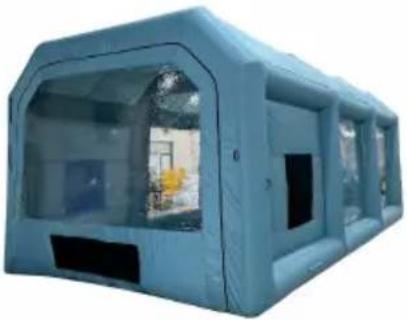

4. Tie the air tube to air blower outlet, as shown in the figure. 1 the ventilation blower; 2 is the inflation blower.	5. When the tent is inflated, please fasten the tent with stakes at the bottom metal rings.	6. When the assembly complete, please tie the windproof rope to the fixed object.

6. STORAGE INSTRUCTION

It is recommended to store the product when it is dry to avoid dampness and mildew.

It is recommended to put them in a storage bag and store them in a dry environment.

Keep away from sharp objects to avoid scratching.

After wet weather, it is recommended to air the tent on sunny days.

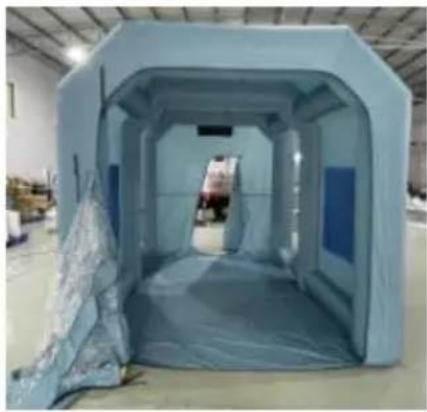

1.Unzip and open the front and back doors.	2. Turn off the air blowers and open both exhaust zipper ports.	3. Drain all air and flatten the tent as shown below.

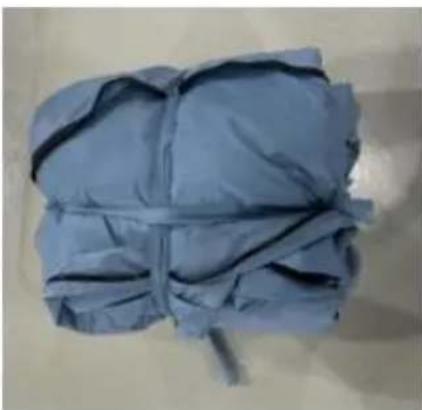

4.Roll up the tent, as shown in the figure	5. Roll up the tent with ropes.	6. Put it into a storage bag and place in dry environment.

7 Direction for Use

1) This product is only a simple tool room for painting and cannot be used in windy and rainy days. 2) The product requires the blower to keep inflating, and do not cut off power supply. 3) In case of power failure, please escape through the front door or safety or back door. 4) In case of emergency, you can cut through the tent with a knife to escape. 5) It is recommended to choose a flat and clean open ground to use this product.

6) If the tent shakes too much in the wind, please use the windproof ropes and stakes to fix the tent. 7) After repeated use, the ventilation of the tent may become poor. At this time, the inner blue filter cotton can be removed or replaced to improve the ventilation. 8) If it is difficult to inflate the tent, zip up the front and back doors, turn on the ventilation blower to inflate the tent, and then turn on the inflation blower to inflate the tent.

8. Maintenance, Repair, and Troubleshooting

1) When the product is finished, it is recommended to dry the tent and put it away. 2) If the product is stored in a humid environment, it is recommended to take it out and open it in sunny weather. 3) If the product is torn, please repair it with the accompanying material and adhesive.

Troubleshooting

problem	cause	solution
Blower does not work	·Voltage mismatch·No power supply·The blower switch is no	·Voltage need to match·Turn the power·Turn on the blower
Lack of tent pressure	·Voltage instability·The air tube is connected a wrong blower·Both exhaust ports are zipped properly	·Supply a stable voltage·Connect the air tube to the inflation blower·Zip both sides of the exha ports

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
