USER MANUAL GZYJXKF06 Vevor

Affordable. Reliable. Home Improvement.

SPRAY PAINT BOOTH

Affordable. Reliable. Home Improvement.

SPRAY PAINT BOOTH

MODEL:GZYJXKF03、GZYJXKF04、GZYJXKF06、GZYJXKF07、GZYJXKF09

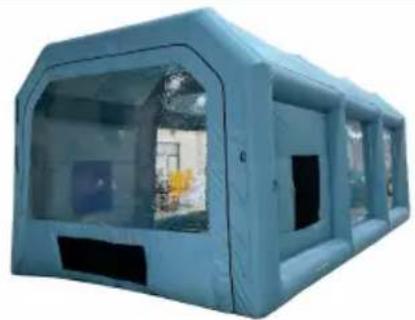

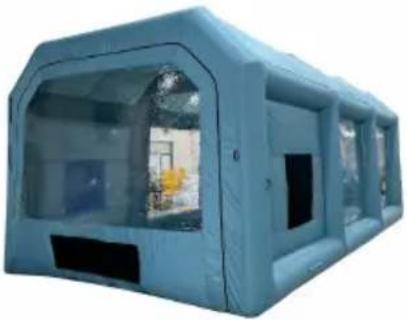

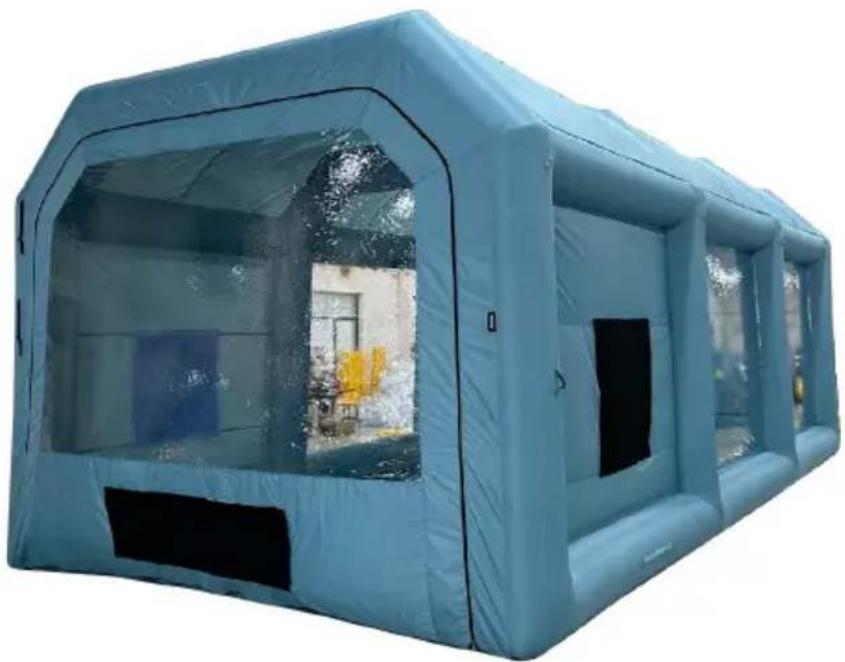

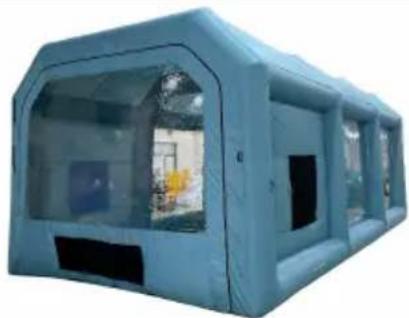

Exterior view of a light blue inflatable tent with arched windows and black panels (no text or symbols visible)

(The picture is for reference only, please refer to the actual object)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

1、Safe Instructions

WARNING:

1) Avoid using this product in rain, strong wind, hail, and other bad weather.

2) Avoid sharp points, blades, and other items to scratch the product.

3) Keep away from fire sources.

4) The air inside the tent is scarce, so good ventilation must be ensured with painting inside the tent.

5) Due to the large size of this product, installation requires 2 to 4 people assist.

CAUTION: Carefully read instructions and procedures for safe operations

2、PRODUCT INTRODUCTION

ModelSPEC.	GZYJXKF03(3X2.5X2.5)	GZYJXKF04(4X3X2.75)	GZYJXKF06(6.4X4.1X3)	GZYJXKF07(7X4X2.75)	GZYJXKF09(9X4.8X3.6)
Size	10*8.5*8.5ft	13*10*9ft	21*13.5*10ft	23*13*9ft	30*16*12ft
Material	210D Oxford-fabric	210D Oxford-fabric	210D Oxford-fabric	210D Oxford-fabric	210D Oxford-fabric
Color	Blue	Blue	Blue	Blue	Blue
Input voltage	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~60Hz(USA)220-240V~50Hz(EUR/GB/AUS)	120V~ 60Hz(USA)220-240V~50Hz(EUR/GB/AUS)
Inflation blower power	550W	750W	1100W	750W	950W
Ventilation blower power	/	/	/	480W(USA)	750W(USA)
	/	/	/	550W(EUR/GB/AUS)	750W(EUR/GB/AUS)

3、PACKAGE CONTENT

model Parts	GZYJXKF03 (3X2.5X2.5)	GZYJXKF04 (4X3X2.75)	GZYJXKF06 (6.4X4.1X3)	GZYJXKF07 (7X4X2.75)	GZYJXKF09 (9X4.8X3.6)
Spray paint booth	×1	×1	×1	×1	×1
inflation blower	×1	×1	×1	×1	×1
Ventilation blower	/	/	/	×1	×1
Storage bag	×1	×1	×1	×1	×1
Sand bags	×4	×4	×4	×4	×4
Stakes	×4	×4	×4	×4	×4
Ropes	×4	×4	×4	×4	×4
Pack of repair patches	×1	×1	×1	×1	×1

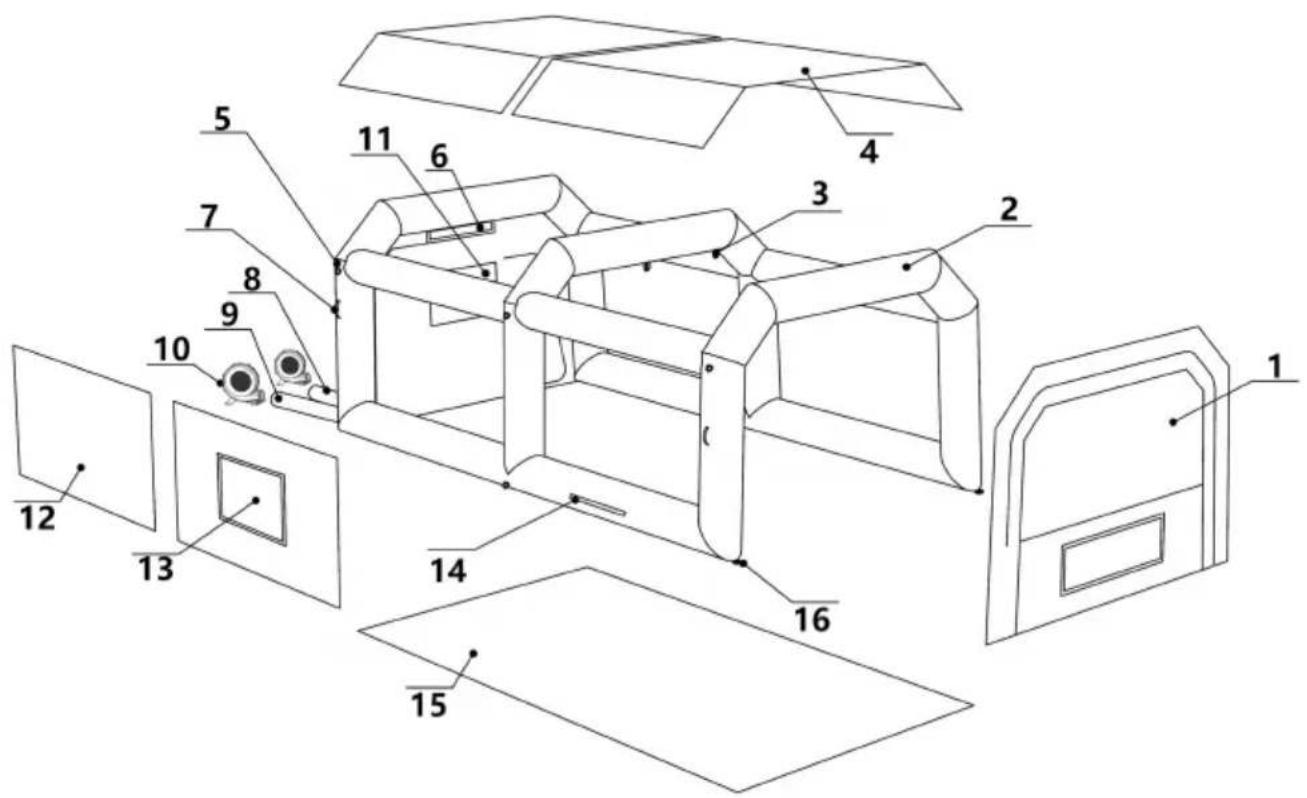

4.PRODUCT DIAGRAM

Technical diagram of a mechanical assembly with numbered components for identification

1. Front Door 2. Air Column
2. Light Hook 4. Ceiling
3. Rope Ring 6. Activated Carbon Filter Cotton
4. Handle 8. Ventilating Tube
5. Air Column Filling Tube 10. Air Blower
6. Transparent Window 12. Transparent Window
7. Double Filter Cotton 14. Exhaust Zipper Port
8. Bottom 16. Metal Ring

5.INSTALLATION INSTRUCTION

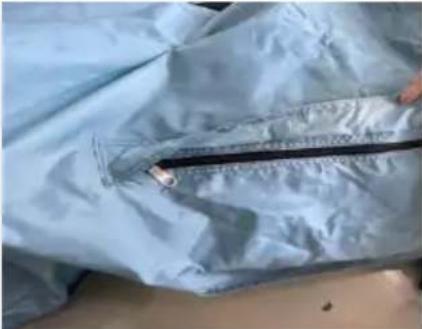

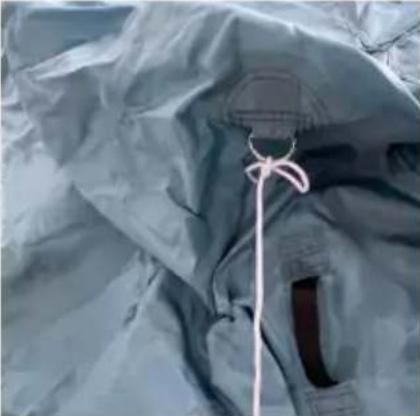

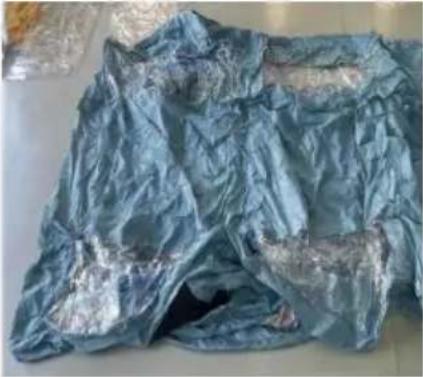

1.Unfold the tent and spread it out on a cl and level ground.	2.Zip up both sides of product.	3. Tie the rope to the ring.

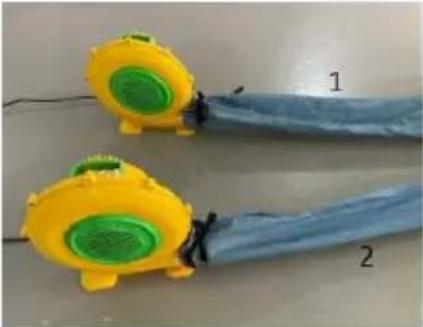

4. Tie the air tube to air blower outlet, as shown in the figure. 1 the ventilation blower; 2 is the inflation blower.	5. When the tent is inflated, please fasten the tent with stakes at the bottom metal rings.	6. When the assembly complete, please tie the windproof rope to the fixed object.

6、Storage Instruction

It is recommended to store the product when it is dry to avoid dampness a mildew.

It is recommended to put them in a storage bag and store them in a dry environment.

Keep away from sharp objects to avoid scratching.

After wet weather, it is recommended to air the tent on sunny days.

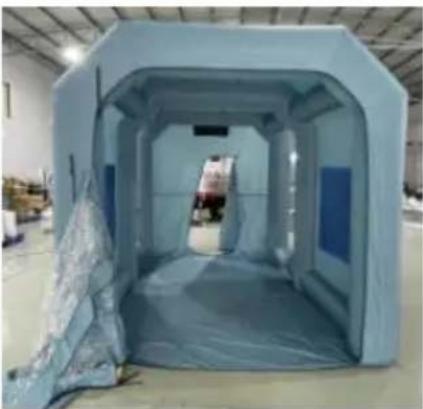

1.Unzip and open the front and back doors.	2. Turn off the air blowers and open both exhaust zipper ports.	3. Drain all air and flatten the tent as shown below.

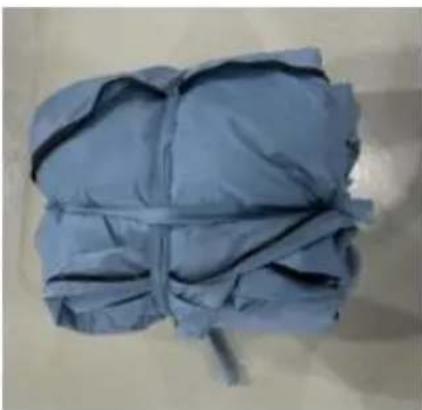

4.Roll up the tent, as shown in the figure	5. Roll up the tent with ropes.	6. Put it into a storage bag and place in dry environment.

7 Direction for Use

1) This product is only a simple tool room for painting and can not be used, windy and rainy days.
2) The product requires the blower to keep inflating, and do not to cut off power supply.
3) In case of power failure, please escape through the front door or safety or back door.
4) In case of emergency, you can cut through the tent with a knife to escape
5) It is recommended to choose a flat and clean open ground to use this p

6) If the tent shakes too much in the wind, please use the windproof ropes stakes to fix the tent.
7) After repeated use, the ventilation of the tent may become poor. At this time, the inner blue filter cotton can be removed or replaced to improve the ventilator.
8) If it is difficult to inflate the tent, zip up the front and back doors, turn Ventilation blower to inflate the tent, and then turn on the Inflation blower to inflate the tent.

8. Maintenance, Repair, and Troubleshooting

1) When the product is finished, it is recommended to dry the tent and put
2) If the product is stored in a humid environment, it is recommended to talk to open it in sunny weathers.
3) If the product is torn, please repair it with the accompanying material and

Troubleshooting

problem	cause	solution
Blower does not work	·Voltage mismatch·No power supply·The blower switch is no	·Voltage need to match·Turn the power·Turn on the blower
Lack of tent pressure	·Voltage instability·The air tube is connected a wrong blower·Both exhaust ports are zipped properly	·Supply a stable voltage·Connect the air tube to the inflation blower·Zip both sides of the exha ports
