USER MANUAL HT-6V Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC BAIN MARIE

MODEL:HT-6V, HT-4V

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC BAIN MARIE

MODEL:HT-6V, HT-4V

Exterior view of a four-tiered industrial battery pack with ports and control buttons (no visible text or symbols)

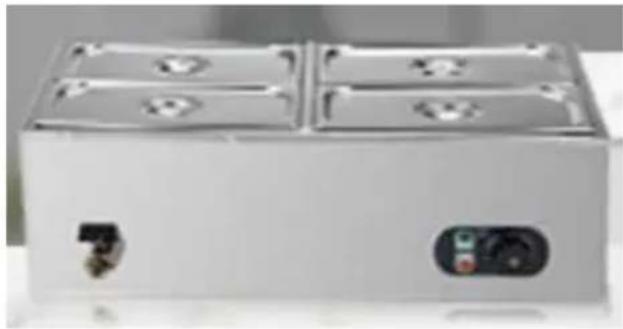

Exterior view of a white rectangular electronic device with four recessed panels and a small connector (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

ELECTRICAL SAFETY

a) The plug must fit the socket. Do not modify the plug in any way, original plugs and matching sockets reduces the risk of electric shock. b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earther device is exposed to rain, comes into direct contact with a wet surface operating in a damp environment.

Water getting into the device increases the risk of damage to the de and of electric shock.

c) Use the cable only for its designated use. Never use it to carry device or to pull the plug out of a socket. Keep the cable away from sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

d) If working with the device outdoors, make sure to use an extension suitable for outdoor use. Using an extension cord suitable for outdoor reduces the risk of electric shock.

e) If using the device in a damp environment cannot be avoided, a current device (RCD) should be applied. The use of an RCD reduces risk of electric shock.

f) Do not use the device if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qual

electrician or the manufacturer's service centre.

g) To avoid electric shock, do not immerse the cord, plug or device or other liquids. Do not use the device on wet surfaces.

h) Do not use in very humid environments or in the direct vicinity of water tanks.

SAFETY IN THE WORKPLACE

a) Make sure the workplace is clean and well lit.

b) If there are any doubts as to the correct operation of the device, the manufacturer's support service.

c) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!

d) In case of fire, use a powder or carbon dioxide (CO2) fire extir (one intended for use on live electrical devices) to put it out.

e) Children or unauthorised persons are forbidden to enter a work sta Regularly inspect the condition of the safety labels. If the labels are they must be replaced.

f) Please keep this manual available for future reference. If this device passed on to a third party, the manual must be passed on with it.

g) Keep packaging elements and small assembly parts in a place not available to children.

h) Keep the device away from children and animals.

i) If this device is used together with another equipment, the remainir instructions for use shall also be followed.

PLEASE NOTE! When using the device, protect children and other bystanders.

PERSONAL SAFETY

a) Do not use the device when tired, ill or under the influence of a narcotics or medication which can significantly impair the ability to open the device.

b) The device is not designed to be handled by persons (including with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to injuries.
e) To prevent the device from accidentally switching on, make sure tl switch is on the OFF position before connecting to a power source.
f) The device is not a toy. Children must be supervised to ensure that do not play with the device.
g) Do not put your hands or other items inside the device while it is

SAFE DEVICE USE

a) Do not use the device if the ON/OFF switch does not function pr (does not switch the device on and off). Devices which cannot be sw on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and not familiar with the device who have not read the user manual. The may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Keep the device out the reach of children.
e) Device repair or maintenance should be carried out by qualified people only using original spare parts. This will ensure safe use.
f) To ensure the operational integrity of the device, do not remove

factory-fitted guards and do not loosen any screws.

g) Do not move, adjust or rotate the device in the course of work. h) Clean the device regularly to prevent stubborn grime from accumul i) The device is not a toy. Cleaning and maintenance may not be co out by children without supervision by an adult person.

j) It is forbidden to interfere with the structure of the device in order change its parameters or construction.

k) Keep the device away from sources of fire and heat.

I) Take care not to get burns by the steam when

INSTALLATION

A) The machine must be positioned on a flat and stable surface. Ma the appliance is level, it may operate less effectively if not level.

B) Choose a surface where the machine is not exposed to direct su or close to a direct source of heat such as a cooker, oven or radia

C) When positioning the appliance, maintain a distance of 10cm (4 in between the appliance and walls or other objects for ventilation and e of use.

D) Make sure the power cable is accessible at all times.

E) Plug the power plug into the main socket

OPERATION GUIDE

A) Place the Bain marie on a solid, level surface

B) Pour water into the water tank. Take care not to over-fill with water less than "MIN", No more than "MAX"). Remove any excess water because use, The water level should exceed the heating pipe. Dry burning is forbidden.

C) Turn the Bain marie between temperature control range 0\~80°C, T power indicator light will glow, showing that the unit is on. Turn to C unit does not work

D) Fill the reservoir with water. Keep the water level between the “m and “maximum” marker located inside the reservoir.

E) Select the desired temperature using the temperature control dial.

indicator light will illuminate.

F) Allow the appliance to reach the selected temperature. The indicator switch of when selected temperature has been reached.
G) Place your container or product inside the resevoir. ATTENTION! I use bare hands, protect your hands or use utensils.
H) Regularly check water level when operational, replenish reservoir if required. ATTENTION! Operating the machine without (adequate) water will activate the thermal safety switch and switch off the appliance.
I) Switch off the appliance when not in use. ATTENTION! The appliance and water will remain hot for a period after it has been switched off

NOTE !

If abnormal phenomena occur in the use process, the use must be immediately. After checking and troubleshooting, the use can be continued.

TROUBLESHOOTING

The follow overview will help you understand the control panel and possible problems. However, only qualified engineers should attempt to open or repair the machine.

Contact your supplier when in doubt.

Problem	Possible Cause	Possible Solution
The appliance does not work.	The appliance is switched off.The power supply is interrupted.The voltage is not correct.Unknown defect	Switch on the appliance.Check the power supply, plug in power cable.Use compatible power source.Contact supplier
The appliance is or but does not get warm (indicator illuminated).	·Temperature set to minimum.·Temperature controller is broken.·Heating element is broken.	➢Adjust Temperature setting.➢Replace part.➢Replace part.
Temperature cannot be adjusted.	·Temperature controller is broken.	➢Replace part.
The appliance is working but the indicator is not illuminated.	·Indicator is broken	➢Replace part.
Thermal safety switch activated.	·Insufficient or no water in reservoir.	➢Contact supplier.

MAINTENANCE AND CLEANING

A) Maintenance and repairs should only be done by certified engineer
B) Regularly check and clean the appliance, its parts and accessories applicable).
C) Regularly check the power plug and power cable for damage. If it is damaged do not use the appliance. Instead, have it repaired by a cell electrical engineer.
D) Always switch off and disconnect the power supply before cleaning maintenance.
E) Make sure the appliance has cooled down completely before clean or maintenance.
F) ATTENTION! Never use aggressive cleaning agents or abrasives. D not use solvents or petrol based cleaning agents. Some cleaning agent may leave harmful residues or cause damage to the machine.
G) Clean the casing and reservoir using a damp cloth and warm wa a mild food safe detergent. Always dry the appliance and accessories cleaning using a soft cloth. The Stainless Steel Gastronorm containers supplied) are dishwasher safe.

H) ATTENTION! Do not use any scourer and sharp or pointed object during cleaning, this may cause damage to the machine.

I) ATTENTION! Never hose down the machine or immerse it in water any other liquid, instead wipe the exterior with a damp cloth. Do not steamer to clean the appliance

J) ATTENTION! Never let the power cable or power plug get wet or

STORAGE

A) Make sure the appliance is cleaned properly before storage.

B) Coil up the power cord and put it away. Store in a cool and dr

DISCARDING

When discarding the appliance, do so in compliance with the rules and regulations of local authorities.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support
