CAKE DECORATING COATING MACHINE USER MANUAL

MODEL: HBLSMMJ-0412 HBLSMMJ-0614 HBLSMMJ-0416

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

Cake Decorating Coating Machine

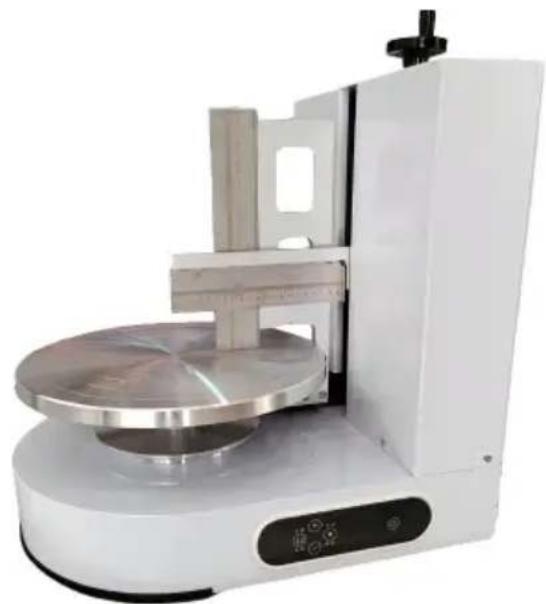

MODEL: HBLSMMJ-0412 HBLSMMJ-0614 HBLSMMJ-0416

White laboratory instrument with metallic components and control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

IMPORTANT SAFETY INFORMATION

When using electrical appliances, basic safety precautions should followed, including the following.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

1. This equipment is only applicable to Make a cake and cannot be to other purposes. Do not use the equipment brutally.
2. The equipment shall be placed on a cool, ventilated, dry, dust-proof level table.
3. Users must wire and install according to electricity safety standards.
4. Do not change the rotation direction when the motor is running. To change the rotation direction, stop it first, and start it after the motor completely stops rotating.
5. Please use a towel or sponge to clean the machine body, and do a lot of water to wash it to avoid water immersion in the motor, sw bearing, and other parts, causing failure.

6. When repairing or replacing parts, the switch must be cut off and the power supply must be unplugged.

7. Children should use this equipment with adults(Note: This appliance should be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision).

8. Periodically check whether the power cable is damaged and the connector is loose.
9. Press button on the leakage protector once a month to check when the leakage protection can work normally!
10. If the supply cord is damaged, it must be replaced by the manu its service agent or similarly qualified persons in order to avoid a ha
11. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.
12. WARNING! It is strictly prohibited to put the main body of the m and the power cord into any liquid. The machine must be fully cool cleaning.
13. Do not place the product directly on the fire or near the source otherwise the product will be damaged or even result in danger. Once of the product is on fire, do not directly use water to extinguish the a wet cloth to cover the fire site.
14. When the plug is plugged into the socket, it must be plugged to otherwise it will cause the components overheating and burning due to poor contact.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	HBLSMMJ-0412	HBLSMMJ-0614	HBLSMMJ-0416
Suitable cake size	4-12 inch	6-14 inch	4-16 inch
Voltage	AC 90-240V~50/60Hz	AC 90-240V~50/60Hz	AC 90-240V~50/60Hz
Power	200W	200W	200W
Max Speed	320r/min	320r/min	320r/min

IDENTIFICATION OF KEY PARTS

Labeled diagram of a laboratory instrument with numbered parts for identification

6 6A TEST LIGHT 6B 6C 125V 10mA Ian:10mA 100Ω TEST BEFORE EACH

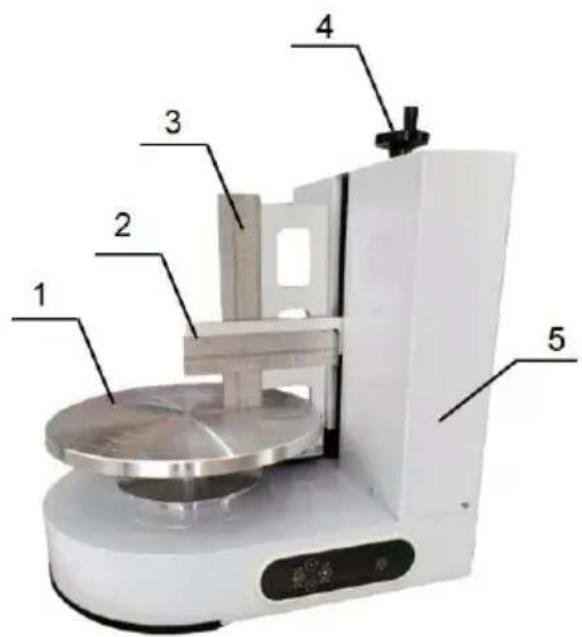

1.turntable 2.Horizontal knives 3.Vertical knives
4. Rotating Handle 5. Body 6. Leakage protector

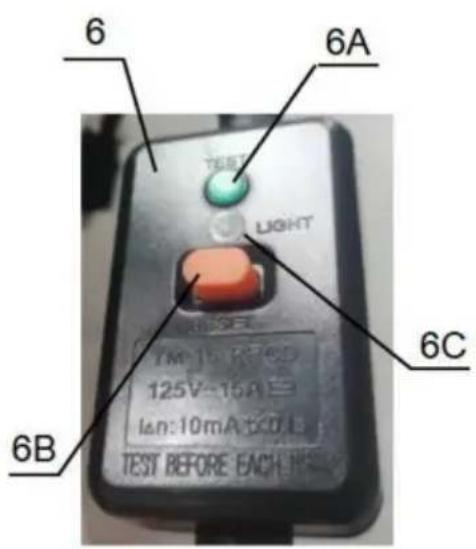

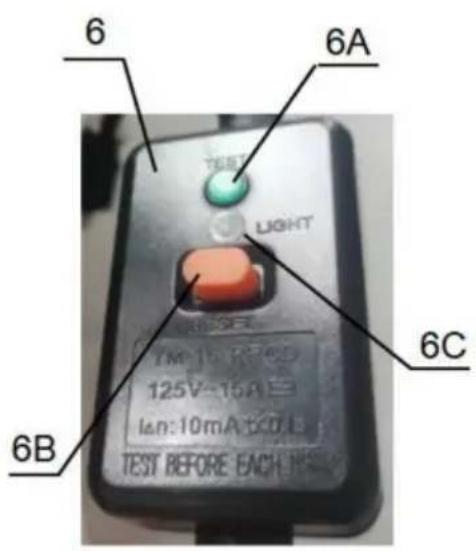

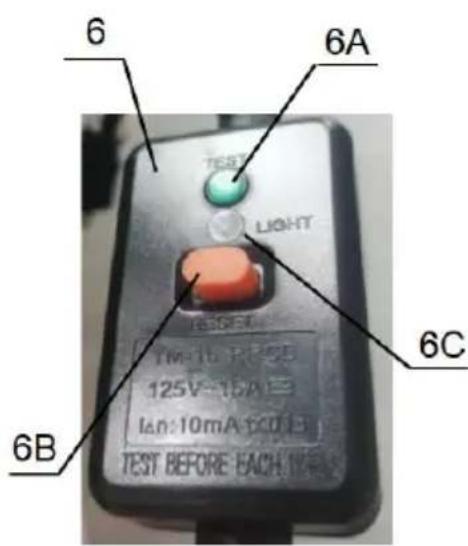

6A:Test button

(Press once a month. It is normal if the indicator goes off after you

6B:Reset button

(If the power is off, please first remove the leakage danger, and then this key to restore the power.)

6C:Indicator light(Power on when the light is on)

Installation guide

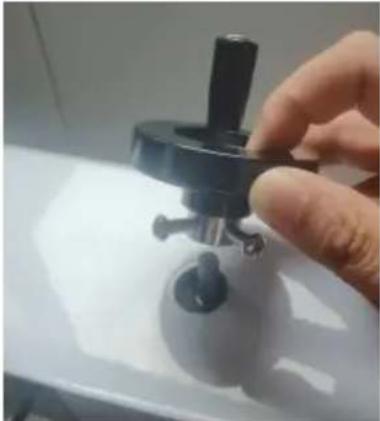

Assemble the rotating handle

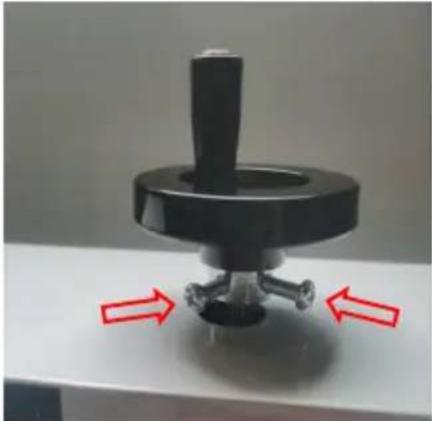

1.Remove the rotating handle from the package;	2.Insert the rotating handle into the corresponding rod at the top of the machi	3.Use the screwdrive to lock the screws.

Operation Instructions

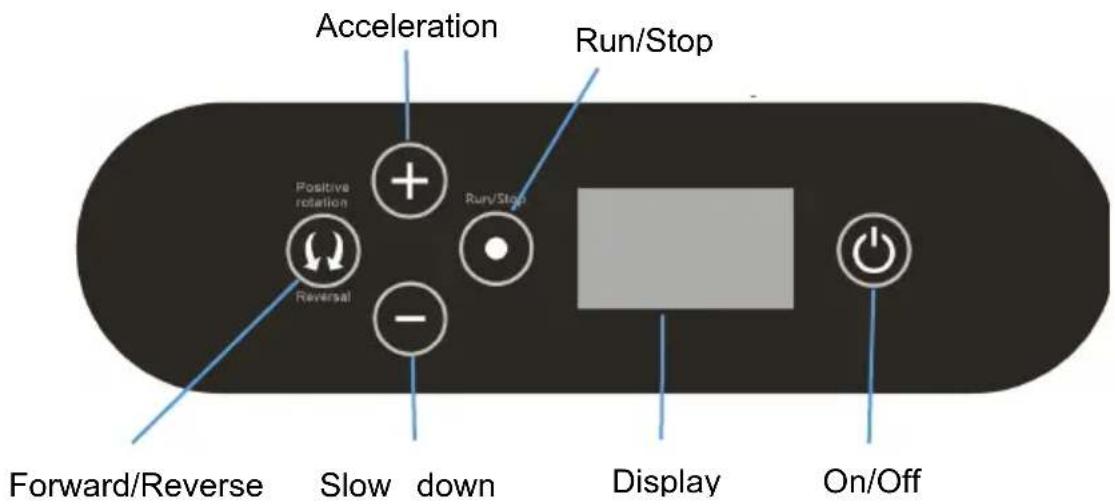

Acceleration Run/Stop Positive rotation Reversal Run/Stop Forward/Reverse Slow down Display On/Off

·Power Supply: connect to AC 90-240V power.
·Power ON/OFF: press to switch ON/OFF.

·Speed Setting: press + or for Speed setting, Short press the speed to increase or decrease 5 turns each time, The long press speed cont to increase or decrease. (The recommended speed is 60-120 RPM)

- Run/Stop: During the operation of the machine, press to stop, Press

again to run, then press or for Speed setting.

-Forward/Reverse: press adjust forward or reverse.

Operation instruction:

1. Place the cake in the center of the turntable;
2. Adjust the horizontal and vertical knives to their proper positions;
3. Adjust the turntable speed 60-120 r/min. Use a piping bag to spread cream sides from bottom to top, Spread the top evenly from the center outward;
4. Clean horizontal knives and vertical knives. Cream on top;
5. Adjust rotating handle and bring the cake in at a right Angle;
6. Remove the vertical knife and remove the horizontal knife(note:Move vertical knife first);

Note:1. Please place the cake in the center of the turntable, otherwise cream will not spread evenly and the cake will fall.

1. To make a cake larger than 12 inches, you need to place a base HBLSMMJ-0614)

CLEAN AND CARE RULES

1. After finishing the equipment operation, it is necessary to clean the on the surface of the turntable and wipe the water stains on the suit the turntable (Do not rinse directly with water).
2. Check the parts regularly for looseness.
3. If you use it sparingly, run it at least once a month.

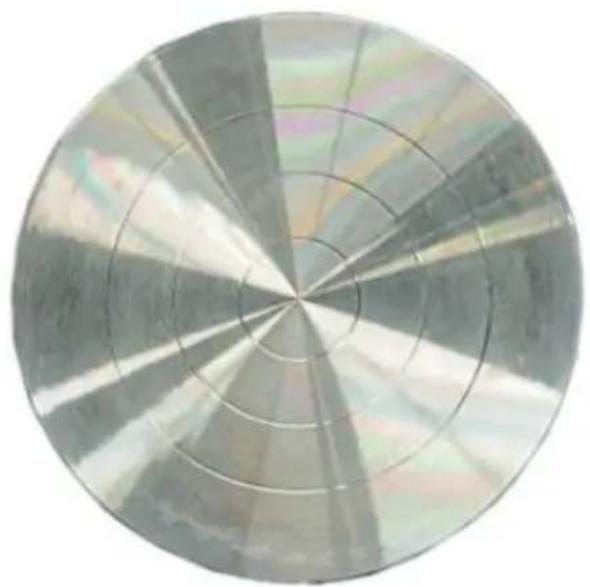

Circular metallic object with radial gradient and concentric rings, no visible text or symbols

Circular metallic object with concentric rings, possibly a container or disc (no visible text or symbols)

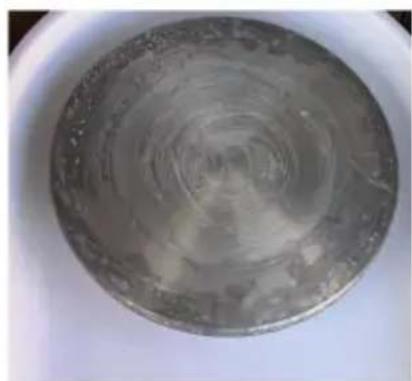

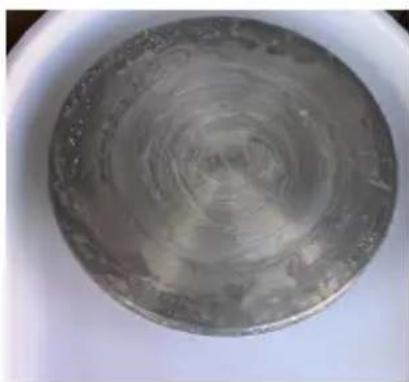

If not cleaned in time, the turntable will oxidize as show

NOTE: After the work, please clean the sludge on the turntable and in time, wipe it with a dry towel to avoid oxidation on the surface c

Troubleshooting methods

Problem	Reason	Solution
Does not work.	The power supply not connected.	1.Check whether the power plug is properly inserted.2.Check whether the leakage protector is on.
Shaking of the machine	The machine is no level with the ground.	Adjust the four feet of machine so that the machine is level with the ground.
The turntable jumps too much.	The fastener is loose.	Check whether the fastener is loose. If not, ask a professional to debug it.

Packing List

No.	Item	Qty	Remark
1	Machine	1 set
2	Rotating handle	1 set
3	Pastry bag	100 pcs
4	Pastry tube	6 pcs
5	Pastry tube connector	1 pcs
6	Screwdriver	1 pcs
7	Manual	1 pcs
