Product Type	Cake Decorating Machine
Brand	Vevor
Model	HBLSMMJ-0416
Suitable Cake Size	4 to 16 inches
Power Supply	AC 90-240 V, 50/60 Hz
Power	200 W
Maximum Speed	320 rpm
Recommended Speed	60 to 120 rpm
Dimensions (approx.)	35 × 30 × 30 cm
Weight (approx.)	4.5 kg
Main Functions	Plate rotation, speed adjustment, forward/reverse direction, horizontal and vertical knives
Maintenance and Cleaning	Wipe with a dry cloth; do not rinse with water; clean the plate after each use
Safety	Leakage protection (test and reset button); automatic shutdown in case of fault
Package Contents	Machine, rotating handle, 100 piping bags, 6 tubes, 1 connector, 1 screwdriver, manual
Repairability and Spare Parts	Parts available on request; repair by qualified personnel only
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - HBLSMMJ-0416 Vevor

What is the maximum cake size the machine can decorate?

The HBLSMMJ-0416 model can decorate cakes from 4 to 16 inches (10 to 40 cm). For cakes over 12 inches, it is recommended to use an additional base.

How to adjust the speed of the rotating plate?

Use the + and - buttons on the control panel. The recommended speed is 60 to 120 rpm. Press briefly for 5 rpm adjustments, or hold for continuous change.

Can I use the machine with sponge cakes or other desserts?

The machine is designed only for decorating traditional cakes. Do not use it for other purposes to avoid damage.

How to clean the machine after use?

Unplug the device and let it cool completely. Wipe the rotating plate and knives with a damp cloth, then dry immediately. Never immerse the machine body in water.

Is the machine suitable for children?

Children over 8 years can use it under adult supervision. Cleaning and maintenance should not be performed by children without supervision.

What to do if the machine does not start?

First check that the plug is properly connected and the leakage protection breaker is on. If the protection indicator is off, press the reset button after eliminating any leakage hazard.

How to reverse the rotation direction of the plate?

Use the forward/reverse button. Important: always stop the motor before changing the rotation direction, and wait until the plate is completely stationary.

What accessories are included with the machine?

The machine comes with a rotating handle, 100 piping bags, 6 pastry tubes, a tube connector, a screwdriver, and a user manual.

How to maintain the leakage protection?

Press the test button once a month to check its proper operation. The indicator should turn off. If not, contact technical support.

Where can I find spare parts or technical support?

Visit www.vevor.com/support to obtain the electronic warranty certificate and contact technical support. Repairs must be carried out by a qualified professional.

USER MANUAL HBLSMMJ-0416 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CAKE DECORATING COATING MACHINE USER MANUAL

MODEL: HBLSMMJ-0412 HBLSMMJ-0614 HBLSMMJ-0416

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

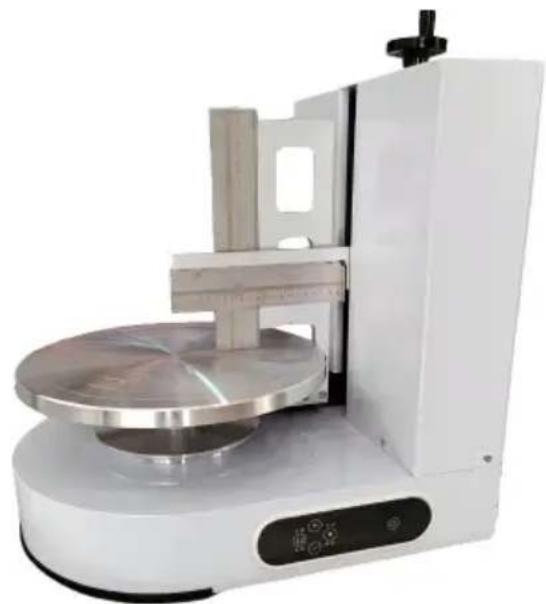

Cake Decorating Coating Machine

MODEL: HBLSMMJ-0412 HBLSMMJ-0614 HBLSMMJ-0416

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

IMPORTANT SAFETY INFORMATION

When using electrical appliances, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

1. This equipment is only applicable to making a cake and cannot be used for other purposes. Do not use the equipment brutally.
2. The equipment shall be placed on a cool, ventilated, dry, dust-proof level table.
3. Users must wire and install according to electricity safety standards.
4. Do not change the rotation direction when the motor is running. To change the rotation direction, stop it first, and start it after the motor completely stops rotating.
5. Please use a towel or sponge to clean the machine body, and do not use a lot of water to wash it to avoid water immersion in the motor, sw bearing, and other parts, causing failure.
6. When repairing or replacing parts, the switch must be cut off and the power supply must be unplugged.
7. Children should use this equipment with adults (Note: This appliance should be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision).
8. Periodically check whether the power cable is damaged and the connector is loose.
9. Press button on the leakage protector once a month to check when the leakage protection can work normally!
10. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
11. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.
12. WARNING! It is strictly prohibited to put the main body of the machine and the power cord into any liquid. The machine must be fully cool before cleaning.
13. Do not place the product directly on the fire or near the source of fire, otherwise the product will be damaged or even result in danger. Once the product is on fire, do not directly use water to extinguish the fire, use a wet cloth to cover the fire site.
14. When the plug is plugged into the socket, it must be plugged in properly, otherwise it will cause the components overheating and burning due to poor contact.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	HBLSMMJ-0412	HBLSMMJ-0614	HBLSMMJ-0416
Suitable cake size	4-12 inch	6-14 inch	4-16 inch
Voltage	AC 90-240V~50/60Hz	AC 90-240V~50/60Hz	AC 90-240V~50/60Hz
Power	200W	200W	200W
Max Speed	320r/min	320r/min	320r/min

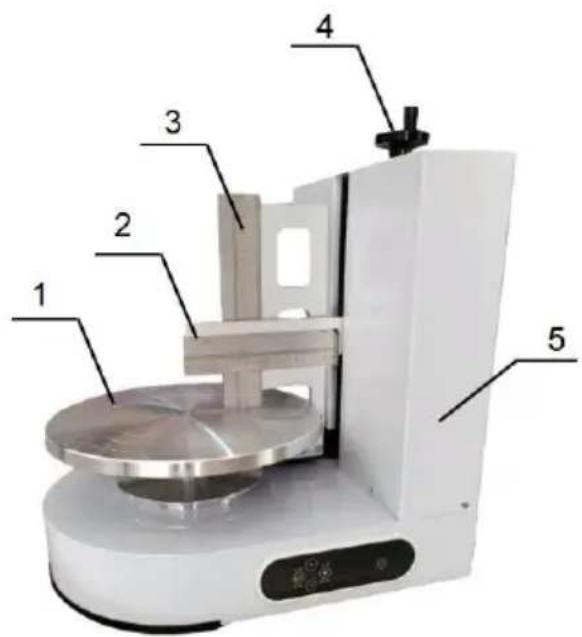

IDENTIFICATION OF KEY PARTS

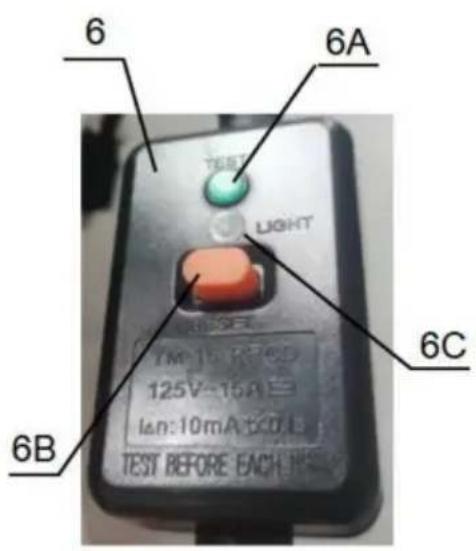

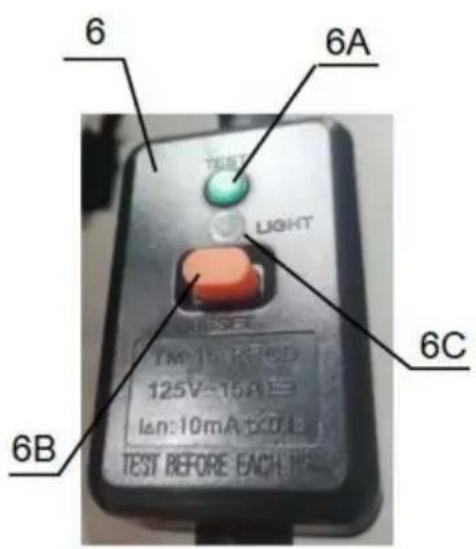

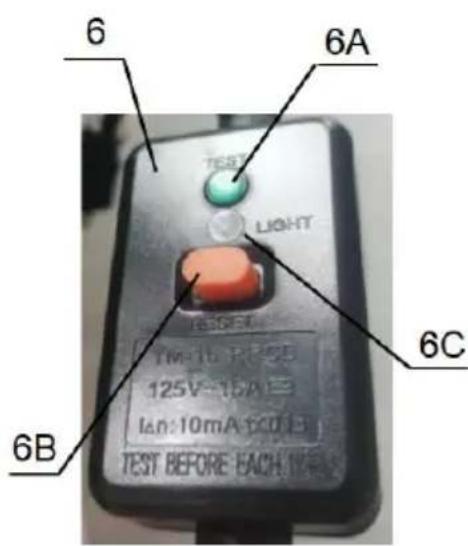

1. Turntable 2. Horizontal knives 3. Vertical knives 4. Rotating handle 5. Body 6. Leakage protector

6A: Test button

(Press once a month. It is normal if the indicator goes off after you press it.)

6B: Reset button

(If the power is off, first remove the leakage danger, then press this key to restore the power.)

6C: Indicator light (Power is on when the light is on)

Installation guide

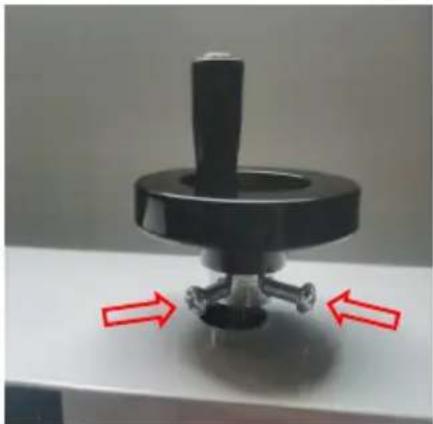

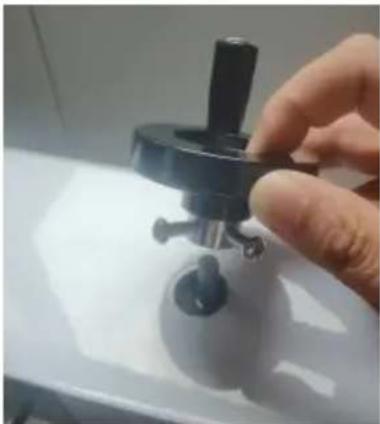

Assemble the rotating handle

1.Remove the rotating handle from the package;	2.Insert the rotating handle into the corresponding rod at the top of the machi	3.Use the screwdrive to lock the screws.

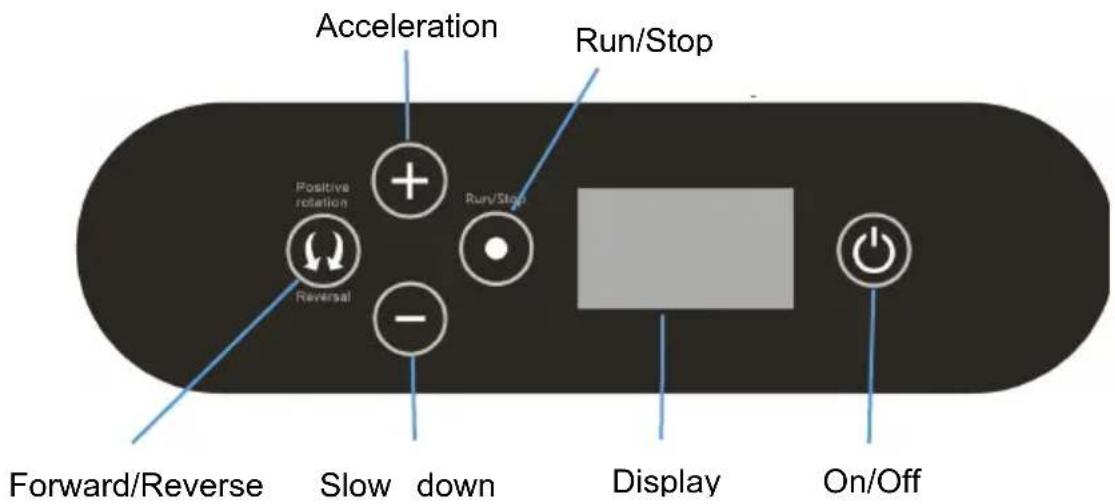

Operation Instructions

· Power Supply: connect to AC 90-240V power. · Power ON/OFF: press to switch ON/OFF.

· Speed Setting: press + or - for speed setting. Short press the speed to increase or decrease 5 turns each time. Long press the speed to continuously increase or decrease. (The recommended speed is 60-120 RPM)

- Run/Stop: During the operation of the machine, press to stop. Press again to run.

Press again to run, then press or for Speed setting.

-Forward/Reverse: press to adjust forward or reverse.

Operation instruction:

1. Place the cake in the center of the turntable;
2. Adjust the horizontal and vertical knives to their proper positions;
3. Adjust the turntable speed to 60-120 r/min. Use a piping bag to spread cream on the sides from bottom to top, and spread the top evenly from the center outward;
4. Clean the horizontal and vertical knives. Apply cream on top;
5. Adjust the rotating handle and bring the cake in at a right angle;
6. Remove the vertical knife first, then remove the horizontal knife (note: move the vertical knife first);

Note: 1. Please place the cake in the center of the turntable, otherwise the cream will not spread evenly and the cake may fall.

1. To make a cake larger than 12 inches, you need to place a base (HBLSMMJ-0614).

CLEANING AND CARE RULES

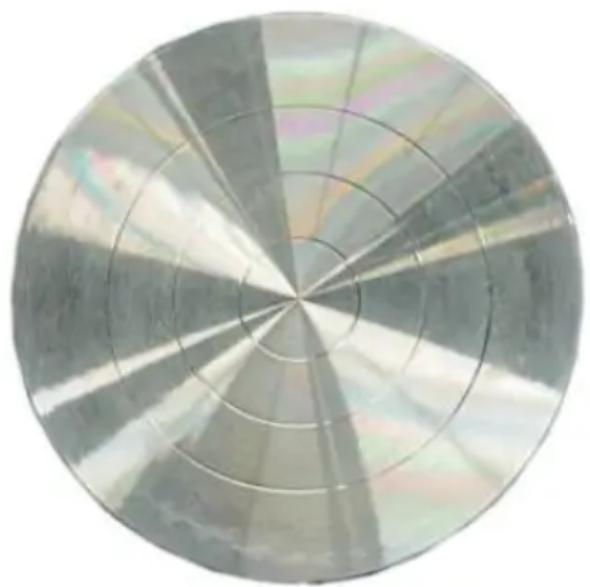

1. After finishing the equipment operation, it is necessary to clean the surface of the turntable and wipe off water stains on the turntable (do not rinse directly with water).
2. Check the parts regularly for looseness.
3. If you use it sparingly, run it at least once a month.

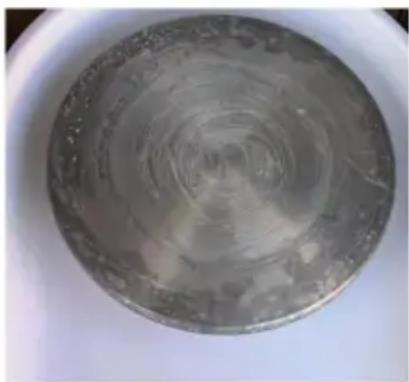

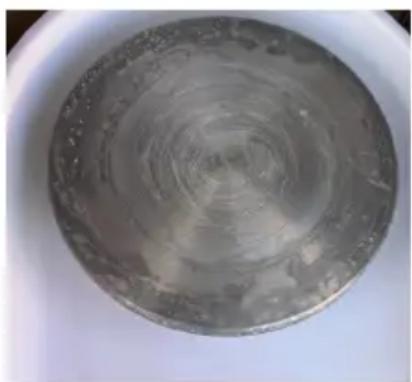

If not cleaned in time, the turntable will oxidize as shown.

NOTE: After the work, please clean the sludge on the turntable and in time, wipe it with a dry towel to avoid oxidation on the surface.

Troubleshooting methods

Problem	Reason	Solution
Does not work.	The power supply not connected.	1.Check whether the power plug is properly inserted.2.Check whether the leakage protector is on.
Shaking of the machine	The machine is no level with the ground.	Adjust the four feet of the machine so that the machine is level with the ground.
The turntable jumps too much.	The fastener is loose.	Check whether the fastener is loose. If not, ask a professional to debug it.

Packing List

No.	Item	Qty	Remark
1	Machine	1 set
2	Rotating handle	1 set
3	Pastry bag	100 pcs
4	Pastry tube	6 pcs
5	Pastry tube connector	1 pcs
6	Screwdriver	1 pcs
7	Manual	1 pcs
