USER MANUAL HS-DY1 Vevor
Affordable. Reliable. Home Improvement.
3D PRINTED ORGANIZER
MODEL: HS-DY1
VEVOR
Affordable. Reliable. Home Improvement.
3D PRINTED
ORGANIZER
MODEL: HS-DY1


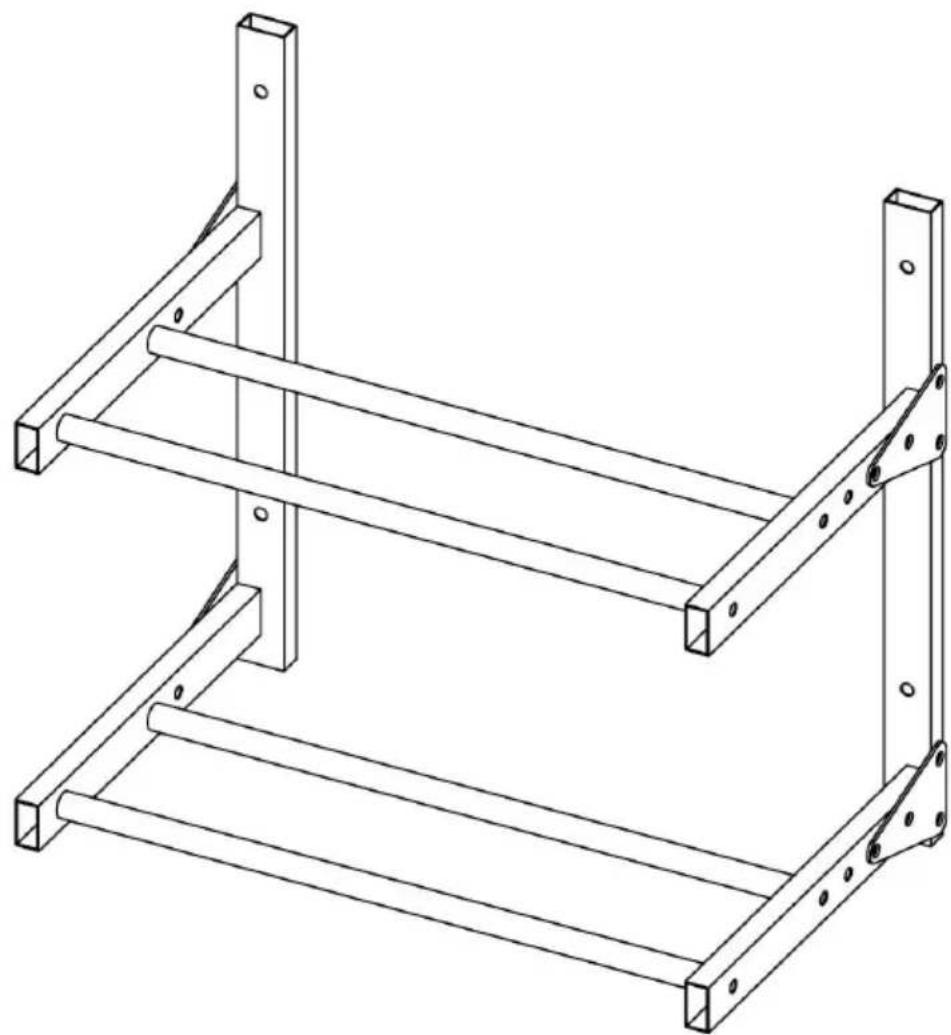

Technical line drawing of a metal frame structure with mounting brackets and mounting holes (no text or symbols)This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user may make the appearance of the product shall be subject to the product you need. Please forgive us that we won't inform you again if there are any technical or software updates on our product.
WARNING:

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal inj
or damage to valuable property.
- Adhere to all assembly requirements when using this product.
- Use common sense when working. Stay alert and concentrate whe setting up and using this product. Never work while under the influen alcohol, drugs or medications.
- While assembling and using this product, keep the work area clean well-lighted. Keep spectators and children out of the work area.
- Dress appropriately. Never wear loose-fitting clothing or jewelry when working. Contain long hair, and keep hair, clothing and gloves away in moving parts.
- Always keep this stand away from children.
- Check the stand is in good condition before using it.
ASSEMBLY PARTS LIST
| Number | Description | Qty |
| A | Pole I | 2 |
| B | Pole II ![]() | 4 |
| C | triangle ![]() | 4 |
| D | Pole III | ![]() | 4 |
| E | Screw M6*16 | ![]() | 16 |
| F | Screw M6*30 | ![]() | 8 |
| G1 | Self-Tapping Screw | ![]() | 4 |
| G2 | Expansion Sleeve | ![]() | 4 |
| H | Expansion Sleeve | ![]() | 8 |
| I | Wrench | ![]() | 1 |
Note: During installation, do not tighten the screws until all parts installed.


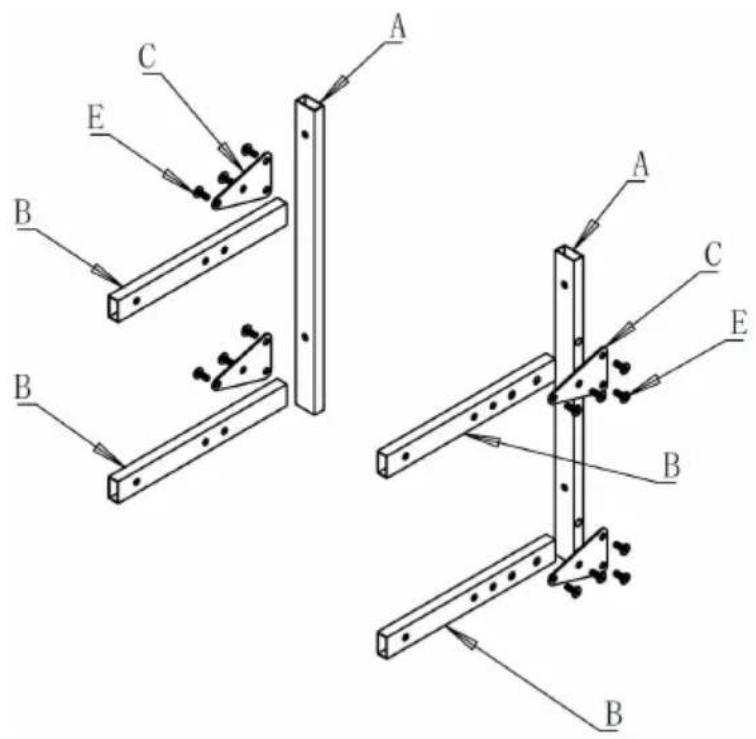

Technical diagram showing two mechanical assembly configurations labeled A and B, with components C, E, and B marked.Step1: Assemble parts “A” and “B” together by using part “C” and screw “E”, as shown above.


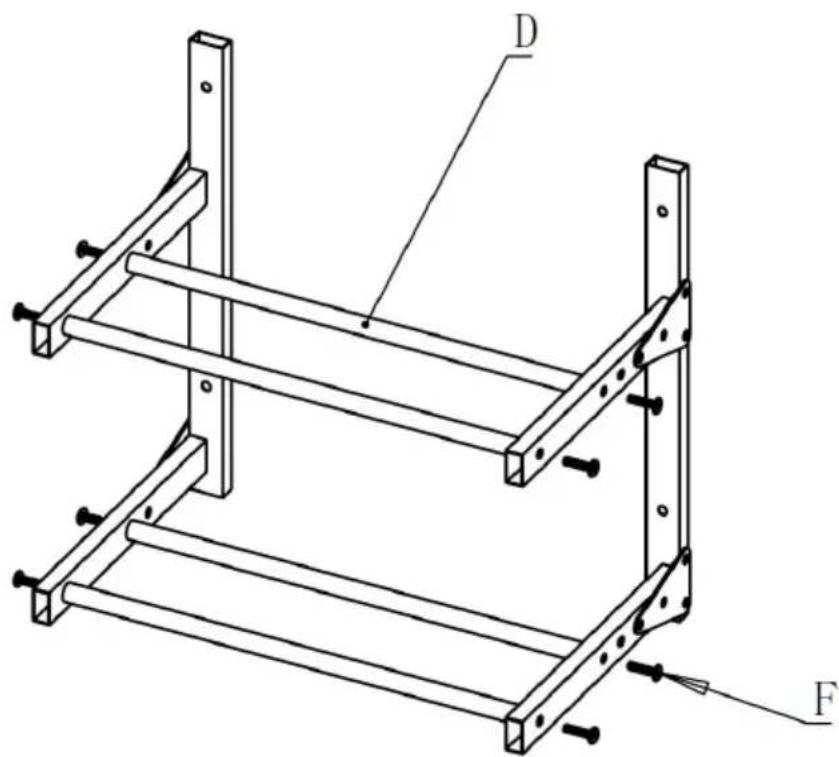

D FStep2: Connect part "B" and part "D" with screw "F". Then use the wrench "I" to tighten all the screws, as shown above.


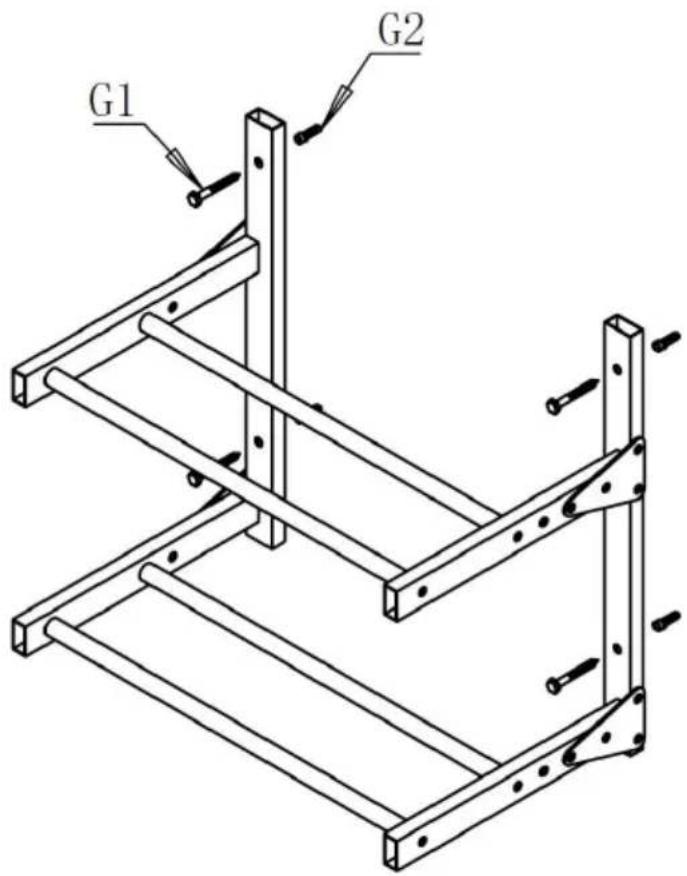

G1 G2Step3: Fix the installed shelf to the wall by using self-tapping screws “G1” and expansion sleeves “G2” as shown in the above figure.
Note: Part "H" has been installed on parts "A" and "B".
PARAMETER
| MODEL | HS-DY1 |
| Product Size | 445*290*425 mm |
| Number Of Plies | 2 |
| Colour | Black |
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>
| EC | REP |
