USER MANUAL GNR1314L2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL REFRIGERATOR

MODEL: GNR730L1/GNF730L1/GNR1314L2/GNF1314L2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared major top brands and doses not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when you are placing an order v are actually saving half in comparison with the top major brands.

MODEL: GNR730L1/GNF730L1/GNR1314L2/GNF1314L2

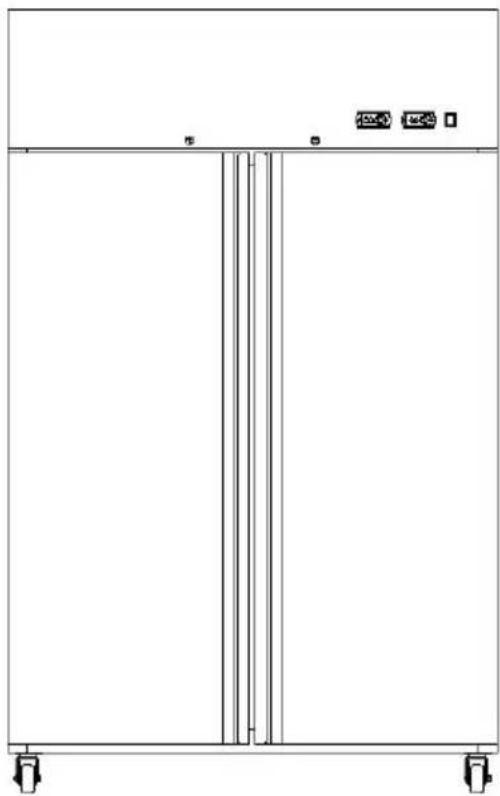

Front view of a vertical control panel with mounting feet and control buttons (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic but must be taken to a collection point for recycling and electronic devices

Welcome and thank you to buy refrigerator of our company! In order, make sure you can use our product correctly, please read this manual carefully before you use the refrigerator.

Contents

1. Products Specifications
2. Safety Instructions
3. Environment For Installation
4. Product Brief
5. Preparation Before Usage
6. Clean
7. Notice during usage
8. Maintenance

Product Specifications

Model	Rated Voltage (V)	Freq (Hz)	Refrigerant	Dimension (L×D×H mm)	Net Valume (L)
GNR730 L1	220-240	50	R290	730*850*2110	570
GNF730 L1	220-240	50	R290	730*850*2110	570
GNR1314L2	220-240	50	R290	1314*850*2110	1100
GNF1314L2	220-240	50	R290	1314*850*2110	1100

Above specifications are tested under ambient temperature 32

Safety Instructions

Warning-To reduce the risk of injury, user must re instructions manual carefully.

1. Electrical safety

-You must use a dedicated outlet that is properly grounded.

-Power plug should be connected tightly to the outlet..

-If the power cord or plug is damaged, have it immediately replaced qualified technician..

-Do not insert or remove the power plug if there is any indication of flammable gases present.

-Do not constantly cycle the power button. This can lead to electric s or a short circuit of the unit.

-This appliance is not intended for use by persons (including children) reduced physical, sensory or mental capabilities, or lack of experience knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their saf

-Children should be supervised to ensure that they do not play with appliance.

2. Other

-Do not store flammable, explosive or corrosive items in the unit.

-Do not store items on the top of the unit.

-Do not expose the unit to water or place in a wet location.

-Be careful not to touch hot surfaces when cleaning the condenser.

-Please unplug the power cord during cleaning or power interruption.

-Wait at least 5 minutes before plugging the power cord back in to possible compressor damage.

-Note: This appliance contains flammable refrigerant R290 and foaming agent cyclopentane.

Please avoid contact fire when you transport and use it.

Please ask professional for servicing when the machine broke down.

Please send it to your local appointed disposal station when you disc

-During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. risk of fire warning symbol. There are flammable materials in refrigera pipes and compressor. Please be far away fire source during using, service and disposal.

Environment for installation

1. Put on stable ground

- Refrigerator should be placed on flat and stable ground, if need block also need to choose flat, hard inflammable block. You also can rotate stainless steel leg clockwise or counter clockwise to increase or decrease the height of the refrigerator.

2. Keep far away from hot source

- Refrigerator should be kept away from hot source and not under d sunshine in case of effecting refrigeration ability.

3. Ventilation Condition

- should be put on the aeration place, there should be at least 3 c behind and around refrigerator.

4. Outside condition

- do not put refrigerator in a place where the temperature is too low (5 degree) also do not place it outdoor or in the rain.

Product Briet

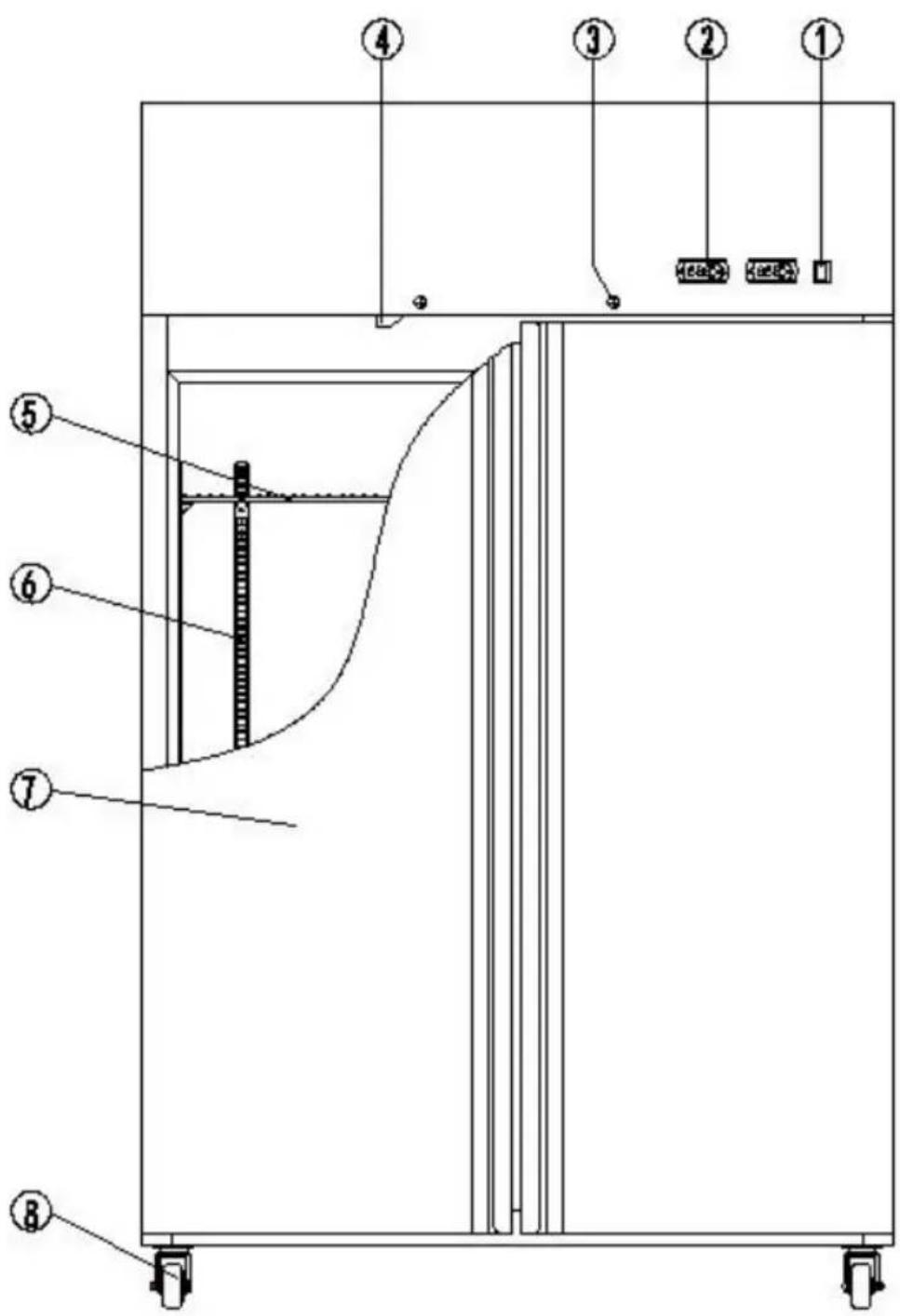

Parts Name

Technical diagram of a mechanical or electrical enclosure with numbered components and labeled parts

1. Power Switch
2. Thermostat
   3.lock
   4.Light and fan switch
   5.Food Shelf
   6.Pilaster
3. Door
   8.Wheel

Preparation before usage

1. Remove all the package

-Remove the package and bag before usage.

2. Check the parts and document

-Please check item in the refrigerator, any problem ask distributor.

1. Put refrigerator at suitable place.

2. Clean the refrigerator before usage and open the door.

5.Put aside

-Put aside the refrigerator more than 30 minutes to ensure the correct use.

Clean

1. Clean inside and outside

-Please use cloth with neutral cleaning agent, then use clean cloth.

-Please do not use corrosive cleaning agent.

2. Clean condenser fins.

-Please clean fin of the condenser every month, if the fin is blocked will affect the refrigeration ability.

-The power should be off when clean, using brush to clean the dust. Please not brush horizontally in case damage the fin and affect refrigeration.

-Door gasket need to be washed frequently to keep tightness

4. Check after clean

-Check again the refrigerator to make sure every part installed correct and is safe.

Notice during usage

1.Storage

-Please do not put more than 100kg food on the rail.
-Please store food suit the above temperature range, and there should enough space, item should not block air outlet(70% is the upper limit) make sure normal circuit of cold air.
-The hot food should be cooled first and then put into the refrigerator otherwise will affect other stored food around.
-Please put in packed food only.

Notice: All the therm

All the thermostat parameters have been set before delivery please don't change, to ensure correct working.

Maintenance

If you think there is a problem, please check follow the below table, is still a problem, please contact service center to solve the problem. People who is not professional service man does not conduct the maintenance.

Problem analysis:

Problem	Reason	Solution
No refrigeration	Power plug is loosenUse multi-socketPower switch button isIs defrosting	Insert plug wellUse special socketTurn on the buttonWait for end of defros
Slow cooling	Too much food, no channel for cold airDirect sunlight, near ho sourceToo much dust on condenserDoor open and close frequentlyTemperature controller i not set suitableHot food in the cabine	Reset the position of Choose another place placeClean condenser(must turn off power)Decrease times of ope and close doorRotate the controller to much more cold position clock wisePut the food into refrigerator after cooling.
Big noise	The ground is not stable and flatThe leg is not set well, of them is not stable	Make ground stable and flatAdjust the leg
