USER MANUAL FG-189 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

AQUARIUM LIGHT

USER MANUAL

MODEL: FG-189 (SERIES)

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: FG-189 (SERIES)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling elec tri electronic devices.

PRODUCT FEATURES

• Super bright: Premium 2835 LEDs provide bright illumination for your plants and fish and enhance the aesthetic appeal of your tank.
• Adjustable timer: Adjustable timer: You can customize the time periods of the daylight. Three time periods are available: 6 hours, 10 hours, and 12 hours. You can also customize the time period of the night light. Three time periods are available: 2 hours, 4 hours, and 12 hours.
• Adjustable Brightness: lighting mode can be adjusted to 5-level brightness. (10% -25% -50% -75% -100%)
• This fish tank light will cycle at the same time the next day.
• Easy to maintain: Built-in smooth abs housing. Use a piece of a drto wipe it clean.
• Extendable bracket: An extendable bracket makes LED light fit differ size aquariums in an extendable range.
• Suitable for plants and freshwater: The full-spectrum bulbs can produce different colors and brightness depending on your option.

SAVE THESE INSTRUCTIONS

FCC INFORMATION

CAUTION:

Changes or modifications not expressly approved by the party respons for compliance could void the user's authority to operate the equipmer This device complies with Part 15 of the FCC Rules. Operation is st the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING:

Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note:

This product has been tested and found to comply with the limits for Class B digital device pursuant to Part 15 of the FCC Rules, These are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television

reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
  · Consult the dealer or an experienced radio/TV technician for assista

PRODUCT PARAMETERS

Model	FG-189
Input Voltage	AC100-240V
Output Voltage	DC20V
Power	10W	14W	18W	22W	26W	36W
Led Quantity	60 PCS	90 PCS	120 PCS	150 PCS	180 PCS	240 PCS
Application Size	12-18 inch	18-24 inch	24-30 inch	30-36 inch	36-42 inch	48-54 inch
Power Cord	4.9ft+2.3ft

METHOD OF APPLICATION

A.Open the box and check whether the light and other accessories are included. If parts are missing, please get in touch with the seller's usual email.
B.Expand both side's metal bracket fit to match the length of your aquarium.
C.Connect power supply with light, then plug in. Ensure a drip loop created before the outlet, as shown on the warning.

Press the button to turn on the light. Use one long-press of the same button to turn off the light.

There are three color modes for your option. (All lights on, White/Red/Green/Pink, Blue light)

All mode lights, When you choose all lights on mode, all the indicators be off. You can adjust the brightness by the button.

In white/Red/Green/Pink mode, you can click the but on to choose th mode and click the on/off button to control the White/Red/Green/Pink brightness.

For example, click the button (W light indicator flashing) and click the

button to adjust the(white/red/pink/green led beads) brightness from levels.

10%-25%-50%-75%-100%

(white/red/pink/green LED beads light off)

Blue light, you can click the button to choose this mode and click the

button to control the blue brightness.

For example, click the button and clicks the to adjust the (blue led beads)

brightness from 5 levels (10%-25%-50%-75%-100%) (blue light of)

Please choose the color mode before choosing the timer. Otherwise, i exit the timer function.

When you want to close the light (All lights off), click the button for seconds.

Daylight lighting settings

Press the button to choose 6/10/12 hours, and the indicator light on the top of the timer button turns on. For 6 hours, the "6H"indicator light flashes; for 10 hours, the "10H"indicator light flashes; for 12 hours, the "12H"indicator light flashes.

For example, if you choose 6H at 9 AM, this light will auto turn on. AM and turn off at 3:00 PM daily.Once set up timer lighting mode, it

day, the light slowly ramps up in 15 minutes and down at last 15 r Once set, the light will auto-turn on and off simultaneously every day

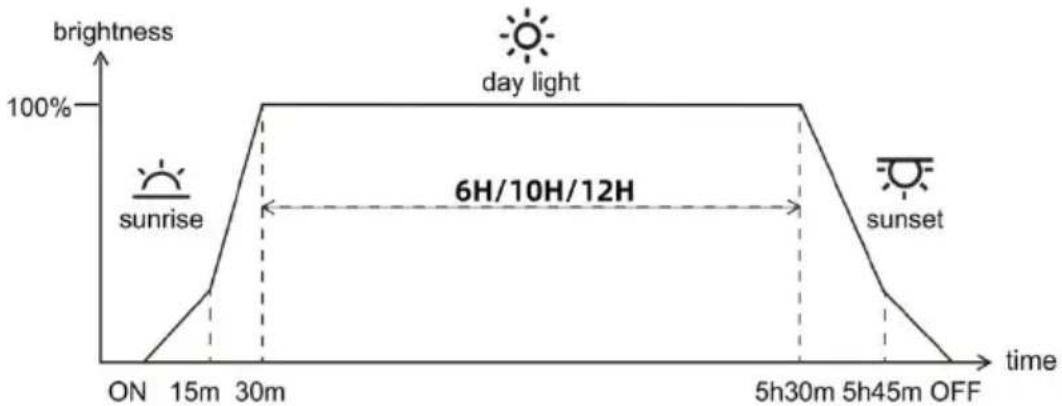

The lighting graph when the DAY-L timer is set to 6H/10H/12H

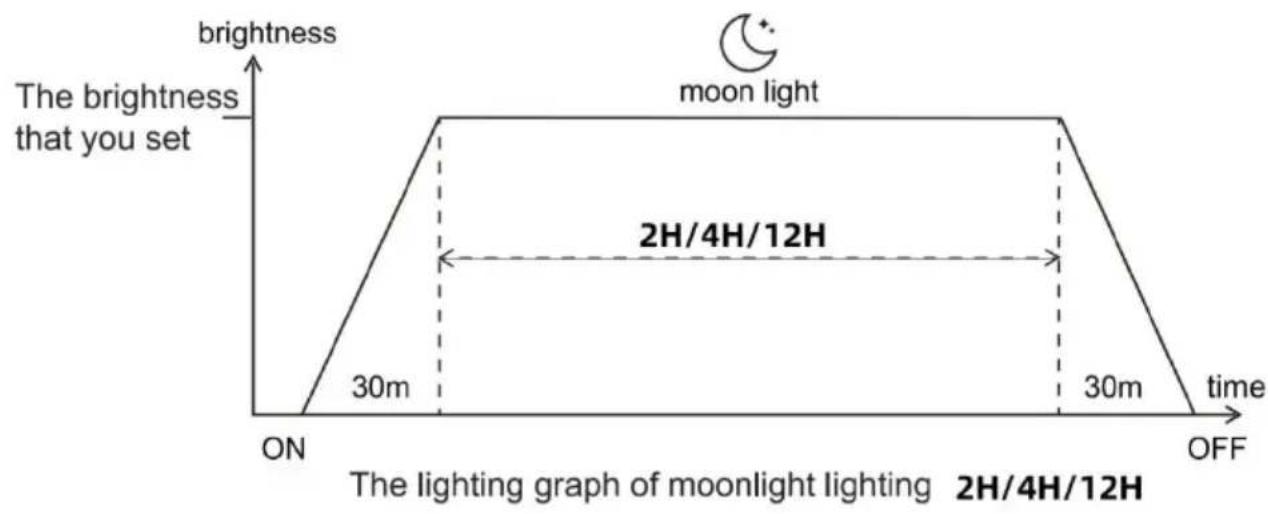

Moonlight lighting settings

(1) Press button for more than 3 seconds, the indicators of the 3 H, 5 and 12 H will be on at the same time and choose the color of the lighting.

(All lights on, White/Red/Green/Pink, Blue light).

(2) Press to choose the brightness of the moonlight lighting. (10%-25%-50%-75%-100%)

(3) Press the button to finish moonlight lighting set.

(4) Press the button again to choose the moonlight lighting time--2H,4H,12H, the indicator of 2H/4H12H starting flashing means the light is working.

Attention: The brightness will change according to the coordinate in the graph. It will gradually change from dark to bright, maintaining the brightness that you set for 2H/4H/12H, and darkens gradually.

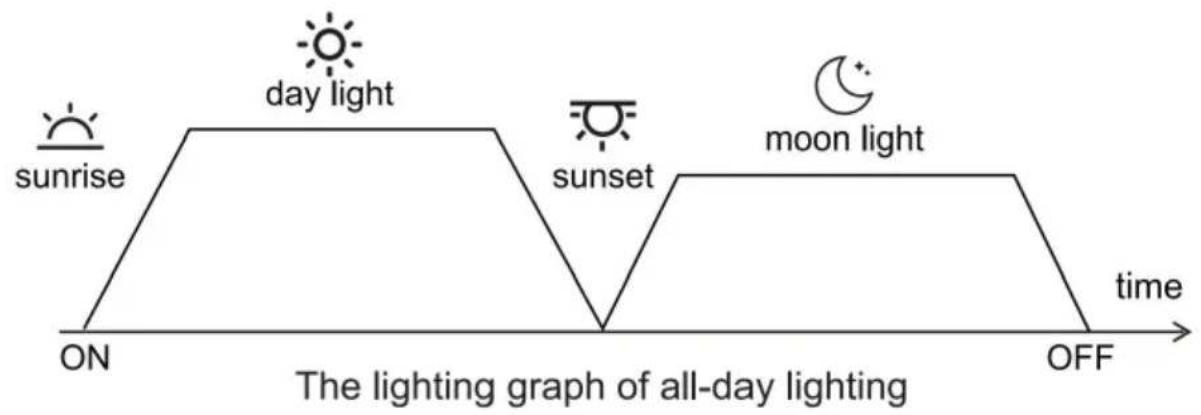

Daylight lighting + Moonlight lighting settings

If you set both Daylight lighting and Moonlight lighting, the light will be as the DAY-L timer setting when the DAY-L timer is on, and start M-L lighting when the DAY-L timer is over.

NOTE:

1. This timer mode will be worked for 24 hours lighting cycle.
2. When the power is cut off, the lamp will restart, calculating the pretiming. Such as, if it is timed for 6 hours, it will start counting again hours after the power is turned on.
3. Please remove the film before use.

ATTENTION

Please read the manual carefully before using it and follow all instructions.

Please keep the switch away from water, which is not waterproof.

√You might void the warranty if the lamp body is accidentally dropped the water.

Please keep the light away from flammable items.

Please unplug the power and contact the seller if the light is not w.
correctly, *For your safety.

it is not recommended to disassemble the lamp.

Disassembly of the lamp will void the warranty "Please unplug the p before maintenance.

Please remember that the temperature range for the light is 23 - 113^

WARNING

Do not immerse the switch and the lamp in water to avoid possible electrical shock.

If the switch falls into the water or becomes wet, do not touch it until you have unplugged it. Basic safety precautions should be observed, including the following:

1.Read and follow this user manual strictly.

2.DANGER- To avoid possible electric shock, 5pecial care should be For each of the following situations,do not attempt to repair yourself; the light to an authorized service facility for service or discard the lig

A. Carefully examine the light after installation. It should not be plugged there is water on parts not intended to be wet.

B.Do not operate the light if it has a damaged cord or plug, if it is malfunctioning or if it is dropped or damaged in any manner. The pc cord of this light cannot be replaced, if the cord is damaged, the light be discarded.

C.To avoid the possibility of the light plug getting wet, position the a stand and tank to one side of a wall-mounted receptacle to prevent from dripping onto the receptacle or plug. A "drip loop," shown in the

below, should be arranged by the user for each cord connecting the the receptacle.The "drip loop" is the part of the cord below the level receptacle or the connector, Suppose an extension cord is used to pr water from traveling along the cord and coming in contact with the receptacle. If the plug or receptacle does get wet,DO NOT unplug the Disconnect the fuse to the circuit breaker that supplies power to the Then unplug and examine for the presence of water in the receptacle
3.Close supervision is necessary when the light is used near children.
4.To avoid injury, do not touch or move hot parts.
5.Make sure the light is securely installed before operating it.
6.Read and observe all the important notices on the light.
7.If an extension cord is necessary, a cord with a proper rating shou. used, A cord rated for fewer amperes or watts than the appliance rai may overheat, Care should be taken to arrange the cord so it will n tripped over or pulled.
8. The light is intended FOR HOUSEHOLD USE ONLY.
9.SAVE THIS USER MANUAL
POWER CORD
DRIP LOOP

DISPOSAL

Do not dispose of this product as unsorted municipal waste. This promust not be disposed of together with domestic waste. It must be di of at an authorized place for recycling electrical and electronic applian By collecting and recycling waste, you help save natural resources an ensure the product is disposed of in an environmentally friendly way.

Thank you for choosing our. Making aquarium keeping more accessible one product at a time. If you have any problems or suggestions for the seoura planted aquarium extendable LED light, please contact us by email before leaving feedback or opening case. It will be the fastest way to solve your problem. Thanks again

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion Preston, United Kingdom

SHUNSHUN GmbH

Romeracker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Assistance technique et certificat de garantie electronique www.vevor.com/support

LUMIÈRE D'AQUARIUM

MANUEL DE L'UTILISATEUR

MODELE: FG-189 (SERIE)

MODELE: FG-189 (SERIE)

BESOIN D'AIDE? CONTACTEZ-NOUS!

CARACTERISTIQUES DU PRODUIT

MÉTHODE D'APPLICATION

Rancho Cucamonga, CA 91730

Groupe Pooledas Ltd

www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

(10%-25%-50%-75%-100%)

Importato in Australia: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122Australia

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Soporte专业技术 y certificate de garantía electrónica www.vevor.com/support

LUZ DEL ACUARIO

MANUAL DE USUARIO

MODELO: FG-189 (SERIE)

Seguimos comprometidos a proportionarle herramrientas a precios competitos.

(10%-25%-50%-75%-100%)

Place, Rancho Cucamonga, CA 91730

Grupo Pooledas Ltd

(10%-25%-50%-75%-100%)

(3) Nacijsnij

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

AQUARIUMLIGHT

HANDLEIDING

MODEL: FG-189 (SERIE)

HULP NODIG? NEEM CONTACT MET ONS OP!

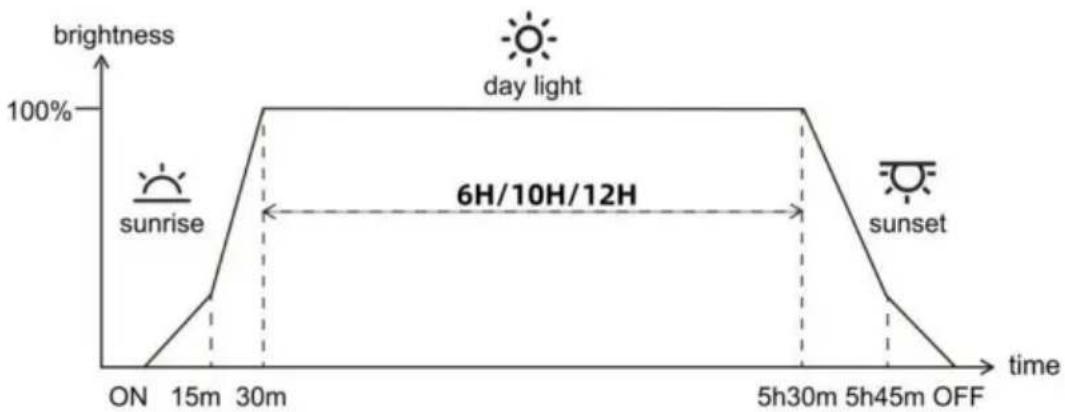

The lighting graph when the DAY-L timer is set to 6H/10H/12H
