USER MANUAL GM-002 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GRAIN GRINDER USER MANUAL

MODEL: GM-001 GM-002

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

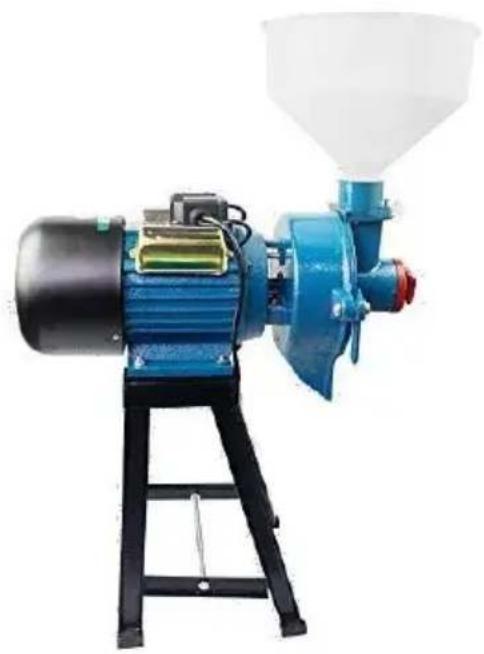

Grain GRINDER

Industrial machine with blue and black components, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Note: Before beginning assembly of product, make sure all parts are present. Compare parts with package content list and hardware conter Do not attempt to assemble the unit if any parts are missing or dar Contact customer service for replacement parts.

SAFETY INSTRUCTIONS

WARNING: Read all safety warnings, instructions, illustrations and

specifications provided with this Grinder. Failure to follow all instruction listed below may result in electric shock, fire and/or serious injury.

SAVE THIS INSTRUCTION!

	Warning - To reduce the risk of injury, user must instructions manual carefully.
	Alternating current
	This symbol, placed before a safety comment, indicate kind of precaution, warning, or danger. Ignoring this may lead to an accident. To reduce the risk of injure electrocution, please always follow the recommendation shown below.
	Danger!Risk of personal injury or environmental damage! Risk electric shock! Risk of personal injury by electric sh
	Warning- Be sure to wear ear protectors when using product.
	Warning- Be sure to wear eye protectors when using product.
	Warning- Be sure to wear gloves when using this p
	Protective earth

CORRECT DISPOSAL

This product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate collection in the European Union. This applies to the and all accessories marked with this symbol. Produ marked as such may not be discarded with normal waste, but must be taken to a collection point for electrical and electronic devices

1. READ ALL OPERATING INSTRUCTIONS AND PRODUCT SAFETY LABELS! FAILURE TO FOLLOW ALL INSTRUCTIONS MAY RESULT I SERIOUS INJURY OR PROPERTY DAMAGE!

2.CHECK FOR DAMAGED PARTS: Before using the grinder, check whether all parts work normally and perform the expected functions. Check for alignment, binding and installation of moving parts. and any other conditions that may affect the operation. If any parts, the Powe or the Grinder are damaged, call the Customer Service number shown this manual.

1. Always unplug power cord from outlet when not in use, before putting or taking off parts or accessories, and before cleaning. After unplugging the unit, turn power switch ON, then OFF to ensure that all power I been discharged from the grinder.

2. This appliance can be used by children aged from 14 years and a and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi

3. NEVER LEAVE GRINDER UNATTENDED WHILE IT IS RUNNING!

4. Wait until all moving parts have stopped and turn off power before removing any part from the grinder.

5. DO NOT use outdoors, this product is intended for INDOOR USE (

6. DO NOT pull the power cord to disconnect.

7. DO NOT USE WITH EXTENSION CORD. Always plug directly into a grounded wall receptacle.

8. This grinder uses a grounded, three prong plug (hot, neutral and ground), the grounding plug is used for electrical appliances with metal shell to prevent electric shock. DO NOT change or alter the plug in way. NEVER break off a grounding prong from a 3-- - conductor plug. Doing so will invalidate the warranty and may cause electric shock.

9. Place the grinder on a firm and stable surface. Ensure that the grinder is not placed near the edge of the worktop, where it can be easily pushed off or fall.

10. The Gear Housing and the Motor Cover may become HOT during operation. This is normal. DO NOT TOUCH these parts while operating.

11. To reduce the risk of unintentional starting, check that the control is OF F before plugging the cord into wall outlet. To disconnect, turn the controller to OFF, then remove plug from wall outlet.

12. DO NOT operate your grinder under a wall cabinet. Always unplug the unit from the electrical outlet when storing

it. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.

1. NEVER plug the grinder in where water may flood the area.

2. To protect against risk of electrical shock, DO NOT submerge the grinder in water or other liquids. Be sure the grinder is disconnected from the power source before cleaning. NEVER rinse the Grinder Motor under running water, only use a moist cloth to clean the Grinder Motor Unit.

3. The use of attachments or parts not specifically recommended or sold by the manufacturer for this grinder will void the warranty and may cause fire, electric shock or injury.

4. The Manufacturer disclaims any responsibility in the case of improper use of Grinder. Improper use of the Grinder voids the warranty.

5. DO NOT REMOVE WARNING LABELS FROM THE GRINDER. Doing so will void the product warranty and may result in serious personal 20. This appliance must be grounded while in use to protect the opera

from electrical shock. This grinder uses a grounded, three prong plug should be connected directly to a grounded 120V(US)/230V(EC), three prong grounded wall outlet receptacle. Grounded plugs are used on metal-encased electric appliances in order to provide protection from a electric shock. DO NOT change or alter the plug in anyway. NEVER off a grounding prong from a 3-conductor plug. Doing so voids the warranty and may result in electric shock.

1. Type X attachment: If the supply cord is damaged, it must be rep by a special cord or assembly available from the manufacturer or its service agent.

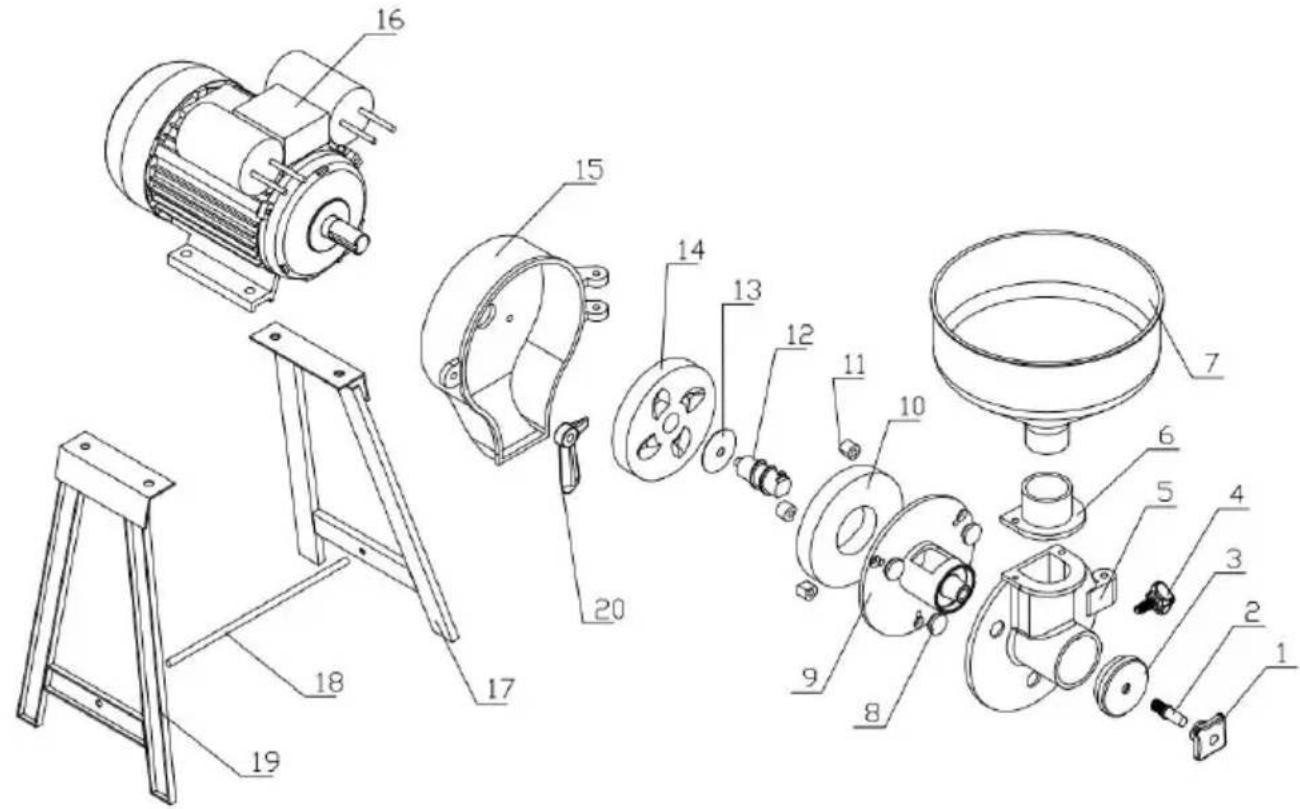

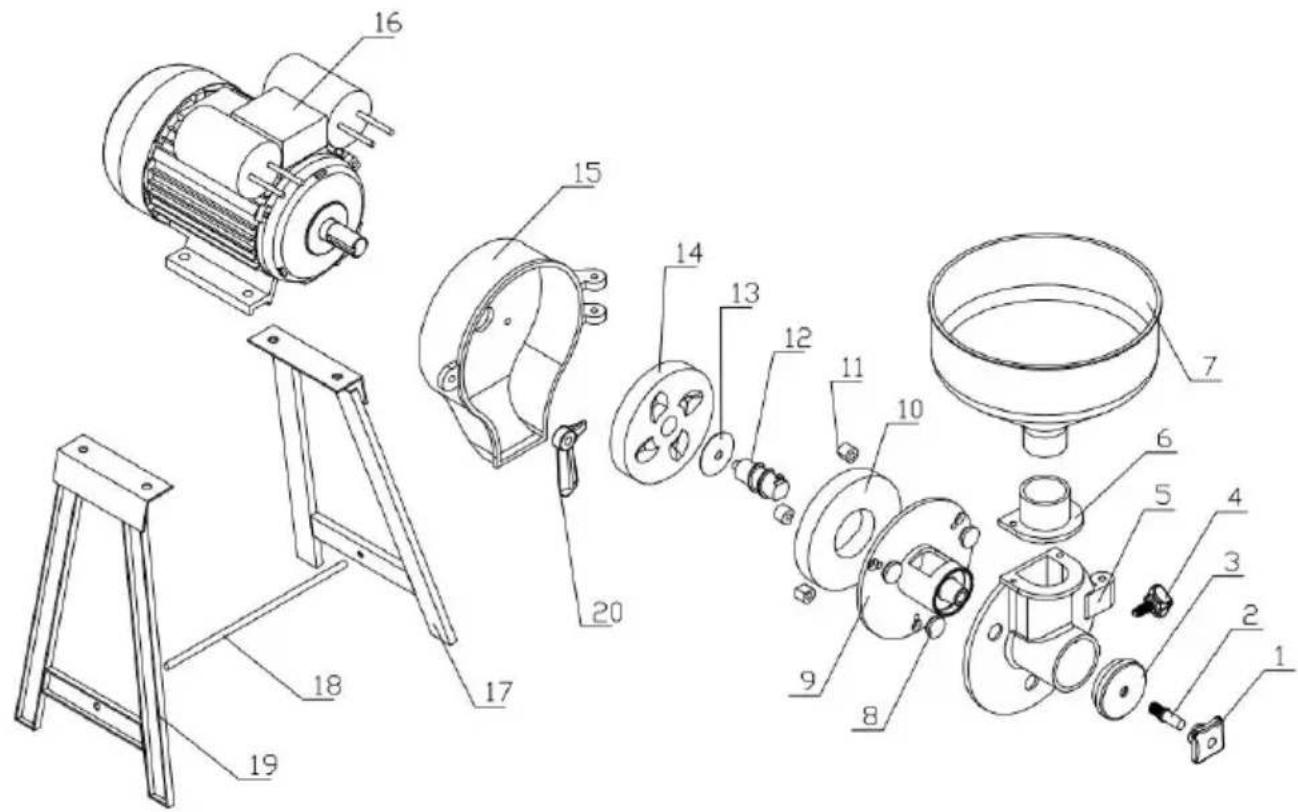

PRODUCT STRUCTURE

Exploded view diagram of an electric motor assembly with numbered parts for identification

NO.	Name	Quantity
1	Adjusting handle	1
2	Regulating screw	1
3	Plugging plug	1
4	Screw	1
5	Head cover	1
6	Hopper base	1
7	Hopper	1
8	Dust cover	1
9	Millstone base	1
10	Stationary grinding plate	Dry grinding plate*1Wet grinding plate*1(only for GM-00)
11	Latch	2
12	Worm	1
13	Shim	1
14	Moving grinding plat	Dry grinding plate*1Wet grinding plate*1(only for GM-00)
15	Hood	1
16	Motor	1
17	Support frame(R)	1
18	Support rod	1
19	Support frame(L)	1
20	Fastening handle	1

1. Install and fix the machine;
2. Turn on the power to run the machine;
3. Containers placed at the outlet;
4. Place the ingredients to be processed in the funnel;
5. Turn the adjusting handle to adjust the thickness of the ground ingredients.

CARE AND MAINTENANCE

Discovery of rust on the grinding disc is normal, and users can use removal methods and daily maintenance precautions

Rust removal method:

1. Mechanical grinding method:

If the rust is not very severe, sandpaper, wire brush, or electric polis machine can be used to remove the rust. Starting from the thickest grinding wheel, gradually transition to finer grinding wheels to avoid excessive wear on the grinding disc.

1. Daily maintenance:

Keep dry: After use, the grinding disc should be thoroughly cleaned as ensured to be completely dry to avoid moisture retention and corrosion.

1. Regular inspection:

Regularly check whether there are initial signs of rust on the grinding and deal with them in a timely manner. Use of anti rust spray: after and drying the grinding plate, consider using anti rust spray to provide additional protection.

1. Avoid humid environments:

Try not to store the grinding disc in damp or high salt environments reduce the risk of corrosion.

1. Cleaning and maintenance:

Regularly use a dust gun to blow off the dust on the grinding disc, the cleanliness of the grinding disc and motor cooling groove.

1. Avoid contact with chemicals:

During operation, avoid the grinding disc from coming into contact with chemicals to prevent corrosion caused by chemical reactions.

By using these simple rust removal methods and daily maintenance measures, the service life of the grinding disc can be effectively extended and its good working condition can be maintained.

TROUBLE SHOOTING

Failure description	Failure cause	Operation method
The engine cannot be started or is difficult to sta	Low voltage, damaged wire or capacitors.Check the power supply.	Start when the grid voltage improves.Replace the wires.Replace the power supply.
The engine is not running smoothly and is very hot.	Motor overheating or bearin damage.	Check the motor an replace the bearing necessary.
Strong engine vibration	One of the parts is unbala	Check the weight of parts. Replace couplings and bearings. Again, balance the millstone
