USER MANUAL Epower-237 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

EMERGENCY JUMP STARTER USER MANUAL

MODEL: EPOWER-237

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

EMERGENCY JUMP STARTER

MODEL: EPOWER-237

Exterior view of a black and red VEVOR charging station with dual jack (no visible text or symbols on main body)

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

INSTRUCTIONS

Thank you for choosing the Epower-237! Always follow basic safety precautions when using electrical appliances. Read all instructions carefully, Please keep this instruction manual for easy reference.

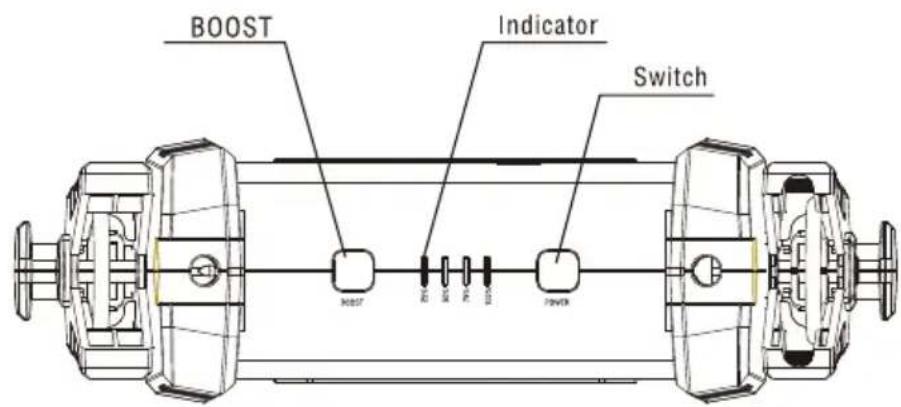

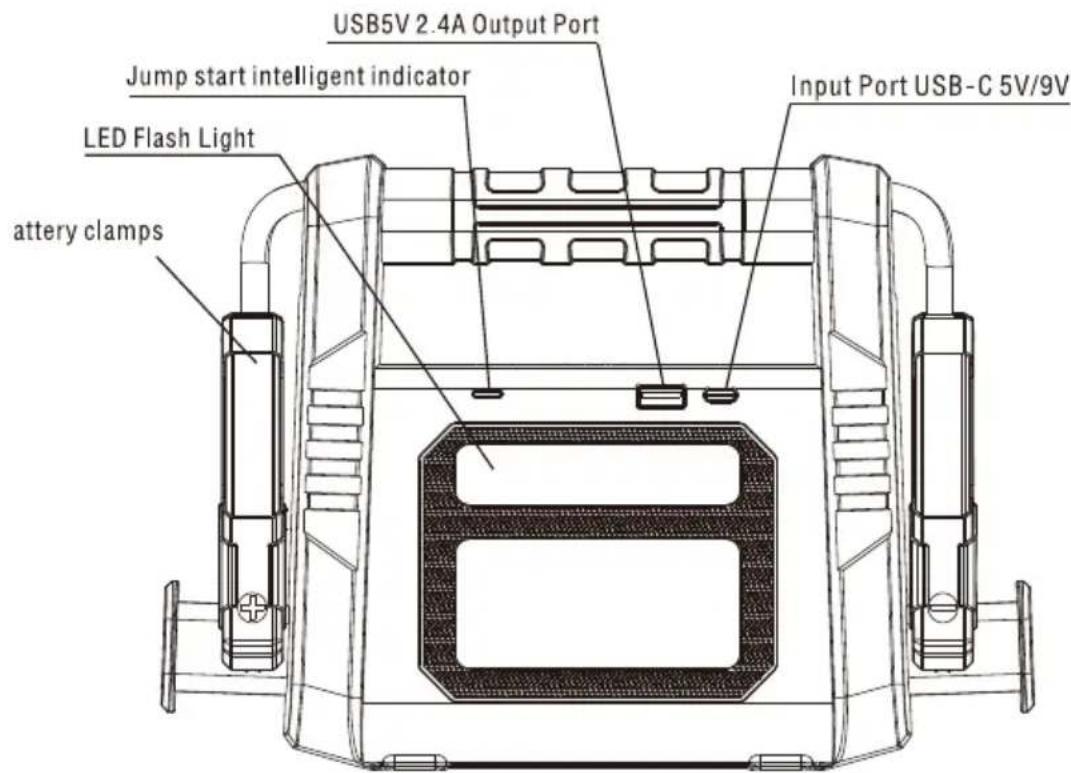

A.PRODUCT LAYOUT:

BOOST Indicator Switch BOOST Power

USB5V 2.4A Output Port Jump start intelligent indicator Input Port USB-C 5V/9V LED Flash Light battery clamps

Press the switch to check the storage level of Epower-237.

Indicator	Unlit	1 solid	2 solid	3 solid	4 solid
Storage level	0%	25%	50%	75%	100%

The indicator will flash one by one during the period of charging. Different number of solid indicators show different storage level of Epower-237. All indicators light off when the charging is paused or completed.

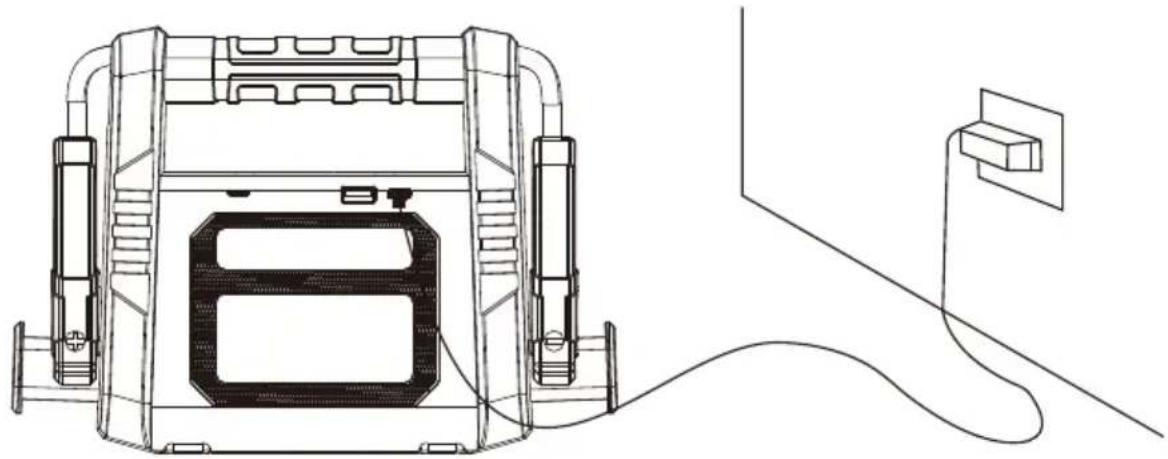

Epower Charging Instruction:

1. Plug the home adaptor into the universal socket.
2. Connect the USB-C connector to the Epower-237 host.

Technical line drawing of a device with attached cable and power outlet (no text or symbols)

Jump start 12V vehicle instruction:

1. Connect battery clamps to car battery terminals correctly.

Red Clamp to the positive(+) battery terminal, Black Clamp to the negative(-) battery terminal.

1. Make sure starting state indicator green light becomes solid, Try the ignition to 'START' position
2. Start engine successfully, remove the blue plug from the host

GREEN LIGHT ON: Telling the connection is correct and the circuit is working, you can turn on the engine to jump-start directly.

RED LIGHT ON WITH ALARM BUZZER: Telling the connection is wrong, or short-circuit happens .Check and correct the clamps till the GREEN LIGHT on, then turn on the engine.

GREEN LIGHT BLINKING/BUZZER WARNING: Saying the vehicle battery is low voltage, press the "BOOST" button, wait GREEN LIGHT becomes solid, then turn on the engine within 30s.

NO LIGHT ON: Saying the vehicles battery maybe damaged, after confirming the clamps connection is correct, press the "BOOST" button, wait GREEN LIGHT is on, and then turn on the engine within 30s.

RED LIGHT AND GREEN LIGHT BLINKING: Saying the host goes to Protection Situation after 8 times continuously start, wait for 10 min then turn on the engine.

If it still can not start the car, please consult Professional persons, NOT make jump-start again.

CAUTION:

- Occasionally, the jump starter will lock itself down for safety if Red light of the clamp is steady on with buzzing alarm, due to (a) short-circuit; (b) over-current; (c) over-temperature; (d) over low-voltage; (e) reverse-connection. Once it happens, turn off the jump starter and remove the battery clamps from your car battery, restart the jump starter & connect the clamps back on the battery, try it again.

- If all indicators light of jump starter is flashing, due to over-temperature protection, turn off the jump starter and remove the battery clamps from your car battery, wait until it cools down before the next attempt.

- If the vehicle does not start within 3 seconds, stop starting and wait at least 30 seconds before attempting to restart the vehicle. Don't jump start the vehicle continuously more than four times as it may damage the unit. Check your vehicle for other possible reasons of not starting.

- During jump starting, avoid the positive and negative battery clamps touching each other. Otherwise, electric spark will appear, result in a safety hazard and damage the unit by short circuit.

- This unit contains a lithium polymer battery. It is only used as a emergency power but not to take place of a car battery. Always comply with transport and safety regulations in use and disposal of such batteries.

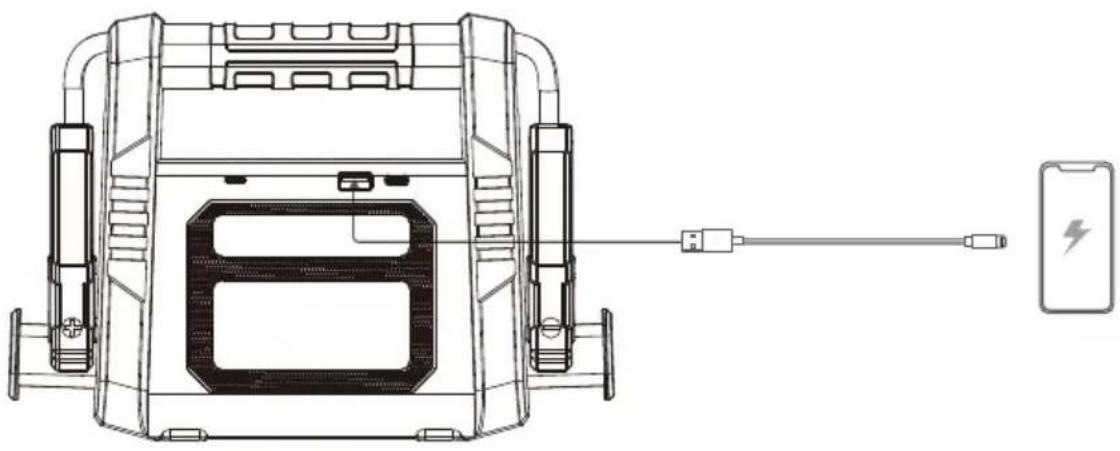

Charging Cell Phone or Tablet Instruction:

1. Plug the switch cable to USB 5V/2.4A output port.

2. Select appropriate connector and connect it to your mobile phones or tablet.

3. Press the switch button to charge.

Technical line drawing of a device rear panel connected to a battery and a separate terminal (no text or symbols present)

LED flash light

Press the switch 4 seconds to start the LED flash light.

There are 4 modes of LED light appear in order (normal . strobe . SOS. off) if you press slightly.

C. PARTS LIST:

#	Parts Name	Quantity	#	Parts Name	Quantity
1	Host	1	3	Switch cable	1
2	Home adapter	1	4	User Manual	1

D. TECHNICAL SPECIFICATIONS:

Dimension: 255*75*185mm

Weight: 1.34kg

Battery Capacity: 88.8Wh

Output: 5V=2.4A;12V jump start

Input: USB-C(5V=2A;9V=2A)

Full charging time: About 6-7 hours

Start current: 600A

Peak current: 4000A

Operating temperature : -20°C \~50°C

E. FAQ:

Q. How to turn off this appliance?

A. This appliance will power off automatically when no load or charging is complete.

Q. How long does it need to fully charge the Epower-237?

A. Approx. 6.5 hours through the USB-C input.

Q. How many times can this appliance charge for my cell phone?

A. Depend on the battery capacity of your cell phone.

Q. How many times can this appliance jump start the 3.0L Gasoline if it is in full battery?

A. Approx. 40 times.

Q. How about the lifetime of this appliance?

A. About 3-5 years.

Q. How long the storage of battery will remain?

A. 6-12 months, however, we suggest to recharge it every 3 months.

F. TROUBLE SHOOTING:

Q: If you fail to jumpstart the vehicle, please check the possible causes in order.

A: (1) Insufficient power level; you may need to charge the jump starter more. Please keep the battery level higher than 75% to ensure a successful jumpstart.

(2) Bad connection caused by rust or dirt on battery terminals; please clean the terminals and try again.

(3) The jump starter activated its overheating protection due to the battery overheating; please try again after it cools down.

(4) The battery clamps are connected to the incorrect terminals; please ensure the clamps are connected to the correct terminals.

(5) Poor connection between the smart jump starter clamps and battery; ensure the connection between the clamps and the battery is secure.

(6) The vehicle cannot start because of issues unrelated to battery power levels. Please use the appropriate equipment to check the battery or error code of the vehicle.

(7) Contact Vevor for after-sales support.

Q: Failure to power on

A: (1) Insufficient power level or the jump starter is charging
(2) Contact Vevor for after-sales support.

Q: Failure to charge

(1) Check if the charging cable is connected correctly
(2) Ensure the outlet is powered.
(3) The jump starter activated its overheating protection due to the battery overheating; please charge it after allowing it to cooldown to room temperature.
(4) Contact Vevor for after-sales support.

G. TOXIC AND HARMFUL SUBSTANCES:

Composition and amount of toxic and harmful substances in EPower.
Pb	Hg	Cd	Cr(Vi)	PBB	PBDE
O	O	O	O	O	O
O: Indicate all homogeneous materials' hazardous substances content are below the MCV limit specified in the Standard 2002/95/EC(RoHs).

H. WARNING:

1. Read the instruction manual carefully before using this unit.
   2 Jump for 12V vehicles, it would be hazard for other jumping.
2. DO NOT use this unit If any cable clamp or cord Is damaged.
3. DO NOT use In place of a vehicle battery.
4. Never reman the unit on car battery after cranking the car success.
5. Make sure to check all the battery connections are CLEAN before Jump Starting! Make sure the battery clamps are well connected! If the battery terminals on the vehicle are dirty or corroded, the power of the unit will be lessened.

6. DO NOT Jump Start more than 3 times in a row. It could damage the unit by overheating. When starting up multiple times, each start-upiterval is two minutes.

7. Remove the product from the vehicle battery within 30 seconds of Jump Starting. If not, it could lead to damage.

8. DO NOT connect the two clamps together.
9. DO NOT use by young or infirm persons without supervision.
10. DO NOT use as a toy.
11. DO NOT allow the product to become wet.
12. DO NOT immerse the product in water.
13. DO NOT operate the product in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
14. DO NOT modify or disassemble Epower-237. Only a repair technician may repair this unit.
15. DO NOT expose product to extreme heat or fire. ^17 . Make sure someone should be within range of your voice or close enough to come to your aid when working with batteries.
16. Remove personal metal items like rings, bracelets, necklaces, etc. When using the products.
17. DO NOT drop unit. If unit receives a sharp blow or is otherwise damaged in any way have it checked by a qualified battery technician.
18. DO NOT store in locations where the temperature may exceed 60^ C
19. Charge only at ambient temperature between 0^ C and 45^ C.
20. Charge only using the charger provided with this unit or the same standard with the host input port.
21. DO NOT use the unit to jump start a vehicle while charging the internal battery.
22. If this unit is leaking liquid dispose of at proper recycle facility immediately.

23. Under extreme conditions, battery leakage can occur. If aliquid is noticed coming from product do not handle with bare hands. In case of skin contact wash with soap and waterimmediately. If liquid comes in contact with eyes rinse eyeswith cold running water for at least 10 minutes and get medical attention immediately.

24. Product contains lithium based battery, at end of product life dispose of product according to local regulation.

25. After jump start the car, don't charge this unit immediately.
26. Don 't use the jumper cable to charge other equipments.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

DÉMARREUR D'URGENCE

MANUEL D'UTILISATION

MODÈLE : EPOWER-237

Exterior view of a black VEVOR charging station with red and black components (no visible text or symbols on the device body)

Technical line drawing of a device with attached cable and power outlet (no text or symbols)

Technical line drawing of a device rear panel connected to a battery and a smartphone (no text or symbols present)

C/O YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Exterior view of a black VEVOR charging station with red and black components (no visible text or symbols on main body)

www.vevor.com/support

Technical line drawing of a device with attached cable and power outlet (no text or symbols)

Technical line drawing of a device rear panel connected to a battery and a smartphone (no text or symbols present)

LED-Taschenlampe

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

AVVIATORE DI EMERGENZA MANUALE D'USO

MODELLO: EPOWER-237

Exterior view of a black VEVOR charging station with red and black components (no visible text or symbols on main body)

www.vevor.com/support

Line drawing of a portable electronic device with attached cable and power outlet (no text or symbols)

Technical line drawing of a device rear panel connected to a battery and a smartphone (no text or symbols present)

Torcia LED

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA91730

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Exterior view of a black VEVOR charging station with red and black components (no visible text or symbols on main body)

www.vevor.com/support

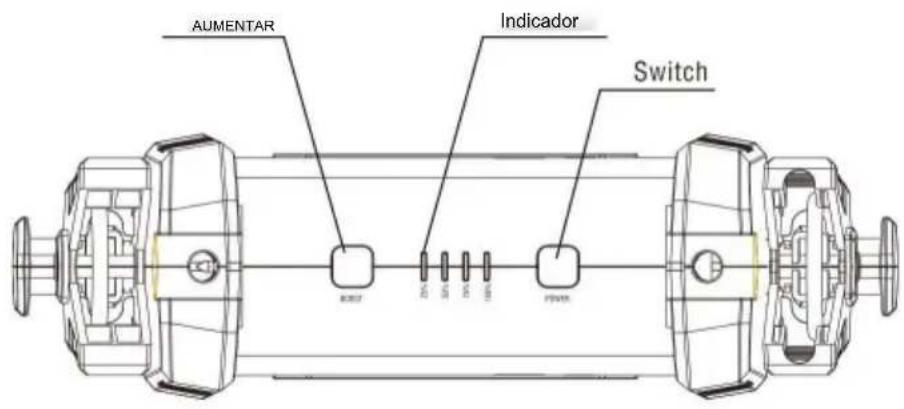

A. DISEÑO DEL PRODUCTO:
