FBL860516 - Medical walker Vevor - Free user manual and instructions

Product Type	Medical Walker (Rollator)
Brand	Vevor
Model	FBL860516
Maximum Load Capacity	159 kg (350 lb)
Device Weight	Approximately 10 kg (estimated)
Frame Material	Aluminum
Adjustable Handlebar Height	Yes, adjustment with push-button
Brake Type	Handle brakes with locking
Seat	Yes, with backrest
Number of Wheels	4 wheels (2 front, 2 rear)
Foldable	Yes
Usage	Indoor and outdoor, on flat ground
Assembly Instructions	Snap-fit assembly with locking balls
Maintenance and Cleaning	Clean with clear water and dry thoroughly
Safety	Parking brakes, rear wheel lock on slopes, seat folding mechanism lock
Spare Parts and Repairability	Parts available via after-sales service (www.vevor.com/support)
Warranty	1 year (manufacturing defects)
Customer Service	24/7 email technical support
General Information	Product conforms to applicable safety standards

Frequently Asked Questions - FBL860516 Vevor

How to assemble the Vevor FBL860516 walker?

Unfold the left and right main frames, then insert the locking balls. Mount the front wheels and rear legs by aligning the holes and pushing until the balls pop out. Check that all components are securely fastened before use.

How to adjust the handlebar height?

The height is adjusted by pressing the push-buttons located on the frame uprights. Adjust to the desired height and lock by releasing the button.

How to use the brakes?

The handle brakes are used to slow down or stop the walker. To lock the parking brake, push the brake handles down until they engage the locking notch.

What is the maximum supported weight?

The walker supports a maximum load of 159 kg (350 lb). Do not exceed this limit to avoid any risk of breakage.

How to clean and maintain the walker?

Clean the frame and wheels with a damp cloth and clear water. Dry immediately to prevent rust. If scratches appear, apply a suitable anti-rust product.

Is the walker foldable for transport?

Yes, the walker folds by bringing the two sides together. Ensure the folding mechanism is properly locked when folded.

What to do if parts become loose or damaged?

Contact Vevor customer service at www.vevor.com/support. Do not use the device if parts are loose or broken.

Is there a warranty?

Yes, Vevor offers a 1-year warranty against manufacturing defects from the date of shipment. Keep your proof of purchase.

Can I use the walker outdoors?

Yes, but avoid uneven terrain or steep slopes. On slopes, lock the parking brakes and do not leave unattended.

How to lock the rear wheel to prevent slipping?

Use the handle brakes in the locked position. Make sure the rear wheel is properly blocked before sitting on the seat.

USER MANUAL FBL860516 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

STANDARD ASSISTED DRIVING

MODEL:FBL860516

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

MODEL: FBL860516

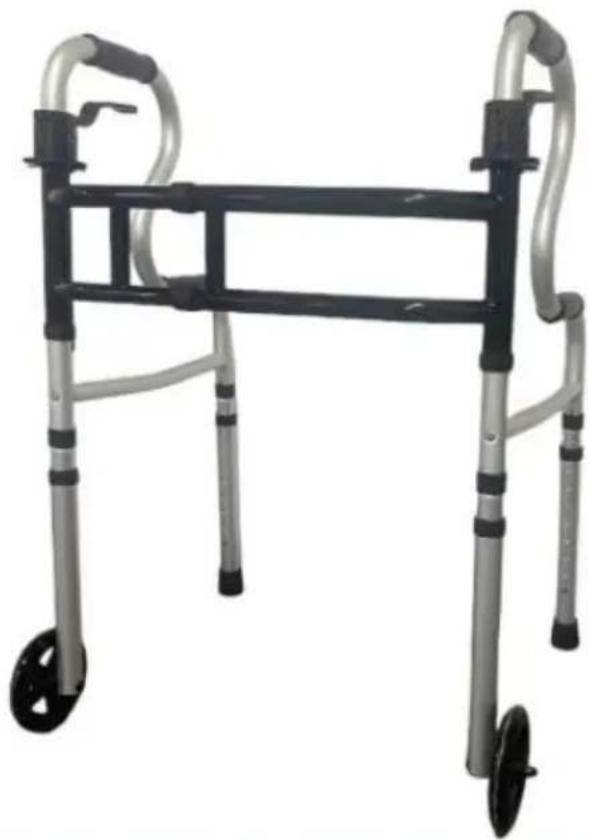

Exterior view of a four-wheeled mobile walktry (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Preface

First of all, let us express our heartfelt thanks to our customers who have purchased our equipment. This manual is for customer service to make better. Written with this equipment. Hope the company's products and services to bring you the canal courtesy.

Pay attention

This product must be used in strict accordance with the use method of this misuse of any other methods caused by misuse The Company does not give guarantee of any kind, including (but not limited to) the marketability offered to Company for a particular purpose Implied warranties with fitness.

The company accepts no liability. The Company shall not be liable for any € contained in this material, or for any accidental or consequential damages resulting from the provision, actual performance or use of this manual.

This manual contains proprietary information protected by patent law. All rights reserved. Without the written consent of the Company, this manual is not allowed to be photocopied, copied, or translated any part into another language.

The content contained in the manual may be changed without the user's noti

Manufacturer's liability

The Company shall be held responsible for the safety and reliability of the performance of the equipment only if the assembly operation, returning, improvement and maintenance are carried out by personnel approved by the Company, the electrical equipment concerned conforms to national standards, at the equipment is used in accordance with the operating instructions.

Guarantee

Manufacturing process and raw materials: The Company guarantees that the Equipment(except parts) are in regular use and repair condition, free of manufacturing process and raw materials faults for one year from the date of shipment. None of our inspections is perfect.

PRECAUTIONS

Precautions for use

Warning:

1. If the equipment feels loose, falls or is damaged, please contact the comp in time;
2. Keep work area clean and well lit. Cluttered or dark areas invite accidents
3. Keep children and bystanders away while operating, distractions will cause to lose control.
4. During normal use, please use with the accompaniment of family or friend
5. Reasonably use according to one's own situation, and do not overuse when the body is not in a timely manner.
6. BEFORE USE, PLEASE CONFIRM WHETHER THE COMPONENTS ARE COMPLETE, WHETHER THE BRAKE IS SENSITIVE, AND ASSEMBLE THE ENTIRE PRODUCT IN STRICT ACCORDANCE WITH THE INSTRUCTIONS.
7. CLEANING PRODUCTS NEED TO BE WASHED WITH WATER AND DRY TIME. IF THE SURFACE COATING OF THE PRODUCT HAS SCRATCHES A FALLS OFF, REPAIR MATERIALS NEED TO BE USED IN TIME TO ACHIE\ THE BEST ANTI-RUST EFFECT.
8. PLEASE ENSURE THAT THE REAR WHEEL OF THE PRODUCT IS LOC TO AVOID SLIDING WHEN THE USER STAYS IN THE SLOPING ENVIRONMENT.
9. PLEASE ENSURE THAT THE FOLDING MECHANISM OF THE SEAT PLA IS LOCKED WHEN USING THIS PRODUCT.

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

Product Name	Standard assisted driving
model	FBL860516
Load bearing capacity/lb	350lbs

PRODUCT COMPONENTS

1			Left main frame	1	2		Right main frame	1
3			Hind foot canal	2	4		Front left foot wheel set	1
5			Front right foot wheel set	1

INSTALLATION STEPS

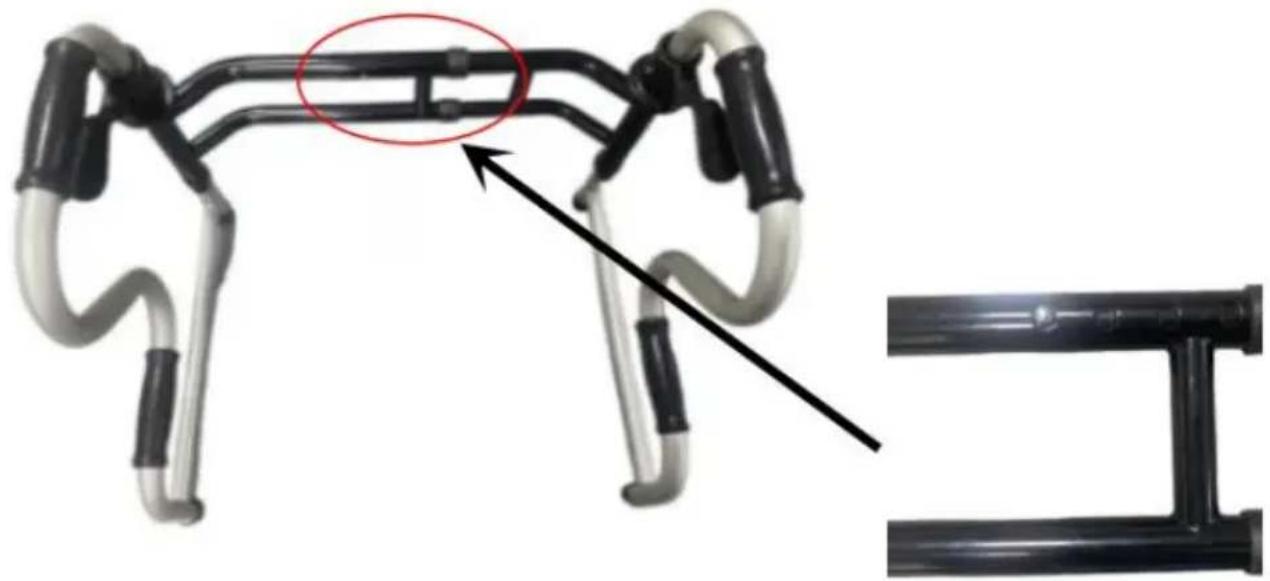

1. As shown in the figure: Unfold the left and right main frames, hold down marbles on the right frame, align them with the left main frame, and push the inward until the marbles pop out.

Mechanical assembly diagram showing a robotic arm with black and white components, one highlighted in red (no text or symbols present)

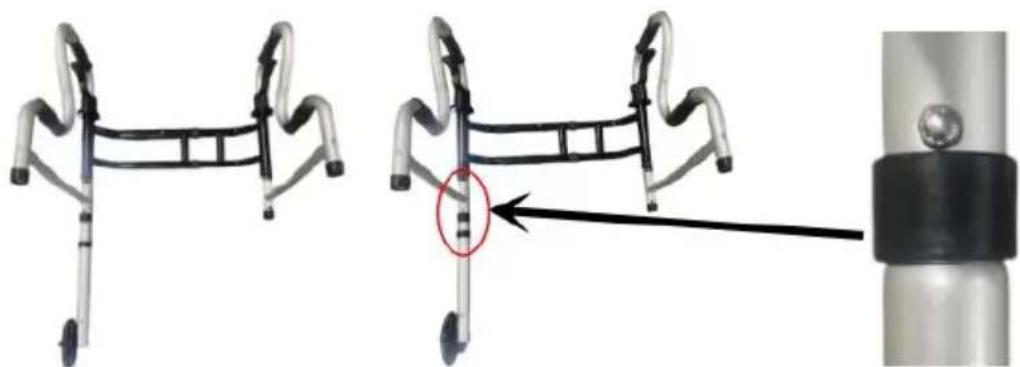

1. As shown in the figure: Insert the front left foot wheel assembly into the frame, align it with the hole position, hold down the marble and push it into the marble pops out.

Mechanical assembly diagram showing two stages of a metal clamp or bracket with a close-up view of the end (no text or symbols present)

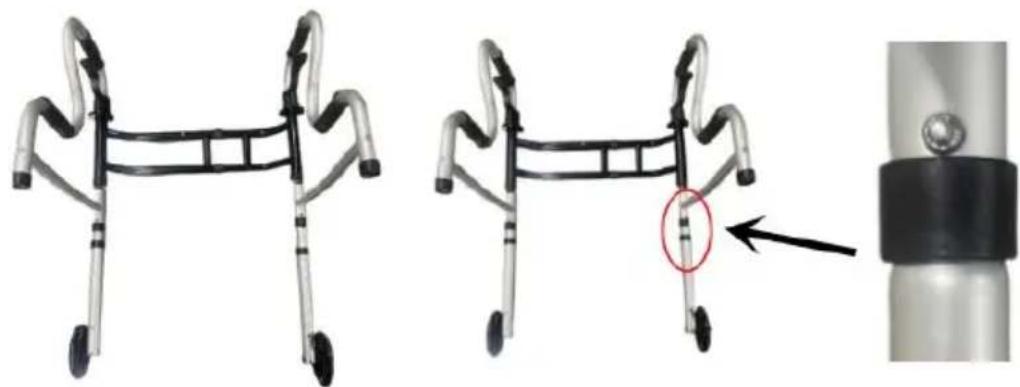

1. As shown in the figure: Insert the front right foot wheel assembly the main frame, align it with the hole position, hold down the marble push it inward until the marble pops out.

Three-panel diagram showing a metal truss device with curved arms, a highlighted section with a red circle and arrow, and a close-up of a black-and-white mechanical component (no text or symbols)

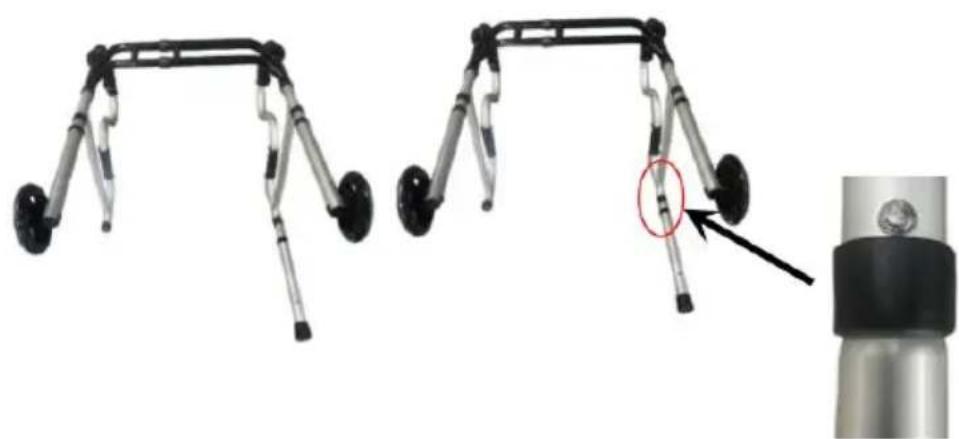

1. As shown in the figure: Insert the rear foot tube into the left side of the frame, align it with the hole position, hold the marble and push it inward unmarble pops out.

Two identical robotic legs with articulated joints, one highlighted with a red circle and arrow (no text or symbols)

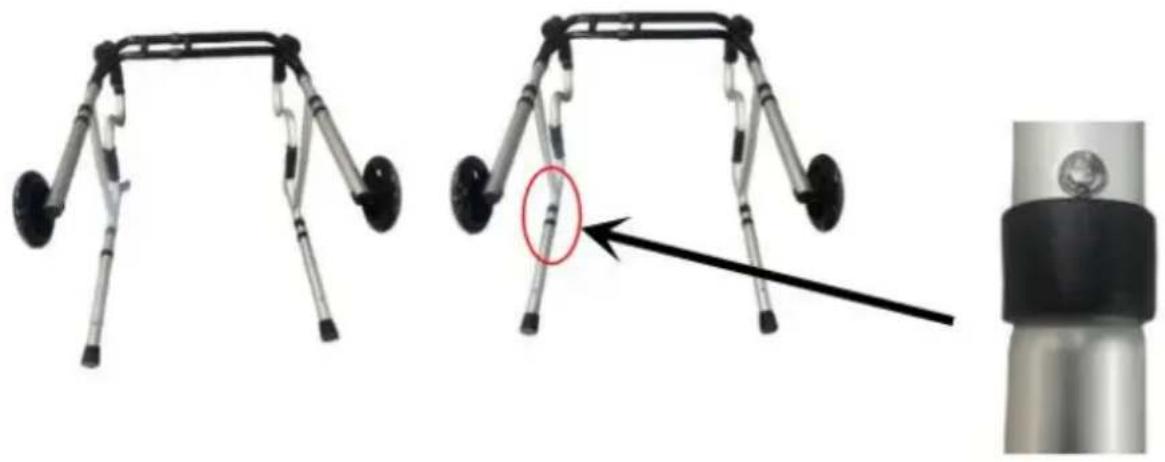

1. As shown in the figure: Insert the rear foot tube into the right side of the frame, align it with the hole position, hold the marble and push it inward unmarble pops out.

Two identical quadrupedal robotic legs with articulated joints, one highlighted with a red circle and arrow (no text or symbols)

Nice Service: 100% tested before leaving the factory and 24-hour friendly email customer service.

Manufacturer: Zhongshan Bliss Medical Instrument Co., Ltd

Address: 3-6F & 7F-1, No. 63, Tongxing East Road, Yumin Community

Xiaolan, Zhongshan, Guangdong, 528414, CHINA.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
