Product Type	Automatic bird feeder with camera
Brand	Vevor
Model	FB-A06
Color	Blue
Dimensions (with tray)	335 x 220 x 275 mm
Dimensions (without tray)	220 x 220 x 275 mm
Tank capacity	2 L
Power supply	Rechargeable battery 5200 mAh + 2 W solar panel
Battery type	Built-in lithium-ion (5200 mAh)
Solar panel	2 W (DC 5 V ±5 %) – 95 x 95 x 2 mm
Required power adapter	5 V ±5 % / 1.5 A (type C)
Camera resolution	1920 x 1080 pixels (Full HD)
Camera viewing angle	Horizontal 145°, vertical 85°
Night vision	Yes, with infrared LEDs (low red light)
Storage	Cloud (30 days free) + Micro SD card up to 128 GB (not included)
Connectivity	Wi-Fi 2.4 GHz (does not support 5 GHz)
Mobile app	VicoHome (iOS and Android)
Smart features	Motion detection, bird recognition (AI), push notifications, sharing
Included accessories	Suet ball, mini hummingbird feeder, fruit holder, jelly feeder, wall mount, antenna, USB-C cable, drilling tool, etc.
Installation	Wall or tree (mount included)
Maintenance	Clean the tank and accessories regularly with a damp cloth; do not immerse
Certifications	FCC (ID: 2AXBN-Q5), WEEE directive 2012/19/EU
Warranty	Manufacturer warranty included (see manual)

Frequently Asked Questions - FB-A06 Vevor

How to turn the camera on and off?

To turn on, press and hold the power button for 3 seconds (startup sound, steady blue light). To turn off, same gesture (shutdown sound, light off).

What is the battery life?

The 5200 mAh battery offers variable autonomy depending on usage and sunlight. With the solar panel, it can recharge outdoors. Expect about 10 hours for a full charge via adapter.

How to connect the feeder to Wi-Fi?

Make sure to use a 2.4 GHz network (5 GHz is not supported). Open the VicoHome app, follow the steps to add the device, and scan the QR code or listen for the 'ding dong' sound to complete pairing.

Why can't the camera find my Wi-Fi?

Check that your network is on 2.4 GHz, the password is correct, and the camera is near the router. If the problem persists, restart the router and try again.

How to invite my family to view the camera?

In the app, select the camera, click 'Share' then 'Invite' to generate a QR code. The person will scan this code via the app to gain access.

Is bird recognition free?

The app offers a free 30-day trial of the 'Awareness Plus' plan including recognition of over 10,000 bird species. Beyond that, a monthly subscription is required.

How to charge the battery outdoors?

Use the included solar panel by plugging it into the type C charging port on the back of the tank. You can also remove the tank and charge via a 5V/1.5A power adapter.

What to do if the camera stops responding?

Press and hold the power button for 3 seconds to restart. If unresponsive, use a paperclip to press the reset hole on the back.

Which SD card to use?

The camera supports Micro SD cards up to 128 GB (not included). Insert it into the slot under the silicone cap before assembling the unit. Cloud storage is also available without a card.

How to clean the bird feeder?

Disassemble the removable parts and clean them with a damp cloth and mild soap. Do not put the camera underwater. Dry well before reassembling.

USER MANUAL FB-A06 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

SMART BIRD FEEDER

(with Q8 model Camera

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying certain with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

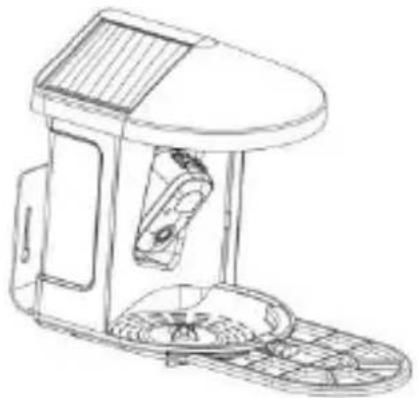

SMART BIRD FEEDER

Line drawing of a portable electronic device with solar panel and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please 1 free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual ins carefully before operating. VEVOR reserves a clear interpr of our user manual. The appearance of the product shall to the product you received. Please forgive us that we w you again if there are any technology or software update product.

IMPORTANT SAFEGUARDS

WARNING: To reduce the risk of serious in when using your electric countertop composted and accessories, please follow these safety precautions, including the following.

Read all instructions before using the appliance.

1) The bird feeder is equipped with a camera model Q8, which can be connected to a wireless network, using a mobile phone to observe and record the birds eating process.
2) The accessories including suet ball, Mini Hummingbird Feeder, Fruit Holder, Jelly Feeder and Welcome Card, Ideal for Bird Lover. Wider Extension Perch to DIY.

PRODUCT PARAMETER

Model	FB-A01	FB-A02
Color	Green	Blue
Solar panel	3W (DC 5±5%) 172*120*5mm
Camera mode	Q8
Camera lens	Field of view: H145° V85° D1
Image resolution	Max.1920x1080
Video bit rate	Adaptive
Storage media	Cloud Storage, Micro SD Car
Battery capacity	5200mAh
Adapter requirement	DC 5V±5%/1.5A
Feeder capacity	2L
Product size	335*220*275mm (with Platform)220*220*275mm (no Platform)

Note: The SD card is not included, and it is not necessary (Supports up to 128GB SD card).

PRODUCT PARAMETER

Model	FB-A03	FB-A04
Color	Green	Blue
Solar panel	2W (DC 5V+-5%) 95*95*2.5mm
Camera mode	Q8
Camera lens	Field of view: H145° V85° D185
Image resolution	Max.1920x1080
Video bit rate	Adaptive
Storage media	Cloud Storage, Micro SD Card
Battery capacity	5200mAh
Adapter requirement	DC 5 ± 5%/1.5A
Feeder capacity	2L
Product size	335*220*275mm (with Platform)220*220*275mm (no Platform)

Note: The SD card is not included, and it is not necessary (Supports up to 128GB SD card).

PRODUCT PARAMETER

Model	FB-A05	FB-A06
Color	Green	Blue
Solar panel	3W (DC 51/5%) 172*120*5mm2W (DC 51/5%) 95*95*2.5mm
Camera mode	Q8
Camera lens	Field of view: H145° V85° D185
Image resolution	Max.1920x1080
Video bit rate	Adaptive
Storage media	Cloud Storage, Micro SD Card
Battery capacity	5200mAh
Adapter requirement	DC 5V±5%/1.5A
Feeder capacity	2L
Product size	335*220*275mm (with Platform)220*220*275mm (no Platform)

Note: The SD card is not included, and it is not necessary (Supports up to 128GB SD card).

PACKAGE CONTENTS

Common parts

NO.	Name	Picture	Quantity
1	Feeder		1 pc
2	Camera		1 pc
3	Material Tray		1 pc
4	External Antenna	[TDS7]	1 pc
5	Bird feeder bracket		1 pc
6	Drilling Template Sticker	[T35A]	1 pc
7	Velcro straps		1 pc
8	Type-C Power Cable		1 pc
9	Bracket ScrewsM3.5*16mm		3 pcs
10	Bracket ScrewsM4*50mm		2 pcs
11	Anchors	[CTY4]	2 pcs
12	Thumb Screws		1 pc
13	Screwdriver		1 pc
14	Suet Ball		1 pc
15	Hummingbird Feeder	[STH4]	1 pc
16	Fruit Holder		2 pcs
17	Jelly Feeder		1 pcs
18	Cardboard (*1pc)Stickers (*4pcs)		1 set
19	User Manual		1 pc

Optional parts (Except FB-A03 & FB-A04)

NO.	Name	Picture	Quantity
1	External Solar Panel		1 pc
2	Fixed Bracket		1 pc
3	Bracket Screws M3.5*25mm		4 pcs
4	Anchors		4 pcs
5	Ejector Pin		1 pc

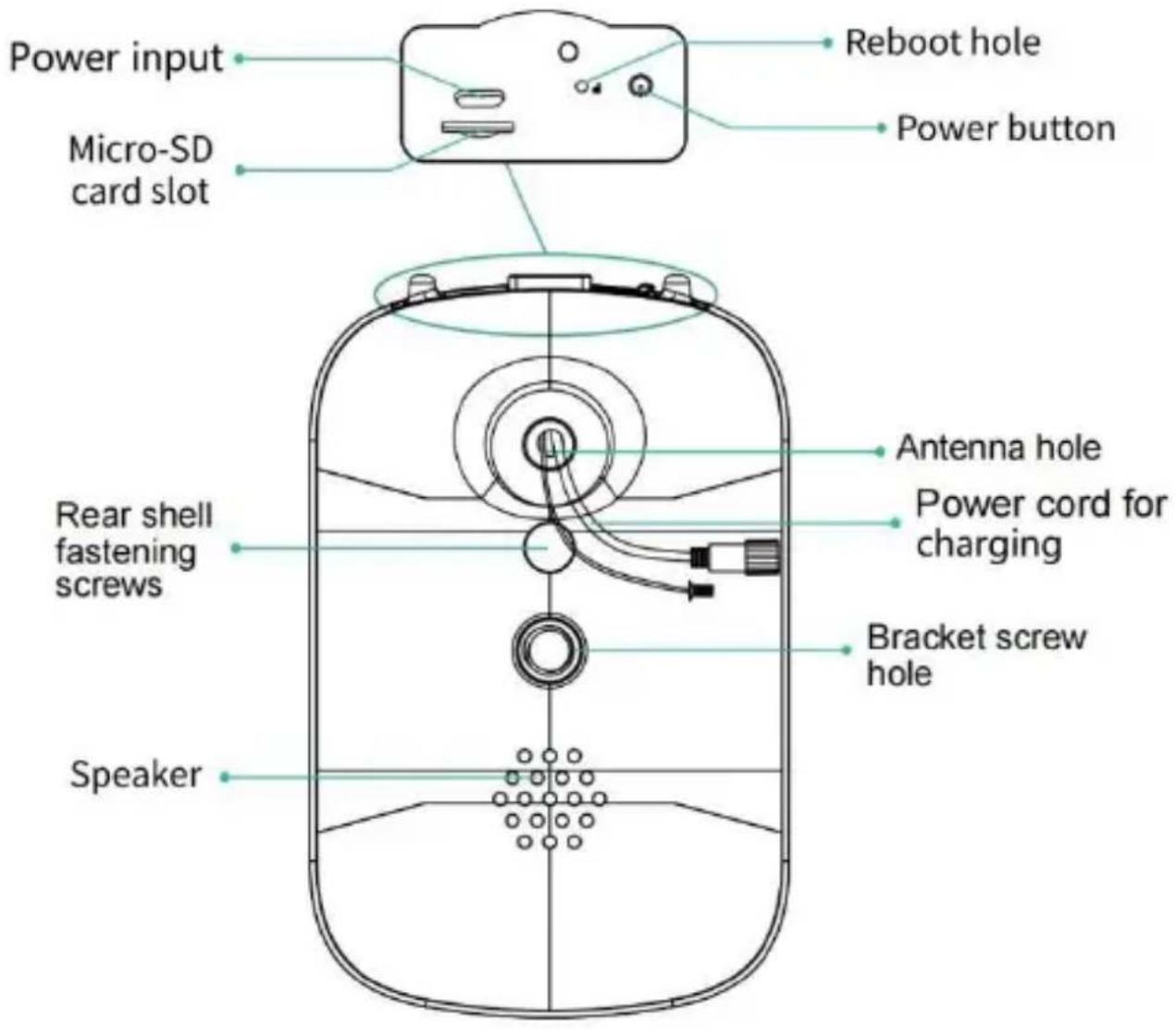

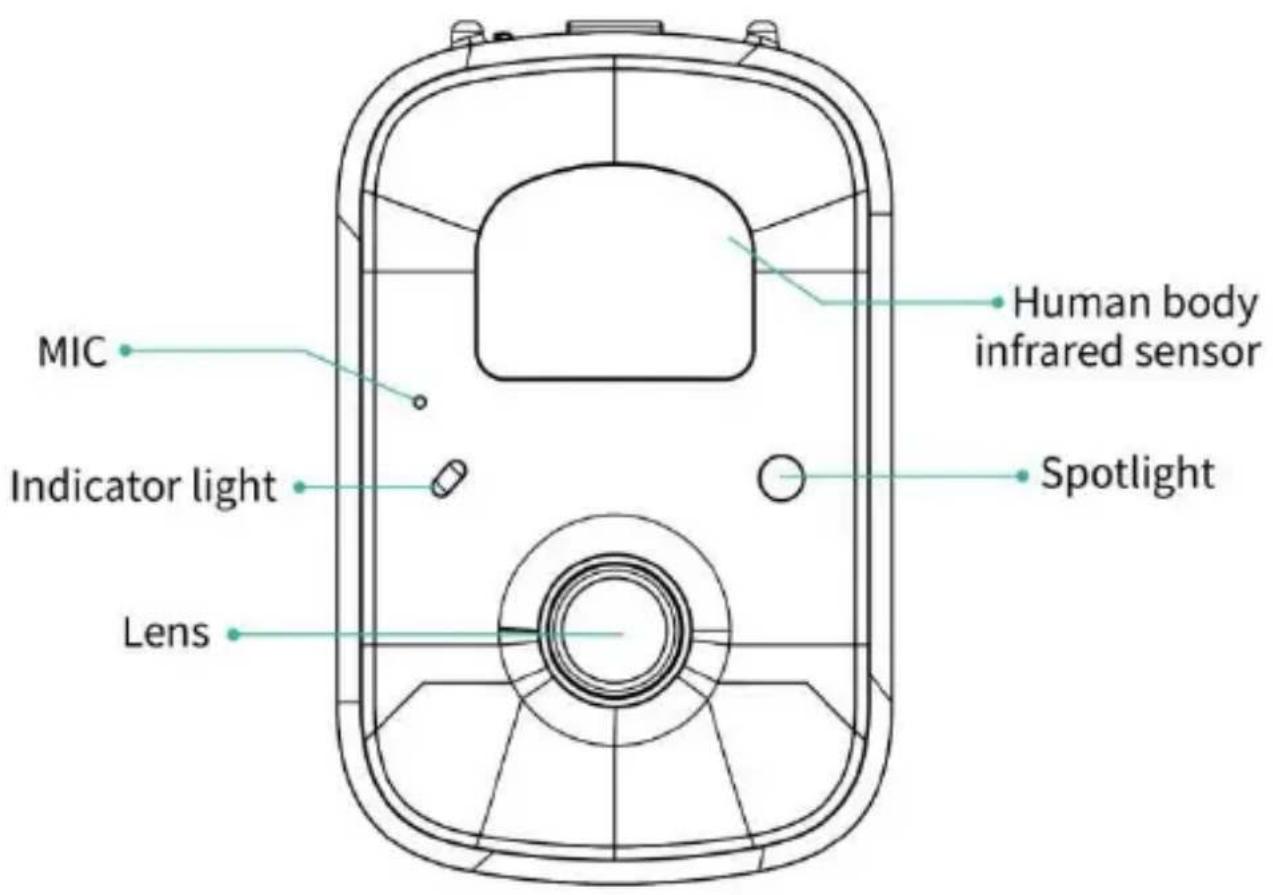

BIRD CAMERA APPEARANCE

The bird feeder is equipped with a camera model Q8, which is FCC-ID certified.

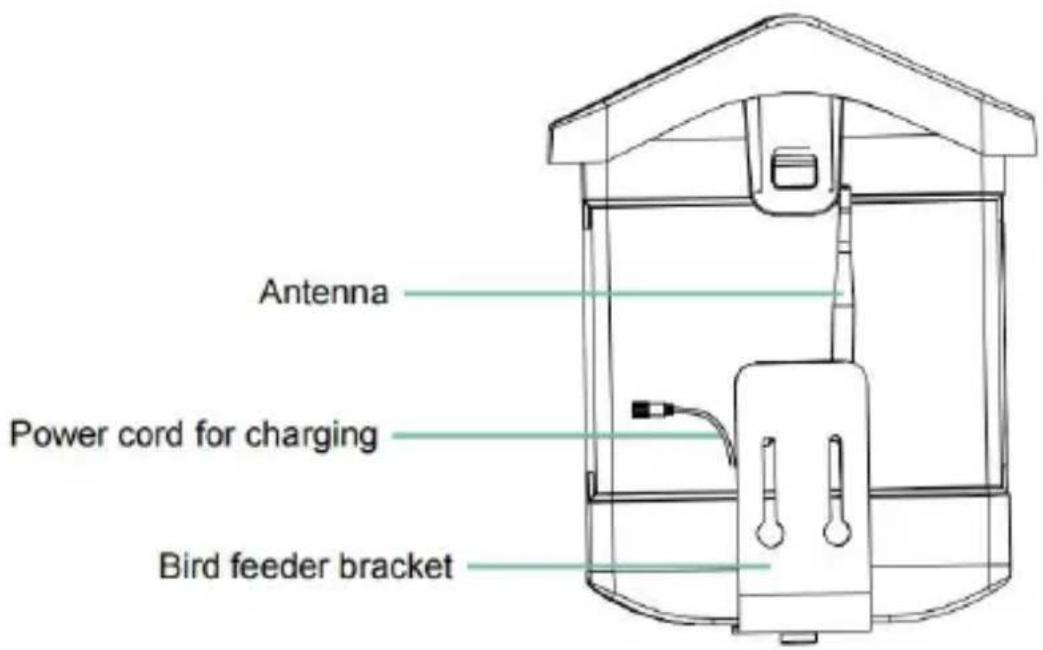

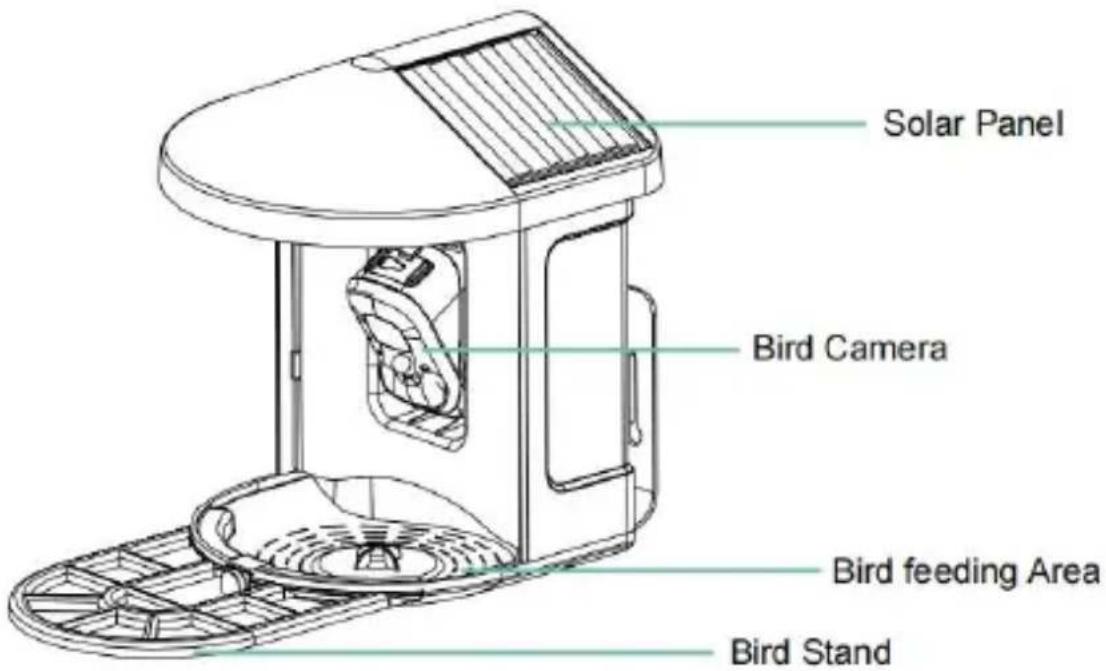

BIRD FEEDER PARTS NAME

STEPS OF ASSEMBLY

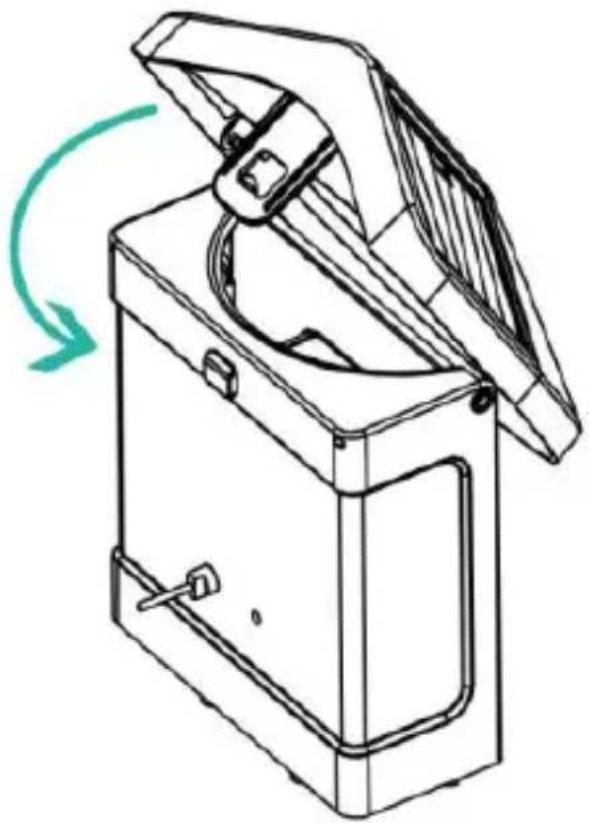

Step1: Assemble the upper cover

Turn the upper cover down so that it fastens onto the middle sh

Line drawing of a mechanical device with a green arrow indicating rotation (no text or symbols)

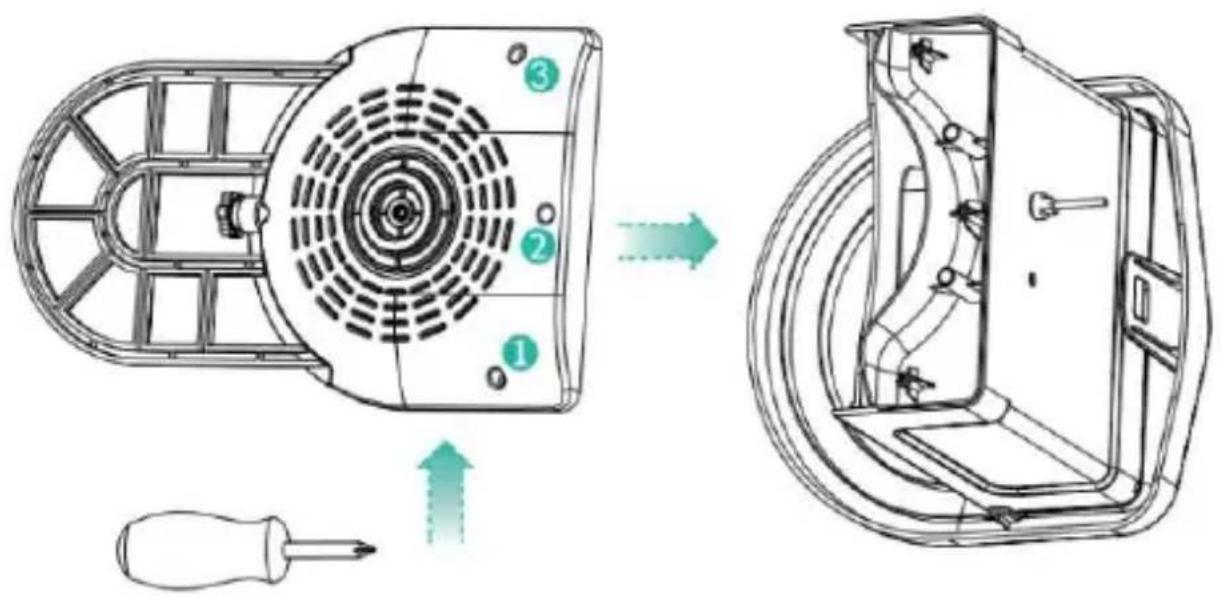

Step2: Install the tray

Clamp the material tray to the bottom of the main body of the equipment, put in 3 screws and tighten it with a cross screwdrive

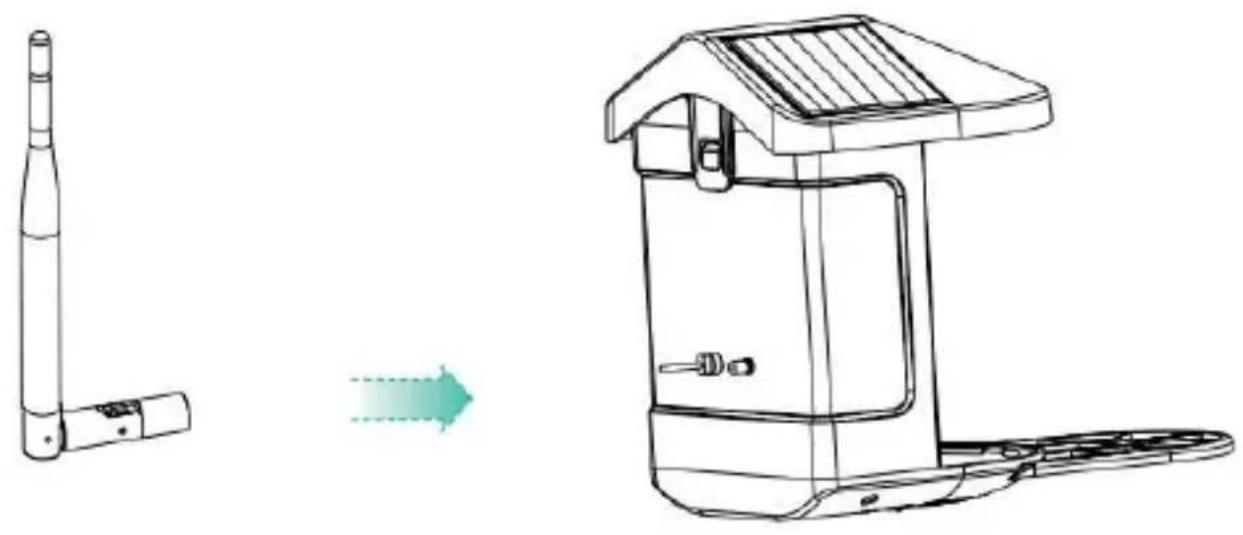

Step3: Install an external antenna

Position the external antenna at the back antenna hole of the bir feeder and tighten the rotating antenna.

Line drawing of a mobile phone device with a left-side component and a right-side version showing the same device (no text or symbols)

DOWNLOAD & INSTALL APP

The wireless smart battery camera supports Android and iOS App.

For your best experience, please scan the QR code below or search "VicoHome" on APP Store or Google Play Store to download and install the app. Install the app, and follow the instruction to complete the user registration.

Download App

Note: Scan QR code or go to the link to download and install the App: https://www.vicohome.io/download/

NOTE: Please turn on both of the following permissions.

1. Allow App to access mobile cellular data and wireless LAN, otherwise it will fail to connect the camera.
2. Allow App to receive pushed messages, otherwise, the phone will not receive alarms when motion is detected.

ACCOUNT REGISTRATION

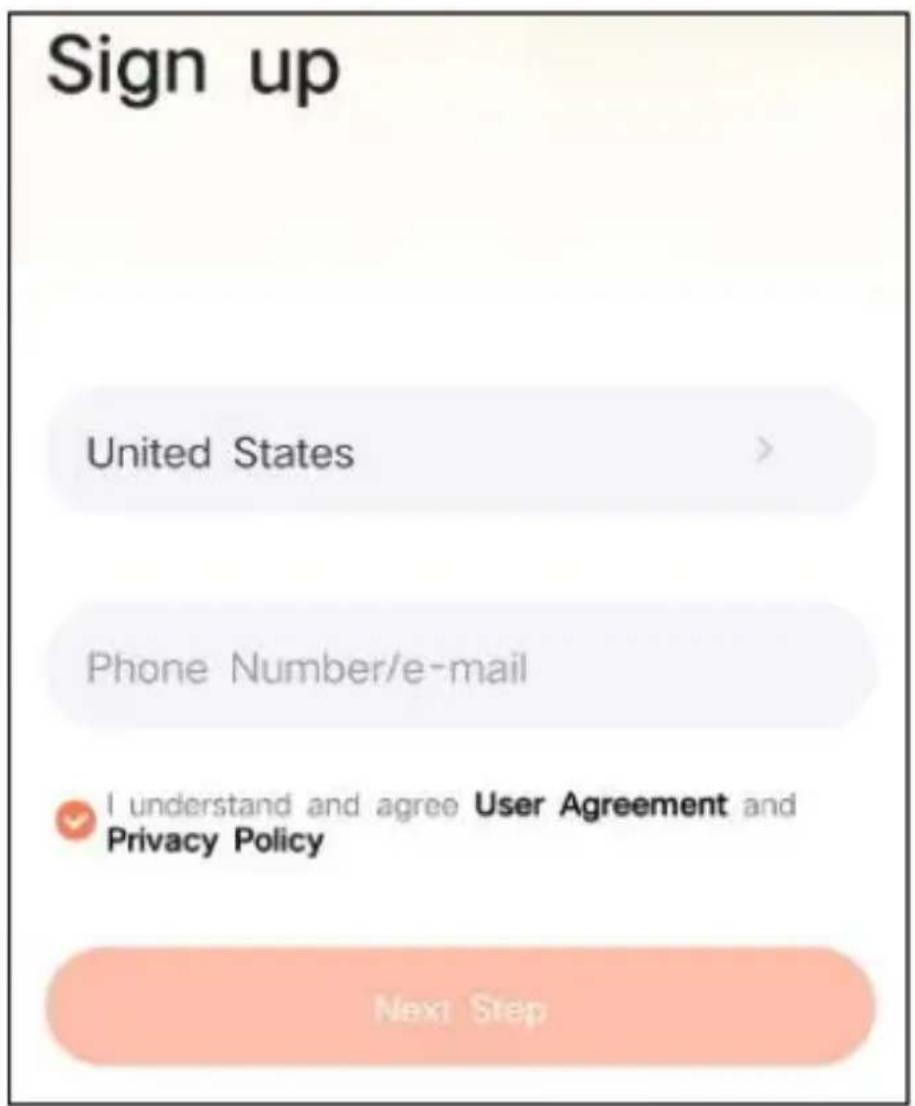

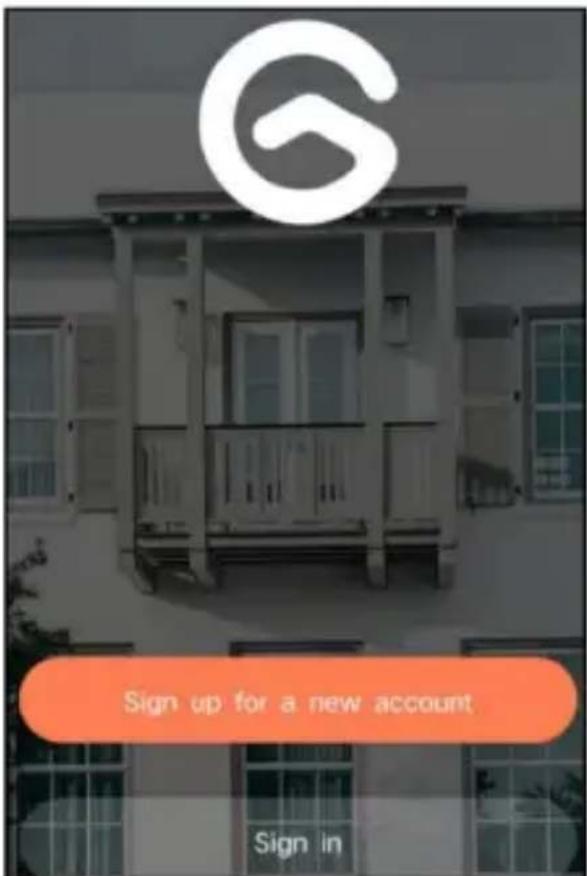

New users need to sign up by Email ID or Phone numbe Step1: Open the app and click 'Sign up for a New Account' and follow the steps to complete the registration.

Step2: Input your username, country, email address. Check and agree to the User Agreement, then click 'Next Step'. (For a better experience, allow all permissions to avoid missing any notifications.)

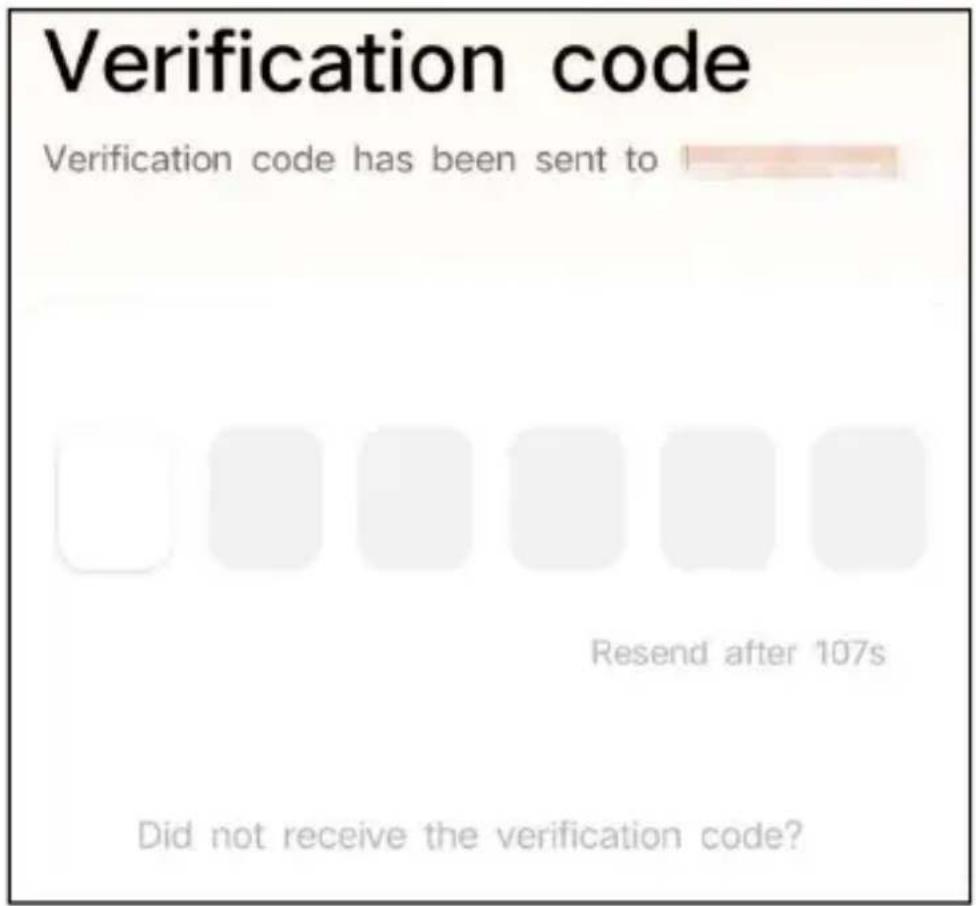

Step3: You will get an email with a verification code for account confirmation. Enter the code and click 'Next Step'.

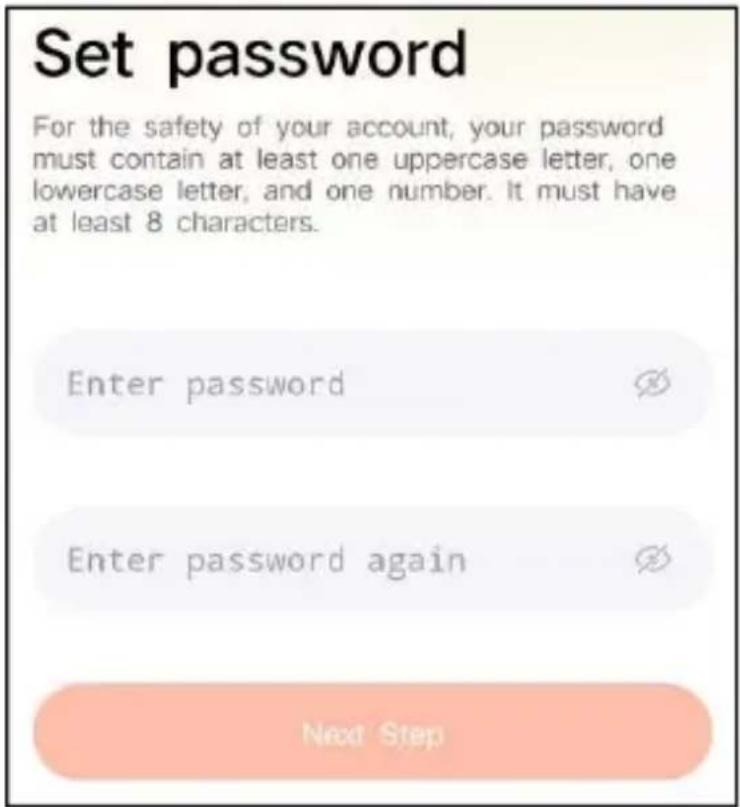

Step4: Set the login password and reenter it to confirm. Click 'Next Step'. (For account safety, the password needs to be a combination of at least 8 characters of uppercase and lower-case letters.)

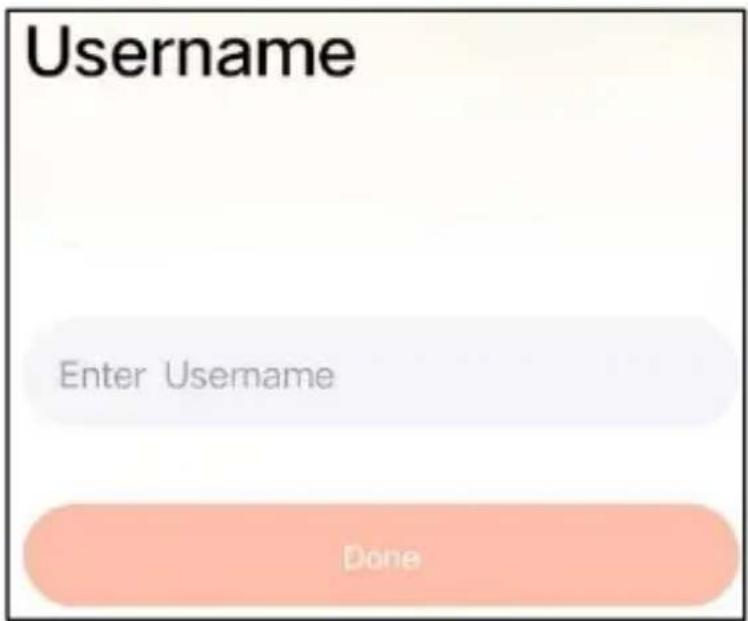

Step5: Enter your username and click 'done' for finish.

HOW TO SET UP THE CAMERA

1) How To Turn On & Off the Camera

	Operation	Status
Turn On the Camera	Long press the power button for 3s	Startup soundLight: Solid Blue
Turn Off the Camera	Long press the power button for 3s	Shutdown soundLight: Off
Enter the Network Configuration Mode	Double click the power button	Sound: Ding DongDing DongLight: Solid Blue

Note: The reboot hole is used to restart the camera without changing the settings. You can insert the included ejector pin into the reboot hole, then press and hold to reboot.

2) indicator Light Status

Mode	Status
Working mode	Blue
Sleep mode	Off
Charging mode	Yellow
Fully charged mode	Green

PREPARATION FOR CONNECTION

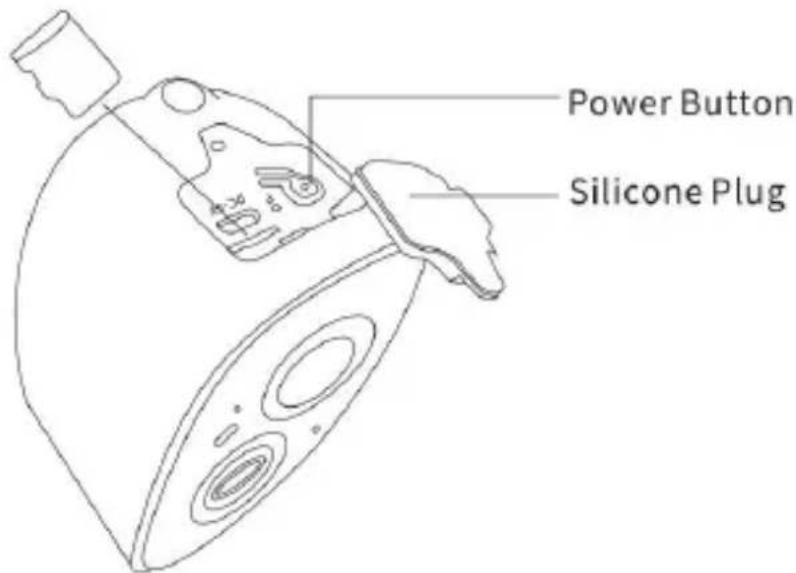

1). Insert Micro SD Card into Camera

Note: The SD card is not included, and it is not necessary. You can use the feeder without it.

Note: Camera comes with a built-in card slot that supports up to 128GB MicroSD card. Insert the card into the camera before you assemble the whole unit.

Note: We also provide 3 days cycle record for free (2 years limited time), the camera can work without SD Card.

Step 1: Gently rotate the camera down to the bottom.

step 2: Open the top silicone plug. Insert the MicroSD card.

Make sure to insert it in the right direction.

Step 3: Finally, cover the silicone plug.

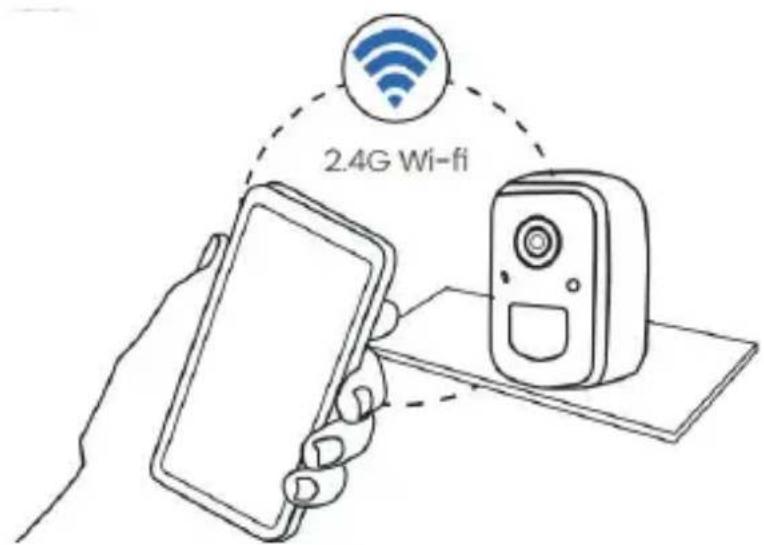

1. The camera only works with 2.4GHz Wi-Fi, not support 5G.

1. Take the camera close to the router while connecting.

2. Keep pressing the power button for 2-4s to power on/o the camera.

ADD THE CAMERA—FOR ANDROID

Note: The most up-to-date information can be found through the app.

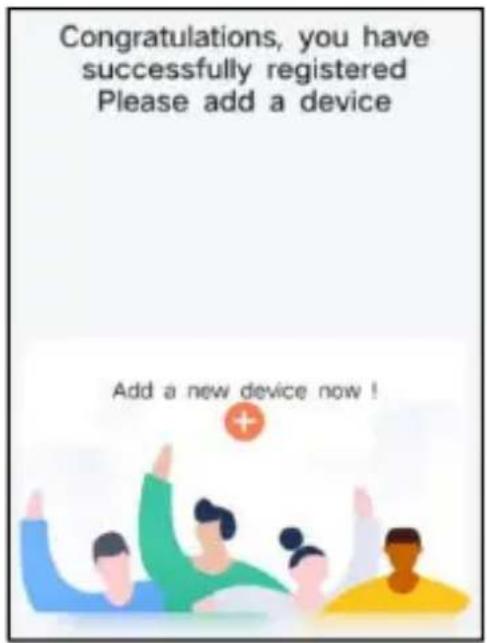

Step1: Click "Add a new device now" on the VicoHome App.

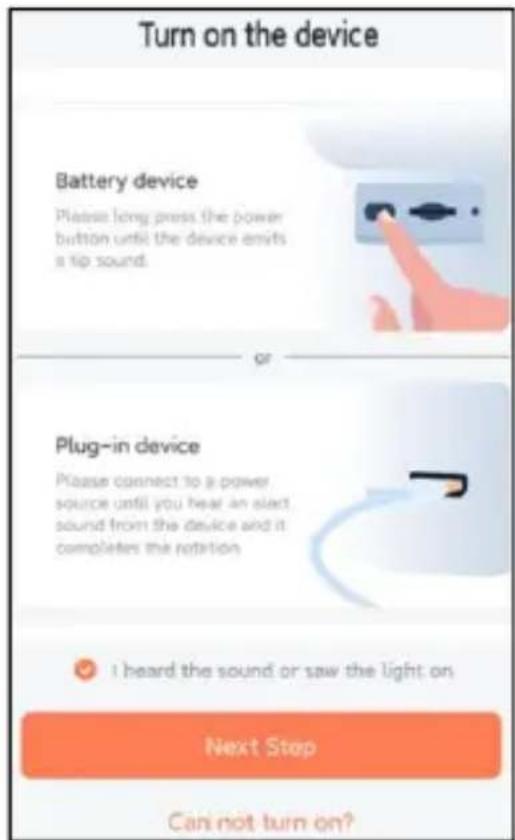

Step2: Follow the instructions on the app to turn on the camera: Long press the power button of the camera for 3 to turn on the camera. Then the indicator light in the front of the camera will be solid blue. Double click the power button to enter network configuration mode after the prompt tone.

Step3: Listen for the 'ding dong ding dong' sound. After hearing the sound, click 'I heard the sound or saw the lig on' in the app. Then, click 'Next Step'.

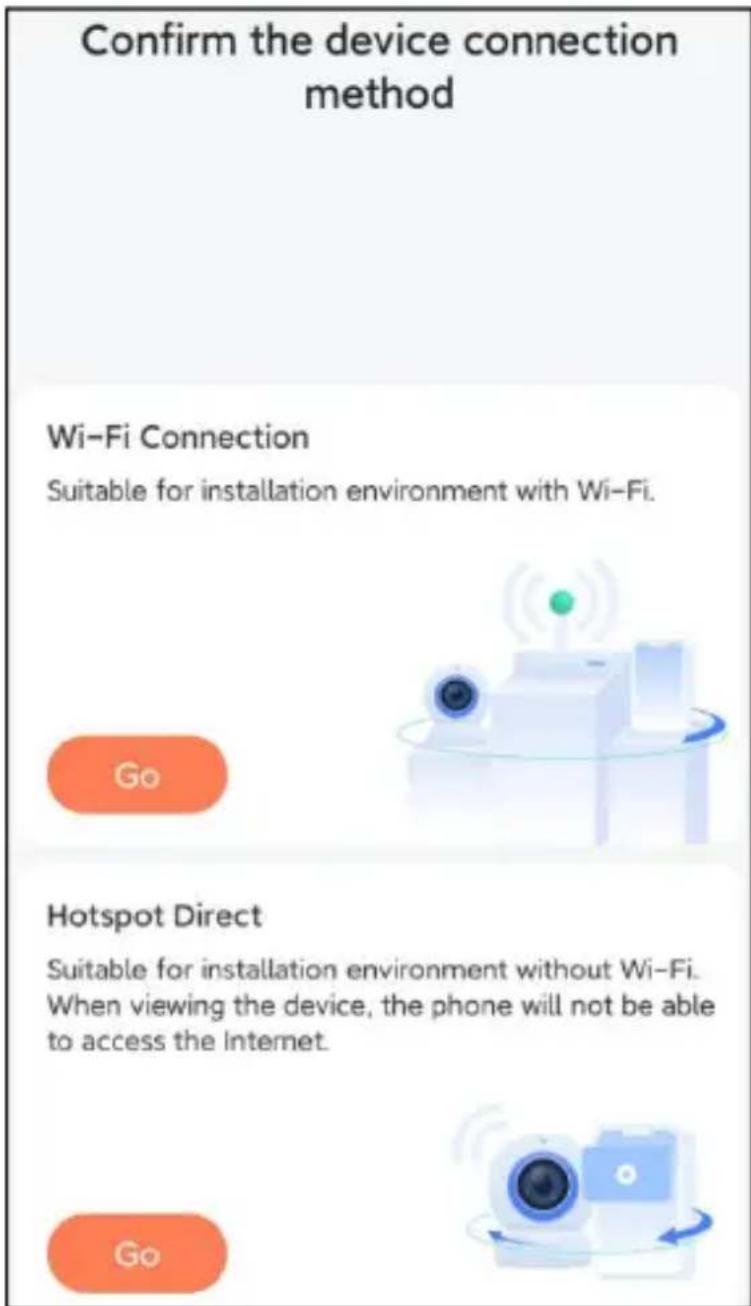

Step4: Confirm the device connection method, choose Wi-Fi connection (suitable for installation environment with Wi-Fi), click 'Go'.

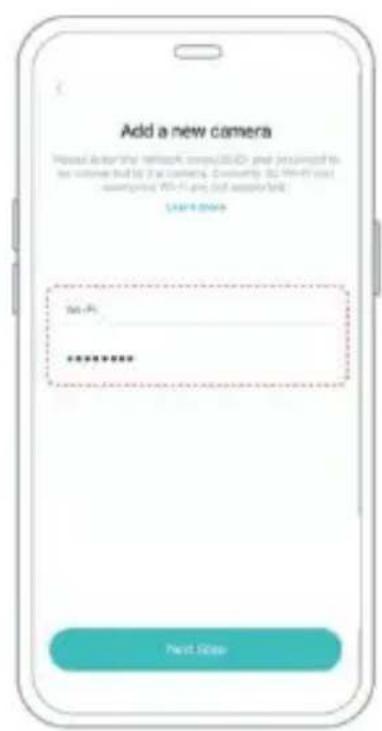

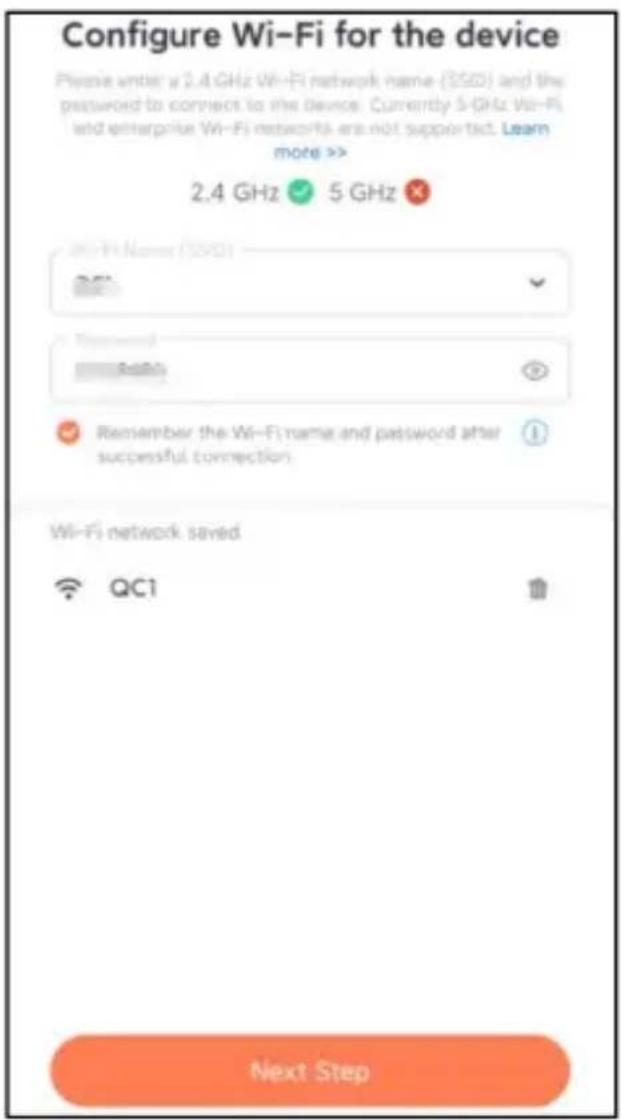

Step5: Enter the Wi-Fi name and Wi-Fi password you want to connect to, check 'Remember the Wi-Fi name and password after successful connection', and click 'Next Step'.

Note: The smart bird feeder only supports 2.4GHz Wi-Fi networks with strong wall penetration capability.

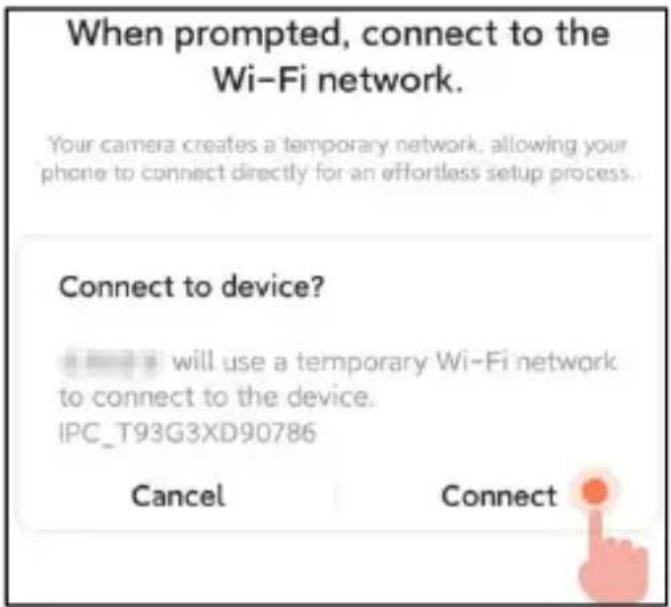

Step6: Click 'Next Step'.

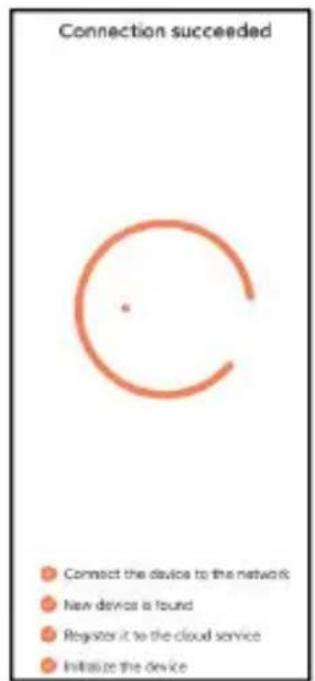

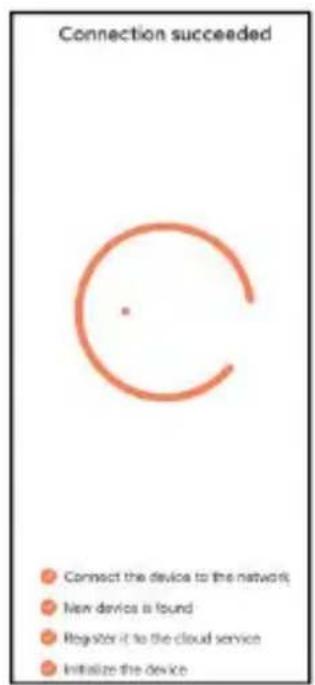

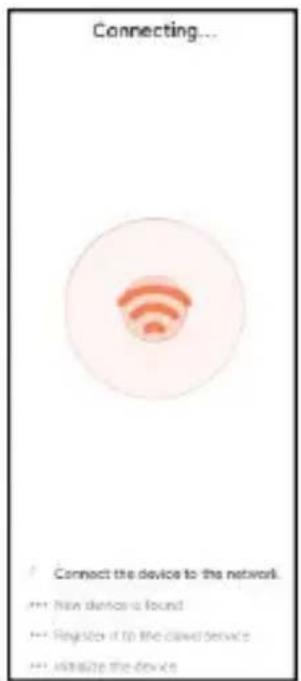

Step7: When connecting, please wait patiently for 15 seconds, then you will hear a sound Wi-Fi Connected'.

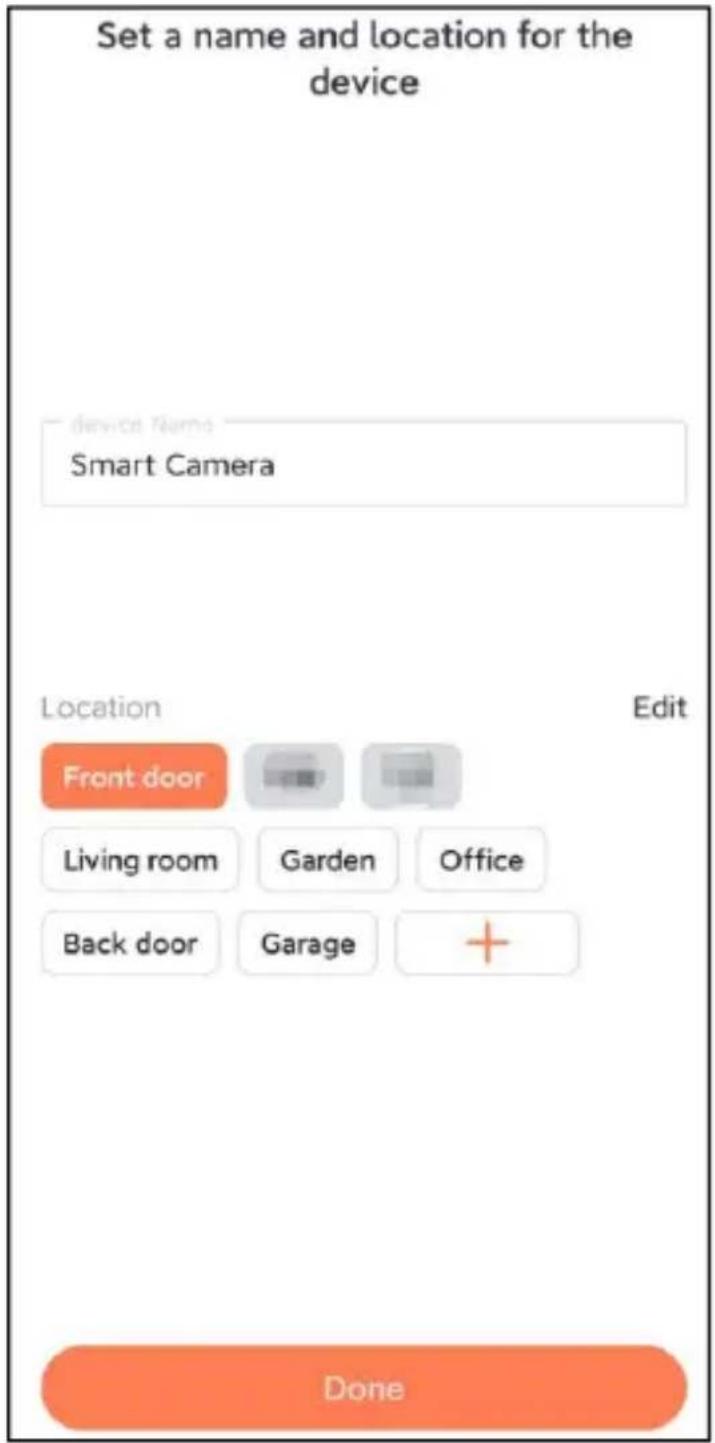

Step8: Set a name and location for smart bird feeder, and then click 'Done'.

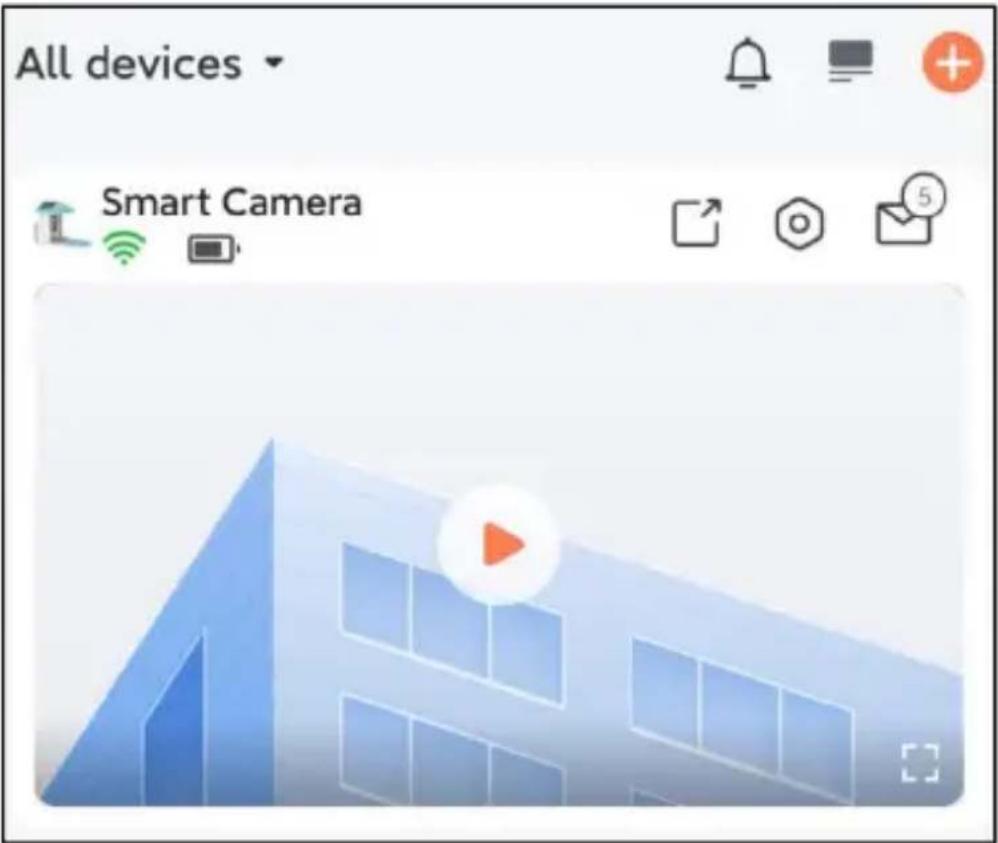

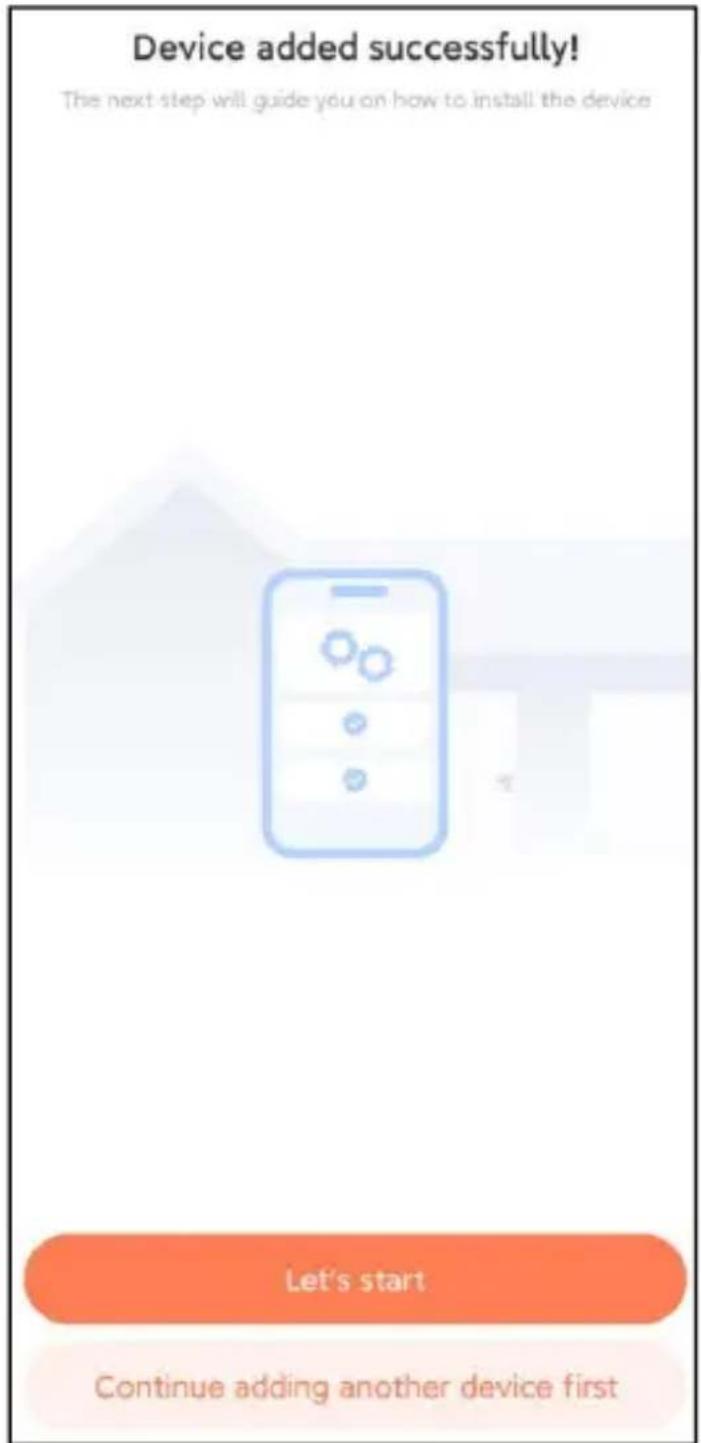

Step9: Finally, your device added successfully and then click 'Let's start'.

Note: When you finish connecting, a message will appear about getting free cloud storage for 30 days. After 30 day you can subscribe to a cloud storage package that suits you.

ADD THE CAMERA—FOR iOS

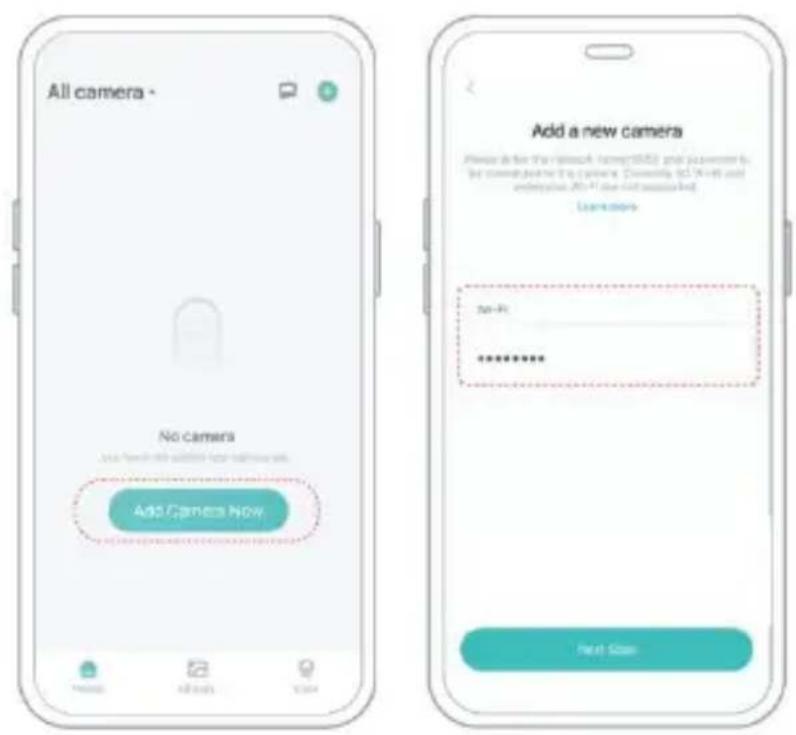

Step1: Click the "Add Camera Now" in the App and enter the Wi-Fi network name and password that you want the camera to connect.

Step2: To ensure a longer distance connection, the camera only supports the 2.4Ghz Wi-Fi with stronger wall penetration capability and does not support Wi-Fi for enterprise-level authentication currently. Please ensure that the entered Wi-Fi meets the requirements. After

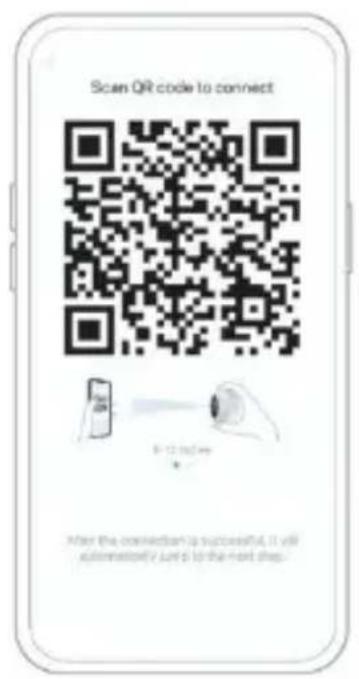

completion, click "Continue to generate the QR code for pairing the camera.

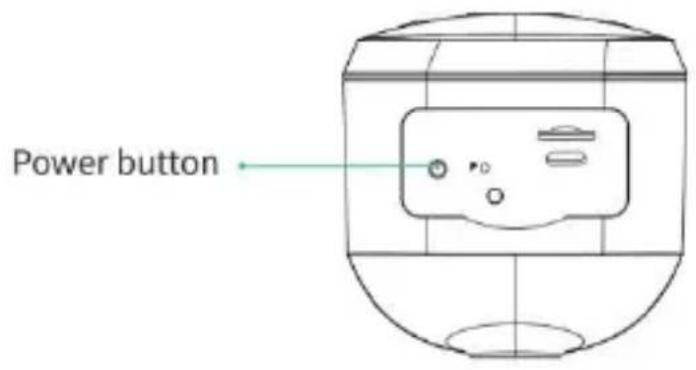

Step3: After pressing the camera switch for 3 seconds, the camera will turn on. The camera will emit the scanning sound "Ding Dong Ding Dong" after it is turned on (if you do not hear it, please double click the power button).

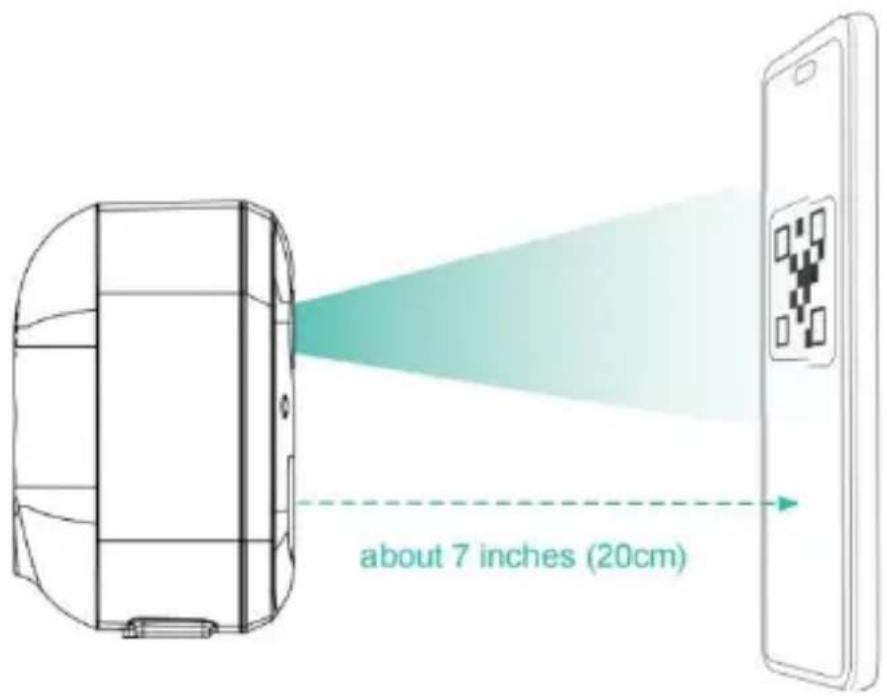

Step4: Take the lens of the camera facing the QR code generated on Home about 20 cm (7 inches) until you hear a "Ding" sound.

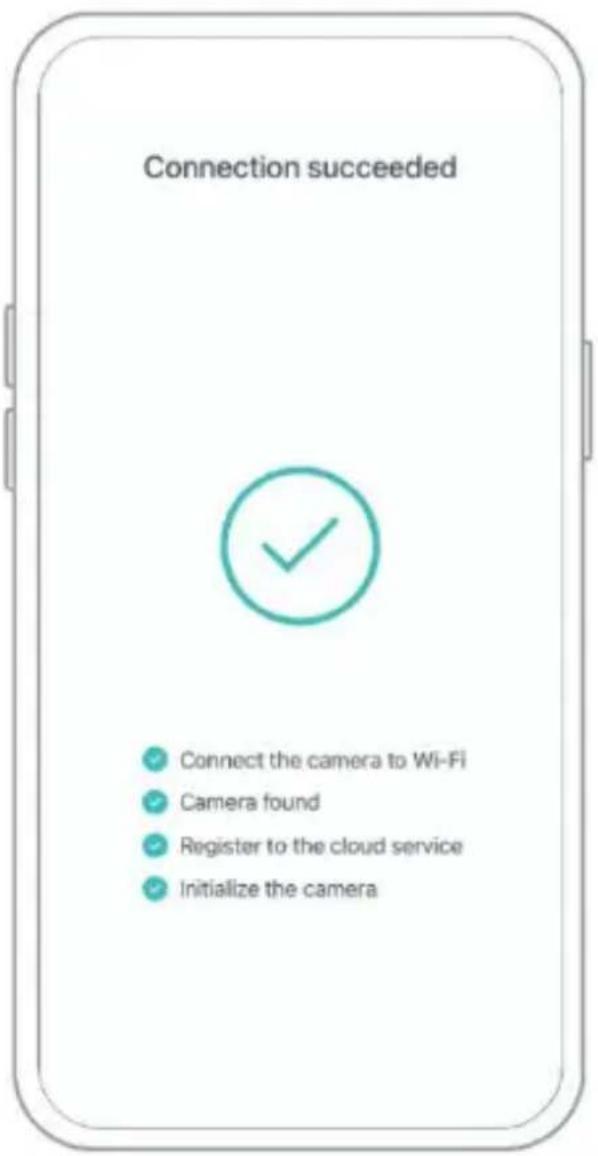

Step5: After a while, the camera will give out a prompt sound of a successful connection. At this moment, please set the name for the device on the App and select the location you want to place the device. Click "Continue" to complete the pairing.

SHARE THE CAMERA

When you need to view the camera with other family members or friends, you can use this function. Only the administrator whose account is bound with the camera for

the first time can share and set the device. Other members scan only views the live or playbacks of the device.

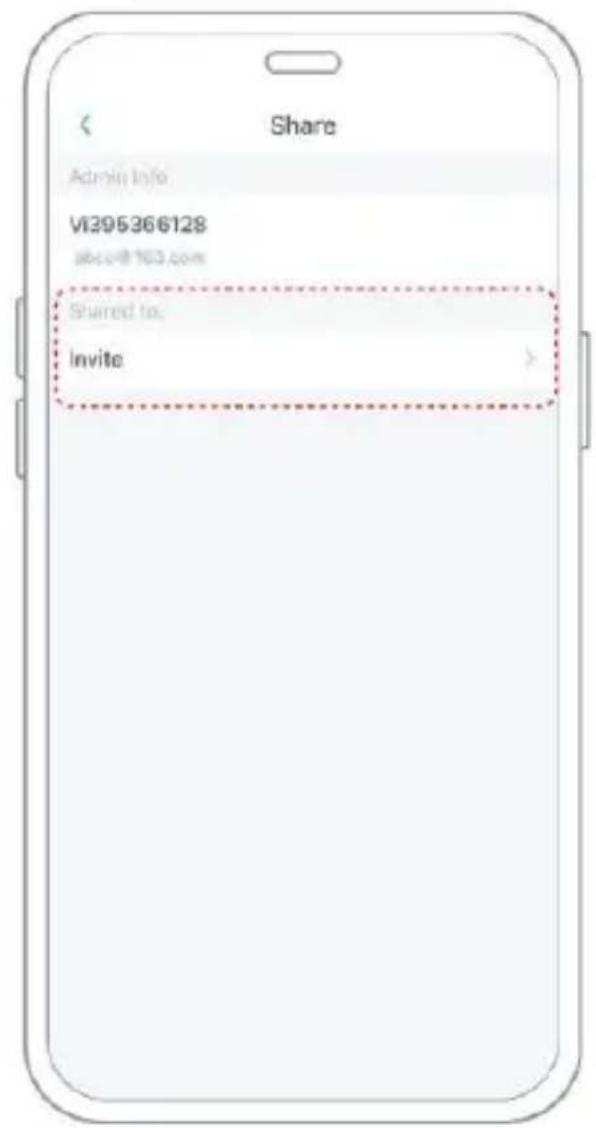

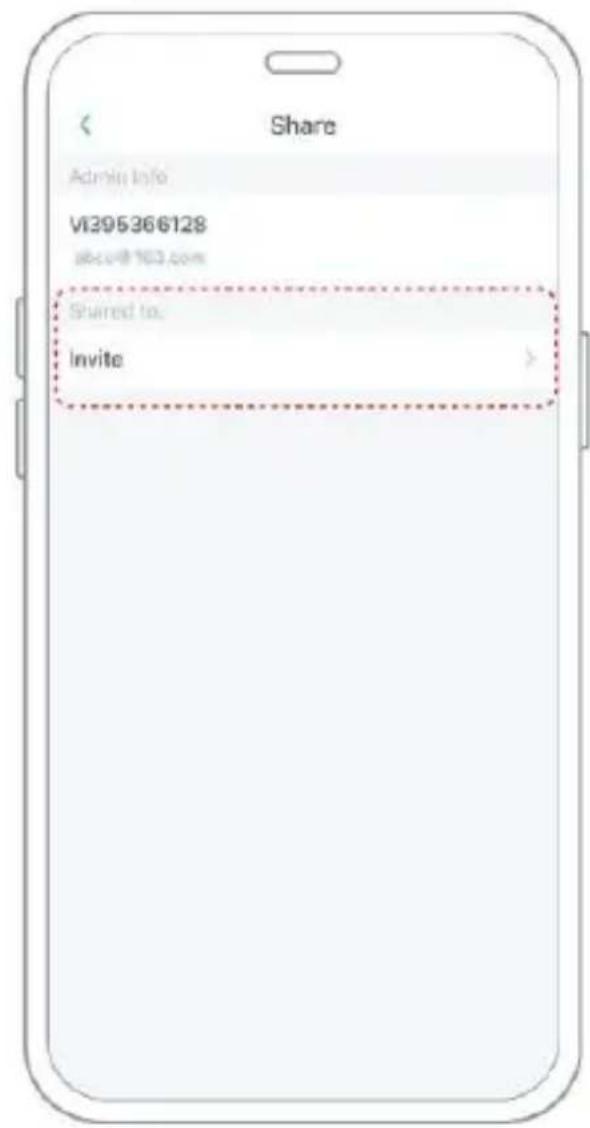

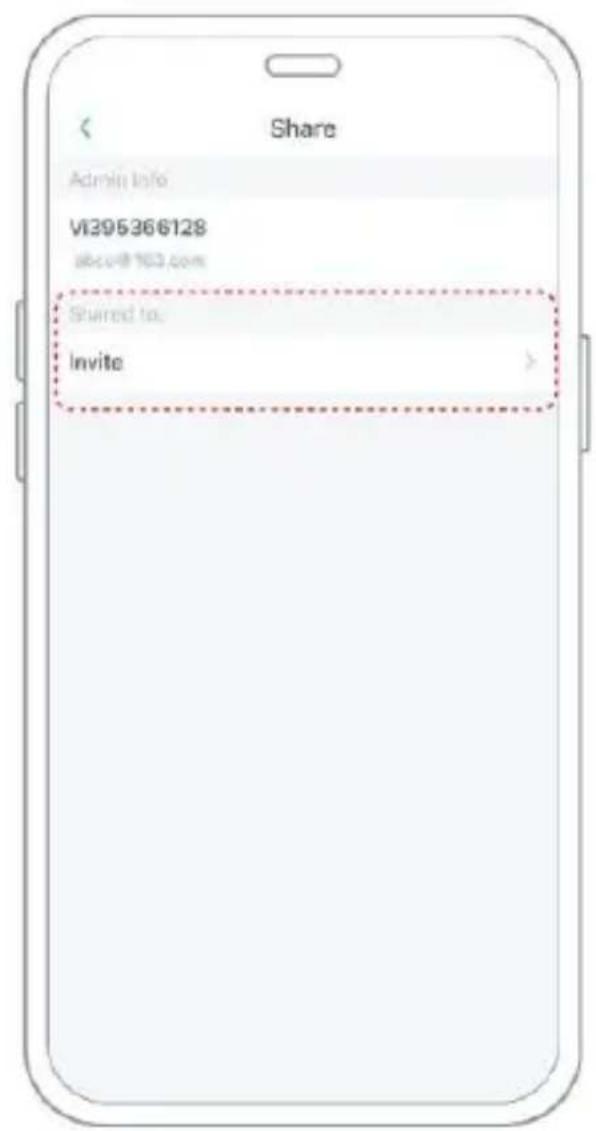

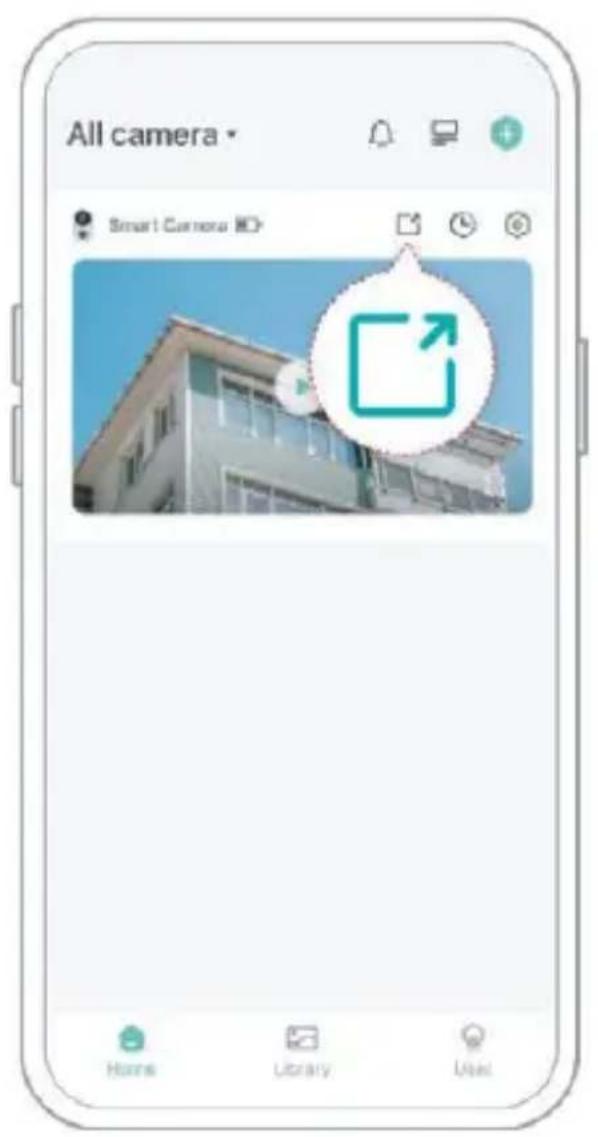

Step1: Find the camera you want to share on the App home page or camera setting page. Click the share button and enter the sharing page.

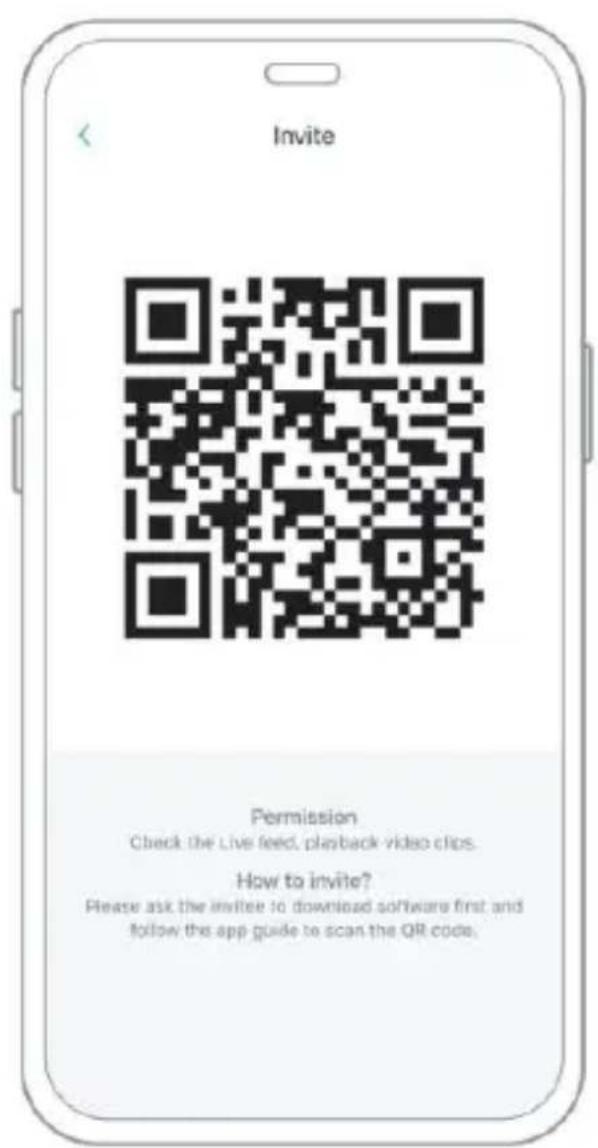

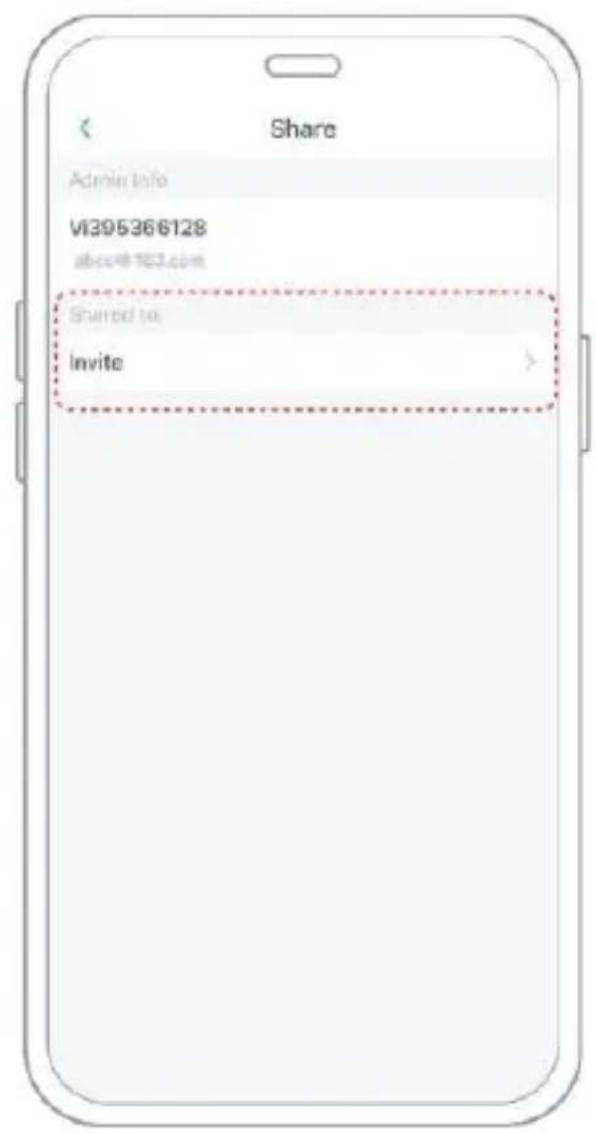

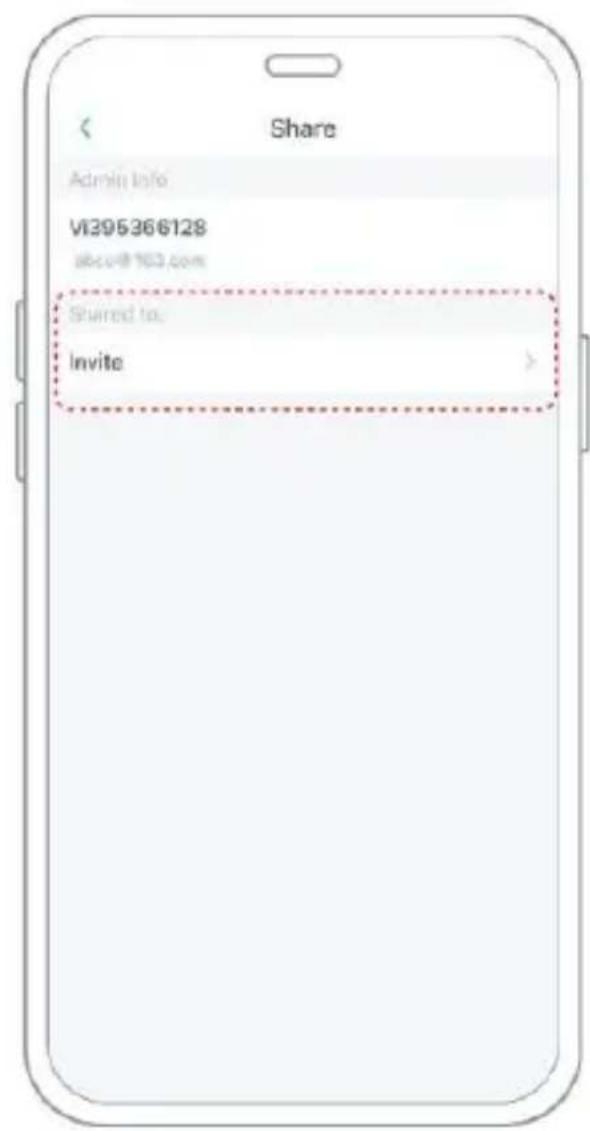

Step2: Click "Invite", and a QR code will be generated for sharing.

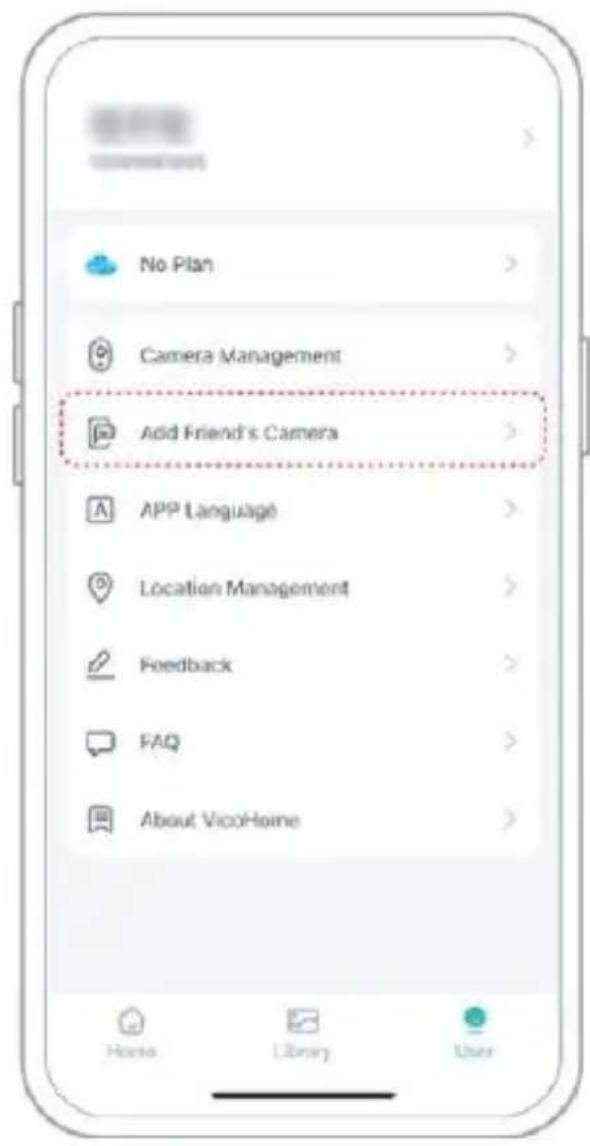

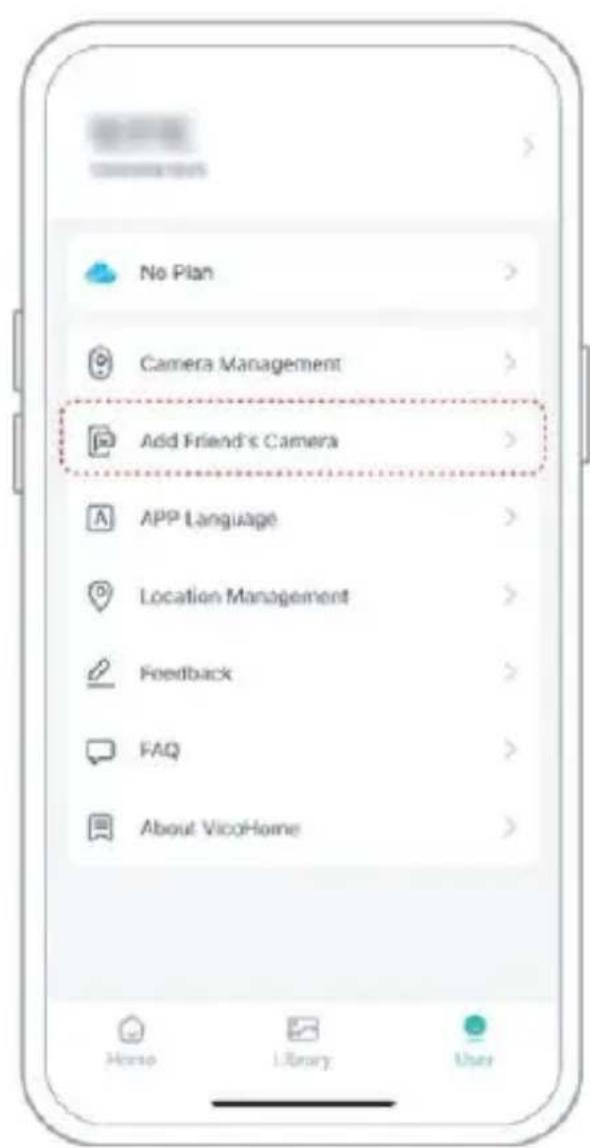

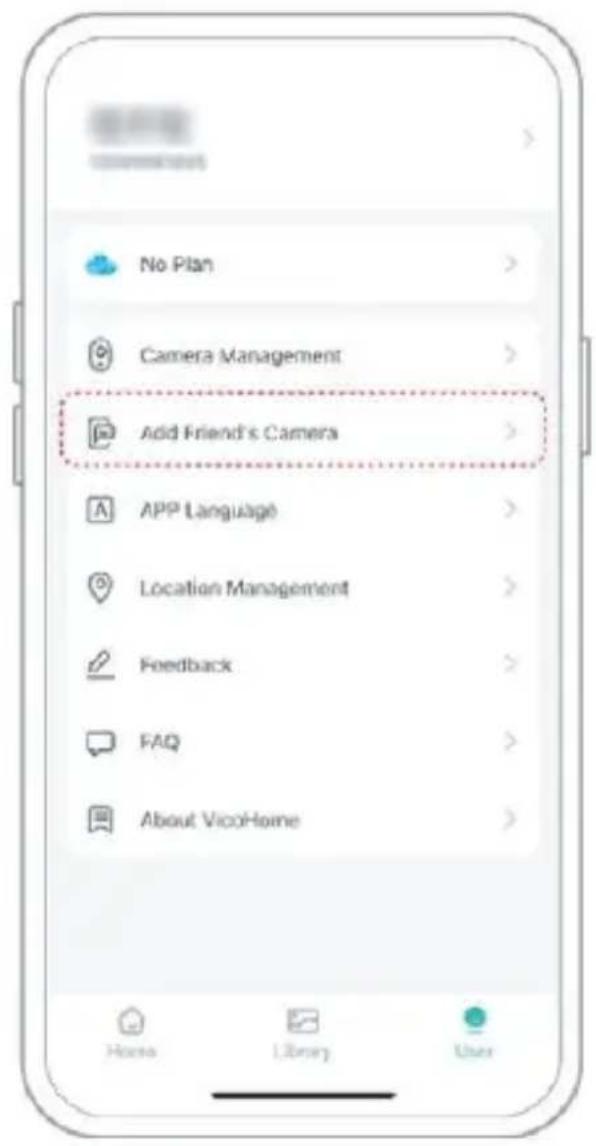

Step3: For the members you need to share, find "Add Friend's Camera" on the "User" page to enter the scanning page.

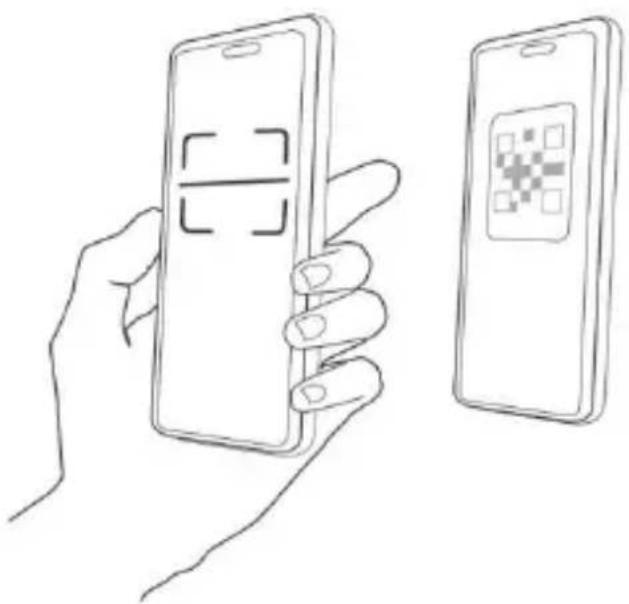

Step4: Scan the QR code generated on your mobile phone, and you will receive the confirmation notification after success. The sharing will be completed after you agree.

Line drawing of a hand holding a smartphone and a smartphone displaying a QR code (no text or symbols present)

CHARGE THE CAMERA

1) Check Battery Level

After setting up the camera, please check the battery level of the camera to make sure it is fully charged before installing it in the yard. The app will also remind you to charge your smart bird feeder when the battery is low.

2) Charge the smart bird feeder

There are two ways to charge it.

① Indoor Charging: If you need to charge after

installation, please don't move the camera and the base, just remove the birdseed container. The charging port is in the middle of the back side of the bird seed container.

Please use the Type-C cable to plug into the 5V/1.5A charging adapter to charge the smart bird feeder.

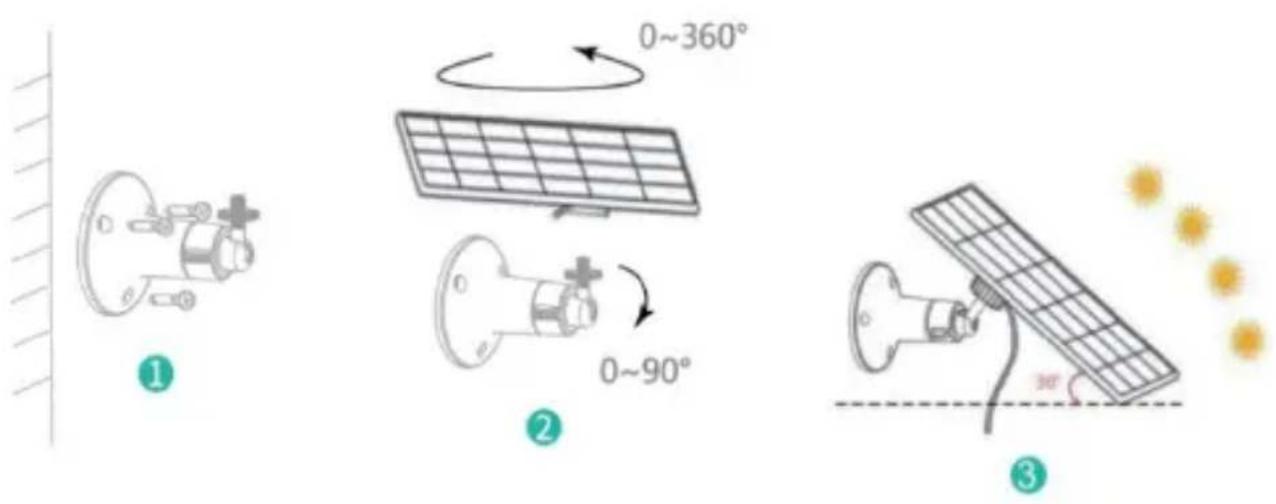

② Outdoor charging: You can directly use the equipped solar panel to connect to the charging port in the middle the back side of the bird seed container.

Note: During charging, the camera's indicator light is solid yellow, and when the camera is fully charged, the indicator light will turn solid green. It will take ten hours to fully charge the camera.

HOW TO DO BIRD AI RECOGNITION

Step1: Click 'User' in the lower right corner of the app, a then click 'VicoHome' Awareness Plus to get 'VicoHome' Awareness Plus 30day free trial', You will receive one month of free premium membership and access to the 'Bird Fans Plan', then you will be able to identify 10,000+ birds with the bird fans plan.

Note: The most up-to-date information can be found through the app. Monthly subscription is required after the 30-day free trail.

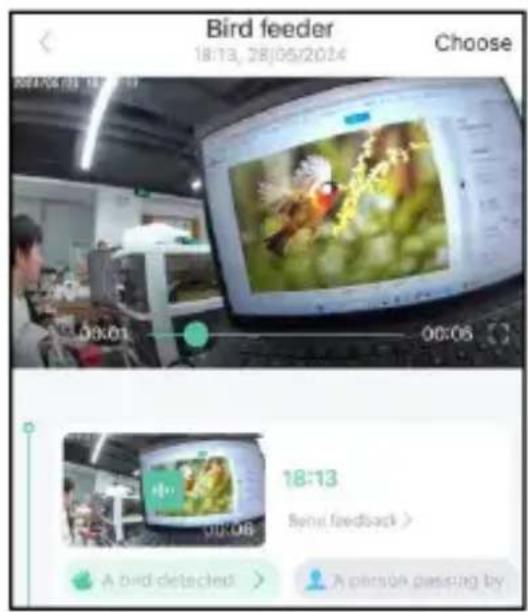

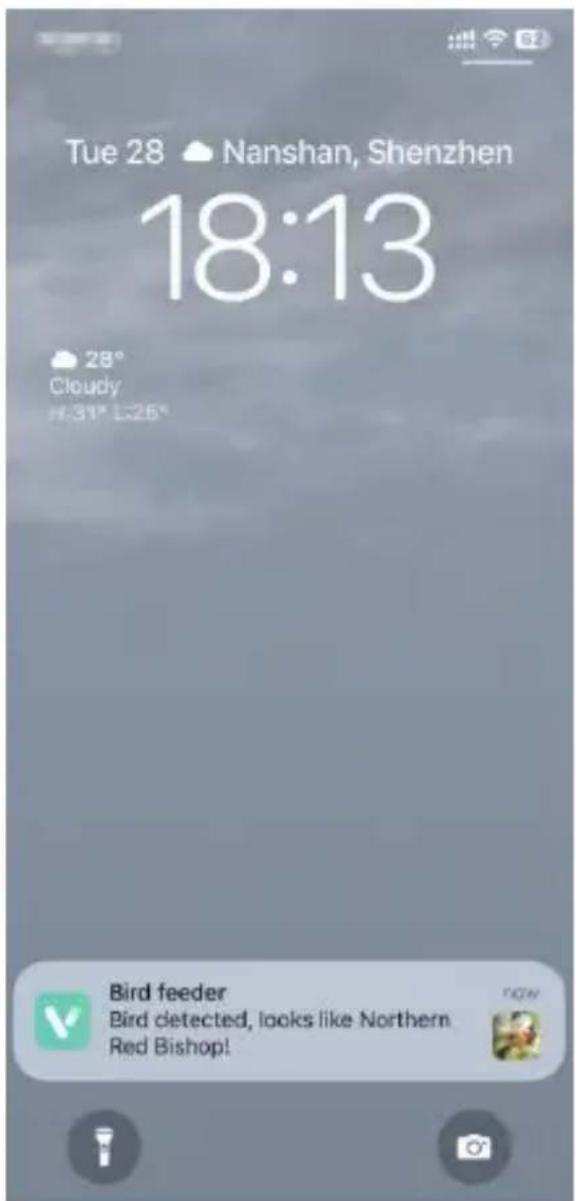

Step2: When the camera detects a bird, it will notify you that a bird has been detected.

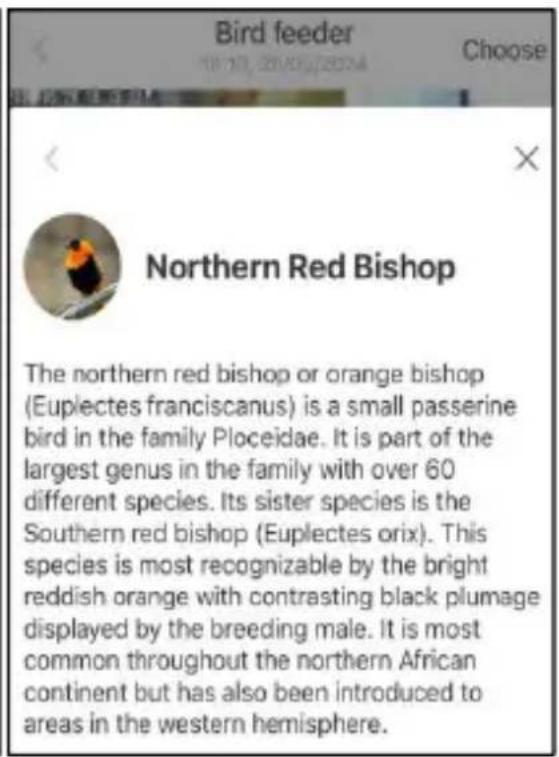

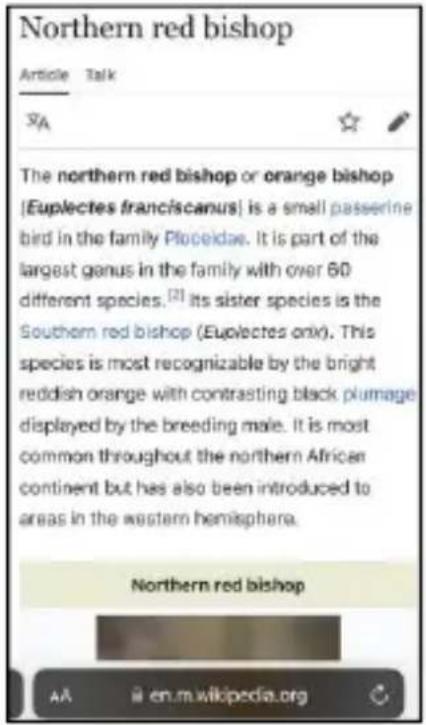

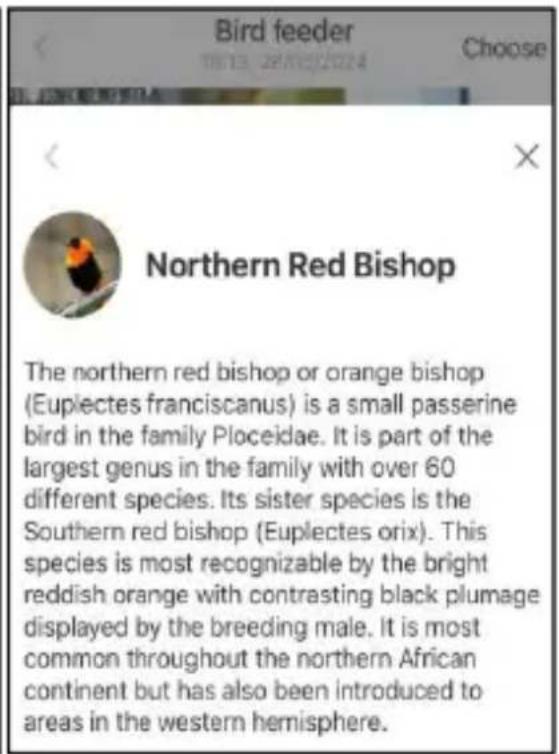

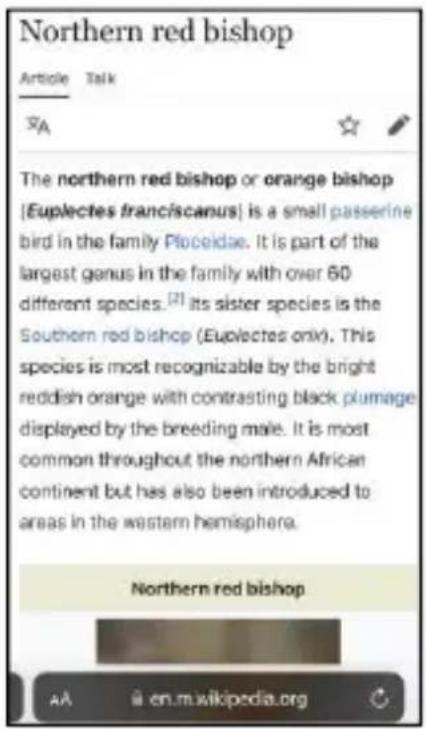

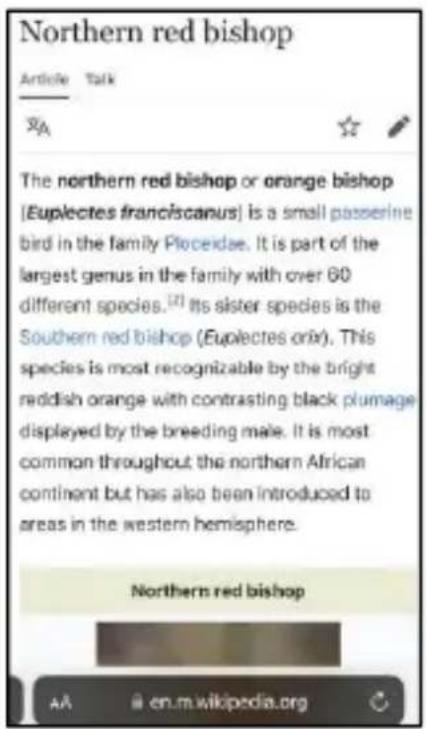

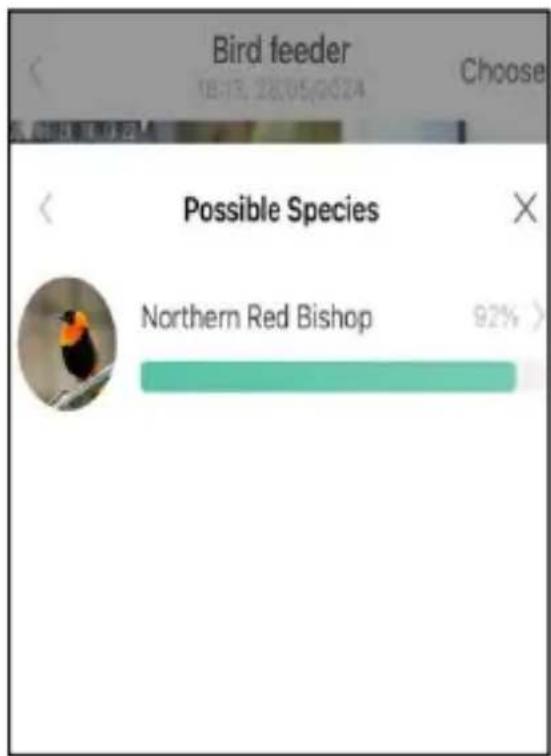

Step3: Click on 'A bird detected' to identify the bird breed

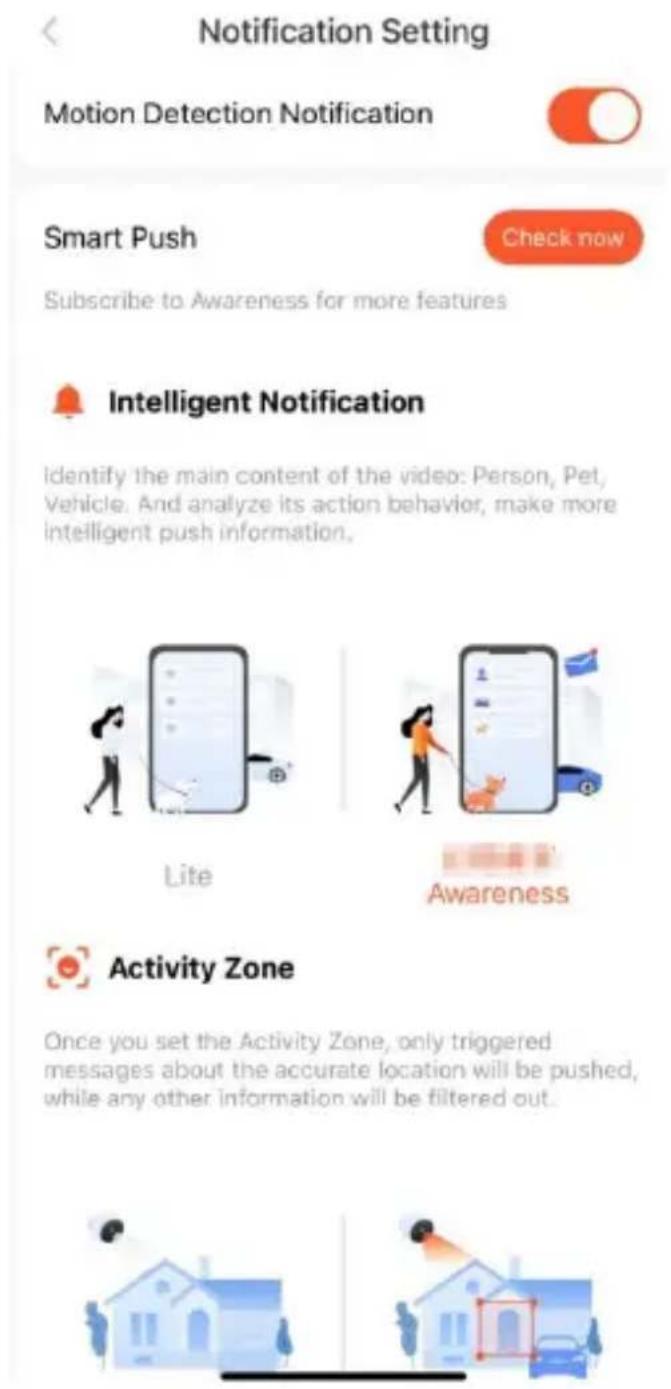

NOTIFICATION SETTING

1. When the notification setting is turned on, a message will be pushed to your phone interface when a bird is detected.

1. If you feel that the messages are noted frequently, you can cancel the notification function in the notification setting interface on the ‘VicoHome’ App.

Notification Setting

Motion Detection Notification

Smart Push

Check now

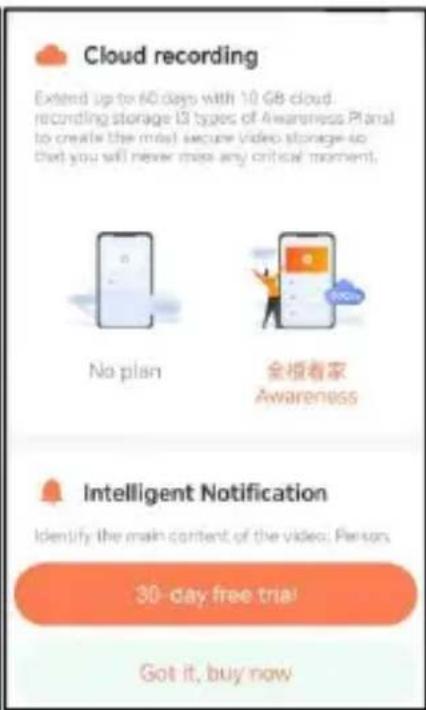

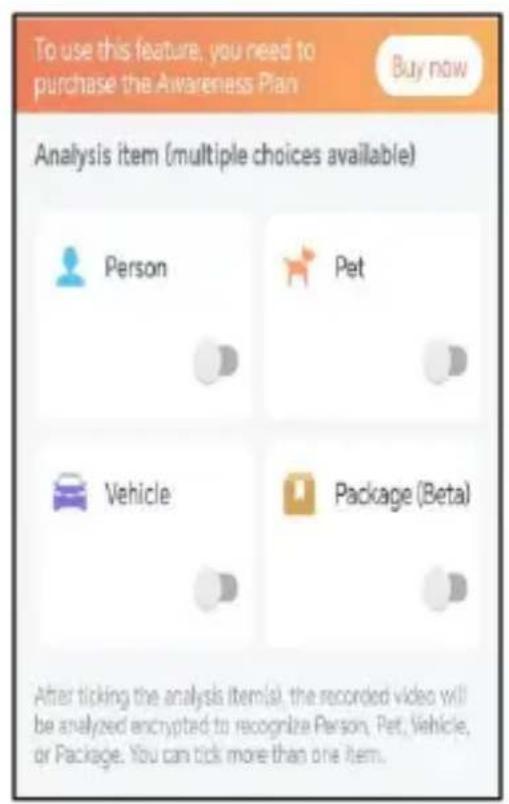

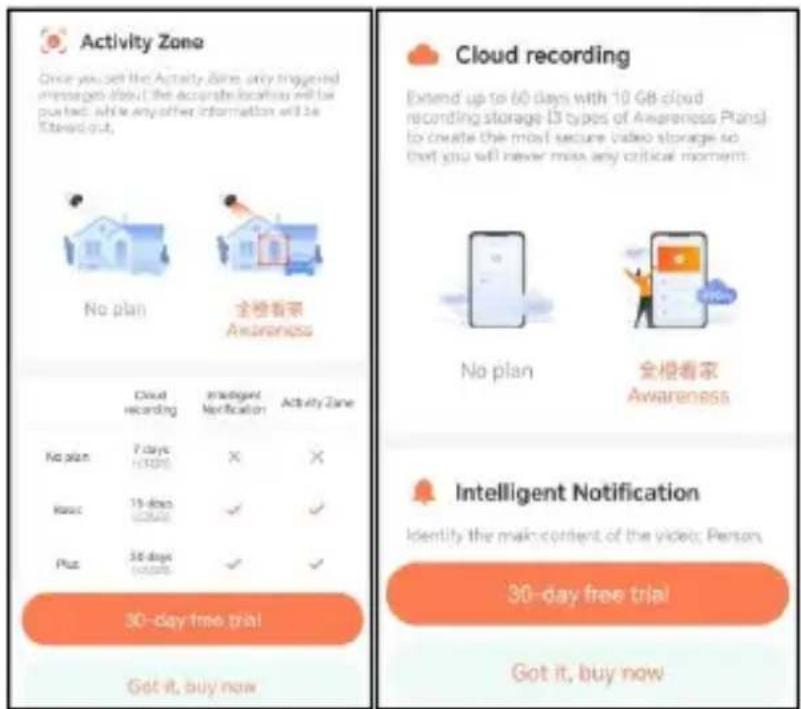

Subscribe to Awareness for more features

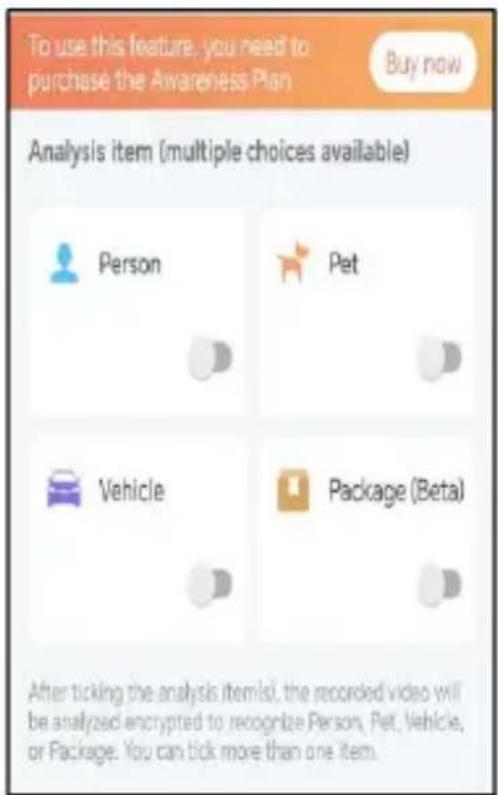

Intelligent Notification

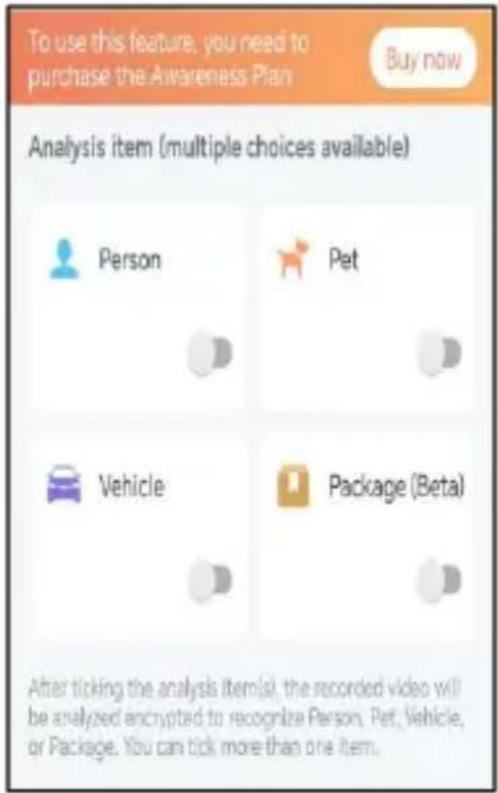

Identify the main content of the video: Person, Pet, Vehicle. And analyze its action behavior, make more intelligent push information.

Activity Zone

Once you set the Activity Zone, only triggered messages about the accurate location will be pushed, while any other information will be filtered out.

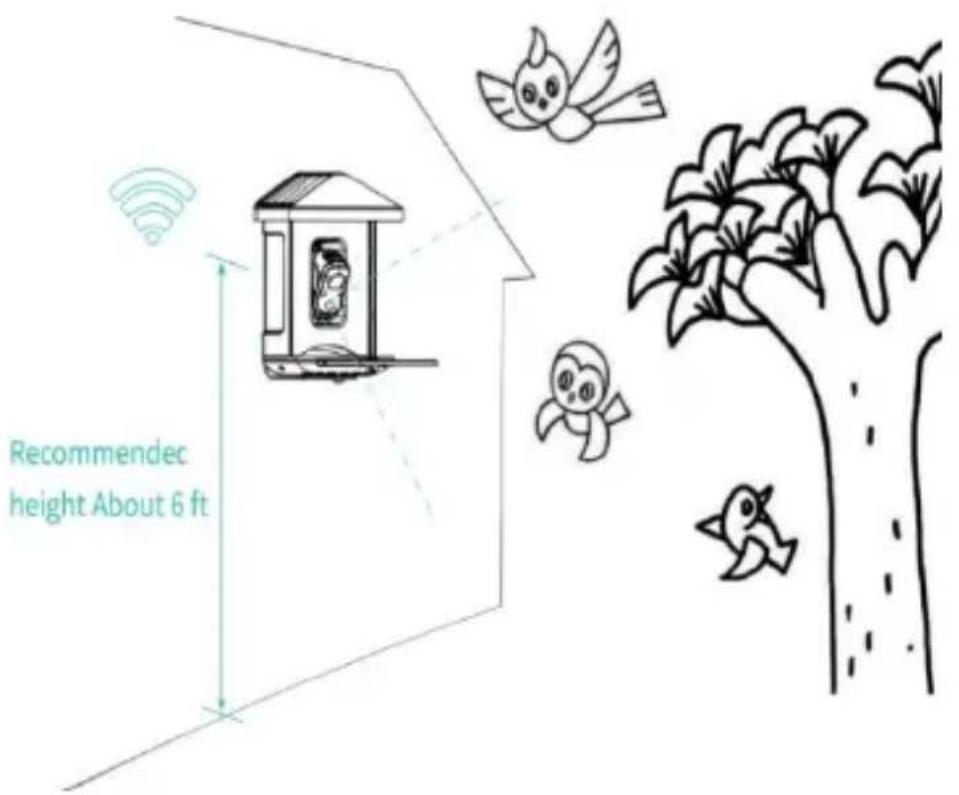

BIRDFEEDER INSTALLATION

(1) Install the bracket

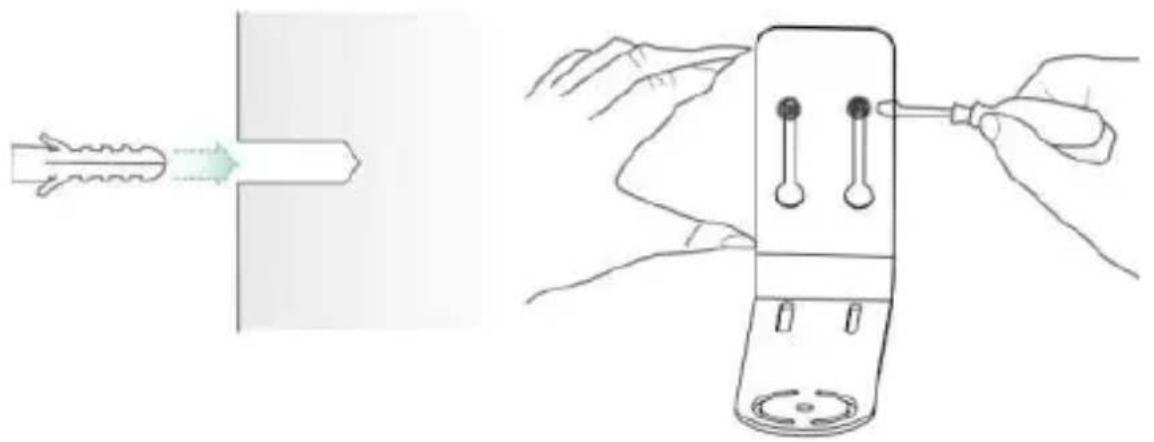

Step1: Screw fixing

Use a drill tool to drill holes in the wall according to the spacing the brackets. It is recommended to mark the holes on the wall with a pencil before drilling. Screw the expansion nut into the holes on the wall, and then connect the bracket to the expansion nut with screws to complete the fixing.

Illustration showing a hand holding a medical device with three sensors, before and after the device's tip (no text or symbols present)

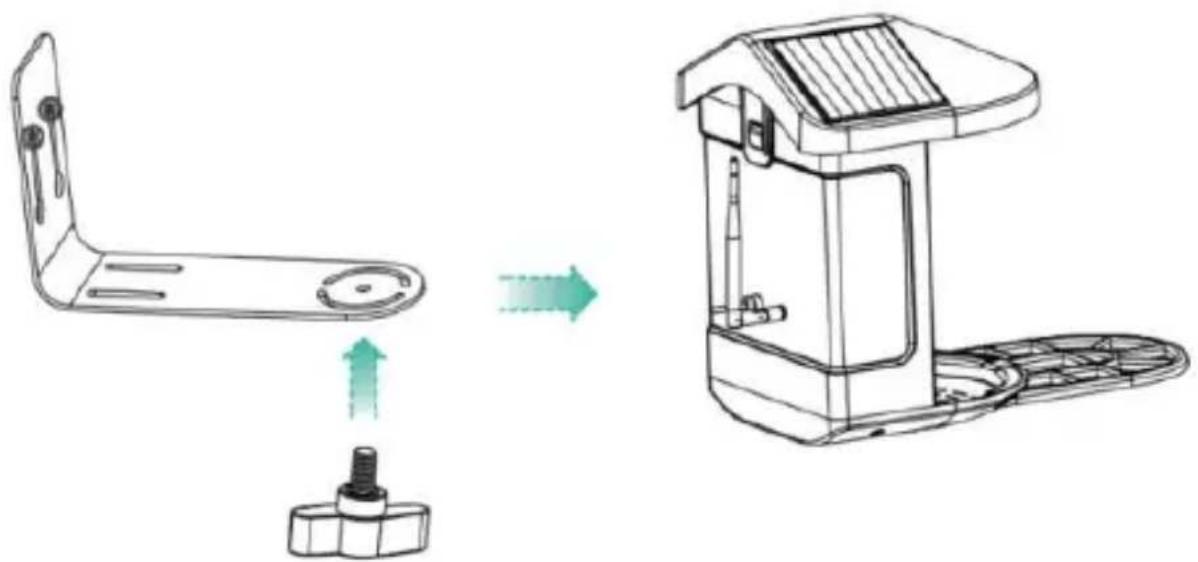

Step2: Installation of bracket and Bird Feeder

Tighten the hand screw with the screw hole at the bottom of the bird feeder through the iron bracket.

Technical line drawing of a mechanical device showing assembly and component alignment (no text or symbols)

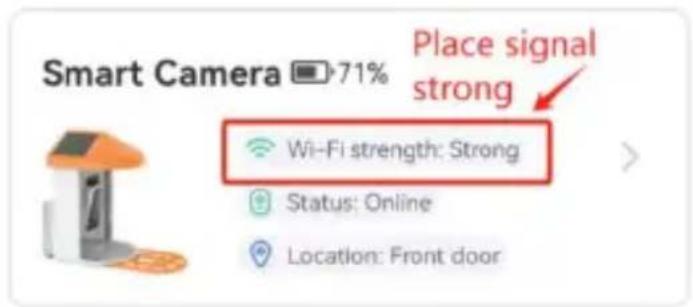

(2) Select a good spot for your bird feeder

You can install the bird feeder on the wall for use, or you can install it on a tree for use.

Please choose a Wi-Fi strength is strong signal place for your bird feeder. It is best to be an active place with birds, but you need to ensure the coverage of the Wi-Fi network. Adjust the angle of the camera to cover as much of the bird-watching stand as possible.

(3) Install solar panels

Step1: Fix the bracket on the wall.
Step2: Install the solar panel on the bracket and lock it with a
Step3: Adjust the angle of the solar panel so that it can receive the most sunlight.

FIRMWARE UPGRADE

When you connect your camera through the App, it will prompt you if the latest firmware is available. You can also manually check the firmware version in the settings of the App.

Note: Please make sure that your camera is fully charged or connected to the power adapter before upgrading the

firmware, please do not cut off the power supply during the upgrading.

FAQ

1.Q: Camera permission management: How to invite family and friends to use my camera together?

A: Open the App and select your camera on the home page. Click the share button on the home page or the "Share" in the camera settings to enter the sharing page, and then click "Invite" to generate a QR code. Your friends can now get some of the access rights by scanning the QR code in your phone.

2.Q: Why doesn't the Wi-Fi name appear when I connect to Wi-Fi?

A: On Apple devices with iOS13 and above, you need to turn on the "location permission for the app in the system settings and change it to "allow when using.

3.Q: Will the camera show red lights when night vision is activated?

A: The built-in infrared lamp beads make the camera only

©

A: If you set the duration as "Auto", when someone occurs in the view of the camera, it will start recording a video up to 3 minutes.

7.Q: How to quickly view videos by category?

A: Click the icon in the upper left corner of the "Library" page to start filtering videos by category. Select the category you want to see and then click "Save" to view the video playbacks.

8.Q: What should I do when the device is in malfunction?

A: Long press the power bottom for 3 seconds to restart If there is no response, you can remove the rubber plug the button of the camera. Press the reboot hole with a pointed object to restart the camera.

POSSIBLE PROBLEMS WITH BINDING

1) When you hear the "Wi-Fi Password Error", please check whether the Wi-Fi password you entered in the App is correct.
2) When you hear the "Authentication error", please

ensure that your Wi-Fi network is not an enterprise-level network, and the device supports only the network with the security level below WPA-2.

3) When you hear the "Wi-Fi not found", please check whether you select or enter the correct Wi-Fi name, and place the device near the Wi-Fi router and ensure that the router is powered on. Please note that 5Ghz Wi-Fi cannot be searched by the device.

4) When you hear the "Retrieving IP timeout", it indicates that the number of devices connected to the router in your home is too many to connect more devices. Please remove some of the connected devices that are not commonly used or restart the router to clear the unconnected devices. You may need to contact the router administrator.

5) When you hear the "Cloud service connection fail" please check whether your router is connected properly to the external network. When you hear this error prompt, it is common on the condition of network disconnection or that the selected router in your home is a local area

network server. Please ensure that the network connection is normal, and try to temporarily turnoff the firewall to connect again.

FIRMWARE UPGRADE

When you connect your camera through the App, it will prompt you if the latest firmware is available. You can also manually check the firmware version in the settings of the App.

Note: Please make sure that your camera is fully charged or connected to the power adapter before upgrading the firmware, please do not cut off the power supply during the upgrading.

FCC INFORMATION

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received including interference that may cause undesired operation.

FCC ID: 2AXBN-Q5

DISPOSAL INSTRUCTIONS

CORRECT DISPOSAL

This product is subject to the provision of Europe Directive 2012/19/EU. The symbol showing a whee bin crossed through indicates that the product req separate refuse collection in the European Union. applies to the product and all accessories marked this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi,

baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA

91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

MANGIATOIA PER UCCELLI INTELLIGENTE ( CON fotocamera modello QB)

MODELLO: FB-A01, FB-A02, FB-A03, FB-A04, FB-A05, FB-A06

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying certain with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

SMART BIRD FEEDEF

Modello: FB-A01, FB-A02, FB-A03, FB-A04, FB-A05, FB-A06

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please 1 free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual ins carefully before operating. VEVOR reserves a clear interpr of our user manual. The appearance of the product shall to the product you received. Please forgive us that we w you again if there are any technology or software update product.

IMPORTANT SAFEGUARDS

BIRD FEEDER PARTS NAME

STEPS OF ASSEMBLY

Line drawing of a mechanical device with a green arrow indicating rotation (no text or symbols)

Line drawing of a mobile phone device with a left-side component and a right-side version showing the same device (no text or symbols)

DOWNLOAD & INSTALL APP

Download App

I understand and agree User Agreement and Privacy Policy

Next Step

HOW TO SET UP THE CAMERA

Device added successfully!

The next step will guide you on how to install the device

Simple icon of a smartphone with three dots and a horizontal bar (no text or symbols)

Let's start

Continue adding another device first

SHARE THE CAMERA

Line drawing of a hand holding a smartphone displaying a QR code, next to a smartphone with a QR code (no text or symbols on the devices)

CHARGE THE CAMERA

NOTIFICATION SETTING

Notification Setting

Motion Detection Notification

Smart Push

Check now

Subscribe to Awareness for more features

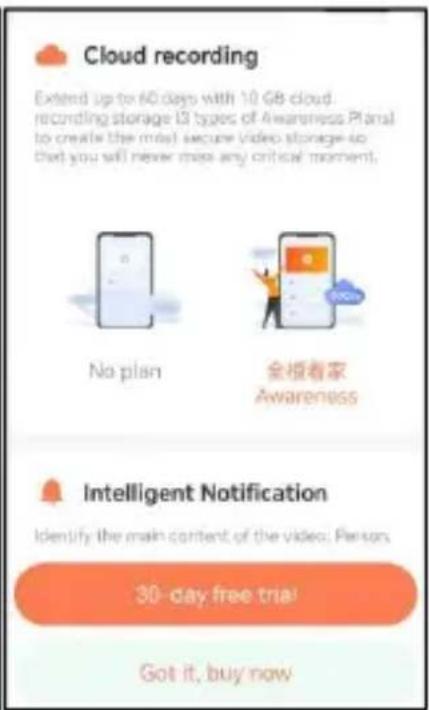

Intelligent Notification

Identify the main content of the video: Person, Pet, Vehicle. And analyze its action behavior, make more intelligent push information.

Silhouette of a person walking next to a large smartphone (no text or symbols visible)

Lite

Illustration of a person walking next to a smartphone displaying app icons (no text or symbols on the device)

Awareness

Activity Zone

Once you set the Activity Zone, only triggered messages about the accurate location will be pushed, while any other information will be filtered out.

Illustration of a house with a car and a roof-mounted sensor array, no text or symbols present

BIRDFEEDER INSTALLATION

( 1 ) Installare la staffa

Illustration showing a hand holding a screwdriver next to a device with three probes, alongside a close-up of the tool tip (no text or symbols present)

Technical line drawing of a mechanical device showing assembly and component alignment (no text or symbols)

( 3 ) Installa pannelli solari

POSSIBLE PROBLEMS WITH BINDING

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Importato in AUS: SIHAO PTY LTD.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 9173 0

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

INTELIGENTNY KARMNIK DLA PTAKÓW ( Z kamerą modelu QB

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying certain with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SMART BIRD FEEDER

Model: FB-A01, FB-A02, FB-A03, FB-A04, FB-A05, FB-A06

Line drawing of a portable electronic device with solar panel and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please 1 free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual ins carefully before operating. VEVOR reserves a clear interpr of our user manual. The appearance of the product shall to the product you received. Please forgive us that we w you again if there are any technology or software update product.

IMPORTANT SAFEGUARDS

BIRD FEEDER PARTS NAME

STEPS OF ASSEMBLY

Line drawing of a mechanical device with a green arrow indicating rotation (no text or symbols)

Krok 2: Zainstaluj tace

Line drawing of a mobile phone device with a left-side component and a right-side version showing the same device (no text or symbols present)

DOWNLOAD & INSTALL APP

Download App

I understand and agree User Agreement and Privacy Policy

Next Step

SHARE THE CAMERA

Line drawing of a hand holding a smartphone displaying a QR code, next to a smartphone with a QR code (no text or symbols on the devices)

CHARGE THE CAMERA

NOTIFICATION SETTING

Notification Setting

Motion Detection Notification

Smart Push

Check now

Subscribe to Awareness for more features

Intelligent Notification

Identify the main content of the video: Person, Pet, Vehicle. And analyze its action behavior, make more intelligent push information.

Silhouette of a person walking next to a blank rectangular sign (no text or symbols on the sign)

Lite

Illustration of a person walking next to a smartphone displaying app icons (no text or symbols on the device)

Awareness

Activity Zone

Once you set the Activity Zone, only triggered messages about the accurate location will be pushed, while any other information will be filtered out.

Illustration of a house with a car and a roof-mounted sensor array, no text or symbols present

BIRDFEEDER INSTALLATION

Illustration showing a hand holding a screwdriver next to a device with three probes, alongside a close-up of the tool tip (no text or symbols present)

POSSIBLE PROBLEMS WITH BINDING

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Import do AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia Import do USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, Kalifornia 9173 0

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

INTELLIGENTER VOGELFUTTERSPENDER

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying certain with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SMART BIRD FEEDER

Modell: FB-A01, FB-A02, FB-A03, FB-A04, FB-A05, FB-A06

Line drawing of a portable electronic device with solar panel and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please 1 free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual ins carefully before operating. VEVOR reserves a clear interpr of our user manual. The appearance of the product shall to the product you received. Please forgive us that we w you again if there are any technology or software update product.

IMPORTANT SAFEGUARDS

WARNUNG: Um das Risiko schwerer

BIRD FEEDER PARTS NAME

STEPS OF ASSEMBLY

Line drawing of a mechanical device with a green arrow indicating rotation (no text or symbols)

Line drawing of a mobile phone device with a side-view and front-view assembly (no text or symbols)

DOWNLOAD & INSTALL APP

Download App

I understand and agree User Agreement and Privacy Policy

Next Step

HOW TO SET UP THE CAMERA

Device added successfully!

The next step will guide you on how to install the device

Simple icon of a smartphone with three dots and a horizontal bar (no text or symbols)

Let's start

Continue adding another device first

SHARE THE CAMERA

Line drawing of a hand holding a smartphone displaying a QR code, next to a smartphone with a QR code (no text or symbols on the devices)

CHARGE THE CAMERA

NOTIFICATION SETTING

Notification Setting

Motion Detection Notification

Smart Push

Check now

Subscribe to Awareness for more features

Intelligent Notification

Identify the main content of the video: Person, Pet, Vehicle. And analyze its action behavior, make more intelligent push information.

Silhouette of a person walking next to a blank rectangular sign (no text or symbols on the sign)

Lite

Illustration of a person walking next to a smartphone displaying app icons (no text or symbols on the device)

Awareness

Activity Zone

Once you set the Activity Zone, only triggered messages about the accurate location will be pushed, while any other information will be filtered out.

Illustration of a house with a car and a roof-mounted sensor array, no text or symbols present

BIRDFEEDER INSTALLATION

Illustration showing a hand holding a screwdriver next to a device with three probes, alongside a close-up of the tool interacting with a tool (no text or symbols present)

Technical line drawing showing a mechanical assembly before and after transformation, with no visible text or symbols.

POSSIBLE PROBLEMS WITH BINDING

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA

9173 0

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

MANGEOIRE À OISEAUX INTELLIGENTE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying certain with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SMART BIRD FEEDER

Line drawing of a portable electronic device with a lid and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please 1 free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual ins carefully before operating. VEVOR reserves a clear interpr of our user manual. The appearance of the product shall to the product you received. Please forgive us that we w you again if there are any technology or software update product.

IMPORTANT SAFEGUARDS

BIRD FEEDER PARTS NAME

STEPS OF ASSEMBLY

Line drawing of a mechanical device with a green arrow indicating rotation (no text or symbols)

Line drawing of a portable electronic device with a left-side component and a right-side view showing a change (no text or symbols)

DOWNLOAD & INSTALL APP

Download App

I understand and agree User Agreement and Privacy Policy

Next Step

HOW TO SET UP THE CAMERA

Device added successfully!

The next step will guide you on how to install the device

Simple icon of a smartphone with three dots and a horizontal bar (no text or symbols)

Let's start

Continue adding another device first

SHARE THE CAMERA

Line drawing of a hand holding a smartphone displaying a QR code, next to a smartphone with a QR code (no text or symbols on the devices)

CHARGE THE CAMERA

NOTIFICATION SETTING

Notification Setting

Motion Detection Notification

Smart Push

Check now

Subscribe to Awareness for more features

Intelligent Notification

Identify the main content of the video: Person, Pet, Vehicle. And analyze its action behavior, make more intelligent push information.

Silhouette of a person walking next to a large smartphone (no text or symbols visible)

Lite

Illustration of a person walking next to a smartphone displaying app icons (no text or symbols on the device)

Awareness

Activity Zone

Once you set the Activity Zone, only triggered messages about the accurate location will be pushed, while any other information will be filtered out.

Illustration of two houses with a car and a red box, no text or symbols present

BIRDFEEDER INSTALLATION

( 1 ) Installer le support

Illustration showing a hand holding a screwdriver next to a device with three probes, alongside a close-up of the tool interacting with a tool (no text or symbols present)

Technical line drawing showing a mechanical assembly before and after transformation, with no visible text or symbols.

POSSIBLE PROBLEMS WITH BINDING

C/O YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importé en Australie : SIHAO PTY LTD.

1 ROKEVA STREETASTWOOD NSW 2122 Australie

Bureau 250, 9166 Anaheim Place, Rancho Cucamonga,

CA 9173 0

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

SLIMME VOGELVOEDER

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying certain with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SMART BIRD FEEDER

Model: FB-A01, FB-A02, FB-A03, FB-A04, FB-A05, FB-A06

Line drawing of a portable electronic device with solar panel and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please 1 free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual ins carefully before operating. VEVOR reserves a clear interpr of our user manual. The appearance of the product shall to the product you received. Please forgive us that we w you again if there are any technology or software update product.

IMPORTANT SAFEGUARDS

BIRD FEEDER PARTS NAME

STEPS OF ASSEMBLY

Stap 1: Monteer de bovenste afdekking

Line drawing of a mechanical device with a green arrow indicating rotation (no text or symbols)

Stap 2: Installeer de lade

Line drawing of a portable electronic device with a left-side component and a right-side view showing a change (no text or symbols)

DOWNLOAD & INSTALL APP

De draadloze slimme batterijcamera ondersteunt Android-en iOS-apps.

Download App

I understand and agree User Agreement and Privacy Policy

Next Step

HOW TO SET UP THE CAMERA

SHARE THE CAMERA

Line drawing of a hand holding a smartphone displaying a QR code, next to a smartphone with a QR code (no text or symbols on the devices)

CHARGE THE CAMERA

NOTIFICATION SETTING

Notification Setting

Motion Detection Notification

Smart Push

Check now

Subscribe to Awareness for more features

Intelligent Notification

Identify the main content of the video: Person, Pet, Vehicle. And analyze its action behavior, make more intelligent push information.

Silhouette of a person walking next to a large smartphone (no text or symbols visible)

Lite

Illustration of a person walking next to a smartphone displaying app icons (no text or symbols on the device)

Awareness

Activity Zone

Once you set the Activity Zone, only triggered messages about the accurate location will be pushed, while any other information will be filtered out.

Illustration of a house with a car and a roof-mounted sensor array, no text or symbols present

BIRDFEEDER INSTALLATION

( 1 ) Installeer de beugel

Stap 1: Schroefbevestiging

Illustration showing a hand holding a screwdriver next to a device with three probes, alongside a close-up of the tool interacting with a tool (no text or symbols present)

Technical line drawing showing a mechanical assembly before and after transformation, with no visible text or symbols.

( 3 ) Installeer zonnepanelen

POSSIBLE PROBLEMS WITH BINDING

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA

9173 0

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

SMART FÅGELMATARE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying certain with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SMART BIRD FEEDER

Line drawing of a portable electronic device with a solar panel and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please 1

free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual ins carefully before operating. VEVOR reserves a clear interpr of our user manual. The appearance of the product shall to the product you received. Please forgive us that we w you again if there are any technology or software update product.

IMPORTANT SAFEGUARDS

BIRD FEEDER PARTS NAME

STEPS OF ASSEMBLY

Line drawing of a mechanical device with a green arrow indicating rotation (no text or symbols)

Steg 2: Installera brickan

Steg 3: Installera en extern antenn

Line drawing of a portable electronic device with a left-side component and a right-side view showing a change (no text or symbols)

DOWNLOAD & INSTALL APP

Download App

I understand and agree User Agreement and Privacy Policy

Next Step

HOW TO SET UP THE CAMERA

SHARE THE CAMERA

Line drawing of a hand holding a smartphone displaying a QR code, next to a smartphone with a QR code (no text or symbols on the devices)

CHARGE THE CAMERA

NOTIFICATION SETTING

Notification Setting

Motion Detection Notification

Smart Push

Check now

Subscribe to Awareness for more features

Intelligent Notification

Identify the main content of the video: Person, Pet, Vehicle. And analyze its action behavior, make more intelligent push information.

Silhouette of a person walking next to a blank rectangular sign (no text or symbols visible)

Lite

Illustration of a person walking next to a smartphone displaying app icons (no text or symbols on the device)

Awareness

Activity Zone

Once you set the Activity Zone, only triggered messages about the accurate location will be pushed, while any other information will be filtered out.

Illustration of two houses with a car and a red box, no text or symbols present

BIRDFEEDER INSTALLATION

Illustration showing a hand holding a medical device with three sensors, before and after the device's tip (no text or symbols present)

( 3 ) Installera solpaneler

POSSIBLE PROBLEMS WITH BINDING

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importerad till AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA

9173 0

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

COMEDERO INTELIGENTE PARA PÁJAROS ( CONcámara modelo QB

MODELO: FB-A01 , FB-A0 2, FB-A0 3, FB-A0 4, FB-A0 5, FB-A0 6

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying certain with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SMART BIRD FEEDER

Line drawing of a portable electronic device with a lid and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please 1

free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual ins carefully before operating. VEVOR reserves a clear interpr of our user manual. The appearance of the product shall to the product you received. Please forgive us that we w you again if there are any technology or software update product.

IMPORTANT SAFEGUARDS

BIRD FEEDER PARTS NAME

STEPS OF ASSEMBLY

Line drawing of a mechanical device with a green arrow indicating rotation (no text or symbols)

Paso 2: instale la bandeja

Paso 3: instale una antena externa

Line drawing of a portable electronic device with a left-side component and a right-side version showing a change (no text or symbols)

DOWNLOAD & INSTALL APP

Download App

I understand and agree User Agreement and Privacy Policy

Next Step

HOW TO SET UP THE CAMERA

Device added successfully!

The next step will guide you on how to install the device

Simple icon of a smartphone with three dots and a horizontal bar (no text or symbols)

Let's start

Continue adding another device first

SHARE THE CAMERA

Line drawing of a hand holding a smartphone displaying a QR code, next to a smartphone with a QR code (no text or symbols on the devices)

CHARGE THE CAMERA

NOTIFICATION SETTING

Notification Setting

Motion Detection Notification

Smart Push

Check now

Subscribe to Awareness for more features

Intelligent Notification

Identify the main content of the video: Person, Pet, Vehicle. And analyze its action behavior, make more intelligent push information.

Silhouette of a person walking next to a large smartphone (no text or symbols visible)

Lite

Illustration of a person walking next to a smartphone displaying app icons (no text or symbols on the device)

Awareness

Activity Zone

Once you set the Activity Zone, only triggered messages about the accurate location will be pushed, while any other information will be filtered out.

Illustration of two houses with a car and a red box, no text or symbols present

BIRDFEEDER INSTALLATION

( 1 ) Instale el soporte

Illustration showing a hand holding a tool interacting with a device, and a close-up of the tool tip (no text or symbols present)

Technical line drawing showing a mechanical assembly before and after transformation, with no visible text or symbols.

( 3 ) instalar paneles solares

POSSIBLE PROBLEMS WITH BINDING

C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Importado a AUS: SIHAO PTY LTD.

1 ROKEVA STREET ASTWOOD NSW 2122 Australia Importado a EE. UU.: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 9173 0

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
