USER MANUAL FT-T-1212 Vevor
Affordable. Reliable. Home Improvement.

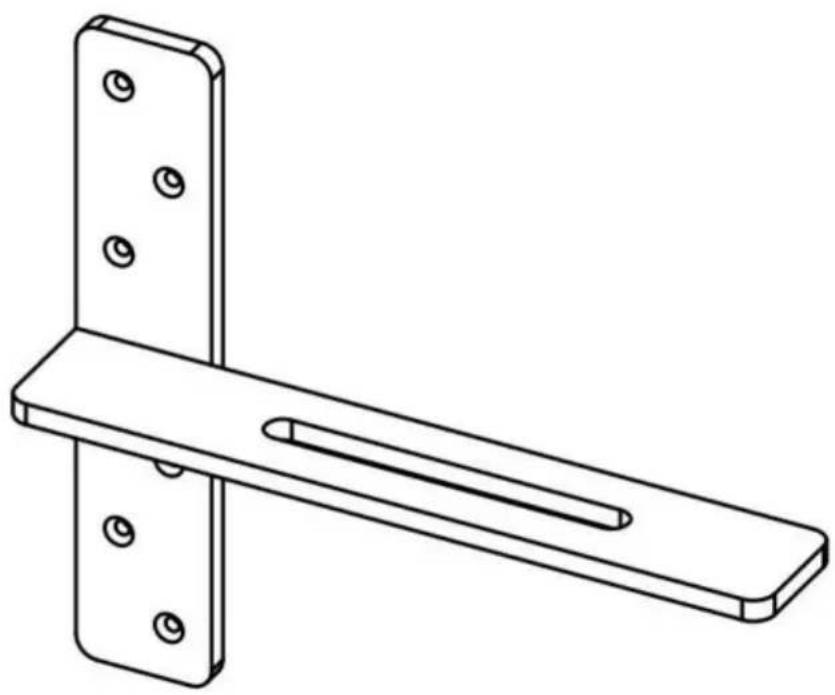

FREE HANGING BRACKET

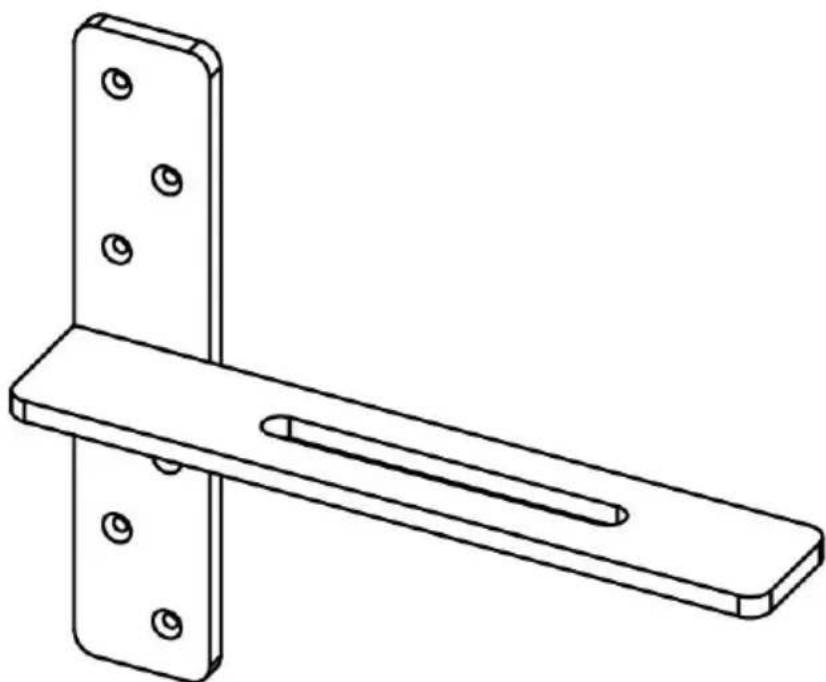

MODEL:FT-T-1212 \ FT-T-1412 \ FT-T-1612 \ FT-T-1812
Technical Support and E-Warranty Certificate
www.vevor.com/support
MODEL:FT-T-1212 \ FT-T-1412 \ FT-T-1612 \ FT-T-1812
Warning-To reduce the risk of injury, user must instructions manual carefully.
Warnings
1.1 Shelf brackets must be correctly installed into studs or wall blocki. Failure to do so may result in sagging shelves, falling objects, or ser injury.
1.21 Every bracket weight class and length has been engineered for using with specific shelf capacities/dimensions. Failure to follow our specified capacity ratings and correct shelf dimensions may result in sagging shelves, falling objects, or serious injury.
| Part List | ||
| Code | Picture | Qty. |
| 1 |  | 2 |
| 2 | [5705] | 16 |
Required Tools
 Drill |  Level |
 Measuring Tape |  Phillips-head Screwdriver |
Product Installation


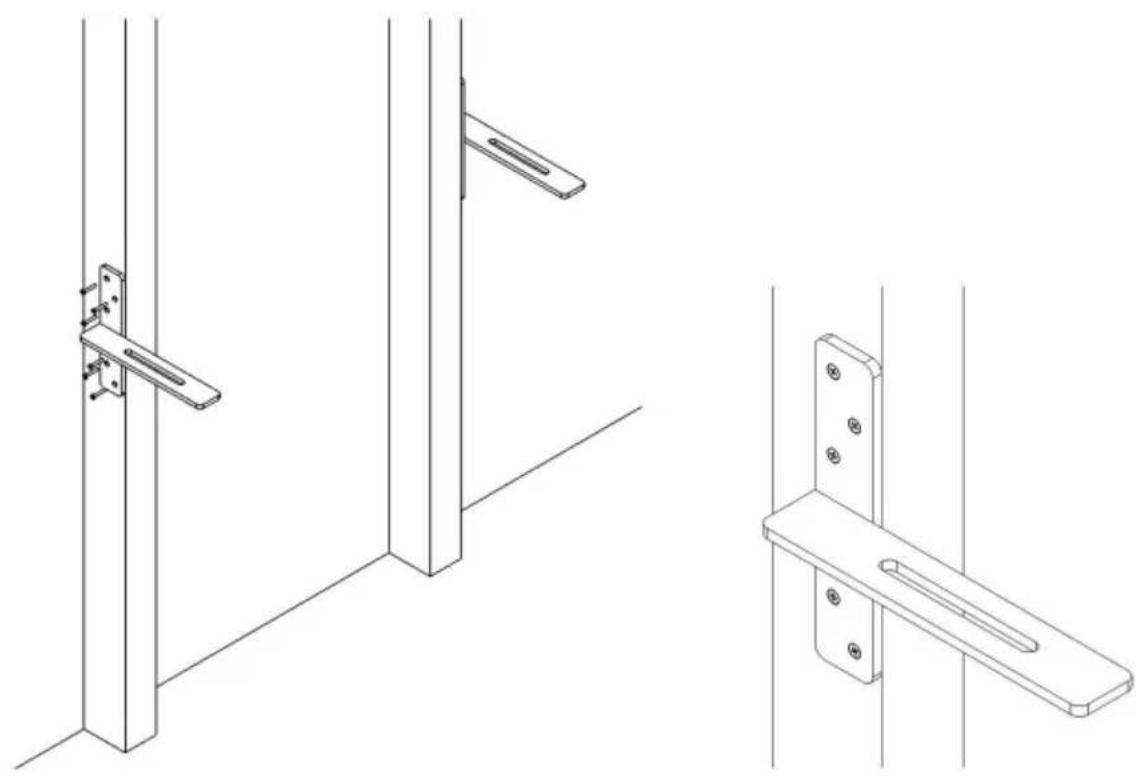

Technical line drawing of two mechanical bracket assemblies with mounting hardware (no text or symbols)Step 1: Install Bracket directly into the wood wall stud using appropriate wood screws.
NOTE: We have provided screws.
HOWEVER make sure the length of the provided screws are a for your project. If not appropriate DO NOT use the screws pr Each project is different so protect your project by measuring b add the screws.
PRO TIP: (For larger brackets 16 inches or more in length, co-pitching them up1/8 to 1/4inch,especially when heavier materials used.This will help with the slight flex that could occur.


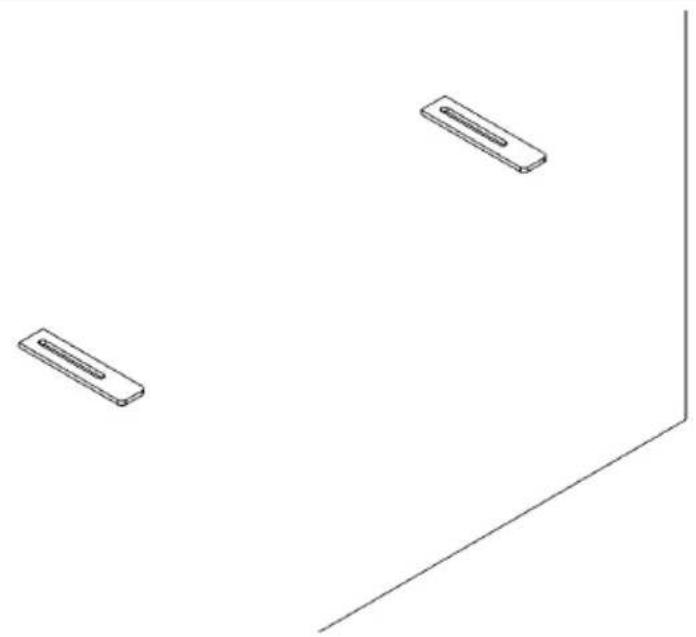

Simple line drawing of three rectangular objects placed on a diagonal line, no text or symbols presentStep 2: Once the Brackets are installed, apply Sheetrock as cutting around the bracket to leave the horizontal piece of the exposed.


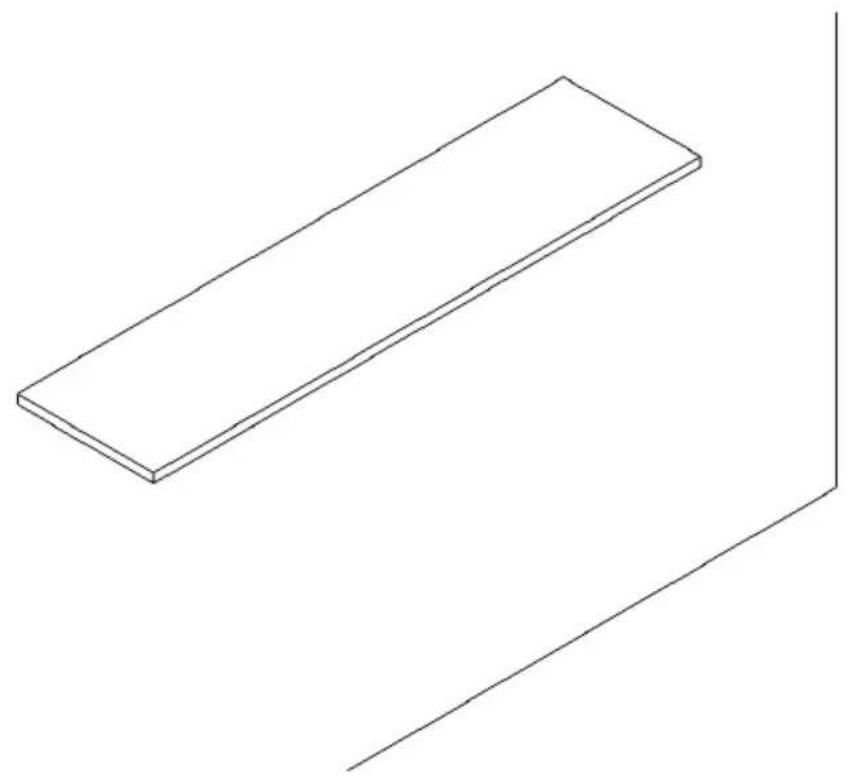

Simple line drawing of a rectangular block with a diagonal line extending from its top (no text or symbols)Step 3: Place your countertop, desk top or mantel directly on Bracket & caulk with clear silicone.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>
| EC | REP |
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR
Affordable. Reliable. Home Improvement.

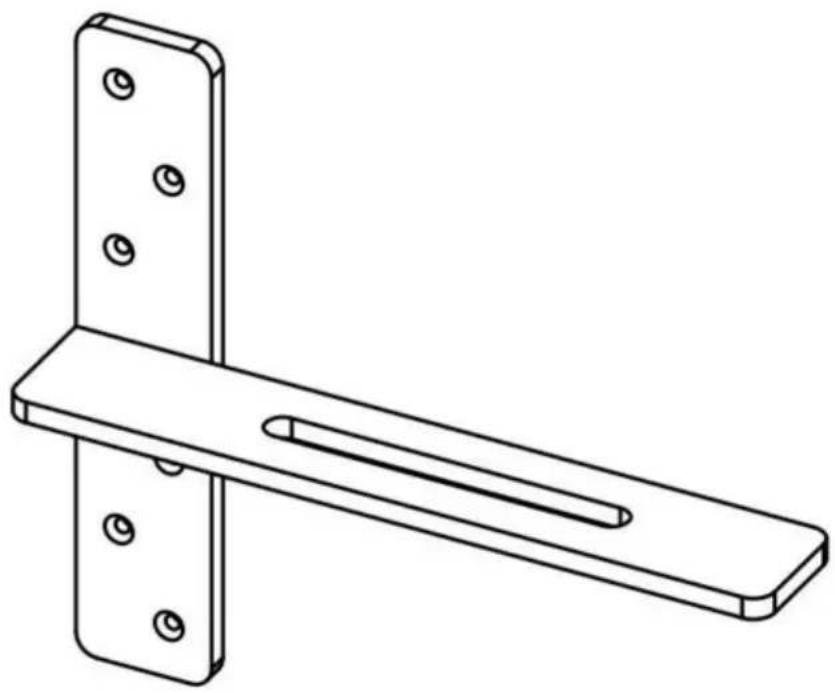

SUPPORT DE SUSPENSION LIBRE
