USER MANUAL CWM03-XL Vevor

Dog-door-for-sliding-door

CWM03-M / CWM03-L / CWM03-XL/CWM03-L-B / CWM03-XL-B /CWM03-M-H / CWM03-L-H / CWM03-XL-H

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an 1 of savings you might benefit from buying certain tools with us compared to the major top and does not necessarily mean to cover all categories of tools offered by us. You are reminded to verify carefully when you are placing an order with us if you are actually said in comparison with the top major brands.

MODEL: CWM03-M / CWM03-L / CWM03-XL/CWM03-L-B / CWM03-XL-B /CWM03-M-H / CWM03-L-H / CWM03-XL-H

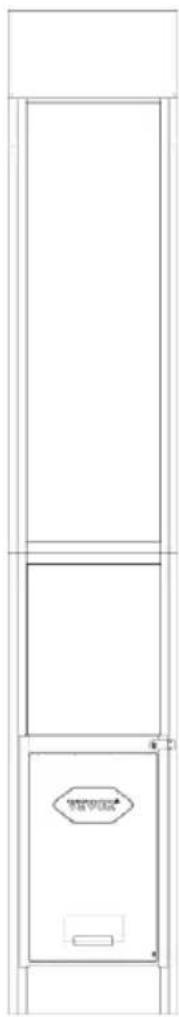

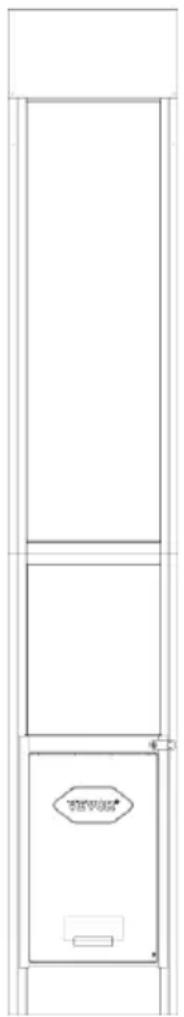

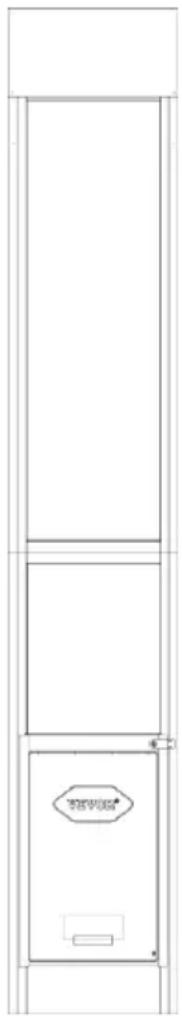

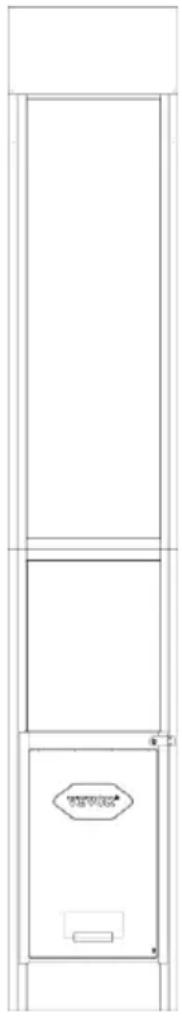

Pure architectural elevation diagram of a vertical structure with no text or symbols

This is the original instruction, please read all manual instructions carefully before ope VEVOR reserves a clear interpretation of our user manual. The appearance of the pr shall be subject to the product you received. Please forgive us that we won't inform again if there are any technology or software updates on our product.

Important Safety Information

Explanation of Attention Words and Symbols used in this guide

This is the safety alert symbol, it is used to alert you to potential personal inj hazards.

Obey all safety messages that follow this symbol to avoid possible injury or de

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in or serious injury.

CAUTION

CAUTION used with the safety alert symbol, indicates a hazardous situation which not avoided, could result in minor or moderate injury.

NOTICE

NOTICE is used to address safe use practices not related to personal injury.

WARNING

- When children are present in the home, it is important to consider the pet door during child proofing activities. The pet door may be misused by a child resulting in the child accessing potential hazards that may be on the other side of the pet. Purchasers/Homeowners with swimming pools should ensure that the pet door is monitored at all times and that the swimming pool has adequate barriers to enter new hazard is created inside or outside of your home, which may be accessed through the pet door. The closing panel or lock, if applicable, is provided for aesthetic and energy efficiency purposes and is not intended as a security device. VEVOR will not be liable for unintended use and the purchaser of this product accepts full responsibility for oversight of the opening it creates.

- Power Tools. Risk of severe injury; follow all safety instructions for power to ensure to always wear proper safety equipment.

CAUTION

- The user, prior to installation, must become familiar with all building codes that may affect the installation of the pet door and determine, along with a licensed contractor, its suitability in a given installation. This pet door is not a fire door important for the owner and contractor to consider any risks that may be present inside or outside of the pet door, and any risks that may be created by subse changes to your property and how they may relate to the existence and use, including misuse of the pet door.

NOTICE

• Keep these instructions with important papers; be sure to transfer these instructions to the new owner of the property.
• Prior to installation and drilling, consult your sliding glass door manufacturer's warranty. Unauthorized changes or modifications may void the warranty. Installing screws into vinyl door frames or door jambs may crack the vinyl.
• Apply glass sweep and weather stripping to a clean dry surface at temperatur above 63^ (17°C)
• Make sure there is nothing underneath the door where you will be drilling the or cutting out opening.
• Use a manual screwdriver to tighten screws. Do not over tighten. Over tighter can warp the pet door frame.
• It is not possible to cut holes in tempered or double pane glass except at the manufacture.Consult a professional glazier or glass manufacturer to install the pe door in a glass door or window.

Model and Parameters

1-Piece Sliding Glass Door Dimensions

Model	Width	Height	Colour
CWM03-M	11.6"(295mm)	75 7/8 " - 80 11/16 (1.93-2.05m)	White
CWM03-L	13.58"(345mm)
CWM03-XL	17"(431mm)
CWM03-L-B	13.58"(345mm)		Brown
CWM03-XL-B	17"(431mm)
CWM03-M-H	11.6"(295mm)	91 7/16 " - 96" (2.32-2.44m)	White
CWM03-L-H	13.58"(345mm)
CWM03-XL-H	17"(431mm)

Door Size

CWM03-M /CWM03-M-H : 8 1/4 in W× 12 1/4 in H (209.6×311.2mm)

CWM03-L / CWM03-L-B /CWM03-L-H:

10 1/4 in W × 16 1/4 in H(260.4×412.8mm)

CWM03-XL / CWM03-XL-B/CWM03-XL-H :

13 5/8 in W × 23 5/8 in H (346×600mm)

Components

Freedom Patio Panel	T-Brackets (2)M4 x 12 mmSheet Metal Screws (10)	Self-adhesive sealsr
	M3*10mm Cross cutself-tapping screws (3)	Latch Assembly
	Closing Panel	Connecting Bar (2)M3.5*10mm countersunkhead tapping screws withbroken end (10)
	M3.5*12mm Large flathead tapping screws(2)	Installation Guide

Tools Needed

scissor	Tape Measure	SafetyEquipment	Masking or Painter's Tape	Pencil
Drill	(2.5mm)Drill Bit	(3.2mm)Drill Bit	(6.5mm)Drill Bit	PhillipsScrewdriver

Key Definitions

Replacement Flap Size: Overall flap size when removed from pet door

Flap Opening Size: Usable flap space for pet to enter and exit through the pet (

Top Door Section: Section of Sliding Glass Pet Door with the glass

Bottom Door Section: Section of Sliding Glass Pet Door with the pet door

Height Adjuster:A metal panel with springs located above the top door section t adjust

Sliding Glass Pet Door height

Sliding Glass Door Frame Opening: Opening in sliding glass door between the t door

track and the lower door track

Exposed Sliding Glass Frame: Sliding glass door frame that is visible and expos interior and exterior wall

Recessed Sliding Glass Frame: Sliding glass door frame that is flush with or be visible in

interior or exterior wall

Rise:The height from the floor to the bottom of the flap in the pet door. It is the pet

must step over to enter or exit the pet door.

Panel Rib Line: Raised ribbed lines on left and right side of Sliding Glass Pet D frame to

indicate drilling outside of rib line area. Do not drill inside of the rib line as g present and

will break if drilling occurs in this area.

Operating Temperature Range:0° F to 100° F (-18° C to 38° C)

Installing Your Sliding Glass Pet Door

NOTICE

Prior to installation and drilling, consult your sliding glass door manufacturer's warranty. Unauthorized changes or modifications may void the warranty. Installing screws into vinyl door frames or door jambs may crack the vinyl.

Step 1

Measure

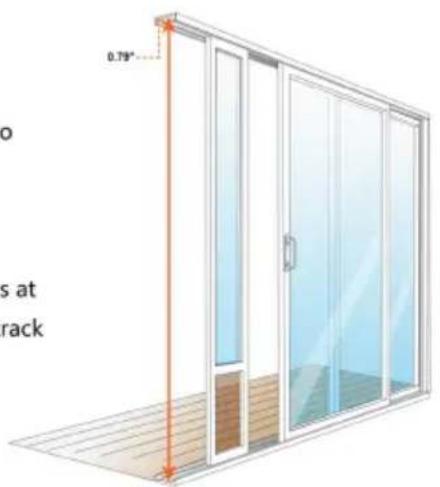

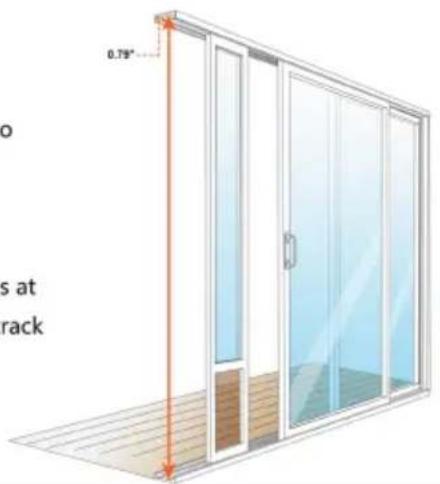

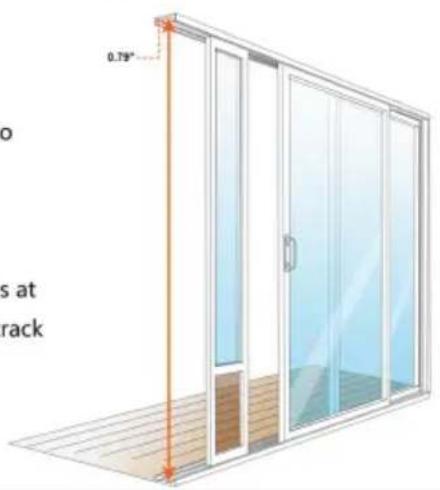

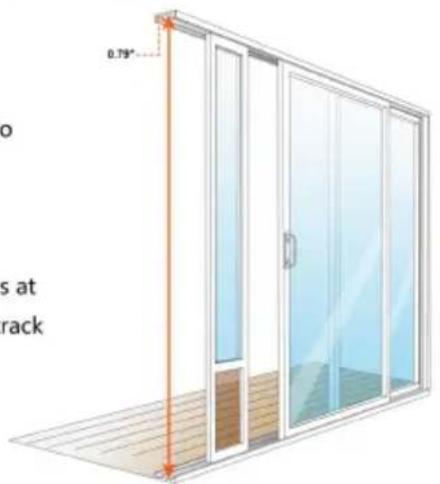

HOW TO MEASURE?

Measure from inside of uppertrack to inside of flower track

Measuring aluminum panels requires at least 0.79 inches to be used on the track

0.79" s at rack

1A. Prior to any Sliding Glass Pet Door purchase, you must determine the height your sliding glass door frame opening. Measure from highest point in upper door track to lowest point in lower door track.

Step 2

Install Sliding Glass Pet Door

2A VIVIOE*

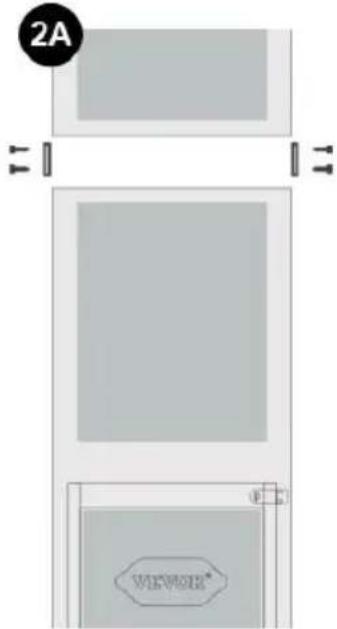

2A. Before proceeding with installation, assemble the top and bottom panels to be one piece. Slide the connecting bars into the bottom panel holes and insert (2) M3.5*10mm Flat Head Screws into each connecting bar. Then slide the top pane down over the connecting bars and insert 2 screws on each side. Check alignn the 2 door panels then tighten all 8 screws.

CAUTION

Use care when assembling the two halves of the door together. This could be potential pinch point and could lead to injury.

NOTE: Remove all packaging materials, including cardboard inserts inside the hei adjuster

Diagram of a door with an open door and a stack of shelves, showing directional arrows (no text or symbols)

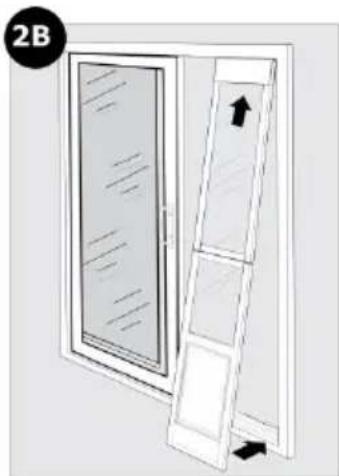

2B. The Sliding Glass Pet Door inserts into the opening in your sliding glass door against the doorjamb. Your sliding glass door will close against the Sliding Glass Door. With sliding glass door open, insert the top of Sliding Glass Pet Door with height adjuster into upper door track on interior

side of sliding glass door. Lift up and position bottom of Sliding Glass Pet Door lower door track on interior side of the sliding glass door. Ensure the side of Sliding Glass Pet Door showing flap screw heads is on the interior side of your sliding glass door.

NOTE: You may need to pull down the height adjuster to fit the Sliding Glass Door in your sliding glass door track. Firmly pull down one side and then the

Illustration of a double door with glass panels and an arrow indicating direction (no text or symbols)

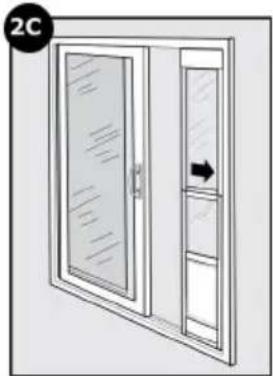

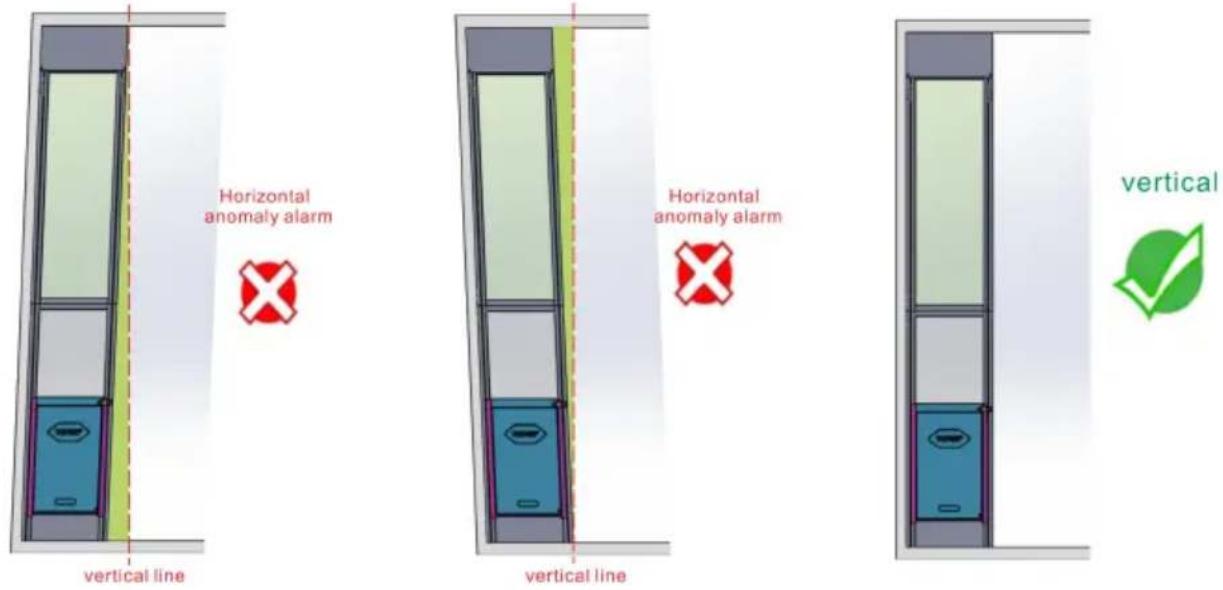

2C. Firstly, check if the door frame angle is a right angle (90 °). Move the sliding glass pet door onto the door frame. The sliding glass pet door should be flush the door frame without any gaps. Ensure that the height adjuster is fully extended and does not tilt to one side. If any gaps are found, please add shims until the pet door is parallel to the contact line of the sliding door. Before drilling, it that you are satisfied with the installation of the sliding glass pet door. Please note the following diagram for correct installation

Horizontal anomaly alarm × vertical line Horizontal anomaly alarm × vertical line vertical vertical

Step 3

Attach the Sliding Glass Pet Door

3A Height Adjuster Pre-drilled Holes

3A. Slide the Sliding Glass Pet Door out slightly from door jamb to show pre-drilled holes in height adjuster. Drill (2.5 mm) holes through the two pre-drilled holes (interior side of height adjuster. Secure height adjuster to Sliding Glass Pet Door using two M3*10mm Cross cut self-tapping screws. Slide Sliding Glass Pet Door back against door jamb. Make sure it is flush without any gaps.

Sliding Glass Pet Door Options for Exposed or Recessed Door frames Install Sliding Glass Pet Door with T-brackets using screws

- Slide the Sliding Glass Pet Door against the sliding door jamb. Measure and the top

center and bottom side of the Sliding Glass Pet Door where sliding door will c against.

Then mark on the sliding door frame (use a pencil or something that can be c away).

These marks are for a marking guide only for the 2 T-brackets.

- Slide the panel over and up to be able to place the T-brackets into the track sliding glass door.

3B

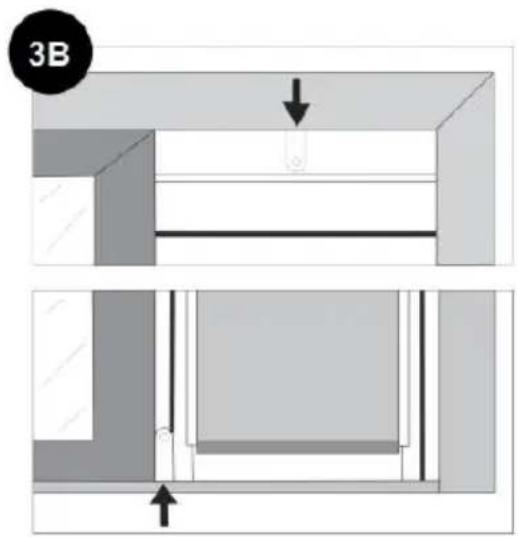

3B. Take one of the T-brackets and place at the top of the sliding glass track the “T” part of the bracket aligns with your mark. Mark with a pencil on the i the track for your pilot holes and do the same for the bottom track. (The T-br are universal and will work in the top or bottom track).

Use a (3.2 mm) drill bit to drill pilot holes for T-brackets at the top and bottom Sliding Glass Pet Door. Place the T-brackets back into place and, with the 4 mm sheet metal screws provided, secure the T-brackets in the top and the bottom your sliding glass door track. Slide your Sliding

Glass Pet Door back against the door jamb and you will see the T-brackets in your Sliding Glass Pet Door.

Use a (3.2 mm) drill bit to drill pilot holes through T-brackets and into the Slide Glass

Pet Door at the top and bottom. Attach the brackets with the screws provided.

Step 4

Install Lock

NOTICE

Prior to installation and drilling, consult your sliding glass door manufacturer's warranty. Unauthorized changes or modifications may void the warranty. Installing screws into vinyl door frames or door jambs may crack the vinyl.

CAUTION

DO NOT DRILL INTO GLASS.

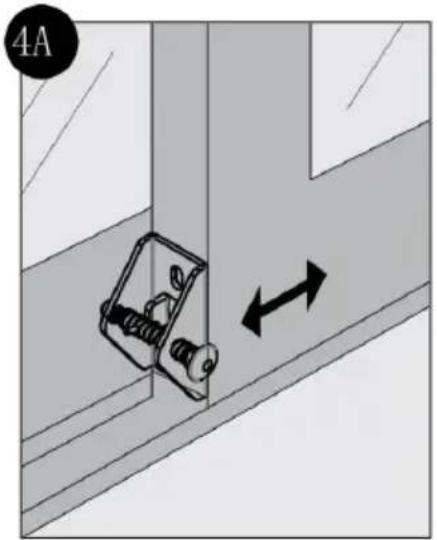

1. Close the sliding glass door tightly against the Patio Panel. Position the latch bottom or top of your existing sliding glass door. With locking bolt in the retra position, pointed toward the sliding glass door or stationary wall. Leave approximately 1/8" clearance between the locking bolt tip and rail.
2. Holding the lock firmly in place, mark screw holes and mark center of locking in rail of sliding glass door or stationary window.

Note: Inspect location of drill marks to make sure they will not be in contact \glass on either

the sliding glass door or the Patio Panel when drilling.

1. Drill two pilot holes for attaching the latch, (3.5 mm) for aluminum sliding glass doors and
   (2.5 mm) for wood or vinyl sliding glass doors. Drill a 6mm hole for locking b
2. Attach latch with tow M4*12mm Sheet Metal screws. DO NOT OVERTIGHTEN.

Helpful Tip: If over tightening results, and you have stripped the connection, more the latch slightly up or down and re-drill mounting holes. Another option is to existing holes to a larger size and install plastic anchors. Plastic anchors can be purchased at any local hardware or home improvement store.

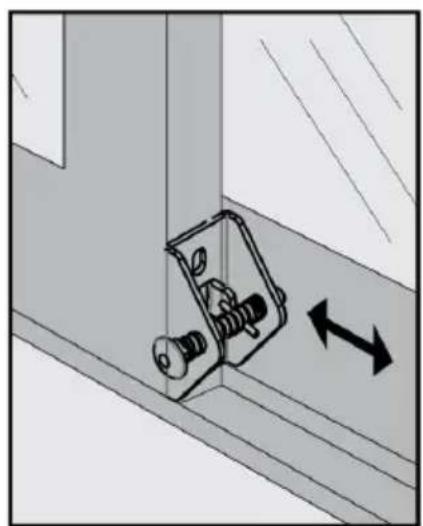

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Latch Assembly on sliding Latch Assembly on door stationary window

Diagram of a mechanical switch or latch mechanism with a directional arrow indicating movement (no text or symbols present)

Mechanical device with spring and connecting rod, showing motion direction (no text or symbols)

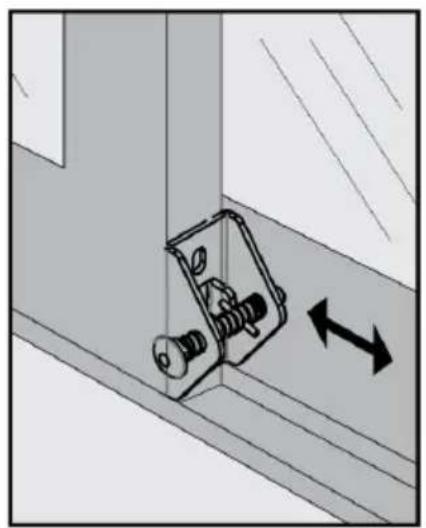

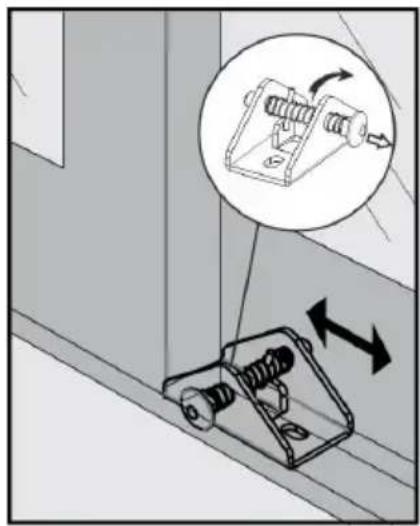

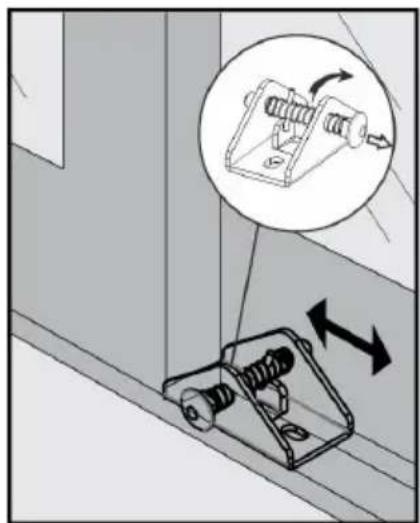

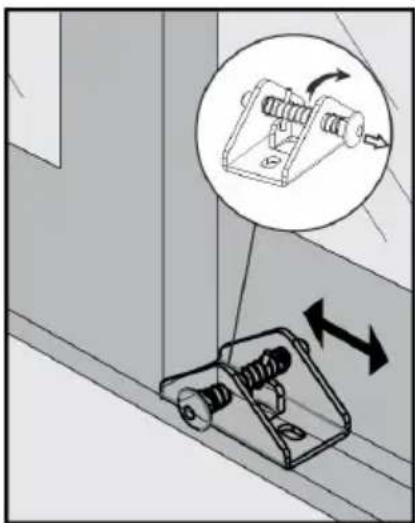

Latch Assembly in lower track

Step 5

Install Glass Sweep and Weather Stripping

5A Sliding glass door shown hereslightly open Sliding Glass Pet Door Install weather stripping here

5A. The glass sweep should be installed on the back edge of the sliding glass form a seal between the sliding glass door and the stationary glass door. The weather stripping should be installed on the front edge of the sliding glass door form a seal between the Sliding Glass Pet Door and the sliding glass door.

Illustration of hands installing or adjusting a panel on a ceiling structure (no text or symbols)

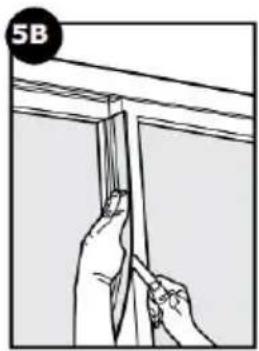

5B. Close the sliding glass door against the Sliding Glass Pet Door. Clean and the back edge of the sliding glass door. Position the glass sweep at the top g edge with the flexible part touching the

glass of the stationary door. Carefully peel away the backing and press the glass sweep in place as you move down to the bottom of the glass. Trim any excess scissors.

Illustration of a hand adjusting a vertical panel with a 5C label (no text or symbols on the diagram itself)

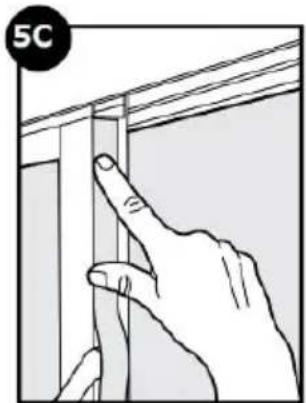

5C. Open the sliding glass door. Clean and dry the front edge of the sliding g door. Position the weather stripping at the top front edge toward the interior sic Carefully peel away the backing and press the weather stripping into place as y move down to the bottom of the door. Trim any excess with scissors.

Step 6

Train Your Pet

Line drawing of a dog standing beside a door with a lock, no text or symbols present

6A. It may help for you to be on one side of the door and your pet on the c the flap a few inches and try to talk your pet through the door. After your pet gone through a few times, allow the flap to touch your pet's back so they will comfortable using the pet door. If your pet will not go through the door, tape open until they use it on their own.

Helpful Tip: Try treats to encourage your pet to go through the pet door and I comfortable using it.

Closing Panel

NOOR

The Closing Panel slides in the track on the interior (or exterior) of the Sliding Pet Door. It is useful during inclement weather or to keep your pet from using door.

Replacement Flaps

Replace & Adjust

During extreme changes in weather, vinyl flaps can shrink during cold months a stretch in warmer months. Easily replace or adjust to ensure a snug fit during seasonal changes.

Illustration of a door with a label and an inset showing a mechanical component (no text or symbols present)

Diagram of a door with arrows indicating direction and a label '###' (no readable text or symbols)

Diagram showing hands operating a door with directional arrows and a curved handle, no text or symbols present

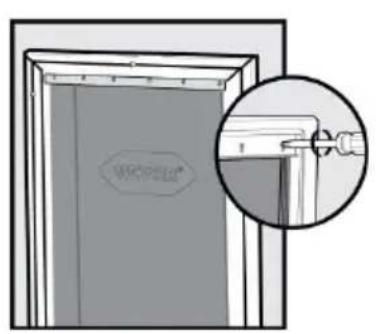

To Replace: Remove screws from the interior frame of pet door.

Remove bar and flap.

Replace new vinyl flap and position horizontally and vertically to fit into door frame. Replace existing bar and tighten screws in place.

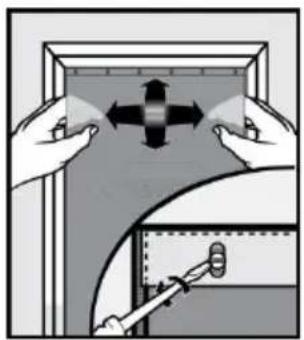

To Adjust: Slightly loosen screws from interior frame of pet door.

Slightly move ba away from flap.

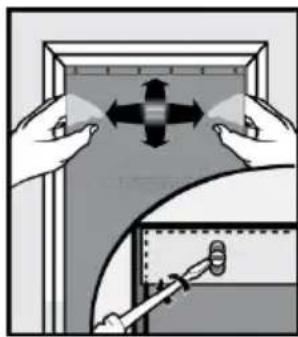

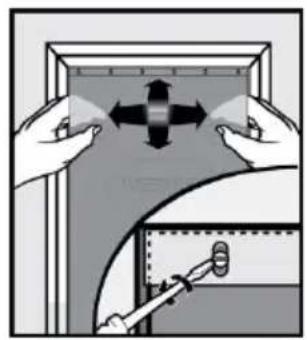

Adjust flap horizontally and/or vertically to fit into door frame. Push bar towards flap and tighten screws in plac

Terms of Use and Limitation of Liability

1. Terms of Use

This Product is offered to you conditioned upon your acceptance without modification of the terms, conditions and notices contained herein. Usage of this Product implies acceptance of all such terms, conditions, and notices.

2. Proper Use

This Product is designed for use with pets where training is desired. The special temperament of your pet may not work with this Product. If you are unsure what this is appropriate for your pet, please consult your veterinarian or certified train. Proper use includes reviewing the entire Operating Guide provided with your Product and any specific Caution statements.

3. No Unlawful or Prohibited Use

This Product is designed for use with pets only. This pet training device is not intended to harm, injure, or provoke. Using this Product in a way that is not in could result in violation of Federal, State or local laws.

4. Limitation of Liability

In no event shall vevor be liable for any direct, indirect, punitive, incidental, spot or consequential damages, or any damages whatsoever arising out of or connect with the use or misuse of this Product. Buyer assumes all risks and liability from use of this Product.

5. Modification of Terms and Conditions

Radio Systems Corporation reserves the right to change the terms, conditions are notices under which this Product is offered.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL -B / CWM03-M -H / CWM03-L -H / CWM03-XL -H

MODELL: CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL / CWM03-M -H / CWM03-L -H / CWM03-XL -H

Pure architectural elevation diagram of a vertical structure with no text or symbols

Measure from inside of uppertrack to inside of flower track

Measuring aluminum panels requires at least 0.79 inches to be used on the track

0.79" s at rack

Diagram of a door frame with an open door and a partially open panel, showing directional arrows (no text or symbols)

Illustration of a double door with glass panels and a right-angle arrow indicating direction (no text or symbols)

3A Height Adjuster Pre-drilled Holes

Diagram of a mechanical clamp or bracket with two springs and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical device with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a mechanical device with springs and a magnified inset showing a mechanical component (no text or symbols)

5A Sliding glass door shown hereslightly open Sliding Glass Pet Door Install weather stripping here

Illustration of hands installing or adjusting a vertical panel on a ceiling (no text or symbols)

Illustration of a hand holding a vertical object with a 5C label (no text or symbols on the object itself)

Line drawing of a dog peeking out of a glass door (no text or symbols)

Illustration of a door with a label and a magnified inset showing a mechanical component (no text or symbols present)

Diagram of a door with arrows indicating flow or movement, no text or symbols present

Illustration of a medical procedure with hands holding arrows and a device, no text or symbols present

C/O YH Consulting Limited Office 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL -B

/ CWM03-M -H / CWM03-L -H / CWM03-XL -H

Dog-door-for-sliding-door

MODÈLE: CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL / CWM03-M -H / CWM03-L -H / CWM03-XL -H

Pure architectural elevation diagram of a vertical structure with no text or symbols

Measure from inside of uppertrack to inside of flower track

Architectural detail drawing of a building facade with window panels and an orange dimension line (0.79") indicating a 0.79" height measurement.

Diagram of a door with open door frame and hanging slide, showing directional arrows (no text or symbols)

Diagram of a double door with glass panels and an arrow indicating direction (no text or symbols)

Horizontal anomaly alarm × horizontal anomaly alarm × vertical line vertical line vertical vertical

Étape 3

3A Height Adjuster Pre-drilled Holes

Diagram of a mechanical clamp or bracket with directional arrows indicating movement (no text or symbols)

Diagram of a wall-mounted switch or latch mechanism with directional arrow indicating left motion (no text or symbols present)

Diagram of a mechanical device with a spring and lever mechanism, showing motion direction (no text or symbols)

5A Sliding glass door shown hereslightly open Sliding Glass Pet Door Install weather stripping here

Illustration of hands installing or adjusting a vertical panel on a cabinet (no text or symbols visible)

Illustration of a hand holding a vertical object with a ruler, no text or symbols present

Line drawing of a dog peeking out of a door, no text or symbols present

Diagram showing a door with a label and an inset magnified view of a tool interacting with the door.

Diagram of a door with arrows indicating direction and measurement scale (no text or symbols)

Diagram showing two hands interacting with a device inside a room, one holding a device and the other with a device inserted (no text or symbols present)

A/S YH Consulting Limited Bureau 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Importé en AUS : SIHAO PTY LTD.

1 ROKEVA STREET, EASTWOOD, NSW 2122, Australie

CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL -B / CWM03-M -H / CWM03-L -H / CWM03-XL -H

Dog-door-for-sliding-door

MODEL: CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL -E / CWM03-M -H / CWM03-L -H / CWM03-XL -H

Pure architectural elevation drawing of a vertical structure with no text or symbols

Measure from inside of uppertrack to inside of flower track

Measuring aluminum panels requires at least 0.79 inches to be used on the track

0.75" s at rack

Diagram of a door frame with an open door and a partially open shelf, showing directional arrows (no text or symbols)

Diagram of a double door with glass panels and an arrow indicating direction (no text or symbols)

Horizontal anomaly alarm × vertical line Horizontal anomaly alarm × vertical line vertical vertical

Stap 3

3A Height Adjuster Pre-drilled Holes

Diagram of a mechanical clamp or bracket with directional arrows indicating movement (no text or symbols)

Diagram of a wall-mounted switch or latch mechanism with a directional arrow indicating left motion (no text or symbols present)

Grendelmontage op stationair raam

Diagram of a mechanical device with a magnified inset showing a mechanical component (no text or symbols)

Vergrendelingsmontage in onderste spoor

Stap 5

Glasveger en tochtstrips installeren

5A Sliding glass door shown hereslightly open Sliding Glass Pet Door Install weather stripping here

Illustration of hands installing or adjusting a vertical panel on a wooden beam (no text or symbols)

Illustration of a hand holding a ruler above a wall, no text or symbols present

Line drawing of a dog standing beside a door with a label '6A' in the top-left corner (no other text or symbols)

Diagram showing a door with a label and an inset magnified view of a tool interacting with the door.

Diagram of a door with arrows indicating direction and measurement scale (no text or symbols)

Diagram showing two hands interacting with a door frame and a device, no text or symbols present

T.a.v. YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL -B / CWM03-M -H / CWM03-L -H / CWM03-XL -H

MODELL: CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL / CWM03-M -H / CWM03-L -H / CWM03-XL -H

Pure architectural elevation diagram of a vertical structure with no text or symbols

Simple 3D-rendered rectangular block with no text or symbols

Simple 3D diagram of a door with a label on the front panel (no text or symbols on the door itself)

Freedom Patio Panel

T-fästen (2)

M4 x 12 mm

Plåtskruvar ( 10 )

Measure from inside of uppertrack to inside of flower track

Measuring aluminum panels requires at least 0.79 inches to be used on the track

0.79" s at rack

Diagram of a door frame with a slide and an arrow indicating direction (no text or symbols)

Illustration of a double door with a right-handled door, showing glass panels and a handle (no text or symbols)

3A Height Adjuster Pre-drilled Holes

Diagram of a mechanical clamp or bracket assembly with directional arrows indicating movement (no text or symbols)

Diagram of a door latch mechanism with directional arrow indicating left motion (no text or symbols)

Diagram of a mechanical device with a magnified inset showing a lever mechanism (no text or symbols)

5A Sliding glass door shown hereslightly open Sliding Glass Pet Door Install weather stripping here

Illustration of hands installing or adjusting a vertical panel on a cabinet (no text or symbols visible)

Illustration of a hand holding a vertical tool or ruler, with no visible text or symbols

Line drawing of a dog peeking out of a door, no text or symbols present

NO. NO. ↓

Illustration of a door with a label and a magnified inset showing a mechanical component (no text or symbols present)

Diagram of a door with arrows indicating direction and measurement scale (no text or symbols)

Diagram showing two hands interacting with a device inside a cabinet, with no visible text or symbols.

C/O YH Consulting Limited Kontor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importerad till Australien: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd.

Svit 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL -B

/ CWM03-M -H / CWM03-L -H / CWM03-XL -H

Dog-door-for-sliding-door

MODELO: CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL / CWM03-M -H / CWM03-L -H / CWM03-XL -H

Pure architectural elevation diagram of a vertical structure with no text or symbols

pared interior o exterior

Measure from inside of uppertrack to inside of flower track

Measuring aluminum panels requires at least 0.79 inches to be used on the track

0.79" s at rack

Diagram of a door frame with an open door and a partially open shelf, showing directional arrows (no text or symbols)

Diagram of a double door with glass panels and an arrow indicating direction (no text or symbols)

Horizontal anomaly alarm × horizontal anomaly alarm × vertical line vertical line vertical vertical

Paso 3

3A Height Adjuster Pre-drilled Holes

Diagram of a mechanical clamp or bracket with two springs and directional arrows indicating movement (no text or symbols)

Diagram of a wall-mounted device with a directional arrow indicating leftward movement (no text or symbols present)

Diagram of a mechanical device with springs and a magnified inset showing a mechanical component (no text or symbols)

5A Sliding glass door shown hereslightly open Sliding Glass Pet Door Install weather stripping here

Illustration of hands installing or adjusting a panel on a ceiling structure (no text or symbols)

Hand holding a vertical panel with a ruler, no text or symbols visible

Line drawing of a dog peeking out of a door with a circular badge labeled '6A' (no text or symbols on the dog or door)

Illustration of a door with a label and a magnified inset showing a pipe joint (no text or symbols)

Diagram of a door with arrows indicating flow or movement, no text or symbols present

Diagram showing hands operating a door with directional arrows and a curved handle, no text or symbols present

Para reemplazar:

C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importado a AUS: SIHAO PTY LTD.

1 ROKEVA STREET, EASTWOOD, NSW 2122, Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL -B

/ CWM03-M -H / CWM03-L -H / CWM03-XL -H

Dog-door-for-sliding-door

MODELLO: CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL / CWM03-M -H / CWM03-L -H / CWM03-XL -H

Pure architectural elevation diagram of a vertical structure with no text or symbols

Simple 3D-rendered gray rectangular block with no text or symbols

Measure from inside of uppertrack to inside of flower track

Measuring aluminum panels requires at least 0.79 inches to be used on the track

0.75" s at rack

Diagram of a door frame with an open door and a partially open shelf, showing directional arrows (no text or symbols)

Illustration of a double door with a right-handled arrow indicating direction (no text or symbols)

3A Height Adjuster Pre-drilled Holes

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Diagram of a door lock mechanism with directional arrow indicating left motion (no text or symbols)

Diagram of a mechanical switch mechanism with an inset showing a lever mechanism (no text or symbols present)

5A Sliding glass door shown hereslightly open Sliding Glass Pet Door Install weather stripping here

Illustration of hands installing or adjusting a vertical panel on a ceiling (no text or symbols)

Illustration of a hand holding a vertical object with a 5C label (no text or symbols on the object itself)

Line drawing of a dog peeking out of a glass door (no text or symbols)

Illustration of a book cover with a magnified inset showing a mechanical component (no text or symbols)

Diagram of a door with arrows indicating downward motion, no text or symbols present

Diagram showing two hands interacting with a door, one holding a device and the other holding a tool (no text or symbols present)

Per sostituire:

C/O YH Consulting Limited Ufficio 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL -B

/ CWM03-M -H / CWM03-L -H / CWM03-XL -H

Dog-door-for-sliding-door

MODEL: CWM03-M / CWM03-L / CWM03-XL / CWM03-L -B / CWM03-XL -E / CWM03-M -H / CWM03-L -H / CWM03-XL -H

Pure architectural elevation diagram of a vertical structure with no text or symbols

Measure from inside of uppertrack to inside of flower track

Measuring aluminum panels requires at least 0.79 inches to be used on the track

0.79" s at rack

Diagram of a door with open door frame and internal compartments, showing directional arrows (no text or symbols)

Illustration of a double door with glass panels and a right-angle arrow indicating direction (no text or symbols)

Horizontal anomaly alarm × horizontal anomaly alarm × vertical line vertical line vertical vertical

Krok 3

3A Height Adjuster Pre-drilled Holes

NIE WIERCIĆ W SZKLE.

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical device with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a mechanical switch mechanism with an inset showing a lever mechanism (no text or symbols present)

5A Sliding glass door shown hereslightly open Sliding Glass Pet Door Install weather stripping here

Illustration of hands installing or adjusting a panel on a ceiling structure (no text or symbols)

Hand installing or adjusting a vertical panel with a 5C label (no text or symbols on the diagram itself)

Line drawing of a dog peeking out of a glass door (no text or symbols)

Illustration of a book cover with a magnified inset showing a pen inserted into it (no text or symbols)

Diagram of a door with three downward arrows indicating force or pressure, enclosed in a frame (no text or symbols)

Diagram showing two hands interacting with a door, one holding a device and the other holding a tool (no text or symbols present)

Aby wymienić: Wykrę

C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importowane do AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
