BJJ-565 - Wall mount Vevor - Free user manual and instructions

Product type	Wall mount for backdrop
Model	BJJ-565
Brand	Vevor
Dimensions (L x W x H)	1610 x 540 x 1980 mm
Net weight	Approximately 1.74 kg
Power supply	None (mechanical product)
Primary use	Backdrop support for photography, video and decoration
Maximum load capacity	Not specified, designed for light backdrop
Material	Metal (steel or aluminum)
Assembly required	Yes, follow the steps in the manual
Package contents	Disassembled parts (see assembly diagram)
Safety precautions	Do not exceed capacity, flat surface, inspect before use
Maintenance	Clean with a dry cloth; do not use abrasive products
Spare parts	Contact Vevor customer service
Warranty	Electronic warranty certificate available at www.vevor.com/support
Usage environment	Indoor, on flat, hard floor
Manual available	French, English, German, Italian, Polish, Swedish

Frequently Asked Questions - BJJ-565 Vevor

How to assemble the BJJ-565 wall mount?

Follow the steps in the manual: attach parts B (x2) and C to the main support. Use the provided tools. Wear gloves and safety goggles.

What is the maximum load capacity of the support?

The manufacturer does not specify an exact maximum load, but it is designed for light backdrops. Do not overload.

Is the BJJ-565 support suitable for outdoor use?

It is recommended for indoor use on a flat, hard floor. Outdoors, wind could cause it to tip over.

What type of backdrop can I use?

Any light backdrop, such as fabric or paper, of a width suitable for the bar (not specified).

How to clean the wall mount?

Wipe with a dry, soft cloth. Do not use harsh or abrasive chemicals.

Does the support come with wall mounting screws?

No, the support is free-standing and does not require wall mounting. It rests on its feet.

Where can I find spare parts?

Contact Vevor customer service via www.vevor.com/support.

Is the product guaranteed?

Yes, an electronic warranty certificate is available on the Vevor website. Keep the proof of purchase.

Can I use the support to hang a projector?

No, it is designed only for light backdrops. Do not hang heavy equipment on it.

How to store the support when not in use?

Partially disassemble it and store it in a dry place. The parts can be kept in the original box.

USER MANUAL BJJ-565 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BACKDROP STAND USER MANUAL

MODEL NO.: BJJ-565

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Backdrop Stand

MODEL NO.: BJJ-565

Simple line drawing of a tripod-mounted stand with no text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.

2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.

3. Keep the assembly area clean and well-lit.

4. Keep bystanders out of the area during assembly.

5. Do not assemble when tired or when under the influence of alcohol drugs or medication.

6. The product capabilities apply to properly and completely assembled products only.

7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Backdrop Stand.

8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy. Do not allow children to play with or item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Backdrop Stand.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

TECHNICAL SPECIFICATIONS

Model	BJJ-565
Product Dimensions (LxWxH)(mm)	1610*540*1980
Net Weight(kg)	About 1.74

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

A		1		E			5
B		2		F			1
C		1
D		1

ASSEMBLY STEPS

STEP 1

Take one piece of B, one pieces of C and one piece of D, and connect them in the order shown in the figure.

STEP 2

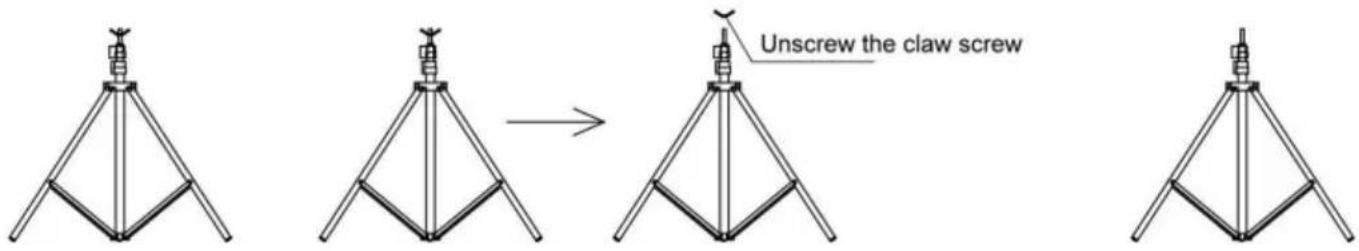

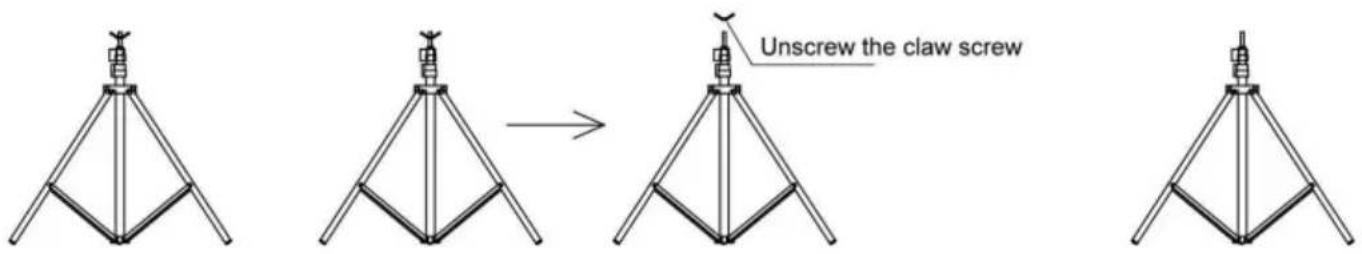

Take tripod A and unscrew the claw screw at the top.

STEP 3

Fill the F water bag with water and put it on the tripod.

STEP 4

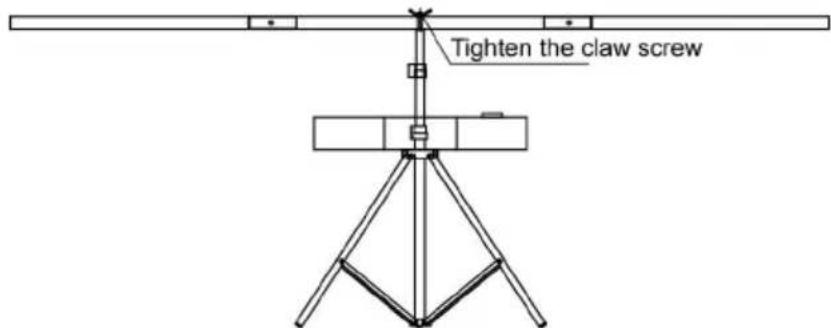

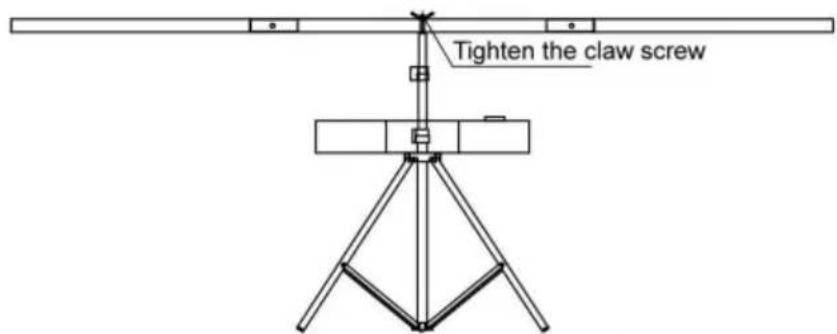

Connect the cross bar assembled in step 1 with the tripod and tighten the claw screw.

STEP 5

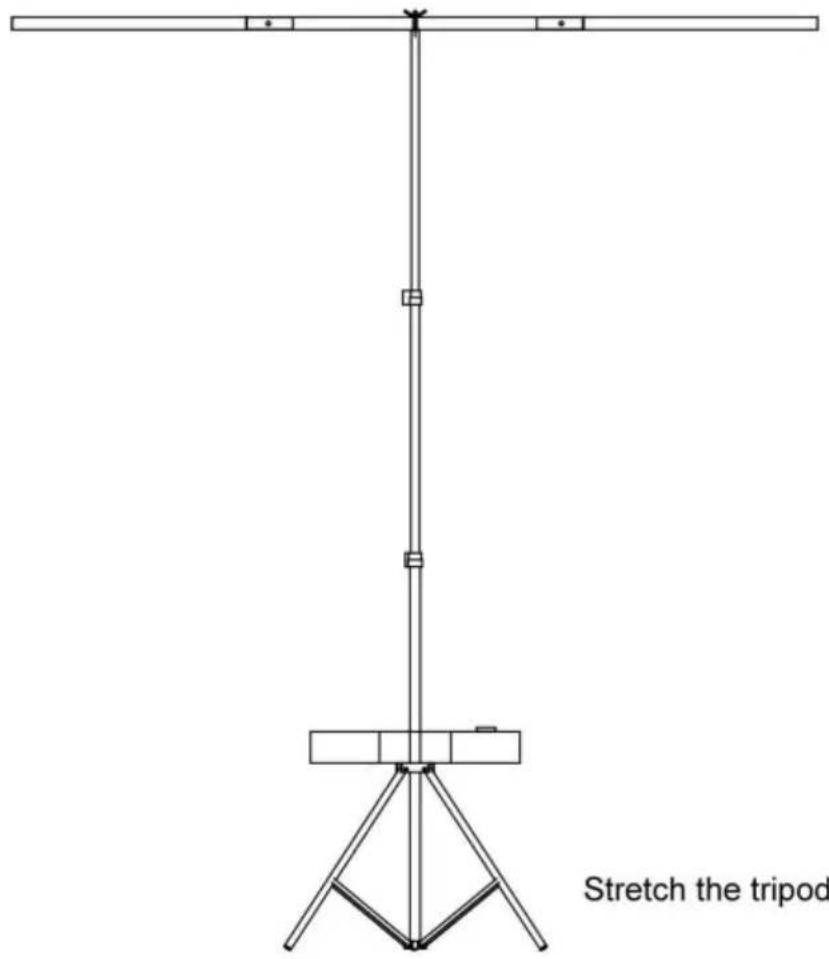

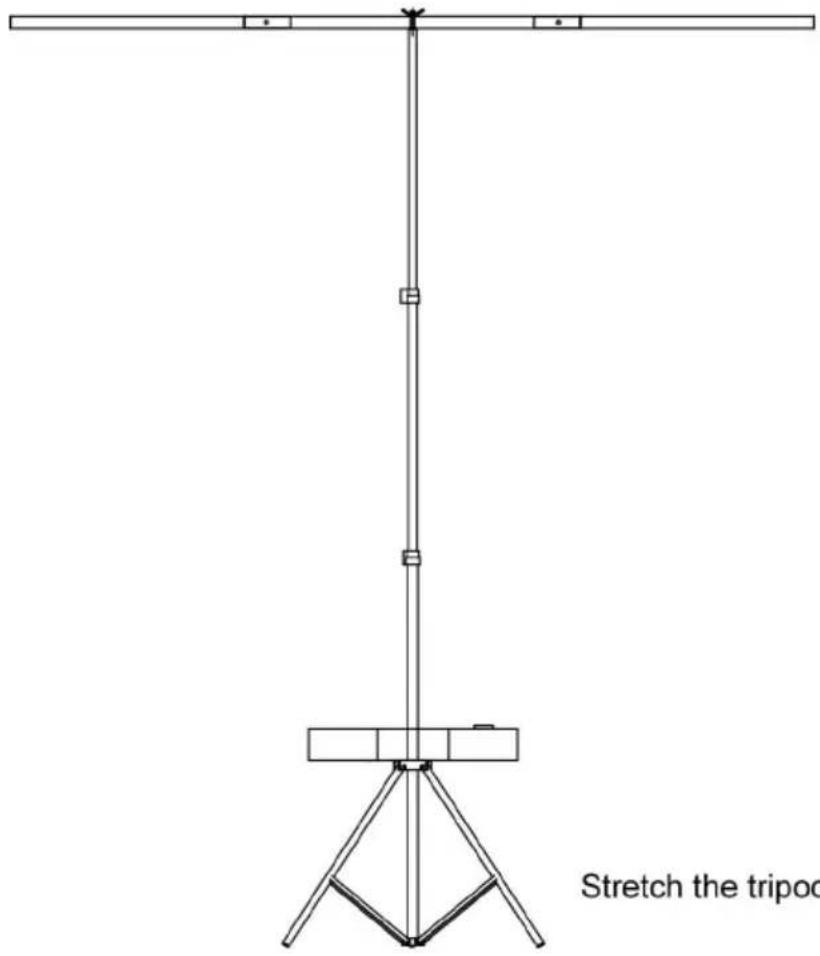

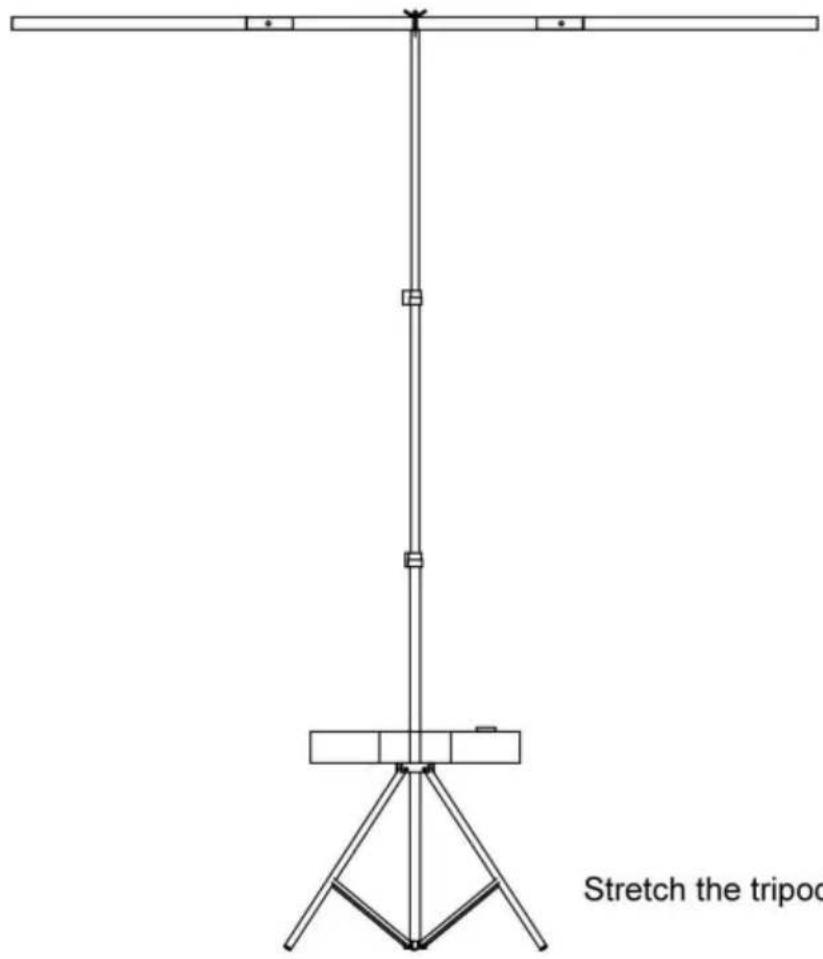

Stretch the tripod to a suitable height.

STEP 6

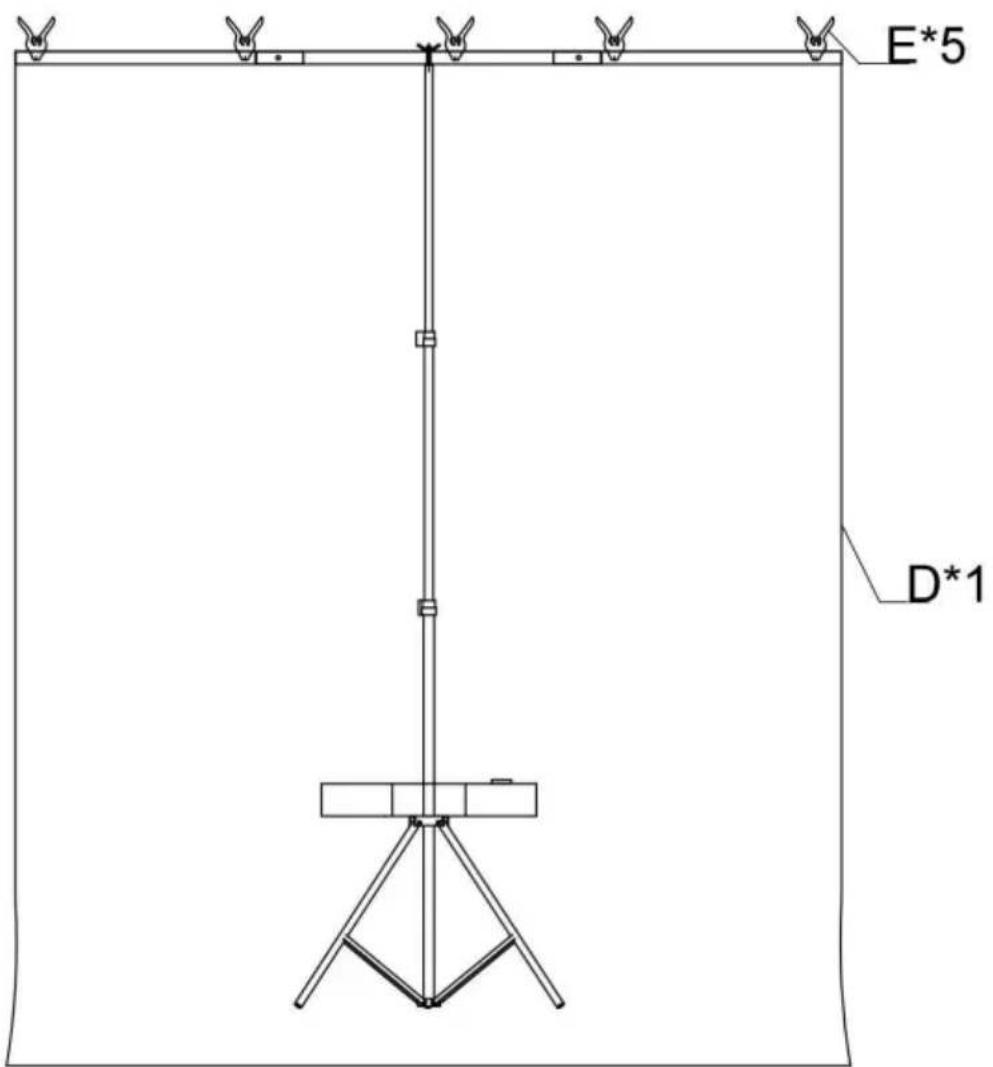

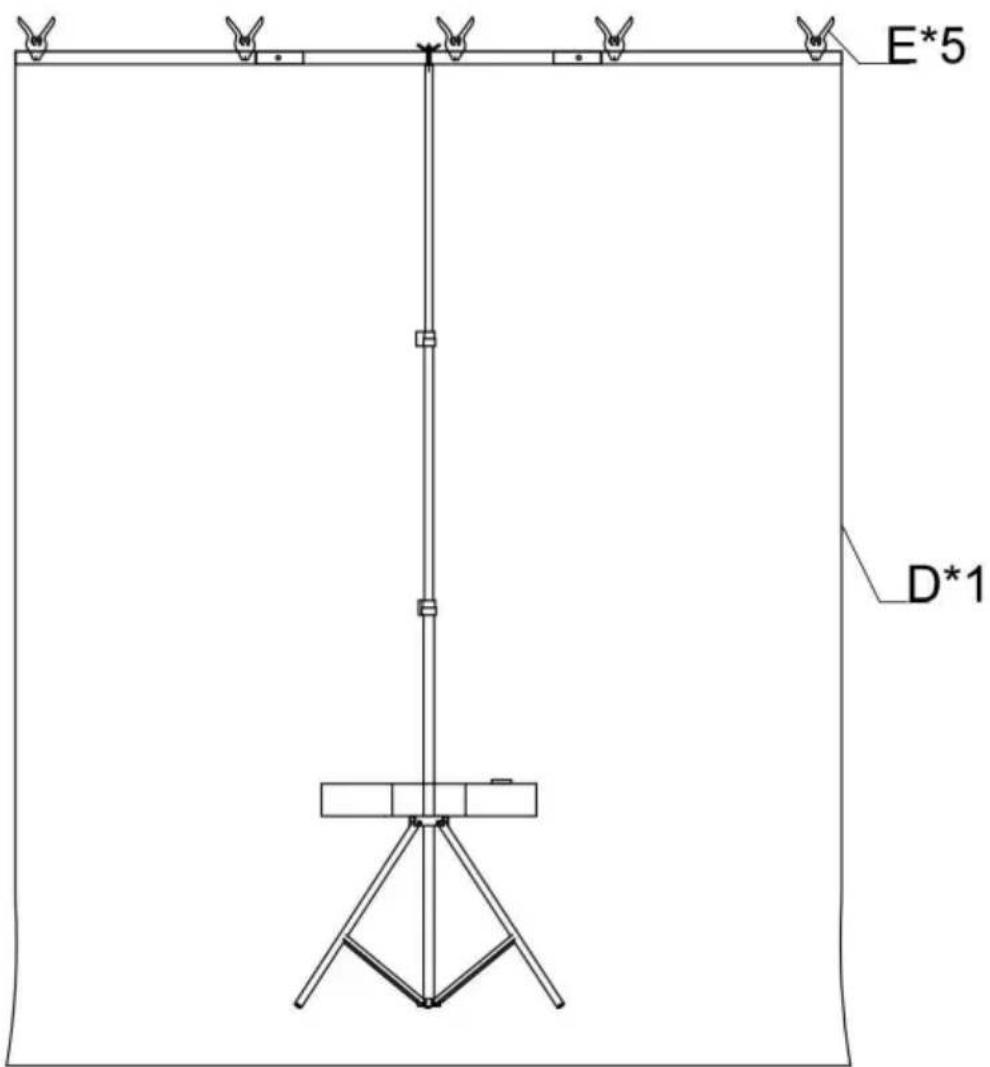

Assemble the material D (green cloth) on the cross bar, and clamp it with a clamp to complete the assembly.

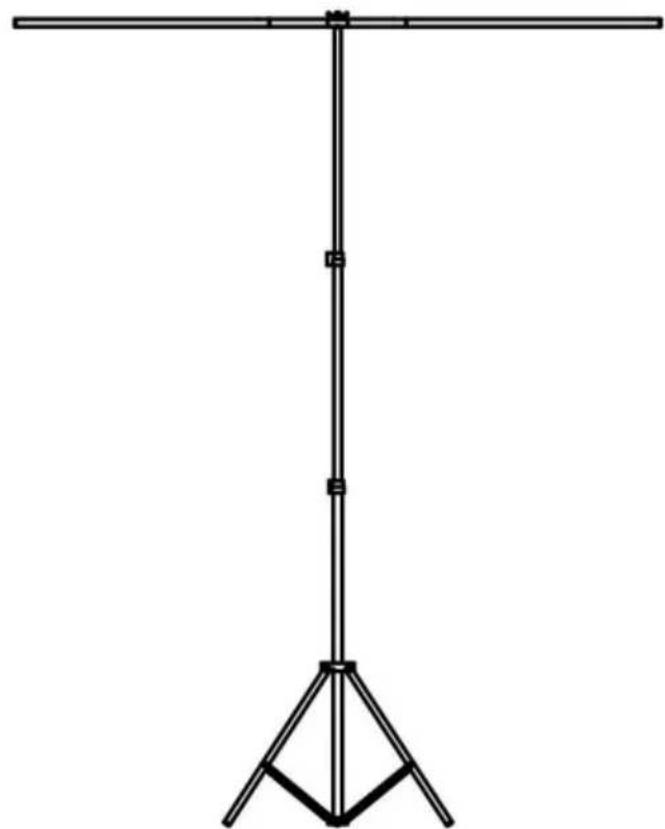

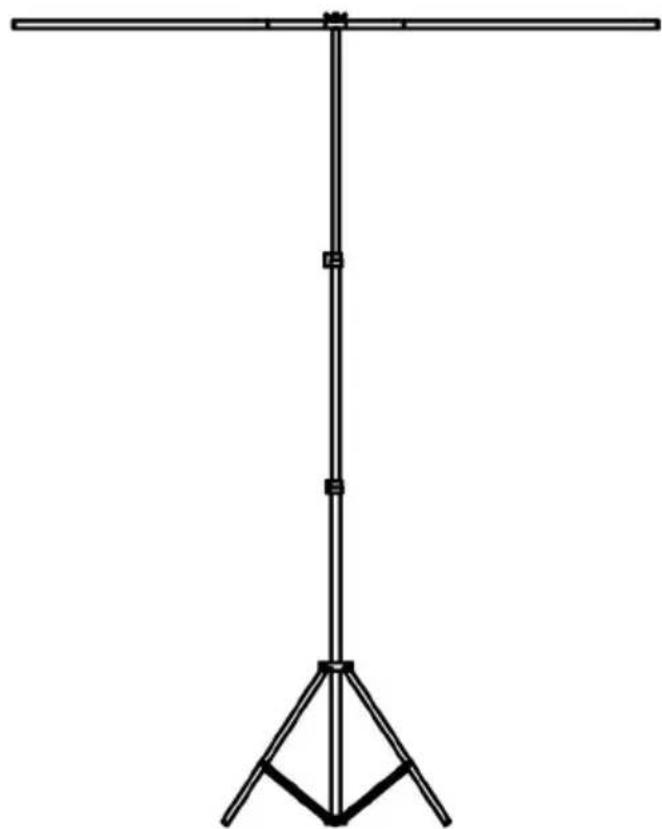

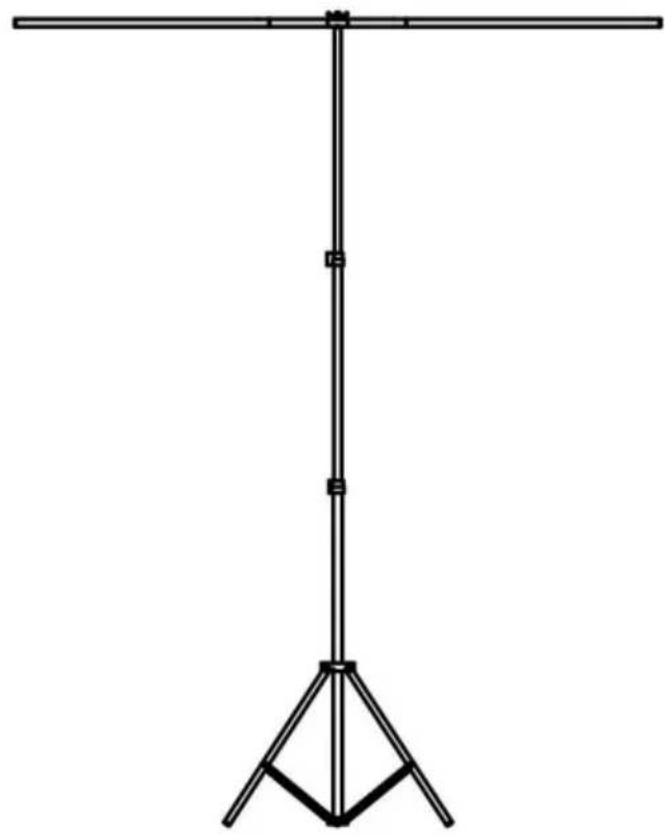

COMPLETION

Simple line drawing of a tripod-mounted stand with a horizontal bar extending upward (no text or symbols)

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Simple line drawing of a tripod-mounted stand with a horizontal bar extending upward (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Take one piece of B, one pieces of C and one piece of D, and connect them in the order shown in the figure.

STEP 2

Take tripod A and unscrew the claw screw at the top.

STEP 3

Fill the F water bag with water and put it on the tripod.

STEP 4

Connect the cross bar assembled in step 1 with the tripod and tighten the claw screw.

STEP 5

Stretch the tripod to a suitable height.

STEP 6

Assemble the material D (green cloth) on the cross bar, and clamp it with a clamp to complete the assembly.

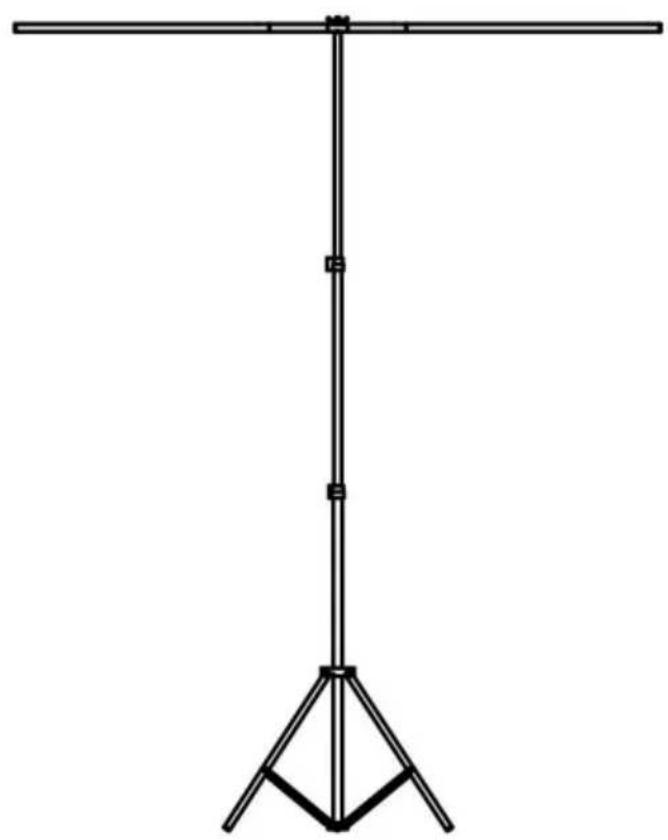

ACHÈVEMENT
