BACKDROP STAND

USER MANUAL

MODEL NO.: BJJ-TB8510

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Backdrop Stand

MODEL NO.: BJJ-TB8510

Pure structural frame diagram with vertical supports and horizontal beams (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Backdrop Stand.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy. Do not allow children to play with or item.
2. Do not exceed weight capacities, before moving.
3. Use only on a flat, hard and smooth surface capable of safely supporting a fully loaded Backdrop Stand.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

TECHNICAL SPECIFICATIONS

Model	BJJ-TB8510
Product Dimensions (LxWxH)(mm)	3200*325*2600
Net Weight(kg)	About 5.06

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

A		2		F		2
B		1		G		4
C		1		H		2
D		1		I		2
E		1

ASSEMBLY STEPS

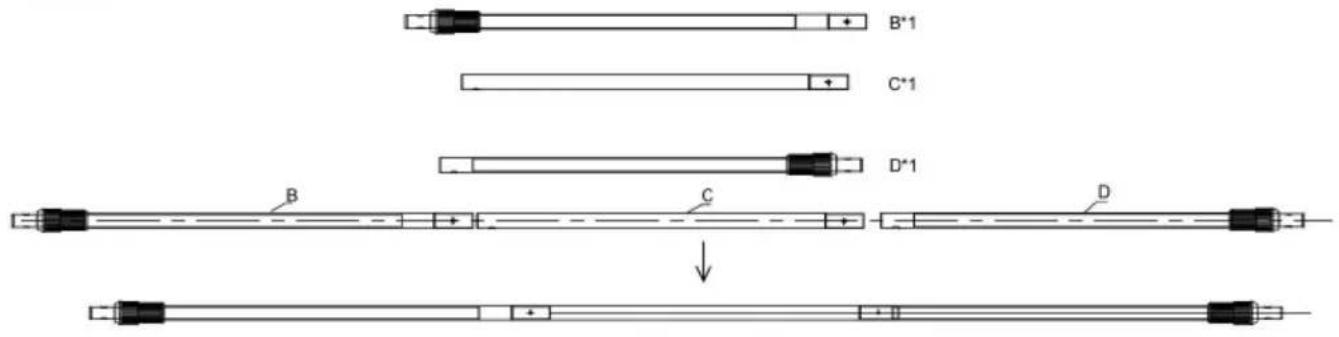

STEP 1

B*1 C*1 D*1 B C D

Take one piece of B, one pieces of C and one piece of D, and connect them in the order shown in the figure.

STEP 2


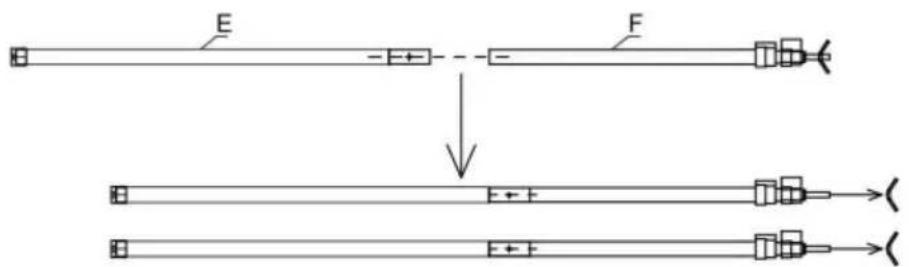

Take material E and material F (telescopic rod), connect them two times, a total of two groups, and screw out the claw screw at the top.

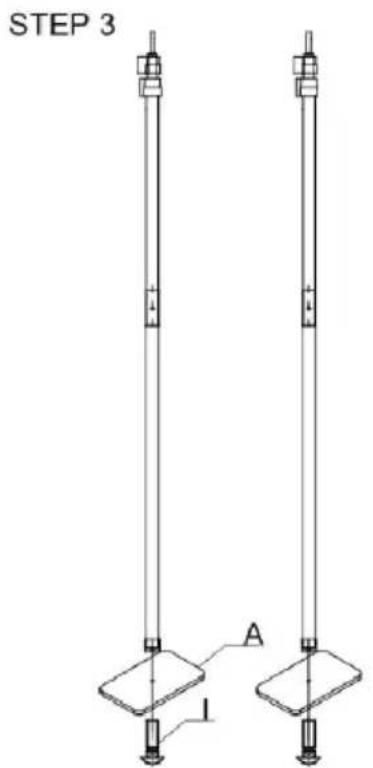

STEP 3 A I

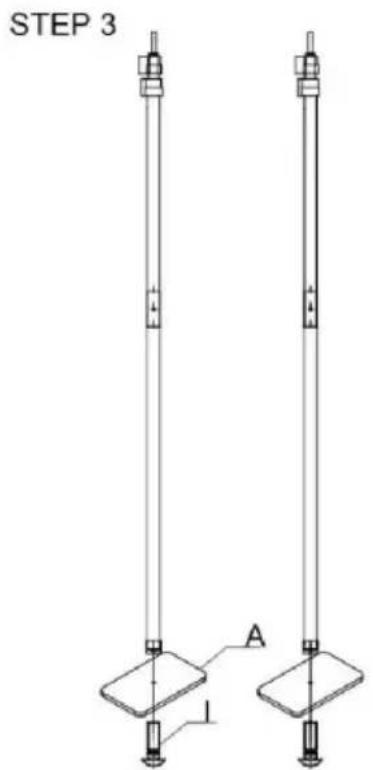

Take material A and material I (screws) and connect them with the vertical rod in step 2 as shown in the figure.

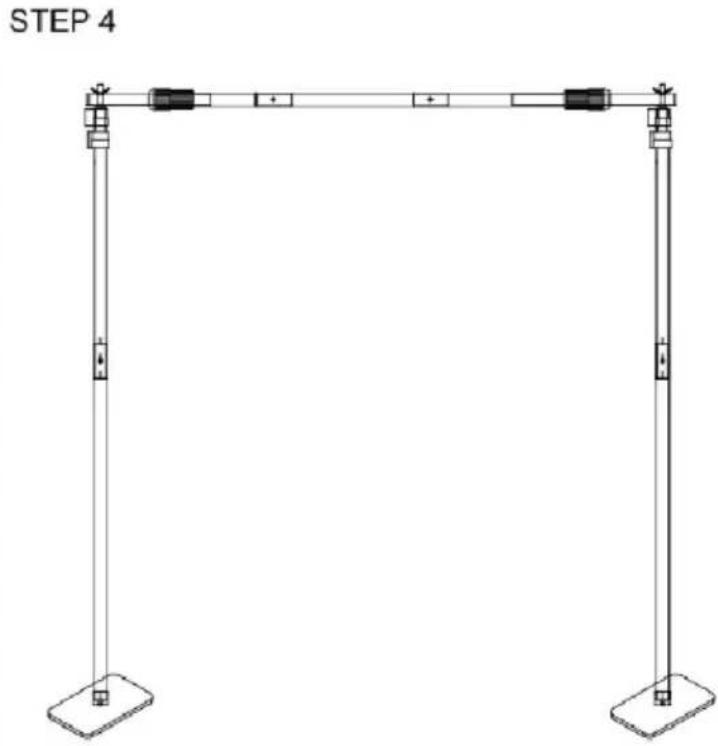

STEP 4

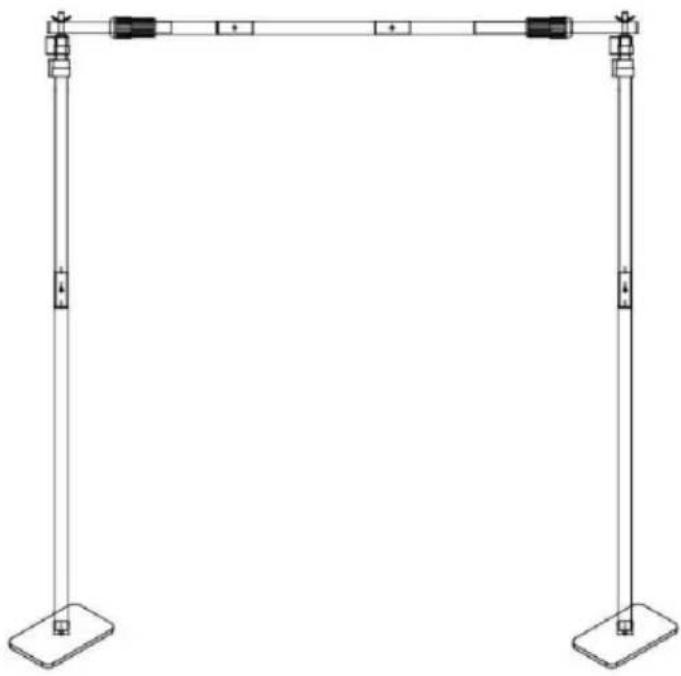

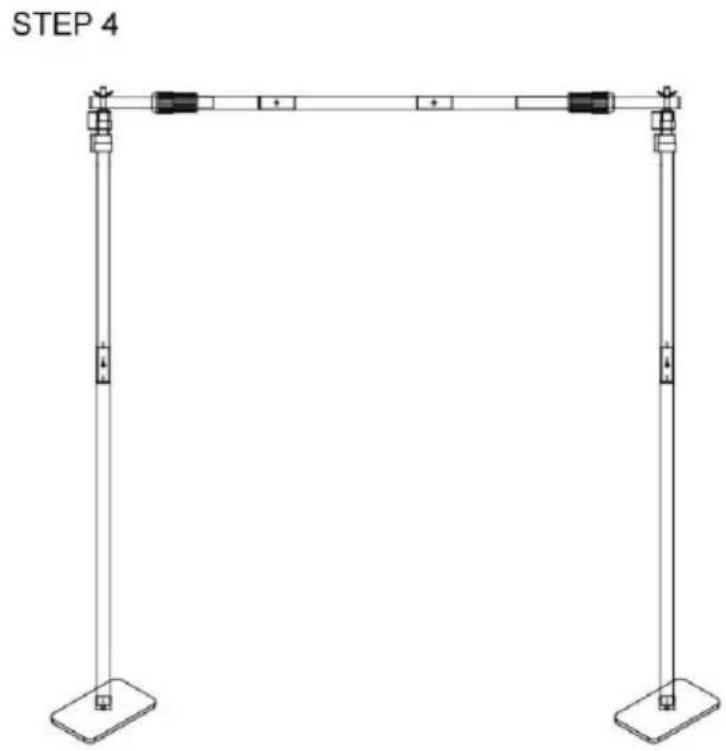

After placing the vertical rod assembled in step 3 at a proper distance, two people install the horizontal rod assembled in step 1 and tighten the claw screws.

STEP 5

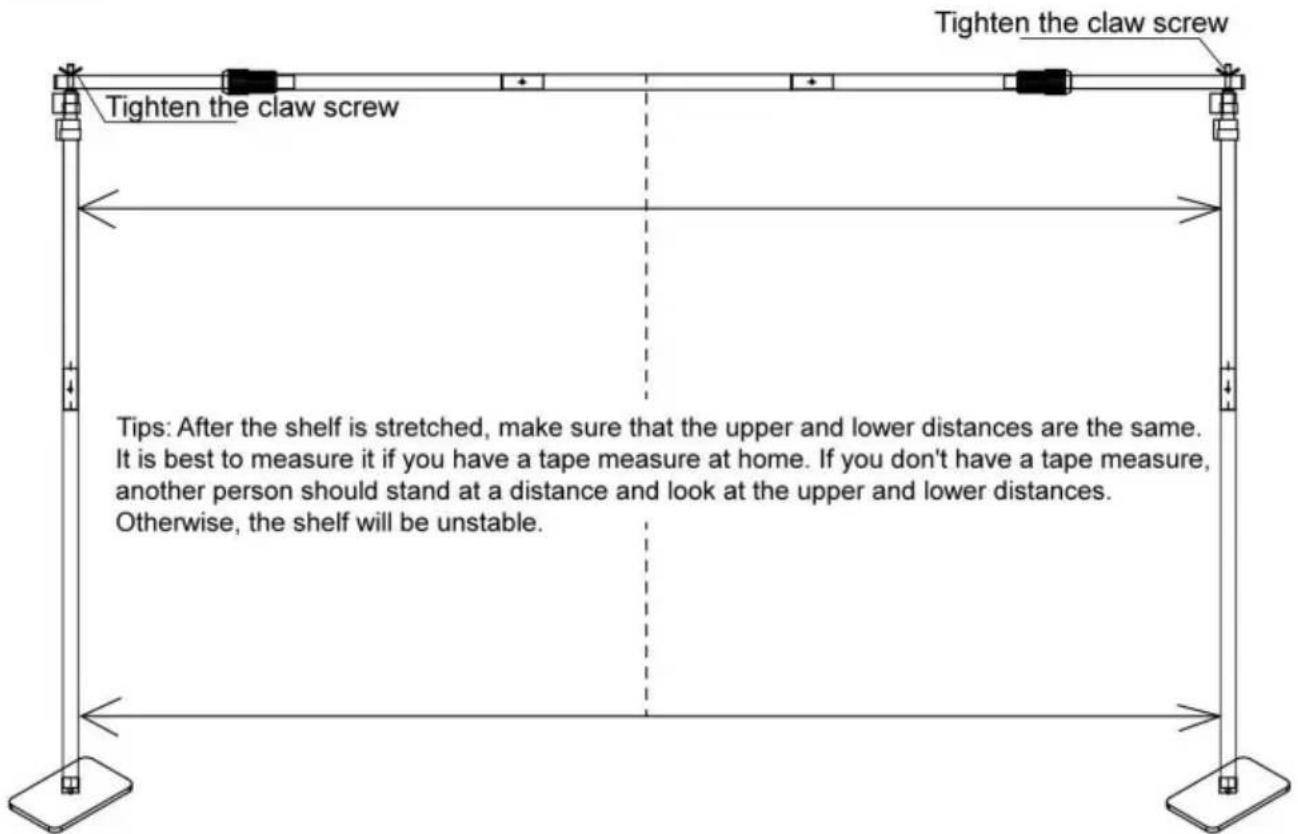

Tighten the claw screw Tighten the claw screw Tips: After the shelf is stretched, make sure that the upper and lower distances are the same. It is best to measure it if you have a tape measure at home. If you don't have a tape measure, another person should stand at a distance and look at the upper and lower distances. Otherwise, the shelf will be unstable.

Two people will raise the tripod to a suitable height to ensure that the height of both sides is consistent and the crossbar is horizontal.

STEP 6

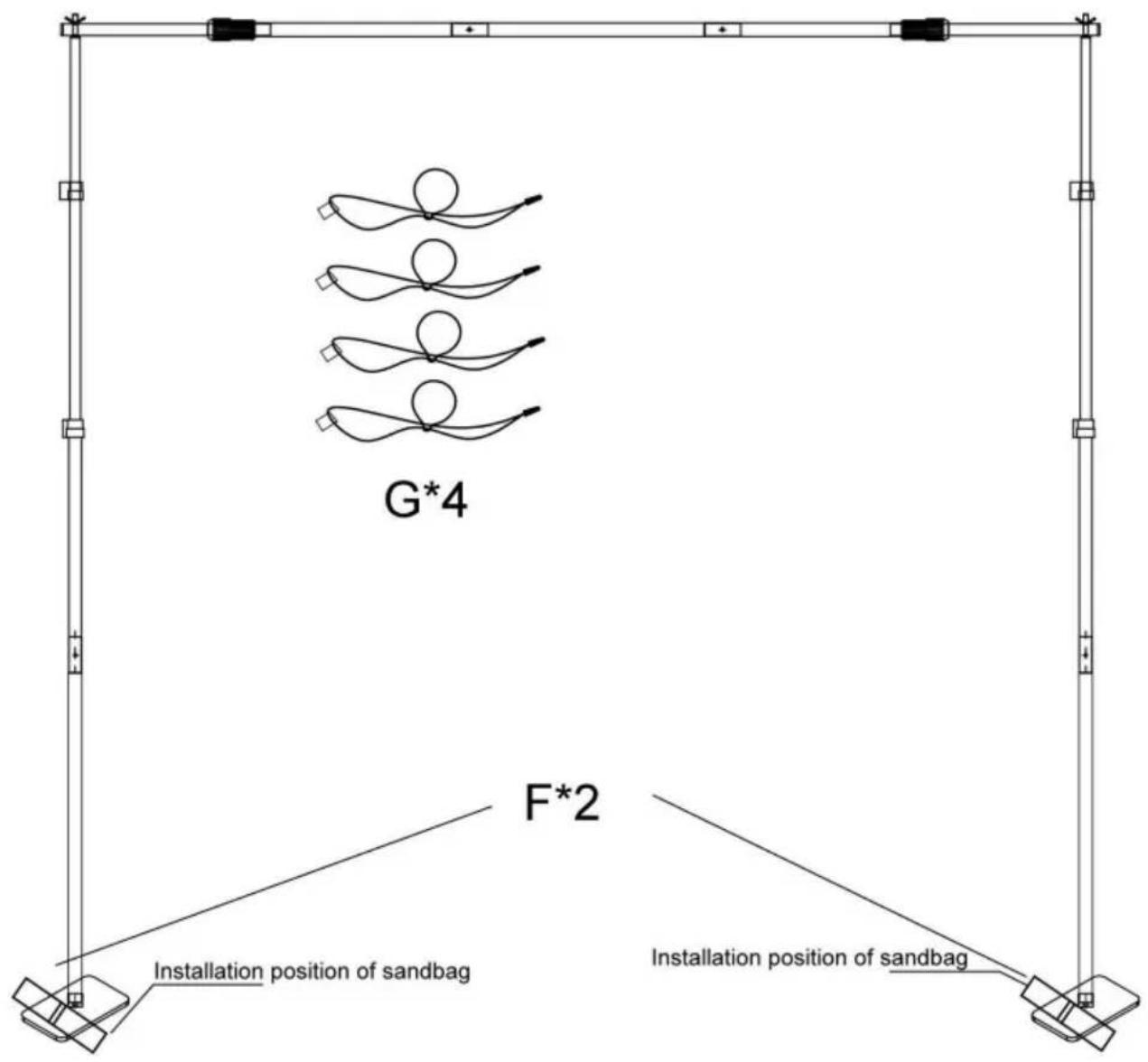

G*4 F*2 Installation position of sandbag Installation position of sandbag

2 sandbags, placed as shown in the figure after loading sand, to ensure the stability of the shelf; Four cloth clips are used according to the actual situation.

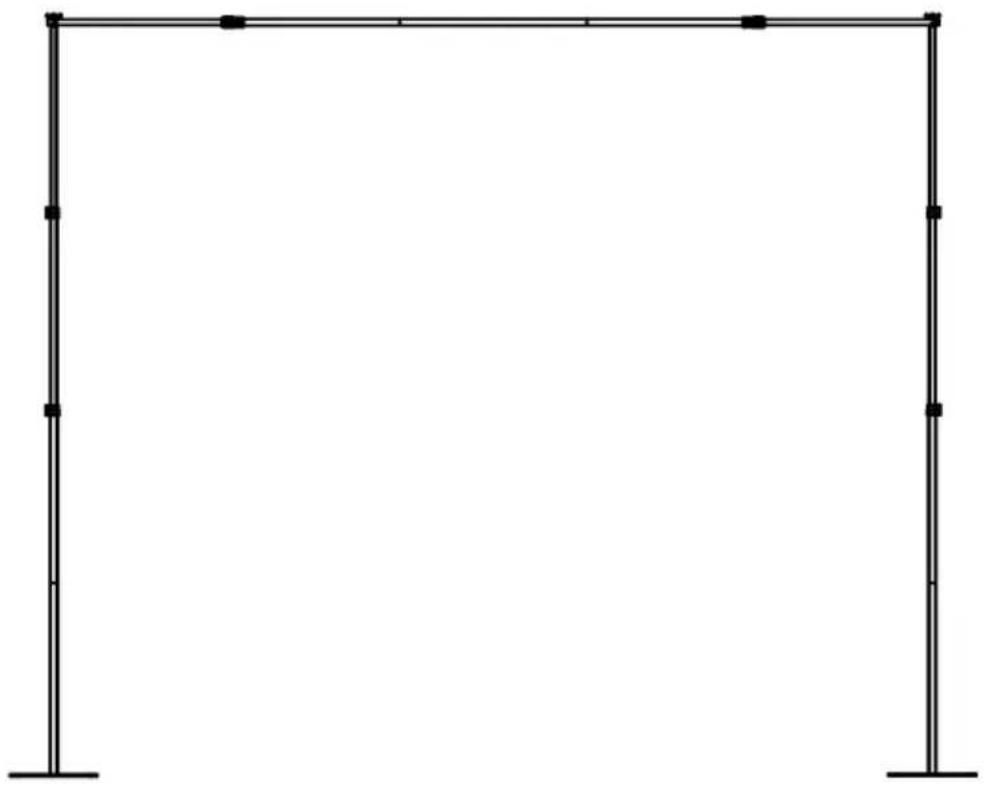

COMPLETION

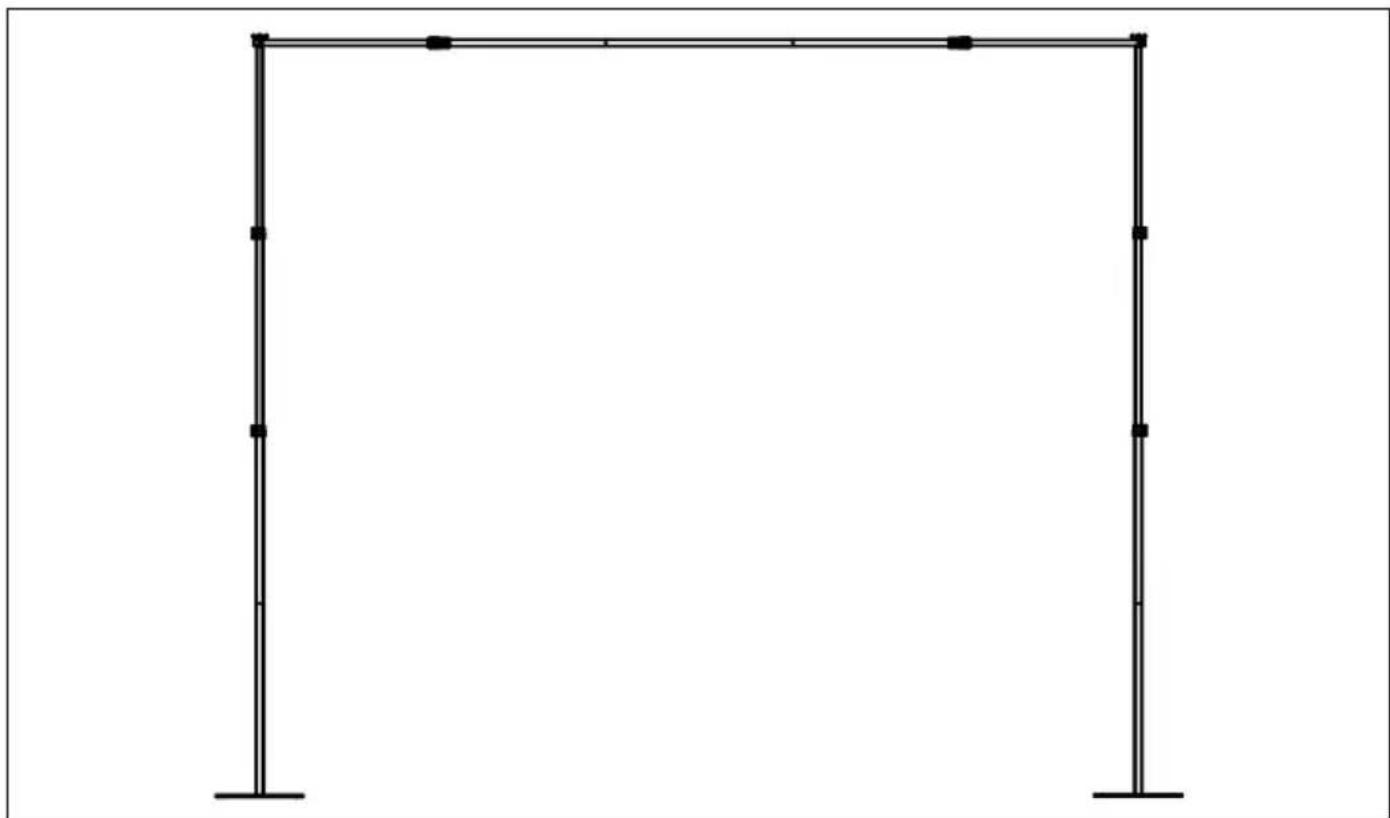

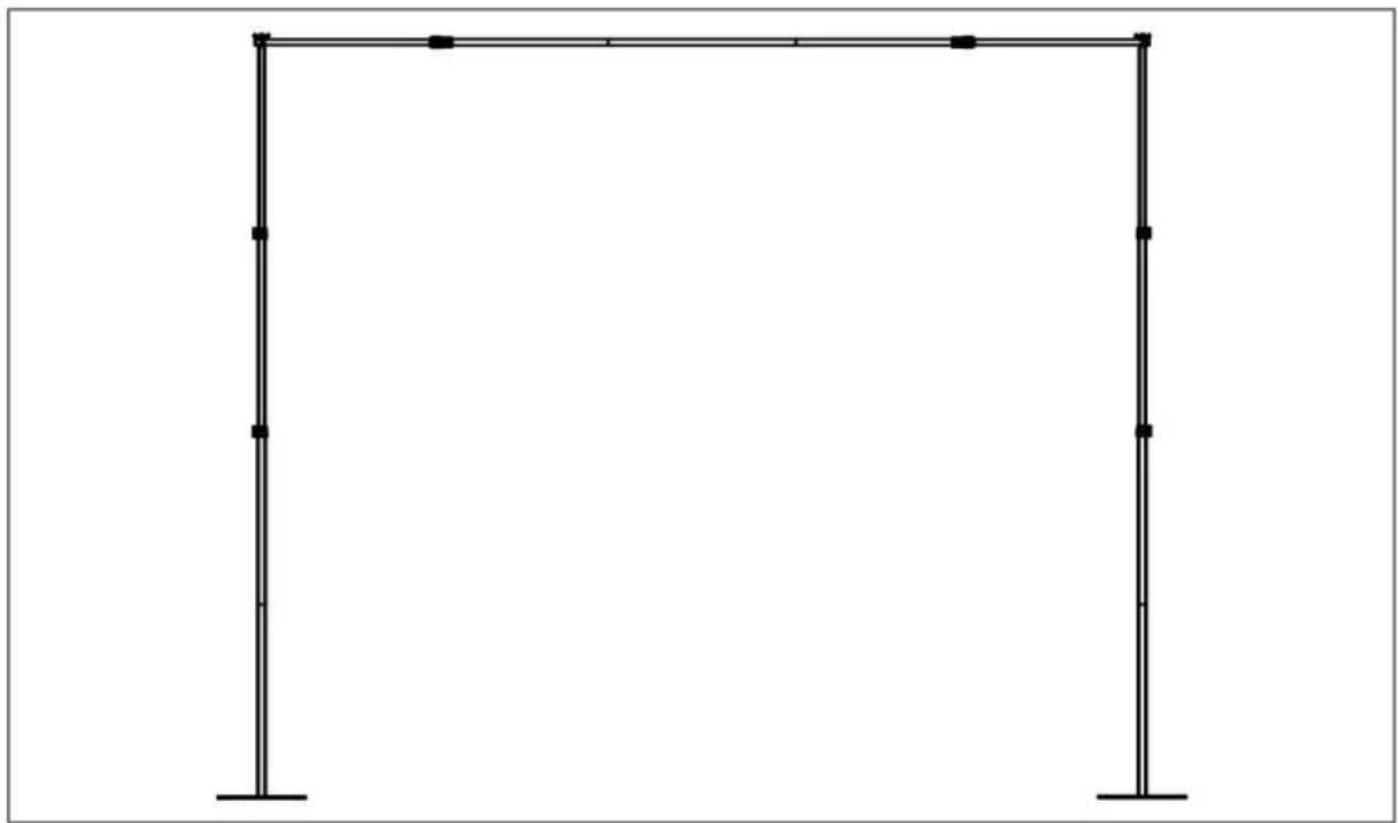

Pure structural frame diagram with vertical and horizontal lines, no text or symbols present

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Pure structural frame diagram with vertical supports and horizontal beams (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Take one piece of B, one pieces of C and one piece of D, and connect them in the order shown in the figure.

STEP 2

Take material E and material F (telescopic rod), connect them two times, a total of two groups, and screw out the claw screw at the top.

STEP 3

Pure electrical circuit lines without any symbols

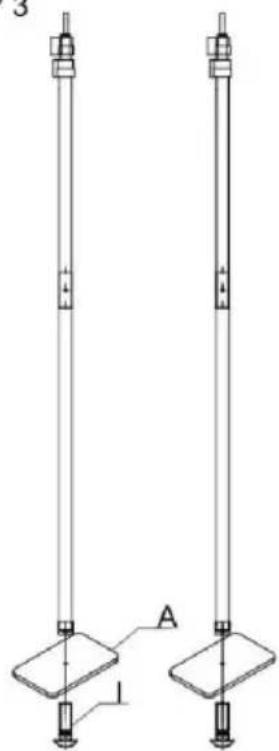

Take material A and material I (screws) and connect them with the vertical rod in step 2 as shown in the figure.

STEP 4

Pure structural diagram of a frame with vertical supports and base plates, no text or symbols present

After placing the vertical rod assembled in step 3 at a proper distance, two people install the horizontal rod assembled in step 1 and tighten the claw screws.

STEP 5

Tighten the claw screw Tighten the claw screw Tips: After the shelf is stretched, make sure that the upper and lower distances are the same. It is best to measure it if you have a tape measure at home. If you don't have a tape measure, another person should stand at a distance and look at the upper and lower distances. Otherwise, the shelf will be unstable.

Two people will raise the tripod to a suitable height to ensure that the height of both sides is consistent and the crossbar is horizontal.

STEP 6

G*4 F*2 Installation position of sandbag Installation position of sandbag

2 sandbags, placed as shown in the figure after loading sand, to ensure the stability of the shelf; Four cloth clips are used according to the actual situation.
