USER MANUAL CH470 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INSTRUCTION FOR CAT CAGE

MODEL:CH470

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

CH470

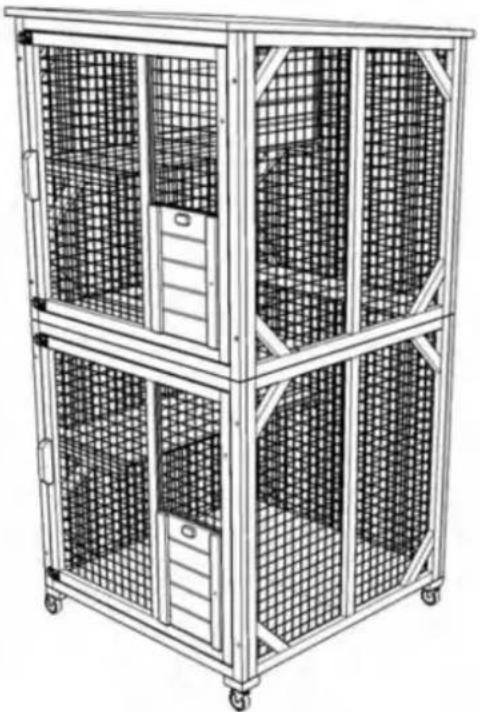

Exterior view of a multi-level metal cage or storage unit with grid patterns and wheels (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. In order to ensure your own safety, please make sure to ANSI-approved safety goggles and heavy-duty work gloves when installing this product.
3. Keep the assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting a fully loaded cat cage.

Use precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this item.
   Please keep small spare parts out of children's reach.
3. Use only on a flat, level, hard and smooth surface capable of safely supporting a fully loaded cat cage.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damaged.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model	CH470
Product Size	760×865×1630mm
Color	Gray

COMPONENTS

Notice:

1. Various specifications of screws are used in the installation of this product. Pay attention to the correct use of screw specifications according to the instruction manual.
2. Please wear gloves when installing.

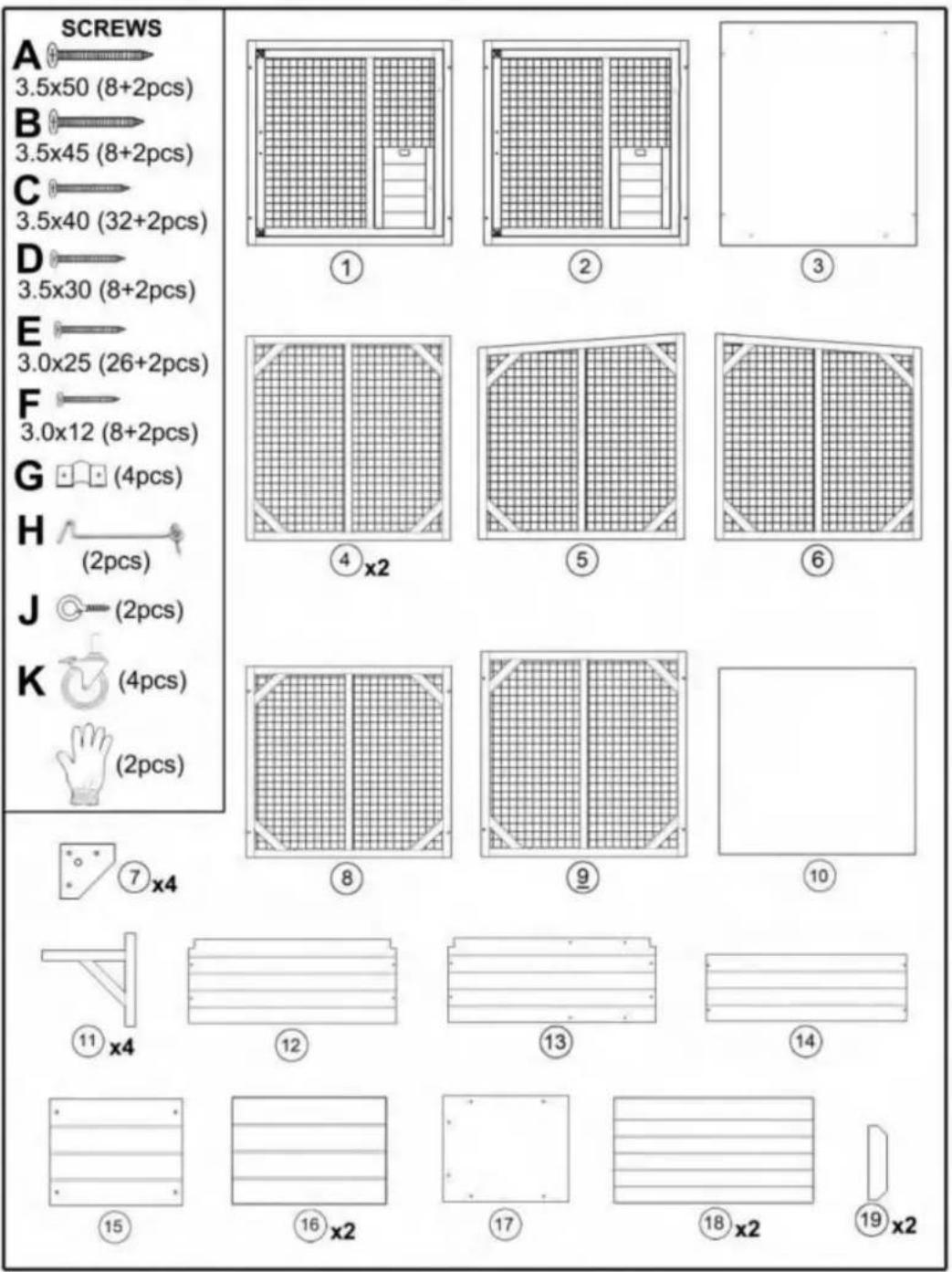

SCREWS A 3.5x50 (8+2pcs) B 3.5x45 (8+2pcs) C 3.5x40 (32+2pcs) D 3.5x30 (8+2pcs) E 3.0x25 (26+2pcs) F 3.0x12 (8+2pcs) G 4pcs H 2pcs J 2pcs K 4pcs (2pcs) (2pcs) ① ② ③ ④ x2 ⑤ ⑥ ⑦ x4 ⑧ ⑨ ⑩ ⑪ x4 ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ x2 ⑱ x2 ⑲ x2 ⑳ x2 ㉑ x2 ㉒ x2 ㉓ x2 ㉔ x2 ㉕ x2 ㉖ x2 ㉗ x2 ㉘ x2 ㉙ x2 ㉚ x2 ㉛ x2 ㉜ x2 ㉝ x2 ㉟ x2 �* x2

Assembly Instructions

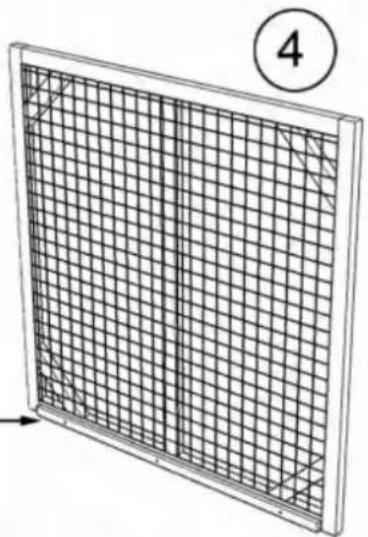

Please be noted that the side with wire nailed on is back side, should be inward when installation

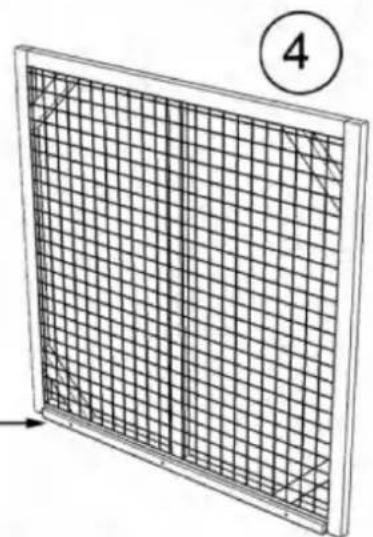

Line drawing of a solar panel with grid pattern and numbered label (4), no text or symbols present

This end with a long piece of wood is placed at bottom

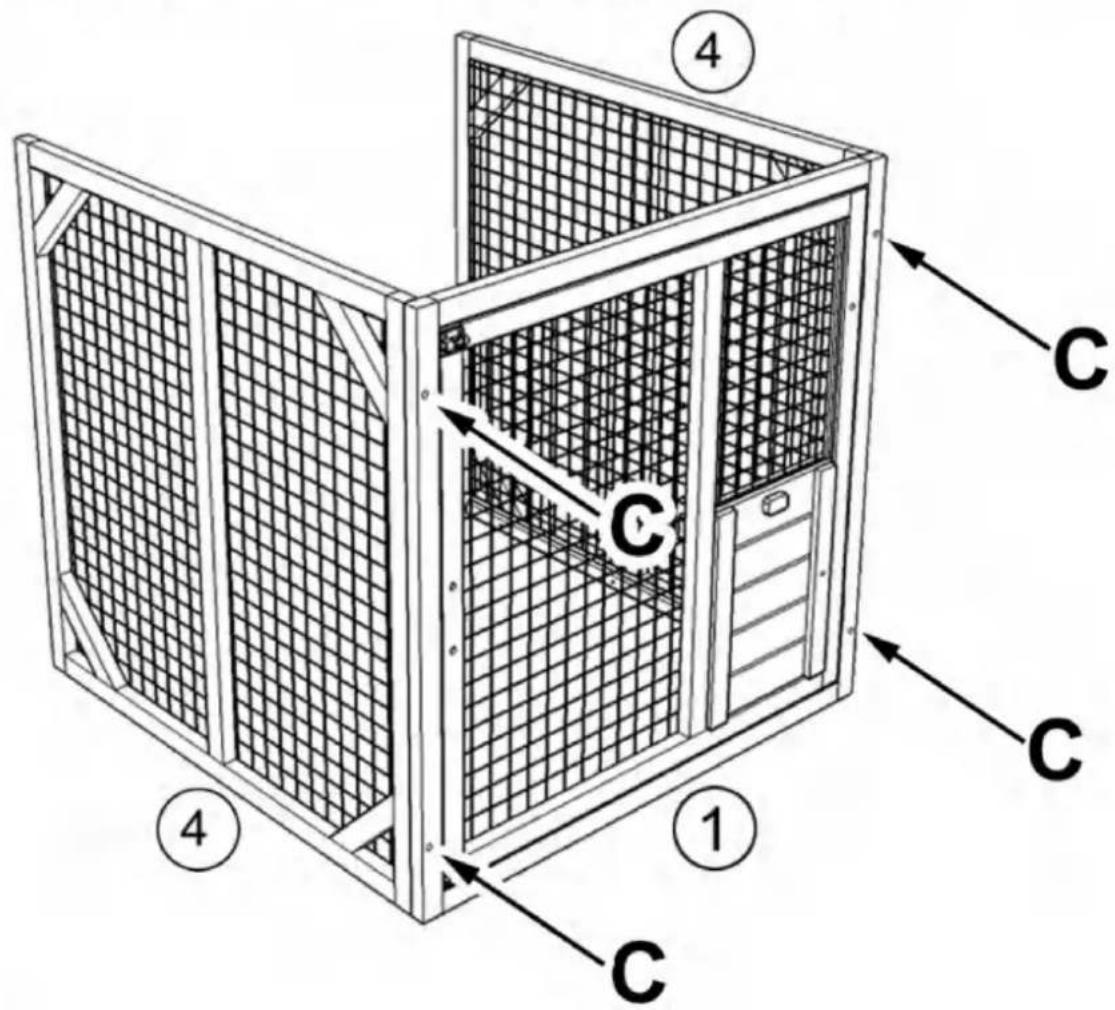

Assembling part #4x2 and part #1 with screws (C)x4 as shown below

① ② ③ ④ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

STEP:1

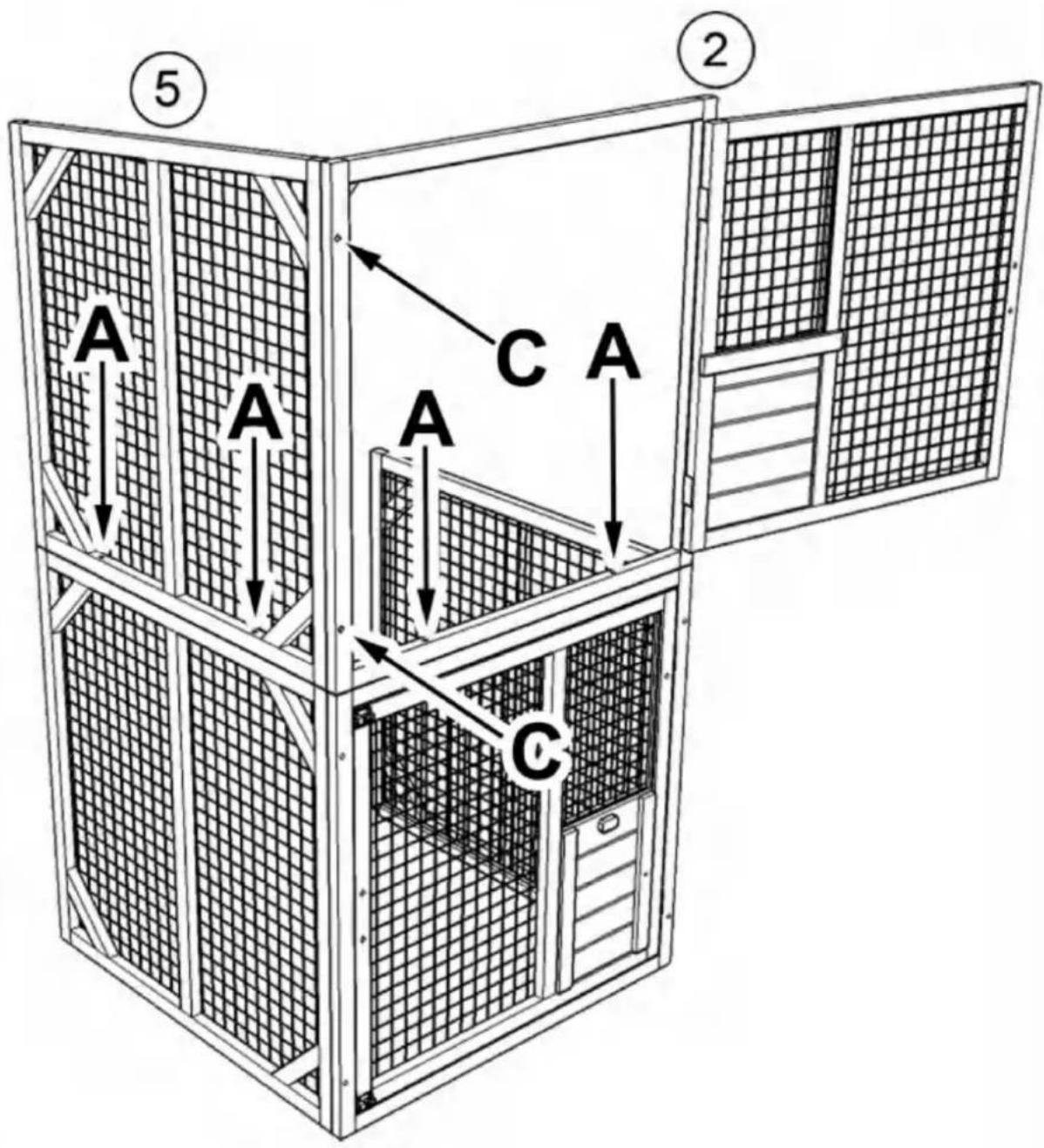

The part #2 (open the door) and part #5 has pre-drilled holes at bottom as shown, assemble part #2 and part #5 with screws (C)x2, then place them on the parts finished in last step and secure them with screws (A)x4 downwards

⑤ ② A A C A A G

STEP:2

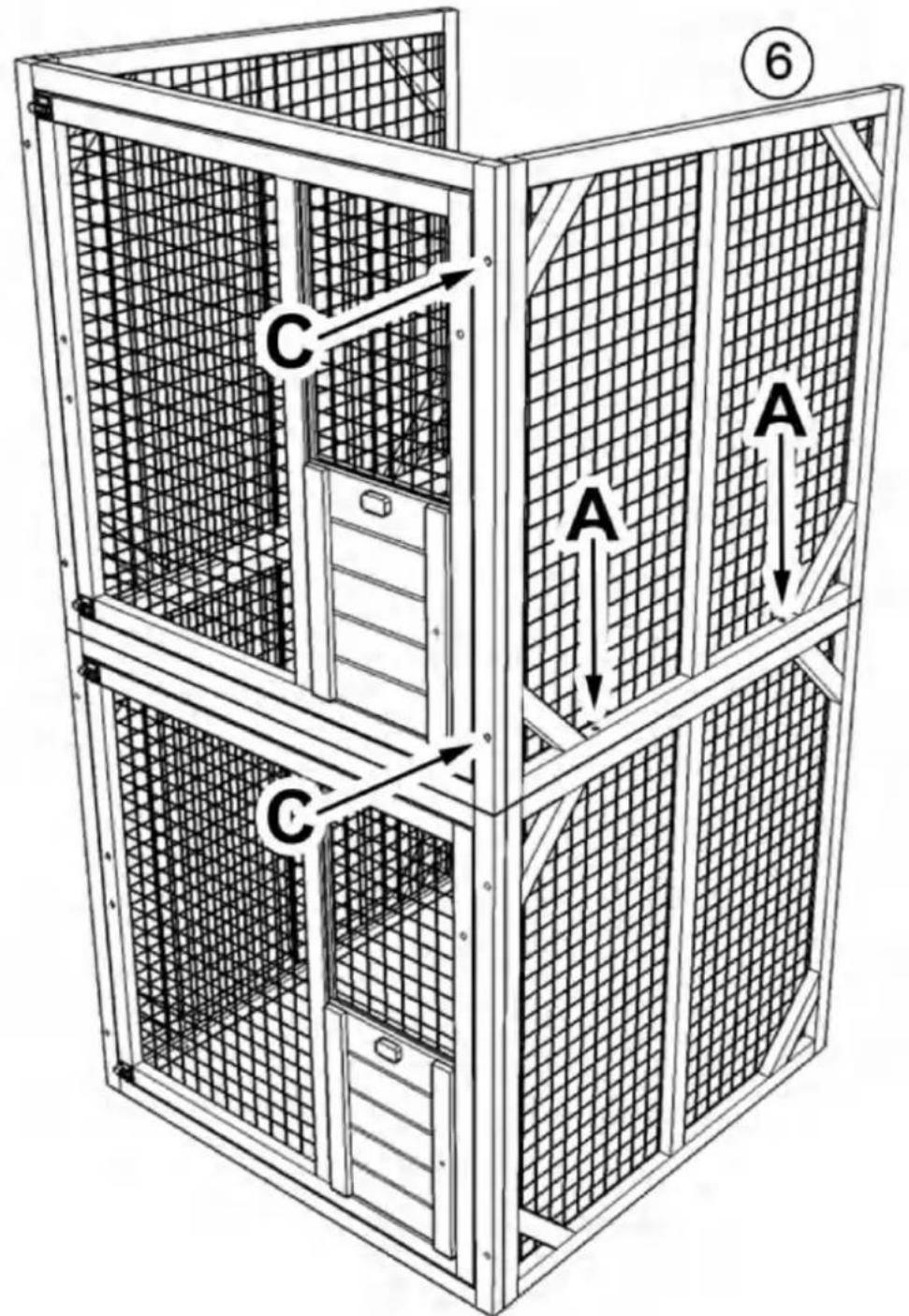

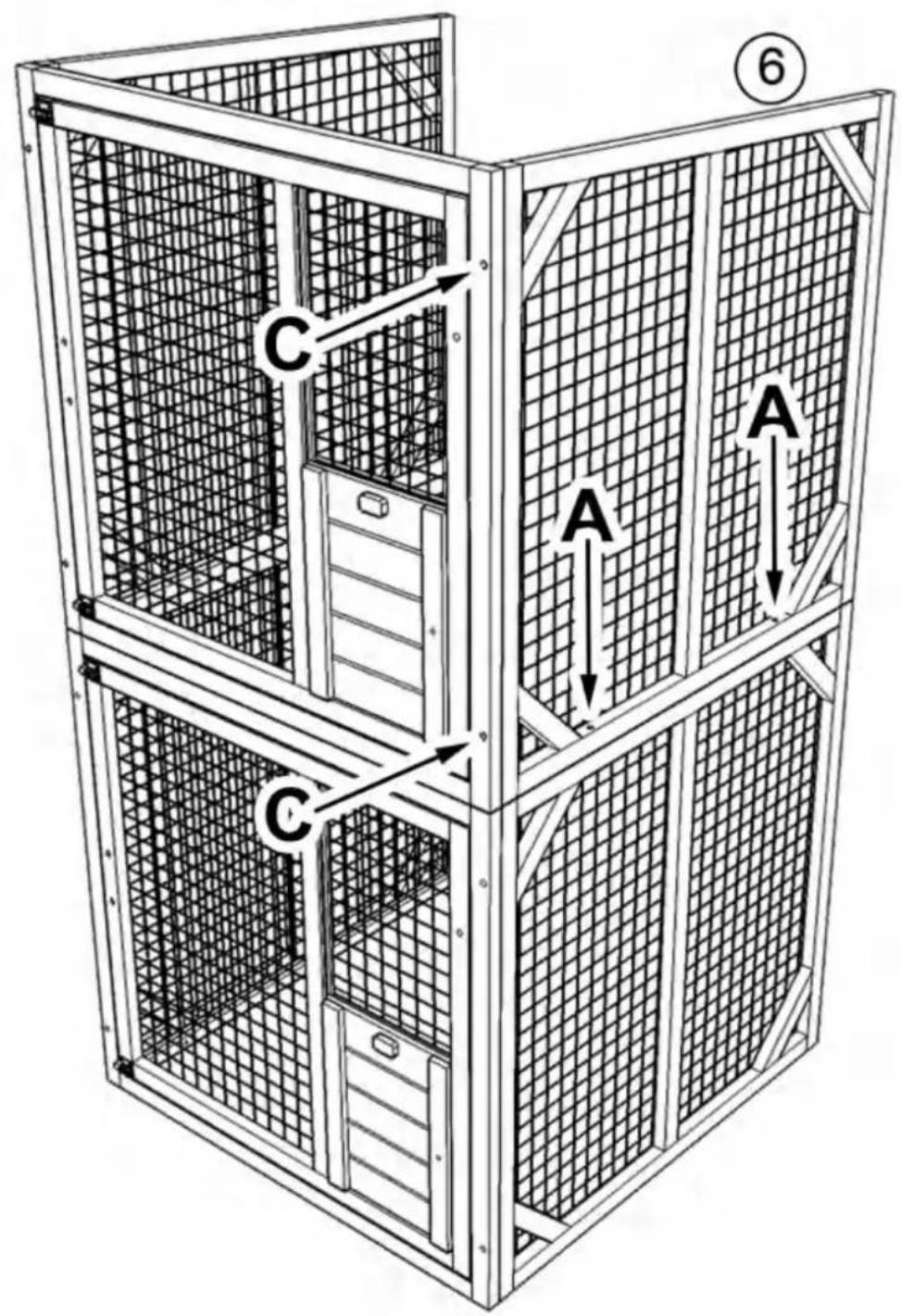

The part #6 has 2 pre-drilled holes at bottom, assembling part #6 with screws (C)x2 as shown and secure it to lower part with screws (A)x2 downwards

C A 6 A C

STEP:3

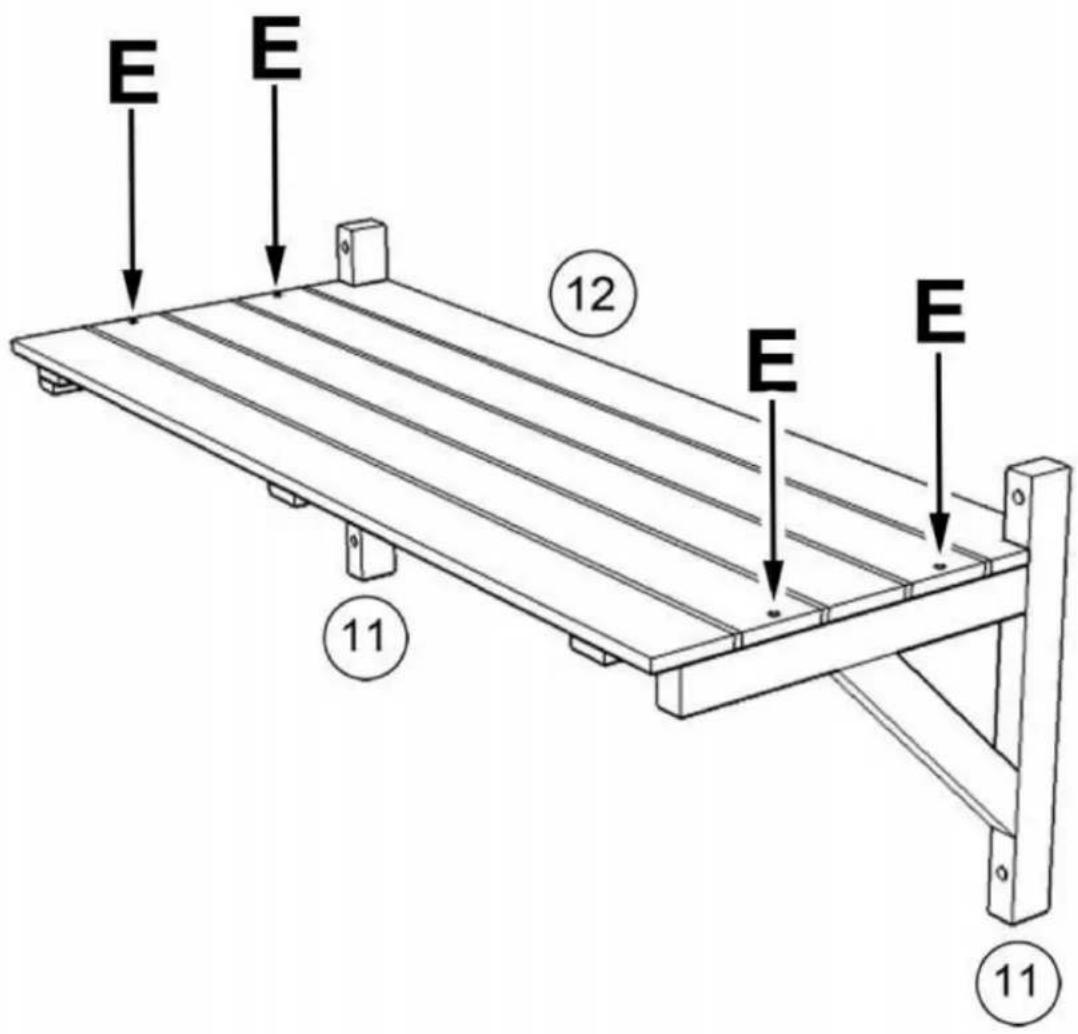

Assembling shelf with part #12 and part #11x2 by screws (E)x4 as shown

E E 12 E E 11 11

STEP:4

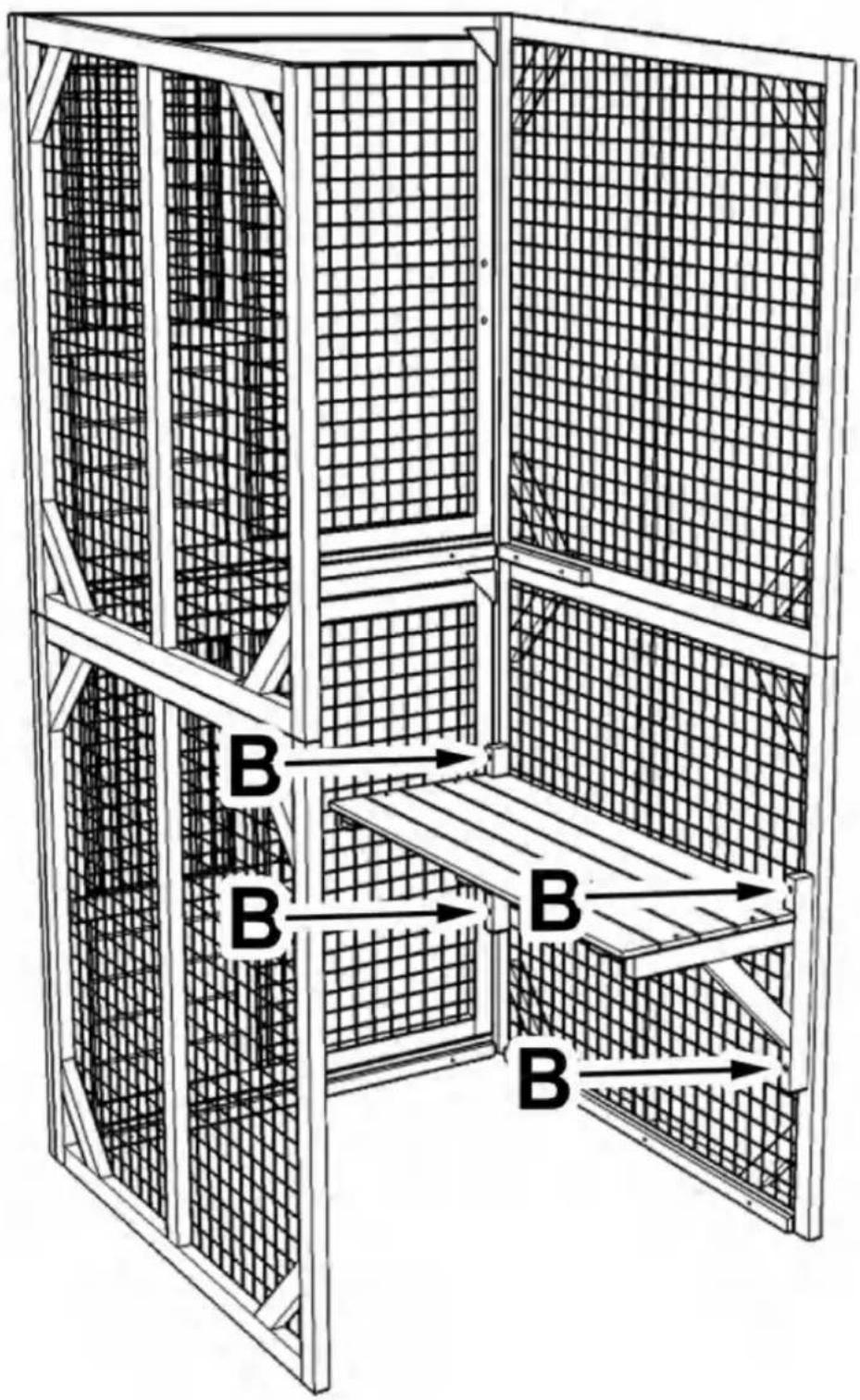

Mounting the shelf on right side as shown by screws (B)x4 at your preferred height

B B B B

STEP:5

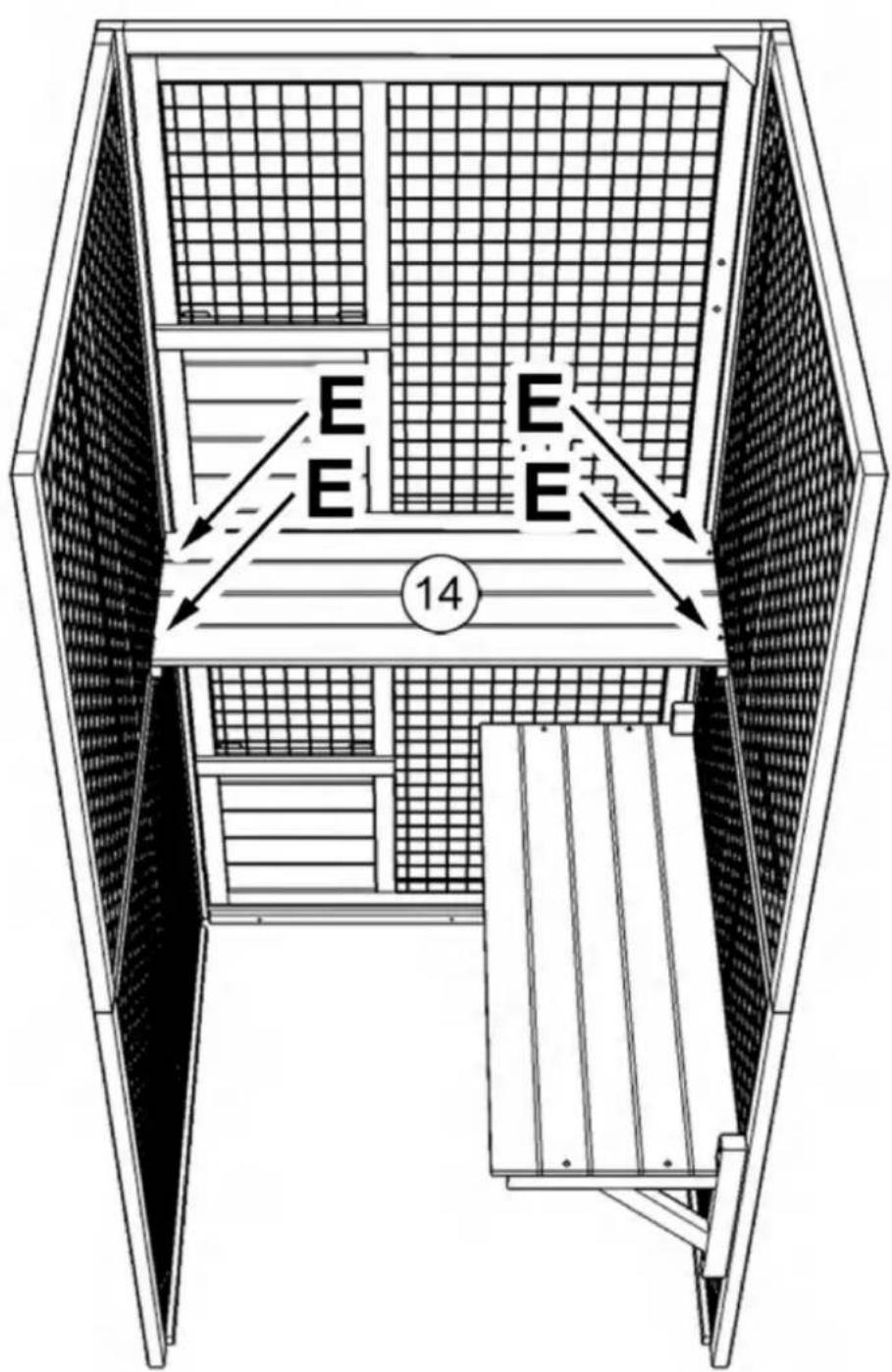

Placing part #14 on the short wood pieces on left and right side and secure it with screw (E)x4

E E E E 14

STEP:6

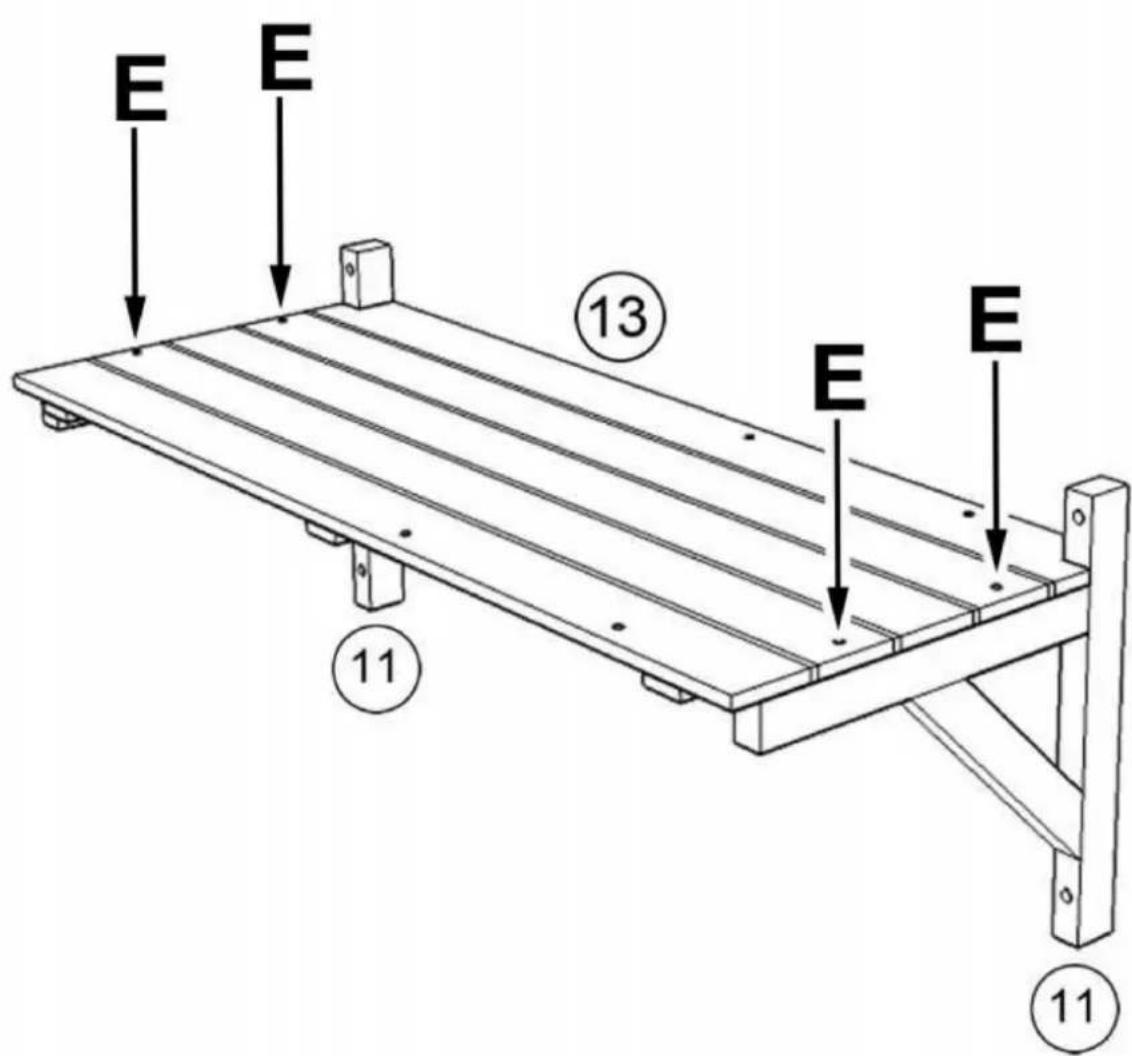

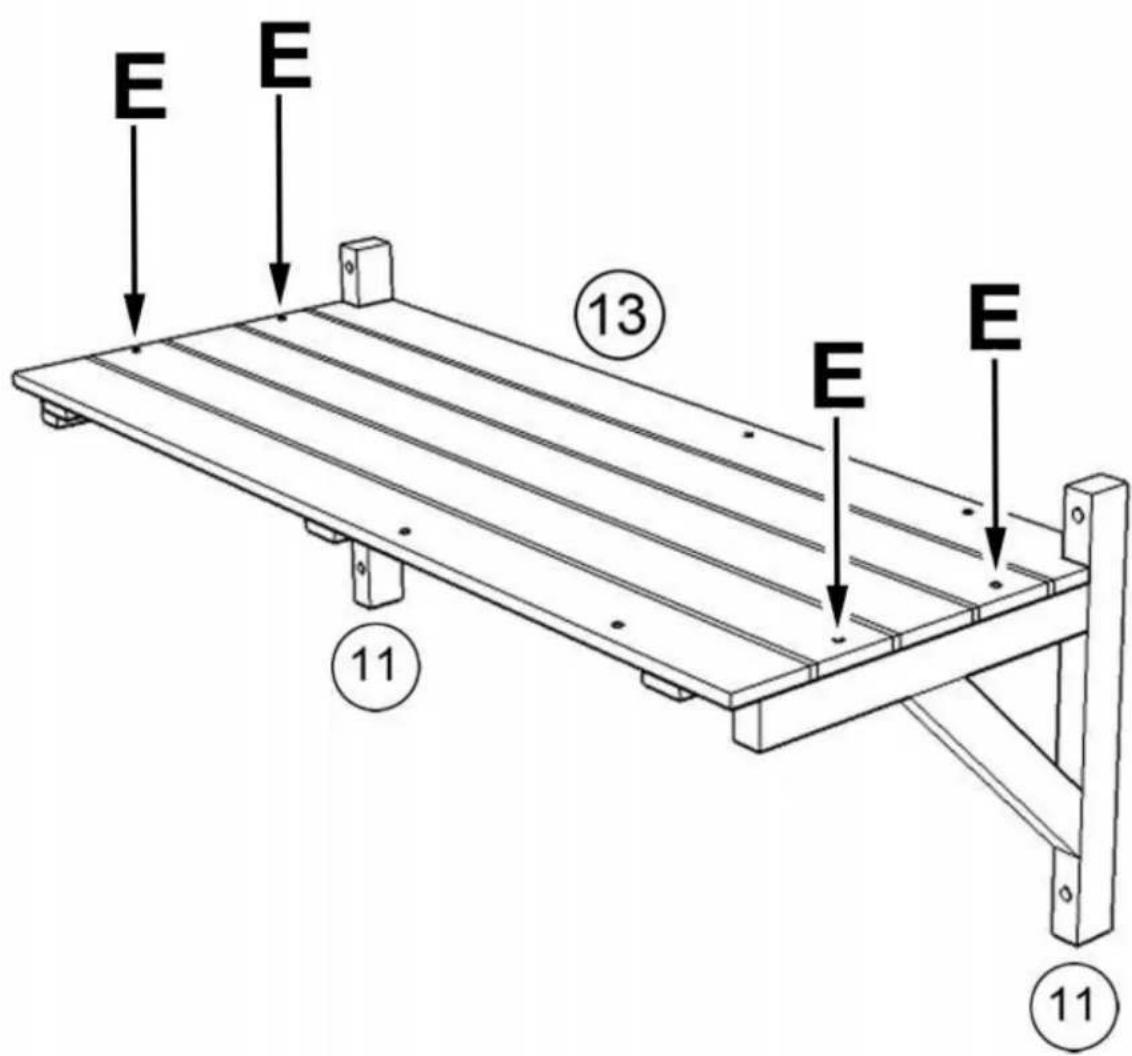

Assembling shelf with part #13 and part #11x2 by screws (E)x4 as shown

E E 13 E E 11 11

STEP:7

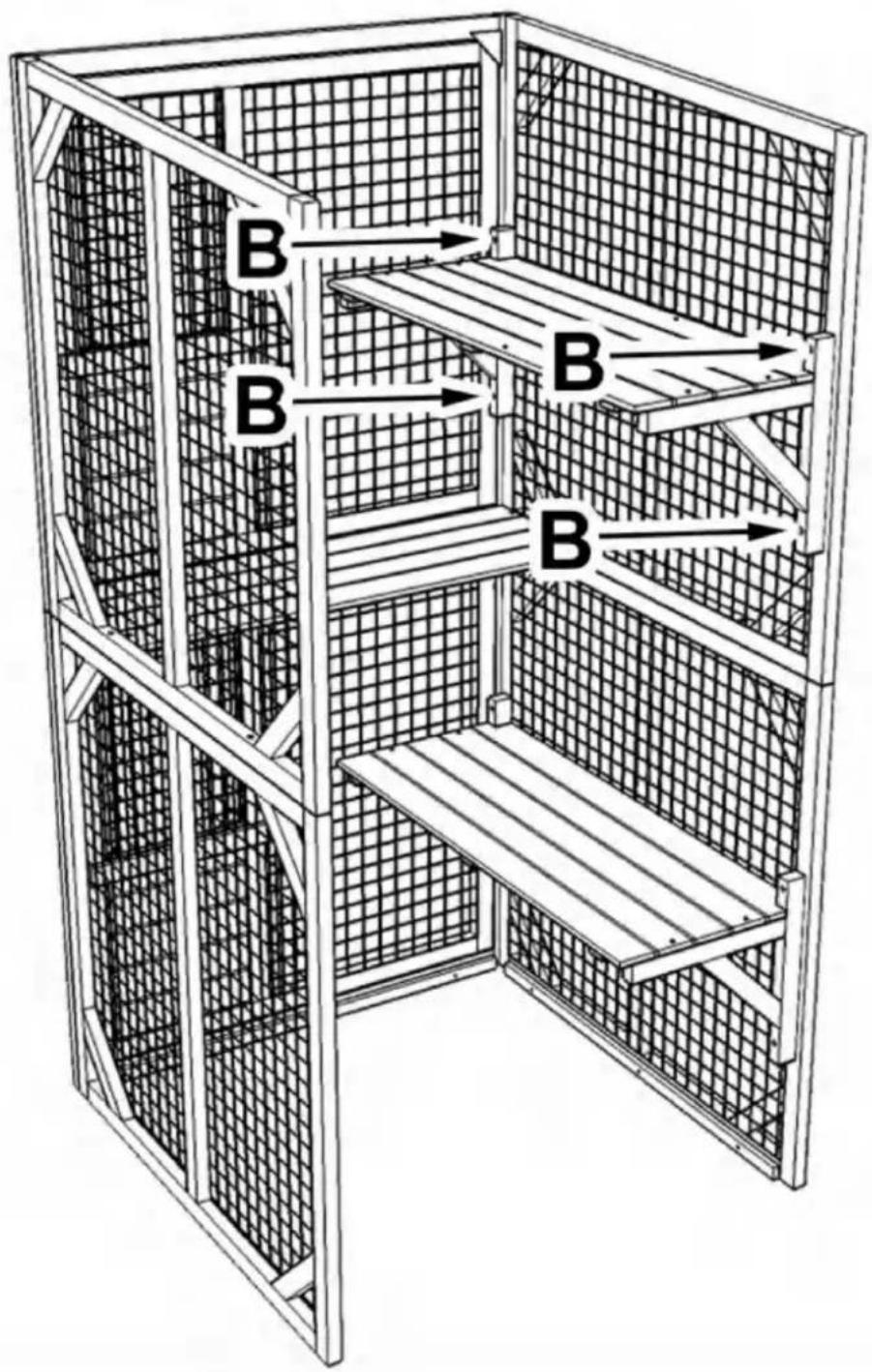

Mounting the shelf to the right side of board as shown with screws (B)x4 at your preferred height

B B B B

STEP:8

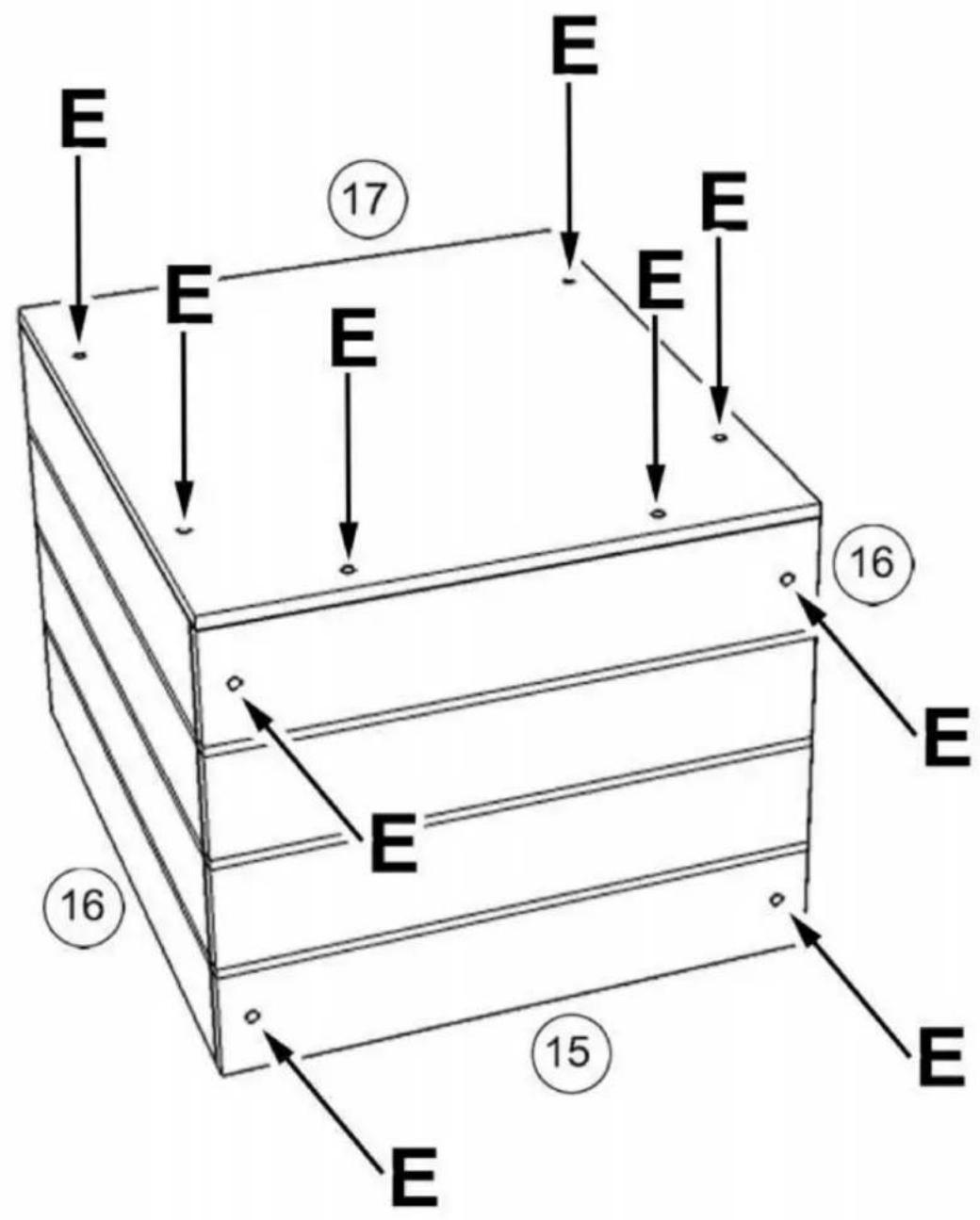

Assembling sleeping box with part #16x2, #17, #15 using screws (E)x10

E E E E E E 17 E E E 16 E E 15 E E 16

STEP:9

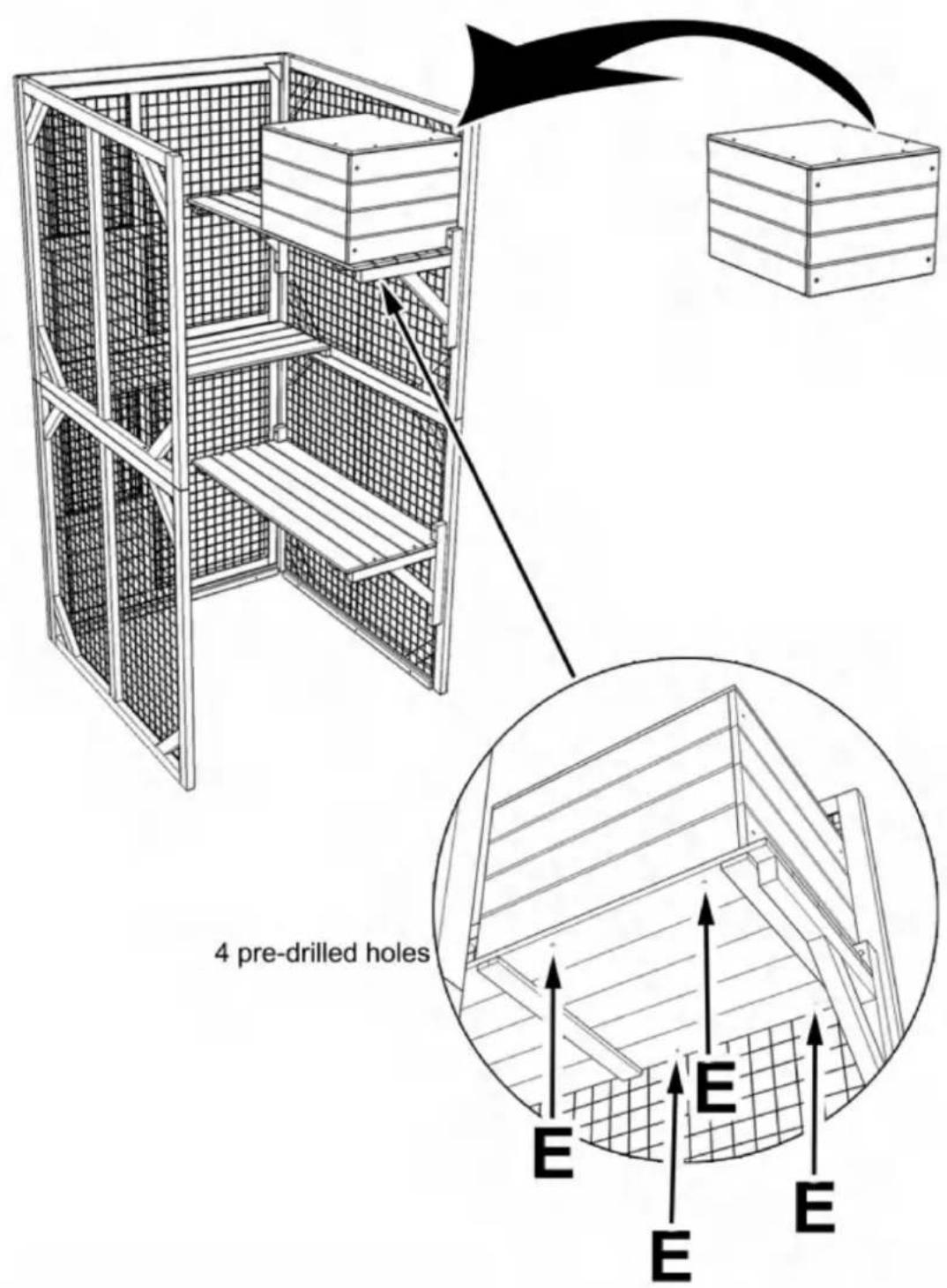

Placing sleeping box on the top of shelf as shown and secure it with screws (E)x4 from the bottom of shelf

4 pre-drilled holes E E E E

STEP:10

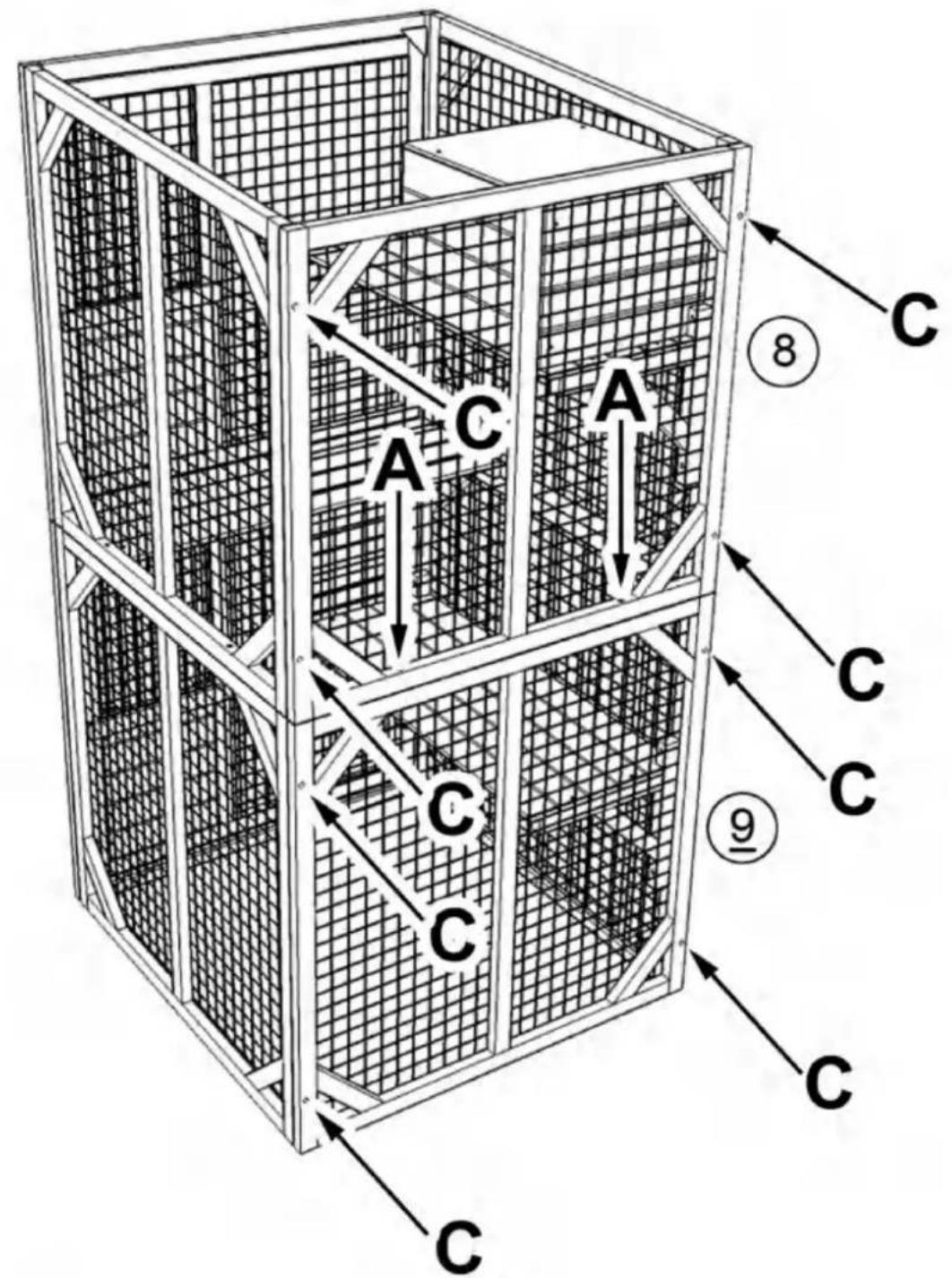

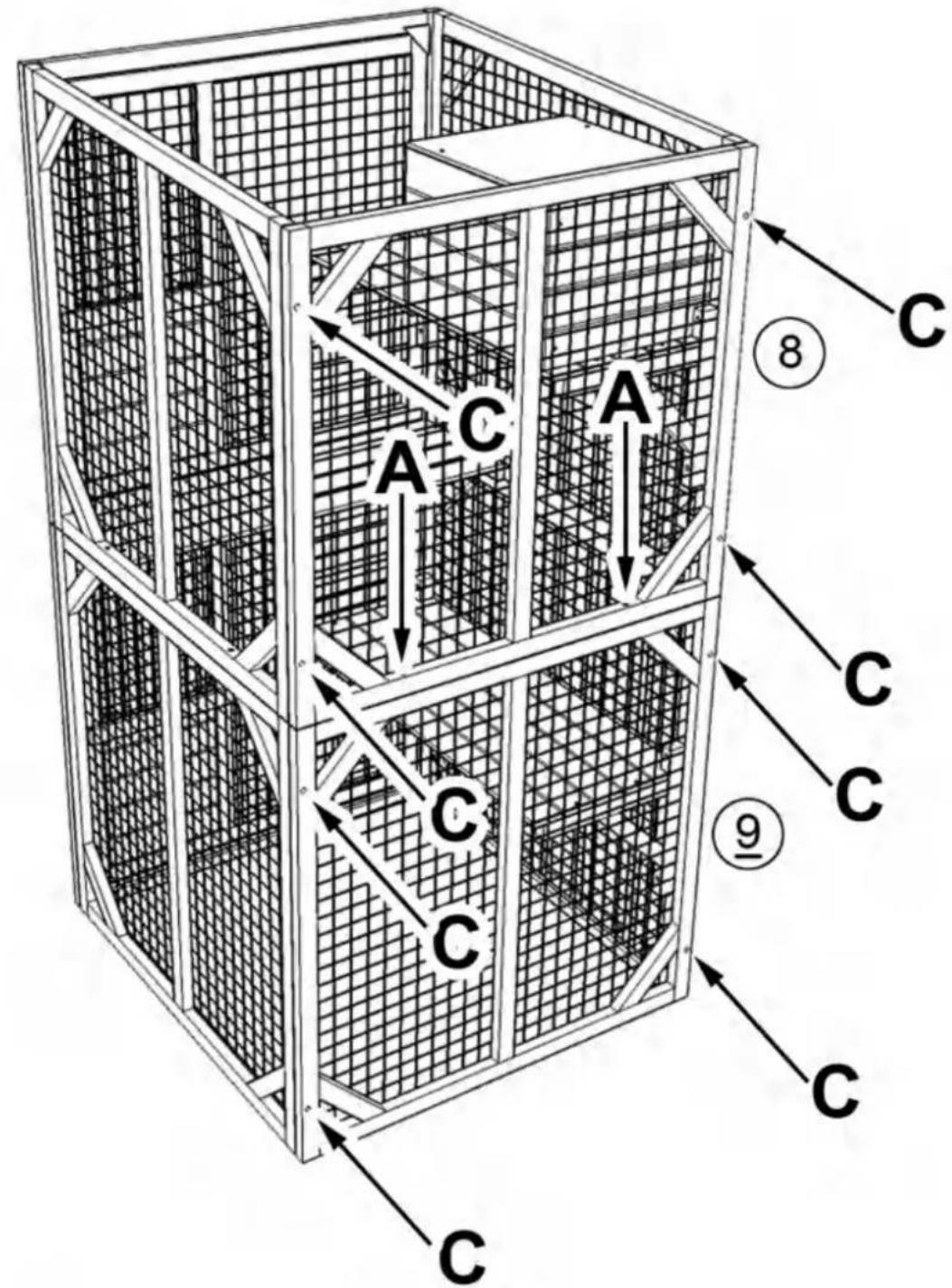

Assembling firstly part #9 (bottom) and then part #8 (2 holes at bottom) with screws (C)x8, then secure the 2 parts by screwing (A)x2 downwards as shown

A C A C C C C ⑧ ⑨ C

STEP:11

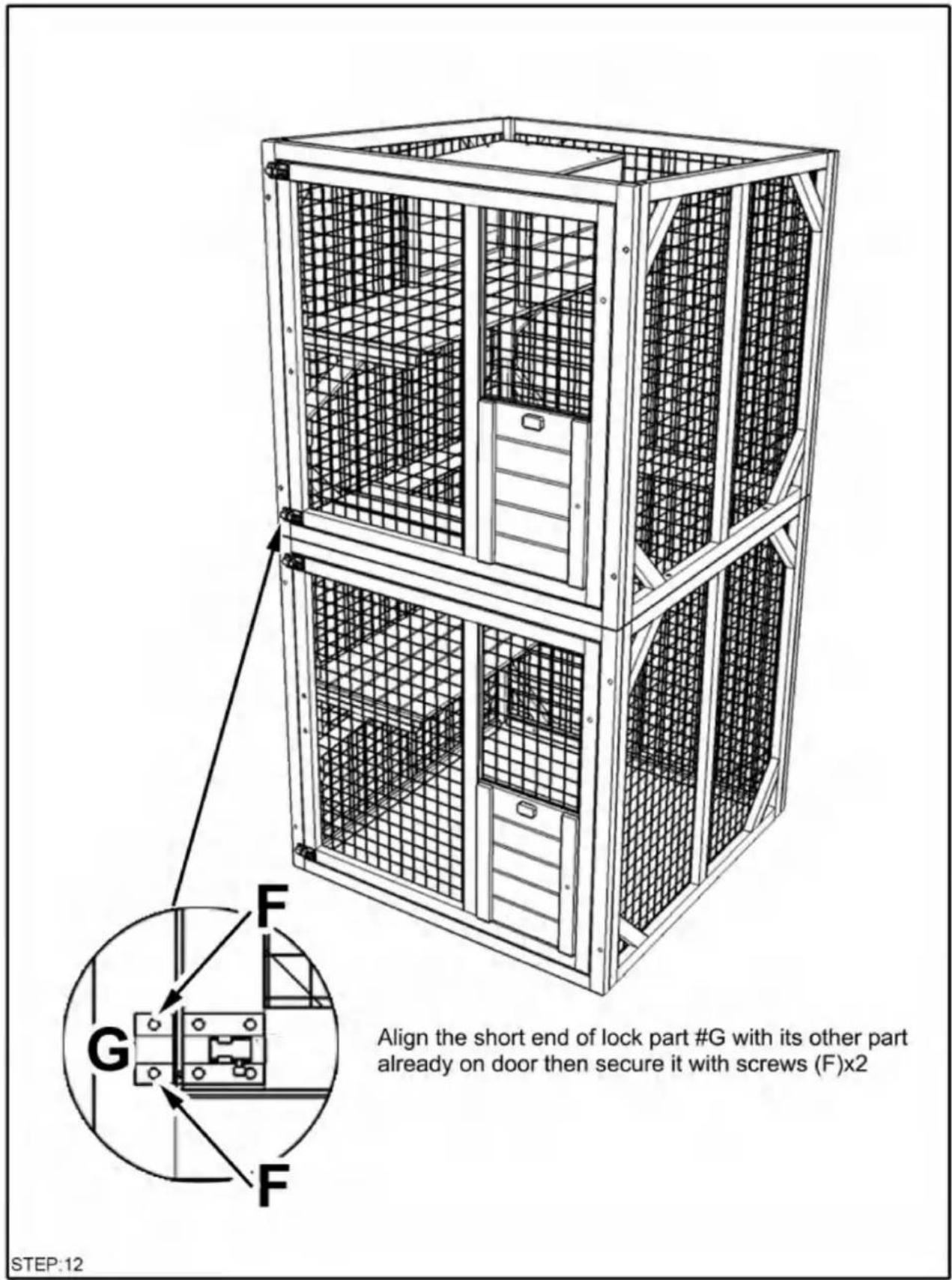

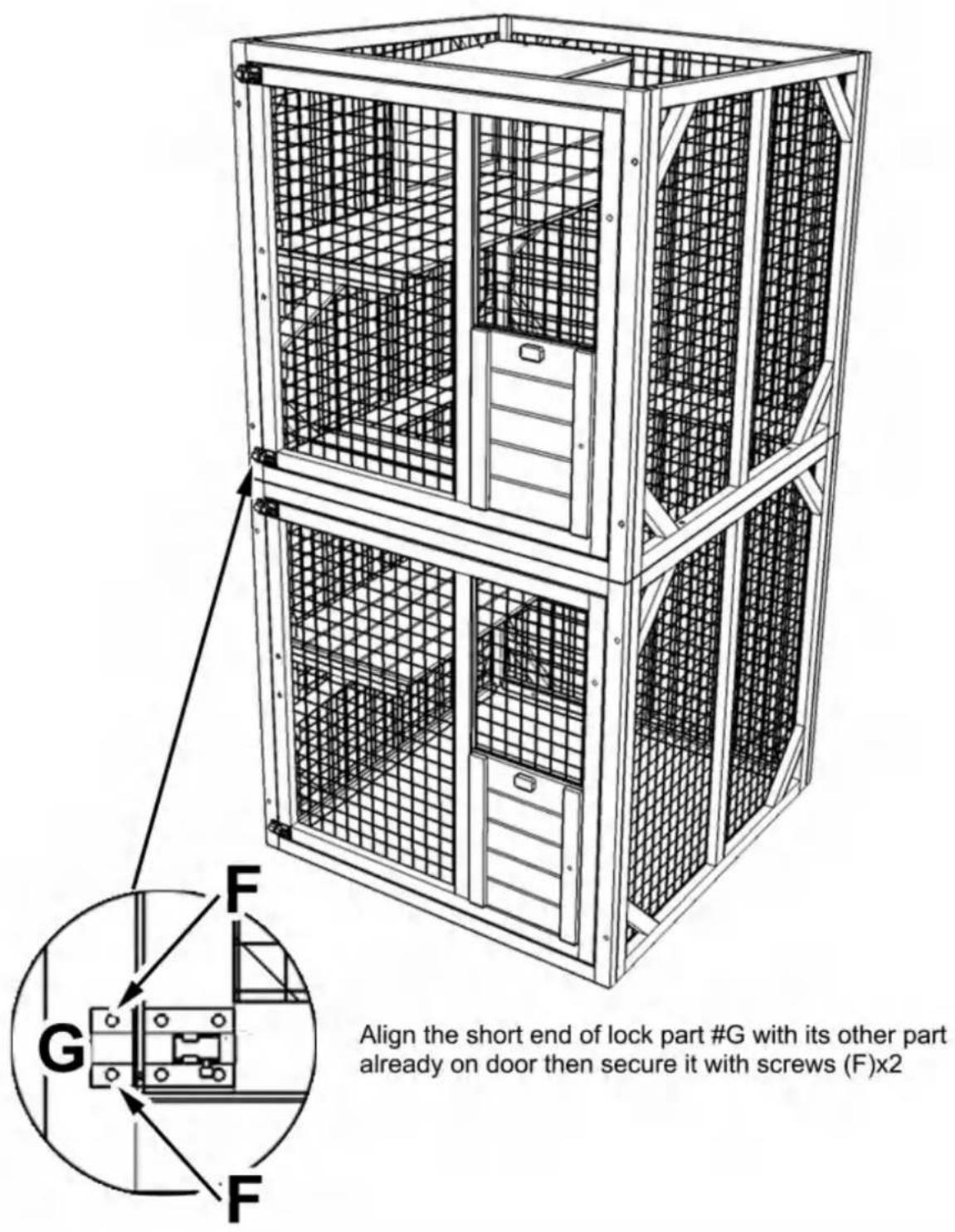

Align the short end of lock part #G with its other part already on door then secure it with screws (F)x2 G F F

STEP:12

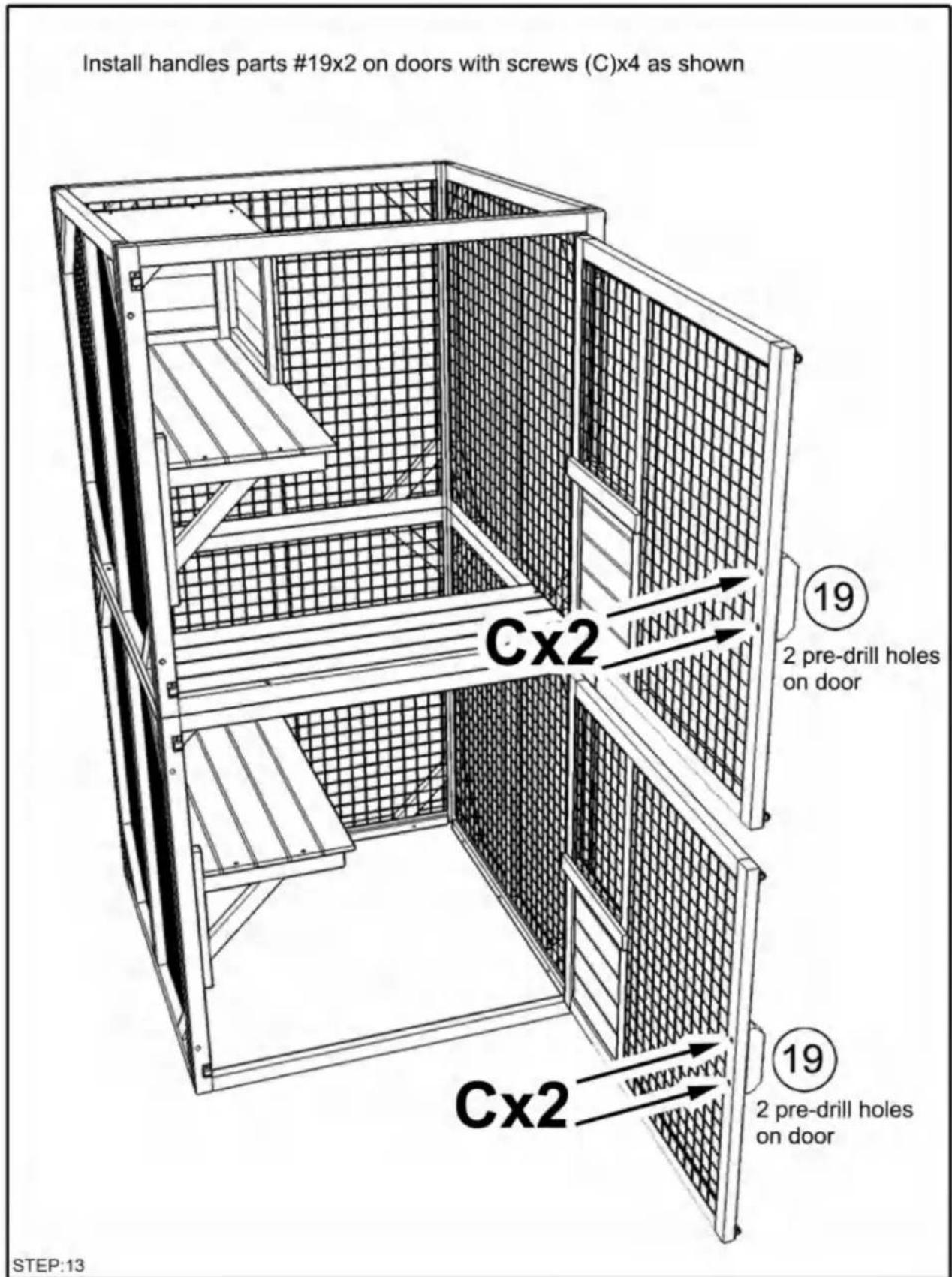

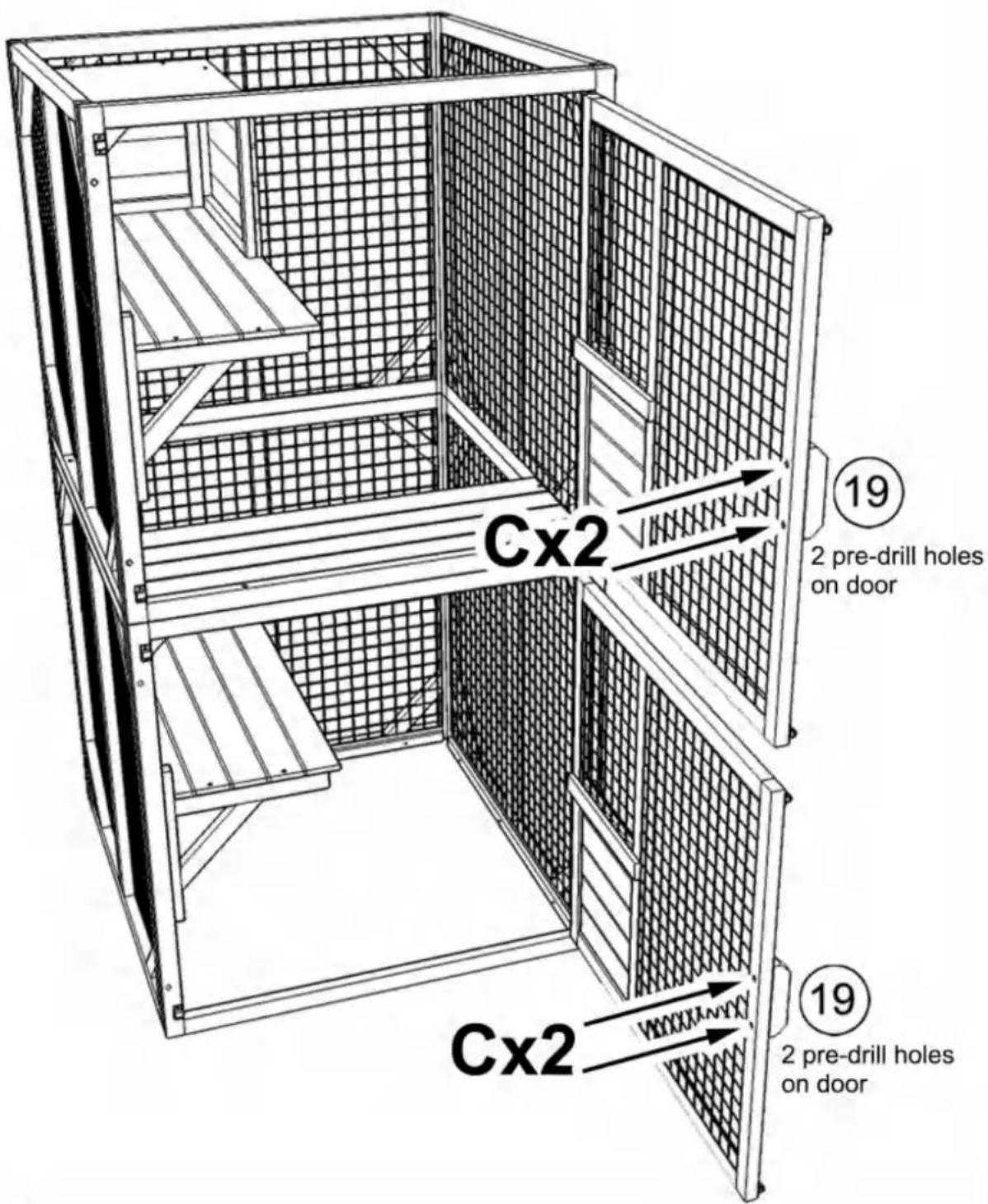

Install handles parts #19x2 on doors with screws (C)x4 as shown

Cx2 2 pre-drill holes on door Cx2 2 pre-drill holes on door 19 19

STEP:13

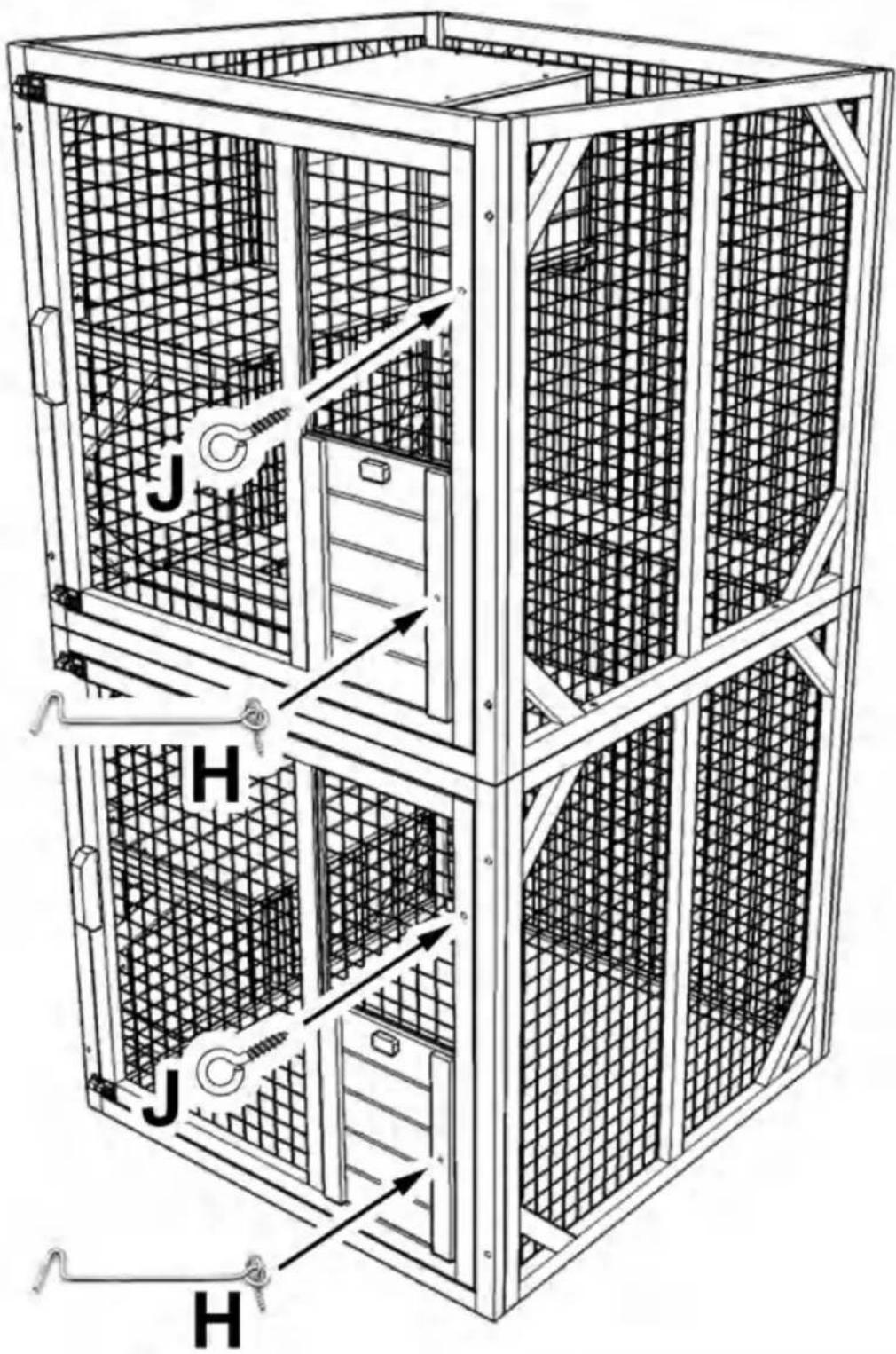

Install hooks as shown, long part is on the sliding door, short part is on the frame wood

J H J H

STEP:14

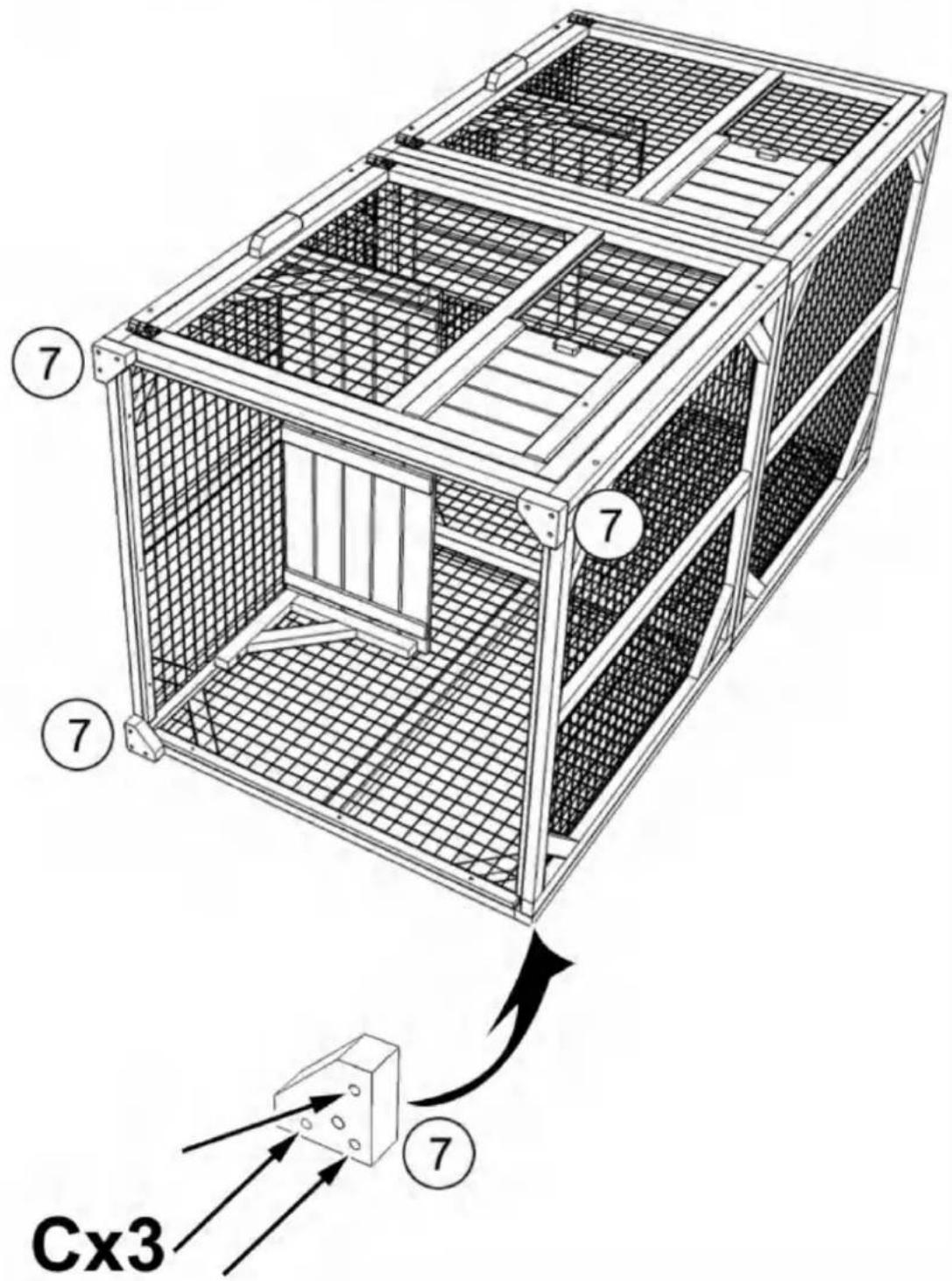

Gently let down the product, install part #7x4 as shown by screws (C)x12

7 ⑦ ⑦ ⑦ Cx3

STEP:15

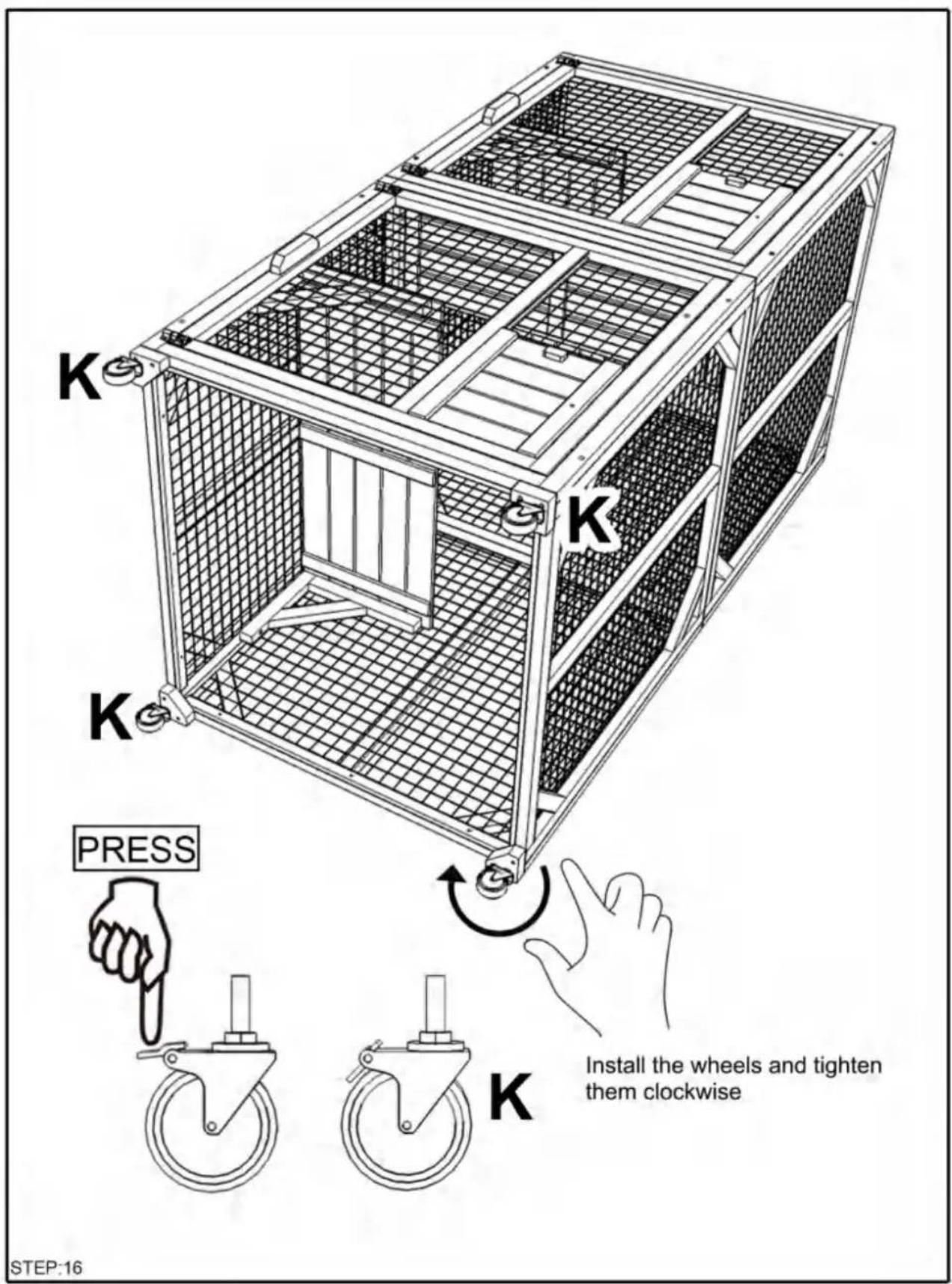

K K K PRESS K Install the wheels and tighten them clockwise STEP:16

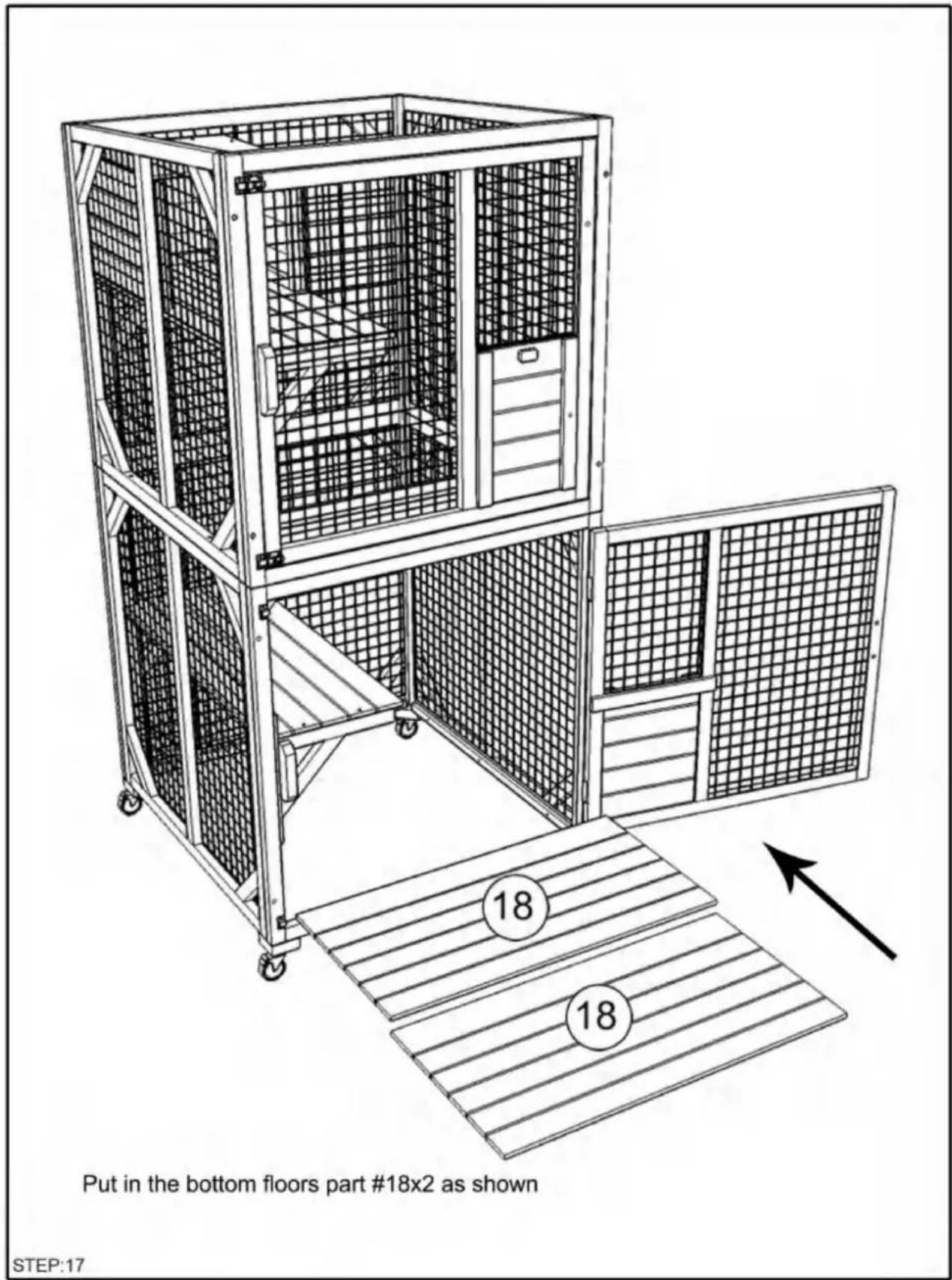

Put in the bottom floors part #18x2 as shown STEP:17

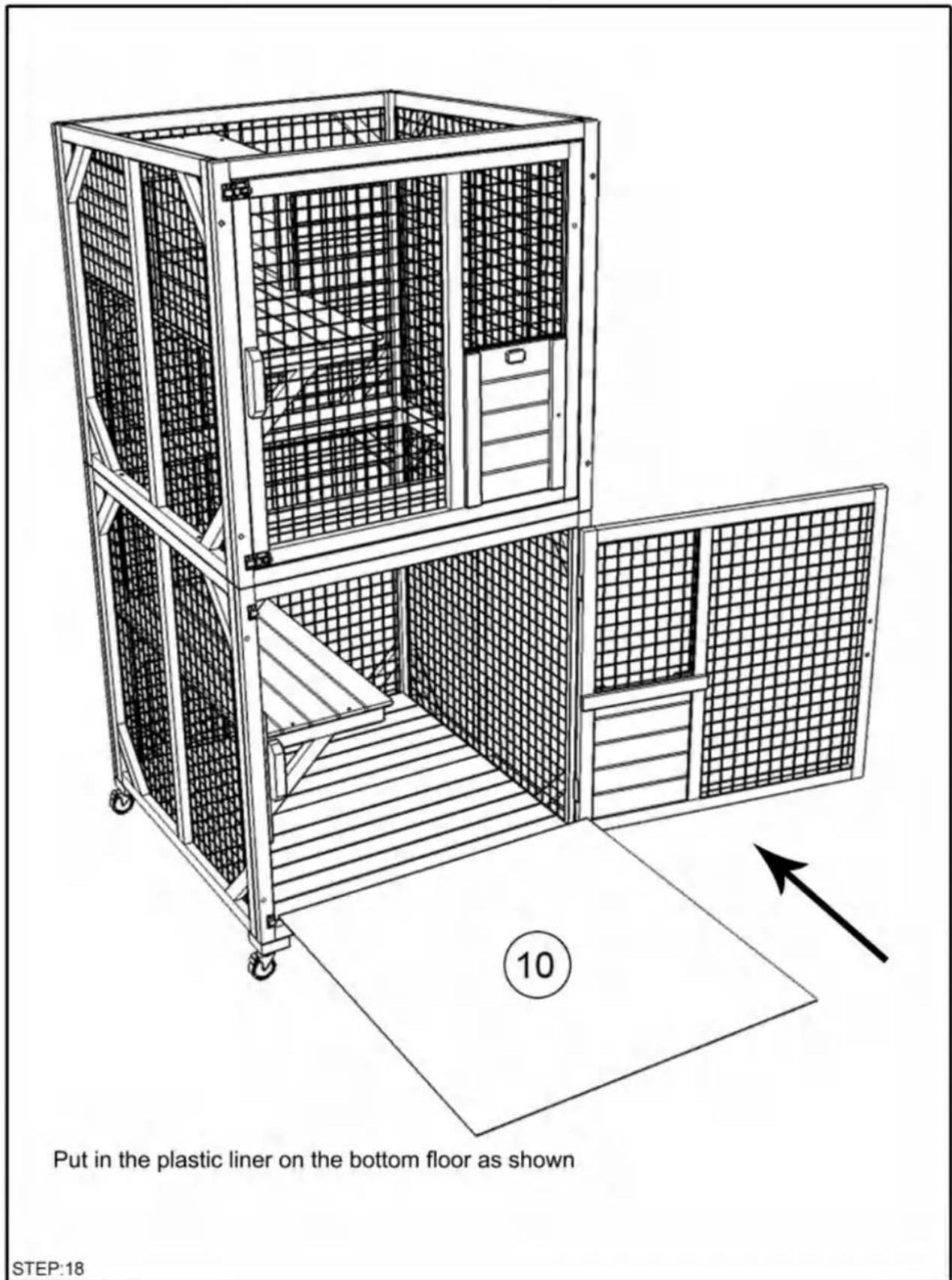

Put in the plastic liner on the bottom floor as shown STEP:18

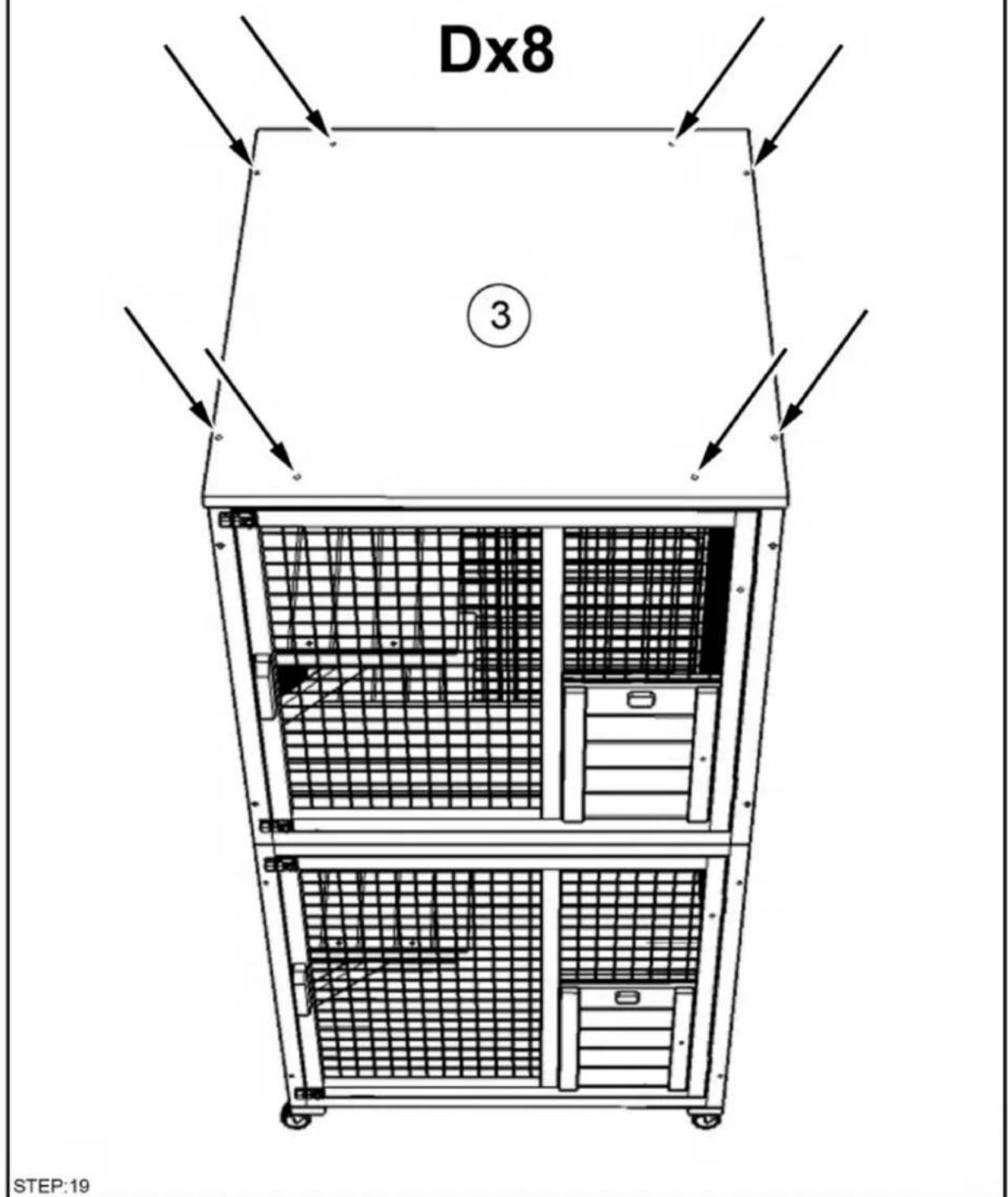

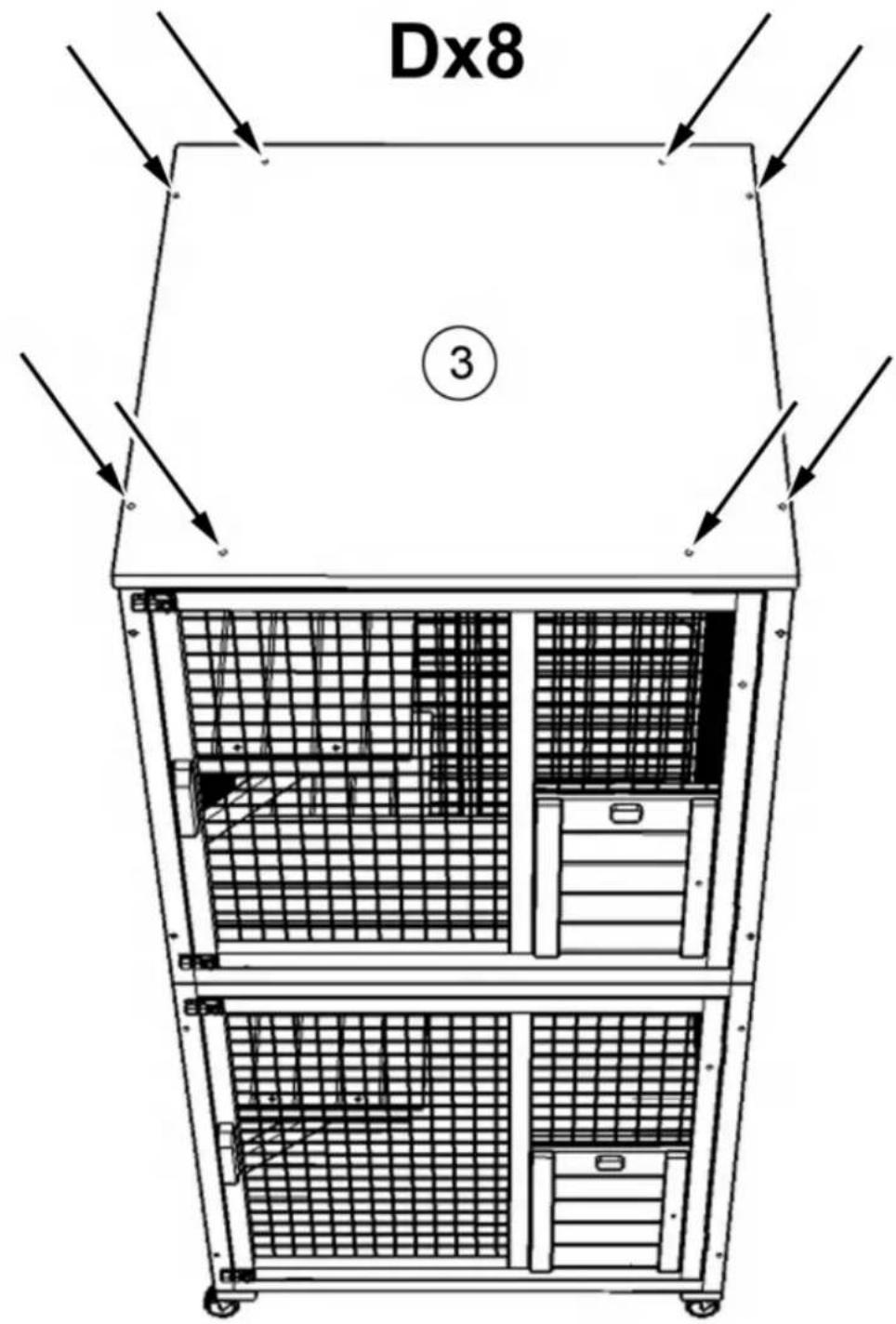

Install the felted roof part #3 with secrews (D)x8

Dx8 ③

STEP:19

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC

REP

E-CrossStu GmbH. Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

INSTRUCTION FOR CAT CAGE

MODEL:CH470

Illustration of a multi-level metal cage with grid panels and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. In order to ensure your own safety, please make sure to ANSI-approved safety goggles and heavy-duty work gloves when installing this product.
3. Keep the assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting a fully loaded cat cage.

Use precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this item.
   Please keep small spare parts out of children's reach.
3. Use only on a flat, level, hard and smooth surface capable of safely supporting a fully loaded cat cage.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damaged.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model	CH470
Product Size	760×865×1630mm
Color	Gray

COMPONENTS

Notice:

1. Various specifications of screws are used in the installation of this product. Pay attention to the correct use of screw specifications according to the instruction manual.
2. Please wear gloves when installing.

SCREWS A 3.5x50 (8+2pcs) B 3.5x45 (8+2pcs) C 3.5x40 (32+2pcs) D 3.5x30 (8+2pcs) E 3.0x25 (26+2pcs) F 3.0x12 (8+2pcs) G 4pcs H 2pcs J 2pcs K 4pcs (2pcs) (2pcs) ① ② ③ ④ x2 ⑤ ⑥ ⑦ x4 ⑧ ⑨ ⑩ ⑪ x4 ⑫ ⑬ x2 ⑭ ⑮ ⑯ x2 ⑰ x2 ⑱ x2 ⑲ x2 ⑳ x2 ㉑ x2 ㉒ x2 ㉓ x2 ㉔ x2 ㉕ x2 ㉖ x2 ㉗ x2 ㉘ x2 ㉙ x2 ㉚ x2 ㉛ x2 ㉜ x2 ㉝ x2 ㉟ x2 �* x2

Assembly Instructions

Please be noted that the side with wire nailed on is back side, should be inward when installation

Diagram of a solar panel with grid pattern and numbered label (4), no readable text or symbols beyond the number

This end with a long piece of wood is placed at bottom

Assembling part #4x2 and part #1 with screws (C)x4 as shown below

① ② ③ ④ ④ ① ② ③ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④ ④

STEP:1

The part #2 (open the door) and part #5 has pre-drilled holes at bottom as shown, assemble part #2 and part #5 with screws (C)x2, then place them on the parts finished in last step and secure them with screws (A)x4 downwards

⑤ ② A A C A C

STEP:2

The part #6 has 2 pre-drilled holes at bottom, assembling part #6 with screws (C)x2 as shown and secure it to lower part with screws (A)x2 downwards

C A A ⑥ C

STEP:3

Assembling shelf with part #12 and part #11x2 by screws (E)x4 as shown

E E 12 E E 11 11

STEP:4

Mounting the shelf on right side as shown by screws (B)x4 at your preferred height

B B B B

STEP:5

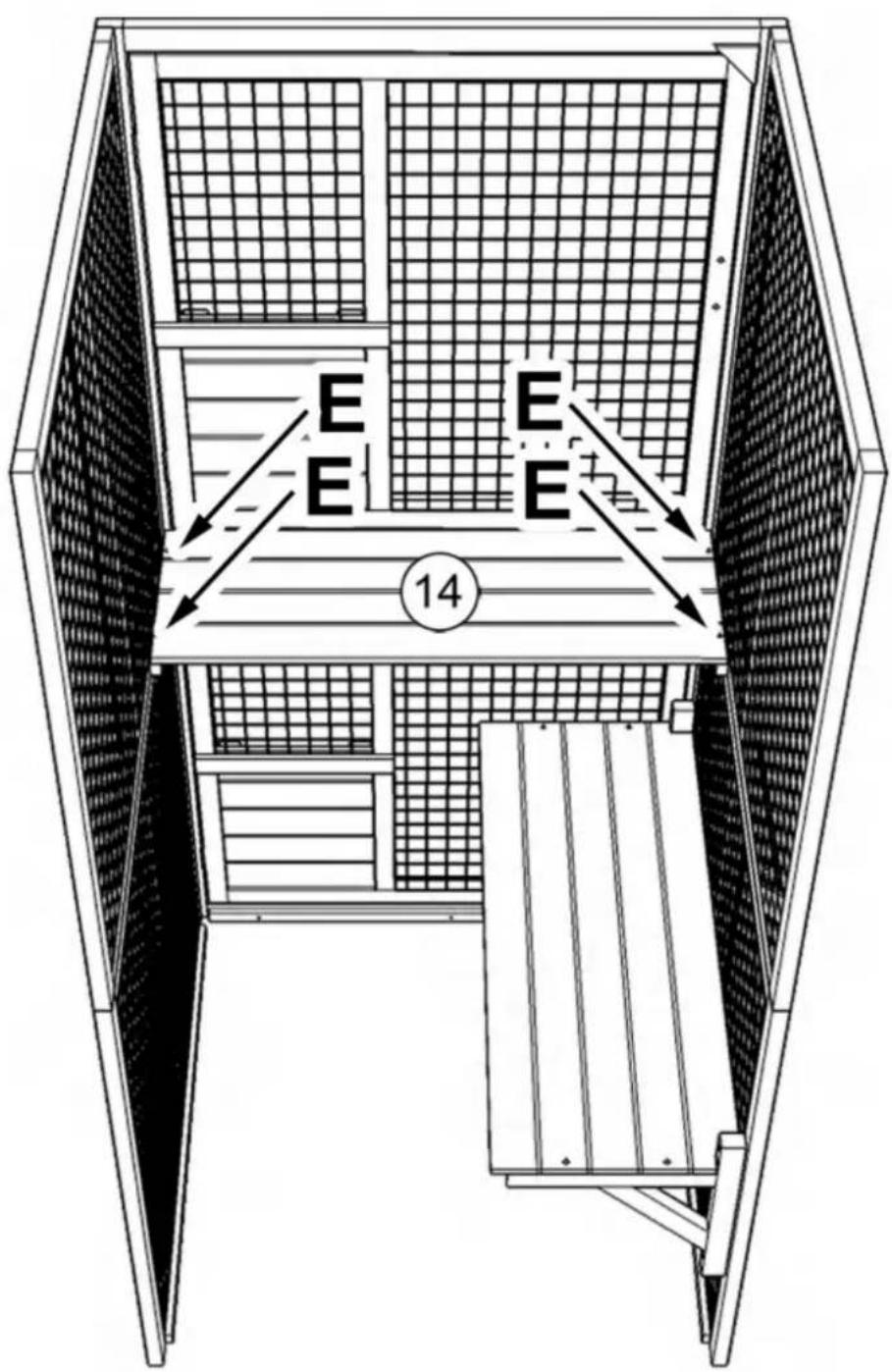

Placing part #14 on the short wood pieces on left and right side and secure it with screw (E)x4

E E E E 14

STEP:6

Assembling shelf with part #13 and part #11x2 by screws (E)x4 as shown

E E 13 E E 11 11

STEP:7

Mounting the shelf to the right side of board as shown with screws (B)x4 at your preferred height

B B B B

STEP:8

Assembling sleeping box with part #16x2, #17, #15 using screws (E)x10

E E E E E 17 E E E 16 E E 15 E E 16

STEP:9

Placing sleeping box on the top of shelf as shown and secure it with screws (E)x4 from the bottom of shelf

4 pre-drilled holes E E E E

STEP:10

Assembling firstly part #9 (bottom) and then part #8 (2 holes at bottom) with screws (C)x8, then secure the 2 parts by screwing (A)x2 downwards as shown

A C A C C C C ⑧ ⑨ C

STEP:11

Align the short end of lock part #G with its other part already on door then secure it with screws (F)x2 STEP:12

Install handles parts #19x2 on doors with screws (C)x4 as shown Cx2 19 2 pre-drill holes on door Cx2 19 2 pre-drill holes on door STEP:13

Install hooks as shown, long part is on the sliding door, short part is on the frame wood

J H J H

STEP:14

Gently let down the product, install part #7x4 as shown by screws (C)x12

⑦ ⑦ ⑦ Cx3 ⑦

STEP:15

K K K PRESS K Install the wheels and tighten them clockwise STEP:16

Put in the bottom floors part #18x2 as shown STEP:17 18 18 STEP:17

Put in the plastic liner on the bottom floor as shown STEP:18

Install the felted roof part #3 with secrews (D)x8

Dx8 ③ STEP:19

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC

REP

Empresa E-CrossStu GmbH.

Mainzer Landstr.69, 60329

Fráncfort del Meno.

UK

REP

YH CONSULTING LIMITADA.

C/O YH Consulting Limited Oficina 147,

Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
