Product Type	Outdoor Light Pillars
Brand	Vevor
Model	9050
Dimensions (L x W x H)	495 x 162 x 162 mm
Power Supply (Europe)	230 V ~ 50 Hz
Power Supply (North America)	120 V ~ 60 Hz
Maximum Power	100 W
Socket Type (Europe)	E27
Socket Type (North America)	E26
Light Sensor	Built-in, automatic on at 10-30 LUX, off at 80-120 LUX
Mounting Method	On table (base provided by user) or on column
Housing Material	Aluminium and plastic
Included Accessories	Manual, expanded plastic plugs x4, screws x4, junction caps x3, top cover screws x2, gaskets x2
Maintenance and Cleaning	Clean the light sensor with a soft cloth; avoid blocking the sensor
Safety	Turn off power before installation; installation by a professional electrician
Spare Parts and Repairability	Replaceable bulbs (not included); screws and gaskets available
Certifications	CE, UKCA
Warranty and Support	Technical support via www.vevor.com/support

Frequently Asked Questions - 9050 Vevor

What type of bulb to use with model 9050?

Use a bulb with E27 (Europe) or E26 (North America) base, maximum power 100 W.

How does the light sensor work?

The sensor automatically turns on the light when brightness drops to 10-30 LUX (around dusk) and turns it off when brightness rises to 80-120 LUX.

Can I install the light pillar myself?

It is recommended to call a professional electrician for installation. Make sure to turn off the power at the circuit breaker before starting.

How to clean the light sensor if it no longer works properly?

Use a soft cloth to gently wipe the sensor surface and remove dust or debris. Avoid abrasive products.

Should the light sensor be oriented in a specific way?

Yes, do not block the sensor and do not point it towards other light sources at night, otherwise the light may not turn on or stay on permanently.

What is the supply voltage for this model?

In Europe, the voltage is 230 V ~ 50 Hz; in North America, it is 120 V ~ 60 Hz.

What are the dimensions of the device?

The dimensions are 495 x 162 x 162 mm (length x width x height).

How to mount the pillar on a table?

You must provide a mounting table (not included). Attach the lamp body using the provided screws and plugs following the installation diagram (Figure 1 in the manual).

How to mount the pillar on a column?

Use a pillar (not included) and attach the lamp body with the screws and junction caps. Refer to the installation diagram (Figure 2 in the manual).

Where can I get help or a spare part?

Visit the website www.vevor.com/support for technical support and warranty certificates. Parts such as screws and gaskets are included in the packaging.

USER MANUAL 9050 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Outdoor pillar lights USER MANUAL

MODEL: 9050

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:9050

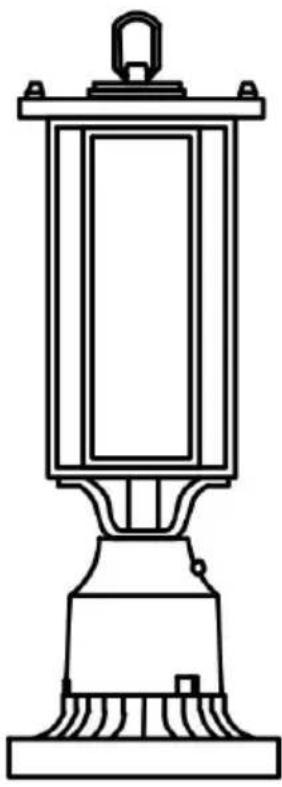

Line drawing of a mechanical device with a central frame and base (no text or symbols)

(The picture is for reference only, please refer to the actual object

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electric electronic devices

INSTRUCTIONS

Thank you very much for choosing this product, please read all the instructions before use. This information will help you get the best res

WARNING: if any Special Control Devices are used with this Fixture, Follow the instructions Carefully to assure full compliance with I requirements, if there are any questions, contact a Qualified Electrical Contractor.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects and / or other reproductive health. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product

CAUTION: All glass is fragile use care when handling Glass component(s) and or Lamp(s).

ASSEMBLY & INSTALLATION INSTRUCTIONS

CAUTION: Read instructions carefully and turn electricity off at main circuit breaker panel before beginning installation.

1. Mounting method of fixed table.

●The name of the part.

A. Mounting table.(The factory is not matched, you need to buy it yc
B. Expanded plastic parts.
C. lamp holder.
D. Screw.

E/F. cable.

G. Cable connection caps.
H. Fixing screws for the lamp body.

I. Lamp body.
J. Fixing screws for the top cover of the lamp.
K. Gasket.
L. Lamp.(The factory is not matched, you need to buy it yourself).
M. Lamp top cover.

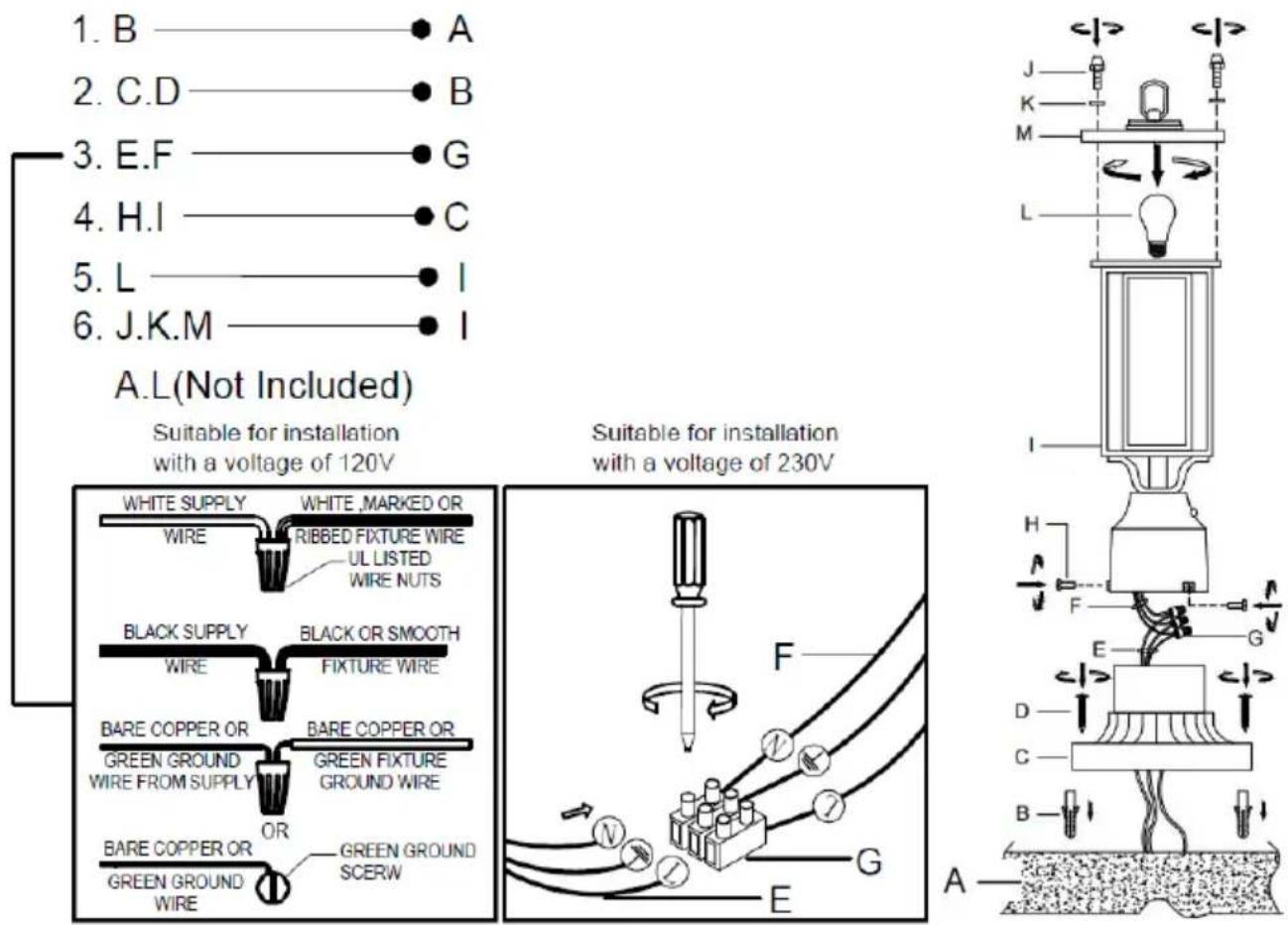

●Schematic diagram of component installation.(See Figure 1).

Figure 1

2. Column mounting.

●The name of the part.

A. pillar.(The factory is not matched, you need to buy it yourself). E/F. cable.

G. Cable connection caps.

H. Fixing screws for the lamp body.

I. Lamp body.

J. Fixing screws for the top cover of the lamp.

K. Gasket.

L. Lamp.(The factory is not matched, you need to buy it yourself).

M. Lamp top cover.

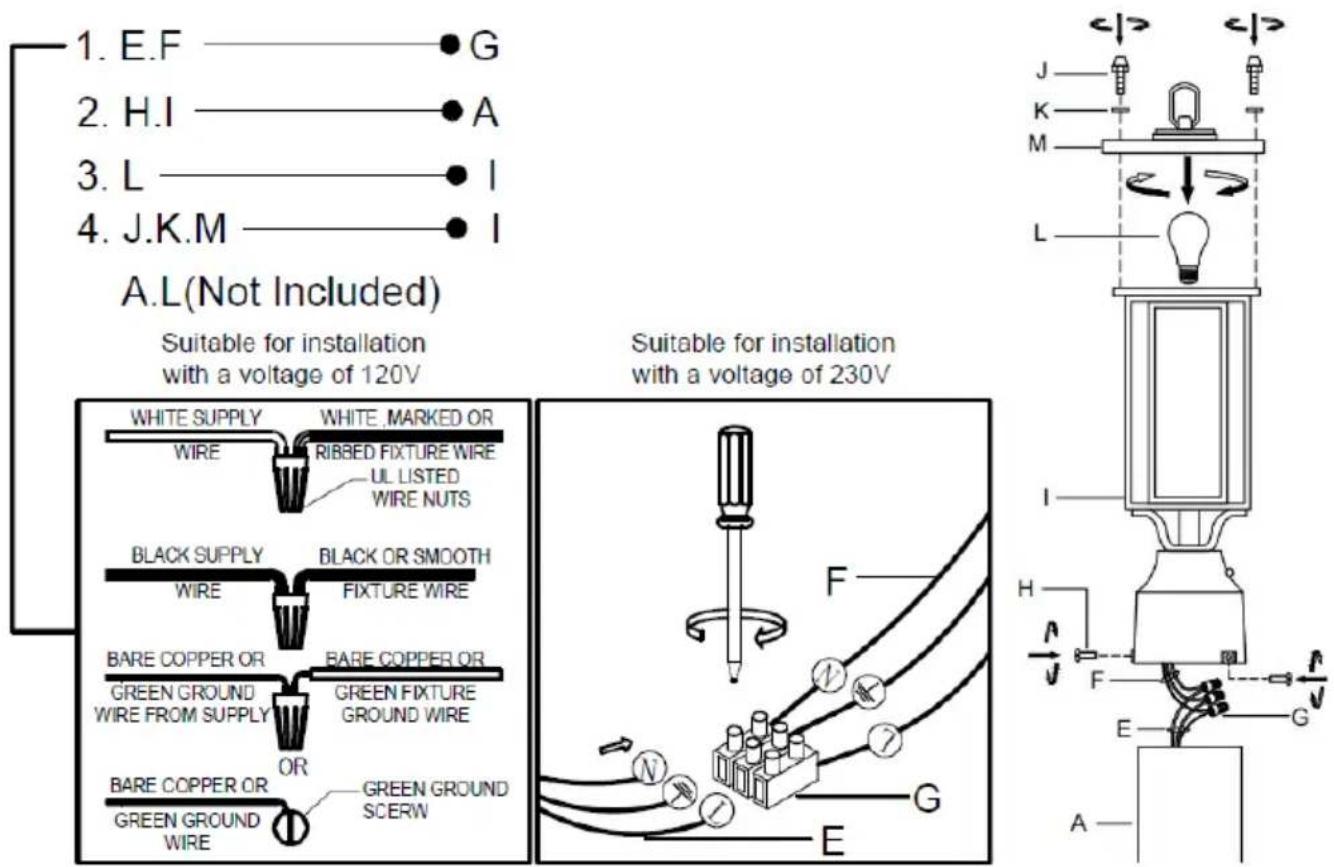

●Schematic diagram of component installation.(See Figure 2).

Figure 2

Note:

1. Our products have light sensing components, and when there light during the day, the light goes out; At night, when there is light, the lights are on.
2. When installing the lamp, the light sensor part of the lamp can be blocked, and it cannot be directed at other light sources that shine at night, otherwise the lamp will not be lit or will be lit time.
3. When you find that the light sensor is not sensitive, please use soft cloth to gently wipe the surface of the light sensor part a clean the dust and debris on the surface. Exclude the irradiation light-sensitive parts by other light sources at night.
4. Note that the cable terminal is waterproof and insulated and cannot be exposed to water. Otherwise, there will be a risk of leakage.
5. Light sensor parameter description: When the color temperature 2845K, about 10\~30LUX, 1 second will automatically turn on the light.About 80\~120LUX, 10\~20seconds, the light automatically turns off.

Warning:

1. The mains power supply must be disconnected before Installati
2. Installation must be carried out by a professional electrician.

TECHNICAL PARAMETERS

Enter the power supply	Europe: 230V 50Hz
	North America: 120V 60Hz
Maximum power	100W
Lampholder thread specifications	Europe: E27
	North America: E26
Product dimensions	495*162*162mm

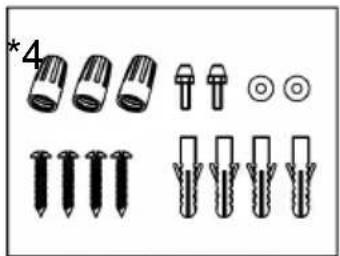

ACCESSORIES LIST

1. Instructions *1
2. Expanded plastic stopper
3. Screw *4
4. Junction caps *3
5. Top cover screws *2
6. Gasket *2

Collection of screw and nut components including screws, nuts, and a pin (no text or symbols)

Kit for 120V installation

Pure diagram of screw and pin components without any text, numbers, or symbols

Kit for 230V installation

Note: Accessories are subject to the actual package.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

Made in China
