USER MANUAL 30W Vevor
Affordable. Reliable. Home Improvement.
SOLAR CHARGER
MODEL:30W
VEVOR
Affordable. Reliable. Home Improvement.
PHOTOVOLTAIC MODULE
PRODUCT
MODEL:30W

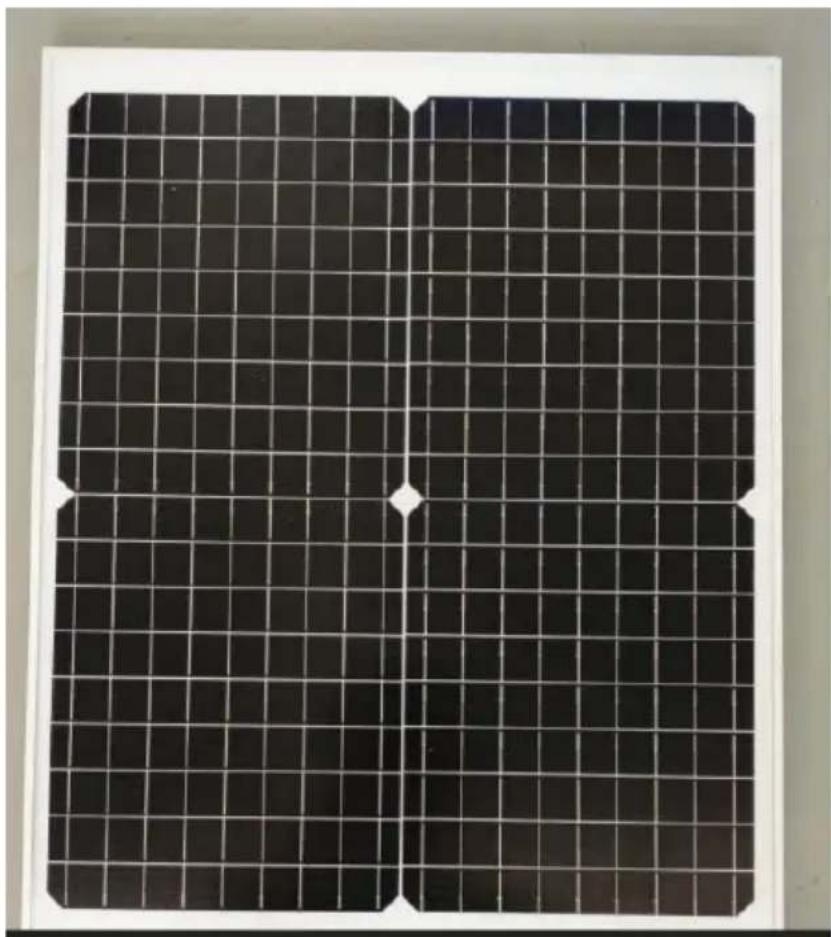

 | Warning-To reduce the risk of injury, user must read instructions manual carefully. |
 | FCC Information:CAUTION: Changes or modifications not expressly approved by party responsible for compliance could void the user's authori operate the equipment!This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expr approved by the party.responsible for compliance could void t user's authority to operate the product.Note: This product has been tested and found to comply with limits for a Class B digital device pursuant to Part 15 of the Rules, These limits are designed to provide reasonable protec against harmful interference in a residential installation.This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfere will not occur in a particular installation. If this product does harmful interference to radio or television reception,which can determined by turning the product off and on, the user is et to try to correct the interference by one or more of the folk measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receiver.Connect the product to an outlet on a circuit different from which the receiver is connected.Consult the dealer or an experienced radio/TV technician fo |
| assistance. | |
 | CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices |
Solar panel Product Manual
1、Product Overview
-
Product name: 30W
-
Product application: It is used in solar photovoltaic power generation systems to convert light energy into electrical energy, providing clean energy for households, street lighting equipment, small-scale energy storage, etc.
3. Product Features:
(1) High photoelectric conversion efficiency and increased power generation;
(2) High transmittance tempered glass, anti impact, anti aging
(3) Sealed and waterproof design, suitable for all kinds of harsh weather conditions;
(4) Long life cycle and low maintenance cost.
2、Technical parameters
| Project | Parameters | Remarks |
| Test conditions: Solar | ||
| Peak power (Pmax) | 30W | radiation simulator with a voltage limit of 15V |
| When paired with the MPP | ||
| Working voltage (Vmpp) | 15V | controller, it can automatically identify and adjust the voltage |
| Working current (Impp) | 1.94A | |
| Battery cell type | Single crystal |
Project
Parameters
Remarks
silicon
| Protection grade | IP67 | Dust-proof and water-proof grade | |
| Temperature range | -40°C ~ +85°C | Working and storage temperature | |
3、Preparations before installation:
1. Preparations before installation:
(1) Confirm that the installation location is unobstructed and well-lit;
(2) Check that the structure of the support is stable and meets the load-bearing requirements;
(3) Prepare the installation tools and accessories (bolts, connectors, et
2. Installation steps:
(1) Fix the components on the bracket and make sure the screws are tightened;
(2) Connect the positive and negative poles of the connector to the storage or the device;
(3) Check the insulation of the circuit and the reliability of the conne


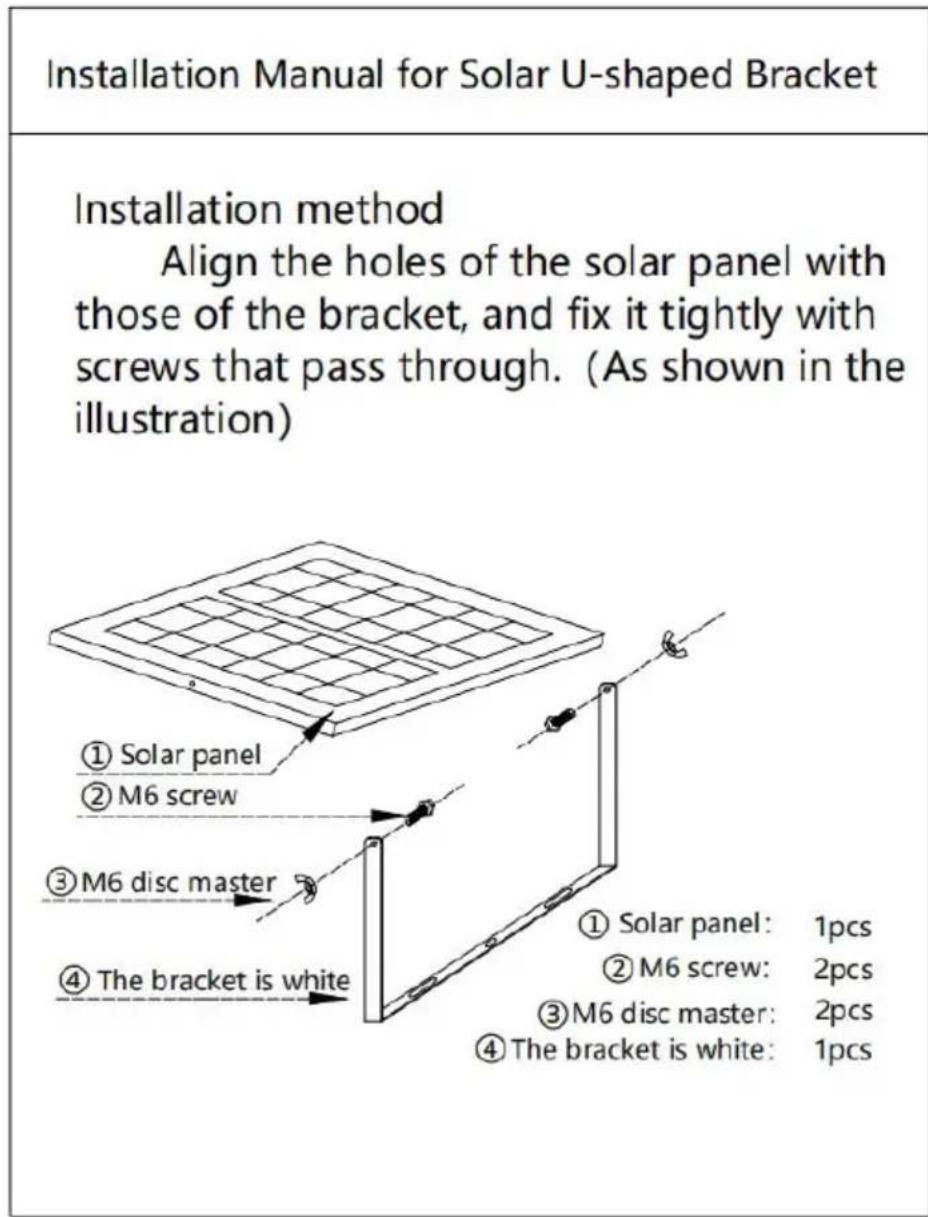

Installation Manual for Solar U-shaped Bracket Installation method Align the holes of the solar panel with those of the bracket, and fix it tightly with screws that pass through. (As shown in the illustration) ① Solar panel ② M6 screw ③ M6 disc master ④ The bracket is white ① Solar panel: 1pcs ② M6 screw: 2pcs ③ M6 disc master: 2pcs ④ The bracket is white: 1pcs3. Precautions:
(1) Avoid scratches or impacts on the component surface during installation;
(2) Avoid scratches or impacts on the component surface during
installation;
(3) Make sure the positive and negative poles are connected correctly prevent short circuits.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>
| EC | REP |
Affordable. Reliable. Home Improvement.
ŁADOWARKA SŁONECZNA
MODEL: 30W
VEVOR
Affordable. Reliable. Home Improvement.
PHOTOVOLTAIC MODULE
PRODUCT
MODEL: 30W
