USER MANUAL A4-D26 Vevor

Lithium Battery Brightpad Instruction is a professional tool for making cartoons and animations, mainly composed of acrylic light guide plates and LED light bars. When using, the copy paper and the draft are overlapped together, you can clearly see the picture on the bottom draft, and copy or modify the painting on the first sheet. The animator can be used to draw the decomposition action of the action (middle picture), and the animator can be used to depict the draft as the original. In addition, it is also suitable for beginners to learn to use.

[Caution]

1. When brightness of brightpad is lower than usually, it will automatically power-of, reminding you that it needs to be charged.
2. To ensure that the life of the lithium battery will be longer, the power switch must be turned off when charging.
3. The red indicator light indicates that it is charging, and the blue indicator light is full.
4. Under normal circumstances: 5 to 6 hours can be used after charging for 2 hours.

[Operating instructions]

Close-up of a black rectangular object with a small protrusion and a ruler on the right side (no visible text or symbols)

Fully charge the Brightpad.1. After press the setting key sketch in a lightly, the copying station starts to work. Press the key again to adjust to the appropriate brightness.

Close-up of a hand pressing a blue circular button on a black tablet with a ruler for scale (no text or symbols visible)

Black and white line drawing of a tiger's head in profile, enclosed in a rectangular frame (no text or symbols)

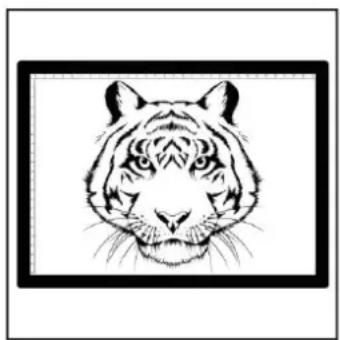

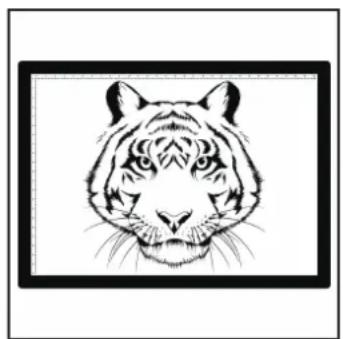

1. Finish drawing, turn off the fixed area, add copy paper to start sketching.

Empty rectangular frame with black border and dotted line on left (no text or symbols)

4. power.

5 Levles dimming that can be optional, hold down the button to adjust brightness

[Product parameters]

Product number:	A4-D26	Input voltage:	5V
Product Size:	339X248X19mm	Rated power:	1.88W
Light emitting area:	309X218mm	Color temperature:	6500K
Life time:	390 minutes	Illumination:	350/680/1000/1320/1620LUX
Charging port:	Type-C Port	Battery Capacity:	2500mAh

Image showing a ruler with measurement markings and a connector, likely from an electronic device interface.

Hand interacting with a tablet displaying a numeric ruler (no text or symbols on the ruler)

Black and white line drawing of a tiger's head in profile, enclosed in a rectangular frame (no text or symbols)

Empty rectangular frame with black border and dotted measurement lines (no text or symbols)

Image showing a ruler measuring a rectangular object with measurement markings and a connector attached.

Close-up of a hand pressing a blue circular icon on a tablet device with a ruler visible on the right (no text or symbols on the device itself)

Black and white line drawing of a tiger's head in profile, enclosed in a rectangular frame (no text or symbols)

Empty rectangular frame with black border and dotted measurement lines (no text or symbols)

Image showing a ruler with measurement markings and a connector, likely from an electronic device interface.

Hand interacting with a tablet displaying a numeric ruler (no text or symbols on the ruler)

Black and white line drawing of a tiger's head in profile, enclosed in a rectangular frame (no text or symbols)

Empty rectangular frame with black border and dotted measurement lines (no text or symbols)

Hand interacting with a digital tablet displaying a measurement ruler (no text or symbols on the device)

Black and white line drawing of a tiger's head with detailed facial features (no text or symbols)

Empty rectangular frame with black border on white background (no text or symbols)

Image showing a ruler measuring a rectangular object with measurement markings and a connector attached.

Hand interacting with a tablet displaying a numeric ruler (no text or symbols on the ruler)

Black and white line drawing of a tiger's head in profile, enclosed in a rectangular frame (no text or symbols)

Empty rectangular frame with black border and dotted measurement lines (no text or symbols)

Image showing a ruler measuring a rectangular object with measurement markings and a connector attached.

Hand interacting with a tablet displaying a numeric ruler (no text or symbols on the ruler)

Black and white line drawing of a tiger's head in profile, enclosed in a rectangular frame (no text or symbols)

Empty rectangular frame with black border and dotted measurement lines (no text or symbols)

Image showing a ruler with measurement markings and a connector, likely from an electronic device interface.

Hand interacting with a tablet displaying a numeric ruler (no text or symbols on the ruler)

Black and white line drawing of a tiger's head in profile, enclosed in a rectangular frame (no text or symbols)

Empty rectangular frame with black border and dotted measurement lines (no text or symbols)

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soi updates on our product.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this product not expressl approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the F Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does ca harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encou

to try to correct the interference by one or more of the followir measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from the which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Correct Disposal

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point recycling electrical and electronic devices.

BATTERY DISPOSAL

To minimize hazards to health and the environment at the end product's life, laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Directive require you dispose of this product at a suitable collection facility where it is sent in order to remove the batteries and for appropriate recycling. Please contact your local authorities for more details on recycling and safe disposal of these in your area.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
