1530OV - Pool accessory Vevor - Free user manual and instructions

Product Type	Pool liner protective mat
Model	1530OV
Brand	Vevor
Dimensions	15 x 30 feet (4.57 x 9.14 m)
Net Weight	7 kg
Color	Black
Weight	180 g/m²
Material	Non-woven fabric (polypropylene or similar)
Use	Under pool liner, on sand bed
Installation	Unfold 24 hours before, place on leveled sand
Load Capacity	Supports liner and water (do not sit or stand)
Safety	Do not use as a toy, inspect before each use
Maintenance	Clean with fresh water, dry before storage
Storage	In a dry, clean place, away from sunlight
Warranty	Manufacturer's warranty (see electronic certificate at vevor.com/support)
Compatibility	Above-ground pools, oval or round shape (models 15x30 ft)
Optional Accessories	Foam honeycomb (installed after the mat)

Frequently Asked Questions - 1530OV Vevor

How to install the Vevor 1530OV protective mat?

Unfold the mat 24 hours before installation to allow the folds to relax. Prepare a leveled sand bed at the bottom of the pool, then spread the mat evenly. If you are using foam cells, install them afterwards.

What is the weight capacity of this mat?

The mat is designed to support the weight of the liner and pool water. It should not be used as a surface to sit or stand. The maximum load depends on the overall structure.

Can I cut the mat to fit my pool?

Yes, you can cut the mat with scissors or a utility knife to adjust it to your pool's shape. Make sure the edges are smooth to prevent lifting.

Does the mat protect the liner from punctures?

Yes, the mat provides an extra layer of protection between the pool bottom and the liner, reducing the risk of punctures from roots, stones, or ground irregularities.

How to maintain and clean the mat?

Clean the mat with fresh water after disassembling the pool. Let it dry completely before storing in a dry place away from sunlight to prevent material degradation.

Is this mat compatible with above-ground pools?

Yes, this mat is specially designed for above-ground pools. Make sure the dimensions match your pool (15 x 30 feet for model 1530OV).

Do I need sand under the mat?

Yes, it is recommended to create a leveled sand bed under the mat to ensure a smooth and stable surface. Sand ridges can be formed to hold the liner in place.

Is the mat UV resistant?

The mat is made of black non-woven fabric, which offers some UV resistance. However, it is advisable not to expose it to prolonged direct sunlight when not in use.

What is the lifespan of the mat?

With proper maintenance (cleaning, drying, storage away from light), the mat can last several seasons. The exact lifespan depends on usage and storage conditions.

Where can I find spare parts or warranty?

The electronic warranty and technical support are available at www.vevor.com/support. For spare parts, contact Vevor customer service via the same website.

USER MANUAL 1530OV Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

POOL LINER PAD

USER MANUAL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Stacked black fabric or towel with visible folds and texture (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Pool Liner Pad.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Pool Liner Pad.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

POOL LINER PAD INSTALLATION INSTRUCTIONS

For best results, unfold the LinerLife line pad 24 hrs prior to installation allow crease lines to smooth out.

1. After the pool wall has been assembled, smooth and level the appropriate amount of sand on the pool floor. Sand coves should be created at this time as well.

NOTE: If foam coves are being used, install after the pad has been down.

1. Spread the precut pool liner over the sand, ensuring it is even around perimeter of the pool.

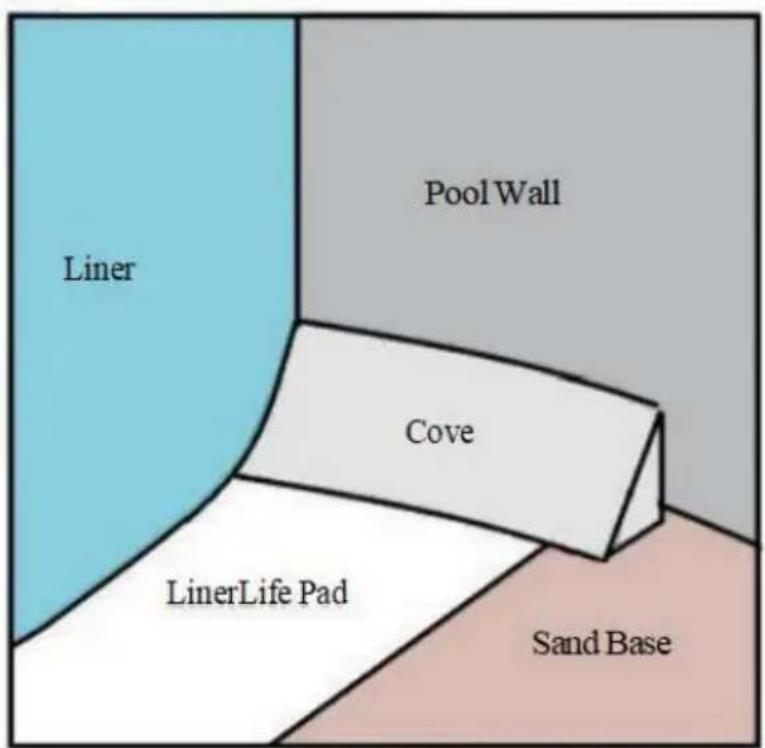

2. If a foam cove is being used, install it over the liner pad (as shown illustration right).

3. Install the liner over the liner pad and foam cove (if applicable)

Model:	Size	colour	Net weight
18R	18ft 180g/m2	black	4.5kg
15R	15ft 180g/m2	black	3kg
12R	12ft 180g/m2	black	2kg
24R	24ft 180g/m2	black	7.7kg
21R	21ft 180g/m2	black	6.3kg
27R	27ft 180g/m2	black	9.85kg
1530OV	15*30ft 180g/m2	black	7kg
1833OV	18*33ft 180g/m2	black	9.4kg
1224OV	12*24ft 180g/m2	black	4.7kg
1632RE	16*32ft 180g/m2	black	8.7kg
1224RE	12*24ft 180g/m2	black	5.1kg

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELE:18R, 15R, 12R, 24R, 21R, 27R,

1530OV, 1833OV, 1224OV, 1632RE, 1224RE
