15R - Pool accessory Vevor - Free user manual and instructions

Product Type	Pool liner protective mat
Model	15R
Brand	Vevor
Dimensions	15 feet (approx. 4.57 m) diameter
Net weight	3 kg
Material	Non-woven, 180 g/m²
Color	Black
Main functions	Protects the liner from tears and abrasion, cushions shocks, insulates from the ground
Installation	Unfold 24 hours before, place on leveled sand, liner on top
Maintenance and cleaning	Clean with clear water and air dry; avoid harsh chemicals
Safety	Do not sit or stand on it; do not use if damaged
Warranty	Manufacturer's warranty included, technical support at www.vevor.com/support
Country of origin	China
Compatible models	18R, 15R, 12R, 24R, 21R, 27R, and oval versions

Frequently Asked Questions - 15R Vevor

What is the diameter of the Vevor 15R pool mat?

The Vevor 15R pool mat has a diameter of 15 feet, approximately 4.57 meters.

How to install the liner mat?

Unfold the mat 24 hours before installation to allow it to flatten. Assemble the pool wall, then level and smooth the sand at the bottom. Place the liner mat on the sand, ensuring it is centered. Then install the liner on top.

Does the liner mat replace the sand?

No, the mat is placed on a leveled sand base. It protects the liner from ground irregularities but does not replace bottom preparation.

How to clean the pool mat?

Clean the mat with clear water and let it dry completely in the open air. Avoid harsh chemicals that could damage the fabric.

Can I use the mat without a liner?

No, the mat is designed to be used under the pool liner. It does not replace the liner and is not waterproof.

What maximum weight can the mat support?

The mat supports the weight of the water and the installed liner. It is not designed to support point loads such as a person. Do not sit or stand on it.

Is the mat suitable for an oval pool?

The 15R model is round. For oval pools, Vevor offers specific models such as the 1530OV (15x30 feet) or the 1833OV.

What is the color of the 15R mat?

The Vevor 15R mat is black.

Is the mat warranted?

Yes, Vevor offers a manufacturer's warranty. For technical support and the electronic warranty certificate, go to www.vevor.com/support.

Can the mat be cut to fit?

It is not recommended to cut the mat as this could compromise its protection. It is better to choose the size suitable for your pool.

USER MANUAL 15R Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

POOL LINER PAD USER MANUAL

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, drugs, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of supporting the Pool Liner Pad.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded Pool Liner Pad.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

POOL LINER PAD INSTALLATION INSTRUCTIONS

For best results, unfold the LinerLife line pad 24 hrs prior to installation to allow crease lines to smooth out.

1. After the pool wall has been assembled, smooth and level the appropriate amount of sand on the pool floor. Sand coves should be created at this time as well.

NOTE: If foam coves are being used, install after the pad has been down.

1. Spread the precut pool liner over the sand, ensuring it is even around the perimeter of the pool.

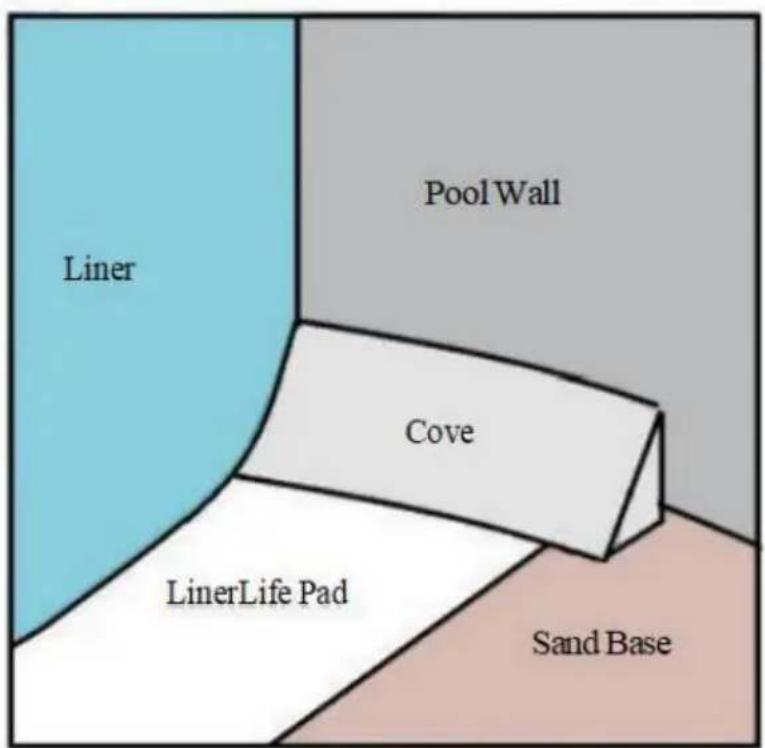

2. If a foam cove is being used, install it over the liner pad (as shown in the illustration on the right).
3. Install the liner over the liner pad and foam cove (if applicable).

Model:	Size	colour	Net weight
18R	18ft 180g/m2	black	4.5kg
15R	15ft 180g/m2	black	3kg
12R	12ft 180g/m2	black	2kg
24R	24ft 180g/m2	black	7.7kg
21R	21ft 180g/m2	black	6.3kg
27R	27ft 180g/m2	black	9.85kg
1530OV	15*30ft 180g/m2	black	7kg
1833OV	18*33ft 180g/m2	black	9.4kg
1224OV	12*24ft 180g/m2	black	4.7kg
1632RE	16*32ft 180g/m2	black	8.7kg
1224RE	12*24ft 180g/m2	black	5.1kg
