Product Type	Pool protection mat (liner pad)
Brand	Vevor
Model	1224RE
Dimensions	12 x 24 feet (approx. 3.66 x 7.32 m)
Net weight	5.1 kg
Density	180 g/m²
Color	Black
Material	Non-woven (felt) or similar
Main functions	Protect the pool liner against tears and wear, cushion ground irregularities
Installation	Unfold 24 hours before, place on leveled sand, install liner on top
Maintenance and cleaning	Clean with clear water, air dry before storage
Safety	Do not sit or stand on it, do not use as a toy, check before each use
Load capacity	Use only under liner, no direct load specified
Spare parts and repairability	Product not repairable, parts not available, replacement recommended
Warranty	Electronic warranty via www.vevor.com/support
Country of manufacture	China (Shanghai)
General information	Manual available in multiple languages, online technical support

Frequently Asked Questions - 1224RE Vevor

How to install the Vevor 1224RE pool mat?

To install the pool liner mat, unfold it 24 hours in advance to let the creases settle. Level the sand at the bottom of the pool, then spread the mat evenly on the sand. Then, install the liner on top.

What are the exact dimensions of model 1224RE?

Model 1224RE measures 12 feet by 24 feet, i.e. approximately 3.66 meters by 7.32 meters.

What is the weight of the 1224RE mat?

The net weight of the 1224RE mat is 5.1 kg.

Can this mat be used without sand underneath?

It is recommended to smooth and level a layer of sand on the pool bottom before laying the mat. The sand ensures a stable base and protects the liner.

How to clean the Vevor pool mat?

Clean the mat with clear water after use and let it dry completely in the open air before storing. Avoid harsh chemicals.

Is the mat compatible with all types of pools?

This mat is designed for above-ground pools with liner. It is compatible with pools measuring 12x24 feet. Ensure the bottom is flat and free of bumps.

Can the mat be used as a play area?

No, this product is not a toy. It is strictly forbidden to sit or stand on it. Use it only as liner protection.

What is the density of the 1224RE mat?

The mat has a density of 180 g/m², which provides good protection against tears and wear.

Where to find the user manual in French?

The manual is available for free on notice-facile.com. You can download it in PDF format. Technical assistance is also available at www.vevor.com/support.

How to store the mat after the season?

After cleaning and complete drying, fold the mat and store it in a dry place away from direct sunlight to prevent material degradation.

USER MANUAL 1224RE Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

POOL LINER PAD

USER MANUAL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of supporting the Pool Liner Pad.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unpack and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded Pool Liner Pad.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

POOL LINER PAD INSTALLATION INSTRUCTIONS

For best results, unfold the LinerLife line pad 24 hrs prior to installation to allow crease lines to smooth out.

1. After the pool wall has been assembled, smooth and level the appropriate amount of sand on the pool floor. Sand coves should be created at this time as well.

NOTE: If foam coves are being used, install after the pad has been down.

1. Spread the precut pool liner over the sand, ensuring it is even around the perimeter of the pool.

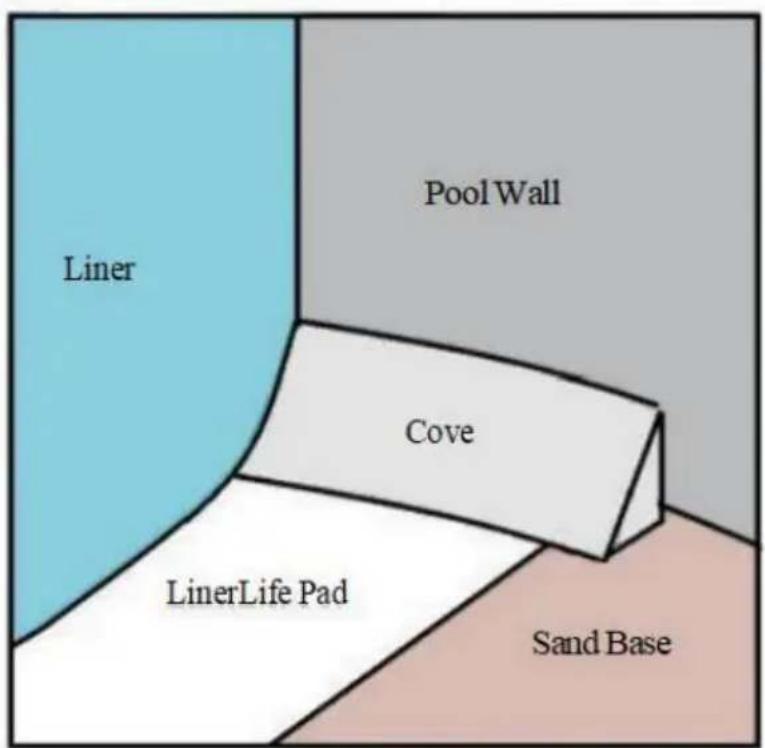

2. If a foam cove is being used, install it over the liner pad (as shown in illustration on the right).
3. Install the liner over the liner pad and foam cove (if applicable).

Model:	Size	colour	Net weight
18R	18ft 180g/m2	black	4.5kg
15R	15ft 180g/m2	black	3kg
12R	12ft 180g/m2	black	2kg
24R	24ft 180g/m2	black	7.7kg
21R	21ft 180g/m2	black	6.3kg
27R	27ft 180g/m2	black	9.85kg
1530OV	15*30ft 180g/m2	black	7kg
1833OV	18*33ft 180g/m2	black	9.4kg
1224OV	12*24ft 180g/m2	black	4.7kg
1632RE	16*32ft 180g/m2	black	8.7kg
1224RE	12*24ft 180g/m2	black	5.1kg

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia.

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730.
