USER MANUAL 1104A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PIPE STANDS

MODEL: 1104A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 1104A

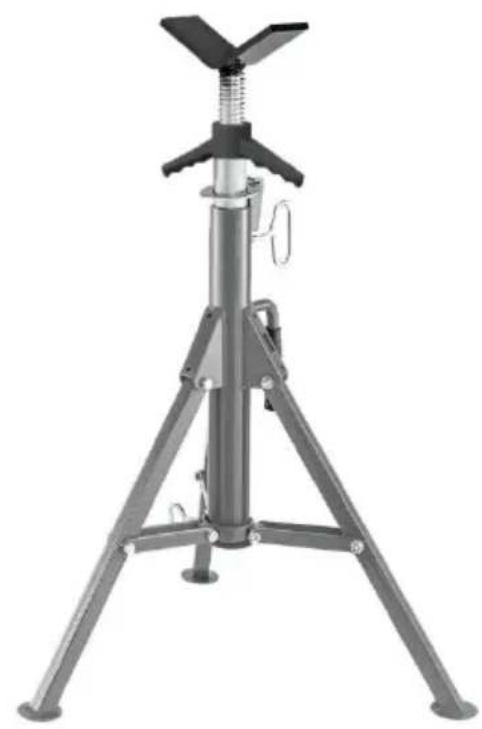

Metal tripod-mounted industrial machine with adjustable boom and support (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Wear protective gloves.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since believe that the uses will comply with these codes.

1. Please read ALL the instructions before using your machine.
2. Failure to properly support the pipe may result in tipping of the standing dropping of the pipe, or serious injuries.
3. Use the appropriate safety equipment for the intended job such as eye protection, hearing protection, feet protection, dusk masks, face shields, etc. to reduce the risk of injuries.
4. Assemble needs to follow these instructions. Incorrect assembly can be a hazard. Wear heavy-duty work gloves during assembly.
5. Do not assemble and use when tired or when under the influence of alcohol drugs or medication.
6. Keep the assembly area clean and well-lit.
7. Keep bystanders out of the area during assembly.
8. Do not allow children and pets to play alone or approach this item. Don't Products.
9. Inspect before every use. Do not use it if parts are loose or damaged. Be aware of the following potential hazards:

- Missing, damaged or improperly positioned frame padding.

- Bent or broken frame.

- Loose or missing bolts. Loosened legs.

1. People or objects hanging on the product will cause the product to fall.
2. Pay attention to pedestrians and vehicles when using.

3. Do not apply this unit to any other purposes than the indicated usage. Changes to any parts or structure of the product are allowed.

4. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.

5. Never leave it unattended while in use.

6. Do not stand or sit on the product.

7. Pet urine and feces can damage the product, please keep away.

8. Do not place the product on or near hot air, electric burners or heaters.

9. The product should be placed on a flat surface. And it should be install open and safe place.

10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.

11. Must be obeyed pipe diameter size / weight / high limit: check size cha

12. Make sure there are no people, children, pets, animals, obstructions underneath the product.

13. Artificial illumination may be required for indoor or shady areas.

14. The metal frame of the product can conduct electricity. All lamps, extensi cords and similar electronic devices must not come into contact with the fran

WARNING:

1. This appliance is not intended for use by young or infirm persons. children should be supervised to ensure that they do not play with the product. Pets should stay away from the product. Do not use outdoors or rainy and cloudy days and strong wind conditions, avoid lightning strikes and falls.

2. Hand screw, wear, damage, or other issues that may affect safe use any problems are found, discontinue use until the stand is repaired. Keep stand clean and all moving parts lightly lubricated to aid in operation.

3. Be careful not to dump the product when placing the pipeline.

4. The product may be unstable when it rises to the maximum height, please pay attention!

MAX SIZE / WEIGHT

Pipe diameter size limit: 1/2 inch to 12 inch (12.7mm to 304.8mm)

Max Weight limit: Max2500 Pound (about 1134Kg)

Height range: 27.95 inch to 51.97 inch (710-1320mm)

Attention: 1. Do not exceed the limit value when using.

1. The product may be unstable when it rises to the maximum height, pleas attention!

Notice: Height refers to the ground to the lowest point of the V-groove.

PRODUCT PARTS

1. Please dispose of all plastic bags carefully and keep them away from chi and pets.
2. Check all components provided according to the list in this manual. Make s you have all of the parts listed.
3. Although paying particular attention when manufacturing this product, you may be careful during the assembly process to avoid being scratched by sharp ed
4. Wear protective gloves, during assembly and use.
5. The product should be placed on a flat surface.

Notice: The quantity of parts shown in the manual is the actual usage and unused parts are spare parts.

Parts No.	Picture		Qty	Parts No.	Picture	Qty
1V head&Screw			1 PCS	6Support foot	[5426]	3 PCS
2Adjusting handle			1 PCS	7Connection Strap		6 PCS
3Safety Clasp			1 PCS	8Nut & blot		9 sets
4Speciallock nut			2 PCS	9Steel pipe	###	1 PCS
5Supportbody			1PCS	10Bolt & SafetyClasp		1 PCS

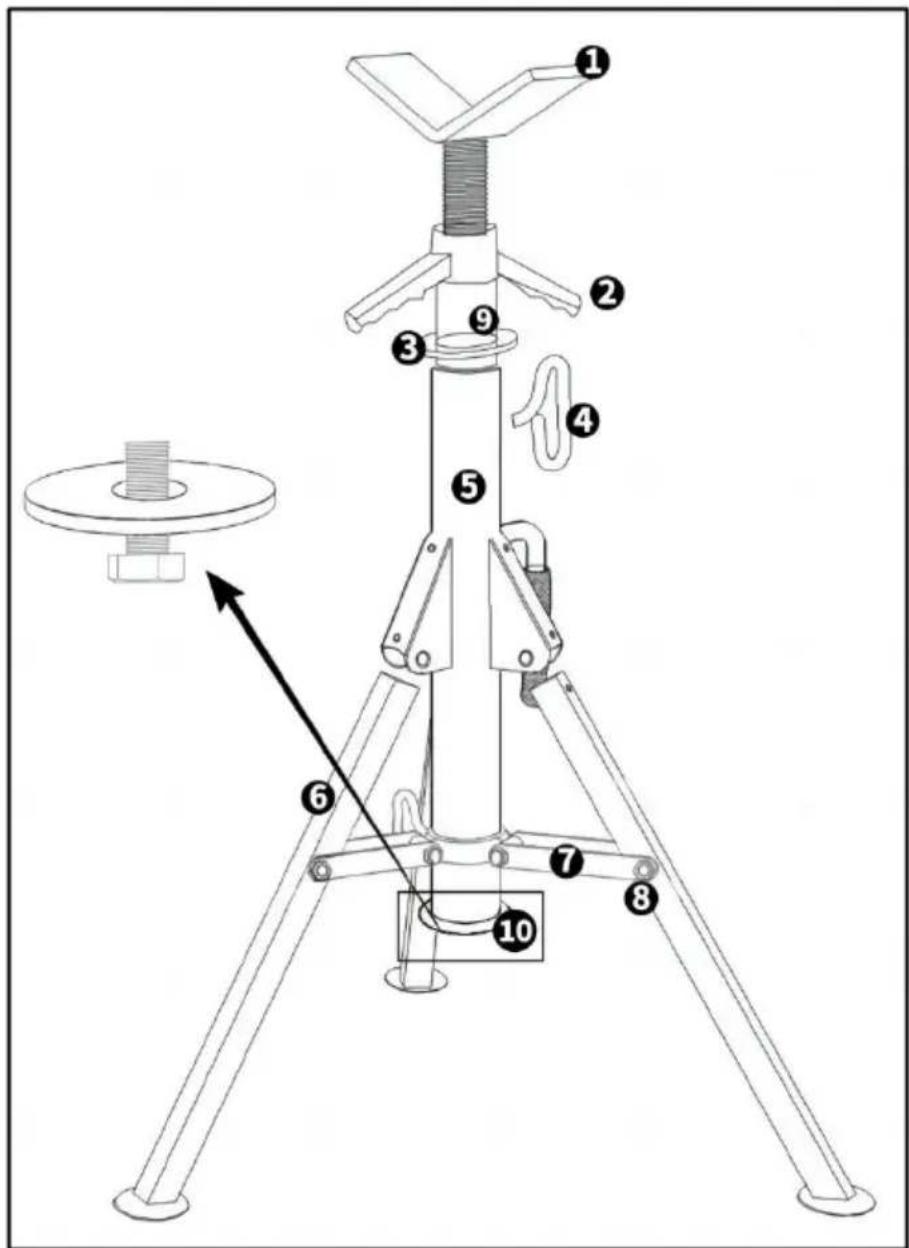

EXPLOSION DIAGRAM

Technical diagram of a mechanical device with numbered components and an arrow indicating direction or force

Notice: The product should be placed on a flat surface. Please check whether the product is installed correctly and firmly, and read the safety information in the manual again.

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad.
2. Children are not allowed to wipe the product to avoid tipping and falling injuries.
3. After disassembling the product, please assemble the parts and accessories. Be sure to the product dry.
4. Please clean regularly to avoid dirt.

Notice: Screw the bolts back into the product after removal to prevent them from being in. Notice: Always ensure that all legs are firmly screwed into place and that all bolts are tight before using again.

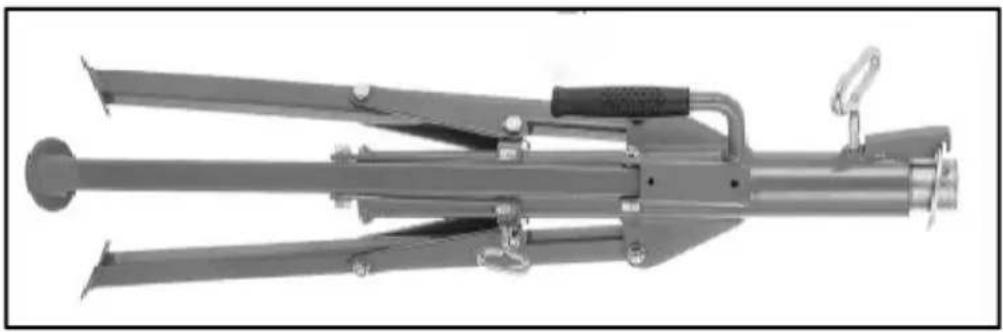

Mechanical tool with articulated arms and handle, no visible text or symbols

TIPS

1. Lubricate with industrial grease regularly to prevent rust and improve the use effect.
