1110A - Tool holder Vevor - Free user manual and instructions

Product type	Pipe support (roller)
Brand	Vevor
Model	1110A
Maximum load capacity	2500 lb (approx. 1134 kg)
Compatible pipe diameter	2 to 36 inches (50.8 to 914.4 mm)
Main material	Steel (not specified, estimate)
Number of rollers	2
Number of supports	2 support bodies + 1 support leg
Roller type	Metal roller
Net weight	Not specified (estimate: about 15-25 kg)
Assembled product dimensions	Not specified (estimate: adjustable length according to pipe)
Power supply	None (manual tool)
Main functions	Support and rotation of pipes during welding, assembly or inspection
Maintenance and cleaning	Wipe with a soft dry cloth; lubricate regularly with industrial grease
Safety instructions	Wear gloves and goggles; do not use if tired or under influence; check before each use; do not exceed max load; do not climb or sit
Spare parts and repairability	Bolts, nuts, rollers, support bodies, support leg replaceable
General information	Made in China; technical assistance and warranty at www.vevor.com/support

Frequently Asked Questions - 1110A Vevor

What is the maximum weight supported by the Vevor 1110A pipe support?

The maximum weight is 2500 lb (approximately 1134 kg). Never exceed this limit to avoid any risk of tipping or breakage.

What pipe diameters are compatible?

The support accepts pipes with a diameter of 2 to 36 inches (50.8 to 914.4 mm). Make sure your pipe is within this range.

How to assemble the pipe support?

Follow the manual instructions: screw the rollers onto the support bodies, fasten the special nuts, then mount the support leg. Use gloves during assembly to avoid injury from sharp edges.

How to clean and maintain the product?

Wipe regularly with a soft dry cloth. Do not use abrasive cleaners. To prevent rust, lubricate moving parts with industrial grease.

Is it possible to use this support outdoors?

Yes, but avoid rainy, windy or stormy days. Place it on a flat and stable surface. Do not leave it unattended.

Is the support intended for people with reduced abilities?

No, this appliance is not intended for persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience. Supervise children and animals.

Can I stand on the support?

No, it is forbidden to stand, sit or climb on the product. This could cause tipping and serious injury.

How to store the support when not in use?

Disassemble the product, clean it, dry it and store it in a dry place. Screw the bolts back after disassembly to avoid losing them.

Where can I find spare parts?

Spare parts (rollers, nuts, support bodies) are available on the website www.vevor.com/support or by contacting customer service.

What to do if a part appears damaged or missing?

Before each use, inspect the product. If a part is loose, bent or broken, do not use it. Contact technical service via www.vevor.com/support for advice or replacement parts.

USER MANUAL 1110A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

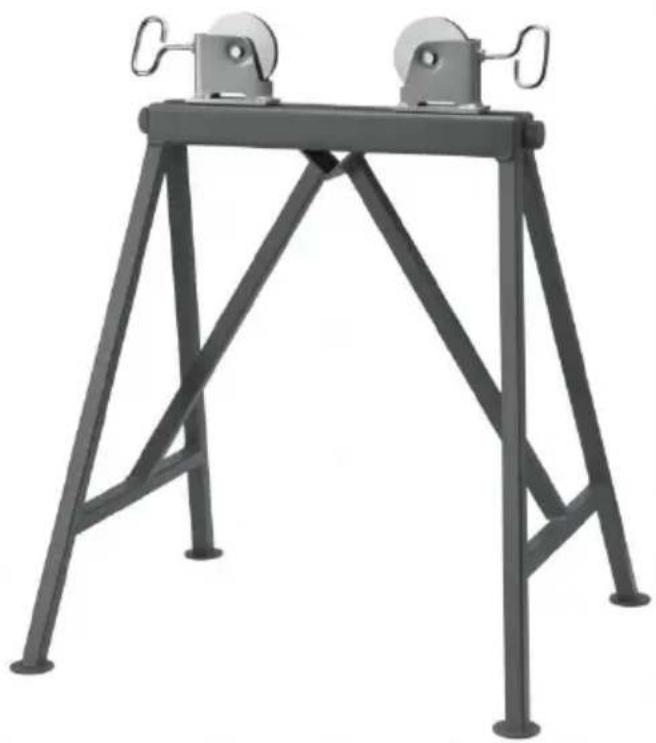

PIPE STANDS

MODEL: 1110A

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. You are kindly reminded to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

MODEL: 1110A

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Wear protective gloves.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes.

1. Please read ALL the instructions before using your machine.
2. Failure to properly support the pipe may result in tipping of the stand, dropping of the pipe, or serious injuries.
3. Use the appropriate safety equipment for the intended job such as eye protection, hearing protection, feet protection, dust masks, face shields, etc. to reduce the risk of injuries.
4. Assembly needs to follow these instructions. Incorrect assembly can be a hazard. Wear heavy-duty work gloves during assembly.
5. Do not assemble and use when tired or when under the influence of alcohol, drugs, or medication.
6. Keep the assembly area clean and well-lit.
7. Keep bystanders out of the area during assembly.
8. Do not allow children and pets to play alone or approach this item. Don't Products.
9. Inspect before every use. Do not use it if parts are loose or damaged. Be aware of the following potential hazards:

- Missing, damaged, or improperly positioned frame padding.

- Bent or broken frame.

- Loose or missing bolts. Loosened legs.

1. People or objects hanging on the product will cause the product to fall.
2. Pay attention to pedestrians and vehicles when using.
3. Do not apply this unit to any other purposes than the indicated usage. Changes to any parts or structure of the product are allowed.
4. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
5. Never leave it unattended while in use.
6. Do not stand or sit on the product.
7. Pet urine and feces can damage the product, please keep away.
8. Do not place the product on or near hot air, electric burners or heaters.
9. The product should be placed on a flat surface. And it should be installed in an open and safe place.
10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.
11. Must be obeyed pipe diameter size / weight limit: check size chart.
12. Make sure there are no people, children, pets, animals, obstructions underneath the product.
13. Artificial illumination may be required for indoor or shady areas.
14. The metal frame of the product can conduct electricity. All lamps, extension cords and similar electronic devices must not come into contact with the frame.

WARNING:

1. This appliance is not intended for use by young or infirm persons. Children should be supervised to ensure that they do not play with the product. Pets should stay away from the product. Do not use outdoors or on rainy, cloudy days, or in strong wind conditions, to avoid lightning strikes and falls.
2. Check for hand screw wear, damage, or other issues that may affect safe use. If any problems are found, discontinue use until the stand is repaired. Keep the stand clean and all moving parts lightly lubricated to aid in operation.
3. Be careful not to tip over the product when placing the pipeline.

MAX SIZE / WEIGHT

Pipe diameter size limit: 2 inch to 36 inch (50.8mm to 914.4mm)

Max Weight limit: Max 2500 Pound (about 1134Kg)

Attention: Do not exceed the limit value when using.

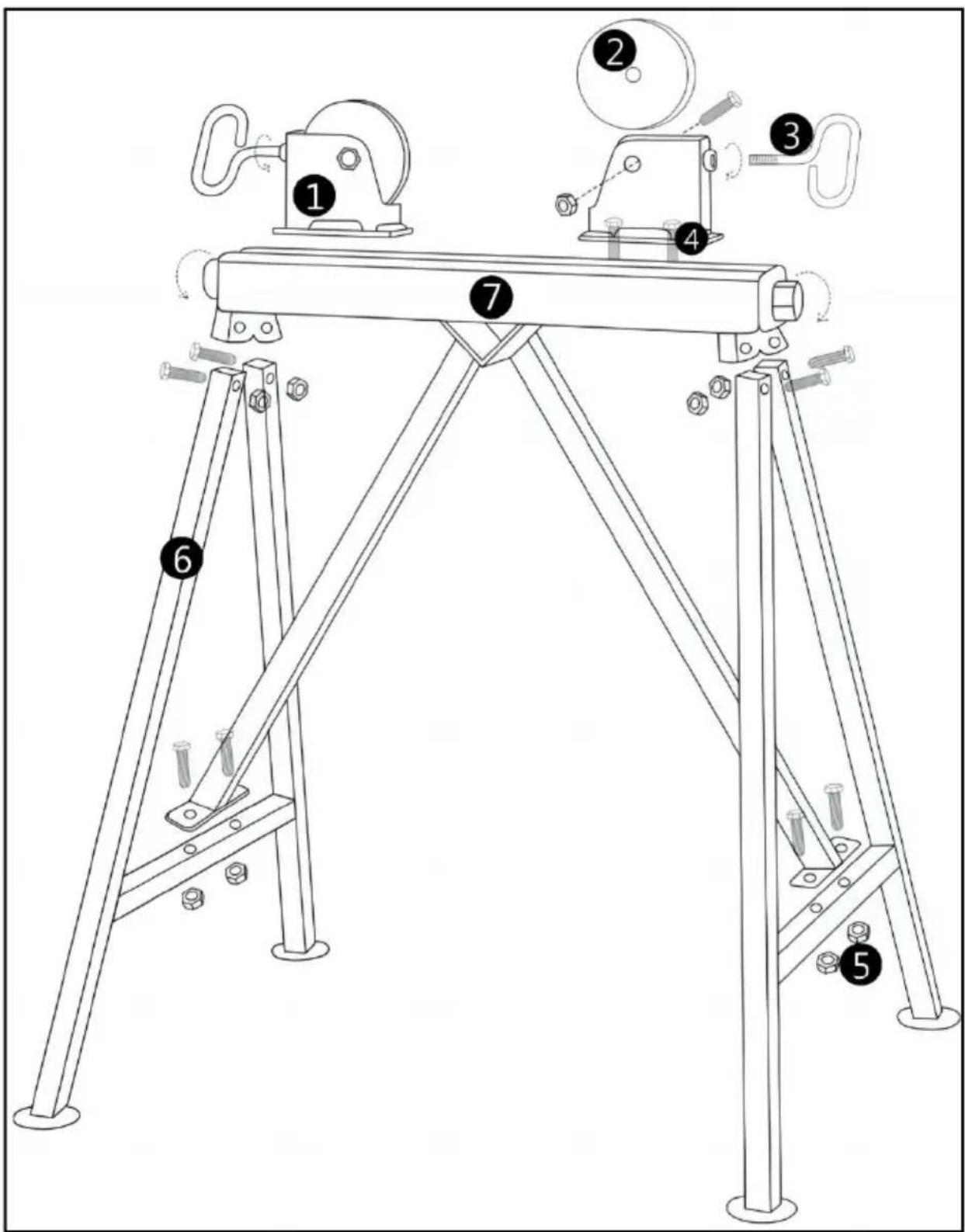

PRODUCT PARTS

1. Please dispose of all plastic bags carefully and keep them away from children and pets.
2. Check all components provided according to the list in this manual. Make sure you have all of the parts listed.
3. Although particular attention is paid when manufacturing this product, you should be careful during the assembly process to avoid being scratched by sharp edges.
4. Wear protective gloves during assembly and use.
5. The product should be placed on a flat surface.

Notice: The quantity of parts shown in the manual is the actual usage; unused parts are spare parts.

Parts No.	Picture	Qty	Parts No.	Picture	Qty
1Rollersleeve		2 PCS	5Nut & blot		10sets
2Roller		2 PCS	6Support body		2 PCS
3Speciallock nut		2 PCS	7Support foot		1 PCS
4Nut & blot		4 PCS

Notice: The product should be placed on a flat surface. Please check whether the product is installed correctly and firmly, and read the safety information in the manual again.

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad.
2. Children are not allowed to wipe the product to avoid tipping and falling injuries.
3. After disassembling the product, please assemble the parts and accessories. Be sure to keep the product dry.
4. Please clean regularly to avoid dirt.

Notice: Screw the bolts back into the product after removal to prevent them from being lost. Notice: Always ensure that all legs are firmly screwed into place and that all bolts are tight before using again.

TIPS

1. Lubricate with industrial grease regularly to prevent rust and improve the use effect.
