USER MANUAL 07TU-CH Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

REAR BUMPER

MODEL:07TU-CH

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

REAR BUMPER

MODEL: 07TU-CH

Front view of a black plastic car bumper with mounting holes and side grilles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable prope

• Avoid children using the product. And this product is not a toy. Do not a children to play.
• It is highly recommended to go to a professional auto repair shop for replacement installation.

●

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and use.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drug medication.
6. Product capabilities apply to properly and completely assembled product only
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's

SAVE THESE INSTRUCTIONS

FCC INFORMATION FOR LIGHT:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the distance between the product and receiver.

- Connect the product to an outlet on a circuit different from that to which receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

CORRECT DISPOSAL FOR LIGHT

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories mar

with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical electronic devices.

SPECIFICATION

Model	07TU-CH
Material	Steel
Rating for light	DC12V 5W
Color	White&Black
Suitable vehicle	2007-2013-Toyota Tundra

PACKAGE LIST

No.	Name	Picture	QTY
1	Rear Bumper		1
2	Mounting bracket		2
3	Screw(M6*20)		2
4	buckle		2
5	Manual		1

INSTALLATION

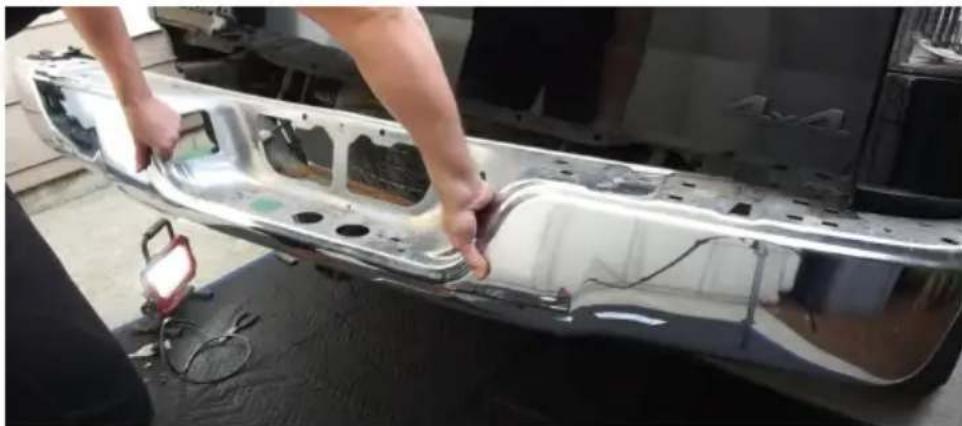

STEP 1: Remove the Rear Bumper

1. Remove the screws on both sides of the bumper and the bracket then remove the wiring of the original license plate light.and than Ren the old bumper.

Person installing or adjusting a metallic car body panel on a workbench (no visible text or symbols)

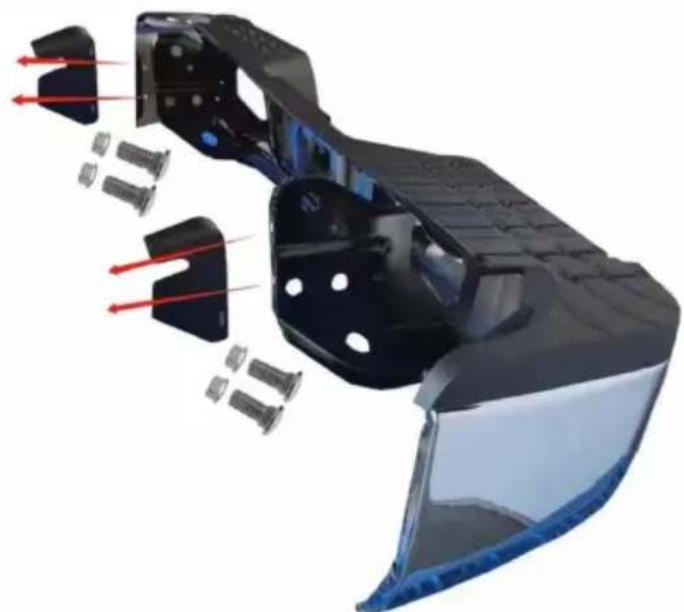

STEP 2: First, install the loading bracket *2 on the rear bar body respectively, as shown in the figure.

Cutaway view of a vehicle's internal components showing red laser beams and structural parts (no text or symbols)

STEP 3: Bumper mounting

Raise the body bumper and use body screws to connect the loading bracket to the rear fixed beam.

Close-up of a person installing or adjusting the back panel of a black BMW A4A vehicle (no visible text or symbols)

STEP 4: After fixing, connect the license plate light with the wiring h of the body, make it energized and check whether it can be used n

Cautions: License lights and lampshades can be replaced if necessary.
