USER MANUAL XMRS50-4-2 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
RATCHET STRAP
USER MANUAL
MODEL: XMRS25-4/XMRS38-4/XMRS50-4 XMRS50-4-2/XMRS50-4-3/XMES50-8/XMFS-10
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands
VEVOR®
TOUGH TOOLS, HALF PRICE

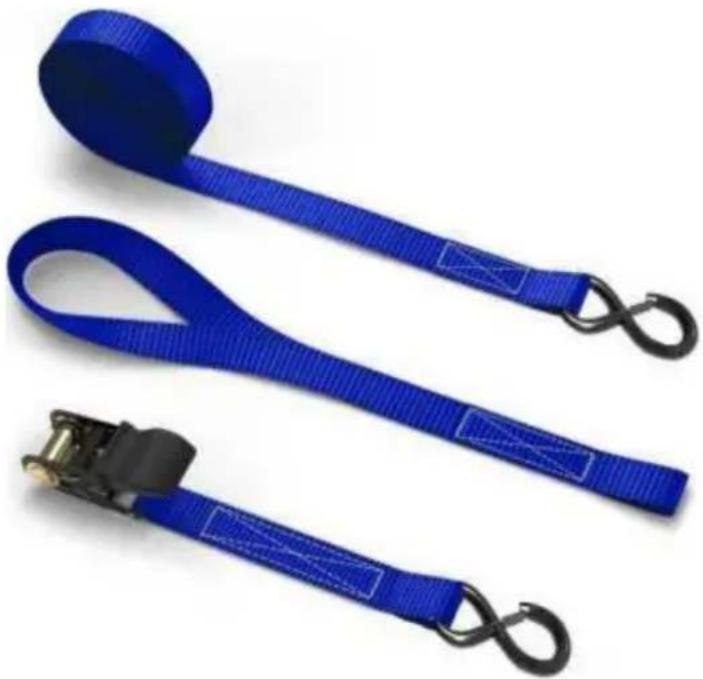

RATCHET STRAP
MODEL: XMRS25-4/XMRS38-4/XMRS50-4 XMRS50-4-2/XMRS50-4-3/XMES50-8/XMFS-10
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.
WARNING:
Read this material before using this product. Failure to do so can result serious injury.
Precautions
- Assemble only according to these instructions. Improper assembly can create hazards.
- Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
- Keep assembly area clean and well lit.
- Keep bystanders out of the area during assembly.
- Do not assemble when tired or when under the influence of alcohol, drugs or medication.
- Do not overload the chock tie. Never exceed the maximum weight capacity of the parameter table.
RATCHET INSTRUCTIONS

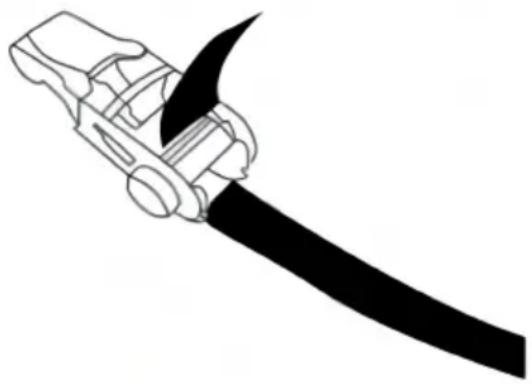

STEP 1


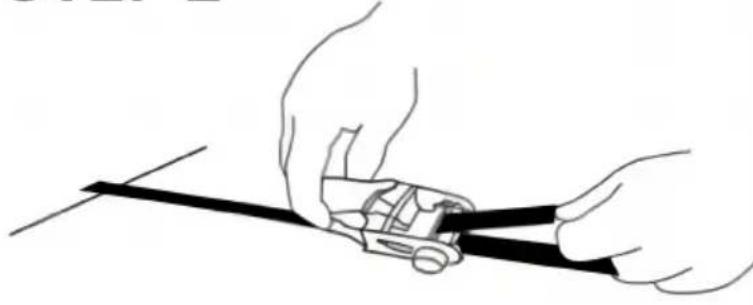

STEP 2 | Pull webbing through, removing the slack. |

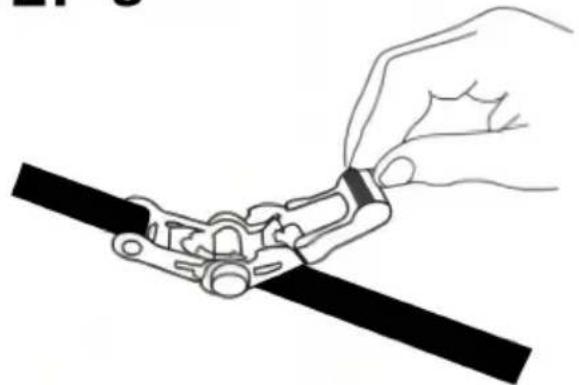

STEP 3 | Start ratcheting--raising and lowering handle. |

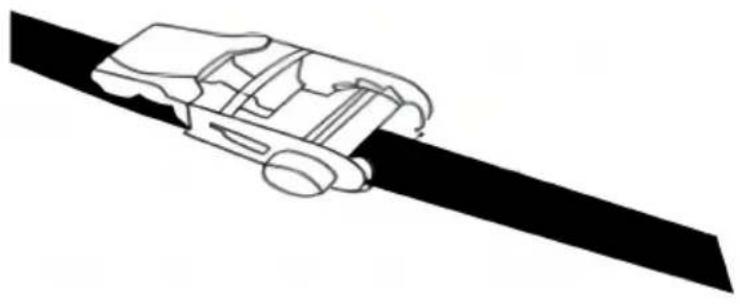

STEP 4 | Finish ratcheting with lowered handle. |
RELEASE INSTRUCTIONS

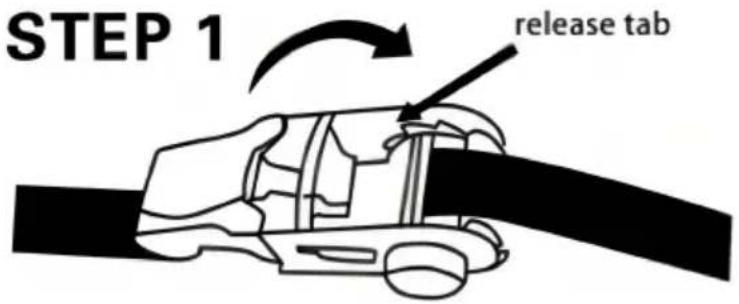

 | Pull&hold release tab(to override ratcheting function). |
STEP 2 | Open ratchet until it is completely open and flat. |

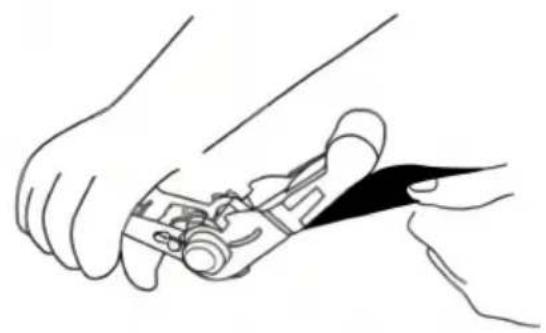

STEP 3 | Remove webbing from ratchet by gently pulling out. |

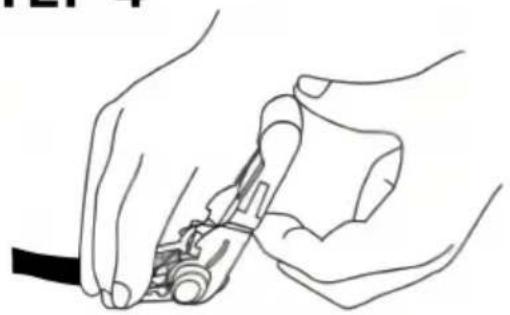

STFP 4 | Pull and hold release tab close ratchet. |
| Items | Description | |
| 1 | Name | Ratchet Strap with S Hooks |
| 2 | Model | XMRS25-4 |
| 3 | Parameter | 1inx15ft, WLL =733LBS, MBS=2200LBS, 4PCS, S Hooks |
| 4 | Package Size | 260x155x100mm |
| 5 | G.W. | 2.78KG |
| Items | Description | |
| 1 | Name | Ratchet Strap with S Hooks |
| 2 | Model | XMRS38-4 |
| 3 | Parameter | 1.6inx8ft, WLL =1738LBS, MBS=5208LBS, 4PCS, S Hooks |
| 4 | Package Size | 265x165x140mm |
| 5 | G.W. | 4.48KG |
| Items | Description | |
| 1 | Name | J-Hook Ratchet Strap |
| 2 | Model | XMRS50-4 |
| 3 | Parameter | 2inx27ft, WLL =3333LBS, MBS=10000LBS, 4PCS, J Hooks |
| 4 | Package Size | 265x260x230mm |
| 5 | G.W. | 10KG |
| Items | Description | |
| 1 | Name | J-Hook Ratchet Strap |
| 2 | Model | XMRS50-4-2 |
| 3 | Parameter | 2inx15ft, WLL =1666LBS, MBS=5000LBS, 4PCS, J Hooks |
| 4 | Package Size | 355x260x125mm |
| 5 | G.W. | 6.75KG |
| Items | Description | |
| 1 | Name | J-Hook Ratchet Strap |
| 2 | Model | XMRS50-4-3 |
| 3 | Parameter | 2inx8ft, WLL =3700LBS, MBS=11128LBS, 4PCS, J Hooks |
| 4 | Package Size | 500x225x160mm |
| 5 | G.W. | 9.77KG |
| Items Description | ||
| 1 | Name E-Track Ratchet Straps | |
| 2 | Model XMES50-8 | |
| 3 | Parameter | 2inx15ft, WLL =1460LBS, MBS=4400LBS, 8PCS, E-Track |
| 4 | Package Size 315x175x200mm | |
| 5 | G.W. 7.32KG | |
| Items Description | |
| 1 | Name Ratchet Strap with flat Hooks |
| 2 | Model XMFS-10 |
| 3 | Parameter 2inx30ft, WLL =3333LBS, MBS=10000LBS, 10PCS, Flat Hooks |
| 4 | Package Size 580x260x230mm |
| 5 | G.W. 26.2KG |
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
